MODELLING AND FORMAL SPECIFICATION OF A

MULTIAGENT TELEMEDICINE SYSTEM FOR

DIABETES CARE

Iñaki Martinez-Sarriegui

1,2

Hong Zhu

, Lijun Shan

, Gema García-Sáez

1,2

, Enrique J. Gómez

1,2

and M. Elena Hernando

1,2

Bioengineering and Telemedicine Centre, Politechnical University of Madrid, Spain

CIBER-BBN Networking Research Centre, Spain

Department of Computing, Oxford Brookes University, U.K.

Department of Computer Science, National University of Defence Technology, China

Keywords: Software agents, MAS Formal Specification, Modelling, Diabetes Care, Telemonitoring, Telemedicine.

Abstract: This paper presents the modelling and formal specification of a telemedicine system for diabetes care. In

such scenario, the multiagent technology supports the distributed autonomy of several Personal Assistants;

the communications between them and the hospital´s agents; the control of the system´s access and

multitask functionality; scalability; adaptability; robustness; and the provision to the physicians with the

necessary automatic processing tools for the analysis of the large amounts of data generated by patients. We

evaluated the AOIS meta-model and the CAMLE’s modelling environment concluding that this

methodology is adequate to represent a complex medical system like the one presented. The model and the

formal specification provide a more complete view of the system and contain very useful information to

cope with the future system evolution.

1 INTRODUCTION

Diabetes is the fourth leading cause of global death

by disease. Currently 246 million people worldwide

suffer from diabetes and the forecast for 2025 is that

it will increase to affect 380 million (IDF, 2003).

Diabetes Mellitus is a chronic disease characterised

by a sustained elevated blood glucose level, caused

by a reduction in the action of insulin secretion

where related metabolic disturbances generate

severe, acute and long-term complications that are

responsible for premature death and disability (De

Leiva et al., 1995). Effective control of patients’

blood glucose level minimises the progression of the

disease and reduces the risk of long-term

neurological, renal and cardiovascular

complications.

The treatment of diabetic patients attempts to

achieve normal levels of blood glucose by

maintaining a careful balance between diet, physical

exercise and insulin injections therapy. Patients

monitor their own blood glucose levels to take

decisions regarding the adjustment of changes of

insulin doses, meals and physical activity.

Due to its multifactorial and systemic character,

Diabetes Mellitus has been considered a paradigm of

chronic disorders which has led to an extensive

application of information technologies. Nowadays

telemedicine provides an integrated approach to

information technology tools, which enhances co-

operation between users, information and knowledge

sharing.

Any telemedicine system for chronic care has to

help patients’ and physicians’ decision making but

supposes a huge quantity of data and increases

users’ workload.

To define and develop a telemedicine system for

chronic care it is important to know well the

characteristics of health care and then choose the

best design and technology for the implementation.

Health care is characterized by requiring distributed

knowledge to solve the different problems requiring

cooperation between professionals of different

independent entities. Generally the problems are too

complex and are decomposed in sub-problems easier

507

Martinez-Sarriegui I., Zhu H., Shan L., García-Sáez G., Gómez E. and Hernando M. (2009).

MODELLING AND FORMAL SPECIFICATION OF A MULTIAGENT TELEMEDICINE SYSTEM FOR DIABETES CARE .

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence, pages 507-512

DOI: 10.5220/0001661405070512

 SciTePress

to solve. It is needed a continuous access to medical

information and this information has to be personal

and proactive (professionals usually ask information

about diseases or surgery before they have to face

the problem).

The properties and features of multiagent

systems (MAS) perfectly fit with the characteristics

of health care above commented: distributed

systems, sociability, management of distributed

information, autonomy, proactivity, communication

and coordination between separate entities (Nealon

and Moreno, 2003).

There is a growing interest in the application of

agent-based techniques (Wooldridge, 2002) to

problems in the medical domain in different fields

and oriented to several diseases. Some examples are

Health Care at home (Koutkias et al., 2005), Health

Care coordination (Aldea et al., 2001).In diabetes

care there have been also some applications of the

agents approach. In monitoring field we can see the

SuperAssist project (De Haan, 2005), or the M2DM

project (Hernando et al., 2003) and in management

field the project proposed by Zhang et al. (2008)

Modelling plays a crucial role in the

development of medical systems and its evolution as

the main tool of requirements analysis and

system/component design, representing the users’

requirements with a set of agents at various

granularities and organizing the agents into an

information system.

This paper presents the adequacy of the AOIS

meta-model (Zhu, 2005) for the modelling and

formal specification of a complex telemedicine

system for diabetes care (Hernando et al., 2004;

Rigla et al., 2007).

2 MATERIAL AND METHODS

2.1 Modelling and Formal

Specification

In the AOIS meta-model, the basic unit that forms

an information system is the agent (Zhu, 2005).

Agents are defined as real-time active computational

entities that encapsulate data, operations and

behaviours, and situate them in their designated

environments.Agents perceive the visible actions

and states of the agents in its environment and take

actions and change state according to the situation in

the environment and its internal state. A multiagent

system (MAS) consists of a group of agents.

In the conceptual model, the classifier of agents

is called caste, the basic brick of MAS. Caste serves

as a template that describes the structure and

properties of agents. Agents are instances of castes.

Caste allows dynamic classification. That is, an

agent can change its caste membership (casteship) at

run-time. An agent can take an action to join a caste

or retreat from a caste at run-time. When an agent

joins/retreats from a caste, it will obtain/lose the

structural and behavioural features of the caste.

Dynamic casteship allows users to model the real

world with MAS naturally and to maximize the

flexibility and power of agent technology.

In the AOIS model, state variables and actions of

an agent can be visible or invisible (internal). Agents

communicate with each other by taking visible

actions and changing visible state variables, and by

observing other agents’ visible actions or

statesVisible actions are only observed by those

agents interested in the agent’s behaviour.

Agents in a MAS are designed and implemented

with a designated environment. In other words, the

environment of an agent is specified but allowed to

vary within a certain range when an agent is

designed.

2.1.1 CAMLE

The Caste-centric Agent-oriented Modelling

Language and Environment (CAMLE) is a language

that employs the multiple views principle to model

complicated systems (Shan et al., 2006). In CAMLE

there are three types of models that may consist of

one or more diagrams:

 A caste model normally comprises one caste

diagram with a set of caste nodes representing

various types of agents in the system, and a set

of links representing various relationships

between agents of the castes.

 A collaboration model may consists of a set of

scenario-specific collaboration diagrams that

represent the interactions between agents in

specific scenarios, and a general collaboration

diagram that summarises the communications

between agents.

 A behaviour model. It describes an agent’s

behaviour in terms of how it acts in certain

environment scenarios at the micro-level.

2.1.2 SLABS

The Specification Language for Agent-Based

Systems (SLABS) bridges the gap between graphic

modelling and implementation in the AOIS

development process (Zhu 2001, Zhu 2003).

The manual production of a multi-agent systems

formal specification is labour-intensive, costly, time

consuming and error-prone. The CAMLE modelling

ICAART 2009 - International Conference on Agents and Artificial Intelligence

508

environment automatically generates the formal

specifications from the graphic models.

2.2 Modelled System

The following scenario illustrates the functionalities

of the telemedicine system covered in the modelling

and specification.

Scenario 1:

Carmen is a type 1 diabetes patient that is

followed up with a telemedicine service. She is

provided with a PDA running a special application

for diabetes management that download monitoring

data from glucometers and insulin pumps using

wireless communication. Additionally she can insert

her blood glucose levels manually, view graphics

and review all her monitoring data that are stored in

a light database on the PDA. She has to periodically

synchronize the PDA database with the one in the

hospital. She could use the telemedicine Web

application to insert the data directly to the hospital

database but she prefers the PDA because she feels

more autonomy with it.

Scenario 2:

Luisa is an endocrinology physician. She

consults patients’ monitoring data through the Web.

She selects from which patient she wants to view

data, having the opportunity of viewing graphics

that helps her to take therapeutic decisions.

According to the data received from patients, she

decides to change their insulin therapy. Therapies

are stored in the hospital database and patients

receive the new therapy after synchronization.

Scenario 3:

Carmen synchronizes the databases again and

receives a message informing she has a new therapy.

She views the new therapy and configures the insulin

pump with the new therapy’s data. A reminder tool

is set to warn the patient if the synchronization

period is longer than a pre-fixed number of days.

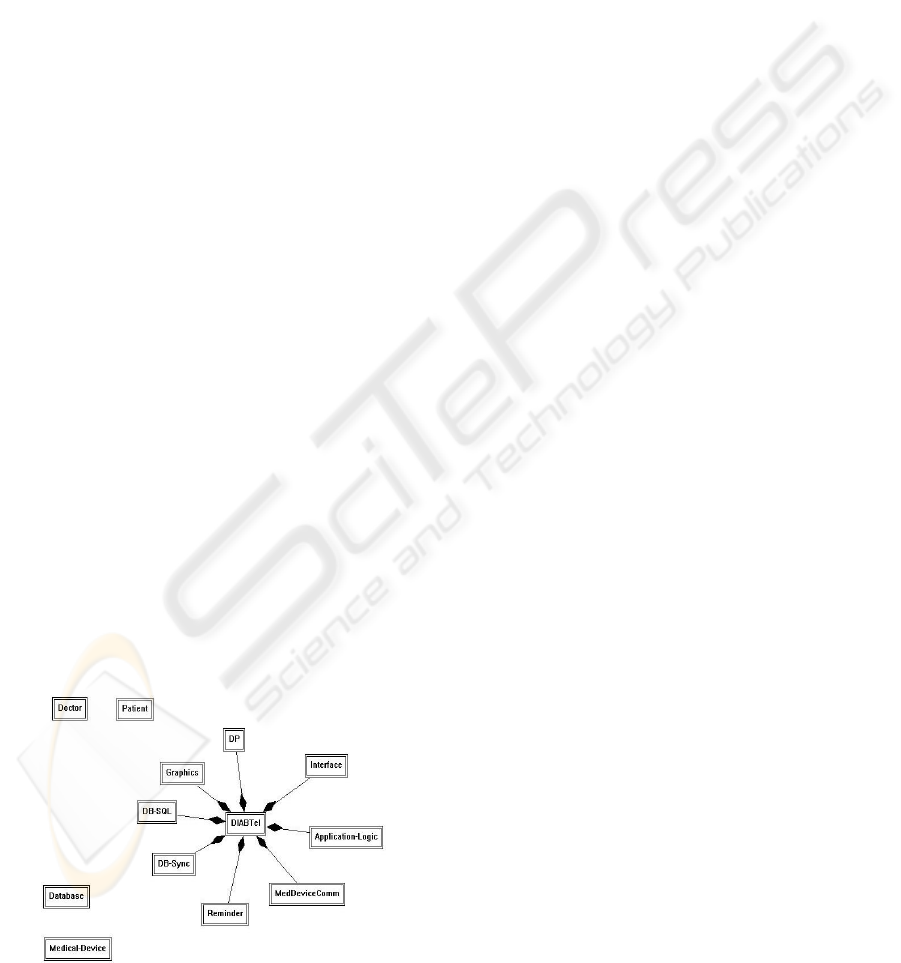

Figure 1: Caste Diagram.

3 RESULTS

The modelling of the telemedicine system has been

performed by specifying caste diagram,

collaboration diagrams and behaviour diagrams.

3.1 Caste Diagram

We identified two different types of castes: actors

and software agents in the telemedicine system.

Figure 1 presents the caste diagram.

3.1.1 Actors

Actors are the users (patients and doctors), the

medical devices they use (insulin pump and

glucometer) and the databases of the system. Actors

are not agents but have to be represented in the

model in order to clarify the working process of the

system.

3.1.2 Software Agents

We define 8 types of software agents as illustrated in

Figure 1:

 Interface: This agent represents the graphic

interface of the applications. It allows users to

access the functionalities of the system.

 Application-Logic: It is the logic of the users’

application and represents the applications

intelligence. It knows all the software agents

of the system and communicates with them to

provide the functionality demanded by the

user.

 Reminder: It warns the patient after a pre-fixed

number of days since the last synchronization.

 DP: This agent is in charge of automatic data

pre-processing when new monitored data is

received from the PDA.

 Graphics: It is the responsible of the on-line

generation of graphics on users’ demand.

 MedDeviceComm: This agent manages the

communication between the applications and

the medical devices

 DB-SQL: This agent is the only one that can

access the system data and manages and filters

the operations of other agents with the

database.

 DB_Sync: This agent manages the process of

database synchronization.

MODELLING AND FORMAL SPECIFICATION OF A MULTIAGENT TELEMEDICINE SYSTEM FOR DIABETES

CARE

509

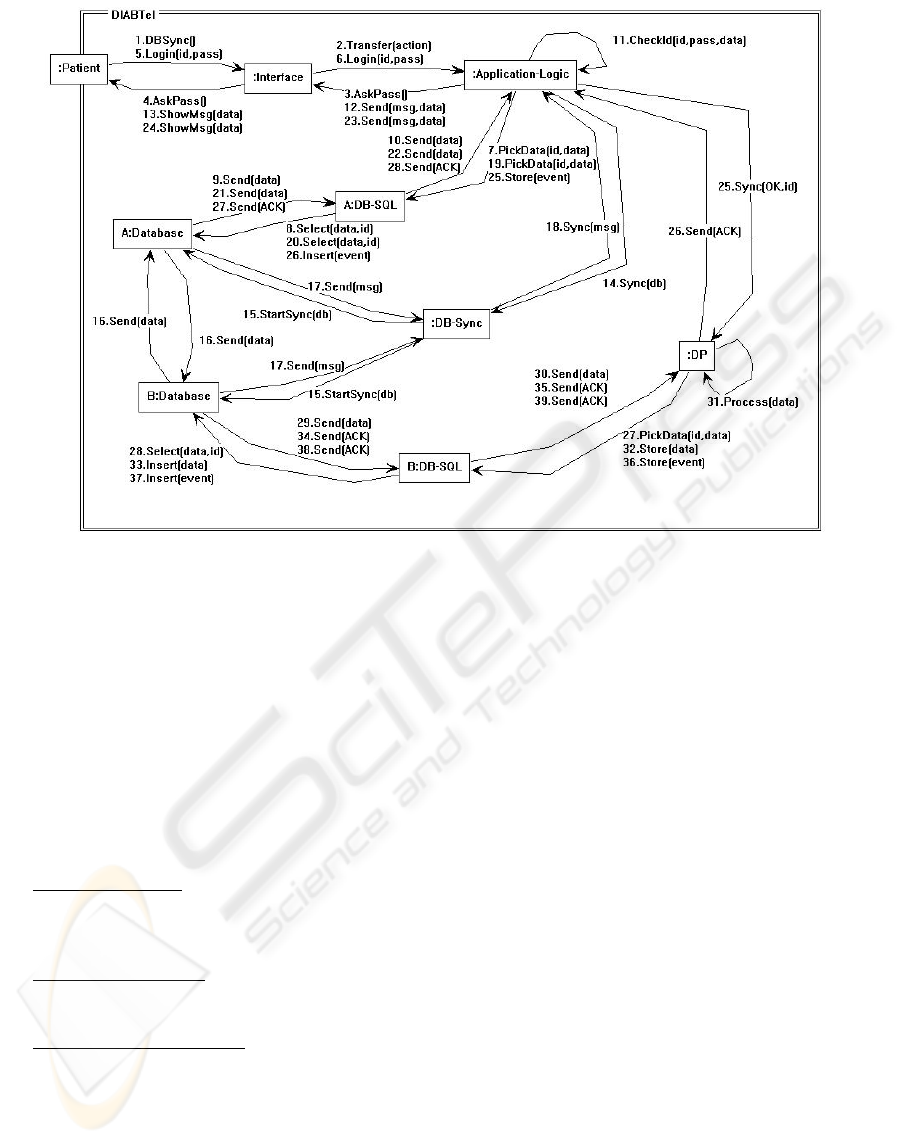

Figure 2: Collaboration diagram of Database Synchronization functionality.

3.2 Collaboration Diagrams

The main collaboration diagram describes all the

communications between agents. Additionally, we

created eleven specific communication diagrams -

one for each of the different functionalities offered

by the system in the scenario described in section

2.2 - detailing not only the communications but also

the sequence of them.

We classify the eleven specific communication

diagrams into three types according to participants:

patient, doctor or both:

 ‘Patient Diagrams’

: Configuration of Medical

Device; Downloading of data from Medical

Device; Database Synchronization; Database

Synchronization Reminder.

 ‘Doctor Diagrams’

: Patient Selection;

Creation/Modification of a New Insulin

Therapy.

 ‘Patient/Doctor Diagrams’

: Viewing of Data;

Insertion of Data; Viewing Graphics; Login

on the system; Viewing Therapy.

Figure 2 shows an example of the collaboration

diagram for database synchronization. The patient

can use an application running on a PDA (Interface

and Application-Logic) and store the data on a local

database, a light version of the one used in the

hospital. The patient has to synchronize both

databases. When he/she executes this action the

Application-Logic asks the patient’s password to

check the identity. In this process the Application-

Logic consults the database to verify the password.

Once the patient has been identified the

Application-Logic starts the synchronization

process. For security reasons, the access to databases

is restricted and has to be made through DB-Sync

agent, which is responsible of talking with the two

databases to really start the process. When the

databases have exchanged the data, DB-Sync agent

informs Application-Logic with the result of the

synchronization.

After the synchronization process, the first

Application-Logic action is to check the database for

new therapy prescription or messages. If there is any

new therapy, the Application-Logic agent informs

the patient. After that it communicates to DP agent

that a synchronization process has been made and

stores the event on the database. All the events in the

system are stored for auditory reasons.

The data downloaded from the insulin pump are

stored in the PDA database in a compressed mode

due to their size. In hospital database there are no

restrictions of size like in the PDA so those data can

be uncompressed. This task is made by DP agent

accessing the hospital database, processing the data

and storing them again.

ICAART 2009 - International Conference on Agents and Artificial Intelligence

510

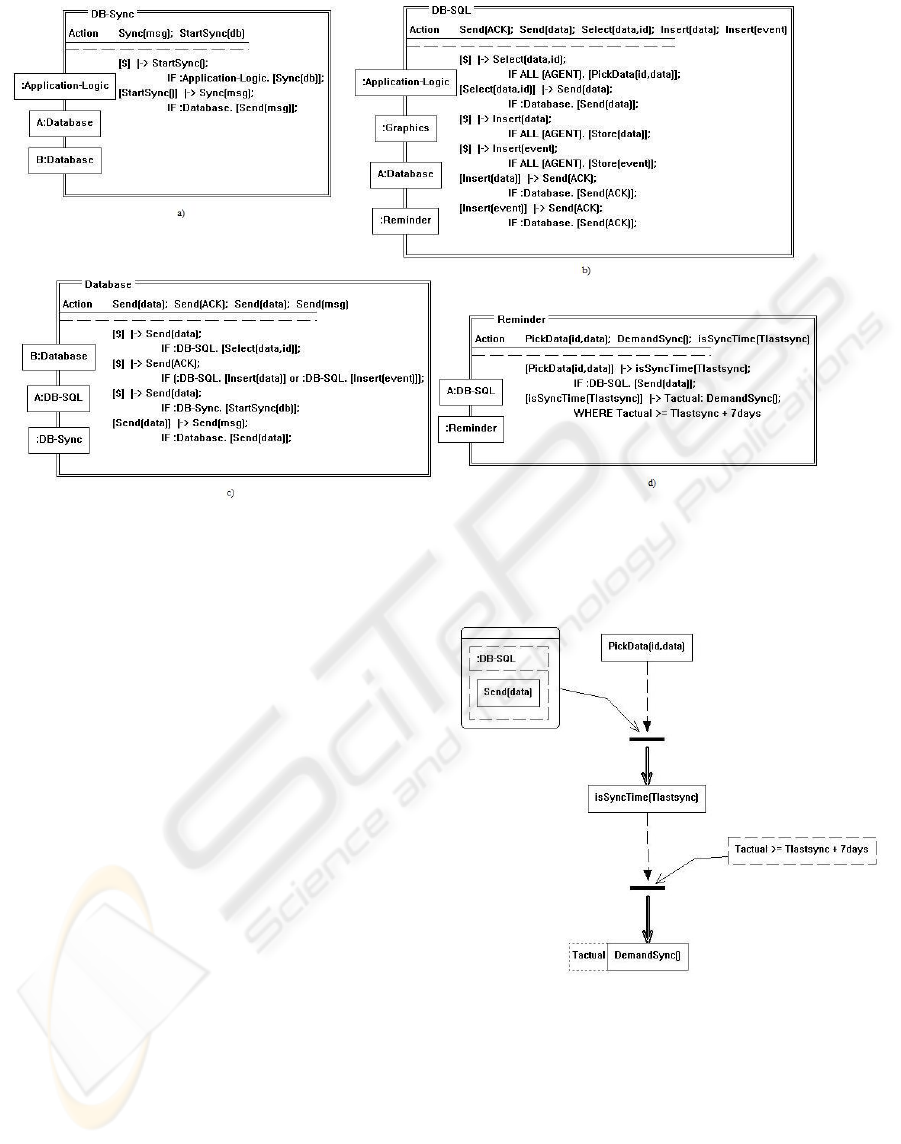

Figure 4: Formal Specification diagrams of the castes: a) DB-Sync, b) DB-SQL, c) Database and d) Reminder.

3.3 Behaviour Diagrams

In the behaviour diagrams we detail the behaviour of

the agents of the system by specifying the rules that

need to be followed to provide the desired

functionality.

In the collaboration diagrams we can see the

sequence of messages, while on behaviour diagrams

this sequence is illustrated giving the conditions that

have to be accomplished for the specific sequence.

For instance, “one database cannot send data to other

database if it does not receive the order from DB-

Sync agent” and “the DB-Sync agent cannot order

the start of a synchronization before the Application-

Logic specifies it”.

The behaviour diagrams of some of the

agents/castes are very large because they developed

a lot of functions in the system. In Figure 3 we

illustrate the behaviour diagrams of Graphics caste

and Reminder caste as an example of the behaviour

diagrams of the system.

3.4 Formal Specification

Once the model of the system is constructed, the

formal specification can be automatically generated

with CAMLE tool. Figure 4 shows an example of

the diagrams of the DB-Sync caste, DB-SQL caste,

Database caste and Reminder caste. When the

definition of the model and the formal specification

are finished, the implementation phase can start and

can be easily faced by the developers.

Figure 3: Behaviour diagram for: Reminder caste.

4 DISCUSSION

The described system supposes a step forward to the

goal of an ‘ambulatory artificial pancreas’. The

evolution of medical devices is creating a very

promising situation. However, its ambulatory use

MODELLING AND FORMAL SPECIFICATION OF A MULTIAGENT TELEMEDICINE SYSTEM FOR DIABETES

CARE

511

requires the integration of close loop algorithms and

medical devices in Personal Assistants running on

portable terminals with communication capacities,

providing patients with mobility possibilities,

decision support tools and doctors’ remote

supervision and, at the same time, autonomy on their

decisions.

An ‘ambulatory artificial pancreas’ is a complex

concept. In such scenario, the multiagent technology

supports the distributed autonomy of several

Personal Assistants; the communications between

them and the hospital´s agents; the control of the

system´s access and multitask functionality;

scalability; adaptability; robustness; and the

provision to the physicians with the necessary

automatic processing tools for the analysis of the

large amounts of data generated by patients.

We can conclude that the multiagent approach is

the approximation that better fits with those needs

and the AOIS meta-model facilitates the definition

and design of the required architecture. The

graphical interface of the CAMLE’s modelling

environment tool helps in the process of modelling,

allowing an easy creation of the different model

diagrams and providing an automatic checking of

the model consistency. The CAMLE tool also allows

the generation of the formal specification directly

from the different diagrams, which is a unique

feature among other similar environments where the

formal specification has to be manually done.

The presented model describes the current

functionality of a working multiagent system that

started to run in a hospital six years ago. The model

and the formal specification provide a complete

view of the system and contain very useful

information to cope with the future system

evolution.

REFERENCES

Aldea, A. et al. 2001. A Multi-agent System for Organ

Transplant Co-ordination. In the 8th Conference on AI

in Medicine in Europe: Artificial Intelligence

Medicine, LNCS 2101. Springer-Verlag.

De Leiva, A., Lefèbvre P. and Nerup J., 1995. European

dimension of Diabetes Research. Diabetologia, 39, p.

5-11.

De Haan, G., O.B. Henkemans, and A. Aluwalia. 2005.

Personal Assistants for Healthcare Treatment at Home.

In the 2005 annual conference on European

association of cognitive ergonomics. Ghania, Greece.

Hernando, M.E., et al. 2003. Multi-agent Architecture for

the Provision of Intelligent Telemedicine Services in

Diabetes Management. In the workshop on Intelligent

and Adaptive Systems in Medicine. Prague, Czech.

Hernando, M.E, García-Sáez, G., Gómez, E.J. and del

Pozo, F. 2004. Intelligent Alarms Integrated in a

Multi-Agent Architecture for Diabetes Management.

Transactions of the Institute of Meassurement &

Control. 26(3), p 185-200.

International Diabetes Federation, 2003. Diabetes Atlas,

Brussels, 2nd Edition.

Koutkias, V. et al. 2002. A Multiagent System Enhancing

Home-Care Health Services for Chronic Disease

Management. IEEE Transactions on Information

Technology in Biomedicine, 9(4)

Nealon, J.L. and Moreno, A., 2003. Agent-Based

Applications in Health Care. In Applications of

Software Agent Technology in the Health Care

Domain. Basel, Germany. pp. 3-18.

Rigla et al. 2007. A Telemedicine System that Includes a

Personal Assistant Improves Glycemic Control in

Pump Treated Patients with Type 1 Diabetes. Journal

of Diabetes Science and Technology. 1(4), p. 505-510

Shan, L., Shen, R., Wang, J., Zhu, H., 2006. Caste-centric

Development of Agent Oriented Information Systems,

Handbook of Research on Nature Inspired Computing

for Economy and Management, Jean-Philippe Rennard

(Ed.), Idea Group Inc. p. 692-707.

Wooldridge, M. 2002. An introduction to Multiagent

systems. John Wiley, Chichester.

Zhang et al. 2008. Enhance Collaboration in Diabetic

Healthcare for Children using Multi-agent Systems.

AT2AI-6 Working Notes, From Agent Theory to

Agent Implementation, AAMAS 2008, Estoril,

Portugal, EU.

Zhu, H., 2001. SLABS: A Formal Specification Language

for Agent-Based Systems, International Journal of

Software Engineering and Knowledge Engineering,

Vol. 11. No. 5, pp. 529~558.

Zhu, H., 2003. A formal specification language for agent-

oriented software engineering, in Proc. of

AAMAS'2003, Melbourne, Australia, pp 1174 – 1175.

Zhu, H. 2005. Formal Reasoning about emergent

behaviour in MAS, Proceedings of SEKE’05, Taipei,

pp 280-285.

ICAART 2009 - International Conference on Agents and Artificial Intelligence

512
