SOFTWARE ARCHITECTURE EVALUATION APPROACH

Olfa Lamouchi

, Amar Ramdane-Cherif

1,2

and Nicole Lévy

PRISM,

LISV, UVSQ, 45, Avenue des Etats-Unis, 78035 Versailles Cedex, France

Keywords: Quality evaluation, Fuzzy systems, Quality measurement, Quality model, Evaluation methods.

Abstract: This paper describes our approach for software architecture quality evaluation. The mechanics of this

evaluation is based on quality model, metric model and a set of evaluation methods. These models are

considered as a hierarchy properties structured set. The final properties need to be measured using metrics.

For this purpose a metric measurement-based framework is linked to the defined quality model. In this

evaluation approach an indication of overall quality can be determined using a Fuzzy engine.

1 INTRODUCTION

Several researchers and practitioners are interested

in quality emerging issues in the context of software

system. Several workshops are intended to provide

forums for discussions related to software quality.

Quality models have long been introduced in

literature (Deutsch and al, 1988), mostly as

structured sets of properties (such as reliability,

maintainability, and so on etc (Kitchenham et al.,

1996). These properties are usually presented as a

hierarchy of statements. At various levels, properties

are denoted as goals or attributes or characteristics,

down to sub-characteristics or factors, to criteria and

indicators and attributes again; but the point is not

yet set, even in standardization activities which are

now covering the field (ISO/IEC, 1988-1991). More

action oriented quality ideals and principles for

evaluation can be found in Cronholm & Goldkuhl

(Goldkuhl, 2002).

Some approaches are focused on a direct

evaluation of the quality of a software product, and

can be implemented using GQM method (Goal-

Question-Metric), described for the first time in

(Basili, 1984) and developed since that time by

NASA. The set of goals or quality characteristics

can be the same or similar to the one defined in

ISO/IEC 9126 (ISO/IEC, 2001).

The aim of this study is to present a new approach

for direct evaluation of the quality of software

architectures. In this evaluation approach criteria

interdependences can be managed and an indication

of overall quality can be determined using a Fuzzy

engine. This paper is organized as follow; the

following section addresses the evaluation model

which is composed of three parts: the quality model,

the metric model and criteria interdependences.

Following this, we present our evaluation method

which composed of two parts: basic evaluation

scenario and optional evaluation scenario. In each

part, a set of scenarios is developed. The paper ends

with a conclusion and some perspectives.

2 THE EVALUATION MODELS

Quality Model. The quality model can be defined

by a set of views concerning the product. Each view

is decomposed into several factors. A factor is

decomposed into several criteria. The factors are in

general external attributes (but also internal

attributes: testability, effectiveness, etc). Each

criterion is defined by a set of metric. In our

approach, the quality model is presented in form of

tree structure in which each factor can have one or

more criteria. Each criterion can have one or more

sub-criteria. The different feature properties that link

factors, criteria and sub-criteria are represented

using the following symbols: (1) ‘;’ alternative, (2)

‘∧’ mandatory, (3) ‘∨’ or, (4) ‘?’ optional, (5) ‘∅’

empty mode. By considering the example of the Fig.

2 we can give the following expressions:

Quality goal=(FactorA;FactorB)

FactorA=(Criterion

;Criterion

) , Factor

=(Criterion

∧

Criterion

), Criterion

=(Criterion

∨

Criterion

=(Criterion

∧

Criterion

=(Criterion

;Criterion

?), Criterion

=(Ø),

Criterion

=(Ø), Criterion

=(Ø),Criterion

=(Ø),

Criterion

=(Ø),Criterion

=(Ø), Criterion

=(Ø).

Metric Model. The metric model is a set of metric

which is used to quantify an aspect of software

architectures. The utility of these metrics is double:

353

Lamouchi O., Ramdane-Cherif A. and Lévy N. (2009).

SOFTWARE ARCHITECTURE EVALUATION APPROACH .

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence, pages 353-356

DOI: 10.5220/0001665503530356

 SciTePress

on the one hand, they make it possible to anticipate

the needs and to envisage the consequence

resources; in addition, they can help the designer or

the developer to better understanding the

architecture of his system.

The calculation of metrics implies the notion of the

metric-variable (Mv). The metric-variable is basic

measurement function extracted from software

architecture or data collected by designers. The

metric-variable is used in the calculation of one or

more metrics, and a metric can be used in the

calculation of one or more other metrics.

By considering the example (Fig. 2) we can give the

following expressions:

Ma={Mv

; Mv

}, Mb={ Mv

}, Mc={Ma; Mv

}, Md={Me;

}, Me={Mv

; Mv

}, Mf={Me ;Mb}.

Interdependence Model. As we already mentioned,

factors and criteria are evaluated by metrics, and

each metric is composed by one or more metric-

variables (Mv). In consequence, the level of quality

depends on the variation of Mv. In our approach, we

seek to present the variation of metric-variables that

permits the satisfaction of all qualities presented in

the quality model. The variation of metric-variables

in each metric is represented by the variation-sign

(Vs): (+), more the result of the Mv is high more the

criterion is satisfied. (-), more the result of the Mv is

low more the criterion is satisfied. (*), the result of

the Mv is neutral; its variation does not impact the

evaluation of the criterion.

We can find certain couples (Criterion, Mv) which

are interdependent, as in the case of (Criterion

) and (Criterion

, Mv

) of the Table 1.

3 THE EVALUATION METHODS

For the basic evaluation scenario, we seek to

evaluate the factor "Portability". The evaluation

model is:

Portability=(Availability;Co-existence)

Availability

=(Total_unavailability^Vital_availability^Full_availabilit

y);

Co-existence =(Ø), Vital_availability=(Ø),

Full_availability=(Ø).Total_unavailability=(Ø),

VITA={NYSerH; NYVitFH}, FA ={NYSerH; NYFH},

TUA={NYTFH ; NYSerH}, COX={PM},

Full_availability ={FA,( NYFH ,-), (NYSerH,+)} ;

Vital_availability ={ViTA, (NYSerH,+), (NyVitFH,-)};

Total_unavailability ={ TUA, ( NYTFH ,-), (NYSerH,+) ;

Co-existence ={ COX, (PM,+)}.

Table 1: Variations of Mv/ criterion.

Criterion

- *

Criterion

- * *

Criterion

+ +

Criterion

+ * -

Criterion

+ * +

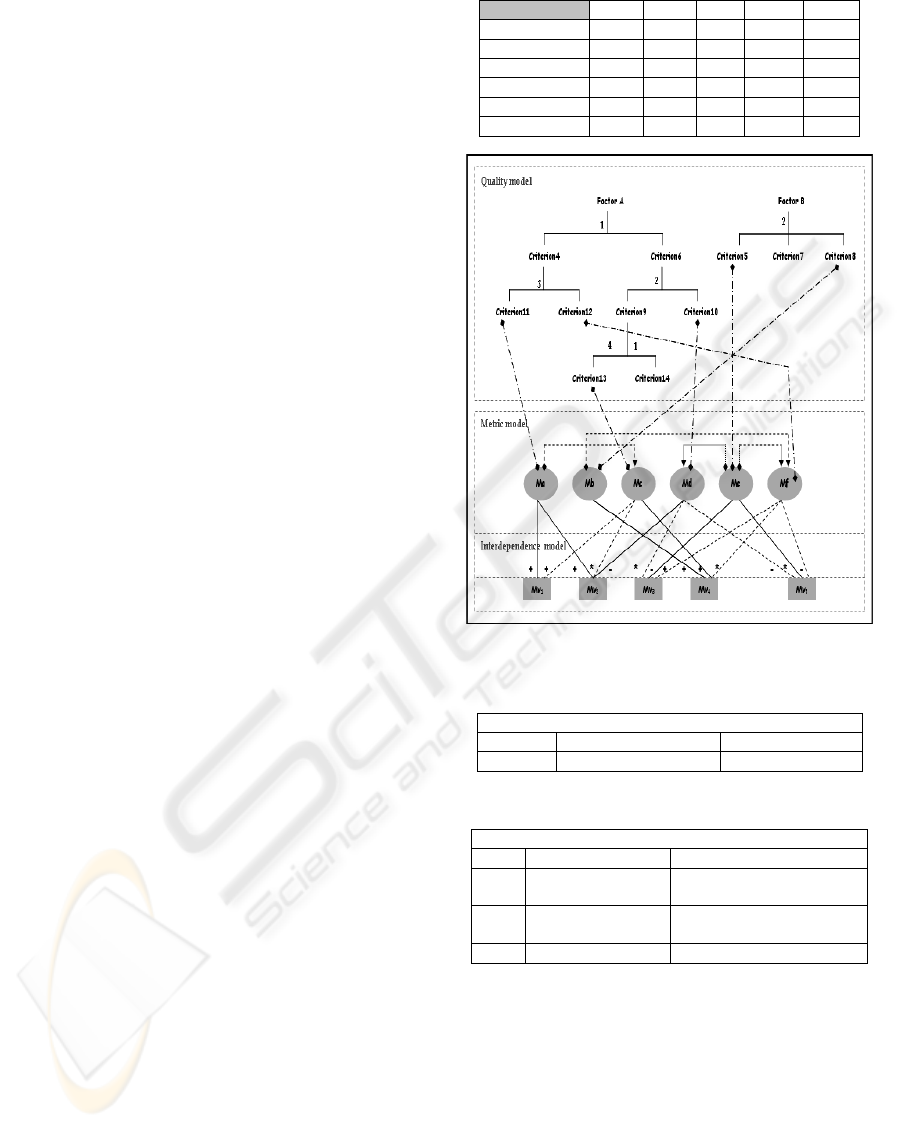

Figure 1: Structure of the evaluation model.

Table 2: Co-existence metric.

Table 3: Availability metrics.

NYSerH: a number of operating hours of the software per year;

NYFH: a number of hours when at least a function is not

available; NYVitFH: a number of hours when at least a vital

function is not available, NYTFH: a number of hours of total stop

due to a failure; PM: identify the presence of mechanism.

The basic evaluation scenario is presented by the

function EVALUATION_BASE (Algorithm 1).

Measure of Availability

Code Name Unit

COX Co-existence 1-yes, 0-not

Availability Metrics

Code Name Computation formula

FA Full availability FA=( NYSerH –NYFH)/

NYSerH

ViTA Vital availability ViTA= ( NYSerH –

NyVitFH) / NYSerH

TUA Total unavailability TUA=NYTFH / NYSerH

ICAART 2009 - International Conference on Agents and Artificial Intelligence

354

ALGORITHM

EVALUATION_BASE

First iteration Second iteration Final iteration

list_ct<-Extract_criterion_leaf

(QM)

list_ct=(full_availability,

vital_availability,

total_unavailability,Co-

existence )

WHILE NOT EMPTY (list_ct) DO yes yes yes

ct <-Criterion_folow (liste_ct) ct = full_availability ct = co-existence ct=portability

father_ct<-Father (ct, MQ) father_ct=availability father_ct=portability father_ct=’ ‘

IF NOT EMPTY (father_ct)

THEN

not not yes

under_ct<- Under_criterion

(father_ct,MQ)

under_ct = (full_availability,

vital_availability,

total_unavailability)

under_ct=

(co-existence, availability)

IF Belongs (under_ct,list_ct) yes yes -

Execution_of_metrics(under_ct) full_availability =0.8,

vital_availability= 0.9

total_unavailability =0.1

co-existence=1,

availability=0.797

Remove (under_ct,list_ct) list_ct=(co-existence) list_ct=() -

Fuzzy_execution (father_ct,

under_ct)

Availability=0.797 portability=0.86 -

Add (father_ct,list_ct) list_ct=

(co-existence, availability)

list_ct=( portability) -

ELSE ELSE ELSE ELSE

Remove (ct, list_ct) - - -

Add (ct, list_ct) - - -

ENDIF ENDIF ENDIF ENDIF

ENDWHILE ENDWHILE ENDWHILE ENDWHILE

END END END END

Figure 2: Example of basic evaluation scenario ct: criterion; list_ct: list of criteria (fifo); Under_ct: list of criteria;

Extract_criterion_leaf(QM): seeks the whole of criteria-leafs of quality model (QM); Criterion_folow(liste_ct): recover a

copy of the first criterion being in list_ct; Farther(ct,MQ): seeks the father of criterion ct; Remove(under_ct,list_ct):

removes all criteria belonging to under_ct of list_ct; Under_criterion(father_ct,QM): returns the under criteria set of

father_ct; Belongs(sous_ct,liste_ct): returns true if all criteria of list under_ct belong to liste_ct;

Execution_of_metrics(under_ct): executes metrics of criteria-sheets belong to under_ct; Add(father_ct,list_ct): add

father_ct at the end of list_ct. Fuzzy_execution(father_ct,under_ct): launches the evaluation of father_ct using evaluation

results of its under criteria.

In many quality standard, the evaluation of their

levels of validation by metrics, poses the problem of

the definition of thresholds values. From which

value, we can consider that criterion is very good,

good, medium or weak? The difficulty is more as

this value has an impact on the final evaluation of

quality factors. In order to counter this difficulty, we

propose the use of a fuzzy threshold. The objective

associated with a criterion will be described like a

fuzzy set. For example the criterion

"Full_availability" has a very strong quality level if

the result of its metric is equal or higher than 0.81,

whereas having 0.80 tightened it. This fixed cut does

not make it possible to consider a good evaluation.

A more realistic approach consists in defining

intervals. These intervals make it possible to

introduce uncertainty on the thresholds.

We will linguistically express the levels of quality

factors, and project them on [0,1]. Thus, fuzzy logic

controller makes it possible to express this concept

by allotting a degree of truth ranging between 0 and

1. Thus, the "Full_availability" criterion is very

strong with a degree of truth of 0.20 and strong with

degrees of truth of 0.80 (Figure 5). The rules of

fuzzy inferences base, take the form IF [conditions]

THEN [actions], where conditions and actions are

SOFTWARE ARCHITECTURE EVALUATION APPROACH

355

linguistic labels applied to input and output variables

respectively (e.g. IF "Total_unavailability" is Weak

AND "Vital_availability" is VStrong AND

"Full_availability" is VStrong THEN "Stability" is

VStrong). A set of such fuzzy rules constitutes the

fuzzy rule –base of the fuzzy logic. The system uses

this rule-base to produce precise output values

according to actual input values. This control

process is divided into three steps:

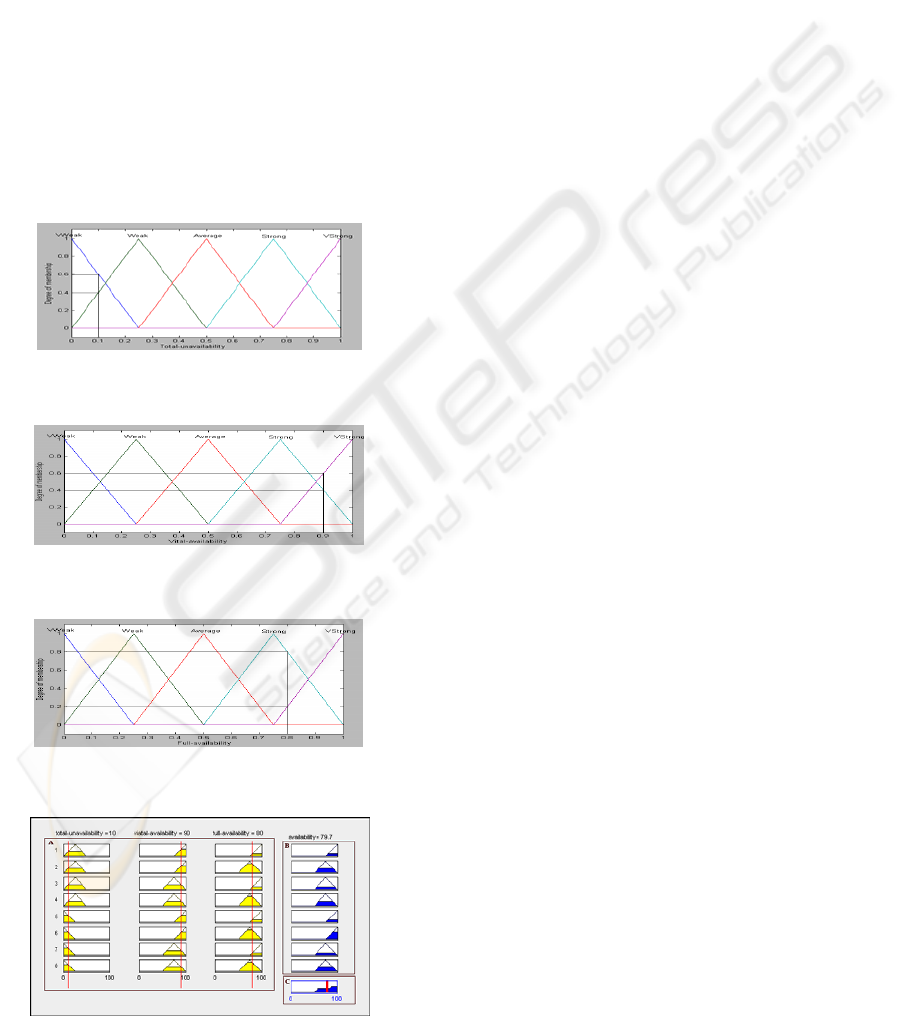

• Fuzzification: calculate fuzzy input, i.e. evaluate

input variables with respect to the

corresponding linguistic terms in the condition

side (Fig. 3, Fig. 4 & Fig. 5).

• Fuzzy interference: calculate fuzzy output, i.e.

evaluate activation strength of every rule and

combine their action sides (Fig. 6: A&B).

• Defuzzification: calculate actual output, i.e.

convert fuzzy output into a precise numerical

value. The result of the treatment is: the quality

level of "Stability" is equal to 79,7% (Fig. 6: C).

Figure 3: Fuzzification of "Total_unavailability":

Total_unavailability =0,10;VWeak ( 0,60 ); Weak (0,40).

Figure 4: Fuzzification of "Vital _availability":

Vital _availability =0,90;VStrongt (0,60);Strong ( 0,40).

Figure 5: Fuzzification of "Full_availability":

Full_availability =0,80; Strong (0,80); VStrong (0,20).

Figure 6: Fuzzy logic controller process.

4 CONCLUSIONS

In this study we have presented a framework for

understanding architecture software evaluation. The

mechanics of the evaluation is based on quality

model. This quality model comes out as a collection

of desired properties which can be divided into sub

properties at various levels. The last level is linked

to various software metrics and measurement

techniques that an organisation uses. This

hierarchical model appears in more deductive way

than those presented in literature. In this evaluation

approach interdependences can be managed and an

indication of overall quality can be determined. In

our work, the objective associated with a criterion

will be described like a fuzzy set. The use of a fuzzy

threshold permits a more realistic approach. A fuzzy

interpreter is used in our basic evaluation scenario

and optional evaluation scenario.

REFERENCES

Deutsch, M. S., Willis, R. R, 1988. Software Quality

Engineering, Randall W. Jensen.

Kitchenham, B. and. Plfleeger, S. L., 1996. Software

Quality. The Elusive Target, IEEE Software, pp. 12-

21.

ISO/IEC 9126: (IS), (1988, 1991). Information technology

- Software product evaluation - Quality characteristics

and guidelines for their use.

ISO/IEC 9126-1,9001, 2001. Quality management

systems–Requirements. ISO. Software engineering –

Product quality. ISO/IEC.

Basili, V. R., Weiss, D. M., 1984.A Methodology for

Collecting Valid Software Engineering Data. IEEE

Transactions on Software Engineering.

Cronholm, S. & Goldkuhl, G., 2002. Actable Information

Systems - Quality Ideals Put Into Practice. Presented

at the Eleventh Conference On Information Systems

(ISD 2002). 12-14.

Cox, 1997. La logique floue pour les affaires et l'industrie.

International Thomson Publishing France, Paris,

France.

Ramdane-cherif A., Lamouchi, O., Lévy, N., 2007. One

quality software evaluation approach. CAINE 2007,

ISCA 20th international Conference on Computer

Application in Industry and Engineering. San

Francisco, California USA.

Akoka J. Wattiau I, 2002. La Qualité du logiciel.

Losavio, F., Chirinos, L., Matteo, A., Lévy, N., Ramdane-

Cherif A , 2004. ISO quality standards for measuring

architectures. The journal of Systems and Software 72,

209-223.

Mamdani, E., Assilian, S., 1975. An experiment in

linguistic synthesis with a fuzzy logic controller.

International Journal of Man-Machine Studies. vol. 7,

pp. 1–13.

ICAART 2009 - International Conference on Agents and Artificial Intelligence

356
