A REAL-TIME TRACKING SYSTEM FOR TAILGATING

BEHAVIOR DETECTION

Yingxiang Zhang, Qiang Chen and Yuncai Liu

Institute of Image Processing and Pattern Recognition, Shanghai Jiaotong University

Frogren2002, Chenqiang, China

Keyword: IGMM, Color histogram similarity, Tailgating detection.

Abstract: It is a challenging problem to detect human and recognize their behaviors in video sequence due to the

variations of background and the uncertainty of pose, appearance and motion. In this paper, we propose a

systematic method to detect the behavior of tailgating. Firstly, in order to make the tracking process robust

in complex situation, we propose an improved Gaussian Mixture Model (IGMM) for background and

combine the Deterministic Nonmodel-Based approach with Gaussian Mixture Shadow Model (GMSM) to

remove shadows. Secondly, we have developed an algorithm of object tracking by establishing tracking

strategy and computing the similarity of color histograms. Having known door position in the scene, we

specify tailgating behavior definition to detect tailgater. Experiments show that our system is robust in

complex environment, cost-effective in computation and practical in real-time application.

1 INTRODUCTION

Extensive researches have been conducted in video

surveillance to improve social and private safeties.

In our surveillance system, we detect behavior of

tailgating in the scene. Detecting tailgating from

video heavily depends on the detection of moving

objects involved in each frame and the integration

of this frame-based information to recognize special

behavior. This high level behavior description relies

on exact foreground detection and track of moving

objects.

Much work has been done in background

modeling and foreground detection. Karmann and

Brandt, Kilger modeled each pixel with a Kalman

Filter (Karmann & A. Brandt, 1990) to make the

system robust with lightning changes in the scene.

M.Piccardi used mean-shift approach (T. Jan & M.

Piccardi, 2004) to express the mixed distribution of

each pixel. Stauffer and Grimson (C. Stauffer & W.

E. L Grimson, 1999) presented modeling each pixel

as a mixture of Gaussians and using an on-line

approximation to update the model. Shadow

detection and removing is critical for accurate

object detection in video streams since shadow is

often misclassified as an object, causing errors in

segmentation and tracking. The most common

algorithms are Statistical Nonparametric approach,

Statistical Parametric approach and Deterministic

Nonmodel-Based approach (R. Cucchiara, M.

Piccardi and A. Prati, 2003). Tracking requires

matching the same moving objects in consecutive

frame based on the extracted character. M. Isard and

A. Blake proposed Condensation algorithm (M.

Isard and A. Blake, 1998) which uses Monte Carlo

approach to obtain statistic nonparametric model to

track objects in real-time application. S.Birchfield

studied color histogram models combining with

Gradient model of density function (S.T. Birchfield

1998) to track.

In this paper, firstly, we propose an improved

adaptive mixture Gaussian model (IGMM). In

classic Gaussian Mixture Model (GMM) (C.

Stauffer & W. E. L Grimson, 1999), Gaussian

background model of each pixel is independent.

Also, due to the fact that RGB of each pixel

includes 3-5 Gaussian distributions and GMM

updates every frame, high computational cost of

GMM makes surveillance system difficult to

accommodate real-time operation. In our approach,

we improved GMM’s updated speed and reduced

the number of Gaussian model by segmenting

different regions of the scene. We also use GMM to

remove shadows by updating parameters of

Gaussian distribution of suspicious shadow pixels.

Secondly, we use color histogram to track and

match moving objects (S. T. Birchfield, 1998).

Object occlusion is a difficult problem in

understanding of human behavior. We utilize seven

398

Zhang Y., Chen Q. and Liu Y. (2009).

A REAL-TIME TRACKING SYSTEM FOR TAILGATING BEHAVIOR DETECTION.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 398-402

DOI: 10.5220/0001665703980402

 SciTePress

possible hypothetical situations to obtain a better

matching. Lastly, by illustrating definition of

tailgating, we sign every object stepping into the

scene and constitute logical rules to catch candidate

tailgater. Tested our algorithm using real scene

video, the system gave satisfactory detection results.

This paper is organized as follows: Section 2-4

respectively describes foreground extraction,

tracking scheme and definition of tailgating event.

In section 5 we discuss the application environment

and analyze the results in real-time surveillance

scenes. Section 6 gives conclusion.

2 FOREGROUND EXTRACTION

2.1 Background Modeling

Gaussian Mixture Model (GMM) (C. Stauffer and

W. E. L Grimson, 1999) has been widely used for

background modeling as it adapts to deal robustly

with lighting changes, repetitive motions of scene

elements. However, to process more complex

environment, it should make more Gaussian

distributions to resist disturbance. And based on the

principle of updating GMM, all the parameters of

Gaussian function of each pixel have to be updated

in every next frame which increases computation

and make real-time work difficult.

We notice that only a few parts of one frame

suffer changes while other regions are static in the

surveillance scene. Pixels in static regions always

match one Gaussian distribution which has a high

possibility to match the same pixel in the following

frames. After learning, the distribution weight ω has

a large value while deviation σ2 becomes

comparatively smaller. In a long time the value of

ω/σmaximizes and mean of the same Gaussian

distribution would be regarded as pixel value of

background. It is not necessary to update

background model in static regions in every frame.

In Improved Gaussian Mixture Model (IGMM) we

proposed, when the probability that certain old

Gaussian distribution matches every new pixel

value in the same region exceeds chosen threshold,

we will not update parameters of background

distributions of the same pixel in the next 100

frames. After 100 frames, we reset parameter ω of

Gaussian distributions to be equal and update GMM

until that probability reaches chosen threshold

again.

2.2 Shadow Removing

The principle of GMM can also be used for removing

shadow. In this paper, we combine Deterministic

Nonmodel-Based approach (R. Cucchiara, M. Piccardi

and A. Prati, 2003) with GMM to remove shadow.

In the first step, we detect shadow taking advantage of

relationship between the reference frame and background

in HSV space. HSV color space explicitly separates

chromaticity and luminosity and has been proved easier

than the RGB space to set a mathematical formulation for

shadow detection. A shadow mask

()SP k

at frame k

defined as follows (R. Cucchiara, M. Piccardi & A.

Prati 2003):

().

1().().()

().

()

ij ij H

IkV

if and I k S B k S and D k

BkV

SP k

otherwise

αβ γ

⎧

≤

≤−≤≤

⎪

⎨

⎪

⎩

(1)

Where, I

i,j

(k) and B

i,j

(k) are the pixel values at coordinate

(i,j) in the input image( frame k) and in the background

model (computed in the frame k) respectively, H,S ,V

means hue, Saturation and Value of one pixel, α ,β ,γ ,ζ

denotes threshold,

,, ,,

() min( (). (). ,360 (). (). )

H ijij ijij

Dk I kHBkH I kHBkH=−−−

(2)

In the second step, Gaussian Mixture Shadow

Model (GMSM) learns and updates its parameter

based on those candidate pixels of shadow detecting

in HSV space. If the relationship between candidate

pixels of shadow and certain Gaussian distribution of

GMSM meets:

,1 ,1

| | ,i=1,2,...K,

sss

tit it

μσ

−−

−≤×

(3)

Where,

),(~

σμ

, S means GMSM and

=2.5,K is number of Gaussian distributions. Then

parameters updated as follows:

,,1

(1 )

ss s

it it

αω α

−

−+

(4)

,,1

(1 )

ss s

it it t

ρμ ρ

−

=− +

(5)

222

,,1,

()(1 )( ) ( )

sssss

it it t it

σρσρμ

−

=− + −

(6)

Here,

is learning ratio which relates to

background updating speed and

10 ≤≤

learning ratio of parameters and

≈

If there is no Gaussian distribution matching

candidate pixel of shadow I

, new Gaussian

distribution will replace the distribution with the

smallest weight. New distribution will have a

comparatively larger standard deviation σ

and

smaller weight ω

and mean I

. Other Gaussian

distributions keep the same mean and deviation, but

the weights will decrease:

,,1

(1 )

it it

αω

−

=−

(7)

A REAL-TIME TRACKING SYSTEM FOR TAILGATING BEHAVIOR DETECTION

399

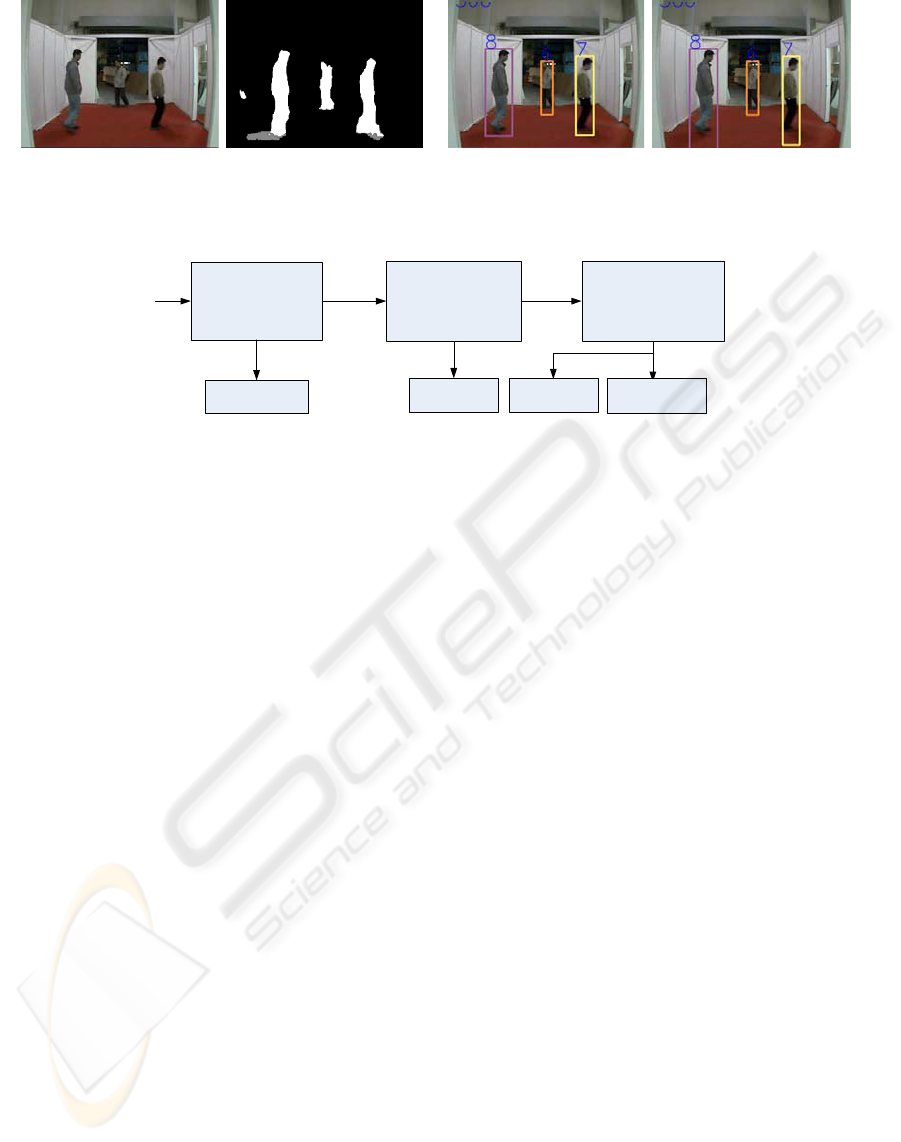

Figure 1: From left to right, the first figure is original image. The second one is foreground with foreground as white and

shadow pixels as grey. The last two compares the accuracy of object tracking with and without shadow removing

respectively.

Update IGMM

and judge

whether I

foreground

Judge whether I

is candidate

shadow in HSV

space

Update GMSM

and judge whether

is real shadow

Background

Moving

object

Moving

object

Background

Figure 2: Flow chart of foreground extraction.

Finally, after normalization of all the weights of

Gaussian distributions, we array Gaussian

distributions as

iii ,...,,

in accordance with the

value of

ti ,,

σω

. If preceding N distributions meet

following principle:

≥

∑

(8)

Then these N distributions can be regarded as

shadow distribution. If value of candidate shadow

pixel I

does not match every shadow distribution,

this pixel is defined as moving objects. However, if

it matches one shadow distribution, it would be

eliminated from foreground as shadow. The result

of shadow removing can be seen in Figure 1 and the

detailed backgrounding flow chart is shown in

Figure 2.

3 TRACKING METHOD

3.1 Tracking Strategy

After motion detection, surveillance systems

generally track moving objects from one frame to

another in an image sequence. One of the main

difficulties of the tracking process concerns the

partial or total temporal occlusions of the objects.

Therefore, the splitting of the blobs in order to

separate or isolate the objects has to be considered

in this section. Next are seven possible situations in

matching strategy:

1) Normal Event: If two blobs of two consecutive

frames are overlapped, we think these two blobs

belong to one motion object.

2) Entry Event: A blob at the current frame with no

matching blob of previous frame is thought as an

entering object.

3) Exiting Event: Finding no matching blob at the

current frame for a blob of previous frame, and the

place of this blob is at the edge of frame.

4) Stopping Event: The place of this blob is not at the

edge of image and the color similarity for the places

of blob at the consecutive frame is larger than a

threshold.

5) Vanishing Event: Finding no matching blob at the

current frame for a blob of previous frame.

6) Splitting Event: More than one blob match a

previous blob.

7) Merging Event: A blob at current frame matches

more than one previous blob.

This strategy helps effectively handle problems

such as disappearance, occlusion and crowd.

3.2 Color Histogram Similarity

Objects can be divided and merged. When objects

merge, the labels are inherited from the oldest

parent region. When an object splits, all separating

objects inherit their parent’s labels. In order to track

people consistently as they enter and leave

groups, each person’s appearance must be

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

400

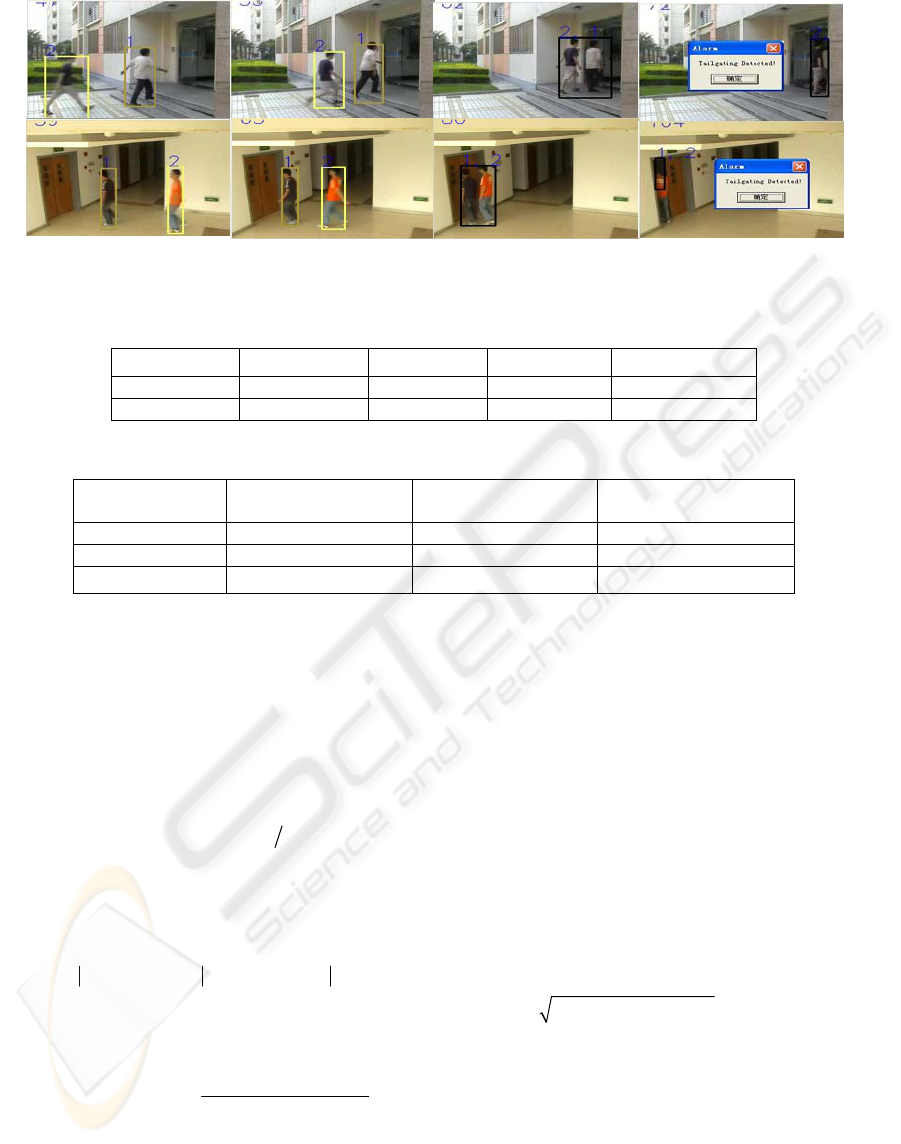

Figure 3: The two rows display the processed sequence using our method. The first row displays outdoor scene with camera

placed at side of the site while the second row gives indoor tailgating scene e with camera placed at top of the site.

Table 1: Detecting result of tailgating event.

GMM K=3 IGMM K=3 GMM K=5 IGMM K=5

Scene A 9 12 7 10

Scene B 8 11 6 8

Table 2: Comparison of average processing speed between IGMM and GMM, unit (frame/s).

Frame frequency Real events num Detected events num event detection rate

10frame/s 30 28 93.3%

15frame/s 30 27 90%

20frame/s 30 25 83.3%

modeled. A color model (R. P. Perez, C. Hue and J.

Vermaak, 2002) is built and adapted for each person

being tracked. A histogram H

(X | k) counts the

number of occurrence of X=(R, G, B) within the

person i at frame k. Because the same person may

have different sizes in different frames, we should

normalize H

(X | k).

(|) (|) ()

inew i i

Xk HXk Ak=

(9)

Where, A

(k) means the number of pixels within

the mask for person i at frame k.

Histogram models are adaptively updated by

storing the histograms as probability distributions:

(1) (1)(1)()

iinew i

Xk P Xk PXk

αα

+= ++−

(10)

To determine whether two blobs at frame m and n belong

to one object, similar degree (similarity) of color is

computed.

(|) (|)

(|,)

|( |)|| ( |)|

Xm PXn

degree X m n

Xm PXn

(11)

Where, P

(X | m) means normalized histogram of

X=(R, G, B) for person i at frame k. If degree

i, j

(X|

m, n) is larger than a threshold, we think two blobs

belong to one object.

4 TAILGATING DETECTION

On the basis of tracking, effective recognition of

Tailgating behavior requires specific definition of

this behavior. Tailgating means one person steps

behind former one and slides into the entrance

without allowance. The tailgating behavior contains

two steps. Firstly, we define Euclidean distance

between two walkers as a standard distance to

judge tailgater. If one person steps behind the

former with the same direction and a higher speed,

he or she may gradually approach the former and

when the distance between them is smaller than the

standard distance, he is regarded as a tailgater

21 21

()( )Lxxyy<= − + −

(12)

Here, L means the standard distance user defines and

(x1, y1) denotes the center of the former, (x2, y2)

denotes the center coordinate of tailgater.

The Second phase is to assure the tailgater

entering into the entrance following the authorized

person in a short time. When the candidate tailgater

tails after the former, the two blobs always merge

into one big blob with two labels.

Comparing Euclidean distance between centers

A REAL-TIME TRACKING SYSTEM FOR TAILGATING BEHAVIOR DETECTION

401

of the candidate blobs and door with a threshold, we

confirm the range of tailgating. If this distance is

smaller than the threshold, we judge whether

Vanishing Event happens near the door. If

Vanishing Event happens, the behavior will be

recorded.

5 RESULTS AND ANALYSIS

To illustrate the proposed method, we experimented

in an exhibition hall using one digital camera with

image dimension of 320*240. Figure 3 shows a

sequence of indoor and outdoor scenes containing

walking people who imitates tailgating behavior.

The sequence includes lightning changes caused by

strobotron, reflections from windows and moving

shadows. With traditional tracking method, tracking

often failed in the following cases:

Case 1: People walk close to each other. In this

case, due to the closely distributed foreground

points, extracting single object based on connected

components algorithm is difficult.

Case 2: Two people walk across each other or

one occludes another. In this case, two different

objects merging into one mixed component brings

difficulty in tracking the right one with exact

trajectory.

Case 3: One connected component disappears in

the scene without touching border. In this case,

many tracking algorithm can not determine whether

this moving object really disappears from the scene

or just stays still in the scene.

In our paper, method we proposed can decrease

moving shadow and other disturbance comes from

environment using IGMM and GMSM to extract

single connected component. We have numbered

moving objects in the scene and compute the

similarity of color histogram between points at

current frame and background to judge object’s

disappearance or stillness. With the direction of

velocity and color information, we can process most

examples of merging and detaching. Table 1 shows

processed results from the indoor sequence

Exhibition Hall.

We find the veracity of our algorithm firmly

related to the frame frequency of the camera or

video. More than 90% of tailgating events can be

detected at 10frame/s and more than 80% of the

events can be detected at higher frame frequency.

Table 2 provides the evidence that our IGMM

has increased processing speed especially in certain

surveillance environment where active region of

moving objects occupies only a part of the whole

scene.

6 CONCLUSIONS

We have proposed an algorithm to detect tailgating

behavior using background modeling, tracking

strategy and behavior definition. There are three

main issues in the process of surveillance. First is

acquiring true foreground in complex environment

by making use of IGMM and GMSM. Second is

effectively tracking by means of considering

different situation and matching objects in

consecutive frames through similarity computation

of color histograms. Third is anti-tailgating taking

advantage of definition of tailgater. Compared with

other methods in surveillance, our novel algorithm is

cost-effective and useful in real-time application.

ACKNOWLEDGEMENTS

This research work is supported by National 973

Program of 2006CB303103 and National Natural

Science Foundation of China (NSFC) under Grant

No.6083099.

REFERENCES

Karmann and A. Brandt. 1990. “Moving object

recognition using an adaptive background memory.”

Time-Varying Image Processing and Moving Object

Recognition, 2, Elservier, Amsterdam, Netherlands,.

T.Jan, M.Piccardi. 2004. “Mean-shift background image

modeling.” In Proceedings of the international

conference on image processing.

C. Stauffer, W. E. L Grimson. 1999. “Adaptive

background mixture models for real-time tracking”. In

Proc. Conf. Comp. Vision Pattern Rec., Vol. 2.

R. Cucchiara, M. Piccardi, A. Prati. 2003. “Detecting

moving objects, ghosts and shadows in video

streams”. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 25(10):1337 ～ 1342.

M. Isard, A. Blake. 1998. “Condensation-conditional

density propagation for visual tracking”. International

Journal of Computer Vision, 29(1): 5-28.

S.T. Birchfield. 1998. “Elliptical head tracking using

intensity gradients and color histograms”. In Proc.

Conf. Comp. Vision Pattern Rec., pages 232–237, CA.

R. P. Perez, C. Hue, J. Vermaak. 2002. “Color-based

probabilistic tracking.” In Proceedings of the 7

European Conference on Computer Vision. Berlin,

Germany, Springer-Verlag, 661-675.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

402
