FROM INDIVIDUAL INTENSITY VOXEL DATA TO

INTER-INDIVIDUAL PROBABILISTIC ATLASES OF BIOLOGICAL

OBJECTS BY AN INTERLEAVED

REGISTRATION-SEGMENTATION APPROACH

Felix Bollenbeck

, Diana Weier

, Wolfram Schoor

and Udo Seiffert

Fraunhofer Institute for Factory Operation and Automation (IFF), Sandtorstr. 22, D-39106 Magdeburg, Germany

Leibniz Institute of Plant Genetics and Crop Plant Research, Corrensstr. 3, D-06466 Gatersleben, Germany

Keywords:

Registration, Segmentation, 3-D Averaging Atlases, Plant Models.

Abstract:

In this paper we describe an automated processing of plant serial section data for high-resolution 3-D models

of internal structures. The processing pipeline includes standardization and registration of large image stacks

as well as multiple tissue recognition by a joint registration-segmentation approach. By integrating segmented

data from multiple individuals in a common reference, a statistical three-dimensional description is used to

represent the inherent biodiversity amongst specimen. Inter-individual 3-D models are a novelty in the con-

text of plant microscopy, and along with meaningful visualisation they deliver new insights into growth and

development as well as provide a framework for the integration of functional data.

1 INTRODUCTION

The importance and the value of three-dimensional

computer models of tissues or organs can undoubt-

edly be taken for granted. These models often serve as

anatomical atlases facilitating the integration of het-

erogeneous experimental information, such as func-

tional or gene-expression data, with spatial or even

spatio-temporal reference.

The inherently existing inter-individual diversity

leads to a certain divergence between the model and

an arbitrary natural individual. We are working to-

wards statistically valid models by means of barley

grains, based on a multitude of digital 3-D models

from histological serial section data.

The advantages in resolution of serial-section data for

digital models on a micrometer scale generally come

with high costs in 3-D reconstruction (registration)

and labelling (segmentation), since the object of inter-

est is essentially destroyed for digitization, delivering

several thousands of separate and unlabeled raw im-

ages. Existing works for 3-D model generation from

microscopic serial section imaging employ interac-

tive techniques (Gubatz et al., 2007) as well as au-

tomated processing (Dercksen et al., 2008) utilizing

Figure 1: Perspectives of a digital barley grain. A stack of

2,217 individual section images (approx. 4 GB) which was

standardized and registered to recompose an intact grain ob-

ject visualized in a volume rendering, displaying the recon-

structed histology in virtual lateral section.

supervised classiﬁcation schemes for tissue labelling.

These approaches have in common that models are

generated from data from a single individual, ignor-

ing inter-individual variances in histology and mor-

phology, whereby validity and predictive power for

125

Bollenbeck F., Weier D., Schoor W. and Seiffert U. (2009).

FROM INDIVIDUAL INTENSITY VOXEL DATA TO INTER-INDIVIDUAL PROBABILISTIC ATLASES OF BIOLOGICAL OBJECTS BY AN INTERLEAVED

REGISTRATION-SEGMENTATION APPROACH.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 125-128

DOI: 10.5220/0001767001250128

 SciTePress

new individuals is diminished. Probabilistic models,

reﬂecting the diversity within biological phenotypes

are highly feasible as reference atlases, apart from the

possibility to quantify phenotypic variance itself.

Since high-throughput processing of section images

is a prerequisite towards sufﬁciently large data-sets

of anatomical data, we have developed a processing

pipeline for an automated reconstruction of serially

sectioned objects. By utilizing a joint segmentation–

registration algorithm, we address the identiﬁcation

and labelling of relevant biological structures. In on-

going research we propose an initial modelling based

on labelled voxel-data from a multitude of individuals

for 3-D modelling comprising statistical descriptions

of anatomical diversity and subsequent 3-D visualiza-

tion.

2 INTERLEAVED

REGISTRATION-

SEGMENTATION OF SECTION

DATA

The processing of image data towards inter-individual

models is carried out from individual section images,

to individual image stacks to statistical 3-D diversity

models, where our proposed pipeline is based on in-

terleaved segmentation and registration steps for iter-

ative construction of inter-individual models.

Image Acquisition. For the imaging of functional

units and tissues in microscopic plant organs, speci-

men of barley grains at distinct developmental time

points are prepared for serial sectioning by embed-

ding in a polymer and a contrasting agent. Embed-

ded material is serially sectioned with a microtome

into 3µm thick slices and digitized with a conven-

tional light microscope (1.83 × 1.83µm/px), yielding

roughly 2,000 images per grain, which are stored as

12-bit grayscale image, since contrasting produces lit-

tle color information.

Raw Image Segmentation and Registration. Manual

handling and dust particles on the microscope slides

produce high frequency noise as well as larger dis-

turbances in section images. To remove these dis-

turbances for the subsequent processing, the region-

of-interest (ROI) is segmented, masked, and embed-

ded in a uniform background. We employ a multi-

resolution strategy using a variant of the Level-Sets

approach (Caselles et al., 1997) for active contours

segmentation suggested in (Li et al., 2005).

This initial segmentation of the section object is a

preliminary for using the well-established Principal

Axis Transform (PAT) (Alpert et al., 1990) for uni-

form image moments, since section slices appear in

arbitrary orientation and positioning caused by man-

ual preparation. Employing a PAT thereby serves as

an initialization for the subsequent registration of the

whole image stack (see (Schmitt et al., 2006) for a

comprehensive study), allowing to re-establish three-

dimensional coherence of sectioned objects, which is

lost during sectioning.

Stack Registration and Tissue Recognition. By reg-

istering the full image stack, i.e. ﬁnding an optimal

superposition over all images in the stack, the sec-

tioned object is reconstructed. While ﬁnding an opti-

mal afﬁne transform, maximizing the correspondence

of all stack images at once using numerical optimiza-

tion schemes is computationally too complex, a pair-

wise sequential alignment of images is error-prone

by propagating possible misalignments through the

stack.

We use a spatially extended intensity-based image-to-

image metric of a w

, i = 1,.. .,N weighted sum of

SSD values

D(R ◦ ϕ) :=

∑

i=2

i−1

∑

j=i−N

i− j

Ω

(x) ◦ ϕ

− R

(x) ◦ ϕ)

= min

(1)

within a local neighborhood N of all M slices (and re-

spective transforms ϕ

of images R

for positive j) for

more robust stack registration. The whole stack vol-

ume is ﬁnally resampled on an isotropic grid.

A uniform alignment of corresponding structures in

the image stack (see ﬁg. 1) in turn allows to re-

late a single section to a reference section using free-

form deformations, which is exploited for the seg-

mentation into prevailing tissues. In the segmenta-

tion step relevant biological structures within an im-

age I : Ω ⊂ R

7→ R

are recognized and assigned

a unique label S : I ⊂ Ω 7→ {1, .. .,M} for M tissues

or classes. The classiﬁcation of image grid points

into multiple classes is a crucial step in the modelling

pipeline. Here the raw intensity data is abstracted to-

wards the rationale of the modelling process itself,

where labeled voxel-data is the basis for quantiﬁca-

tion and surface-based modelling of internal struc-

tures. An automatic segmentation of sections is char-

acterized by several requirements:

• A multitude of tissues must be recognized

• Images lack clearly deﬁned edges and structures

Here the computational cheap Sum Of Squared Differ-

ences (SSD) is used, because of histogram equalization in

the preprocessing steps.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

126

• The identiﬁcation of tissue types needs expert

knowledge

This necessitates the use of algorithms incorpo-

rating a priori information for robust multiclass-

segmentation, where solely intensity-based tech-

niques are clearly unfeasible.

In the context of section imaging in (Bollenbeck

and Seiffert, 2008) we have suggested the segmen-

tation into multiple classes by intensity driven regis-

tration and deformation of reference segmentations,

performing equally accurate with image-feature based

supervised classiﬁers like support vector machines

and multi layer perceptrons in experiments on histo-

logical plant data, while being less computationally

costly.

Employing the well known free-form deformable reg-

istration formulation

J(u) := D(R,T ; u) + αs(u)

= min . (2)

of images R,T : Ω ⊂ R

7→ N

an a priori reference

segmentation S : R ⊂ Ω 7→ {1,...,M} of R is adapted

to segment T driven by an intensity based image-

metric D subject to a regularized deformation u.

By using this method we classify voxels contained in

the image stack to the respective tissue or material

based on a small set of expert created reference seg-

mentations.

These tissue mappings can be individually visualized

by iso-surface renderings as in (Gubatz et al., 2007)

and (Dercksen et al., 2008), where for valid inter-

individual models multiple individual stacks are the

basis for a statistical three-dimensional description.

Statistical 3-D Models of Barley Grains. Whereas in

the context of histological models, works so far have

neglected biodiversity amongst specimen, the novelty

of our approach is to provide a meaningful description

of diversity amongst multiple specimen in one sin-

gle model, allowing to quantify common themes and

structures for further analysis and to provide a mean-

ingful framework for the integration of functional data

acquired from other individuals.

The quantiﬁcation of inter-individual variability re-

quires the mapping of data into a common reference

frame allowing the estimation of ubiquitous tissues

and regions of varying tissue composition.

While data sets generally vary in their physical exten-

sion, the task is to capture the composition of internal

structures in terms of estimating a probability to each

spatial coordinate for prevailing tissues based on seg-

mented volume data, rather than constructing averag-

ing surfaces or deformation models.

To obtain a transformation invariant to the actual tis-

sue mapping, data sets are registered into a common

coordinate frame by standardizing ﬁrst image mo-

ments of the mass-centered intensities of the respec-

tive grayscale volumes of sectioned images (Alpert

et al., 1990; Schmitt et al., 2006).

Instead of using registration approaches maximizing

the correspondence of individual label- or grayscaled

volumes directly with afﬁne mappings, spline, or free-

form deformations, a registration based only on indi-

vidual image statistics can be considered un-biased in

terms of leaving the inter-individual variances unaf-

fected.

For each gridpoint ~x ∈ Ω ⊂ R

and tissue M we esti-

mate a probability for ~x belonging to tissue M empir-

ically by

~x,M

|S|

∑

i=1

δ(S

(~x),M) (3)

from segmented data sets S

Thereby a closed description of the spatial distribu-

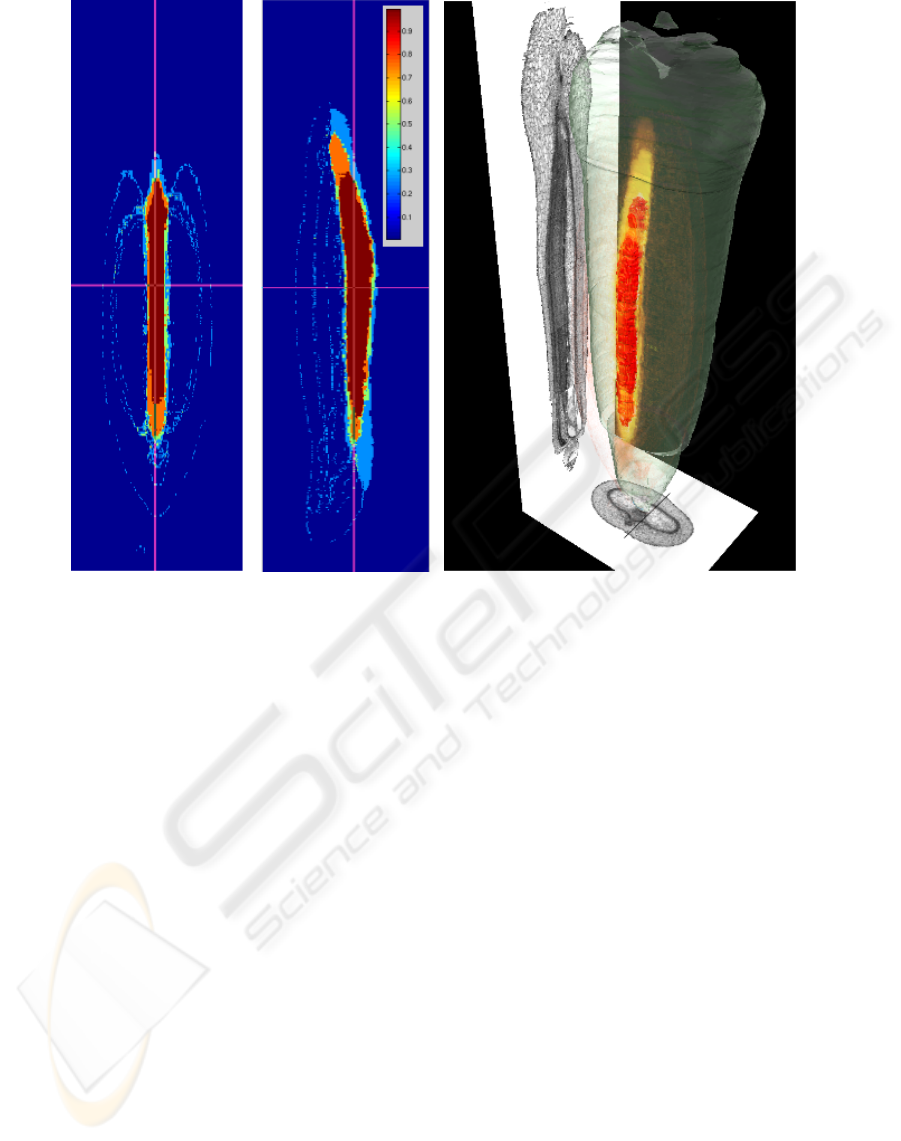

tion of tissues and materials amongst specimen terms

of a mapping P : Ω 7→ R

is obtained.

While the spatial distribution of tissue probabilities is

not based on assumptions on underlying distribution

as with statistical deformation models, it can directly

be related to underlying histological information (in-

tensity volumes) as indicated in ﬁg. 2.

3 RESULTS

For this work four individual grains at the same de-

velopmental stage were sectioned and digitized as de-

scribed, yielding 2,128 to 2,736 slice images, each of

size 1200 × 1600 pixels (approx. 30 GB image data).

Providing the basis for further modelling, intact indi-

vidual grains were reconstructed from section images

as proposed. Fig. 1 shows a volume rendering of a

registered individual grain. By virtual lateral sections,

revealing reconstituted histological features, such as

cell walls etc., the performance of the registration ap-

proach in processing large image stacks could be ini-

tially validated, while detailed assessment is feasible,

yet beyond the scope of this paper. Employing the

described registration-segmentation algorithm, inten-

sity stacks were segmented into their respective tis-

sues based on a set of reference data deﬁned by an

expert.

For inter-individual description we registered and

joined the segmented data in a common reference,

yielding a volume of probabilities for each tissue (see

ﬁg. 2(a)). Using the probabilistic modelling, we ad-

dressed the biological questions (1.) how are speciﬁc

tissues and relevant materials varying and (2.) what

are ubiquitous themes amongst individuals. Thus, for

an insightful 3-D visualization of probabilistic models

FROM INDIVIDUAL INTENSITY VOXEL DATA TO INTER-INDIVIDUAL PROBABILISTIC ATLASES OF

BIOLOGICAL OBJECTS BY AN INTERLEAVED REGISTRATION-SEGMENTATION APPROACH

127

(a) (b)

Figure 2: Visualization of the inter-individual statistical atlas: 2(a) Two orthogonal length-sections through a volume of

position-speciﬁc probabilities for the nucellar projection. 2(b) 3-D Rendering of a statistical model for the nucellar projection:

Red volume represents tissue-material ubiquitous to all individuals., the opacity of the yellow volume rendering is proportional

to the probability for the tissue amongst all individuals (projectional view and outer hull from a single individual).

or atlases, we are using a combination of two meth-

ods:

1. Volume rendering for the spatial distribution of

tissue probability values

2. Surface rendering for ubiquitous regions, i.e.

~x,M

= 1

Fig. 2 shows a combined rendering for the nucel-

lar projection, which plays an important role in early

grain development. A projectional view of a virtual

lateral and section slice and transparent outer hull of

an individual grain is displayed for better intuition.

Visual analysis revealed that connected regions exist

even for volumetrically small tissues such as the vas-

cular bundle and transfer cells, with small variability

amongst specimen, suggesting a determinant role in

grain development.

4 DISCUSSION AND OUTLOOK

In this paper we present an interleaved registration

and segmentation approach for automated 3-D model

generation by integrating data from multiple indi-

viduals. By this inter-individual processing, high-

resolution statistical models of internal structures are

constructed towards high quality phenotyping of mi-

croscopic plant organs.

This signiﬁcant extension of existing works on 3-D

histological models provides the basis for system-

atic quantiﬁcation of phenotypical properties, which

is considered an urging topic in current plant biology.

The presented modelling and quantiﬁcation of inter-

individual diversity further allows a reliable integra-

tion of functional data into a spatial atlas, whereas the

description of diversity itself might also lead to new

indications of functional interrelationships. Insight-

ful visualization helps to identify common themes

in morphology of developing seeds, especially struc-

tures related to storage compound aggregation.

Currently efforts for statistical models resolved on a

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

128

timeline are underway: For such digital morphogene-

sis population–averaging models are a preliminary.

ACKNOWLEDGEMENTS

This work is supported by BMBF grant 0313821. The

authors want to thank U. Siebert and B. Zeike (IPK

Gatersleben) for the material preparation, R. Pielot,

and W. Weschke (IPK Gatersleben) for fruitful dis-

cussions and useful comments.

REFERENCES

Alpert, N. M., Bradshaw, J. F., Kennedy, D., and Correia,

J. A. (1990). The principal axes transformation - a

method for image registration. The Journal of Nuclear

Medicine, 31:1717–1722.

Bollenbeck, F. and Seiffert, U. (2008). Fast registration-

based automatic segmentation of serial section images

for high-resolution 3-d plant seed modeling. Biomed-

ical Imaging: IEEE 5th Int. Symp., pages 352–355.

Caselles, V., Catte, F., Coll, T., and Dibos, F. (1997). A geo-

metric model for active contours in image processing.

Int. J. Comput. Vision, 22:158–175.

Dercksen, V. J., Br

uß, C., Stalling, D., Gubatz, S., Seiffert,

U., and Hege, H.-C. (2008). Towards automatic gen-

eration of 3D models of biological objects based on

serial sections. In Linsen, L., Hagen, H., and Hamann,

B., editors, Visualization in Medicine and Life Sci-

ences, pages 3–25. Springer.

Gubatz, S., Dercksen, V., Br

uß, C., Weschke, W., and

Wobus, U. (2007). Analysis of barley (Hordeum vul-

gare) grain development using three-dimensional dig-

ital models. The Plant Journal(12), 52(4):779–790.

Li, C., Xu, C., Gui, C., and Fox, M. (2005). Levelset set

evolution without re-initialization: A new variational

formulation. In Proc. of the CVPR.

Schmitt, O., Modersitzki, J., Heldmann, S., Wirtz, S., and

Fischer, B. (2006). Image Registration of Sectioned

Brains. Int. J. Comput. Vision, 73(1):5–39.

FROM INDIVIDUAL INTENSITY VOXEL DATA TO INTER-INDIVIDUAL PROBABILISTIC ATLASES OF

BIOLOGICAL OBJECTS BY AN INTERLEAVED REGISTRATION-SEGMENTATION APPROACH

129
