MULTIMODAL REGISTRATION OF NMR-VOLUMES AND

HISTOLOGICAL CROSS-SECTIONS OF BARLEY GRAINS ON

THE CELL BROADBAND ENGINE PROCESSOR

Rainer Pielot

, Udo Seiffert

Leibniz-Institut für Pflanzengenetik und Kulturpflanzenforschung (IPK), Corrensstraße 3, D-06466 Gatersleben

Fraunhofer Institut für Fabrikbetrieb und -automatisierung (IFF), Sandtorstraße 22, D-39106 Magdeburg, Germany

Bertram Manz

, Diana Weier

, Frank Volke

, Falk Schreiber

, Winfriede Weschke

Fraunhofer Institut für Biomedizinische Technik (IBMT), Ensheimer Str. 48, D-66386 St.Ingbert/Saar, Germany

Keywords: NMR, Multimodal, Registration, Alignment.

Abstract: Representation of developmental gradients in biological structures requires visualization of storage

compounds, metabolites or mRNA hybridization patterns in a 3D morphological framework. NMR imaging

can generate such a 3D framework by non-invasive scanning of living structures. Histology provides the

distribution of developmental markers as 2D cross-sections. Multimodal alignment tries to put such

different image modalities into correspondence. Here we compare different methods for rigid registration of

3D NMR datasets and 2D cross-sections of developing barley grains. As metrics for similarity

measurements mutual information, cross correlation and overlap index are used. In addition, different filters

are applied to the images before the alignment. The algorithms are parallelized, partially vectorized and

implemented on the Cell Broadband Engine processor in a Playstation® 3. Evaluation is done by a

comparison of the results to a manually defined gold standard of a NMR dataset and a corresponding 2D

cross-section of the same grain. The results show, that best alignment is achieved by application of mutual

information on sobel-filtered images and, compared to the implementation on a standard single-core CPU,

the computation is accelerated by a factor up to 1.95.

1 INTRODUCTION

Analysis of developmental processes in the growing

barley grain gives insights into regulatory

phenomena and helps for enhancing seed quality and

breeding more robust and useful barley varieties.

The analysis of developmental gradients requires

stacks of 2D slices obtained by histological standard

procedures at certain developmental stages. Putting

these 2D slices into spatial correspondence enables

the visualization of developmental gradients at this

stage. For the correct determination of the spatial

position of each slice we have generated 3D datasets

of barley grains at different developmental stages by

Nuclear Magnetic Resonance (NMR) imaging. The

3D datasets serve as spatial frameworks to register

the 2D slices, which require the registration of

multimodal data.

The registration of multimodal images, which are

obtained from different imaging techniques, is one

of the important applications in biological and

medical image processing. Different imaging

techniques show different aspects of anatomy or

functional activity, so that optimal registration puts

heterogeneous information into the same spatial

framework. Clinical applications like comparing

images of the human brain, e.g. obtained by NMR

imaging and Positron Emission Tomography (PET)

(Thevenanz and Unser, 2000) spurred the

investigation of multimodal alignment algorithms.

For correct alignment the correspondence of both

multimodal images has to be found. In case of rigid

alignment, one image is held fixed and the floating

image is translated and rotated. Automatic

241

Pielot R., Seiffert U., Manz B., Weier D., Volke F., Schreiber F. and Weschke W. (2009).

MULTIMODAL REGISTRATION OF NMR-VOLUMES AND HISTOLOGICAL CROSS-SECTIONS OF BARLEY GRAINS ON THE CELL BROADBAND

ENGINE PROCESSOR.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 241-244

DOI: 10.5220/0001767102410244

 SciTePress

approaches determine the correct translation and

rotation based on a similarity function, which

measures the degree of correspondence between the

fixed and the floating image. The similarity function

can rely on differences in intensity like cross

correlation (van den Elsen, 1994) or gradient

information (Maintz, et al., 1996). In multimodal

image alignment mutual information is mainly used

as similarity measurement (Maes, et al., 2003;

Pluim, et al., 2003). The combination of intensity

gradients and mutual information is also used in

medical image processing (Pluim, et al., 2000).

Implementations of alignment algorithms need

usually much computation time, therefore ways for

acceleration are searched. The upcoming of multi-

core processors motivates the exploitation of

inherent parallelisms in many algorithms dealing

with images. The Cell Broadband Engine (CBE)

Processor, developed by Sony, Toshiba and IBM, is

a heterogeneous multicore-processor, consisting of

one PowerPC Processor Element (PPE) and eight

Synergistic Processor Elements (SPE). The SPE are

optimized for calculations, whereas the PPE is more

suitable for running operating systems. By running

Linux on a Playstation® 3 console only six SPEs are

available, but this system gives the inexpensive

opportunity to unleash the power of an amazing

state-of-the-art multi-core processor. We have

implemented different 2D/3D multimodal alignment

algorithms on the Playstation® 3 and on standard

hardware and compared the computation times. The

algorithms were tested by registration of a cross-

section of a barley grain to a corresponding NMR

volume and the alignment results were compared to

a gold standard, which was obtained by manual

alignment.

2 MATERIAL & METHODS

For this study a 3D NMR dataset of a whole barley

grain at 7 days after flowering was obtained with a

Bruker DMX 400 spectrometer (Bruker,

Rheinstetten, Germany). The image resolution was

31 µm along the axial and 16 µm along the

transverse directions. The dimension of the dataset

was 256 x 175 x 512 voxels. The 2D cross-section

was obtained by standard histological procedures

and was digitized with an original dimension of

1600 x 1200 pixel. It was converted into grayvalues

and scaled to meet the pixelsize of the NMR dataset.

The backgrounds in both images were manually

corrected.

2.1 Alternative Preprocessing

The reduction of noise was realized by application

of a median filter with a filter radius of 2.0.

Alternatively, the contrast was enhanced by

histogram equalization. In case of the median-

filtered images, optionally the gradient information

was extracted to detect the contours of structures.

For this task a sobel filter with a 5 x 5 mask was

applied.

2.2 Similarity Functions

Most prominent in multimodal registration is the

application of mutual information as similarity

function. Mutual information measure the degree of

dependence of a random variable to another by

comparing the probability distributions. Given two

probability distributions p

(t) and p

(f) and the joint

probability p

(t,f) of the target image T and the

floating image F, the normalized mutual information

NMI is defined as (Maes, et al., 2003):

∑

fptp

ftp

ftpFTNMI

)

)(*)(

),(

log(*),(),(

(1)

If image T and image F are perfectly aligned, this

function should give the highest signal.

The linear cross correlation coefficient CC

compares the similarity of the intensity distributions

g(t

) and g(f

) between both images T and F:

∑∑

∑

fgtg

FTCC

)(*)(

),(

(2)

The index i denotes the position. The comparison of

the gray value images should lead to bad results,

because same structures in multimodal images tend

to be visualized by different gray values. If the

gradient information is used, contours are matched

and should improve the results.

The last similarity function used in this paper is

the overlap index OI, which describes the extent of

the image overlap and therefore quantifies the

geometric correspondence between both images:

FTOI

),(

(3)

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

242

and N

are the areas of the images T and F and

is the area of overlap. N is simply the number of

non-background pixels.

The 2D/3D registration procedure was composed

by single 2D/2D alignments. At each single z-

position in the NMR volume the best alignment was

calculated by varying the translation parameters and

the rotation angle in the xy-plane. This procedure

was done successively for all slices in the NMR

volume and the slice with the highest signal of the

used similarity function gives the translation

parameter in the z-direction. The search space was

constrained in x- and y-direction from -30 to 30

pixel translation and from slice 100 to slice 300 in

the NMR volume (translation in z-direction). The

rotation angle in the xy-plane was constrained to

-20° to 20°. Due to the noisy solution space (Pielot,

et al., in preparation) all possible combinations of

parameters were calculated.

On the Playstation® 3 the Cell-SDK 2.1 was

used under Yellow Dog Linux 5.0. The

implementations of the similarity functions were

vectorized to exploit the SIMD architecture of the

SPEs. For comparison, the same algorithms were

implemented on a Opteron 850 SMP-System (2.4

GHz) with Linux 2.6.13 and gcc 4.2.0.

3 RESULTS

The NMR dataset is depicted in Fig. 1a as a volume

rendering. The histological cross-section is shown in

Fig. 1b and the same image after scaling and

converting into grayvalues in Fig.1c.

The calculations were performed with the

unprocessed images and, in case of using NMI and

CC as similarity functions, with median-filtered,

contrast-enhanced and sobel-filtered images.

Application of OI as similarity functions on gradient

or filtered images would not change the result due to

thresholding. Table 1 shows the results of

alignments. The quality Q of alignment is evaluated

Δ−Δ−Δ−Δ−

+++=

aza

ekekekekQ

(4)

with k

{x;y;z;α}

={0,2;0,2;0,2;0,4) as weighting factors

and a=0,2 as global factor. Δx, Δy, Δz and Δα are the

absolute differences between the found alignment

parameters and the defined gold standard.

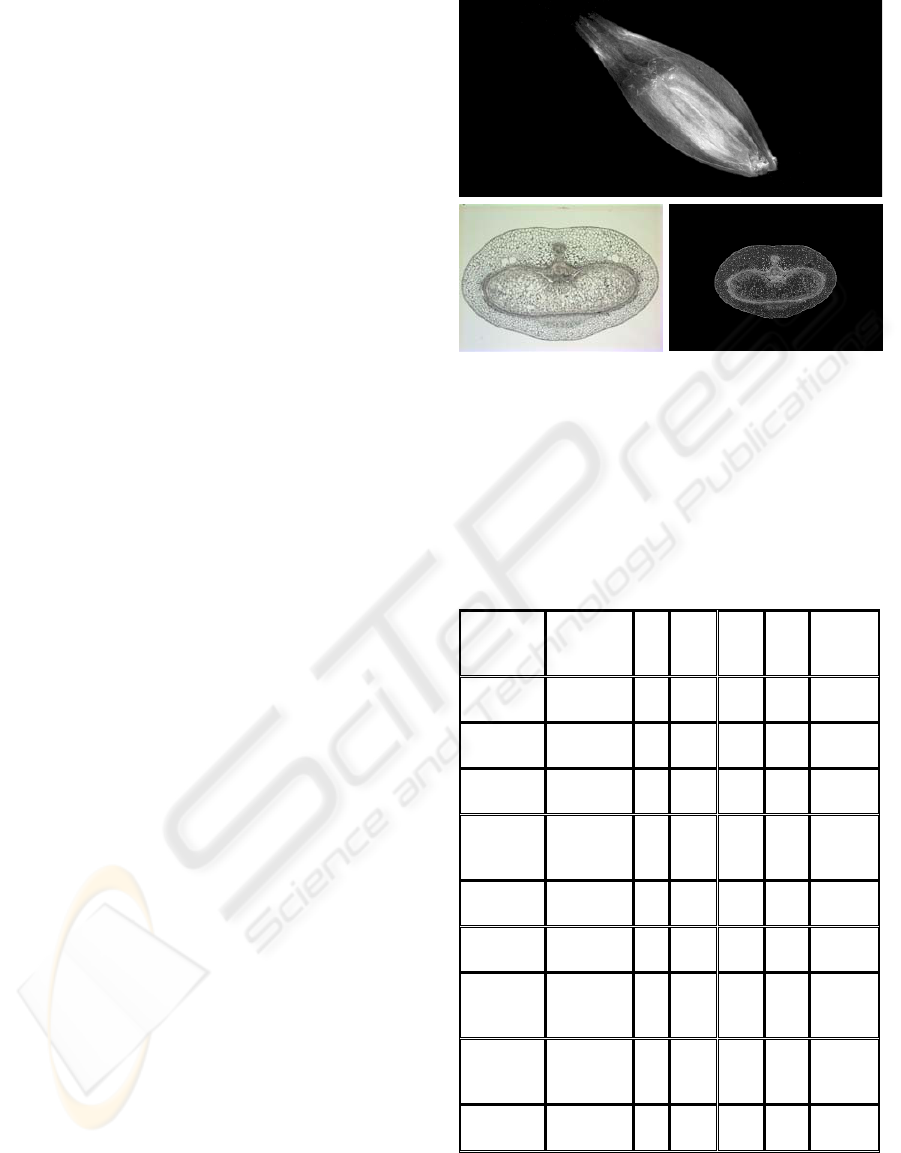

Figure 1: A volume rendering of the target NMR 3D

dataset (a). The original histological 2D cross-section from

the same grain is depicted in (b) and after converting into

grayvalues and scaling in (c). The NMR dataset includes

the complete grain (caryopsis + glumes), whereas the

cross-section shows only the caryopsis.

Table 1: Found alignment parameters. The manual defined

gold standard was: x=9 pixel, y=-5 pixel, z=slice 170 and

α=2. The quality Q was calculated with the differences of

these parameters to the gold standard.

Pre-

rocessin

Similarity

function

x y z α Q

- NMI 1 0 251 3 0,45

median NMI 1 2 260 0 0,36

contrast NMI 7 -3 188 1 0,60

median +

sobel

NMI 10 -7 170 0 0,77

- CC 12 -3 100 2 0,64

median CC 10 -2 103 2 0,67

contrast CC 4 -30 100 -19 0,08

median +

sobel

CC 8 -1 205 2 0,65

- OI 7 -1 203 1 0,55

It can be seen, that NMI in combination with

gradient images achieved the highest quality value.

c)b)

MULTIMODAL REGISTRATION OF NMR-VOLUMES AND HISTOLOGICAL CROSS-SECTIONS OF BARLEY

GRAINS ON THE CELL BROADBAND ENGINE PROCESSOR

243

The computation times are depicted in Table 2.

The simple parallelization and vectorization speeds

up the computation time with a factor from 1.26 to

1.95.

Table 2: Computation times for the application of NMI as

similarity function. Only the results for the unprocessed

images are shown.

Similarity

function

Computation

time CBE [s]

Computation

time Opteron

[s]

Speed

factor

NMI 10,289 20,068 1.95

CC 9,963 12,518 1.26

OI 7,038 10,557 1.50

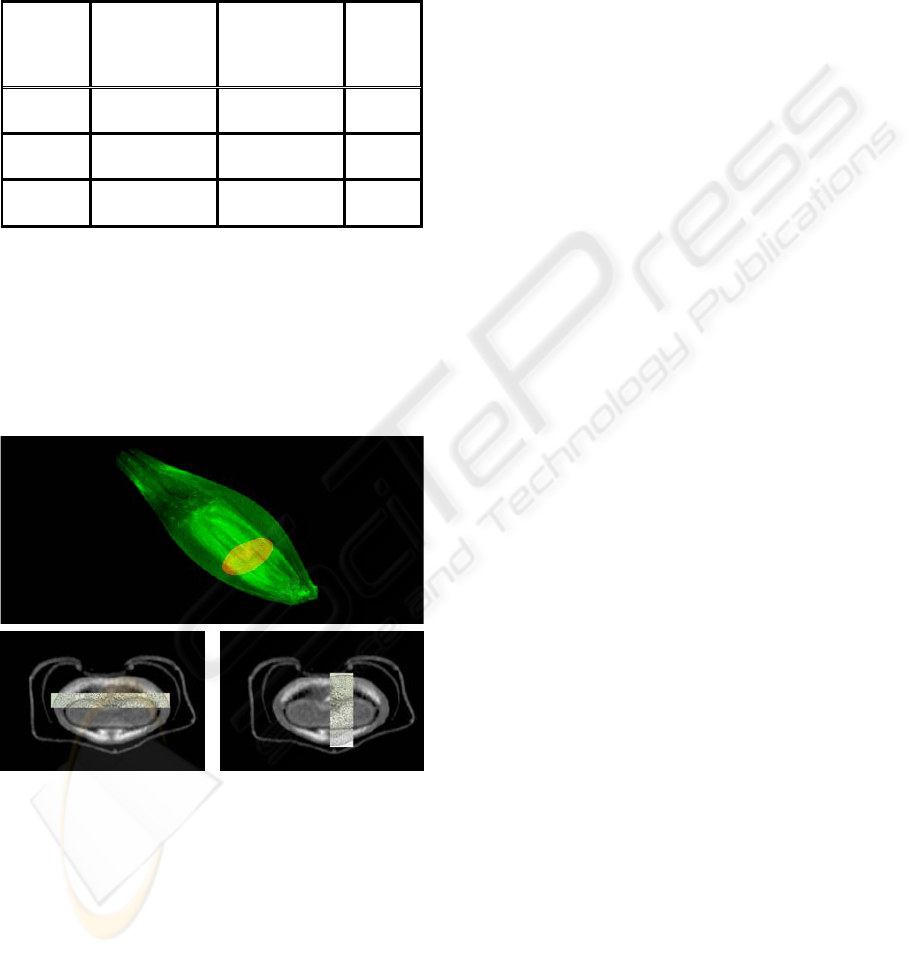

Fig. 2 shows the results after application of NMI

as similarity function on gradient images (x=10

pixel, y=-7 pixel, z=slice 170 and α=0°). The

position of the aligned cross-section (in red) is

shown in Fig. 2a. Overlays of the aligned cross-

section with the corresponding slice of the NMR

dataset (slice 170) are depicted in Fig. 2b and c.

Figure 2: (a) shows a volume rendering of the NMR

dataset (green) together with the aligned cross-section

(red) after application of NMI on gradient images.

Overlays of the NMR-slice 170 with the cross-section are

shown in (b) and (c).

4 CONCLUSIONS

In this paper, we investigated different approaches

for rigid multimodal alignment of 3D NMR image

datasets and 2D histological cross-sections. The

NMR dataset served as spatial framework and the

histological cross-section was automatically aligned

at an optimal position within this 3D dataset. The

results were compared to a manually defined gold-

standard. Best results were achieved by application

of normalized mutual information to gradient

images. This finding corresponds to results of other

authors (Butz and Thiran, 2001; Haber and

Modersitzki, 2004), but is shown here for the first

time for non-medical images.

Simple parallelization of the algorithms for the

CBE processor in a Playstation 3 leads to a speed up

factor about 2, compared to a standard CPU.

REFERENCES

Butz, T., Thiran, J.-P., 2001. Affine registration with

feature space mutual information. In Proceedings of

the 4th International Conference on Medical Image

Computing and Computer-Assisted Intervention

(MICCAI’ 01). 2208:549-556

Haber, E., Modersitzki, J., 2004. Intensity gradient based

registration and fusion of multi-modal images. In

Technical Reports TR-2004-027-A 2004. Department

of Mathematics and Computer Science, Emory

University, Atlanta, GA

Maes, F., Vandermeulen, D., Suetens, P., 2003. Medical

image registration using mutual information. In

Proceedings of the IEEE. 91(10):1699-1721

Maintz, J.B.A., van den Elsen, P.A., Viergever, M.A.,

1996. Comparison of edge-based and ridge-based

registration of CT and MR brain images. Medical

Image Analysis. 1(2):151-161

Pluim, J.P.W., Maintz, J.B.A., Viergever, M.A., 2000.

Image registration by maximization of combined

mutual information and gradient information. IEEE

Transaction on Medical Imaging. 19(8):809-814

Pluim, J.P.W., Maintz, J.B.A., Viergever, M.A., 2003.

Mutual information based registration of medical

images: a survey. IEEE Transactions on Medical

Imaging. 22:986-1004

Thévenanz, P., Unser M., 2000. Optimization of mutual

information for multiresolution image registration.

IEEE Transactions on Image Processing. 9(12):2083-

2099

Van den Elsen, P.A., Pol, E.J.D., Sumanaweera, T.S.,

Hemler, P., Napel, S., Adler, J., 1994. Grey value

correlation techniques used for automatic matching of

CT and MR brain and spine images. Visualization in

Biomedical Computing. Vol. 2359 of Proceedings

SPIE, SPIE Press, Bellingham, WA, pp. 227-237

b) c)

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

244
