DATA MINING APPROACH FOR POSITIONING CAMERA IN

DISPLAYING MOCAP SEARCH RESULTS

Sindharta Tanuwijaya and Yoshio Ohno

Department of Information and Computer Science, Keio University, 3-14-1 Hiyoshi Kohoku, Yokohama, Japan

Keywords:

Motion capture, Mocap, Camera.

Abstract:

In recent years, the amount of mocap has accumulated due to its popularity in creating realistic human mo-

tions. However, such accumulation is yet to be accompanied by the development of a mocap search engine.

In addition to the difﬁculty in processing mocap search, this phenomenon is also due to the problems in dis-

playing mocap as search results, one of which is determining the camera position, orientation, and distance

in displaying mocap. In this paper, we specify camera orientation and distance as constraints to determine

camera positions by using available training data which are given as inputs into data mining techniques. In

addition, we also discuss a method to select representative frames of mocap, thus allowing for the display of

mocap search results as a list of sets of selected mocap frames. Finally, we employ a number of data mining

techniques along with a simple method to determine the camera position which yields the widest projection

area of a virtual face consisting hands and feet joints into the camera plane, and compare the results to each

other.

1 INTRODUCTION

The capability to search motion capture data, com-

monly abbreviated as mocap, has become more im-

portant as the amount of mocap has accumulated due

to its popularity in creating realistic human motion

since around two decades ago. But although several

methods to search mocap have been proposed (Forbes

and Fiume, 2005), (Liu et al., 2005), (Chiu et al.,

2004), (Cardle et al., 2003), a search engine to search

mocap, which must also consider how to best display

the search results, is still yet to be established.

One of the reasons of this phenomenon is the difﬁ-

culty in displaying the mocap frames, which describes

a number of joints moving in spacetime, in a format

that allows multiple mocap to be viewed simultane-

ously as search results, such as a list in case of text

documents (Google, 2008), (Yahoo, 2008). Display-

ing all frames of mocap search results or playing them

as videos simultaneously is much likely to cause data

overload and confuse users, even if they are short.

Playing a short animation if necessary, for example if

the mouse cursor is over an image of one search result,

is an appealing idea, but users can not see the motion

at ﬁrst glance and have to move the mouse cursor over

each mocap search result, which will become tedious

in a short time. In addition, it is not a trivial problem

to determine from which angle the motions have to be

rendered, or in other words, there is another problem

of determining the camera position, orientation, and

distance from the subject.

In this paper, we propose a data mining approach

to determine camera positions relative to the subject

in displaying mocap frames. To display the selected

frames of one mocap, we opt for side by side view as

shown in Figure 1, in which there are several images

depicting different frames of one mocap, and the im-

ages are arranged in a row. In addition to the inexpen-

sive computation, we believe that it shows the rela-

tionship of one frame to the other frames well enough,

and it does not take too much space on a user’s display

monitor. Conforming to the usual practice in display-

ing text documents, we can then display multiple mo-

cap search results as a list of sets of selected mocap

frames.

2 RELATED WORK

The problem to illustrate motion in still imagery was

ﬁrst stated by (Assa et al., 2005), in which the author

proposed a method to automatically select key poses

from motion capture. Additionally, the paper also de-

scribed the problem of illustrating the motion. Usu-

266

Tanuwijaya S. and Ohno Y. (2009).

DATA MINING APPROACH FOR POSITIONING CAMERA IN DISPLAYING MOCAP SEARCH RESULTS.

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications, pages 266-273

DOI: 10.5220/0001769202660273

 SciTePress

ally, key poses are displayed as a set of images po-

sitioned side by side, while another approach called

digital strobing combines all the key poses into a sin-

gle image by sharing a common background. A novel

method called spatially extended layout was intro-

duced in the paper to address the drawbacks of dig-

ital strobing. However, in the paper, the author didn’t

mention the problem of determining camera positions

and orientations in displaying mocap frames.

It seems natural that the best viewpoint is the one

that obtains the maximum information of a scene.

(Roberts and Marshall, 1998) deﬁned the best view

as the view which direction has the smallest angular

offset from the inverse surface normals of the faces

in the scene. (V

azquez et al., 2001) proposed another

approach by using the probability distribution of the

projected area over the sphere of directions centered

in the viewpoint, called viewpoint entropy, to measure

the maximum information of a scene, while (Stoev

and Strasser, 2002) argued that the above methods fail

to give a good overview of the scene’s depth such as

the scene of a landscape and extended the approach by

maximizing not only the projected area of the scene,

but also the depth of the scene.

(Bares and Lester, 1999) introduced partial con-

traints which are deﬁned by system users through an

interface to determine the best camera position auto-

matically, while (Arbel and Ferrie, 1999) and (Marc-

hand and Courty, 2000) addressed the problem of gen-

erating camera trajectories automatically based on the

current view.

Some of the rules applied in the ﬁlm domain have

also been surveyed. (Drucker and Zeltzer, 1995) en-

capsulated several constraints based on the rules into

a camera module, which can be connected to another

camera module for transition. Using a similar con-

cept, (He et al., 1996) introduced ﬁlm idioms, a hier-

archical ﬁnite state machine to determine transitions,

while the idioms determine which camera modules

should be used in a particular state. Another approach

(David B. Christianson, 1996) described Declarative

Camera Control Language (DCCL) to encode the

rules found in the ﬁlm domain.

While we generally agree that the best view

should have the maximum information of the corre-

sponding scene, in displaying mocap, it is usually not

the projected area of the joints or bones that have to be

considered, but rather the motion itself which involves

multiple joints moving in spacetime. Further, mocap

itself naturally has no faces since it contains only the

coordinates of the joints. One may be tempted to cre-

ate a virtual face by connecting both hand joints and

feet joints, and then determine the view which will

produce the widest projection area of the virtual face

into the camera plane, but such an approach fails to

address the fundamental issue of looking for the view

that best conveys the motion itself. For example rather

than the general view which is able to display all the

joints clearly, we are naturally more interested in the

movement of the leg joints in more detail when look-

ing at a kicking motion.

The rules from the ﬁlm domain cannot also be

straightforwardly applied to the problem since instead

of looking for ways to move the camera, our goal

is to determine camera positions in displaying mo-

cap frames. There are however several basic rules

that can be applied, such as the possible locations of

the camera (internal, parallel, external), and the dis-

tance of the camera with respect to the subject (ex-

treme, closeup, medium, full, long). In fact, almost

all the previous approaches described above refer to

the use of positions located on the surface of a virtual

sphere surrounding the subject as candidates for the

best camera position, which are usually represented

as spherical coordinates.

As also pointed out by (Stoev and Strasser, 2002),

we believe that until now, there are no objective mea-

surements and criteria for evaluating the goodness of

camera positions, especially in the case of display-

ing mocap. Therefore, we propose a novel approach

to determine the best camera position relative to the

subject by using a data mining approach. The use of

data mining for camera transition in computer graph-

ics community was ﬁrst explored by (Singh and Bal-

akrishnan, 2004) to generate non-linear projection of

a 3d scene.

3 APPROACH

3.1 Overview

Displaying all frames of the mocap will cause in-

formation overload, no matter from which angle the

frames are rendered. Therefore, in the next subsec-

tion, we will ﬁrst describe our simple method to select

the frames of one mocap. After that, we will describe

what attributes that we choose in building data mining

classiﬁers, or speciﬁcally the attributes of the joints,

which are used as input attributes, and the attributes

of the camera, which are used as the output or target

attributes of the classiﬁers. We stress in this section

that we are not concerned with discovering novel data

mining techniques, but rather, we seek to apply es-

tablished data mining techniques to a new problem

domain.

DATA MINING APPROACH FOR POSITIONING CAMERA IN DISPLAYING MOCAP SEARCH RESULTS

267

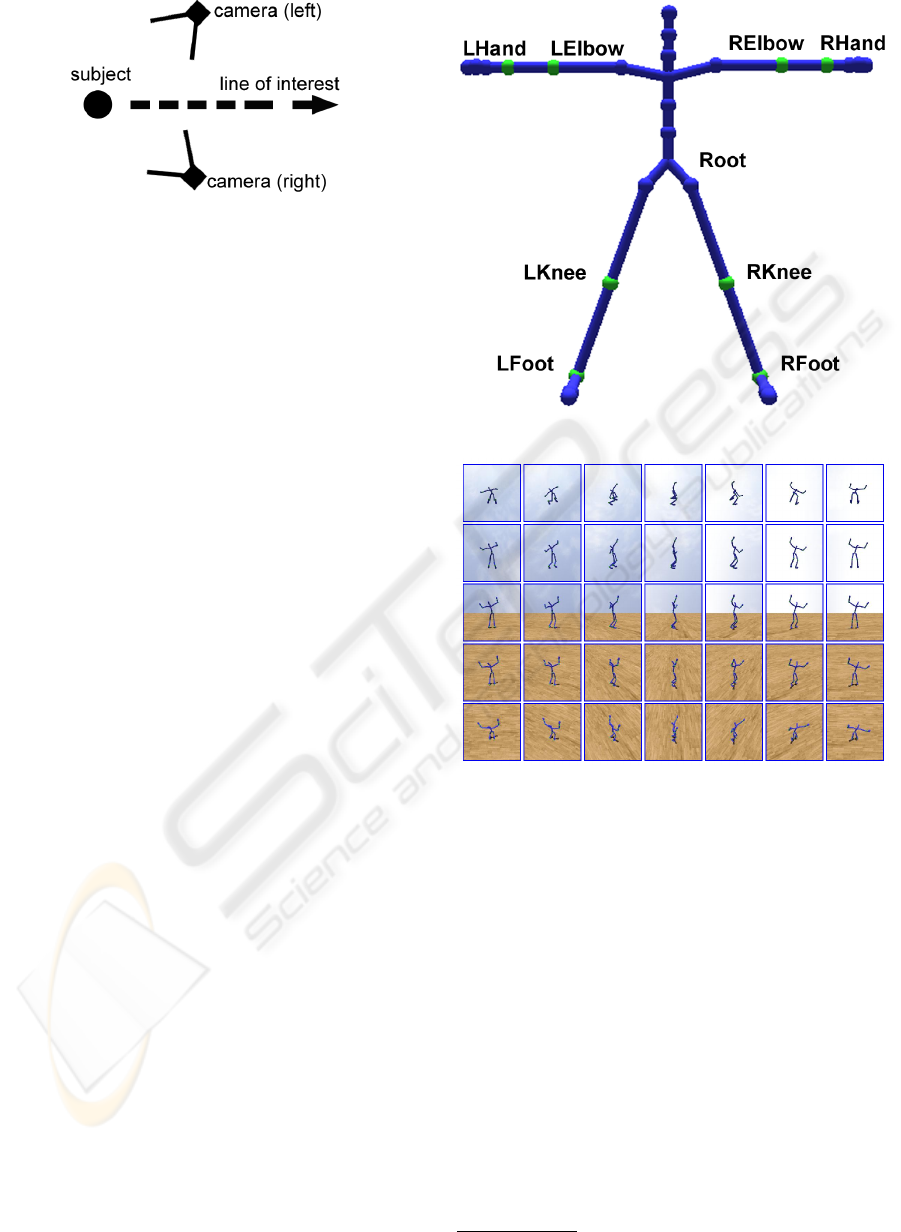

Figure 1: Selecting Frames: (a) uniform sampling, (b) our

method.

3.2 Selecting Frames

We regard k as the number of frames for one mocap

that are going to be displayed. Initially, the mean of

the joint positions of all frames in the mocap is cal-

culated to be used as the center point. Then, we de-

termine the ﬁrst selected frame as the frame which

has the longest distance to the center point. At the

next iteration, the second selected frame is deﬁned

to be the frame which has the longest distance to the

center point and to the the nearest previously selected

frames. These steps are repeated until the number of

selected frames reaches k. The value of k itself can be

deﬁned as the number of frames required to represent

one mocap, or in other words a constant. Another op-

tion is to set k based on the length or other statistical

values of the mocap.

Since these selected frames basically represent ex-

treme body poses which have the longest distances

from other body poses in the motion, we are con-

vinced that they will represent the motion better than

taking uniformly spaced k frames from the motion as

can be seen in Figure 1. When users look at such

multiple extreme poses at the same time, it is rela-

tively easy to visualize inbetween poses among them

although these inbetween poses are actually not dis-

played. Similarly, it is difﬁcult, if not impossible, to

visualize the extreme body poses when only the inbe-

tween poses are shown to users.

3.3 Joint Attributes

For displaying a selected frame, we believe that the

best camera position depends on the body pose in that

frame, which can be roughly estimated by the direc-

tion of the joints of the body. The concept of repre-

senting body poses using the direction of joints is very

similar to Labanotation score (Hutchinson, 1977), a

dance notation which uses symbols to deﬁne the di-

rection of movement among other things. Undoubt-

edly, the use of Labanotation in computer graphics

community is not new (Hachimura and Nakamura,

2001), (Yu et al., 2005), (Shen et al., 2005).

In a simple Labanotation score, there can be 27

possible directions for each joint, which are repre-

sented by nine horizontal direction symbols and three

vertical direction symbols. In order to address the

need in data mining that similar directions should

have small distances, we utilize three attributes: X-

axis, Y-axis, and Z-axis to represent the direction of

each joint, which are speciﬁed relative to the position

and orientation of the center of the subject, usually

called the root joint.

3.4 Camera Attributes

In determining the properties of the camera using

spherical coordinates, there are actually ﬁve variables

that have to be speciﬁed: the angle from the positive

y-axis centered on the subject to the camera position

(θ), the angle from the positive x-axis centered on the

subject to the orthogonal projection of the camera po-

sition on the X-Z plane (φ), the distance of the camera

from the subject, and two additional similar angles to

determine the orientation of the camera.

In this paper, we constrain the camera so that it al-

ways faces the root joint, and we also deﬁne a ﬁxed

value to be the distance. This leaves only two vari-

ables: θ and φ to be determined. Unlike the joint at-

tributes, the values of these camera attributes cannot

be calculated directly based on the poses in the mo-

cap, and will be determined using data mining clas-

siﬁers. That is, by building classiﬁers based on the

available training data, then, given the joint attributes

of new data, we can estimate their camera attributes.

3.5 Line of Interest

There is one established rule in cinematography,

called “don’t cross the line”, which is also referred to

by (He et al., 1996). This rule implies that once a shot

is taken from the left side of the line of interest as can

be seen in Figure 2, subsequent shots should also be

taken from the same side, and similarly if the ﬁrst shot

is taken from the right side of the line of interest. This

rule leads us to reason that the same behavior should

also apply when displaying a list of multiple mocap

represented by several frames. In other words, if one

set of frames of mocap uses a camera positioned at its

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

268

Figure 2: Line of interest and two cameras positioned on its

left and right side.

left side, then the other sets of frames of other mocap

must also use cameras positioned at their left sides.

3.6 Putting It All Together

To ensure consistencies among data, one of the two

camera angles: φ is speciﬁed relative to the orienta-

tion of the root joint, which means a value of zero

always indicates the front of the body pose. If φ is

not speciﬁed relative to the root orientation, two exact

motions with different root directions may have very

different φ values, causing inconsistencies in the data.

Then, the inputs to build the data mining classi-

ﬁers will form a matrix:

[ ja

, .., ja

, phi

, theta

] (1)

where ja

i j

indicated the j-th joint attribute of the i-th

data, n indicates three (X, Y, Z axis) times the num-

ber of selected joints as described in the previous sub-

section, and phi

, theta

indicates the corresponding

camera angles for the i-th data.

4 IMPLEMENTATION

Most of our data come in the form of a skeletal hier-

archy of Euler joint angles (CMU, 2007). In select-

ing frames, we convert this representation into three

dimensional joint positions by ignoring the global X

and Z translation of the root joint because we choose

to regard XZ planar transformations of the root joint

as irrelevant in selecting the frames. Then, in deter-

mining joint attributes, we further calculate the direc-

tions of the eight selected joints as shown in Figure 3.

In total there will be 24 joint attributes.

4.1 Classiﬁers

To collect training data, we provide a set of images to

display a selected mocap frame using uniformly di-

vided θ and φ values and ask users to choose which

image that he or she thinks is the best in displaying

Figure 3: Selected joints.

Figure 4: Images for collecting training data.

that particular frame or pose as can be seen in Fig-

ure 4. There are only a couple of users participating

in this training data collection at the moment, includ-

ing the authors, but we have put the program to do

this process on the Internet

, allowing anyone around

the world to participate. For the results written in this

paper, we have managed to accumulate around two

hundred training data, and we build our data mining

classiﬁers based on this data.

Initially, we need two data mining classiﬁers. One

is used to determine θ, and one is used to determine

φ. Further, given the “line of interest” constraint de-

scribed in the previous section, we have a group of

four data mining classiﬁers, in which two of them are

used to determine θ and φ of the camera positioned at

the left side of the line of interest, and the other two

are used to determine the same angles of the camera

http://bebas.on.ics.keio.ac.jp

DATA MINING APPROACH FOR POSITIONING CAMERA IN DISPLAYING MOCAP SEARCH RESULTS

269

positioned at right side.

In our experiment however, from many available

data mining techniques, we also try to compare which

techniques are suitable for determining camera an-

gles. This leads to the creation of several groups,

each having four data mining classiﬁers as explained

above. An example of the images of a running motion

produced by using the camera angles obtained from a

radial basis function network can be seen in Figure 5

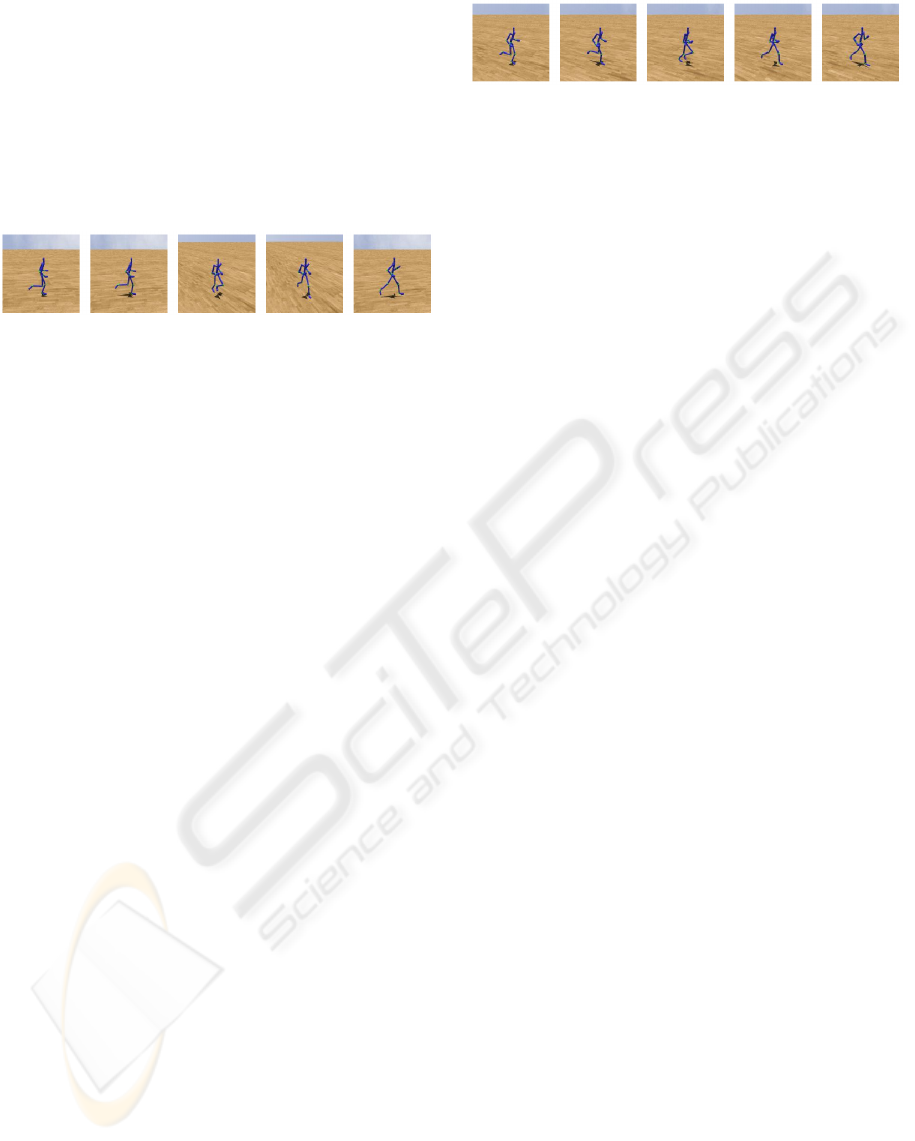

Figure 5: Images of a running motion produced by a radial

basis function network classiﬁer.

4.2 Weighting

Using the above approach, although the selected

frames of a single mocap are displayed using cam-

era positions at the same side of the line of interest,

it sometimes occurs that the camera angles (θ,φ) are

substantially different for the selected frames. This

phenomenon can be confusing for users if they are

not used to looking at subsequent images of the same

motion which are taken from different camera angles.

One simple approach to alleviate this problem is to

take the average of all the camera angles of the se-

lected frames, and use the average value to display all

the frames.

A better approach that we have implemented, is

by giving different weights to the camera angles of

each selected frames. As described in the previous

section, the ﬁrst selected frame is the frame which

has the longest distance to the center point or to the

previously selected frames, which is none in this case.

The second selected frame is then the frame which has

the second longest distance and so on. Thus, giving

higher weight to earlier selected frames is appropri-

ate in the sense that the earliest selected frame is the

frame that can most distinguish the motion from other

motions.

Also, while using the orientation of root as the

base to calculate φ may cause a rotating motion rep-

resented by several frames to be indiscernible since

they may have the same local phi values relative to

the root, the practices of averaging or weighting will

cause the selected frames of a motion to be displayed

with the same global camera angles, and thus able

to solve such problems. The result of weighting the

camera angles can be seen in Figure 6.

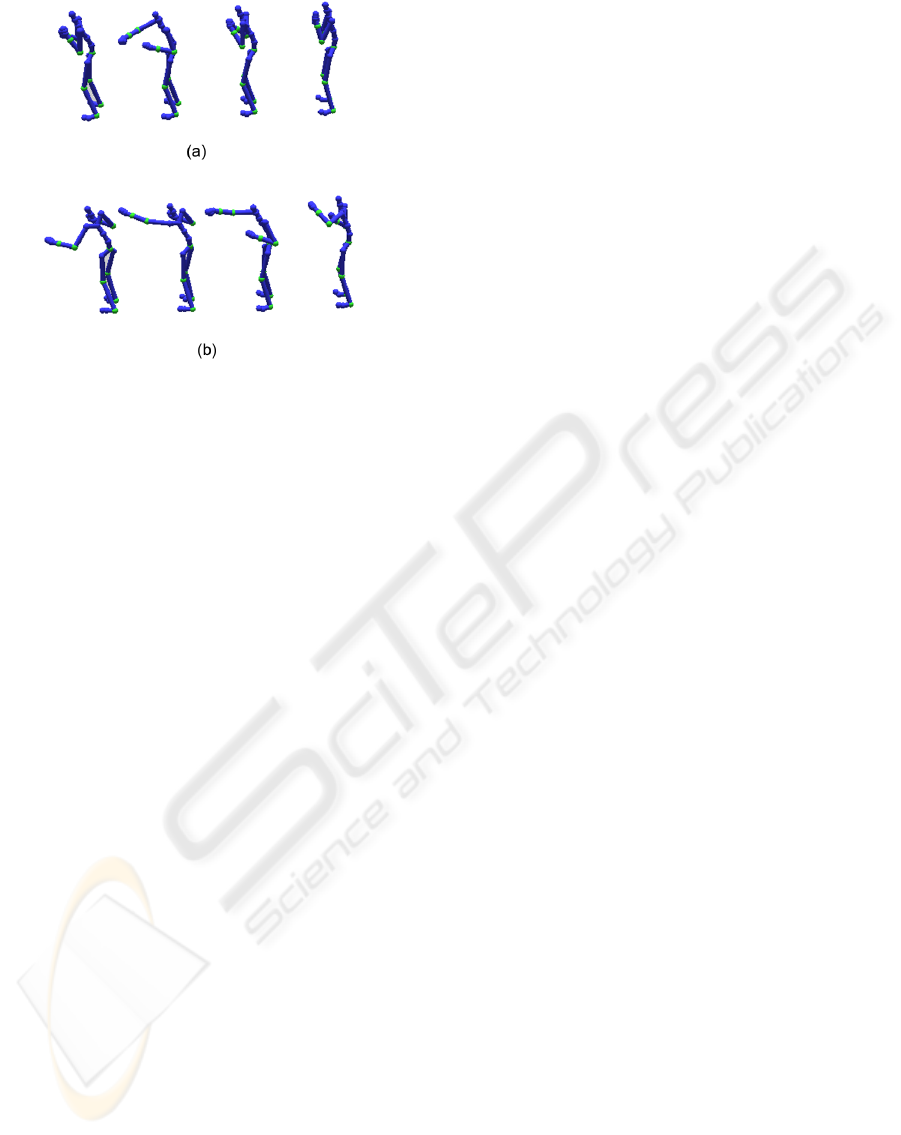

Figure 6: A result of weighting camera angles.

5 DATA MINING TECHNIQUES

COMPARISON

We choose several data mining techniques from (Wit-

ten and Frank, 2005) which can estimate numeric data

as the value of camera angles are numeric. The data

mining techniques used in this paper are as follows:

widest projection, M5P model tree, backpropagation

neural network, reduced-error pruning tree, radial ba-

sis function network, and SMO for support vector re-

gression.

Additionally, we have also implemented a simple

method, which we call widest projection method, to

discover the camera angles which yield the widest

projection area of a virtual face consisting both two

hand points and two feet points into the camera plane.

The results of the widest projection method, along

with the results of the chosen data mining techniques,

are then evaluated by asking users from various back-

grounds to give scores ranging from 1 to 10 .

Speciﬁcally, we prepare a set of selected frames

from running, punching, soccer, basketball, and base-

ball mocap. A user gives his or her score for the

same number of images, in which each method is ap-

plied equally and we have accumulated more than two

thousand images evaluated by users for the purpose

of comparison. The evaluation of each technique and

each mocap group can be seen in Figure 7, in which

the vertical axis represents the average score given by

users for that particular technique and mocap group.

The ﬁgure shows that two of of the data mining ap-

proaches, in particular pruning tree and radial basis

function, generally yield better results than the other

methods.

6 DISCUSSION

We have introduced a simple method to select mo-

cap frames and have proposed the use established data

mining techniques in a new problem domain of de-

termining camera angles in order to display mocap

search results in a format such as a list. Other re-

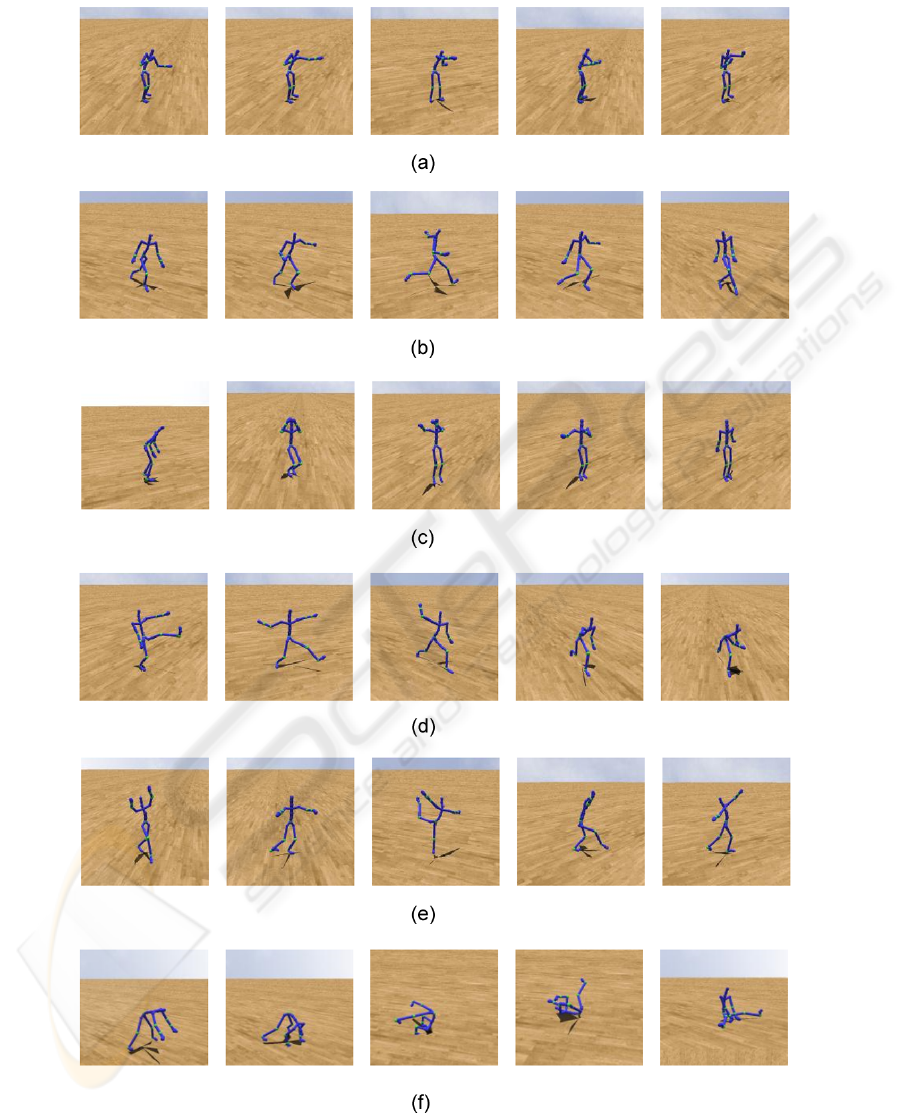

sults can be seen in Figure 8, which also demonstrates

that our simple frame selection method works quite

well for motions including rolling motions. We inten-

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

270

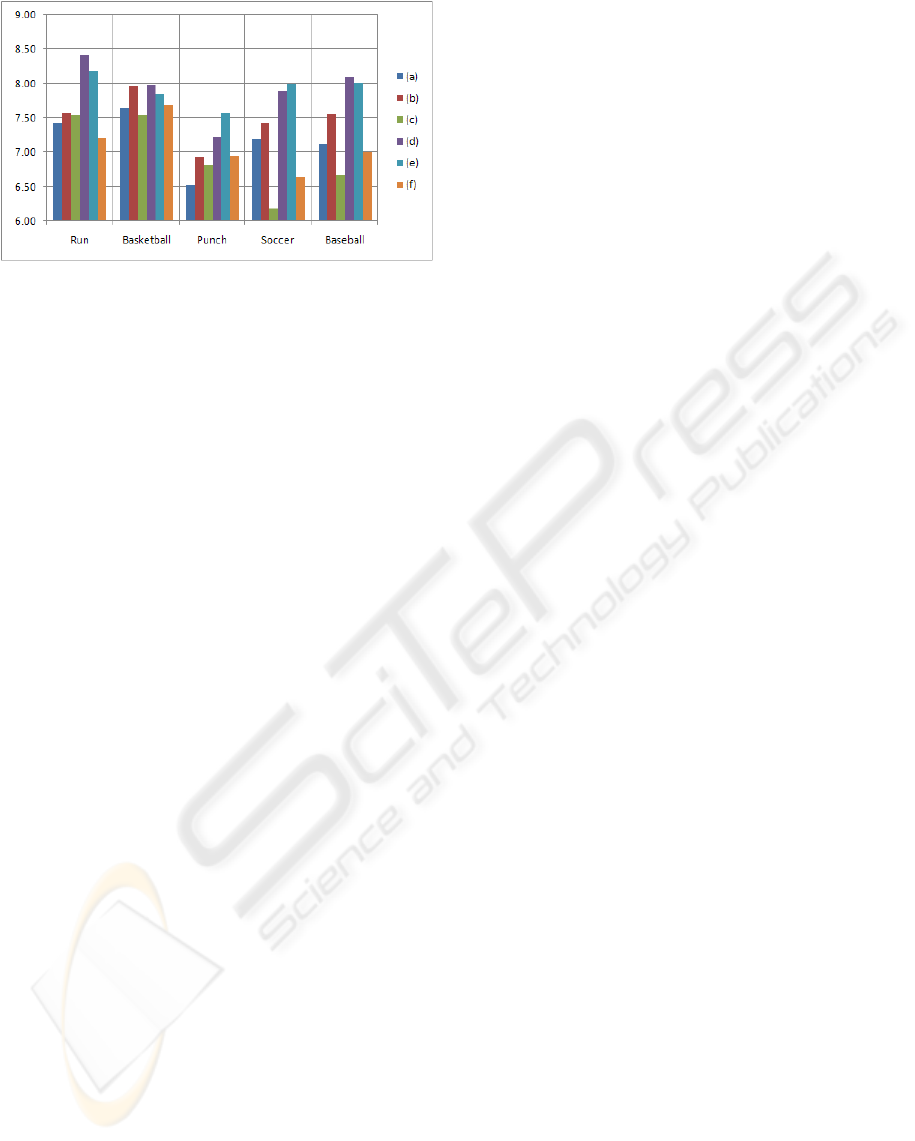

Figure 7: Techniques Comparison: (a) Widest projection.

(b) M5P model tree. (c) Backpropagation neural network.

(d) Reduced-error pruning tree. (e) Radial Basis Function

network. (f) SMO for support vector regression.

tionally provide non-weighted results in this ﬁgure to

show the chosen camera angles based on each frame,

which are not affected by other frames in the same

mocap. We believe that this will allow better under-

standing of the results of the method described in this

paper.

Although we admit that our approach largely de-

pends on the training data, or input from users, we

have shown that two of the classiﬁers built by our cur-

rent limited training data are able to determine satis-

factory camera angles, indicated by the relatively high

scores given by users. Thus, we conclude that in gen-

eral, data mining techniques have the potential to es-

timate camera angles better than ﬁxing the camera to

be positioned at a certain distance from the object, and

better than the widest projection method described in

the previous subsection. However, further research

would be required to determine whether the same sit-

uation applies for other types of motion which are not

included in this work.

It has to be noted that other than the chosen joint

attributes, our current approach does not take the cat-

egory or the type of the motion into consideration. We

believe that increasing the number of input attributes

other than joint attributes, and adding more training

data will allow for even better determination of cam-

era angles.

In the future, we are planning to give motion cues

to the selected frames to better illustrate the motion

such as the approach described in (Bouvier-Zappa

et al., 2007). Such an approach will further allow

the users to understand the performed motion by just

looking at several selected frames without looking at

the whole motion. For displaying exaggerated mo-

tions, it may also be interesting to emphasize view-

able parts of the body from the determined camera

positions as described in (Singh and Balakrishnan,

2004)

ACKNOWLEDGEMENTS

The data used in this project was obtained from mo-

cap.cs.cmu.edu. The authors would also like to thank

all of the people who have participated in the surveys.

REFERENCES

Arbel, T. and Ferrie, F. (1999). Viewpoint selection by nav-

igation through entropy maps. pages 248–254.

Assa, J., Caspi, Y., and Cohen-Or, D. (2005). Action syn-

opsis: pose selection and illustration. ACM Trans.

Graph., 24(3):667–676.

Bares, W. H. and Lester, J. C. (1999). Intelligent multi-

shot visualization interfaces for dynamic 3d worlds.

In IUI ’99: Proceedings of the 4th international con-

ference on Intelligent user interfaces, pages 119–126,

New York, NY, USA. ACM.

Bouvier-Zappa, S., Ostromoukhov, V., and Poulin, P.

(2007). Motion cues for illustration of skeletal motion

capture data. In NPAR ’07: Proceedings of the 5th in-

ternational symposium on Non-photorealistic anima-

tion and rendering, pages 133–140, New York, NY,

USA. ACM.

Cardle, M., Vlachos, M., Brooks, S., Keogh, E., and

Gunopulos, D. (2003). Fast motion capture matching

with replicated motion editing. Proceedings of SIG-

GRAPH 2003 - Sketches and Applications.

Chiu, C., Chao, S., Wu, M., Yang, S., and Lin, H.

(2004). Content-based retrieval for human motion

data. 15(3):446–466.

CMU (2007). CMU graphics lab motion cap-

ture database. Retrieved November 2007, from

http://mocap.cs.cmu.edu/.

David B. Christianson, Sean E. Anderson, L.-w. H. D. H. S.

D. S. W. M. F. C. (1996). Declarative camera control

for automatic cinematography. unknown.

Drucker, S. M. and Zeltzer, D. (1995). Camdroid: a sys-

tem for implementing intelligent camera control. In

SI3D ’95: Proceedings of the 1995 symposium on In-

teractive 3D graphics, pages 139–144, New York, NY,

USA. ACM.

Forbes, K. and Fiume, E. (2005). An efﬁcient search

algorithm for motion data using weighted pca. In

SCA ’05: Proceedings of the 2005 ACM SIG-

GRAPH/Eurographics Symposium on Computer An-

imation, pages 67–76, New York, NY, USA. ACM.

Google (2008). Google search.

Hachimura, K. and Nakamura, M. (2001). Method of gen-

erating coded description of human body motion from

motion-captured data. In Robot and Human Interac-

tive Communication, 2001. Proceedings. 10th IEEE

International Workshop, pages 122–127, Bordeaux,

Paris, France.

He, L., Cohen, M. F., and Salesin, D. H. (1996). The vir-

tual cinematographer: a paradigm for automatic real-

time camera control and directing. In SIGGRAPH ’96:

DATA MINING APPROACH FOR POSITIONING CAMERA IN DISPLAYING MOCAP SEARCH RESULTS

271

Proceedings of the 23rd annual conference on Com-

puter graphics and interactive techniques, pages 217–

224, New York, NY, USA. ACM.

Hutchinson, A. (1977). Labanotation. Theatre Arts Books.

Liu, G., Zhang, J., Wang, W., and McMillan, L. (2005).

A system for analyzing and indexing human-motion

databases. In SIGMOD ’05: Proceedings of the 2005

ACM SIGMOD international conference on Manage-

ment of data, pages 924–926, New York, NY, USA.

ACM.

Marchand, E. and Courty, N. (2000). Image-based vir-

tual camera motion strategies. In Graphics Interface,

pages 69–76.

Roberts, D. and Marshall, A. (1998). Viewpoint selection

for complete surface coverage of three dimensional

objects.

Shen, X., Li, Q., Yu, T., Geng, W., and Lau, N. (2005).

Mocap data editing via movement notations. In CAD-

CG ’05: Proceedings of the Ninth International Con-

ference on Computer Aided Design and Computer

Graphics, pages 463–470, Washington, DC, USA.

IEEE Computer Society.

Singh, K. and Balakrishnan, R. (2004). Visualizing 3d

scenes using non-linear projections and data mining

of previous camera movements. In AFRIGRAPH ’04:

Proceedings of the 3rd international conference on

Computer graphics, virtual reality, visualisation and

interaction in Africa, pages 41–48, New York, NY,

USA. ACM.

Stoev, S. L. and Strasser, W. (2002). A case study on au-

tomatic camera placement and motion for visualizing

historical data. In VIS ’02: Proceedings of the confer-

ence on Visualization ’02, pages 545–548, Washing-

ton, DC, USA. IEEE Computer Society.

azquez, P.-P., Feixas, M., Sbert, M., and Heidrich, W.

(2001). Viewpoint selection using viewpoint entropy.

In VMV ’01: Proceedings of the Vision Modeling and

Visualization Conference 2001, pages 273–280. Aka

GmbH.

Witten, I. H. and Frank, E. (2005). Data Mining: Practical

machine learning tools and techniques, 2nd Edition.

Morgan Kaufmann.

Yahoo (2008). Yahoo search.

Yu, T., Shen, X., Li, Q., and Geng, W. (2005). Motion re-

trieval based on movement notation language: Motion

capture and retrieval. Comput. Animat. Virtual Worlds,

16(3-4):273–282.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

272

Figure 8: Other results by a radial basis function network classiﬁer. (a) Punch. (b) Soccer kick. (c) Basketball jump shot. (d)

Baseball pitch. (e) Dance. (f) Rolling.

DATA MINING APPROACH FOR POSITIONING CAMERA IN DISPLAYING MOCAP SEARCH RESULTS

273
