AN EFFICIENT UNDO/REDO-FRAMEWORK FOR

THREE-DIMENSIONAL VISUAL SIMULATION

OF ALGORITHMS AND DATA STRUCTURES

Ashraf Abu Baker

Institute of Computer Graphics, Department of Computer Science and Mathematics

Johann Wolfgang Goethe University, Frankfurt, Robert-Mayer-Str. 10, 60054 Frankfurt, Germany

Keywords:

Visual Siumlations, Three-dimensional algorithm animation, Undo/redo.

Abstract:

In order to be pedagogically effective, an algorithm visualisation is expected to satisfy a large number of

requirements. One of the most essential and useful requirements is its ability to provide support for reversing

performed user actions. In this work we will introduce a generic concept for an efﬁcient undo/redo framework

for three-dimensional visual simulations of algorithms and data structures. The framework uses the memento

design pattern to implement a linear multiple-undo/multiple-action model with an unlimited undo of performed

actions. It is straightforward to utilise and supports the automated generation of three-dimensional visual

simulations of algorithms and data structures.

1 INTRODUCTION AND

MOTIVATION

Algorithm visualisation technology are gaining more

and more recognition as effective modern e-learning

and e-teaching instruments. With the recent in-

creasing popularity of algorithm visualisations, the

demands for effective algorithm visualisation tech-

niques have also increased. To be pedagogically ef-

fective an algorithm visualisation (AV) is expected

to satisfy a large number of essential requirements

(Roessling, 2002). Perhaps one of the most funda-

mental and useful features, which considerably af-

fects the effectiveness of a visualisation, is its abil-

ity to support reversing (undo) and redoing of user

actions (J. Archer and Schneider, 1984). Algorithm

visualisations that do not maintain this feature have

proven to be ineffective (Stasko and Badre, 1993).

Furthermore, studies on the pedagogical impact of

AV, demand that an AV should allow the user a wide

range of interactions, which enables him to freely ex-

plore all aspects of the visualised algorithm or data

structure (T. Naps and et al., 2003). Obviously, there

is a high correlation between the supported interac-

tion level and the number of features provided, on

the one hand, and the complexity of the implemen-

tation of an undo/redo mechanism on the other hand.

The more powerful a visualisation is, in terms of sup-

porting interactions and features, the more actions

need to be undone, and hence the higher is the ef-

fort required to implement an undo/redo facility. Ap-

parently, developing and implementing an efﬁcient

generic undo/redo model for highly effective visual-

isations is not only essential but also difﬁcult. Tak-

ing part in an annual internship at our Institute of

Computer Graphics, 19 students were required to de-

velop 38 three-dimensional visual algorithm simula-

tions, two simulations each. The students stated that

the time needed merely to implement an undo/redo-

interface was twice as much as the time required to

develop the entire simulation. This fact explains why

many visual simulations of algorithms and data struc-

tures only offer limited undo/redo support, if any. Al-

though a lot of work has been carried out on inno-

vating new techniques to improve the quality of al-

gorithm visualisations, not enough attention has been

paid to this issue.

Unfortunately, this very useful feature has not be-

come a standard in algorithm visualisation systems

yet. Among the large number of publications in the

ﬁeld of algorithm visualisation, we could not ﬁnd any

single work that particularly addresses this issue and

proposes a general undo/redo solution of the problem.

Most existing algorithm visualisation systems handle

this problem by providing very system-speciﬁc solu-

tions. A widely used approach by system develop-

274

Abu Baker A. (2009).

AN EFFICIENT UNDO/REDO-FRAMEWORK FOR THREE-DIMENSIONAL VISUAL SIMULATION OF ALGORITHMS AND DATA STRUCTURES.

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications, pages 274-279

DOI: 10.5220/0001770202740279

 SciTePress

ers is to capture static views of the executed steps

of the algorithm, thus producing an execution history

(S. Douglas and Hundhausen, 1996). Similar to the

way an example might be presented in a textbook, the

state changes of the algorithm’s data structures are

recorded whenever a signiﬁcant change to the algo-

rithm state happens, and saved for later viewing. This

is a widely used approach in static algorithm anima-

tions which can not be applied to visual simulations.

A static animation is an animation which does not

allow users to perform changes to the input data of

the algorithm. The input data for the animation was

already hard-coded by the author at the creation and

can not be changed (Baker and Kappes, 2008). A vi-

sual simulation, on the other hand, is a dynamic ani-

mation with an underlying real time simulation of the

algorithm or data structures. In contrast to static an-

imations, simulations allow users to change the input

data before or even during the execution of the algo-

rithm and are capable of supporting different levels of

interaction. The static history approach is best suited

for static animations. Each signiﬁcant change can be

stored as a view in a sequence of views, thus form-

ing an execution history. The user can review pre-

vious steps by navigating through the history. How-

ever, this approach has some disadvantages. Firstly,

it is unsuitable for large animations, as an excessive

amount of memory is needed to store all graphical

primitives used by each view. Secondly, it can not be

used for visual simulations which are dynamic by na-

ture. Playing a simulation backwards for say n steps,

and then playing it forwards n steps might produce

different views not previously recorded, as the user

is allowed to change the input data before each step.

This particularly applies to dynamic data structures,

such as trees. Another popular approach that might

be applied to static animations as well as visual simu-

lations is, to maintain clones of all used (or at least the

last modiﬁed) graphical primitives after each step and

store them for later undo. However, this method also

entails two serious drawbacks. Cloning visual objects

slows down the execution of the visualisation, which

can affect the overall performance of the application.

Saving the cloned object after each step might require

an extremely huge amount of memory and can eas-

ily lead to memory overﬂow, particularly when un-

limited undo is supported. Moreover, system devel-

opers do not explain which technique they utilised to

implement their approach. It seems that each devel-

oper has developed an individual solution that suits

the system architecture being used. Implementation

details are kept concealed. At our Institute of Com-

puter Graphics we are developing a unique approach

to generate three-dimensional visual simulations of

algorithms based on the algorithm source code, al-

most automatically. One of the requirements a gen-

erated simulation needs to satisfy is to provide an un-

limited undo/redo facility. We succeeded in develop-

ing a generic efﬁcient interface that supports our ap-

proach of automation, which we are going to present

in this work. Efﬁcient in this context means fast and

memory-friendly. This has always been considered a

huge challenge in algorithm visualisation systems.

2 UNDO/REDO MODELS AND

DESIGN PATTERN

When we intend to develop a new undo/redo frame-

work, we will need to choose an undo/redo model

(Prakash and Knister, 1994) and an appropriate im-

plementation design pattern (E. Gamma and Vlis-

sides, 1994). To increase the understanding of our

work we will brieﬂy outline the undo/redo models and

design patterns usually utilised when developing an

undo/redo facility.

2.1 Choosing an Undo/Redo Model

Each undo/redo model has a scope which is char-

acterised by four aspects: repetition, granularity,

limit and linearity. Repetition denotes the number

of steps the model allows to be undone. There are

single-undo and multiple-undo. Granularity refers

to the number of actions that can be undone in each

step. There are single-action and multiple-action. As

a consequence of this classiﬁcation there are 4 dif-

ferent undo/redo-models: single-undo/single-action,

single-undo/multiple-action, multiple-undo/single-

action and multiple-undo/multiple-action. While

most multiple-undo-systems limit the number of

undoable steps, some systems allow an unlimited

undo. The last criterion to classify a model is,

whether it is linear or non-linear. In both models

the undoable steps are maintained in an ordered list.

Linear undo requires the user to undo the latest action

before undoing earlier ones. With non-linear undo,

the action to be undone can be freely picked from

the list. While editors and algorithm visualisation

systems commonly implement a linear model, most

web browsers support non-linear ones. Obviously,

a linear multiple-undo/multiple-action undo/redo

model is from a pedagogical point of view, the

most appropriate model which can be implemented

for algorithm visualisations. Therefore, a linear

multiple-undo/multiple-action model with an un-

limited undo/redo of user interactions underlies the

proposed framework.

AN EFFICIENT UNDO/REDO-FRAMEWORK FOR THREE-DIMENSIONAL VISUAL SIMULATION OF

ALGORITHMS AND DATA STRUCTURES

275

2.2 Choosing an Undo/Redo Design

Pattern

When an undo/redo model is to be implemented there

are two common implementation design patterns that

can be taken into consideration: the command and the

memento pattern (E. Freeman and Bates, 2004). The

memento design pattern is a pattern that helps to save

the recent internal state (memento) of an object and

enables the application to restore the object’s state

later when needed. According to the memento pat-

tern, an application consists of a number of objects,

each of which has an internal state determined by the

values of its attributes. Each step (collection of ac-

tions) transforms the state of the visualised algorithm

or data structures (which is determined by the states

of its underlying objects) into a new state. Undoing

step i involves restoring the (i-1)-th state of the algo-

rithm or data structure.

The command design pattern is a pattern that en-

ables us to encapsulate each performed action (com-

mand) into an object. According to this pattern every

state change of an application is captured in an un-

doable command. Reversing step i involves executing

all commands generated in step (i-1).

In order to choose an appropriate design pattern

we need to explore both designated design patterns,

study their advantages and drawbacks and decide

which one of them is to be a basic pattern for our

framework. Before doing that we demand an ad-

ditional and a very essential requirement which any

framework that is to be developed needs to satisfy:

using the framework in a simulation should be ac-

complished with a minimal effort. This is particu-

larly important when the algorithm simulations are to

be generated automatically. As mentioned earlier, we

are only concerned with the automatic generation of

three-dimensional visual simulations.

In order to satisfy this requirement and enable a

high degree of automation, the implementation of the

framework should take place at a higher level of ab-

straction than the simulation level. The following ﬁg-

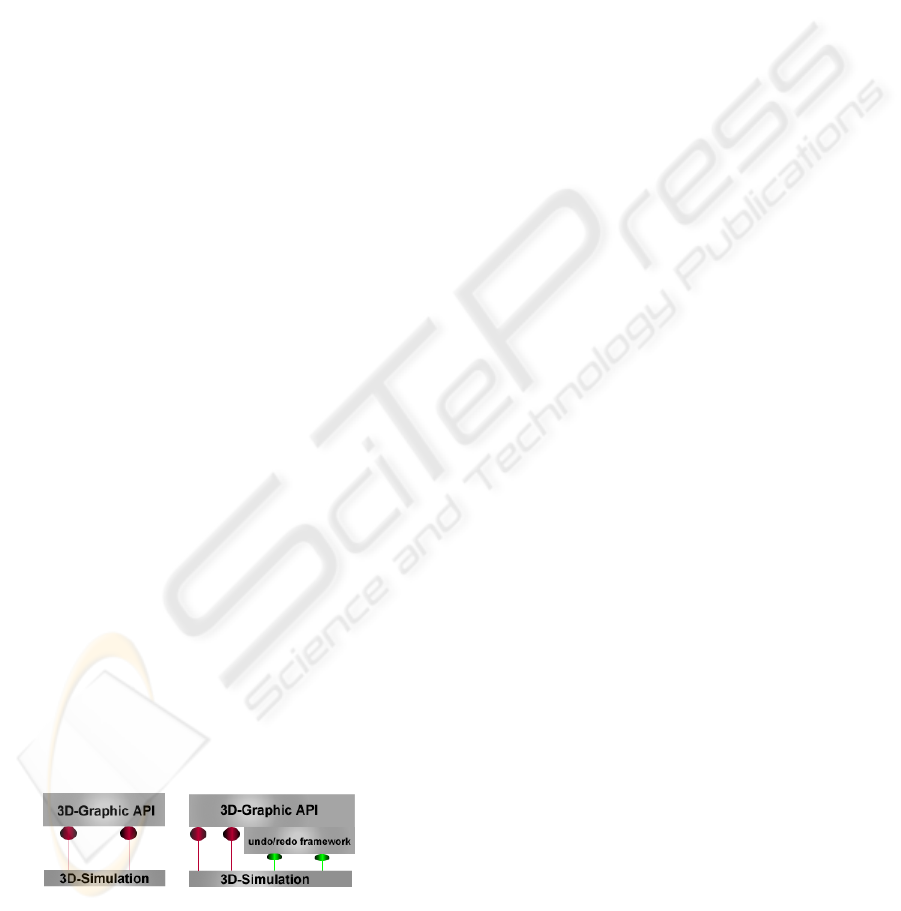

ure should help to clarify this seemingly abstract idea.

Figure 1: Implementing the undo/redo framework by ex-

tending the 3D graphic API.

Each simulation uses graphic API to visualise the

behaviour of its underlying algorithm or data struc-

ture. Usually, the state changes of the simulated al-

gorithm or data structure are graphically illustrated

by invoking methods of API-objects. The red con-

nections in ﬁgure 1 denote these calls. To enable a

straightforward generation of simulations, the imple-

mentation of the undo/redo-framework itself should

be carried out on the API-level, not on the simulation

level. This implies that the framework is to be im-

plemented by extending the API itself. This is illus-

trated by the right image of the ﬁgure. Method calls

to the framework, however, are made by the simu-

lation itself (see the green connections in the right

image). Thus, the way a previous state is restored,

is transparent for the simulation. It knows nothing

about how an undo or redo operation is managed in

detail. The only thing a simulation needs to know

is how to make calls to the undo/redo framework,

and when to make them. The simulation is provided

with this knowledge by means of an object that imple-

ments an undo/redo interface, which usually consists

of two methods: undo() and redo(). When to make an

undo/redo-call is determined by the user.

We will now brieﬂy introduce the model-view-

controller design pattern (MVC) (E. Freeman and

Bates, 2004) that we used for the design of our sim-

ulations. Later, we will describe the issues related to

the use of the command pattern and explain why we

decided to use the memento pattern instead.

The MVC describes a powerful architecture for

visual applications which breaks an application into

three independent components: the model, the view

and the controller. The model represents the infor-

mation (the data) of the application; the view cor-

responds to visual components used to visualise the

data; the controller is the interface between the model

and the view. The controller communicates data back

and forth between the model and the view. It is re-

sponsible for transferring changes performed by the

application or the user, between the model and the

view.

When a 3D algorithm visual simulation is imple-

mented according to the MVC-model, it usually con-

sists of a model describing the data used by the al-

gorithm, a view which is the graphical representation

of the data, and a controller. Whenever changes on

the data model are performed, these changes are vi-

sually reﬂected by changes to the view. When imple-

menting the command design pattern as a basis for

an undo/redo framework each change to the model

must be encapsulated into a command. For each

data-command there should also be a corresponding

view-command that reﬂects the changes. This means

that for each simulation, we should identify all per-

formed commands and link them to corresponding

visual commands. This would only be possible if

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

276

we were interested in simulating a limited number

of algorithms. Another issue concerning the use of

the command pattern is that there are visual changes

that do not correspond to any changes on the model.

Consider simulating a red-black-tree (T. Cormen and

Rivest, 2002). Whenever an element is added or re-

moved from the tree, the corresponding visual tree

needs to be laid out again. This is a visual opera-

tion that has no corresponding model-operation. A

third issue related to using the command pattern is

the memory amount required to make animations un-

doable independent of whether the simulation follows

the MVC-model or not. A single animated translation

of an object consists of a large number of transforma-

tion operations, all of which need to be stored as com-

mands in order to enable a later reversal of the anima-

tion. A simulation with a large number of animated

actions can easily lead to a memory overﬂow. Fur-

thermore, the implementation of the command pat-

tern for a powerful 3D-API can be very costly and

always require using the memento pattern to store all

data needed to undo an operation. The memento pat-

tern on the other hand is easy to implement and allows

a very efﬁcient and memory-friendly implementation.

Therefore, concluding from this observation and from

our own experience, we believe that the memento-

design pattern is the best pattern we can recommend

for designing undo/redo facilities for algorithm simu-

lation systems.

3 DESIGN CONCEPT OF THE

FRAMEWORK

Our framework is generic in that it does not necessi-

tate that the simulations are implemented according to

the MVC-model. If we assumed that simulations are

entirely implemented according to the MVC-model

then we would not need to implement an undo/redo

facility for the view. This is because any changes to

the model are automatically reﬂected by changes to

the view by the controller. Hence, we will assume that

there is a model and a view which are not necessarily

uncoupled from each other.

We will now introduce the undo/redo design con-

cept of the data model and that of the view separately,

and explain how undo/redo operations of the model

are synchronised with that of the view, and vice versa.

We will also assume that each simulation consists of

several steps, each of which consists of several ac-

tions. The end of each step (i.e. the last action) is an-

notated using any annotation technique supported by

the programming language. The granularity of each

step is left to the simulation designer.

3.1 Model Undo/Redo

When a step, say i is to be reversed, the undo/redo-

manager of the simulation is expected to restore the

(i-1)-th state of the data model. The state of the data

model is deﬁned by the occupancy of its interesting

data ﬁelds and data structures. Executing step i trans-

fers the (i-1)-th state of the simulation to state i. The

easiest way to implement undo/redo support for the

data model is to store the entire state of the simula-

tion after each step. However saving the entire state is

in many cases not necessary and would violate our re-

quirement of an efﬁcient undo/redo-framework. Sav-

ing the entire state is particularly not necessary, when

a step only causes a partial state change. Our concept

makes sure that only values that have been changed

during the last step are saved. To achieve that, a copy

of each data ﬁeld is kept temporarily before a step is

executed. Moreover, each step is assigned a unique

id by the undo/redo manager. When a step terminates

the current value of each ﬁeld is compared to its previ-

ous value. In case of a mismatch, the old value is kept

together with the previous step id as a (key,value)-pair

in a special container managed by the undo/redo man-

ager of the simulation. Thereby ”key” is the previous

step id and ”value” is the old value of the ﬁeld. If the

value has not changed, nothing is needed to be done.

To manage that, the undo/redo manager maintains a

container for each data ﬁeld or data structure. Each

container maintains a reference to its corresponding

ﬁeld or data structure as well as a hash map (see ﬁg-

ure 2).

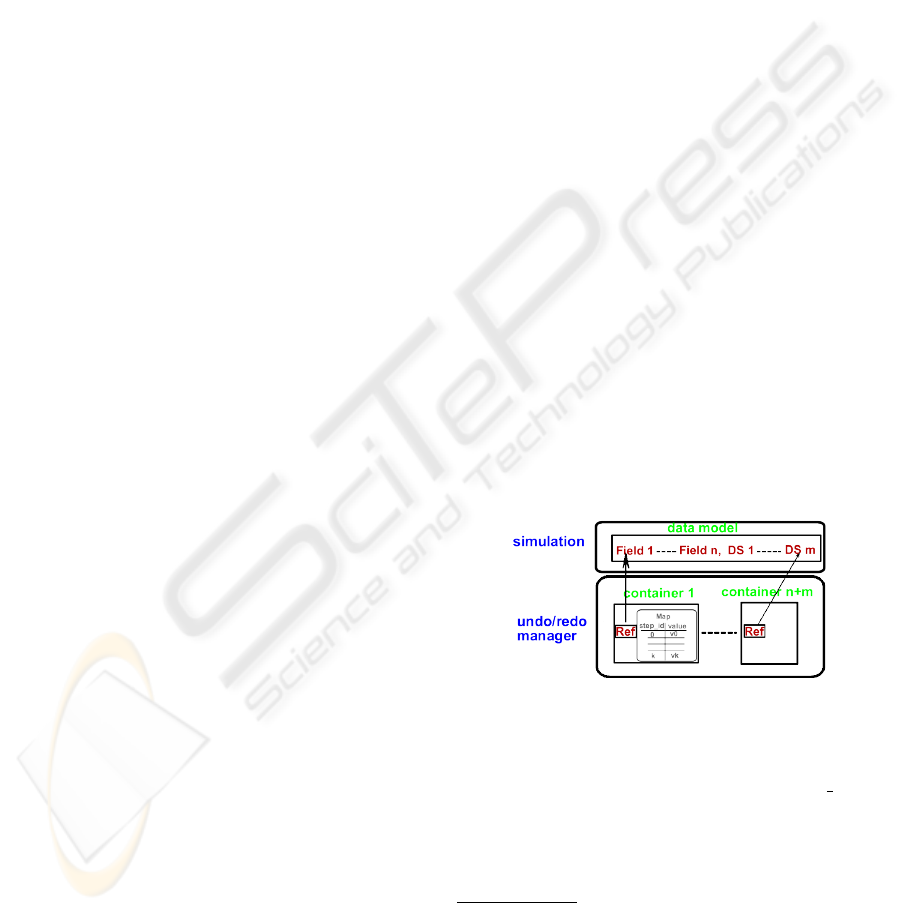

Figure 2: Structure of the undo/redo manager for the data-

model.

If the value of the ﬁeld has changed during step

i, the map will include the entry (i-1, old value)

consisting of the old value of the ﬁeld referenced

by the previous step id as a key. Otherwise, there

is no such entry. The undo/redo manager provides

two methods to perform an undo and a redo oper-

Interesting data ﬁelds are those which are essential for

understanding the algorithm or data structures and are there-

fore subject of visualisation. Some algorithms use tempo-

rary variables. Such variables and variables of loops are

usually not visualised and their previous overridden value

do not need to be restored.

AN EFFICIENT UNDO/REDO-FRAMEWORK FOR THREE-DIMENSIONAL VISUAL SIMULATION OF

ALGORITHMS AND DATA STRUCTURES

277

ation. These are called saveState(step id) and re-

storeState(step id); each of which receives the step

id as a parameter. Invoking saveState is usually per-

formed by the simulation whenever a step terminates,

in which case the recently described procedure is pre-

formed. When the user wants to undo a step, that

is when he clicks on the undo button, restoreState is

called and passed the (step id-1) as a parameter. The

method is implemented in such a manner that each

container is searched for an entry that has the given

step id as a key. If such an entry exists the stored

ﬁeld value is fetched and assigned to the correspond-

ing ﬁeld, otherwise, nothing happens. restoreState is

also invoked when an undone step need to be redone.

This is exactly the case when the user clicks on the

redo button.

To incorporate the undo/redo functionality into a

simulation, the simulation is given a reference to an

undo/redo manager. In order to use the manager, the

simulation only needs to invoke saveState at the end

of each step and restoreState whenever the user clicks

on an undo or redo button. Thus, the usage of the

undo/redo manager is very straightforward and sup-

ports the automatic generation of simulations. As

we use hash tables, an undo operation can be accom-

plished in a very efﬁcient way. Thus, the implemen-

tation of the concept is not only memory-friendly but

also highly efﬁcient.

3.2 Visual Undo/Redo

The concept for implementing an undo/redo manager

of the visual part of a simulation is more sophisticated

and requires much more work than is the case with

the data model. Any object-oriented high level 3D

graphic-API such as Java3D (Java3D, ), OpenScene-

Graph (OpenScengraph, ) or Ogre (Ogre, ) consists

of a collection of classes which serve as an interface

to a sophisticated three-dimensional graphics render-

ing system. A 3D application is assembled from a

variety of geometrical and appearance objects speci-

ﬁed in the programming language of the API. A geo-

metrical or an appearance object describes the struc-

ture or the appearance of its corresponding visual ob-

ject respectively. Together, the visual objects of an

application form a hierarchical virtual scene (virtual

universe) called scene graph. The scene graph is a

structure that arranges the logical and often (but not

necessarily) spatial representation of a 3D scene. It

is assembled of a collection of nodes in a graph or

tree structure. Visual changes to the scene graph

are accomplished by performing structural and/or vi-

sual changes to its objects. These changes are then

rendered by the underlying rendering system. Per-

haps the easiest way to keep track of changes to a

scene graph is to clone the entire graph. However

this would violate our requirement, as cloning large

graphs slows the application down and requires a

huge amount of space. Instead, our concept involves

traversing the graph and saving essential information

about its structure that enables the later reconstruc-

tion of the entire graph. Moreover, we have extended

the 3D graphic API and made each interesting object

undoable by letting it implement a special interface.

Like the interface used by the undo/redo manager

of the model, this interface includes only two meth-

ods saveState(step id) and restoreState(step id). We

adopted the same undo/redo concept of the model to

implement these methods. That means that each ob-

ject manages its state changes by itself and uses its

own undo/redo manager. Whenever a step is com-

pletely executed, the visual undo/redo manager tra-

verses the entire scene graph, stores structural infor-

mation and requires each object in the graph to store

its current state by invoking saveState. While the state

changes of each object are preserved in its own con-

tainers the structural information for each step that en-

able the reconstruction of the scene graph are kept in

special data structure keyed by the step id. Whenever

a step is to be reversed the associated scene graph

is reconstructed using the corresponding data struc-

ture. The entire graph is then traversed and each ob-

ject is enforced to restore its state by calling its own

restoreState-method. This has proven to be a very

efﬁcient way to implement visual undo. A global

undo/redo manager makes sure that each call on the

model undo/redo manager is accompanied by a call

on the visual undo/redo with the same step id, and

vice versa.

4 IMPLEMENTATION

We used Java as programming language and Java3D

as 3D-API for developing our simulations. The im-

plementation of the undo/redo interfaces for the vi-

sual part of the framework has required much more

work, as a large number of Java3D classes needed to

be extended.

Nevertheless, with our framework we are now

able to implement undo/redo functionality to any kind

of visual simulations implemented in Java and Java3D

at a minimal effort. The framework has been incorpo-

rated into 3D-VISIAN (Baker and Milanovic, 2008)

and has been tested extensively. 3D-VISIAN (see

ﬁgure 3) is a platform for 3D visual simulation and

animation of algorithms developed at our Institute of

Computer Graphics.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

278

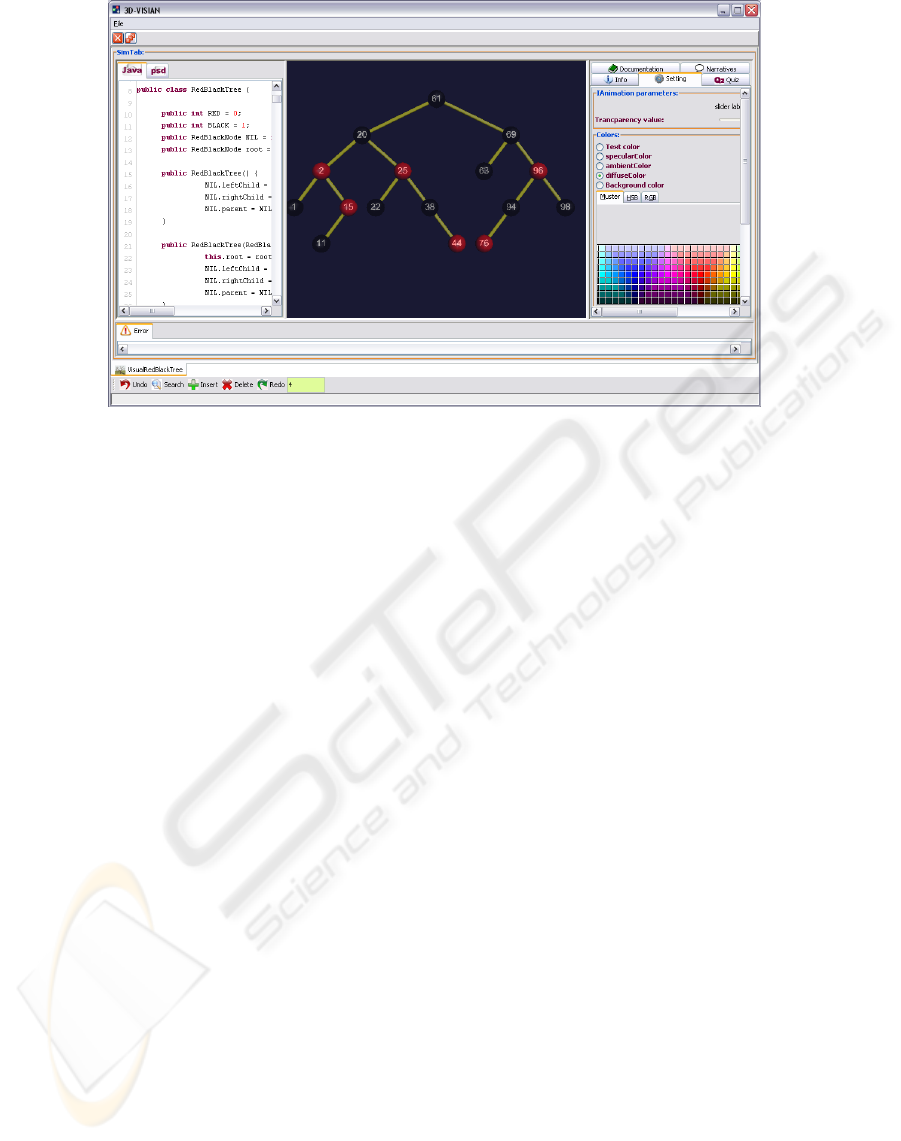

Figure 3: Red-Black tree simulation in 3D-VISIAN.

5 CONCLUSIONS AND

EVALUATION

In this work we presented an efﬁcient undo/redo

framework that enables us to reverse and repeat ar-

bitrary actions carried out by any visual simulation

implemented in Java and Java3D. The framework is

very straightforward to use, and supports a seamless

automatic generation of simulations and satisﬁes the

earlier mentioned demand. The effort needed to use

the framework in a simulation is minimal, the mem-

ory usage is minimal as well, and actions are undone

and redone very fast. The introduced concept for the

visual undo is scene-graph-based and can be used for

any scene-graph-based 3D graphics API. The usage

of the extended API is not conﬁned to algorithm visu-

alisation. It can also be used for any 3D-application

(games, scientiﬁc visulisation, visual simualtion, etc.)

whenever undo/redo is desired.

However, it has some disadvantages. Whenever

a new version of the API is released, all new classes

of the API need to be extended accordingly. Imple-

mentation changes in a new release such as deprecat-

ing methods might require a slight adaption of some

classes.

REFERENCES

Baker, A. A. and Kappes, S. (2008). Three-dimensional

static animation of computation-intensive 3d-

algorithms. IEEE-CITE08.

Baker, A. A. and Milanovic, B. (2008). A universal exten-

sible architecture for algorithm visualisation systems.

IEEE-CITE08.

E. Freeman, E. Freeman, K. S. and Bates, B. (2004). Head

First Design Patterns. Oreilly.

E. Gamma, R. Helm, R. and Vlissides, J. (1994). Design

Patterns: Elements of Reusable Object-Oriented Soft-

ware. Addison-Wesley.

J. Archer, R. C. and Schneider, F. B. (1984). User recovery

and reversal in interactive systems.

Java3D. https://java3d.dev.java.net. Sun Microstems.

Ogre. http://www.ogre3d.org/.

OpenScengraph. http://www.openscenegraph.org/projects/osg.

Prakash and Knister, J. (1994). A framework for undoing

actions in collaborative systems. ACM.

Roessling, G. (2002). Animal-farm: An extensible frame-

work for algorithm visualization. In Ph.D. Thesis.

Universitaet Siegen.

S. Douglas, D. M. and Hundhausen, C. (1996). Exploring

human visualization of computer algorithms. Graph-

ics Interface ’96.

Stasko, J. and Badre, A. (1993). Do algorithm animations

assist learning? an empirical study and analysis. ACM

INTERCHI.

T. Cormen, D. College, C. L. and Rivest, R. (2002). In-

troduction to Algorithms. McGraw-Hill Higher Edu-

cation, Massachusetts Institute of Technology, second

edition edition.

T. Naps, G. R. and et al. (2003). Exploring the role of visu-

alization and engagement in computer science educa-

tion. ACM INTERCHI.

AN EFFICIENT UNDO/REDO-FRAMEWORK FOR THREE-DIMENSIONAL VISUAL SIMULATION OF

ALGORITHMS AND DATA STRUCTURES

279
