OBJECT RECOGNITION USING MULTIPLE THRESHOLDING

AND LOCAL BINARY SHAPE FEATURES

Tom Warsop and Sameer Singh

Research School of Informatics, Holywell Park, Loughborough University, Leicestershire, LE11 3TU, U.K.

Keywords:

Object recognition, Multiple thresholding, Local shape features.

Abstract:

Traditionally, image thresholding is applied to segmentation - allowing foreground objects to be segemented.

However, selection of thresholds in such schemes can prove difﬁcult. We propose a solution by applying

multiple thresholds. The task of object recognition then becomes that of matching binary objects, for which

we present a new method based on local shape features. We embed our recognition method in a system which

reduces the computational increase caused by using multiple thresholding. Experimental results show our

method and system work well despite only using a single example of each object class for matching.

1 INTRODUCTION

Object recognition methods have many applications

including; database image retrieval, landmark detec-

tion, manufactured part inspection, target identiﬁca-

tion and scene analysis. In this paper, we are con-

cerned with providing a count and localization of dif-

ferent object types present in an image.

Objects extracted from an image can be classi-

ﬁed, image thresholding can be used for such extrac-

tion. Typical use of image thresholding is that of im-

age segmentation, (Cao et al., 2002). For example,

(Chang and Wang, 1997) segment image grey values

into a desired number of classes by applying either

Guassian smoothing or high-pass ﬁltering to the im-

age histogram, creating the desired number of valleys

in the histogram which are then used as thresholds.

(Cao et al., 2002) present a method for threshold se-

lection based on the maximum entropy theorem, uti-

lizing the probability of pixel value occurences in an

image. More recently, (Malisia and Tizhoosh, 2006)

apply Ant Colony Optimization, using ants to search

for low value grey regions. Image segmentation by

thresholding can be utilized for object extraction (Ri-

dler and Calvard, 1978). For example, (Kamgar-Parsi

and Kamgar-Parsi, 2001) present a method which ex-

tracts objects in infra-red images. Assuming objects

have a higher temperature than the background, local-

ising the area of greatest temperature provides the ob-

ject centroid area. Expanding this area and locating

the highest drops in heat provides the edge between

object and background. (Ridler and Calvard, 1978)

present an iterative method for the selection of sege-

mentation threshold. Whereby background samples

close to objects are used to determine the appropriate

threshold. The method presented by (Revankar and

Sher, 1992) uses a priori knowledge to determine if a

threshold should be used to segement thin lines from

an image or the entire object region. (Park, 2001)

present a method of selecting locally optimum thresh-

olds to segment vehicles from image backgrounds.

These locally optimum thresholds are selected by pre-

venting regions created merging and by preserving

the compactness of these regions. (S. Bhattacharyya

and Bandyopadhyay, 2002) describe a method of us-

ing thresholding to generate a region of interest in an

image which is, in turn passed to a Hopﬁeld network

to extract the present object. More recently, (Yu Qiao,

2007) present a method to segment small objects from

a background, using the intensity contrast between

object and background.

Our method is different, producing multiple

thresholded versions and searching within these

thresholded versions. Figure 1 illustrates why this ap-

proach is adpoted. Figure 1(a) shows an image and

Figure 1(b) the corresponding histogram. This clearly

shows no single threshold can be computed for ob-

ject segmentation from the background. However, by

stepping through thresholds of the image, deﬁnite ar-

eas relating to the objects can be identiﬁed, Figure

1(c) - 1(d). This use of multiple thresholds is sim-

ilar to that presented by (Jiang and Mojon, 2003).

389

Singh S. and Warsop T.

OBJECT RECOGNITION USING MULTIPLE THRESHOLDING AND LOCAL BINARY SHAPE FEATURES.

DOI: 10.5220/0001770903890392

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications (VISIGRAPP 2009), page

ISBN: 978-989-8111-69-2

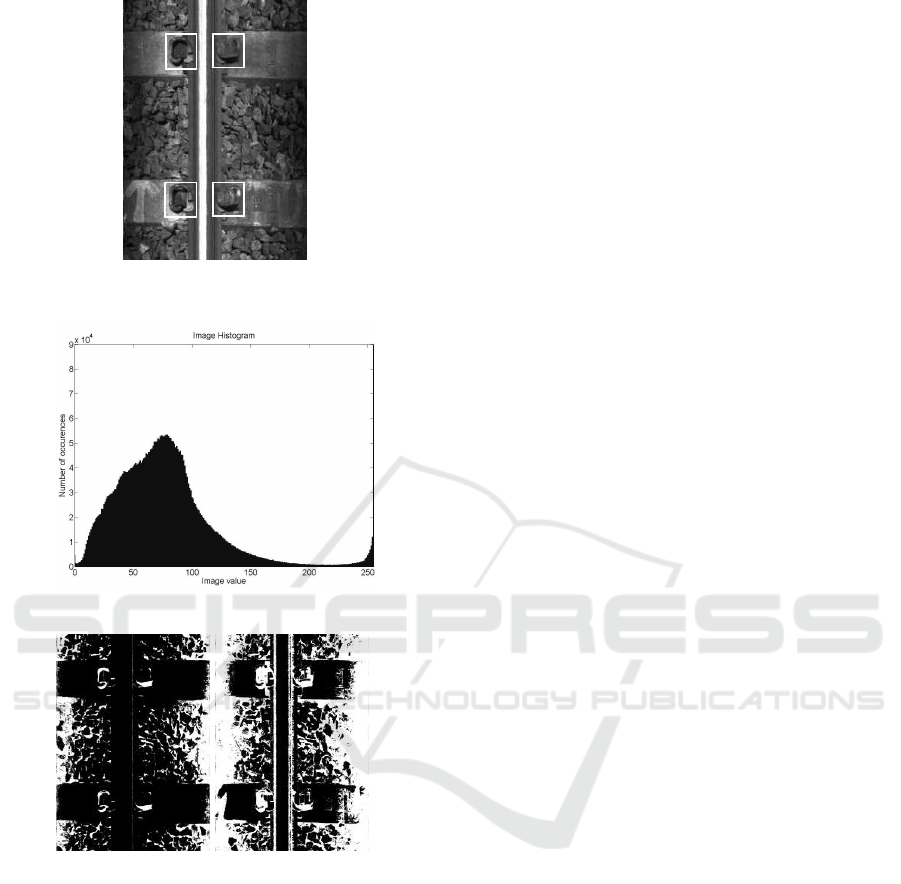

(a) Image with objects of

interest in white boxes

(b) Histogram of grey values in image (a)

of 40

(d) Threshold value

of 70

Figure 1: Example image.

However, we counteract the computational increase

caused by processing multiple thresholded versions

of an image. First, image regions of interest are se-

lected, using an iterative area decomposition method.

Secondly, we embed the object recognition method in

a multi-resolution hierarchy, which have been shown

to be computationally efﬁcient for image processing

problems, (Cantoni et al., 1991; Cantoni and Lom-

bardi, 1995). Finally, the system learns spatial re-

lationships between observed objects, allowing for

a more efﬁcient search for objects in image space,

(Wixson, 1992).

Our method is presented in section 2. Experi-

mental setup and results are presented in section 3.

Finally, section 4 presents conclusions drawn from

these experiments.

2 METHOD

Our system is composed of three stages - training, im-

age pre-processing and object recognition.

2.1 Training

Ideal Template Creation. Templates are created by

a user, applying an arbitrary threshold to an ex-

ample of the object to be searched for.

Learning Spatial Relationships. The spatial rela-

tionships between objects are learnt from a set of

ground truthed images. We categorize these re-

lationships into one of four types - above, below,

left and right.

2.2 Image Pre-Processing

The image pre-processing phase creates multiple

thresholded versions of an input image and identiﬁes

candidate areas. The following describes this process.

1. Initialise the list of areas (AreaList) with M

thresholded versions of the original image

(a) Read and store the area at the head of the

AreaList - area = Pop(AreaList)

(b) Calculate the horizontal (hp) and vertical (vp)

projections of area, dividing by the height

(height) and width (width) of area respectively.

above or below chosen upper or lower bounds,

respectively, with -1.

(d) If (Contains(hp, −1) or Contains(vp, −1))

i. Using the combination hp and vp, extract co-

ordinates representing bounding boxes seg-

mented by the elements set to -1 and Push

each bounding box onto AreaList.

ii. Goto step 2.

(e) Accept area as a candidate area.

(f) If AreaList is not empty, goto step 2.

2.3 Object Recognition

We compare two methods, a simple differencing

method which subtracts two binary images and our

new method which compares shapes created by white

pixels in a windowed neighbourhood.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

390

2.3.1 Simple Difference Method (SDM)

For each position in an area (A), a slice (I) the same

size as the template (T) used for comparison is ex-

tracted. The similarity between these is calculated as:

SD(I, T) = 1−

width

∑

i=0

height

∑

j= 0

ABS(I(i, j) − T(i, j))

width× height

(1)

where width and height are the width and height of I

and T. The highest value of SD(I, T) in A is taken as

the response.

2.3.2 Local Shape Matching Method (LSMM)

For each pixel in an area, a slice (I) of the

same size as a template (T) being matched is se-

lected. For every position of a white pixel in T,

, y

), Neighbourhood

is the set of white pixels

in the region I(x

− K, y

− K) → I(x

+ K, y

+ K)

where K relates to the size of the window. Sim-

ilarly, Neighbourhood

is the set of white pix-

els in region T(x

− K, y

− K) → T(x

+ K, y

K). These neighbourhoods of pixels are compared

using the centroid and principal axis angle. If

, y

), (x

, y

), ..., (x

, y

) are members of a neigh-

bourhood, the centroid ( ¯x, ¯y) is calculated as:

¯x =

∑

n=1

, ¯y =

∑

n=1

(2)

The principal axis angle through pixels in a neigh-

bourhood is calculated as (described in (Chaudhuri

and Samal, 2007)):

tan 2θ =

∑

n=1

− ¯x)(y

− ¯y)

∑

n=1

[(x

− ¯x)

− (y

− ¯y)

]

(3)

The similarity between two neighbourhoods

(LSM(x

, y

, I, T)) is then calculated as:

(

| ¯x

− ¯x

| + | ¯y

− ¯y

Abs(θ

) − Abs(θ

)

2π

) (4)

where, V = 4K. Note, if Neighbourhood

is empty,

LSM(x

, y

, I, T) is set to 0. The similarity between

a template area and area slice is the average similar-

ity for every neighbourhood, centred around a white

pixel of T:

S(I, T) =

∑

m=1

LSM(x

, y

, I, T)

(5)

where (x

, y

), (x

, y

), ..., (x

, y

) are the white pix-

els in T. As with the simple difference method, the

highest value of S(I, T) in an area is taken as the re-

sponse for the corresponding area of the image.

2.3.3 Multi-Resolution Hierarchy

In the multi-resolution hierarchy, an object is

searched for at the lowest resolution. If the maximum

response achieved is greater than a predetermined ac-

ceptance threshold, the object is classiﬁed as found.

If the response is less than an acceptance threshold

but greater than a predetermined removal threshold,

the area is searched at the next highest resolution in

the hierarchy. If the response is less than a removal

threshold, search in the area stops.

2.3.4 Spatial Relationships

If an object is found, the spatial relationships are used

to generate image areas to search for more objects.

Since objects are expectedto appear in these areas, the

acceptance threshold is reduced. It should be noted

that results found in areas selected using spatial re-

lationships may themselves create more areas due to

different spatial relationships (the effects of reducing

the acceptance threshold are not cumulative).

3 EXPERIMENTS

For experimentation, grey-scale input images were

taken from a camera looking down onto a rail track.

Examples of these images can be seen in Figure 2. A

total of 5000 images were used for testing. Within

these images, we search for instances of rail clips (ex-

amples shown in Figure 3).

(a) (b)

Figure 2: Example images.

OBJECT RECOGNITION USING MULTIPLE THRESHOLDING AND LOCAL BINARY SHAPE FEATURES

391

(a) (b) (c) (d)

Figure 3: Example objects.

The previously described object recognition sys-

tem was executed, using our data set, once using SDM

and once using LSMM. The results of which can be

found in Table 1. For each method, we show the cor-

rect percentage of objects found and the average num-

ber of false positives per image.

Table 1: SDM and LSMM results.

Method Percentage

Correct (%)

False Positives

per image

SDM 80.39 1.19

LSMM 91.6 0.16

Results show that LSMM outperforms SDM in

terms of average percentage of objects found and

number of false positives found. Note, without the

spatial relationship component in the system, LSMM

achieved an average recognition rate of 82.0% and a

similar number of false positives.

4 CONCLUSIONS

We have presented a method for object recognition

which achieves high recognition rates despite simi-

larities in grey-level values between objects and im-

age background. This was achieved by using a multi-

ple thresholding approach. For the object recognition

phase of our system, we presented a new local shape

matching method for binary objects, which performs

well despite using a single example of each object for

reference. We were also able to show that recogni-

tion performance can be enhanced through the use of

learnt spatial relationships between objects.

REFERENCES

Cantoni, V., Ferratti, M., and Lombardi, L. (1991). A com-

parison of homogeneous hierarchical interconnection

structures. In Proceedings of the IEEE, volume 79,

pages 416–428.

Cantoni, V. and Lombardi, L. (1995). Hierarchical architec-

tures for computer vision. In Euromicro Workshop on

Parallel and Distributed Processing, 1995. Proceed-

ings, pages 392–398.

Cao, L., Shi, Z. K., and Cheng, E. K. W. (2002). Fast auto-

matic multilevel thresholding method. In Electronics

Letters, volume 38, pages 868–870.

Chang, C.-C. and Wang, L.-L. (1997). A fast multilevel

thresholding method based on lowpass and highpass

ﬁltering. In Pattern Recognition Letters, volume 18,

pages 1469–1478.

Chaudhuri, D. and Samal, A. (2007). A simple method for

ﬁtting of boundary rectangle to closed regions. In Pat-

tern Recognition, volume 40, pages 1981–1989.

Jiang, X. and Mojon, D. (2003). Adaptive local threshold-

ing by veriﬁcation-based multithreshold probing with

application to vessel detection in retinal images. In

IEEE Transactions on Pattern Analysis and Machine

Intelligence, volume 25, pages 131–137.

Kamgar-Parsi, B. and Kamgar-Parsi, B. (2001). Improved

image thresholding for object extraction in ir im-

ages. In International Conference on Image Process-

ing, volume 1, pages 758–761.

Malisia, A. R. and Tizhoosh, H.R. (2006). Image threshold-

ing using ant colony optimization. In Proceedings of

the 3rd Canadian Conference on Computer and Robot

Vision (CRV’06).

Park, Y. (2001). Shape-resolving local thresholding for ob-

ject detection. In Pattern Recognition Letters, vol-

ume 22, pages 883–890.

Revankar, S. and Sher, D. B. (1992). Pattern extraction by

adaptive propagation of a regional threshold. Techni-

cal report, University at Buffalo, State University of

New York, Dept. of Computer Science.

Ridler, T. W. and Calvard, S. (1978). Picture thresholding

using an iterative selection method. In IEEE Transac-

tions on Systems, Man and Cybernetics.

S. Bhattacharyya, U. M. and Bandyopadhyay, S. (2002). Ef-

ﬁcient object extraction using fuzzy cardinality based

thresholding and hopﬁeld network. In Indian Confer-

ence on Computer Vision, Graphics & Image Process-

ing.

Wixson, L. E. (1992). Exploiting world structure to efﬁ-

ciently search for objects. Technical report, The Uni-

versity of Rochester.

Yu Qiao, Qingmao Hu, G. Q. S. L. W. L. N. (2007). Thresh-

olding based on variance and intensity contrast. In

Pattern Recognition, volume 40.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

392
