LESION BOUNDARY SEGMENTATION USING LEVEL SET

METHODS

Elizabeth M. Massey, James A. Lowell

University of Lincoln, Brayford Pool, Lincoln LN6 7TS U.K.

Foster Findlay Associates Limited, Newcastle Technopole Kings Manor, Newcastle Upon Tyne NE1 6PA U.K.

Andrew Hunter, David Steel

University of Lincoln, Brayford Pool, Lincoln LN6 7TS U.K.

Consultant Ophthalmologist, Sunderland Eye Inﬁrmary, Queen Alexandra Road, Sunderland SR2 9HP U.K.

Keywords:

Computer vision, Retinal lesion segmentation, Segmentation, Level set methods.

Abstract:

This paper addresses the issue of accurate lesion segmentation in retinal imagery, using level set methods and

a novel stopping mechanism - an elementary features scheme. Speciﬁcally, the curve propagation is guided

by a gradient map built using a combination of histogram equalization and robust statistics. The stopping

mechanism uses elementary features gathered as the curve deforms over time, and then using a lesionness

measure, deﬁned herein, ’looks back in time’ to ﬁnd the point at which the curve best ﬁts the real object.

We implement the level set using a fast upwind scheme and compare the proposed method against ﬁve other

segmentation algorithms performed on 50 randomly selected images of exudates with a database of clinician

marked-up boundaries as ground truth.

1 INTRODUCTION

The diagnosis of diabetic retinopathy is based upon

visually recognizing various clinical features. Retinal

lesions are among the ﬁrst visual indicators sugges-

tive of diabetic retinopathy. To enable early diagno-

sis, it is therefore necessary to identify both frequency

and position of retinal lesions.

This paper focuses on the segmentation of retinal

lesions and presents an application of level set meth-

ods and a novel elementary features scheme for en-

suring an accurate boundary detection solution. We

present a novel stopping mechanism which uses ele-

mentary features gathered over time as the curve de-

forms and then a calculated lesionness measure to ﬁnd

the point in time at which the curve best ﬁts the lesion

candidate.

This paper is presented as follows: Sections 2 pro-

vides background information and discusses the cur-

rent literature on region growing schemes as a ba-

sis for comparison. Section 3 describes the level set

method used followed by a description of the algo-

rithm and the process framework. Section 4 discusses

the evaluation results and provides comparison and

observations about the proposed method. Section 5

concludes the paper.

2 PREVIOUS WORK

2.1 Segmentation Algorithms

Retinal exudates are an interesting challenge for seg-

mentation algorithms as they vary in appearance, con-

forming to one of three structures: dot exudates, ﬂuffy

exudates and circumscribed plaques of exudate. Dot

exudates consist of round yellow spots lying superﬁ-

cially or deep in the sensory retina (Porta and Ban-

dello, 2002). Exudates are usually reﬂective and may

appear to have a rigid, multifaceted contour, ranging

in color from white to yellow (Chen, 2002).

With varying shapes, sizes, patterns and contrast,

exudate segmentation is a demanding problem, com-

plicated by lighting variation over the image, natural

pigmentation, the intrinsic color of the lesion, and de-

creasing color saturation at lesion boundaries (Gold-

baum et al., 1990).

245

M. Massey E., A. Lowell J., Hunter A. and Steel D.

LESION BOUNDARY SEGMENTATION USING LEVEL SET METHODS.

DOI: 10.5220/0001781402450249

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications (VISIGRAPP 2009), page

ISBN: 978-989-8111-69-2

Several authors have presented algorithms for the

segmentation of exudates in fundus images, attain-

ing varied results. Ward et al., (1989) introduced a

semi-automated exudate detection and measurement

method, in which an operator selected a threshold

value to segment exudates from a shade-corrected

retinal background.

Sinthanayothin et al., (2002) presented a recur-

sive region-growing algorithm applied to a contrast

enhanced image. To reduce the effects of uneven illu-

mination over the fundus, images were pre-processed

to enhance local contrast. The intensity component

of the IHS (Intensity Hue Saturation) model was de-

coupled from color and the fundus images converted

from RGB (Red Green Blue) and normalized to IHS.

Sinthanayothin stated that the algorithm would not

detect faint exudate regions, nor distinguish between

other similar colored lesions.

Wang et al., (2000) deﬁnes a feature space F to in-

clude color and exposure information and represents

the red, green and blue (R,G,B) channels as spherical

coordinates. A training set for each of two groupings

is obtained by selecting small sub-windows inside ex-

udate and background regions. The means of each

sub-window are calculated and stored as feature cen-

ters. For each pixel in the fundus image the illumina-

tion and color information are extracted and a mini-

mum distance discriminant is calculated to determine

lesions from background regions.

Osareh et al., (2001) introduced a fuzzy C-Means

clustering algorithm based on the work of (Lim and

Lee, 1990) to segment a color retinal image into ho-

mogeneous regions. To compensate for the wide vari-

ation of color in the fundus, the images are converted

from RGB to IHS, normalized and ﬁnally locally con-

trast enhanced (described above in Sinthanayothin et

al., (2002)). Osareh et al., (2001) state that the seg-

mentation by FCM is a conservative process ﬁnd-

ing all but the faintest (ambiguous) exudate regions.

False positive non-exudate segmented regions were

also found by the algorithm caused by cluster over-

lapping, noise, and uneven color distribution.

Contrast Gradient Region Growing (CG), intro-

duced in (Lowell, 2005), uses a traditional region

growing method employing a pixel intensity aggrega-

tion scheme for region growth, while using a Gaus-

sian smoothed gradient image to iteratively calcu-

late a gradient contrast between a grown (core) inner

boundary and a dilated outer boundary. The algorithm

starts by using a small 5 × 5 sub-window morpholog-

ically applied to the fundus image, and then applying

a maximum ﬁlter within each sub-window, producing

peak points. The core region is then grown by ap-

pending (selecting) the brightest neighboring (bound-

ary) pixels on each iteration. This growing process

continues, halting when the grown region loses its

compactness. The ﬁnal boundary is then located by

using a combination of diameter and contrast to de-

termine the point of growth at which the object’s con-

trast gradient is most signiﬁcant.

The literature on retinal image object segmenta-

tion using level sets focuses mainly on segmenting

structures rather than pathologies. Excellent work by

Wang et al., (2004) show the power of evolving a

curve to map prominent structures in an image. De-

schampes et al., (2004) used level sets combined with

embedded boundary methods to simulate blood ﬂow

and segment major vessels. Lowell et al., (2004) used

active contours, the fore-runner to level sets, to ﬁnd

the optic nerve head. The work described herein is

based on the seminal paper from (Osher and Sethian,

1988) and the numerical implementation takes in-

sights from Sapiro, chap. 2, (Sapiro, 2001).

3 LEVEL SET METHOD

For our work in lesion segmentation, level set meth-

ods provide the capability to determine not just the

coarse shape of an object, but are extremely useful

to tease out the ﬁne delicate boundary ﬁssures and

curves that give a deeper look into the overall shape

of a lesion candidate.

3.1 Curve Propagation

Beginning with the deﬁnition of level sets from (Os-

her and Sethian, 1988)

+ F

∇φ

= 0, given φ(x,t = 0) (1)

then,

∂φ

∂t

= F

∇φ

(2)

and

+ F

∇φ

U(x,y,t)

∇φ = εK

∇φ

(3)

where: φ

is the propagating function at time t,

∇φ

is the motion of the curve in the direction

normal to the front,

U(x, y,t)

∇φ is the term that moves the curve

across the surface,

εK

∇φ

is the speed term dependent upon curva-

ture.

For our purposes,

U(x, y,t)

∇φ is the gradient map, de-

scribed in section 3.3 and εK

∇φ

is approximated us-

ing a central differencing scheme.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

246

3.2 Numerical Implementation

We consider curve movement of the form:

∂C

∂t

= β

N (4)

where β = β(k), that is, β is a function of the Eu-

clidean curvature. For simplicity we use β(k) = 1+εk

as our velocity function.

Let φ

be the value of φ at a point (pixel) i at the

time n. An algorithm to describe the evolution of the

curve over a given time step is

n+1

i j

= φ

i j

−4t[max(−β

i j

,0) 4

+min(−β

i j

,0)4

−

]

(5)

where u

i j

is the ’current’ level set zero, 4t is the time

step (or scaling factor) and the [max...min] describes

the normal component, and where

= [max(D

−

,0)

+ min(D

,0)

+ (6)

max(D

−

,0)

+ min(D

,0)

]

1/2

−

= [max(D

,0)

+ min(D

−

,0)

+ (7)

max(D

,0)

+ min(D

−

,0)

]

1/2

and D

−

are the forward and backward

difference approximations in the x and the y direction,

respectively.

3.3 Gradient Map

The boundary of a lesion can be characterized by the

point of strongest intensity contrast between itself and

the background retina. By determining the gradient of

image I

orig

, this maximum rate of change can be ex-

ploited. Equation 5 propagates the curve φ over the

surface u. Optimally, what we want is to propagate to

an object edge and then stop when the curve has cor-

rectly formed to the (correct) perimeter pixels. To do

this we must provide an edge stopping function. Since

the retinal images are inherently noisy, and the edge

pixels of retinal lesions can look very much like back-

ground pixels, we want a mechanism that smooths

out the noise but preserves the edges. Isotropic ﬁl-

ters (such as Gaussians) smooth the image, but also

lose important detail. Anisotropic ﬁlters address the

issue of edge preservation.

Perona and Malik suggested the following edge-

preserving g function (Perona and Malik, 1990)

g(x)x =

2 +

. (8)

The function g(x)x acts as a ‘weighted’ func-

tion in that, small gradient values x will receive high

weight and high gradient values will have low inﬂu-

ence on the diffusion solution. In other words, areas

of high gradient will be ‘smoothed’ less, thus preserv-

ing edges. We applied the function to create our gra-

dient map

(x,y) =

2 ∗ (I

)

(2 − (I

)

(9)

where: I

is a histogram equalized, normalized gray-

scale (green channel) image I(x,y) and σ = 1.

3.4 Stopping Criteria

Once the gradient map is generated from the orig-

inal (gray-scale) image the curve propagates for a

given number of iterations. Finding the ‘best’ stop-

ping point for the curve is relative to the object bound-

ary. In cases such as ﬁgure 1 the boundary is not

well deﬁned, even with a properly contrasted gradient

map, and especially in the case of bright lesions, the

‘boundary’ can be much the same color as the back-

ground. It is for these reasons that we need to use a

mechanism that is robust to conditions of noise and

illumination variance.

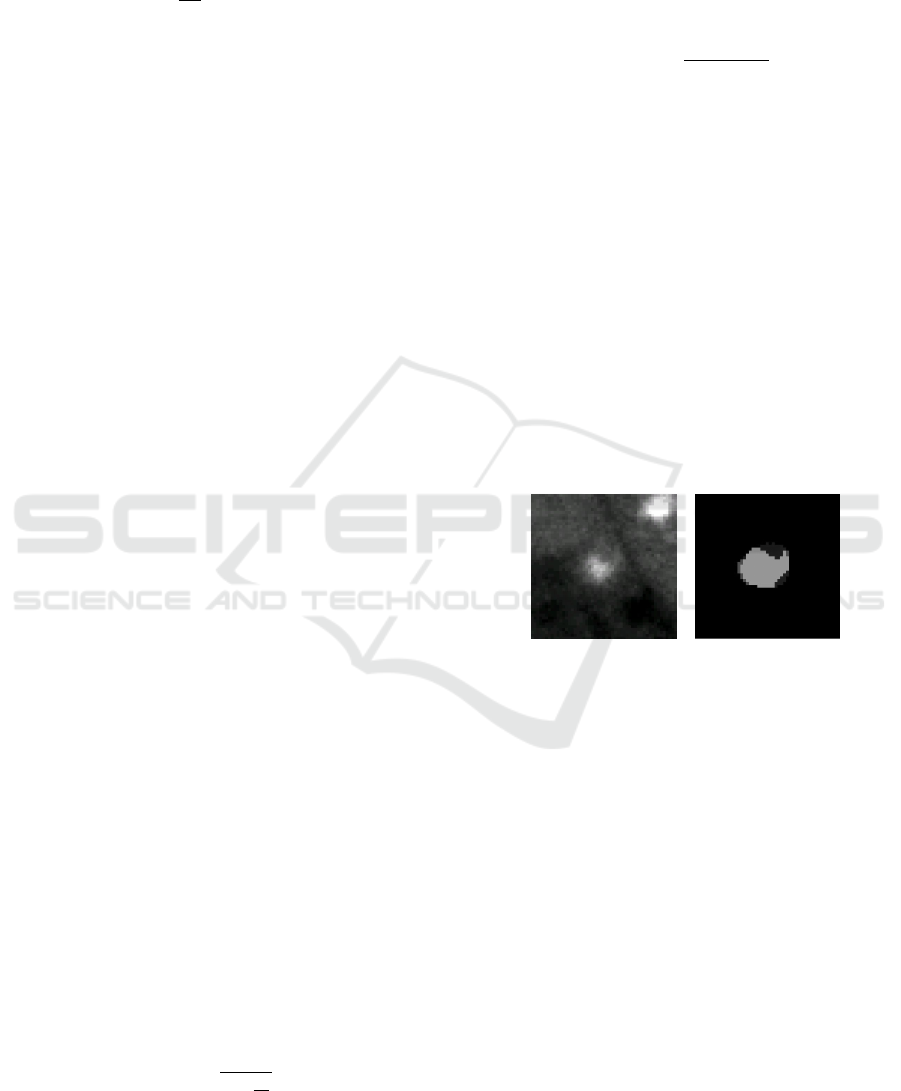

(a) (b)

Figure 1: Curve Fitting: a) Gradient Map b) Match Results.

A traditional use of level sets is to track a curve

to an object’s boundary. In our case, it is more inter-

esting to ‘peek ahead’ by allowing the curve to move

past the optimal boundary and then ‘look back’ and

measure how well-formed the accumulated region is

as a lesion. We deﬁne the term lesionness as a com-

bination of compactness (c = p

/a), where p is the

perimeter and a is the area (Gonzalez and Woods,

2001) and perimeter size constancy shp and use it as

our ‘stopping’ mechanism. These measurements and

others are explained in detail in section 3.5.2.

3.5 Process and Algorithm

The elementary features algorithm encapsulated in a

three phase framework: 1) Pre-processing 2) Process-

ing and Measurements 3) Best Fit Value Determina-

tion.

LESION BOUNDARY SEGMENTATION USING LEVEL SET METHODS

247

3.5.1 Pre-processing

The single channel, 59x59 pixel image I

orig

is used

to generate a gradient map as discussed in section

3.3. The initial level set begins as a small circle

of radius = 1 and propagates outward according to

equation 5 and as the curve deforms measurements at

each change are taken.

3.5.2 Processing and Measurements

The starting point of the curve is determined using

the simple peak detection algorithm described in Con-

trast Gradient Region Growing (above). The curve

is then allowed to propagate past the optimal point

(boundary) of the object. The purpose of this is to

avoid the underestimation problem inherent in tradi-

tional region growing methods, and take advantage of

‘forward/backward looking’ measures.

We are looking for measurements that can give in-

dicators of how well-formed a region is as a candidate

lesion. Thus, elementary features include 1) the num-

ber of iterations the curve held its perimeter size: shp;

2) the minimum compactness value: c; 3) the number

of iterations the curve held that compactness value:

chp; and 4) the gradient contrast: gc. Using morpho-

logical operations of dilation, equation 10, and ero-

sion, equation 11, two ‘rings’, an inner and an outer

ring, are generated about the curve. The contrast (dif-

ference) between these two rings is calculated.

D = C

⊕CE (10)

E = C

CE (11)

gc =

∑

p∈D

(p) −

∑

p∈E

(p) (12)

where C

is the inﬁlled curve, CE is a 3×3 structuring

element, g

is the gradient map.

After the curve has moved for a number of iterations

(we use P = 180) it is possible that the curve has

evolved past the optimal point describing the object

boundary. Because of this possibility, the gathered

measurement values are then used to ‘look back in

time’ to ﬁnd the point at which the curve best ﬁt the

object boundary.

3.5.3 Best Fit Value Determination

Elementary features calculated are: shp,c, chp and

gc. Of these, the two measurements that indicate

curve stabilization (slowing down) are shp and chp.

When the curve reaches an ‘edge’ its propagation rate

slows down and over a number of counted iterations

shp and chp remain constant. We track these stabiliz-

ing points and ﬁnd that they tend to coincide with the

other important features.

Let q be the iteration number and h(q) be the count

of the number of iterations for which the values of

both chp and shp have held up to and including it-

eration q. Let q

, q

be the iterations with the two

largest values of h(q), M < N. Let q

be the iter-

ation with the smallest value of compactness c, and

be the iteration with the largest contrast. Let Z

be the set of critical iterations including q

and q

if M ≤ q

≤ N, and q

M ≤ q

≤ N. Thus,

the set Z includes the strongest stabilizing points and

any other critical iterations between them. Sometimes

there may be outlying critical iterations. For this rea-

son we determine the largest gap between successive

critical iterations and discarding those after the largest

gap form the set Z

∗

, where Z

∗

⊂ Z. We deﬁne the best

ﬁt point, SV , as the average of these critical iterations.

Figure 2 shows the curve plots at the various elemen-

tal values.

SV =

∑

q∈Z

∗

(13)

where #Z

∗

is the number of elements used.

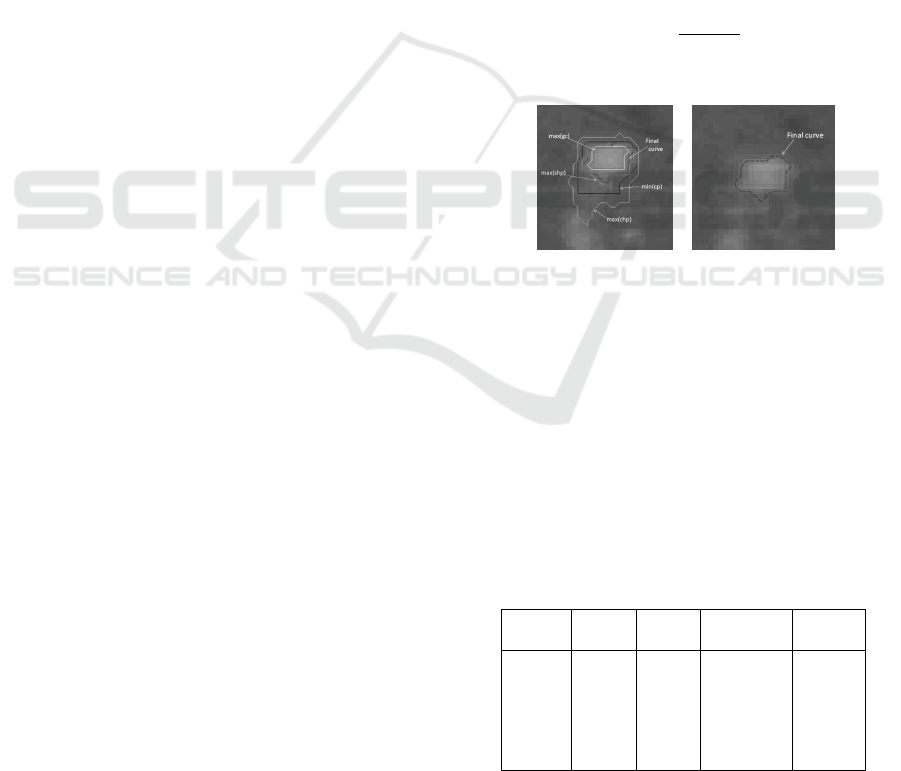

(a) (b)

Figure 2: a) Plots of various elemental points, b) Final

curve.

4 EVALUATION

A comparison is made between the presented algo-

rithm and ﬁve segmentation approaches - fuzzy C-

Means clustering, recursive region growing, adap-

tive recursive region growing, contrast gradient region

growing and a color discriminant function. Table 1

shows the results of our evaluation.

Table 1: Algorithm Performance Metrics.

Model Sens. Spec. Accuracy Error

ELS 96.94 98.97 98.87 29.35

CG 96.24 98.71 98.59 36.59

AR 91.13 92.53 92.45 196.15

Fuzzy 88.29 94.18 93.89 158.95

RRG 47.72 90.99 88.85 290.1

DC 64.67 75.77 75.21 644.75

Where:

ELS - Elementary Features Scheme;

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

248

CG - Contrast Gradient;

AR - Adaptive Recursive;

Fuzzy - Fuzzy C-means;

RRG - Recursive Region Grow;

DC - Color Discriminant.

All algorithms were implemented and evaluated

against a reference standard dataset of 50 randomly

selected lesion images. Each image is provided with

boundary markups by an expert ophthalmologist us-

ing custom designed software. The images are pro-

vided by the Sunderland Eye Inﬁrmary with permis-

sion to be used in this research.

The benchmark comparison with the aforemen-

tioned techniques was achieved by measuring the

number of common pixels shared between the ref-

erence standard and the algorithm’s segmented area.

The values in Table 1 were measured using pixel-wise

sensitivity, speciﬁcity, accuracy and error-rate.

5 CONCLUSIONS

Algorithms for the automated segmentation and clas-

siﬁcation of candidate lesions have been presented.

Although a number of algorithms have been pub-

lished for lesion segmentation, many are unreliable

due to marginal color and intensity difference be-

tween diabetic lesions and the background retina.

This limited contrast has an adverse effect on alternate

algorithms causing poor lesion boundary estimations.

Experimental comparisons have been conducted

on ﬁve segmentation approaches - Contrast Gradient,

Fuzzy C-Means clustering, recursive region grow-

ing, adaptive recursive region growing, and a color

discriminant function. All algorithms were evalu-

ated against a randomly-selected image set with oph-

thalmic lesion boundary demarcation. The results

shown in Section 4 demonstrate the advantage of al-

lowing the curve propagation (region growing) to run

past the optimal boundary point, thus providing a

‘peek ahead’ to adjacent areas. Then using gathered

elementary features to ‘look back in time’ to deter-

mine the best ﬁtting curve.

REFERENCES

Chen, H.-C. (2002). Vascular Complications of Diabetes;

current issues in pathogenesis and treatment, chap-

ter 10, pages 97–108. Blackwell Publishing.

Deschamps, T., Schwartz, P., Trebotich, D., Colella, P., Sa-

loner, D., and Malladi, R. (2004). Vessel segmenta-

tion and blood ﬂow simulation using level-sets and

embedded boundary methods. Computer Assisted Ra-

diology and Surgery. Proceedings of the 18th Interna-

tional Congress and Exhibition, 1268:75–80.

Goldbaum, M., Katz, N., Nelson, M., and Haff, L. (1990).

The discrimination of similarly colored objects in

computer images of the ocular fundus. Investigative

Ophthalmology & Visual Science, 31:617–623.

Gonzalez, R. C. and Woods, R. E. (2001). Digital Image

Processing. Prentice Hall, Upper Saddle River, NJ.

Lim, Y. W. and Lee, S. U. (1990). On the color image

segmentation algorithm based on the thresholding and

the fuzzy c-means technique. Pattern Recognition,

23:935–952.

Lowell, J. (2005). Automated Retinal Analysis. PhD thesis,

University of Durham.

Lowell, J., Hunter, A., Steel, D., Basu, A., Ryder, R.,

Fletcher, E., and Kennedy, L. (2004). Optic nerve

head segmentation. IEEE Transactions on Medical

Imaging, 23(2):256–264.

Osareh, A., Mirmehdi, M., Thomas, B., and Markham, R.

(2001). Automatic recognition of exudative macu-

lopathy using fuzzy c-means clustering and neural net-

works. In Claridge, E. and Bamber, J., editors, Medi-

cal Image Understanding and Analysis, pages 49–52.

BMVA Press.

Osher, S. and Sethian, J. A. (1988). Fronts propagating

with curvature-dependent speed: Algorithms based on

Hamilton-Jacobi formulations. Journal of Computa-

tional Physics, 79:12–49.

Perona, P. and Malik, J. (1990). Scale-space and edge de-

tection using anisotropic diffusion. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

12(7):629–639.

Porta, M. and Bandello, F. (2002). Diabetic retinopathy a

clinical update. Diabetologia, 45(12):1617–1634.

Sapiro, G. (2001). Geometric Partial Differential Equations

and Image Analysis. Cambridge University Press.

Sinthanayothin, C., Boyce, J., Williamson, T., Cook, H.,

Mensah, E., and Lal, S. andUsher, D. (2002). Auto-

mated detection of diabetic retinopathy on digital fun-

dus images. Diabetic Medicine, 19:105–112.

Wang, H., Hsu, W., Goh, K., and Lee, M. (2000). An effec-

tive approach to detect lesions in color retinal images.

In Proceedings IEEE Conference on Computer Vision

and Pattern Recognition, volume 2, pages 181–186.

Wang, L., Bhalerao, A., and Wilson, R. (2004). Robust

modelling of local image structures and its application

to medical imagery. In ICPR04, pages III: 534–537.

Ward, N., Tomlinson, S., and Taylor, C. J. (1989). Im-

age analysis of fundus photographs: the detection

and measurement of exudates associated with diabetic

retinopathy. Ophthalmology, 96(1):80–86.

LESION BOUNDARY SEGMENTATION USING LEVEL SET METHODS

249
