NEW ALGORITHMS FOR GPU STREAM COMPACTION

A Comparative Study

Pedro Miguel Moreira

1,2

, Luís Paulo Reis

2,3

and A. Augusto de Sousa

2,4

ESTG-IPVC, Instituto Politécnico de Viana do Castelo, Viana do Castelo, Portugal

DEI/FEUP, Faculdade de Engenharia da Universidade do Porto, Porto, Portugal

LIACC, Laboratório de Inteligência Artiﬁcial e Ciência de Computadores, Porto,Portugal

INESC-Porto, Instituto de Engenharia de Sistemas e Computadores do Porto, Portugal

Keywords:

Stream Compaction, Parallel Algorithms, Parallel Processing, Graphics Hardware.

Abstract:

With the advent of GPU programmability, many applications have transferred computational intensive tasks

into it. Some of them compute intermediate data comprised by a mixture of relevant and irrelevant elements in

respect to further processing tasks. Hence, the ability to discard irrelevant data and preserve the relevant por-

tion is a desired feature, with beneﬁts on further computational effort, memory and communication bandwidth.

Parallel stream compaction is an operation that, given a discriminator, is able to output the valid elements dis-

carding the rest. In this paper we contribute two original algorithms for parallel stream compaction on the

GPU. We tested and compared our proposals with state-of-art algorithms against different data-sets. Results

demonstrate that our proposals can outperform prior algorithms. Result analysis also demonstrate that there is

not a best algorithm for all data distributions and that such optimal setting is difﬁcult to be achieved without

prior knowledge of the data characteristics.

1 INTRODUCTION

Graphics Processing Units (GPUs) are parallel plat-

forms which provide high computational power with

very large memory bandwidth at low cost. With the

advent of GPU’s programmability, many algorithms,

that usually were performed by the CPU, were en-

abled to run at the GPU side taking advantage from

its parallel processing capabilities. Nowadays, GPUs

are compelling programmable platforms, not only un-

der the graphics domain, but also for general pur-

pose computational intensive tasks, leading to a rel-

atively new research area focused on mapping gen-

eral purpose computation to graphics processing units

- GPGPU (Owens et al., 2007; GPGPU, 2008).

Stream compaction, also designated as stream

non-uniform reduction and also as stream ﬁltering,

takes a data stream as input, uses a discriminator to se-

lect a wanted subset of elements, and outputs a com-

pacted stream of the selected elements, discarding the

rest.

Several computer graphics applications, making

use of the GPU programmable architecture, may

take advantage from parallel stream compaction al-

gorithms in several ways. Key beneﬁts, enabled

by exclusion of non-relevant data, comprise: sav-

ings on computational effort on further processing

stages; better memory footprint; and savings on band-

width when data has to be readback to the CPU.

Stream compaction is also a fundamental compo-

nent on algorithms that deal with data partitioning

(e.g. some sorting algorithms and space hierarchies).

Reported work taking advantage from GPU stream

compaction include: collision detection (Horn, 2005;

Greß et al., 2006), ray-tracing (Roger et al., 2007),

shadow mapping (Lefohn et al., 2007), point list gen-

eration (Ziegler et al., 2006), and, in general, algo-

rithms that make use of data partitioning.

The current OpenGL speciﬁcation (OpenGL

v.2.1) (Segal and Akeley, 2006) exposes two GPU

programmable units: the vertex and the fragment pro-

cessors. A third programmable unit, the geometry

processor, was recently exposed through OpenGL ex-

tensions (OpenGL Architecture Review Board, 2008)

but it has limited support and availability only on very

recent GPUs. Current GPUs are designed with several

vertex and fragment processor units enabling them

with high levels of parallelism.

The vertex processor has scatter capabilities (in-

direct writing) and also gather capabilities (indirect

reading) with the latter with some lack of support and

performance issues. The fragment processor has only

gather capabilities, through texture fetching.

More recently, the so-called Uniﬁed Architec-

119

Moreira P., Reis L. and de Sousa A. (2009).

NEW ALGORITHMS FOR GPU STREAM COMPACTION - A Comparative Study.

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications, pages 119-128

DOI: 10.5220/0001783601190128

 SciTePress

tures (UA), were made available. The UA paradigm

comprises indistinct processors and features such as

global load-store memory, shared memory , and syn-

chronization mechanisms. However, these features

have restricted support as they are not currently ex-

posed to programmers but by proprietary APIs.

This paper presents original work on paral-

lel stream compaction algorithms for programmable

GPUs and compares them to state-of-the-art algo-

rithms. The algorithms are intended to be imple-

mented using widely supported features, such as

the exposed by OpenGL (Segal and Akeley, 2006;

Kessenich, 2006). We assume that the GPU has pro-

grammable vertex processors with scatter and (poten-

tially limited) gather abilities and programmable frag-

ment processors with gather abilities but without scat-

ter.

The rest of the paper is organized as follows. The

next section reviews relevant prior work on scan prim-

itives and stream compaction. Following (Section

3) introduces the original algorithms alongside with

a more detailed description of the tested algorithms.

The implementation and experimental setup are de-

scribed alongside with the achieved results in Section

4. At last, Section 5, outlines our major conclusions

alongside with possible directions to future work.

2 RELATED WORK

Stream compaction is an operator that takes a data

stream as input, uses a discriminator to select a valid

subset of elements, and outputs a compacted stream of

the selected elements, discarding the rest. Sequential

stream compaction is trivially implemented in O(s)

with a single pass over the data.

While seeming an inherently sequential com-

putation, stream compaction can be parallelized

using the all-preﬁx-sum (aka scan). The all-

-preﬁx-sum operation (Blelloch, 1990) takes a bi-

nary associative operator ⊕ and an ordered set

of elements with size s (e.g. an array or

stream): [a

,...,a

s−1

]; and returns an ordered set:

,(a

⊕ a

),...,(a

⊕ a

⊕ ... ⊕ a

s−1

)].

The parallel preﬁx-sum can be computed using a

recursive doubling algorithm, as described by Hillis

& Steele (Hillis and Steele JR, 1986) and used by

Horn (Horn, 2005) in a GPU implementation. The

recursive doubling has a total work of O(s · log(s)).

Hensley et al. (Hensley et al., 2005) also used the

recursive doubling algorithm to devise fast GPU gen-

eration of Summed Area Tables (Crow, 1984) which

can be thought as a 2D preﬁx-sum.

Sengupta et al. (Sengupta et al., 2006) imple-

mented a preﬁx-sum based on a balanced tree ap-

proach, as described by Blelloch (Blelloch, 1990),

with a computational complexity of O(s). They

also proposed a GPU work-efﬁcient algorithm that

switches between the recursive doubling and balanced

tree based algorithms, in order to optimize the work

amongst the available parallel processors. More re-

cently, their approach was improved (Harris et al.,

2007) by making use of an optimized segmented

preﬁx-sum approach targeted to the new NVIDIA

CUDA API (Nickolls et al., 2008). By the same time,

Greß et. al (Greß et al., 2006) also devised a GPU im-

plementation with O(s) running time targeted to 2D

data and making use of a quadtree data structure.

The fundamental idea to achieve parallel com-

paction using the all-preﬁx-sum is to discriminate the

data using a value of one to mark invalid elements

and zero to mark valid elements. Then, the algorithm

proceeds by computing the all-preﬁx-sum of the dis-

criminated data. The resulting stream stores, for each

position, the number of invalid elements to the left.

This value corresponds to the displacement to the left

that each valid element has to undertake in order to

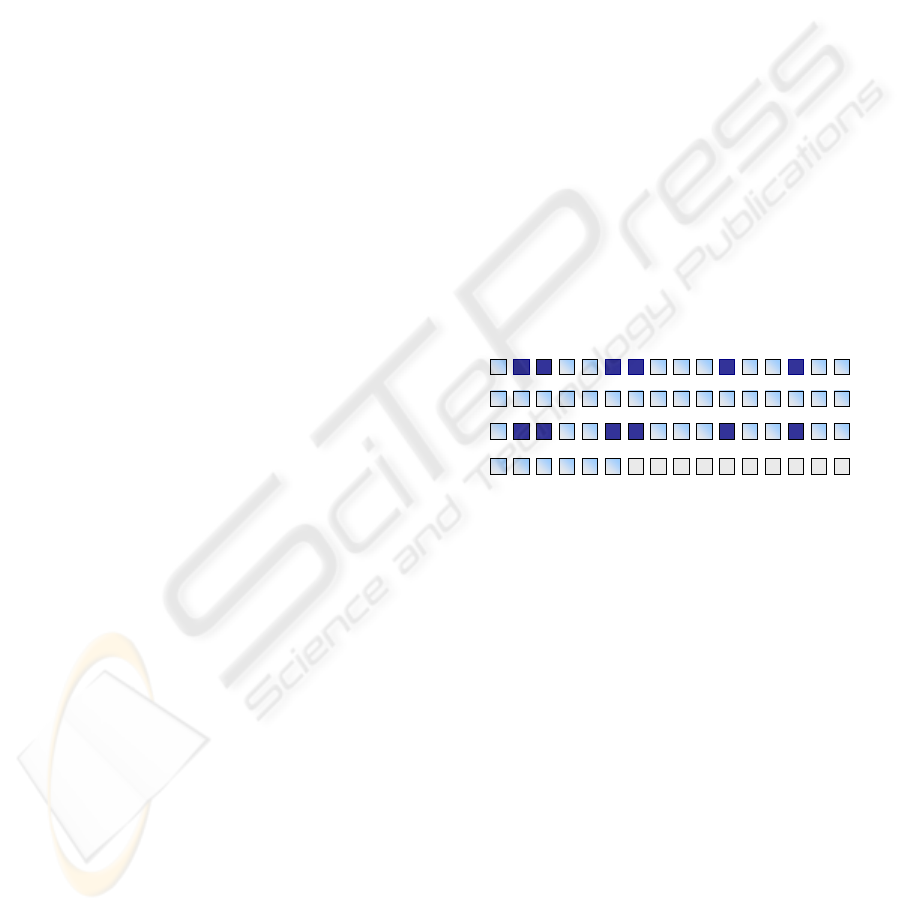

build the compacted stream (see Figure 1).

04623 5 71 8121410 11 13 159

original data

discriminated data

all-prefix-sum

compacted data

0 0 db 0 c 0a 0 0 0e 0 f 00

1 1 00 1 0 10 1 1 10 1 0 11

1 3 31 2 3 41 5 8 96 7 8 106

a e dc d f 0b 0 0 0e 0 f 00

04623 5 71 8121410 11 13 159

Figure 1: Parallel stream compaction based on the all-

preﬁx-sum.

If scatter capabilities are available, the compaction

process can be implemented in a single pass . As scat-

ter is not widely available at the fragment processing

level, it has to be converted into gather. Horn (Horn,

2005) devised a binary search mechanism in order to

enable stream compaction under such circumstances.

Roger et. al (Roger et al., 2007) described a hi-

erarchical stream compaction strategy that splits the

data into regular blocks, compacts them and ﬁnally

concatenates the compacted substreams. A higher

level preﬁx-sum is used to compute the displacements

of each compacted block. They suggest making use

of the scatter abilities of the geometry processors (or

alternatively the vertex processor), to avoid a block-

level gather-search and, therefore, enabling savings

on the total parallel work.

Ziegler et al. (Ziegler et al., 2006) introduced the

Histo-Pyramids algorithm, devoted to 2D data which,

which similarly to the work of Greßet al. (Greß et al.,

2006), uses a quadtree to encode the valid elements

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

120

and then extracts them into a compacted stream (actu-

ally a 2D texture) by means of a guided tree traversal

. This approach avoids the explicit computation of the

all-preﬁx-sum for all elements. . Though not chang-

ing the asymptotical complexity of prior algorithms,

the algorithm effectively reduces the total work, as

there are, in parallel, a number of tree traversals that

equals the number of valid elements.

In the following section we will introduce a new

algorithm (Section 3.3), the Run-Lengths of Zeros

(RLZ), that operates on an alternative domain than the

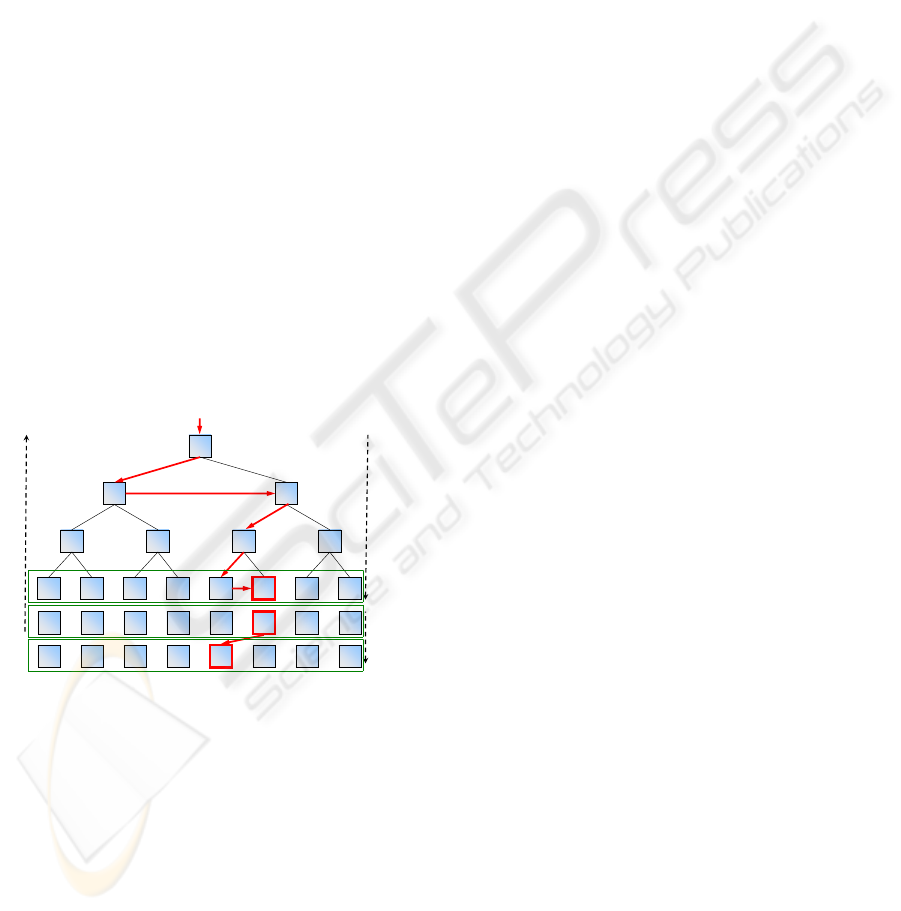

all-preﬁx-sum. We also describe the Binary-Tree al-

gorithm (Section 3.4) supported on ideas originally

described by Greß (Greß et al., 2006) and Ziegler

(Ziegler et al., 2006).

We tested these algorithms together with the

Jumping Jack algorithm (Section 3.2) devised by

(Moreira et al., 2009) and with (Horn, 2005) gather-

search algorithm (Section 3.1). In order to efﬁ-

ciently handling large data streams, we adopted a

block based compaction framework, as introduced by

(Roger et al., 2007), and described in (Moreira et al.,

2009). For the parallel all-preﬁx-sum, we have imple-

mented the recursive doubling all-preﬁx-sum ((Hillis

and Steele JR, 1986), (Horn, 2005)) and the bal-

anced tree approach ((Blelloch, 1990; Sengupta et al.,

2006)).

3 ALGORITHMS

This section introduces original work and also de-

scribes current state-of-the-art algorithms for stream

compaction.

3.1 Gather-Search (Horn, 2005)

Daniel Horn (Horn, 2005) introduced a compaction

algorithm based on a binary-search procedure allow-

ing conversion of scatter into gather. Horn observed

that the all-preﬁx-sum is an ascending stream and

therefore a parallel search can be conducted in or-

der to ﬁnd the data elements that have to displace to

each position in order to create the compacted stream.

The original algorithm computes the all-preﬁx-sum

based on the recursive doubling algorithm proposed

by Hillis & Steele (Hillis and Steele JR, 1986), but

any other method can be used.

Given a stream data[ ] with size s, and its cor-

responding all-preﬁx-sum pSum[ ] of invalid ele-

ments, with a total number of z invalid elements

(z = pSum[s − 1]) and v = s − z valid elements, a bi-

nary search is conducted in parallel for all output po-

sitions c ∈ [0, v[. The search goal is to ﬁnd a valid

element displaced d positions to the right from the

current position c, such as pSum[c + d] = d (refer to

1). The possible displacements can take values on

the range d ∈ [0,z]. The binary search proceeds un-

til d = pSum[c + d] is satisﬁed and data[c + d] is a

valid element. The search solution has a computa-

tional complexity of order O(log(s)) and total work

of order O(s · log(s)).

3.2 Jumping-Jack(Moreira et al., 2009)

Jumping Jack was recently introduced by Moreira et

al. (Moreira et al., 2009) as a non-monotonic com-

paction algorithm. Non-monotonic compaction does

not preserve the relative order of the original data at

the output. Monotonicity is not a requirement for

many applications.

The algorithm is very simple to implement, and

is specially devoted to not very sparse data sets. For

very sparse streams the algorithm has a drop in perfor-

mance due to its imbalanced behavior. Therefore, in

order to handle large amounts of data, and to bound

the effect of the potential load imbalance, the algo-

rithm is proposed to operate over small-sized streams,

under a hierarchical compaction scheme (e.g. as in-

troduced by (Roger et al., 2007)).

For a stream with size s with v valid elements,

the main idea is to keep unchanged all the valid el-

ements positioned within the ﬁrst v indexes, and ﬁll

the other positions, originally occupied by invalid el-

ements, by ﬁnding the remaining valid elements. This

can be achieved by conducting a search on the named

MAS (maximum-allowable-size stream) which can

be computed straightforwardly from the all-preﬁx-

sum as MAS[i] = s− pSum[i]. The search is conducted

using the MAS as pointer stream and recurrently in-

spect the data at the pointed position until a valid ele-

ment is found. . The algorithm has a total linear work

of O(s) and the total work is bounded by O(s − v).

3.3 Run-Lengths of Zeros - RLZ

The design of the herein presented algorithm was

based on the observation that in the algorithm pro-

posed by (Horn, 2005) (Section 3.1), and when in

presence of large runs of invalid elements, the dis-

placement criterion is valid for the desired valid ele-

ment and for all the subsequent sequence of invalids.

Notice that the valid element is always positioned just

before (to the left) the sequence of invalid elements.

In such situation, the binary search process has often

to iterate (to lower indexes) until the desired element

is found.

NEW ALGORITHMS FOR GPU STREAM COMPACTION - A Comparative Study

121

The main idea was to use an alternative search do-

main, than the regular all-preﬁx-sum of invalid ele-

ments, that better captures the structure of the data.

We have designed the algorithm to operate on the all-

preﬁx-sum of the run-lengths (denoted from now as

pRLSum) of invalid sequences. This sequence is con-

structed by summing the lengths of the runs of invalid

elements. The run-lengths are positioned at the start

position of each run (from left to right). Figure 3 vi-

sually illustrates the concept, which will be detailed

in the next subsection. We will subsequently refer this

algorithm as Run-Lengths of Zeros, or RLZ for short.

The pRLSum stream has interesting properties

when compared to the regular all-preﬁx-sum stream.

The streams have value correspondence for valid el-

ements and the number of invalid elements can be

found at the last position. Distinctively, the pRLSum

only retains the interesting values, i.e. is composed by

the displacements values (until the last valid element).

We used these properties to devise a search to ﬁnd

the desired displacements, in order to obtain a com-

pacted stream. We observed empirically that these

displacements can be quickly found using a recursive

forward search approach. Particularly, this forward

search is very quick for the ﬁrst elements and for mod-

erate sized streams (e.g. in the order of hundreds or

thousands of elements).

The search is quite simple and proceeds as fol-

lows (Algorithm 1). For a given index i of the out-

put stream, one has to ﬁnd the ﬁrst displacement

such: displacement = prlSum[i + displacement].

Actually we observed that evaluating the condition

prlSum[i + displacement] = prlSum[i + prlSum[i +

displacement]] results more optimized and performs

about 20% faster.

Algorithm 1: Compaction using Run-Lengths

of Zeros.

begin

forall positions i ∈ [0, v[ in parallel do

curr ← prlSum [i]

next ← prlSum[i + curr]

while curr 6= next do

curr ← prlSum [i + next]

next ← prlSum[i + curr]

compact [i] ← data [i + curr]

end

Computing the pRLSum is costlier than comput-

ing the all-preﬁx-sum. Although, it is expected a

faster search process resulting in an overall perfor-

mance competitive with prior algorithms. It is also

expected that the algorithm performs better for data

with low frequency of change between valid and in-

valid elements, i.e. with medium to large sized runs

of valid / invalid elements.

1 3 31 3 3 61 6 8 106 8 8 106

04623571 8 12 1410 11 13 159

a e 1c d f 0b 0 0 01 0 1 00

0 0 db 0 c 0a 0 0 0e 0 f 00

[0+1] [1+1] [2+3] [3+3] [4+6] [5+8]

04623571 8 12 1410 11 13 159

pRLsum

data

compact

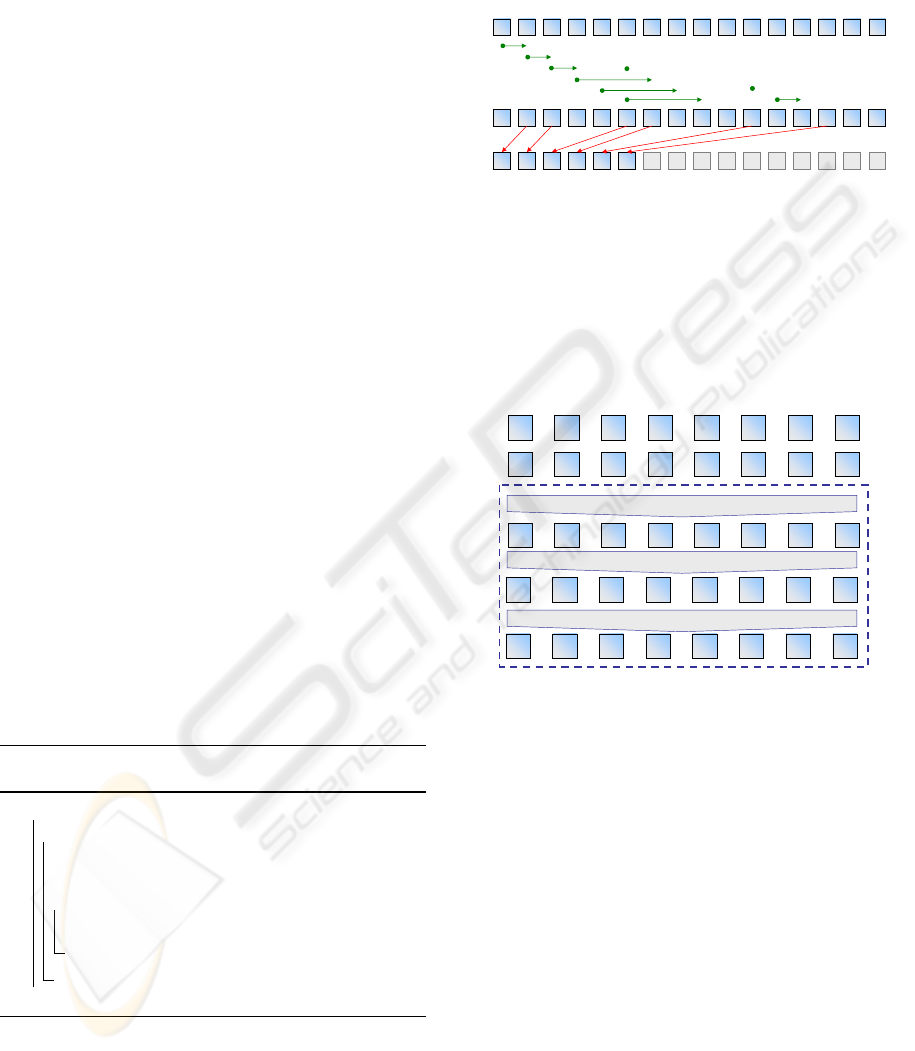

Figure 2: Graphical trace of the Run-Lengths of Zeros al-

gorithm.

3.3.1 Computing Run-Lengths

We devised a three stage parallel algorithm for com-

puting the all-preﬁx-sum of run-lengths. The overall

process is illustrated in Figure 3.

a 000 0 b c 0

0 111 1 0 0 1

0 122 1 0 0 3

0 002 0 0 0 3

0 552 2 2 2 5

original data

discriminated data

Stage 1 :RunLengthComputation

Stage 2 :Run‐Length Extraction

Stage 3 :All Prefix Sum

Figure 3: Computation of the all-preﬁx-sum of run-lengths,

pRLsum.

The ﬁrst stage Run-Length Computation com-

putes, for each invalid element (marked as one), the

number of consecutive invalid records, to the right,

until a valid element is reached (or the end of the

stream). This value might be interpreted as the dis-

tance to the next valid element and the problem can be

thought as list-ranking within a list of lists. Positions

corresponding to valid elements store a zero. Notice

that the run-length of invalid elements is stored at the

leftmost position of the sequence.

For this stage, we developed a variation of the re-

cursive doubling algorithm to enable ﬁnding the run-

lengths. The algorithm is similar, except that it op-

erates in reverse direction and the addition is con-

ditioned by the value of the current position. The

explanation is as follows. A given position stores a

value corresponding to the number of consecutive el-

ements from its own position to offset positions to the

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

122

right. Accordingly, if this value is below the current

offset, the sequence is doubtlessly interrupted some-

where within that range. Hence, for each iteration,

the value stored offset positions away is added to the

current position, if and only if, the value in the cur-

rent position equals the offset. Pseudo-code for the

algorithm is given in Algorithm 2 and a visual trace

is illustrated by Figure 4. The algorithm has a paral-

lel computational complexity of O(log

(s)) with total

work of O(s · log

s).

Algorithm 2: Parallel run-length computation

(based on recursive doubling).

begin

output: RL[ ] : the output stream, initialized

with the discriminated data

for p ← 1tolog

(s) do

o f f set ← 2

p−1

forall i < s − o f f set in parallel do

if RL[i] = o f f set then

RL[i] ← RL[i] + RL[i + o f f set]

end

offset = 2

if a

k-1

[i] >= offset then

[i] = a

k-1

[i] + a

k-1

[i+offset]

else

[i] = a

k-1

[i]

1 111 1 0 1 0

2 122 1 0 1 0

3 122 1 0 1 0

original data

k=1,offset = 2

k=0,offset = 1

k=2,offset = 4

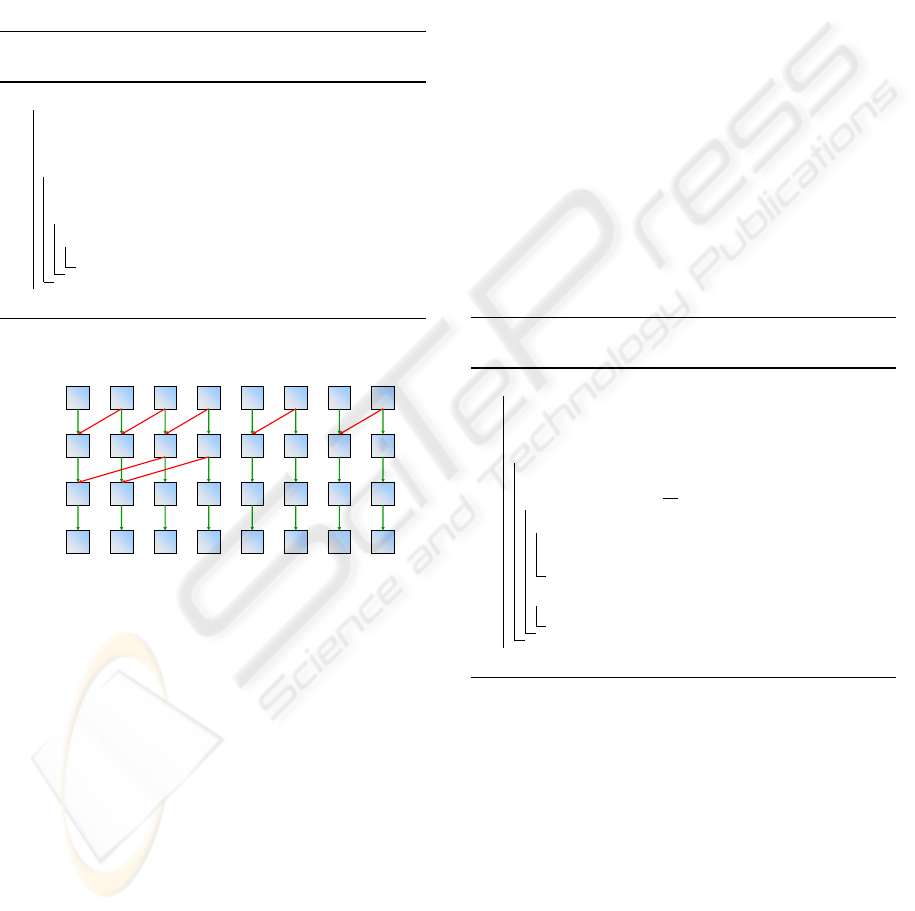

Figure 4: Illustration of the modiﬁed recursive doubling al-

gorithm to compute run-lengths of consecutive elements.

In order achieve the run-lengths computation with

a total work of order O(s), we have also developed

a variation to the all-preﬁx-sum algorithm proposed

by Blelloch (Blelloch, 1990). A visual illustration

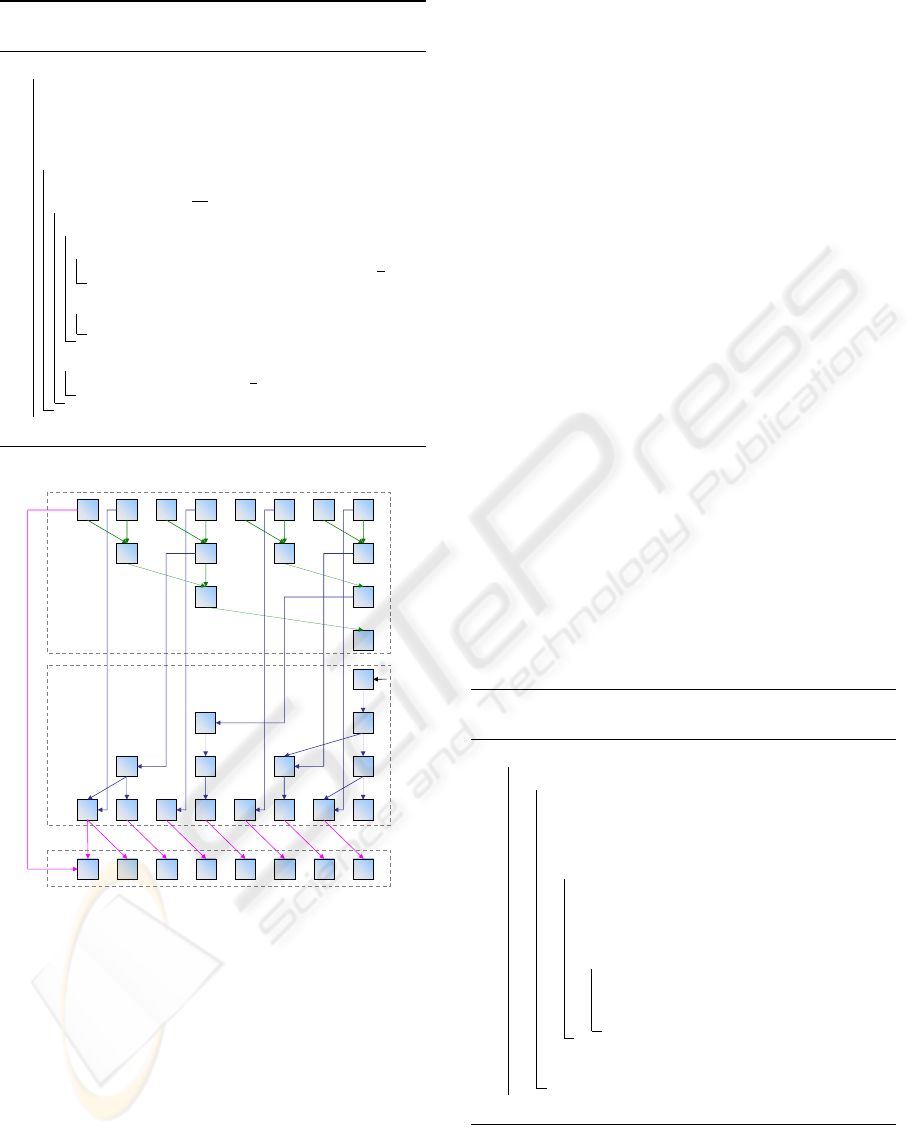

of the overall algorithm operation is depicted in Fig-

ure 5. The process comprises two fundamental steps.

The ﬁrst, referred as the up-sweep (Algorithm 3), per-

forms as a conditioned binary reduction. For each

level, each node takes the value stored in its left child.

The value stored in its right child is added, if and only

if, the left child corresponds to a full node (i.e. all

leaves under it are ones). Therefore, each node will

store the length of the sequence (run of ones) start-

ing at the leftmost leaf of the corresponding subtree

(e.g. the root node stores the length of the run start-

ing at the ﬁrst stream element). The second step,

referred as down-sweep (Algorithm 4), uses the val-

ues from the up-sweep to hierarchically build the run-

-lengths stream. The fundamental idea is to check if

the runs extend across subtrees and update the run-

lengths accordingly. The root node is initialized with

the identity value (zero). At each subsequent level,

each right child takes the value stored by its parent.

Each left child takes the value, computed in the up-

-sweep phase, of its right sibling. If the sibling node

corresponds to a full node, then it also adds the value

stored by its parent. A ﬁnal adjustment step shifts the

values one position to the right and adds to the left-

most element the leftmost element of the original dis-

criminated stream, in order to obtain run-lengths at

the desired positions (possibly embedded in the last

level of the down-sweep). Notice that, as the given

pseudo-code assumes a start index of zero, right and

left child nodes correspond to odd and even indexes,

respectively. A GPU implementation, making use of

a double buffer (one to read and the other to write),

and switching the buffer roles after each pass, allows

to store alternate hierarchical levels of the up-sweep

and down-sweep at each buffer.

Algorithm 3: Up-Sweep stage of run-length

computation (based on balanced-tree).

begin

input : U S[0][ ] discriminated data

output: U S[ ][ ] all levels of the up-sweep

for p ← 1tolog

(s) do

o f f set ← 2

p−1

forall i from 0 to

− 1 in parallel do

if U S[p − 1][2i] = o f f set then

US[p][i] ←

US[p − 1][2i] +US[p − 1][2i + 1]

else

US[p][i] ← US[p − 1][2i]

end

The second stage comprises a fast (potentially

embedded in the previous or the next stage) ﬁlter-

ing stage designed to extract / ﬁlter the desired run-

lengths. As it can be observed, these elements are all

those that being non-null have a null element at his

left.

The third stage computes the desired all-preﬁx-

sum of the run lengths, e.g. using (Hillis and Steele

JR, 1986) or (Blelloch, 1990) or any other method.

Computing the pRLsum[ ] stream has the same

order of computational complexity as the all-preﬁx-

-sum, but it doubles the passes over the data, doing

nearly twice the work.

NEW ALGORITHMS FOR GPU STREAM COMPACTION - A Comparative Study

123

Algorithm 4: Down Sweep stage of run-length

computation (based on balanced tree).

begin

input : U S[ ][ ] all levels from the up-sweep

output: DS[0][ ] run-lengths

DS[log

(s)][0] ← 0

for p ← log

(s) − 1 downto 0 do

o f f set ← 2

forall i from 0 to

− 1 in parallel do

if isEven(i) then

if U S[p][i + 1] = o f f set then

DS[p][i] ← US[p][i + 1] + DS[p + 1][

]

else

DS[p][i] ← US[p][i + 1]

else

DS[p][i] ← DS[p + 1][

]

end

p=1

offset=1

p=2

offset=2

p=3

offset=4

p=2

offset=4

p=1

offset=2

p=0

offset=1

1 111 1 0 1 0

22 1 1

01 1 2

2 011 0 1 0 2

3 122 1 0 1 0

up-sweep

down-sweep

final adjustment

01234567

0123

01234567

COREECTA

(corrigenda)

Figure 5: Illustration of the modiﬁed Blelloch’s (Blelloch,

1990) algorithm to enable computation of run lengths of

consecutive elements.

3.4 Binary-Tree

The design of the herein presented algorithm is

founded on ideas originally described by (Greß et al.,

2006) and by (Ziegler et al., 2006). The referred

works are mainly devoted to compaction of 2D data

(with potential extensions to 3D) and use a quadtree

as the fundamental data structure. Despite the similar-

ities, instead of a quadtree, our proposal uses a binary

tree as a fundamental data structure, and so, it can be

straightforwardly used to compact both linear and 2D

data. Furthermore, we propose the combination of its

operation with a block based compaction strategy.

The main idea behind the design of the algorithm

is to avoid the prior computation of the all-preﬁx-

sums. This can be achieved by encoding the data

stream into a binary tree where each node stores the

number of valid elements under it. Extraction of the

compacted stream is achieved by tree traversal.

The ﬁrst step of the algorithm is to discriminate

the valid elements. In the following discussion it is

assumed that valid elements are ﬂagged as true (ones)

and invalid elements are ﬂagged as false (zeros).

The next step, binary tree encoding, comprises en-

coding the number of valid elements into a binary

tree. This is similar to a stream reduction operation

using addition as the reduction operator and preserv-

ing the intermediary results (i.e. preserving the over-

all reduction tree structure). At each level (pass), each

node computes the number of valid elements under

it, i.e. the sum of valid elements stored by its child

nodes. This process continues until the root level is

reached.

The root node stores the total number of valid el-

ements, i.e. the size of the compacted stream, v. This

binary reduction is achieved in log

(s) passes, being

s the size of the original stream. Notice that as for

each pass (tree level) the number of nodes is halved,

the total work has a linear order O(s), in respect to the

stream size .

Algorithm 5: Binary Tree Traversal (mono-

tonic).

begin

forall i < v do in parallel

currnode ← root

minR ← 0

maxR ← valueAt(root)

while not isLeaf(currnode) do

currnode ←firstChild(currnode)

maxR ←

minR + valueAt(currnode)

if i /∈ [minR,maxR[ then

currnode ←nextSibling(currnode)

minR ←

minR + valueAt(currnode)

compact [i] ←

data[indexOf(currnode)]

end

To extract the valid elements, a search traversal

is conducted in the binary tree. This is done in par-

allel for a number v of valid elements found on the

original stream. Each traversal takes as input the in-

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

124

dex (order) of a valid element. Based on the infor-

mation stored by each tree node, the algorithm dy-

namically maintains the range of valid indexes under

each node. This information is used to guide the tree

traversal as follows. Beginning at the root node, and

searching for the i

element, the range of valid in-

dexes [minR,maxR[ is set to [0,v[. The traversal then

makes a ﬁrst-child move and updates this range by

setting its bounds to [minR,minR + n[, being n the

number of valid elements under the current node. If

i is not within the range, the traversal moves to the

next-sibling node and the valid range is updated to

[minR +n,maxR[. This process is repeated until a leaf

node is reached for which the valid range comprises

the index of the sought element, i.e. [i, i +1[. The data

is then copied from that position into the i

position

of the compacted stream. Algorithm 5 presents the

pseudo-code of this process. An example of its op-

eration is depicted in Figure 6. The ﬁgure illustrates

the search of the 5

element of the stream (i = 4).

The bounds of the valid index range are shown next

to upper-left corner of each node. The path of the

search is obtained by following the (red) arrows. At

the illustrated example, the desired element is found

at index 5 of the data stream which is copied to the

corresponding position of the compacted stream (in-

dex i = 4)

sibling

[4,5[

1 12 2

0 101 1 1 1 1

next sibling

first child

[3,6[

[3,5[

[3,4[

1 - encoding/reduction

2 - traversal/search

0 f0a b c d e

a b c d e f

i=4

[0,3[

01234567

i=4

compacted data

original data

discriminated data

3 - compaction

[0,6[

Figure 6: Graphical trace of the Binary Tree algorithm.

Each search is independent and can be conducted

in parallel. The complexity of the search equals the

depth of the binary tree, i.e. log

(s). Note that the

search is only conducted for the v valid elements, ac-

counting a total number of search steps of v · log(s).

4 RESULTS

All the described algorithms in Section 3 were im-

plemented, tested and analyzed. A block based com-

paction mechanism, based on (Roger et al., 2007)

and with implementation details described by (Mor-

eira et al., 2009), was used in order to allow efﬁcient

handling of large data streams.

Implementation was done under OpenGL 2.0,

making use of frame buffer objects (FBO) with sin-

gle component 32-bit ﬂoat texture formats for the

input and output data and, as well, for intermedi-

ary memory buffers. Four component (RGBA) 32-

bit ﬂoat formats were used for the described block

compaction mechanism. The presented results were

taken using a nVidia GeForce 7300 Go (G72M) GPU.

Fragment programs were coded using the Cg Lan-

guage (Fernando and Kilgard, 2003), but are straight-

forwardly convertible to the OpenGL Shading Lan-

guage (Kessenich, 2006). All timings were taken the

OpenGL GL_EXT_timer_query extension.

We implemented and measured the time to per-

form the all-preﬁx-sums using the algorithms de-

scribed by (Hillis and Steele JR, 1986) and (Blelloch,

1990) and veriﬁed that, for block sizes under 128, the

recursive doubling approach performs faster than the

balanced tree. For larger block sizes, the balanced tree

performs faster.

As the preﬁx sum is being done in relatively small

substreams, the overall timings are directly propor-

tional to the data-set. For instance, we veriﬁed that for

streams with 1M elements (we use the M and K suf-

ﬁxes to denote stream sizes orders of ×2

and ×2

respectively) and 256K elements (512 x 512) the over-

all timings were for all methods 1/4 and 1/16 with a

deviation not greater than 5%.

To enable a better understanding of the relative

weight of each step comprised by the compaction al-

gorithms, times were taken separately as depicted in

Figure 7. The presented results were taken for a 4M

stream (2048 × 2048) using a block size of 256. Re-

sults demonstrate that the binary search process of

Horn’s algorithm dominates the overall process. The

weight of the search is larger for dense (low percent-

age of invalids) data. For sparser data, the relative

weight of the search tends to be smaller. Jumping Jack

(JJ) spends the same amount of time on the preﬁx-

sums, but performs faster for dense data, outperform-

ing Horns algorithm in such circumstances. RLZ

spends twice the time on the preﬁx-sum, but its faster

search leads to outperform Horn’s algorithm for dense

data and to be competitive for sparse data. Finally, the

Binary Tree (BT) has a very fast ﬁrst stage (reduc-

tion). The extraction (search) process depends on the

tree depth and on the number of valid elements and

has a worse performance than JJ and RLZ algorithms

for dense data. However, due to the quicker ﬁrst step,

the BT algorithm is able to outperform all the other,

particularly from mid to high data sparseness. We no-

NEW ALGORITHMS FOR GPU STREAM COMPACTION - A Comparative Study

125

ticed that the concatenation step is comparatively very

fast, except for very small block sizes where the large

number of blocks leads to increased effort on the com-

putation of the inter-block preﬁx sum and on the line

rendering mechanism. As it can be observed, the con-

catenation also depends on the data distribution, but

for the used block size this has no signiﬁcant impact

on the overall performance.

100

150

200

250

300

350

Horn RLZ JJ BT Horn RLZ JJ BT Horn RLZ JJ BT

10%Invalids 50%Invalids 90%Invalids

Time(ms)

Concatenation

Search/Extraction

PrefixSum/Reduction(intrablock)

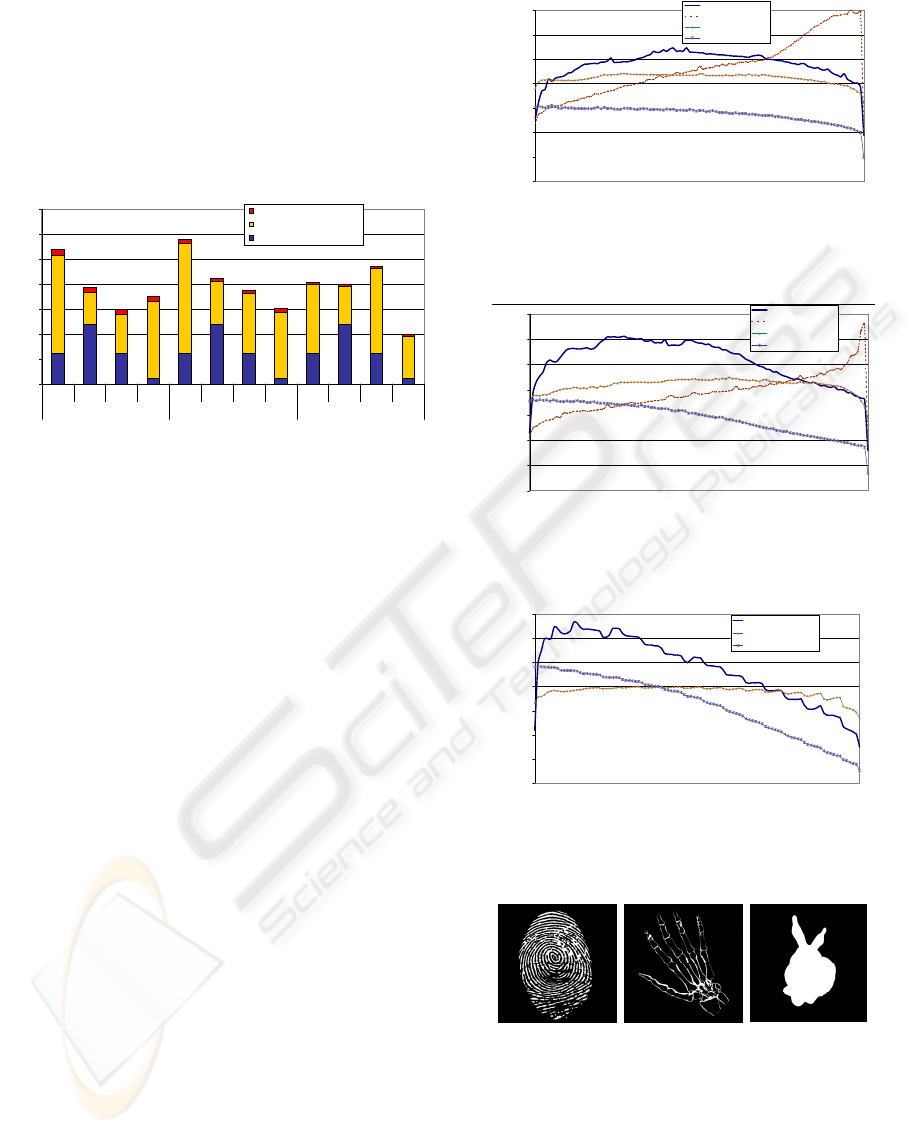

Figure 7: Times (in milliseconds) needed to perform the

several stages of compaction with three different data den-

sities, using the four tested algorithms. Stream and block

sizes were 4M and 256, respectively.

Experiments using different block sizes were con-

ducted with results reported in Figures 8 to 10. A ﬁrst

conclusion is that algorithms behave distinctively for

different block sizes. For dense data, Horn’s algo-

rithm takes advantage by using smaller blocks. On

the contrary, when operating with sparse data, it per-

forms faster using a larger block size. This is also the

case of the BT algorithm. The JJ and RLZ algorithms

have a more regular behavior, taking beneﬁts, in gen-

eral, from adoption of a larger block size.

Jumping Jack algorithm can be very fast for mid to

low data densities, performing better than Horn’s for

densities of invalid elements below densities of 70%

to 80%, depending on the block size. RLZ presents

a competitive behavior, particularly for large block

sizes. Results analysis also exposes an interesting

characteristic of RLZ as it exhibits the less data de-

pendent behavior, being the more stable algorithm,

with less performance variance for the different data

densities. Such characteristic can be of importance if,

for instance, in the context of an interactive applica-

tion, a sustained and predictable frame-rate is desired.

The Binary Tree Algorithm is generally the best and,

particularly for sparse data, it outperforms all the oth-

ers, independently of the block size, exception made

to very dense data. However, different block sizes has

to be chosen a priori, depending on the data density,

in order to obtain an optimal setting. In practical set-

tings these knowledge may not be available in order

to optimally tune the compaction parameters.

To enable a better perception of the data distri-

0.00

50.00

100.00

150.00

200.00

250.00

300.00

350.00

0 102030405060708090100

DensityofInvalidElements(%)

Time(ms)

Horn'sbinarysearch

JumpingJack

RunLengthsofZeros

BinaryTree

Figure 8: Time (in milliseconds) achieved for compaction

of 4M stream, using a block size of 32.

0.00

50.00

100.00

150.00

200.00

250.00

300.00

350.00

0 102030405060708090100

DensityofInvalidElements(%)

Time(ms)

Horn'sbinarysearch

JumpingJack

RunLengthsofZeros

BinaryTree

Figure 9: Time (in milliseconds) achieved for compaction

of 4M stream, using a block size of 256.

0.00

50.00

100.00

150.00

200.00

250.00

300.00

350.00

0 102030405060708090100

DensityofInvalidElements(%)

Time(ms)

Horn'sbinarysearch

RunLengthsofZeros

BinaryTree

Figure 10: Time (in milliseconds) achieved for compaction

of 4M stream, using a block size of 2048.

Finger

83.84%Invalids

Hand

95.10%Invalids

Bunny

80.56%Invalids

Hand: brancos/pretos 205257 / 3989047 (95,1%)

Bunny 815285 (80.56%)

Finger 677803 (83.84%)

Figure 11: Thumbnails of the image data set with white

pixels corresponding to valid elements. Images and their

negatives were tested with three different sizes (256K, 1M

and 4M).

butions, we opted to present data sets comprised by

three different images and their correspondent neg-

atives (i.e. negating the validity criterion), each of

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

126

Table 1: Time (in milliseconds) achieved for compaction

of the image data set. The i_ preﬁx denotes the negative

version.

block

Algorithm 256K 1M 4M 256K 1M 4M

Horn 13.24 50.27 166.56 14.15 54.90 180.63

JJ 13.21 43.31 128.49 12.05 40.85 122.07

RLZ 12.66 51.61 173.38 13.52 56.05 185.19

8.55 31.39 96.08 11.68 45.46 147.78

Horn 12.33 43.79 161.45 13.77 49.97 178.86

JJ 9.98 35.83 131.03 9.49 31.44 109.14

RLZ 10.21 38.55 154.62 11.19 43.26 166.62

7.22 25.86 95.81 10.91 44.07 166.05

Horn 11.49 42.41 158.07 17.22 68.70 217.57

RLZ 10.85 40.15 160.83 11.91 44.85 173.98

6.47 25.77 97.27 11.87 49.35 190.96

block

Algorithm 256K 1M 4M 256K 1M 4M

Horn 12.24 44.01 130.65 13.34 49.89 159.19

JJ 12.11 39.95 112.34 11.00 42.84 137.28

RLZ 12.19 50.11 164.28 13.48 55.91 189.76

7.76 26.97 68.07 11.73 45.64 151.15

Horn 9.60 32.75 115.49 11.81 43.86 150.92

JJ 10.33 32.63 102.00 8.02 30.14 116.11

RLZ 9.62 36.59 141.94 11.21 43.32 171.06

5.33 17.65 57.87 11.11 44.58 171.73

Horn 8.51 31.55 112.12 15.91 57.20 187.88

RLZ 10.04 37.73 145.76 11.72 44.88 176.55

4.36 15.35 52.93 13.01 51.08 202.21

block

Algorithm 256K 1M 4M 256K 1M 4M

Horn 10.31 37.86 110.35 11.72 43.08 134.01

JJ 9.77 34.14 100.04 9.27 36.70 115.59

RLZ 11.75 49.33 162.55 12.92 54.05 183.24

6.93 26.20 69.21 11.21 42.73 134.30

Horn 9.02 30.29 101.07 10.22 34.94 121.30

JJ 7.16 23.48 84.39 6.80 26.29 99.39

RLZ 9.30 36.26 142.47 10.48 40.99 162.45

5.29 20.38 70.25 10.69 40.49 150.68

Horn 9.34 36.33 130.78 14.91 55.50 146.91

RLZ 9.76 37.28 146.67 11.02 41.87 165.98

4.96 21.25 81.77 11.77 46.66 178.98

Finger i_Finger

Bunny i_Bunny

Hand i_Hand

them with three different resolutions: 512x512 (de-

noted as 256K); 1024x1024 (1M); and 2048 x 2048

(4M). Figure 11 depicts thumbnails of the used im-

ages, with white pixels representing valid elements,

and as well the corresponding overall data density.

As it is observable, the images have distinct spatial

frequencies with correspondence in distinct regional

data densities.

Tests were conducted using the four algorithms

and three different block sizes: 32; 128; and 512, re-

spectively. As, for the tested hardware, the maximum

loop count on fragment programs is of 256, the Jump-

ing Jack algorithm was not tested for the larger block

size. The achieved results are shown in Table 1. For

each data set, the overall best result is depicted with

bolder font and the overall best result using a mono-

tonic algorithm (i.e. excluding Jumping Jack) is rep-

resented with a darker background.

The most relevant fact revealed is that there are

distinct settings (algorithm and block size) achieving

the best performance for the different data sets. Two

major conclusion can be drawn. The ﬁrst is that there

is not a general optimal setting, and the second is that

this optimal setting can only be determined with a pri-

ori knowledge about the data distribution.

The above discussion opens an interesting avenue

for research on how to explore the best of each al-

gorithm by using an optimal meta-algorithm, which

should be able to make the most appropriate choices

of the basic algorithm and block size. Several op-

tions may apply in the design of such optimized meta-

algorithm. A ﬁrst approach could pursuit an adap-

tion to the expectable best performing algorithm and

block size, based on a local or regional evaluation of

the data. Thus, for the same data set, it would be

possible to choose several parameters for different re-

gions. Another approach may comprise a more low-

frequency optimization, assuming that the data may

vary along the time with some coherency. Hence, it

should be possible to optimize the algorithm in or-

der to adapt to the current pattern of the data. We

shall also notice that the algorithmic performance de-

pends on the underlying architecture of the GPU as

well (e.g. degree of parallelism, branch and loop con-

trol, granularity, etc.). Thus, the solution for a given

hardware setting may not be the more optimized for

another setting, even for identical datasets.

5 CONCLUSIONS

This paper introduces the RLZ and the Binary Tree

algorithm for parallel stream compaction. We used

these algorithms within a block based compaction

mechanism in order to handle large streams without

coordinate conversion overhead and also taking ad-

vantage from the texturing capabilities of the GPU.

We tested our proposals against existent algorithms.

The achieved results demonstrate the practical

usefulness of our proposal. The RLZ algorithm

proved to be competitive with prior algorithms, out-

performing them in some circumstances. It presents

the most data independent performance which makes

it the most stable and predictable algorithm.

The Binary Tree algorithm is globally the fastest,

taking advantage by not doing an explicit computa-

tion of the all-preﬁx-sum. However, we have also ob-

served from the experiments that, for real data-sets, an

optimal choice on the algorithm and parameters is not

obvious and may require some knowledge on the data

distribution, not only on a global basis but also on a

local or regional basis. In this context, we outlined

a meta-algorithm able to adapt to the data in order to

have an optimized performance. As future work, we

plan to further research on this topic.

Our implementations have room to be further op-

NEW ALGORITHMS FOR GPU STREAM COMPACTION - A Comparative Study

127

timized. We plan to continue testing the algorithms

in a broader range of hardware platforms and diversi-

ﬁed data sets, expecting further insights that can lead

to improved variations and ideas, and so, another av-

enue to future work focus on how these algorithms

and concepts adapt to new architectures and forth-

coming standards.

ACKNOWLEDGEMENTS

This work has been partially supported by

European Social Fund program, public con-

test 1/5.3/PRODEP/2003, ﬁnancing request no.

1012.012, medida 5/acção 5.3 - Formação Avançada

de Docentes do Ensino Superior, submitted by

Escola Superior de Tecnologia e Gestão do Instituto

Politécnico de Viana do Castelo.

REFERENCES

Blelloch, G. (1990). Preﬁx sums and their applications.

Technical Report CMU-CS-90-190, Carnegie Mellon

University - CMU – School of Computer Science,

Pittsburgh, PA 15213.

Crow, F. C. (1984). Summed-area tables for texture map-

ping. In SIGGRAPH ’84: Proceedings of the 11th

annual conference on Computer graphics and interac-

tive techniques, pages 207–212, New York, NY, USA.

ACM.

Fernando, R. and Kilgard, M. J. (2003). The Cg Tuto-

rial: The Deﬁnitive Guide to Programmable Real-

Time Graphics. Addison-Wesley Longman Publishing

Co., Inc., Boston, MA, USA.

GPGPU (2008). GPGPU.org. http://www.gpgpu.org, last

visited 2008.07.22.

Greß, A., Guthe, M., and Klein, R. (2006). GPU-based

collision detection for deformable parameterized sur-

faces. Computer Graphics Forum, 25(3):497–506.

Harris, M., Sengupta, S., and Owens, J. D. (2007). Parallel

preﬁx sum (scan) with CUDA. In Nguyen, H., editor,

GPU Gems 3, chapter 39. Addison Wesley.

Hensley, J., Scheuermann, T., Coombe, G., Singh, M., and

Lastra, A. (2005). Fast summed-area table generation

and its applications. Computer Graphics Forum (Pro-

ceedings of Eurographics), 24(3):547–555.

Hillis, W. D. and Steele JR, G. (1986). Data parallel algo-

rithms. Communications of the ACM, 29(12):1170–

1183.

Horn, D. (2005). GPU Gems 2, chapter Stream reduction

operations for GPGPU applications, pages 573–589.

Addison-Wesley.

Kessenich, J. (2006). The OpenGL Shading Language

(v.1.20). OpenGL Architecture Review Board. avail-

able at http://www.opengl.org/documentation/glsl/.

Lefohn, A. E., Sengupta, S., and Owens, J. D. (2007). Res-

olution matched shadow maps. ACM Transactions on

Graphics, 26(4):20:1–20:17.

Moreira, P. M., Reis, L. P., and de Sousa, A. A.

(2009). Jumping jack : A parallel algorithm for non-

monotonic stream compaction. In GRAPP 2009 - 4th

International Conference on Computer Graphics The-

ory and Applications, February 5–8, Lisbon, Portugal.

Nickolls, J., Buck, I., Garland, M., and Skadron, K. (2008).

Scalable parallel programming with CUDA. ACM

Queue, 6(2):40–53.

OpenGL Architecture Review Board (2008).

ARB_geometry_shader4 Extension Spec-

iﬁcation. OpenGL Architecture Re-

view Board, rev 22 edition. available at

http://www.opengl.org/registry/specs/ARB/

geometry

hader4.txt.

Owens, J. D., Luebke, D., Govindaraju, N., Harris, M.,

Kruger, J., Lefohn, A. E., and Purcell, T. J. (2007).

A survey of general-purpose computation on graphics

hardware. Computer Graphics Forum, 26(1):80–113.

Roger, D., Assarsson, U., and Holzschuch, N. (2007). Whit-

ted ray-tracing for dynamic scenes using a ray-space

hierarchyon the GPU. In Proceedings of the Euro-

graphics Symposium on Rendering’07, pages 99–110.

Segal, M. and Akeley, K. (2006). The OpenGL

Graphics System: A Speciﬁcation (Version

2.1). http://www.opengl.org/documentation/specs/

version2.1 (last visited 2008.07.24).

Sengupta, S., Lefohn, A. E., and Owens, J. D. (2006).

A work-efﬁcient step-efﬁcient preﬁx sum algorithm.

In Proceedings of the Workshop on Edge Comput-

ing Using New Commodity Architectures, May 23–24,

Chapel Hill, North Carolina, USA, pages D:26–27.

Ziegler, G., Tevs, A., Theobalt, C., and Seidel, H. (2006).

Gpu point list generation through histogram pyramids.

In 11th International Fall Workshop on Vision, Mod-

eling, and Visualization - VMV’06, pages 137–144.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

128
