SHOPPING BY EXAMPLE

A New Shopping Paradigm in Next Generation Retail Stores

Ashish Khare, Hiranmay Ghosh

TCS Innovation Labs, Tata Consultancy Services Ltd

Plot No 249 D&E, Udyog Vihar, Phase – IV, Gurgaon, India

Jaideep Shankar Jagannathan

Freescale SemiconductorIndia Ltd, Express Trade Tower

Floor5,6,7, Plot 15 & 16, Sector 16-A, Noida, India

Keywords: Online shopping, Query-by-Example, Content-based Image Retrieval, SIFT, PCA-SIFT, Image Features

Indexing, R-Tree.

Abstract: In this paper, we present a new example based approach to search for a particular product based on its visual

properties. A user can take a photo of a product package with a cell-phone or webcam and submit it to an

online shopping portal for finding the product details. We search a product image database for the

distinctive visual features on the query image to locate the desired product. We use PCA-SIFT feature for

robust retrieval, to account for possible imperfections in the query image due to uncontrolled user

environment. We use Oracle Java R-Tree to index image features to realize a scalable system. We establish

robustness and scalability of our approach by conducting several experiments on fairly large prototype

implementations.

1 INTRODUCTION

Over the past few years the online shopping trend

has continued to grow at a healthy clip. According to

survey conducted by Nielsen (Nielsen, 2008) over

85 percent of world’s online population has shopped

online in last two years. The reasons are obvious –

24 x 7 virtual online stores, no pushy sales staff, no

busy checkout line-ups, no parking hassles etc.

Today, several successful online stores proliferate

over the Internet, ebay.com, amazon.com, etc being

a few examples.

Despite the advantages online shopping faces

several challenges. Significant among them is the

difficulty in identifying a particular product when its

exact details are not known or difficult to specify for

a customer. For instance, a certain brand of

chocolate which may come in several different

flavours and it may be difficult for a customer to

remember the exact one he/she wants. However the

variants of the chocolate are uniquely distinguished

by the visual appearance of their packaging and a

user generally looks for the visual pattern while

exploring the shelves of a brick-and-mortar retail

store. Such facility has not yet been made available

on the online shopping portals. We present a new

shopping solution that enables a user search a

shopping portal for the desired product with a photo

of the product package snapped using a digital

camera. The solution employs well-known “query-

by-example” paradigm of content-based image

retrieval. We call the solution “Shopping by

Example” to reflect the query paradigm.

While visual pattern matching technique seems

quite intuitive for product selection, it provides quite

a few challenges. Content-based image retrieval

techniques are based on inexact match or similarity

measures, rather than exact match principles used in

the database search. The query images in a shopping

application are snapped by a user in an uncontrolled

environment resulting in significant distortions.

Exact identification of the intended product is very

difficult in this noisy environment. Use of content-

based retrieval in shopping has been reported in

(Ghosh & Chaudhury, 2002) and (Tollmar et al,

2007). Both of these systems aim at exploring the

Khare A., Ghosh H. and Jagannathan J. (2009).

SHOPPING BY EXAMPLE - A New Shopping Paradigm in Next Generation Retail Stores

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 48-53

DOI: 10.5220/0001788600480053

 SciTePress

product space with example images (and other

descriptors) rather than uniquely identifying a

specific product.

Our main contribution is to implement a practical

shopping solution that can be used for example

based search for a specific product in a large product

database. There are three major aspects in this work:

(a) selection of a suitable image feature that can

uniquely identify a product from a large collection

despite the undesired transformations of the query

image, (b) to achieve scalability by using a suitable

indexing scheme for the image feature and (c) to

devise a method to use these methods to create a

practical system. We have been constrained in

selecting the image feature and the indexing

methods by the fact that there are not many methods

that scale up to cope up with thousands of unique

products that may exist in a retail store.

The rest of the paper is organized as follows -

Section 2 provides the critical review of CBIR

methods towards present application. Section 3

describes the system in detail. Section 4 describes

some experimental results that establish robustness

and scalability of the system. Section 5 concludes

the paper.

2 A CRITICAL REVIEW OF CBIR

Shopping-by-Example is essentially a Content Based

Image Retrieval (CBIR) implementation. It searches

a product image database with a query image and

produces the best matching result. The technical

challenge in the system is to retrieve the desired

product image uniquely, even when a query image

suffers significant distortion. Another challenge is to

scale the solution for a large product database. To

address the first we have used PCA-SIFT (Ke &

Sukthankar, 2004) algorithm which is an advanced

version of Scale Invariant Feature Transform (SIFT)

(Lowe, 2004) algorithm. SIFT extracts a set of

distinctive image features that are invariant to

several distortions and can be used to perform robust

matching of images representing different views of

an object. But a drawback of SIFT features is that

huge number of keypoints are generated

corresponding to an image resulting in large storage

and computational overheads. PCA-SIFT remove

this deficiency by using Principal Component

Analysis (PCA) on keypoint descriptors. After

significant experimentation with SIFT, PCA-SIFT

and other image features, we have selected PCA-

SIFT as the feature descriptor to characterize the

distinctive product marks for their robustness against

image distortions, relatively compact representation

and reduced comparison time requirements. As retail

stores generally contain thousands of products, it is

not practical to compare a query image with all the

images in the product database to find the best

matching result. There are two distinct techniques to

ensure fast access to desired images in the database.

In one approach, the database can be clustered by

using some unsupervised learning mechanism, such

as k-means clustering (MacQueen, 1967) or DBScan

clustering (Ester et al, 1996). This approach works

well when there are natural well-separated clusters

in the data. The PCA-SIFT keypoints for the product

images used in our solution do not exhibit such

natural clustering behavior. The second approach,

involves indexing of multidimensional data. After

significant experimentation with different variants of

R-Tree (Guttman, 1984) and X-Tree (Berchtold et

al, 1996) algorithms, we have selected Oracle Java

R-Tree implementation (Oracle, 2007) for indexing

PCA-SIFT keypoints. A major advantage of this

memory resident implementation is very fast access

time.

3 SYSTEM DESCRIPTION

3.1 Creating Product Database

The traditional product parameters, such as the

name, product code, quantity and the price are stored

in a conventional relational database in Shopping-

By-Example system. In addition, we create an image

feature index of the product packages. This is done

in two steps.

Feature Extraction. At this step, we extract the

PCA-SIFT features of the images. The product

images which populate the product database can be

of different sizes. Selection of a proper image size

before feature extraction is necessary. Using too

large images result in unstable key points whereas

using too small images relevant key points are not

selected. We scale all product images to an optimal

size as an image pre-processing stage. Next, we

convert the images to gray-scale (PGM format) from

which PCA-SIFT features are extracted.

Index Construction. The PCA-SIFT feature of

every product in the database comprises several

keypoints, each of which is a high-dimensional

vector. We index each of these keypoints using

Oracle Java R-Tree implementation. Since all the

keypoints are pre-computed and known in advance,

we have bulk inserted them in the database. Bulk

SHOPPING BY EXAMPLE - A New Shopping Paradigm in Next Generation Retail Stores

insertion not only reduces insertion time, but also

forms a well balanced R-Tree structure (Bercken et

al, 1997) thereby improving search performance. In

general, a data item in Oracle Java R-Tree is

represented by a hyper-solid in the n-dimensional

space by specifying the lower and the upper bound

coordinates. However, we have defined each key-

point as an ideal point, i.e. with identical upper and

lower bound coordinates. The R-Tree

implementation assigns a unique id to every indexed

keypoint. We create a hash-table to create a many-

to-one map of these keypoints to their respective

product ids.

3.2 Query Processing

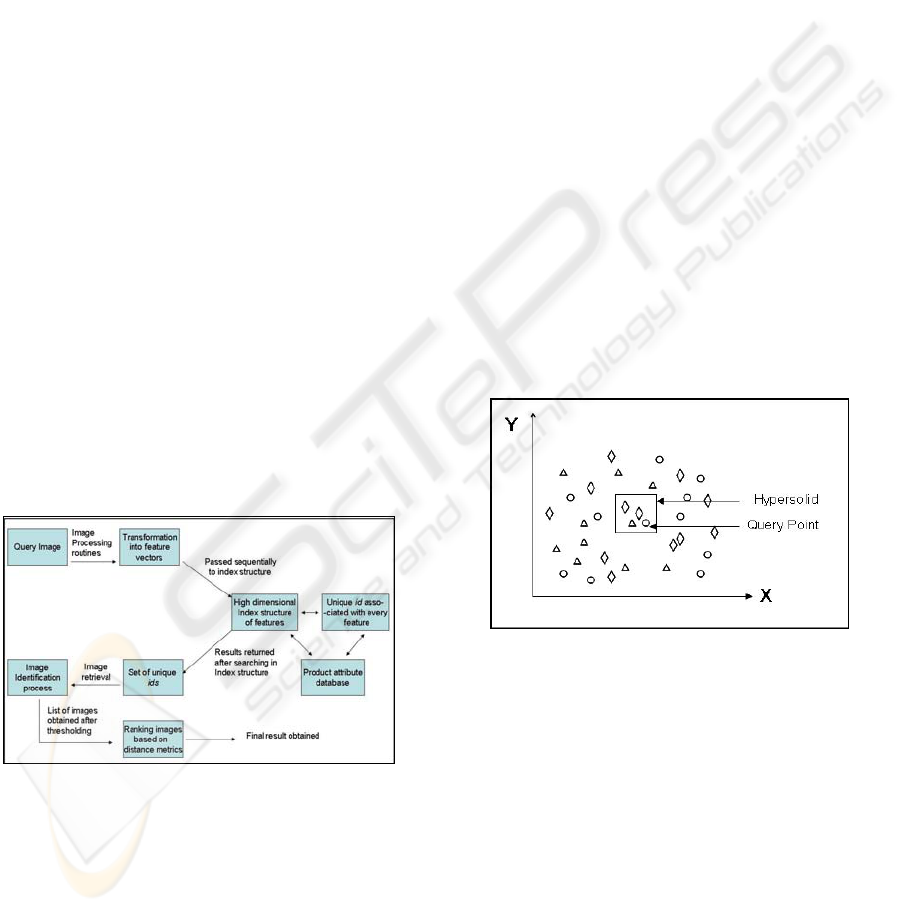

A basic query processing model of our work is

shown in the Figure 1. The whole process can be

broadly described by the following steps: -

Feature Extraction. The query image submitted by

the user is normalized to a specific size, converted

into gray-scale format before the PCA-SIFT

keypoints are extracted as in the case of populating

the database.

R-Tree Search. The keypoints in the query image

do not have identical descriptors as in the

corresponding database images because of

distortions in the query image. However, it is

assumed that many of them are sufficiently close in

the feature space to be retrieved with a range search

in the product image key-point database.

Figure 1: A basic query processing model.

In order to search the keypoints that lie close to

the query keypoints, we define a hyper-solid around

each query point and submit it as a query in the R-

Tree implementation. This hyper-solid is referred to

as the Minimum Bounding Hyper-solid (MBH). In a

large product database, several other keypoints,

besides the intended one, are likely to lie close to the

query key-point within this hyper-solid. All

keypoints which fall in the hyper-solid are retrieved

during the search. The situation is shown in Figure 2

by taking example in two dimensions. In Figure 2,

each of the dots represents a key-point in the

database. The dots drawn with a particular style

belongs to the same product image. Thus a search

with every keypoint in the query image yields a set

of other keypoints belonging to the different product

images. Mapping the retrieved keypoints to the

corresponding products provides a set of product

images P

for every keypoint K

in the query image.

Since at most one keypoint for a product image may

map to one keypoint of the query image, we remove

any duplicates (e.g. see diamonds in Figure 2) from

this set. Thus, for all keypoints in the query image

we get a list of set of matching keypoints <M

, M

...

> where N denotes the number of keypoints in

the query image. The union of these sets ∪

denote the set of candidate products.

Filtering. For every product m

∈ ∪

, we count

the number of its occurrence n

in the list <M

, M

...

>, which signifies the number of matching

keypoints for that product image with the query

image. We sort the product images in descending

order of matches to get a list <(m

)>, where m

∈

∪

and n

> n

... and so on.

Figure 2: Key points in 2-d region are shown.

A naive solution could produce the product from

the top of the list as the solution, since the maximum

number of its keypoints can be assumed to match

with the image of the target product. However,

condition may not be satisfied in a large product

database and distorted query image. Identification of

the target product requires comparison of the query

image with each of the candidate solutions. The list

<(m

)> can be quite long in a large product

database. In order to restrict the expensive

comparison algorithm, we drop the spurious

candidate products, which are characterized by

significantly less number of matching keypoints

using some heuristics. We compare every n

with n

i+1

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

in the list, and remove all images m

for i> k, when

k+i

< μ.n

. Thus we get a smaller list < (m

)

i=1,k

for processing.

Ranking. The final stage of query processing

involves comparing the product images in the list

<(m

)

i=1,k

> with the query image by PCA-SIFT

feature comparison algorithm. A product is retained

in the list only if the match value exceeds a certain

threshold η. If none of the images qualify at this

stage, we declare the search to be unsuccessful. The

PCA-SIFT features are distinctive enough to make a

good discrimination in the matching scores of the

target and the other product images. However, if two

or more products are characterized by very similar

product-marks, it may not be possible to distinguish

between the two. Thus, we use the following

heuristics to identify the solution. As in the last

stage, we arrange the product images in order of

descending match scores s

and define a cut-off at

k+i

< τ.s

and

select the product images m

as the

final solution. If there are too many products in this

list, we assume that the system could not identify the

product and declare the search to be unsuccessful.

Discussions. The query image could be compared

with all product images in the database using PCA-

SIFT based feature to give the same results.

However, PCA-SIFT based comparison algorithm is

very complex (O (n

)) and it is not possible to build

a scalable system using this method. The R-Tree

indexing technique results in short-listing of a set of

candidate solutions, which significantly reduces the

overall search time. The multi-stage filtering of the

candidate solutions further optimizes the search

time. If the cardinality of candidate solution list falls

to one at any stage of filtering, that product is treated

as the solution without any further processing.

Similarly, if none of the database images qualify at

any of the filtering stages, we conclude that the

product is not in the database and the search

terminates. The optimal threshold values like µ, η

and τ are found from several experimental

observations.

The choice of the MBH size is critical for the

performance of the system. A large value of MBH

generates a lot of spurious keypoints, which results

in larger processing time in subsequent filtering and

ranking stages. If the value of MBH is too small,

relevant key points are not selected, resulting in poor

search performance. We measure the search

performance of the system with Mean Reciprocal

Rank (MRR) over a number of queries. Reciprocal

Rank is defined as the multiplicative inverse of the

rank of the first correct answer. The MRR is the

average of the reciprocal ranks of results over a

number of queries. Figure 3 shows the variation of

MRR and Search Time against MBH. Note that

while search time monotonically increases with

MBH, the MRR saturates to a maximum value close

to 100 percent. An optimal value of MBH has been

selected in our system based on this observation.

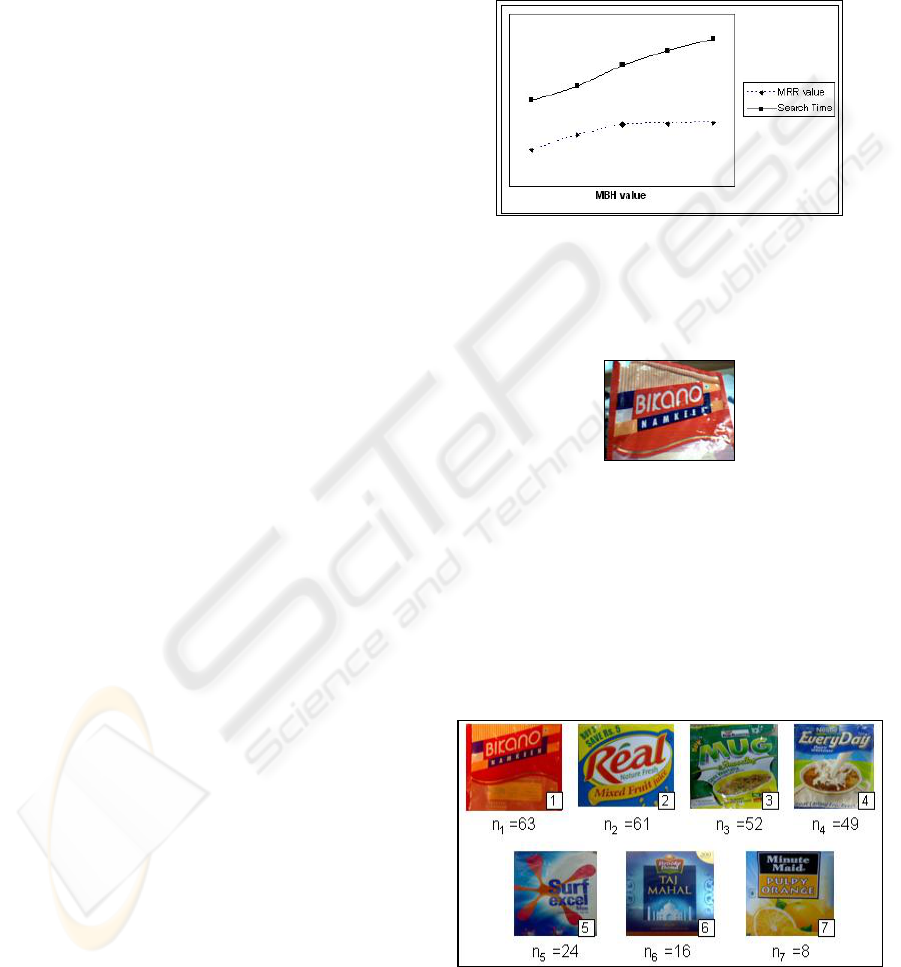

Figure 3: Variation of MRR & search time w.r.t. MBH.

Illustrative Example. We illustrate query

processing through an actual query example. Figure

4 shows the sample query image.

Figure 4: Sample query image.

A search in the product image database with the

PCA-SIFT keypoints of this image produces a set of

candidate products. Figure 5 shows the results with

the products sorted in descending order of matching

keypoints (n

). Images 1-4 have been selected from

this list after the filtering stage. Note the sharp fall in

number of matching keypoints between images 4

and 5.

Figure 5: Intermediate result obtained.

The ranking algorithm is applied on these

selected images. Figure 6 shows the ranked results

SHOPPING BY EXAMPLE - A New Shopping Paradigm in Next Generation Retail Stores

sorted in descending order of the matching scores.

Note the re-ranking of the results and sharp contrast

in the matching scores resulting in unique selection

of product 1. Figure 7 shows the output from the

system in response to this query.

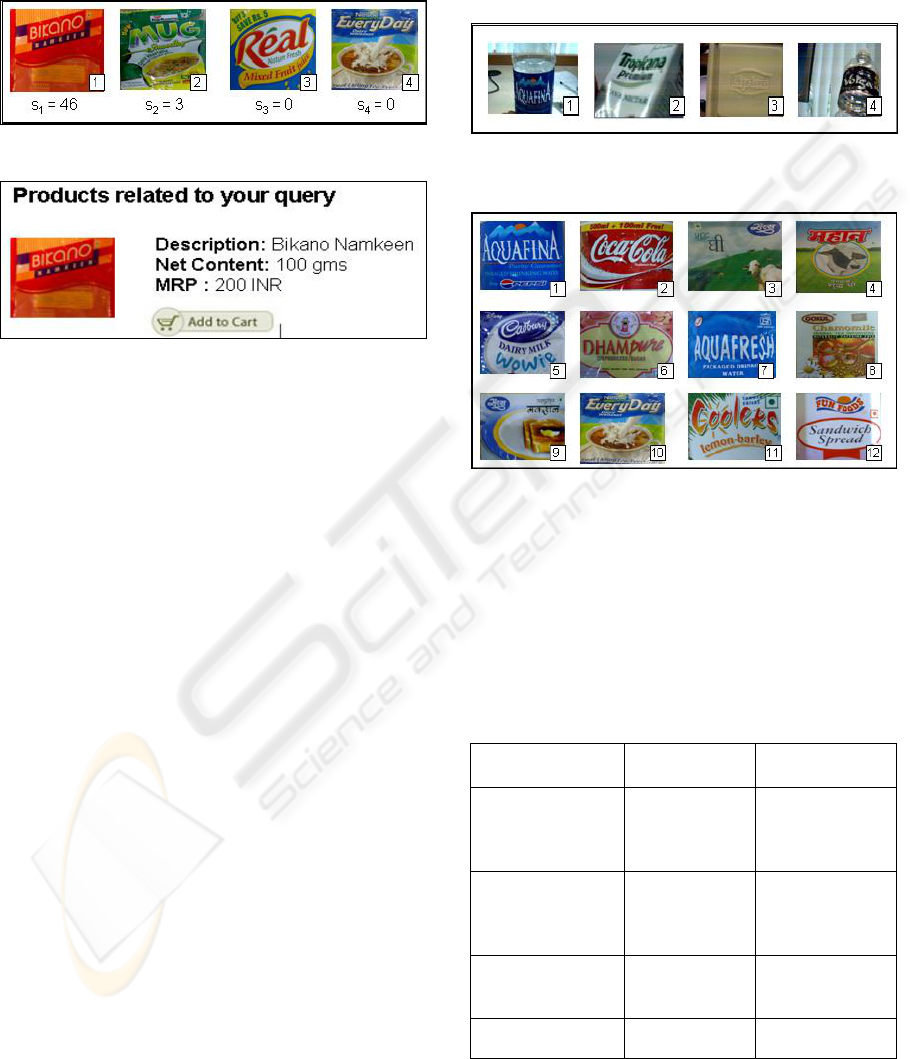

Figure 6: Images sorted w.r.t. s

Figure 7: Product uniquely identified.

4 EXPERIMENTAL RESULTS

We have conducted a number of experiments to

check the robustness and scalability of the system.

We have implemented two shopping portal

prototypes, one with grocery items and the other for

music/video/games CD/DVDs as proof of concept of

our approach. The first prototype is built with more

than 100 grocery items, such as beverages,

chocolates, dairy products, etc. The cartons/

wrappers of these products have been photographed

manually to create the database. Since the packages

have been physically available with us, we could

create a variety of query images by photographing

them in different lighting conditions as well as with

different distances, angles and perspectives to study

the robustness of the system. The second prototype,

created with more than 1000 images of CD/DVD

jackets, has been used to establish scalability of the

system. We tweaked these images with image

processing tools to create as realistic query images

as possible. However, they were derived from the

original image and truly not a different image

instance of the same jackets.

Robustness. We define robustness as the capability

to identify a product uniquely despite query image

deformations. We use the grocery database for these

experiments, since we could photograph the

available wrappers in different lighting conditions,

orientations and perspectives. Figure 8 shows some

of the query images. Figure 9 shows some of the

images present in grocery image database. These

images contain product marks which have fancy font

styles (Eg image 2, 5, 11), different languages (Eg

image 3, 4 and 9) and uneven text size (Eg image 1

and 6).

Figure 8: Sample query images containing noise and

distortions.

Figure 9: Sample images from grocery image database.

We used the metrics (a) %age of times a product

is uniquely identified (b) %age of time the product is

identified but not be uniquely and (c) %age of times

the search failed or produced wrong result to

establish the robustness of the system. We used 155

different query images belonging to 31 products for

this purpose. The result is summarized in Table 1.

Table 1: Experimental Results for robustness.

Total Query

Images

155

Query images in

which product is

identified

uniquely

139 89.6%

Query images in

which a product

is identified, but

not uniquely

11 7.0%

Query images in

which no product

is identified

5 3.2%

MRR 96%

We note that in about 97% of cases, the system

could retrieve the results satisfactorily. In the few

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

cases (e.g. query image 1 in Figure 8), where

multiple products were retrieved, there had been two

more products in the database with very close visual

characteristics (e.g. product images 1 and 7 in Figure

9). It is possible to confuse between the products on

manual selection unless one scrutinizes the labels

carefully. In the rare cases, where the desired

product was not retrieved, the query image had too

much distortion or occlusion (e.g. query image 3 in

Figure 8).

Scalability. To show scalability of the system we

have used an image database of 1000 plus CD/DVD

jackets. In this experiment we applied some

morphological operations on the database images to

create the query images. We were constrained to use

this option since we did not have the jackets

physically with us. We studied the variation of the

MRR and total search time over the number of

database items and the results are shown in Figure

10 and Figure 11 respectively. We note that the

MRR remains constant and the search time increases

marginally on increasing the database size. The total

search time of the system increased by merely 18

percent on five-fold increase of data size, from 200

to 1000. As Figure 11 shows, the rise has been

attributed to the Java R-Tree implementation.

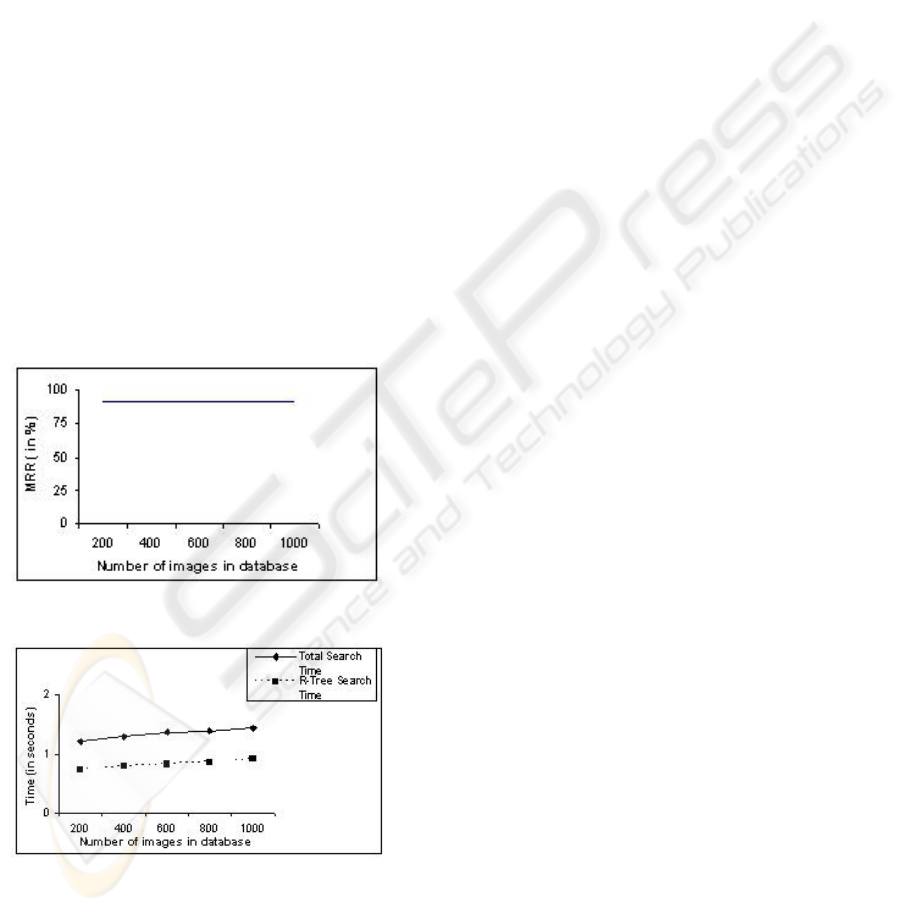

Figure 10: MRR of the system.

Figure 11: Time performance graph of the system.

5 CONCLUSIONS

In this paper we have presented a novel solution for

Internet shopping with image examples of products.

The solution can be used for a wide range of

packaged products characterized by distinct visual

designs or bearing distinct product-marks, such as

grocery items, music, video (CD/DVDs), computer

games and many of the books and magazines.

ACKNOWLEDGEMENTS

We would like to thank Yan Ke of CMU for his

consent to use PCA-SIFT code given by him. In

addition we would also like to thank several

members of Oracle team – Steven Serra, Siva

Ravada, Jack Wang, Ning An for their technical

assistance with Oracle Java R-Tree.

REFERENCES

Nielsen, 2008. Trends in Online Shopping, A Global

Nielsen consumer report, February 2008.

Ghosh, H., Chaudhury, S., 2002. WindowShopper: Guided

Shopping in e-market, In Proc. of Intl. Conf. KBCS-

2002, National Centre of Software

Technology(NCST).

Tollmar, K., et al, 2007. A picture is worth a thousand

keywords: Exploring mobile image-based web search,

In Proc. of 9

Intl. Conf. on Human-Computer

Interaction with Mobile devices, Singapore.

Ke, Y., Sukthankar, R., 2004. PCA-SIFT: A more

distinctive representation for local image descriptors,

In Proc. of IEEE Conf. on Computer Vision and

Pattern Recognition (CVPR.).

Lowe, D., G., 2004. Distinctive image features from scale

invariant keypoints, In Intl. Journal of computer

vision, Vol. 60, Issue 2.

MacQueen, J., B., 1967. Some Methods for classification

and analysis of Multivariate Observations, In Proc. of

Berkeley Symposium on Mathematical Statistics &

Probability, Berkeley, University of California.

Ester, M., et al, 1996. A density-based algorithm for

discovering clusters in large spatial databases with

noise. In 2

Intl. Conf. on knowledge discovery and

data mining.

Guttman, A., 1984. R-Trees: A dynamic index structure

for spatial searching, In Proc. of 1984 ACM SIGMOD

Intl. Conf. on Management of data.

Berchtold S., et al, 1996. The X-Tree: An index structure

for high dimensional data, In Proc. of 22

VLDB

Conf, Mumbai, India.

Oracle 11g, 2007. Oracle Spatial Java API Reference,

URL http://download.oracle.com/docs/cd/B28359_01/

appdev.111/b28401/overview-summary.html, last

retrieved on 26

Sept’08.

Bercken, J., V., et al, 1997. A generic approach to bulk

loading Multidimensional index structures, In Proc. of

the 23

VLDB Conf, Athens, Greece.

SHOPPING BY EXAMPLE - A New Shopping Paradigm in Next Generation Retail Stores
