AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL

IMAGES FOR GIS UPDATE

Andr´e R. S. Marc¸al

Faculdade de Ciˆencias, Universidade do Porto, DMA, Rua do Campo Alegre, 687, Porto, Portugal

Isabel R. Gonc¸alves

Escola Superior de Tecnologia e Gest˜ao, Instituto Polit´ecnico de Viana do Castelo

Av. do Atlˆantico, Ap. 574, Viana do Castelo, Portugal

Keywords:

Image Processing, Road Sign Recognition, Mobile Mapping Systems, Geographic Information System.

Abstract:

A method for automatic recognition of road signs identiﬁed in digital video images is proposed. The method

is based on features extracted from cumulative histograms and supervised classiﬁcation. The training of the

classiﬁer is done with a small number of images (1 to 6) from each sign type. A practical experiment with

260 images and 26 different road sign was carried out. The average classiﬁcation accuracy of the method with

the standard settings was found to be 93.6%. The classiﬁcation accuracy is improved to 96.2% by accepting

the sign types ranked 1

and 2

by the classiﬁer, and to 97.4% by also accepting the sign type ranked 3

These results indicate that this can be a valuable tool to assist Geographic Information System (GIS) updating

process based on Mobile Mapping System (MMS) data.

1 INTRODUCTION

There is a growing interest in having a detailed geo-

referenced representation of our environment. Digital

mobile mapping integrates digital imaging with direct

geo-referencing, providing an ideal tool for the acqui-

sition of large amounts of geo-referenced data. In the

last 10-15 years there has been considerable techno-

logical developments, allowing for vehicle-based Mo-

bile Mapping Systems (MMS) to be available at a rea-

sonably low cost. These systems are usually based on

Global Positioning System (GPS) and Inertial Nav-

igation System (INS) for the navigation component,

and two or more imaging cameras for the image data

component. The ﬁnal goal of a MMS is usually to cre-

ate or update a Geographic Information System (GIS)

with interest objects, such as postal boxes, bus stops

or road signs.

The standard approach to data extraction from MMS

based image videos is to have an operator viewing

the video to identify interest objects. Once a rele-

vant object is encountered, the video is stopped and

an image pixel from the object is selected. The sys-

tem then identiﬁes the conjugate point and, using the

stereoscopic image pair together with the position and

attitude recorded by GPS and INS, computes the ge-

ographic coordinates of the object identiﬁed. The op-

erator will then have to provide the attributes of the

object to be inserted in the GIS database (e.g. the type

of road sign).

Automatic object recognitioncan provide valuable as-

sistance to this process in two ways: (1) the identiﬁ-

cation of an interest object in an image, (2) the recog-

nition of the object type or other relevant attributes.

For the case of road signs, several attempts to address

the issue of automatic identiﬁcation and recognition

are reported in the literature. The system proposed

in (Piccioli et al., 1996) uses a normalized cross cor-

relation approach for the recognition component, re-

porting different values for the detection and classiﬁ-

cation rates (21% to 98%), depending on the type of

images. A combined detection and classiﬁcation sys-

tem is described in (Escalera et al., 1997), where the

classiﬁcation, based on neural networks, was tested

with 18 sign types, but the experimental details are

unclear. The system proposed in (Hsu and Huang,

2001) uses matching pursuit ﬁlters for sign recogni-

tion. A total of 40 sign types were tested, 30 circular

and 10 triangular, with a recognition rate reported of

94% for triangular signs and 91% for circular signs.

The automatic road sign recognition system described

in (Fang et al., 2004) reports very high classiﬁcation

129

R. S. Marçal A. and R. Gonçalves I. (2009).

AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL IMAGES FOR GIS UPDATE.

In Proceedings of the First International Conference on Computer Imaging Theory and Applications, pages 129-134

DOI: 10.5220/0001790301290134

 SciTePress

results (99%), but the experiment was mostly centred

on the detection of signs in video sequences. The

recognition rate reported in (Kim et al., 2006) is also

99%, tested with 107 images, but only 10 sign types

were considered. Another system combining detec-

tion and classiﬁcation, based on template matching,

is described in (Vavilin and Kang, 2006), with an av-

erage detection rate of 97.7% and a recognition rate

of 91.3% reported (for 172 signs), but the number of

sign types used is unclear.

The purpose of this work is to present an alternative

method for the automatic recognition of road signs

identiﬁed in digital images, assuming that the approx-

imate location of the sign in the image is known. The

manuscript is organized as follows: in section 2 the

proposed methodology for road sign recognition is

presented, in section 3 the experimental evaluation

strategy is described, section 4 presents the results,

and section 5 the conclusions.

2 METHODS

The road sign recognition method developed works

in three stages: (1) pre-processing, (2) feature extrac-

tion, (3) classiﬁcation. The system accepts as an input

a RGB image of any size, and returns the sign type,

from a pre-deﬁned set of types. Although the input

image can be of any size, it is expected that the mar-

gins are not too large.

2.1 Pre-processing

The aim of the pre-processing stage is to select the

area of the input image that actually contains the road

sign. The RGB (Red Green Blue) input image (I

) is

converted to the HSI (Hue Saturation Intensity) color

model. A thresholding segmentation is performed to

identify the areas of red and blue in the image. A

binary image for red (B

red

) is produced from pixels

with H ∈ ([0.00, 0.10[∪]0.80, 1.00])∩S∈ [0.30, 1.00],

and a binary image for blue (B

blue

) is produced from

pixels with H ∈]0.57, 0.70[∩S ∈]0.25, 0.65] ∩ I ∈

[0.13, 0.60[. Both binary images are subjected to

a ﬁltering process to remove small objects and

irregularities due to mixed pixels and noise. First a

3 by 3 median ﬁlter is applied, which removes all

small isolated objects in the binary images. Then two

morphological ﬁlters are used to further smooth the

object edges and remove non-isolated small objects:

an erosion with a 2x2 square structuring element, and

a dilation with a diamond shaped structuring element

(Gonzalez and Woods, 2008). All remaining small

objects (less than 40 pixels) are removed from the

binary images.

After this processing step, only the largest object and

all other objects that are at least 60% of its size are

retained from each binary image (B

red

and B

blue

The interior of the remaining objects are then ﬁlled,

and the two binary images combined. The binary

image (B

) with only the object of interest (the road

sign) is obtained by selecting the largest object of

the two processed binary images B

red

and B

blue

. A

sub-section of the RGB image is then obtained using

the minimum enclosing rectangle of the object in B

The binary image B

is used to mask out the pixels

that do not belong to the road sign, resulting in a

RGB image I

where only the pixels belonging to the

road sign have non zero values. Examples of such

images are presented in grey scale in ﬁgure 1.

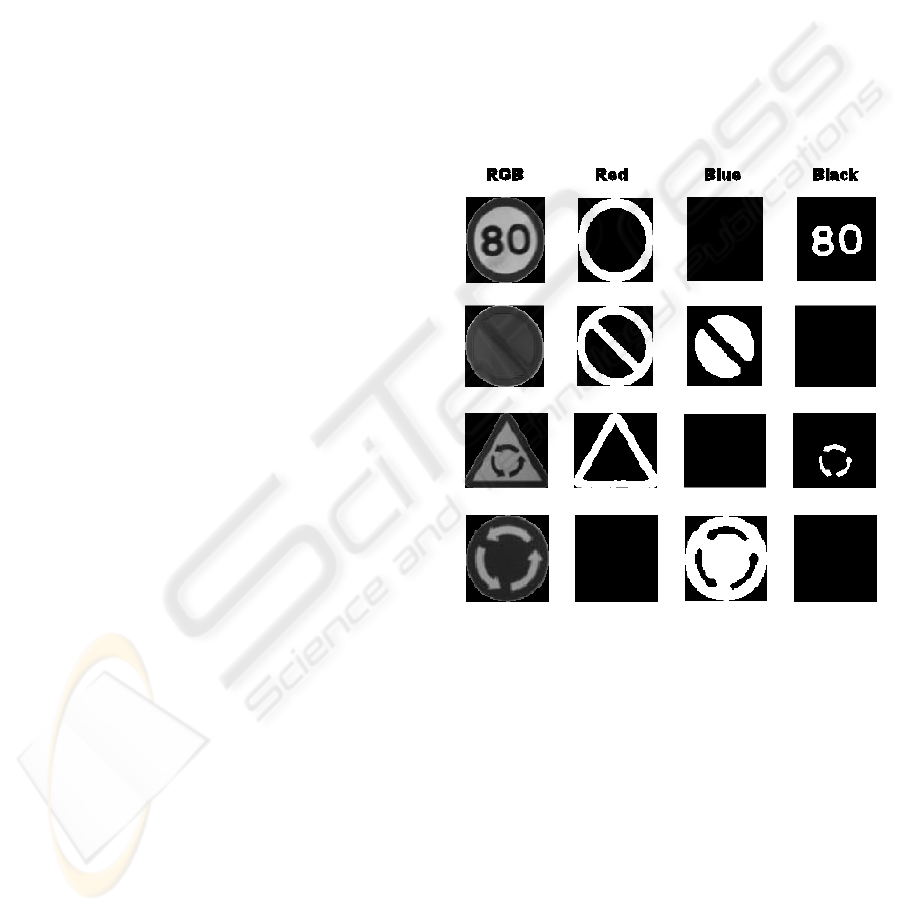

Figure 1: Examples of binary component extraction for

red, blue and black, from the RGB color images (here in

greyscale) obtained after the pre-processing stage.

2.2 Feature Extraction

The features that characterize the observed object

(road sign) are obtained from the red, blue and black

components of the RGB color image I

. The same

criteria described in section 2.1 is used for the ex-

traction of the red and blue binary image compo-

nents. The binary image for black (B

black

) is obtained

from pixels with H ∈ ([0.00, 0.10[∪]0.69, 0.90]) ∩I ∈

[0, 0.25]∩S ∈ [0, 0.35[. The implementation was done

in a way that each pixel can only belong to a binary

image, with priority for red, then blue, and black last.

Examples of the red, blue and black binary compo-

nent extraction are presented in ﬁgure 1.

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

130

Let B(x, y) be a binary image, with X

by Y

pixels

(or X

columns by Y

lines). There are two possible

values for each pixel (x, y): 0 and 1. The operators F

and G applied to a binary image produce cumulative

histograms for columns (f) and lines (g), according to

(1) and (2), where x and y are integers between 1 and

and Y

F {B(x, y)} = f(x) =

∑

i=1

B(x, i) (1)

G{B(x, y)} = g(y) =

∑

i=1

B(i, y) (2)

The application of operators F and G to B(x, y) pro-

duces two vectors: f with X

elements and g with Y

elements. As the binary images used have different

sizes, these vectors need to be normalized. The nor-

malization is done in two ways: in terms of the values

of f and g, and in terms of their number of elements.

The normalization of the vector values is done by di-

viding its values by the number of lines / columns of

the interest image, so that the range of values used is

0 to 1. The reason for normalizing the number of vec-

tor elements is to obtain a constant (relatively small)

number of elements, independently of the binary im-

age size. Let n be the number of elements of the nor-

malized vectors. Modiﬁed versions of vectors f and

g are initially created, where each element is repeated

n times. These new vectors (f

′

and g

′

) have nX

and

elements. The normalized vectors f

and g

are

computed by (3) and (4).

( j) =

∑

i=1

′

(i+ ( j− 1)X

)

; j = 1, ..., n (3)

( j) =

∑

i=1

′

(i+ ( j− 1)Y

)

; j = 1, ..., n (4)

The normalized vectors f

and g

are computed for

the binary componentsB

red

, B

blue

and B

black

. The fea-

tures are thus 6 vectors (f

red

, f

blue

, f

black

, g

red

, g

blue

black

), each with n elements. As an illustration, ﬁg-

ure 2 shows four examples of the binary component

for red and the corresponding vectors f, g, f

red

and

red

(with n = 10), presented as line and bar plots. In

this example the two feature vectors extracted from

the red binary image components ( f

red

and g

red

) are

clearly capable of distinguishing the signs.

2.3 Classiﬁcation

A supervised classiﬁcation process is used. Initially,

reference vectors (f

red

, f

blue

, f

black

, g

red

, g

blue

, g

black

)

are obtained for each road sign type, from a number of

training images (t). For each road sign type (or class),

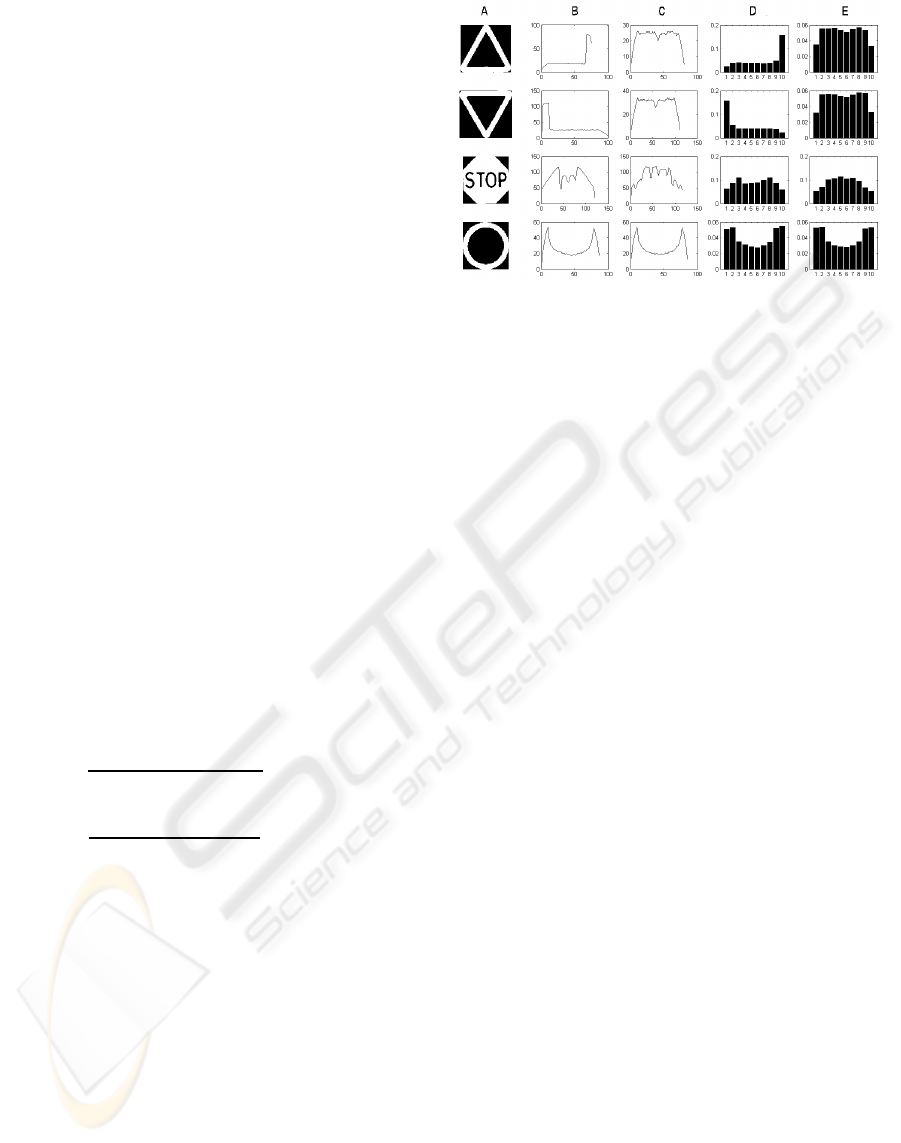

Figure 2: Example of feature extraction from binary im-

ages. Red binary image components (A), cumulative his-

tograms for lines (B) and collumns (C), normalised feature

vectors f

red

(D) and g

red

(E), with n = 10.

the distance between the observed and reference vec-

tor is computed for all six features. The sum of the

six distances (d) is the discriminative criteria used to

classify a sign. The class with the lowest value of d is

assigned to the observed road sign. The distances be-

tween two vectors were computed using the absolute

and the Euclidean distances.

3 EXPERIMENTAL SETUP

A practical application was carried out to evaluate the

performance of the proposed method with real MMS

image data.

3.1 Test Images

A video dataset acquired by a MMS was made avail-

able. The dataset has over 14000 images, of 640

by 480 pixels, acquired by a AVT Marlin camera

(Madeira, 2007). These images were inspected and

sub-sections with road signs extracted. Although

there are over 150 different road signs (DGV, 2003),

most of these signs are rarely used. The requirement

imposed to the experiment was to have at least 10 dif-

ferent images of the same road sign type. This limited

the number of different road sign types to only 26,

which are presented in ﬁgure 3 as standard references

(DGV, 2003). The road sign types #13 to #17 have

all the same standard reference, as they are all speed

limit signs: of 40 (#13), 50 (#14), 60 (#15), 80 (#16)

and 100 (#17). The sign type #25 used was in fact for

a speed of 50 (instead of 30, as presented in the stan-

dard image of ﬁgure 3). The original version of the

images in ﬁgure 3 are in color, with the light gray cor-

responding to red and darker gray to blue (except for

AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL IMAGES FOR GIS UPDATE

131

sign #4, where the trafﬁc signal also uses red, green

and yellow).

Real road signs are often different from the ofﬁcial

standards, such as those presented in ﬁgure 3. This

can be conﬁrmed by an inspection of the test im-

ages used for signs #4 and #22, presented in ﬁgure

4. The most noticeable differences are the shape of

the arrow in image RS22 8, which is thicker that the

standard shape, and the absence of the black back-

ground on the trafﬁc signal in image RS4 1. As for

the other signs, there are occasional variations from

the standard shape. Furthermore, in real images there

are differences in terms of illumination, size, orienta-

tion (although very oblique views were not used) and

noise (including blurred images and damaged signs).

Some of these situations can be observed in the ex-

amples presented in ﬁgure 4. There are images with

oblique view (RS4 2 and RS22 7), with a large mar-

gin (RS22 2), blurred (RS4 5) and signs damaged by

grafﬁti (RS22 9). There is also a large variety of illu-

mination conditions, both in terms of background and

on the sign itself, and in sizes (between 55x62 pixels

to 212x195 pixels in the examples of ﬁgure 4).

A total of 260 images (sub sections of the full MMS

video frames) were thus selected for the experiment

(10 images of each type), with a variety of sizes, il-

lumination and viewing conditions, margin sizes and

noise.

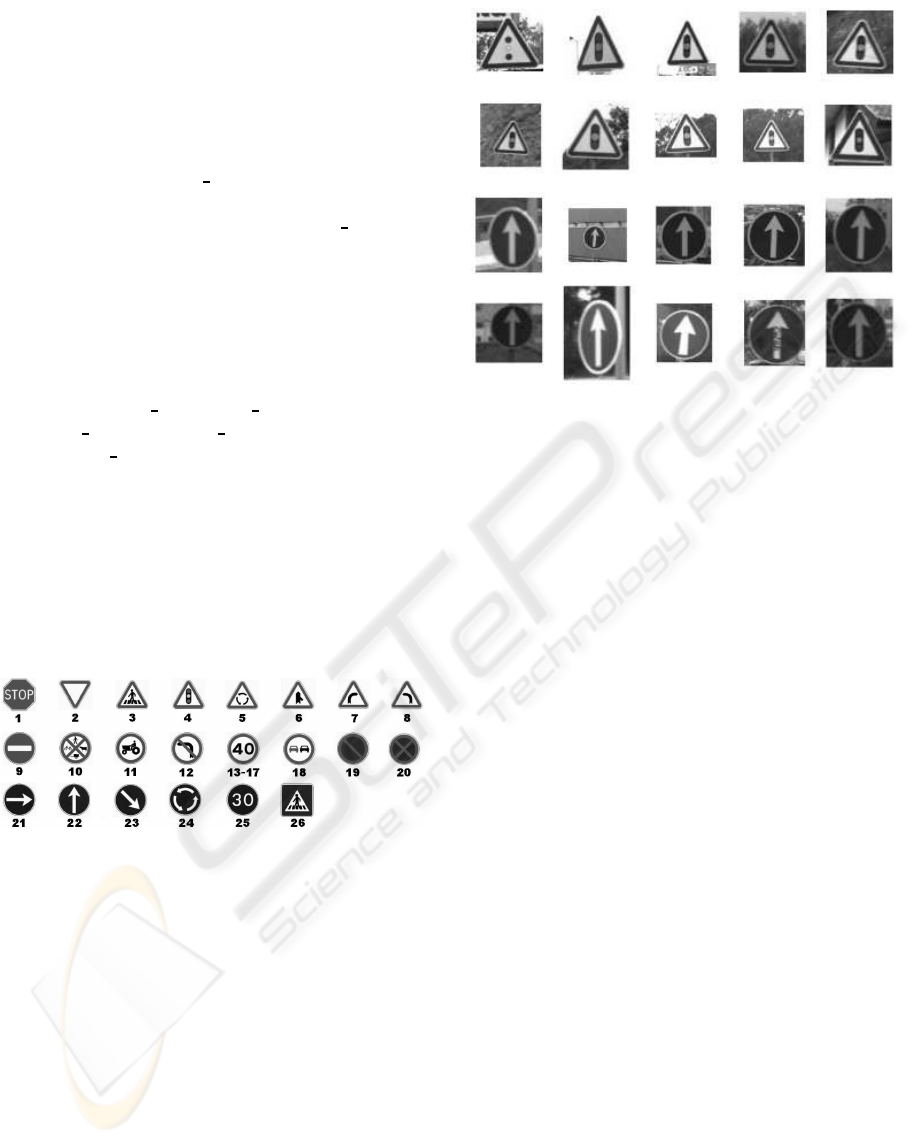

Figure 3: Standard road signs used in the experiment (DGV,

2003). Sign types #13-17 correspond to 5 different speed

limits: 40, 50, 60, 80 and 100. The speed used in sign #25

is 50 instead the standard value of 30.

3.2 Evaluation Strategy

The evaluation of the proposed road sign recognition

system is based on a reference scenario, with 4 im-

ages for training (t = 4) each sign type, normalization

with n = 10 and Euclidean distance classiﬁer. Each

of these parameters was allowed to vary, within a lim-

ited range, with all remaining parameters ﬁxed at the

reference values. As the number of images available

for each sign type was small (10), the parameter t was

only tested for values between 2 to 6, with the remain-

ing images (10 − t) used for testing. The normalisa-

tion parameter (n) was tested for values 6, 8, 10, 12,

Figure 4: Test images used for road signs #4 and #22.

14, 16, 18 and 20. Two distance metrics were used

for the discriminative function used for the classiﬁer:

Absolute and Euclidean. The Mahalanobis distance

was also tested, but it was not included because the

covariance matrix was not always invertible.

The average classiﬁcation accuracy (A

) was com-

puted by the ratio between the number of images clas-

siﬁed correctly and the total number of test images.

Two other classiﬁcation accuracies were also com-

puted, by accepting the sign types ranked 1

and 2

) and accepting the sign types ranked 1

, 2

and

123

4 RESULTS

The classiﬁcation accuracies for the experiment

with the reference parameters (t = 4, n = 10 and

Euclidean distance) were: A

=93.6%, A

=96.2%

and A

123

=97.4%. This means that 146 out of the

156 images used for testing were correctly classiﬁed.

As for the remaining 10 images, 4 had the correct

road sign assigned as 2

option and 2 as 3

option.

In only 4 out of the 156 images (2.6%) the correct

road sign was not selected in the top 3 ranking. The

difﬁculties are mostly related to the speed limit signs

(#13–#17). Table 1 shows how these images were

classiﬁed. For the remaining 21 road sign types, there

was only one misclassiﬁed image (from sign #4 to

#7).

The experiment was repeated using different

training data sizes (t between 1 and 6) and distance

metrics. The results are presented in table 2. Gen-

erally, the classiﬁcation accuracy tends to improve

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

132

Table 1: Classiﬁcation results for the speed limit signs

(#13–#17) with the reference scenario (t = 4, n = 10 and

Euclidean classiﬁer).

#13 #14 #15 #16 #17

#13 5 0 0 0 1

#14 0 3 0 2 1

#15 0 0 3 3 0

#16 1 0 1 4 0

#17 0 0 0 0 6

with the increase in training data size. However, the

results are reasonably good even with a single image

of each sign type for training (t = 1). The results

produced using the Euclidean distance were better

than those produced by the absolute distance.

The impact of the feature normalization on the classi-

ﬁcation results was also investigated. The experiment

was repeated using normalization values n between

6 and 20. The Euclidean distance and the number of

training images (t=4) were kept ﬁxed for all cases.

The classiﬁcation accuracies A

, A

and A

123

are

presented in table 3. The reference value (n = 10)

seems to be a good choice, with slightly better values

only observed for higher values of n, for A

and A

123

Table 2: Average classiﬁcation accuracy for different train-

ing data sizes (t between 1 and 6) and distance metrics

(n = 10 for all cases).

123

Absolute

t=1 82.1% 89.7% 92.7%

t=2 84.1% 91.4% 94.7%

t=3 86.8% 94.0% 96.7%

t=4 91.7% 96.2% 97.4%

t=5 88.5% 95.4% 97.7%

t=6 88.5% 94.2% 98.1%

Euclidean

t=1 85.0% 90.6% 94.0%

t=2 85.1% 91.4% 94.2%

t=3 88.5% 94.5% 96.7%

t=4 93.6% 96.2% 97.4%

t=5 90.0% 95.4% 97.7%

t=6 91.4% 95.2% 98.1%

The k nearest neighbors method was also tested

for the reference scenario (t = 4, n = 10), using the

Euclidean distance. However, the results were not

very good. The average classiﬁcation accuracies were

74.3% for k=1, and 72.4% for k=3 and for k=5.

Table 3: Average classiﬁcation accuracy for different fea-

ture normalization settings (n), with the other parameters

were kept ﬁxed (t = 4 and Euclidean classiﬁer).

123

n=6 87.8% 93.6% 97.4%

n=8 90.4% 96.2% 97.4%

n=10 93.6% 96.2% 97.4%

n=12 91.0% 96.2% 98.1%

n=14 91.7% 96.2% 98.1%

n=16 92.3% 96.2% 98.1%

n=18 93.0% 96.2% 98.1%

n=20 93.0% 96.2% 98.7%

5 CONCLUSIONS

The results of the proposed method for automatic

recognition of road signs in digital images are en-

couraging. The classiﬁcation accuracies for the ex-

periment with the reference parameters (t = 4, n = 10

and Euclidean distance) were: A

=93.6%, A

=96.2%

and A

123

=97.4%. The features extracted from cumu-

lative histograms of red, black and blue binary com-

ponents of the RGB image seem to be effective for the

discrimination of road signs. The impact of the var-

ious classiﬁcation and feature normalization parame-

ters could not be fully tested due to the limited size of

the training dataset (260 images of 26 types). How-

ever, one very promising aspect already observed was

the small number of training images required to train

the classiﬁer. Future work includes the preparation

of a more extensive test dataset, as more MMS video

data should soon become available. The goal is to

have at least 40 sign types with 15 to 20 test images

from each. Once this dataset is available, it should be

possible to better evaluate the feature normalization

parameters and to test other classiﬁers. The use of

more sophisticated classiﬁers should compensate the

likely reduction in accuracy due to the increase in the

number of road sign types.

The proposed methodology can be used in a GIS in-

put system from MMS video datasets. The number

of road sign types will have to be increased to 50 or

more, which should not be a problem as the number

of images required for training was found to be small.

The classiﬁcation accuracy will tend to decrease as

the number of types considered increases. However,

in this type of system the operator will always have to

conﬁrm the classiﬁcation proposed automatically. A

useful ﬁxture would be to propose a sign, plus 2 or 3

alternatives (the 2nd and 3rd ranked in the discrimina-

tion function). The operator would then only have to

conﬁrm the suggestion (1st option), select one of the

alternatives or, in the worst case scenario, to identify

AUTOMATIC RECOGNITION OF ROAD SIGNS IN DIGITAL IMAGES FOR GIS UPDATE

133

manually from the full list of attributes. The success-

ful implementation of such system can improve the

working ability of the operator, thus reducing costs

and speeding up the GIS updating process based on

MMS image data.

ACKNOWLEDGEMENTS

The authors would like to thank S´ergio Madeira and

Jos´e Alberto Gonc¸alves for providing the MMS im-

age video dataset.

REFERENCES

DGV (2003). Guia de Sinalizac¸˜ao Rodoviaria. Minist´erio

da Administrac¸˜ao Interna, Lisboa.

Escalera, A., Moreno, L., Salichs, M., and Armingol, J.

(1997). Road trafﬁc sign detection and classiﬁcation.

IEEE Transactions on Industrial Electronics, 44:848–

859.

Fang, C., Fuh, C., Yen, P., Cherng, S., and Chen, S. (2004).

An automatic road sign recognition system based on

a computational model of human recognition pro-

cessing. Computer Vision and Image Understanding,

96:237–268.

Gonzalez, R. C. and Woods, R. E. (2008). Digital Image

Processing. Prentice Hall, Upper Saddle River, New

Jersey, 3rd edition.

Hsu, S. and Huang, C. (2001). Road sign detection and

recognition using matching pursuit method. Image

and Vision Computing, 19:119–129.

Kim, G., Sohn, H., and Song, Y. (2006). Road infrastructure

data acquisition using a vehicle-based mobile map-

ping system. Computer-Aided Civil and Infrastructure

Engineering, 21:346356.

Madeira, S. (2007). Sistema M´ovel de Levantamento com

Integrac¸˜ao em SIG. PhD thesis, Faculdade de Ciˆencias

Universidade do Porto.

Piccioli, G., De Micheli, E., Parodi, P., and Campani, M.

(1996). Robust method for road sign detection and

recognition. Image and Vision Computing, 14:209–

223.

Vavilin, A. and Kang, H. J. (2006). Automatic detection and

recognition of trafﬁc signs using geometric structure

analysis. In SICE-ICASE International Joint Confer-

ence, pages 1451–1456. ICASE.

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

134
