HIERARCHICAL ONLINE IMAGE REPRESENTATION

BASED ON 3D CAMERA GEOMETRY

Sang Min Yoon and Holger Graf

GRIS, TU Darmstadt, Rundeturmstrasse 10, Darmstadt, Germany

ZGDV, Computer Graphics Center, Rundeturmstrasse 10, Darmstadt, Germany

Keywords:

Hierarchical image clustering.

Abstract:

Within this paper, we present a hierarchical online image representation method with 3D camera position

to efﬁciently summarize and classify the images on the web. The framework of our proposed hierarchical

online image representation methodology is composed of multiple layers: at the lowest layer in the hierarchi-

cal structure, relationship between multiple images is represented by their recovered 3D camera parameters

by automatic feature detection and matching. At the upper layers, images are classiﬁed using constrained

agglomerative hierarchical image clustering techniques, in which the feature space established at the lowest

layer consists of the camera’s 3D position. Constrained agglomerative hierarchical online image clustering

method is efﬁcient to balance the hierarchical layers whether images in the cluster are many or not. Our

proposed hierarchical online image representation method can be used to classify online images within large

image repositories by their camera view position and orientation. It provides a convenient way to image brows-

ing, navigating and categorizing of the online images that have various view points, illumination, and partial

occlusion.

1 INTRODUCTION

As the use of digital cameras, cell phones, or PDAs

with embedded cameras is increasing, managing,

browsing, querying and summarizing photos from

personal image libraries or on the web is becoming

more critical. Online image retrieval and browsing

applications (Dent et al, 2001, Jhanwar et al, 2002,

Krishnamachari et al, 1999 , Qian et al, 2000) were

developed encouraging people to freely explore any

place in the world and discover interesting locations

and photographs.

In various web applications, geographical online map

services such as Google Earth or Virtual Earth have

become very popular with web-users. These applica-

tions allow the users to view and navigate their way

through high resolution satellite images from within

their home environment resp. their desk. It also offers

local information and photographs of speciﬁc places,

as well as the ability to view different geographic lev-

els of detail. If a speciﬁc place is very popular and

interesting, many photographs are uploaded and geo-

tagged (Jaffe et al, 2006) with this location by many

users.

Nevertheless, online images which are uploaded by

numerous users are so various that they have illumi-

nation variation, view changes, resolution, partial oc-

clusion, and noise. That is one of the bottlenecks

in extracting and matching features from online im-

ages. The locations of images uploaded by anony-

mous users to an online satellite map like Google

Earth are not exact and many photographs that con-

tain no tags or titles which represent their location, or

are incorrectly geo-tagged (Jaffe et al, 2006). To col-

lect the exact 3D position of the online images, we

need to recover the camera’s extrinsic parameters of

previously uploaded images. Without an appropriate

clustering of images, we are distracted in navigation

and view of the map.

Our objective of this paper is on how to select the

representative images of an interesting site and how

to summarize the online images hierarchically taking

into account the difference level of the map’s zoom

in/out. For this, the camera geometric information

based image classiﬁcation is used. Retrieving the rep-

resentative images of a speciﬁc site with its camera’s

orientation and translation information needs robust

feature detection, matching, and image classiﬁcation

(Brown et al, 2005).

Figure 1 shows the structure of our proposed approach

Min Yoon S. and Graf H. (2009).

HIERARCHICAL ONLINE IMAGE REPRESENTATION BASED ON 3D CAMERA GEOMETRY.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 54-59

DOI: 10.5220/0001790600540059

 SciTePress

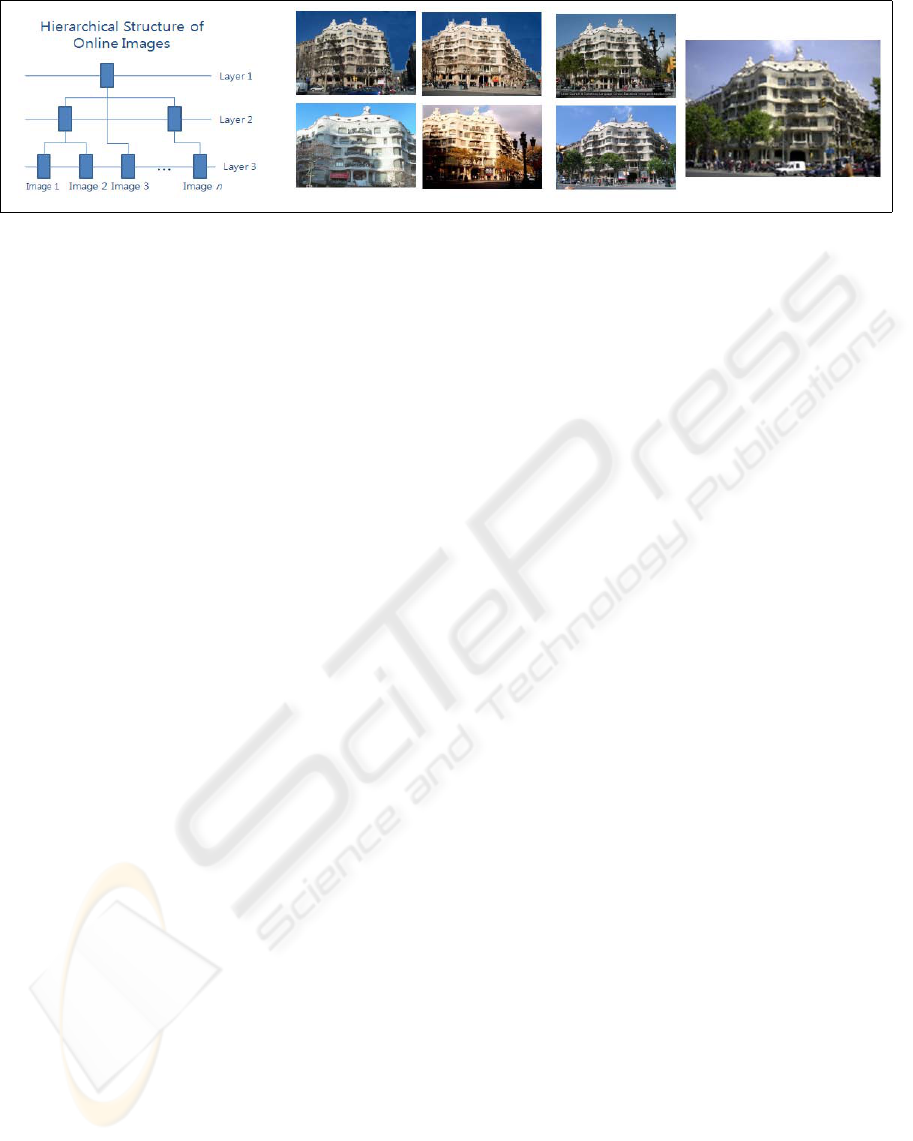

(a) The concept of our proposed hierarchical online image representation method (b) Left 7 images are the repre-

sentative images in each layer of the category

Figure 1: The concept of our proposed hierarchial representation method of online images and some representative images in

the layers which are used in our experiments.

and representative images of each category and clus-

ter. This hierarchical structure is composed with mul-

tiple layers: the highest layer is called ”Category”,

middle layers are deﬁned as ”Cluster”, and the lowest

level shows the relative 3D camera position of the im-

ages. Our representative images of each category and

cluster is the closest image through clustering opti-

mization and by hierarchical online image clustering.

Figure 1 also shows each images in the lowest layer

and upper layers which are constructed by online im-

age clustering from a collection of online images.

2 PREVIOUS RESEARCH

Research about geographic location based image re-

trieval (Naaman et al, 2004) or browsing increase dur-

ing the last few years. The organization of image col-

lections has been accomplished by several classiﬁca-

tion criteria such as detecting signiﬁcant events, geo-

graphical characteristics within a speciﬁc location, or

tags in titles of a photographs (Cai et la, 2004, Gao

et al, 2005, Jaffe et al, 2006). However, current re-

search efforts (Ahern et al, 2007) for image retrieval

based on common context and visual features within

online image repositories try to summarize the collec-

tion of images. Hierarchical online image represen-

tation tasks are composed of various technologies of

Image Based Modelling for extracting the 3D camera

geometry out of multiple images, feature classiﬁca-

tion for online image clustering, and image similarity

measures (Simon et al, 2007, Snavely et al, 2006).

There are also similar approaches about online image

representation methods, interactive browsing and ex-

ploration of a collection of photographs and online

image summarization to represent visual content of a

given set (Wang et al, 2006).

Clustering is the unsupervised classiﬁcation of pat-

terns into groups. Geographical tagging or title of

photographs have been used for online image retrieval

or browsing applications (Choubassi et al, 2007).

Nevertheless, the goal of feature classiﬁcation and

clustering in image processing and computer vision

is how to deal with images for classiﬁcation, in or-

der to separate the images by low-level features such

as color, texture, shape, or by high level semantics,

or a combination of those (Cai et al, 2004, Chen et

al, 1999, Deng et al, 2001, Gao et al, 2005, Jhanwar

et al, 2002, Rege et al, 2007). A similarity measure

using these features between online images is one of

the critical issues because it is still weak in partial oc-

clusion, view translation, orientation and noise (Fer-

gus et al, 2005). Most classiﬁcation approaches into

three main categories; partition, Division, and Aggre-

gation (Cormark et al, 1971). One of the most popu-

lar methods in partition methodology is the k-Means

method (Bradley et al, 1998), the division follows

kd-tree method. When we compare to previous re-

search related to online image summarization (Simon

et al, 2007) and browsing, our proposed agglomera-

tive clustering has the advantage in showing the rep-

resentative images according to a geographical zoom

in/out. As we zoom out of the geographical hotspot,

we only show the representative images of the site or

building. Otherwise, we zoom in the map, we browse

the online images according to the 3D camera’s pa-

rameters. Another advantage of our proposed algo-

rithm is to provide an efﬁcient hierarchical structure

of the online image data set.

3 HIERARCHICAL STRUCTURE

OF ONLINE IMAGES

In the following sections, we will explain how we ex-

tract the 3D extrinsic camera parameters from mul-

tiple images, establish relationship between 3D posi-

tions from multiple images and adequate classiﬁca-

HIERARCHICAL ONLINE IMAGE REPRESENTATION BASED ON 3D CAMERA GEOMETRY

(a) Epipolar geometry and matching points with

automatic feature detection and matching (b)

Recovered 3D camera position with SIFT and

RANSAC

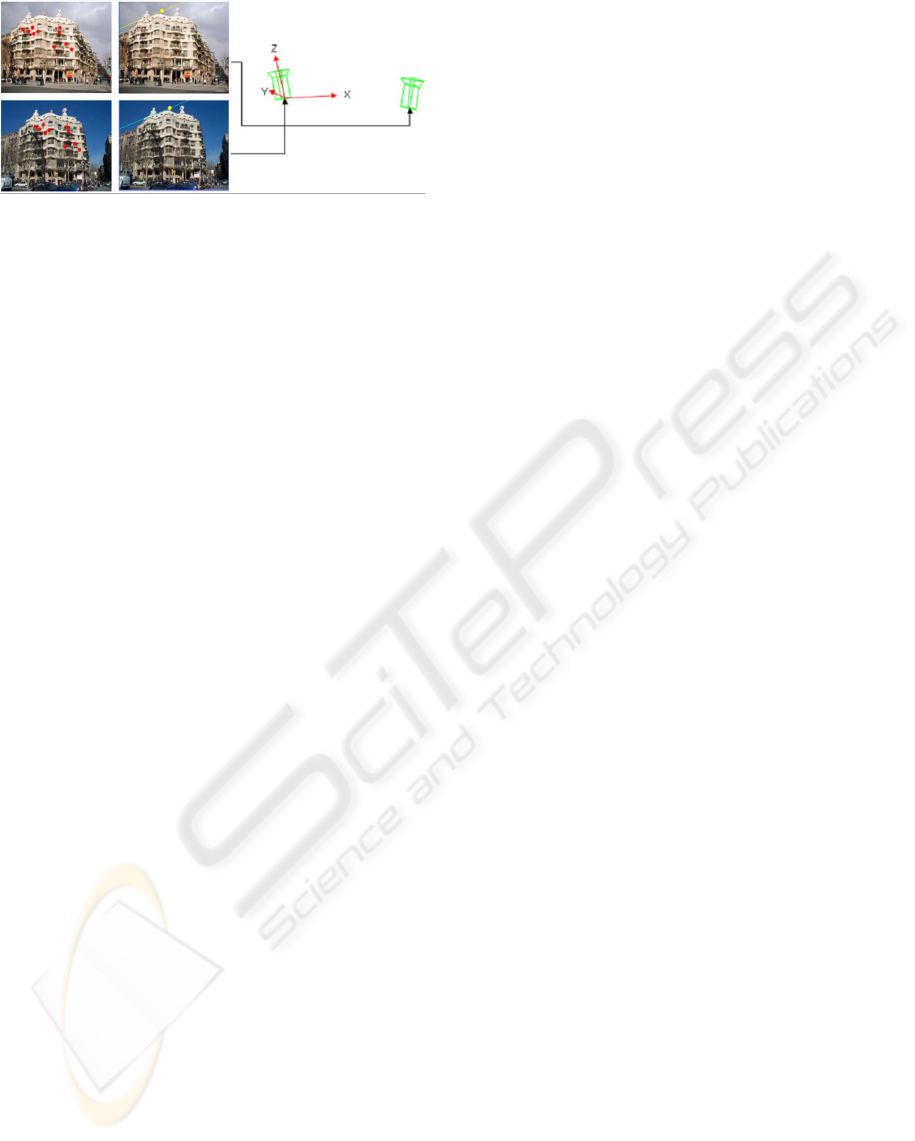

Figure 2: Recovering the 3D camera parameters in the

world coordinate system by automatic feature detection and

matching.

tion methods of images at the upper layers based on

the similarity measure derived from the camera’s 3D

extrinsic parameters.

3.1 Recovery of 3D Camera Parameter

Given N images in the database, the extrinsic cam-

era parameters of each image, E

(r, t), (i = 1, ..., n),

where r is 3x3 rotation matrix, and t is 1x3 transla-

tion vectors, are recovered by adequate feature detec-

tion mechanism in each camera, feature matching be-

tween multiple images, the calculation of the epipolar

geometry, and the 3D position estimation within the

world coordinate system (Hartley et al, 2004). Fig-

ure 2 highlights the process of recovering the E

(r, t)

from multiple images (Chaman et al, 1993). Figure 2-

(a) shows the example images within a collection of

online images. We have no prior knowledge such as

image resolution or tags or title (Jaffe et al, 2006). It

also shows matching features after the Scale Invariant

Feature Transform (SIFT) (Lowe, 2004) and Random

Sample Consensus (RANSAC). Figure 2-(b) displays

the relative 3D position and rotation of the camera

within the world coordinate system.

From the epipolar geometry and matching points, we

extracted the rotation and orientation of the cameras.

By calculating the epipolar geometry and extracting

the extrinsic camera parameters of multiple images,

we can sketch the relationship of the images. With

SIFT and RANSAC, the epipolar geometry and 3D

camera position of a set of online images is estimated

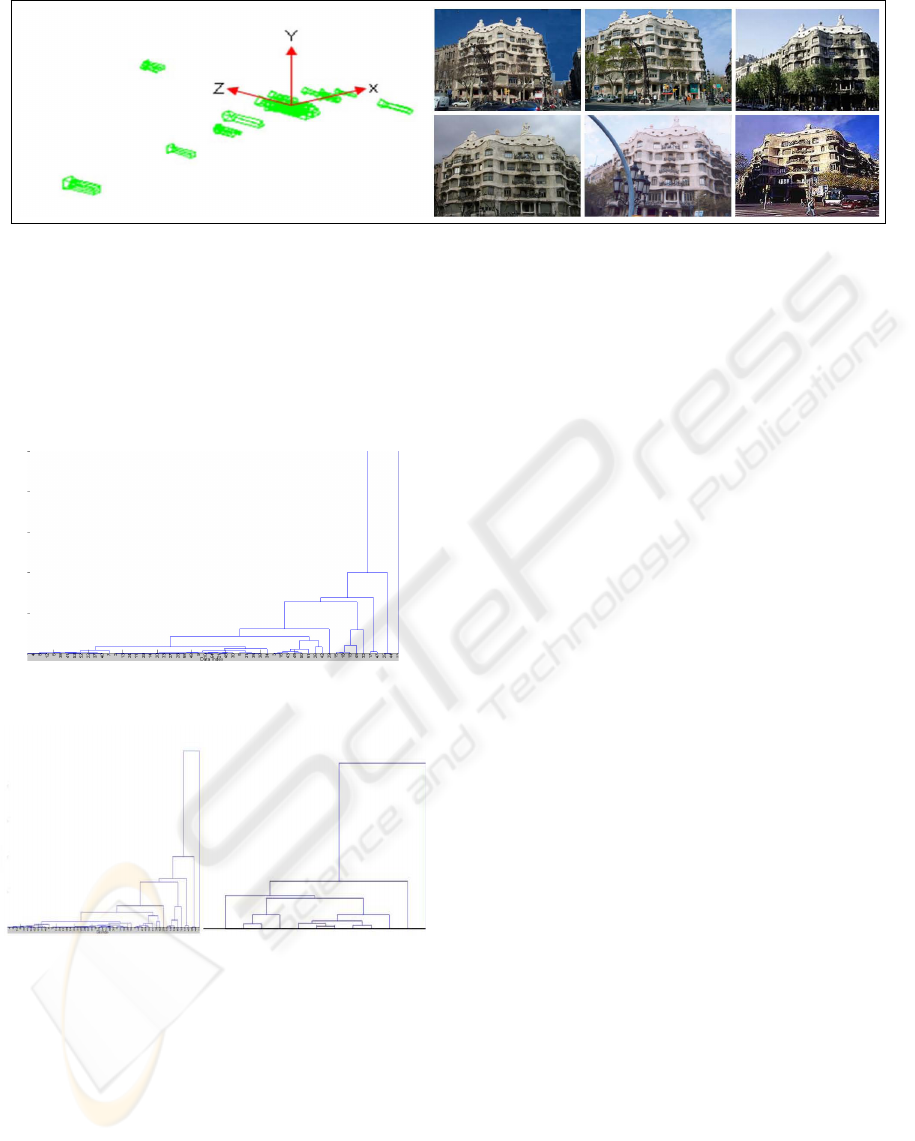

as shown in Figure 3. In this ﬁgure, the recovered

3D camera position within the world coordinate sys-

tem with the online images of Casa Mila, Barcelona,

Spain. The lowest layer of our hierarchical structure

is constructed using extrinsic camera parameters of

the images. In a next step, we describe the clustering

of images based on the distance of each 3D camera

position within the world coordinate system.

3.2 Online Image Clustering

In online image applications, unsupervised image

clustering can be separated with non-hierarchical and

hierarchical clustering algorithms (Krishnamachari et

al, 1999). In numerous non-hierarchical clustering

methods (Goldberger et al, 2006) which are exten-

sively used in data classiﬁcation or data mining in

various areas, k-Means clustering is an algorithm to

cluster n images based on attributes into k partitions,

where k is less than n, to form a k-block set parti-

tion of data and to ﬁnd good local minimum and have

linear complexity O(k

min

) with respect to the num-

ber of instances. However, the algorithm is sensitive

to initial starting conditions and hence must be ran-

domly repeated many times (Davidson et al, 2005).

Conversely, hierarchical clustering algorithms are run

once and create a dendrogram which is a tree struc-

ture containing a k-block set partition for each value

of k between 1 and n, where n is the number of online

images at the lowest level to cluster allowing the user

to choose a particular clustering granularity.

Let

S = {E

, E

, ..., E

n−1

, E

} (1)

be the set of 3D extrinsic parameters, E

, to be clus-

tered. At the initial status, the number of clusters is

same to the number of images, n, and each cluster C

is represented as E

for every i. Then we progressively

join the closest clusters through the equation shown in

equation-(2) untilk= 1.

s(i,j) = D(C

, C

), ∀i, j; l, m = argmin

a,b

d(a, b), (2)

= Join(C

, C

);Remove(C

) (3)

where s(i,j) is the similarity measure between clus-

ter C

and C

. In this paper, the similarity measure

between clusters are calculated by the Euclidean dis-

tance, D, of the camera’s 3D extrinsic parameters.

The objective of our hierarchical clustering algorithm

is to extract a multi-level partitioning of images based

on 3D camera parameters, i.e. a partitioning which

groups images into a set of clusters and then, recur-

sively, partitions them into smaller sub-clusters, until

some stop criteria are satisﬁed. Agglomerative hier-

archical clustering algorithms start with several clus-

ters containing only one object, and iteratively two

clusters are chosen and merged to form one larger

cluster. This process is repeated until only one large

cluster is left, that contains all objects. Divisive algo-

rithms work in the symmetrical way. Figure 4 shows

the original agglomerative hierarchical online image

clustering. A Similarity measure between multiple

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

Figure 3: 3D Camera position and orientation of the multiple images which are extracted with SIFT and RANSAC within

category and some example images in the cluster.

images is computed by the Euclidean distance be-

tween 3D camera’s position. From multiple images

of the Casa Mila, layers are automatically clustered

into 12 layers. This number of layers is different from

site to site or change of view points.

Figure 4: Unconstrained agglomerative hierarchical online

image clustering with 3D extrinsic camera parameters.

Figure 5: Comparison of unconstrained and constrained ag-

glomerative hierarchical online image clustering methods

from recovered 3D camera parameters

The unconstrained version of agglomerative hierar-

chical online image clustering builds a dendrogram

for all values of k. If there are many online images

at a public site, the dendrogram will be high. How-

ever, there are many places that have only few up-

loaded online photographs in the internet. To bal-

ance the hierarchical layers of each sites, we impose

some constraints on the hierarchical clustering (Zho

et al, 2005). When building the Dendrogram, we

need the constraint of the numbers of dendrogram,

by W-constraint, and B-constraint algorithm. We can

prune the dendrogram by starting building clusters at

max

and stop building the tree after k

min

clusters are

reached. B-constraint is deﬁned as the distance be-

tween any pair of images in two different clusters to

be at least B

min

, and W-constraint requires that for

each point x in C

, there must be another point y in C

such that the distance between x and y is at most W

max

(Davidson et al, 2005). At the initial of unconstrained

hierarchical clustering approach, the number of clus-

ters was equal to the number of images, n. However,

we construct an initial cluster by B-constraints and

W-constraints. This constrained agglomerative hier-

archical clustering algorithm procedure is shown be-

low:

max

, k

min

= calculateBound(W

max

, B

min

) (4)

s(C

, C

) ≥ B

min

∀i, j, s(x, y) ≥ W

max

∀x, y ∈ C

(5)

where eq-(5) is the distance bound for the distance be-

tween clusters and within cluster. Within this bound-

ary, we join the closed cluster until the dendrogram

is k

min

. Figure 5 shows the constrained agglomera-

tive hierarchical online image clustering method with

the constrained number of k, euclidean distance con-

straint based on the recovered 3D camera’s position.

4 EXPERIMENTS

We lead experiments with various online images

which are downloaded from internet. 90 images are

used for our experiments with multiple online images

of Casa Mila, Barcelona, on the web. Images in Casa

Mila are roughly separated with 3 categories and the

number of images in each category were 55 images,

21 images, and 14 images. We show the result of our

automatic hierarchical online image clustering from

the front and near view images. In the previous sec-

tion, we already represented the recovered camera’s

HIERARCHICAL ONLINE IMAGE REPRESENTATION BASED ON 3D CAMERA GEOMETRY

3D position and unconstrained and constrained online

image representation methodology.

Our next experiment was comparison of the non-

hierarchical clustering algorithm such as k-Means (Si-

mon et al, 2007) and Mean-Shift clustering algo-

rithms [Comaniciu et al, 2002, Xu et al, 2005) to

check the efﬁciency in a hierarchical structure as

shown in Figure 6. Figure 67-(a) is the result of the

k-Means clustering when k is 5 and 7. Figure 6-(b)

shows the Mean-Shift cluster method, that automati-

cally separates 6 clusters. The representative image

in the cluster shown also in ﬁgure 6-(b) is the cen-

ter of gravity of the cluster. Constrained hierarchi-

cal online image clustering method is better than non-

hierarchical online image clustering in automatically

constructing a structure and balancing the hierarchy

of the areas that have many online photographs or not.

In the end of this paper, we also showed extracted 3D

camera position, unconstrained, and constrained hier-

archical online image clustering method in 28 images

of the Blue Mosque in Instanbul, Turkey in ﬁgure 7 .

Table 1 shows the number of hierarchical layers of

the category when we tested the unconstrained and

constrained hierarchical image clustering method. As

shown in table 1, we can see that the constrained hier-

archical image clustering method is efﬁcient in bal-

ancing the hierarchical layers of the categories and

also useful in browsing the representative images of

the site.

Table 1: Comparison of the number of hierarchical layers

between unconstrained and constrained hierarchical cluster-

ing to show the balance of the hierarchical layers in various

sites.

Site Nr. of Unconstrained Constrained

Image Set Layer’s Nr. Layer’s Nr.

Site1 55 12 8

Site2 21 7 4

Site3 14 6 3

Site4 28 13 7

5 CONCLUSIONS AND FUTURE

WORKS

In this paper, we have presented the hierarchical on-

line image representation method for the efﬁcient

browsing and navigation within a geographic online

map. We also presented a new approach in order to

estimate the relationship between a collection of on-

line images, how to select a representative image us-

ing the 3D camera position and orientation, and how

to construct a hierarchy of online images with a con-

strained agglomerative clustering methodology. The

(a) k-Means clustering of online images when k=5

and k=7

(b) Mean-Shift is separated with 6 clusters and its

size of the cluster is proportional to the number of

images in the cluster

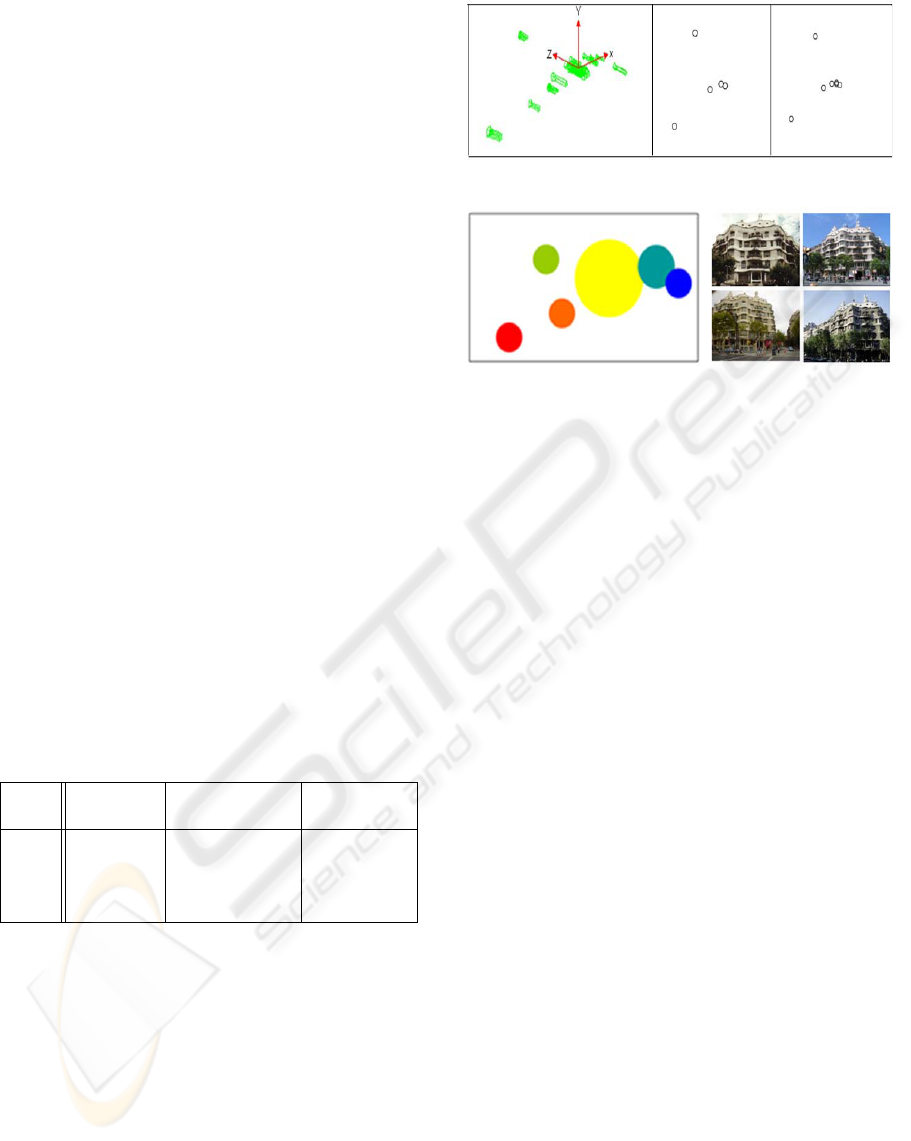

Figure 6: Non-hierarchical online image clustering like k-

Means and Mean-Shift with camera’s 3D extrinsic parame-

ters

hierarchical tree which we presented in this paper can

be useful to many applications involving large collec-

tions of digital photographs. We are able to sort and

view the images that are geographically close to an

3D camera position that users want to watch. It gives

convenience and immersion related to applications in-

volving large data on web. Our future work improve

this system for industrial applications. The processing

time to estimate the 3D position of billion of images

is the critical problem in the works of online images.

We will focus on the advanced interaction with user

and our hierarchical structure is needed for immersive

navigation or viewing.

REFERENCES

Bradley, P., Fayyad, U., and Reina, C., 1998. Scaling Clus-

tering Algorithms to Large Databases. In Proceeding

of ACM 4th DKK Conference.

Brown, M., Lowe, D, G., 2005 Unsupervised 3D Ob-

ject Recognition and Reconstruction in Unordered

Datasets. 5th International Conference on 3D Imag-

ing and Modelling.

Cai, D., He, X., Li, Z., Ma, W. Y., and Wen, J. R., 2004 Hi-

erarchical Clustering of WWW Image Search Results

Using Visual Textual and Link Analysis. In Proceed-

ing of 12th ACM Multimedia

Chaman, L., and Sabharwal, 1993. Recovering 3D image

parameters from corresponding two 2 images. In Pro-

ceeding of SIGGRAPP Symposium on Applied Com-

puting.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

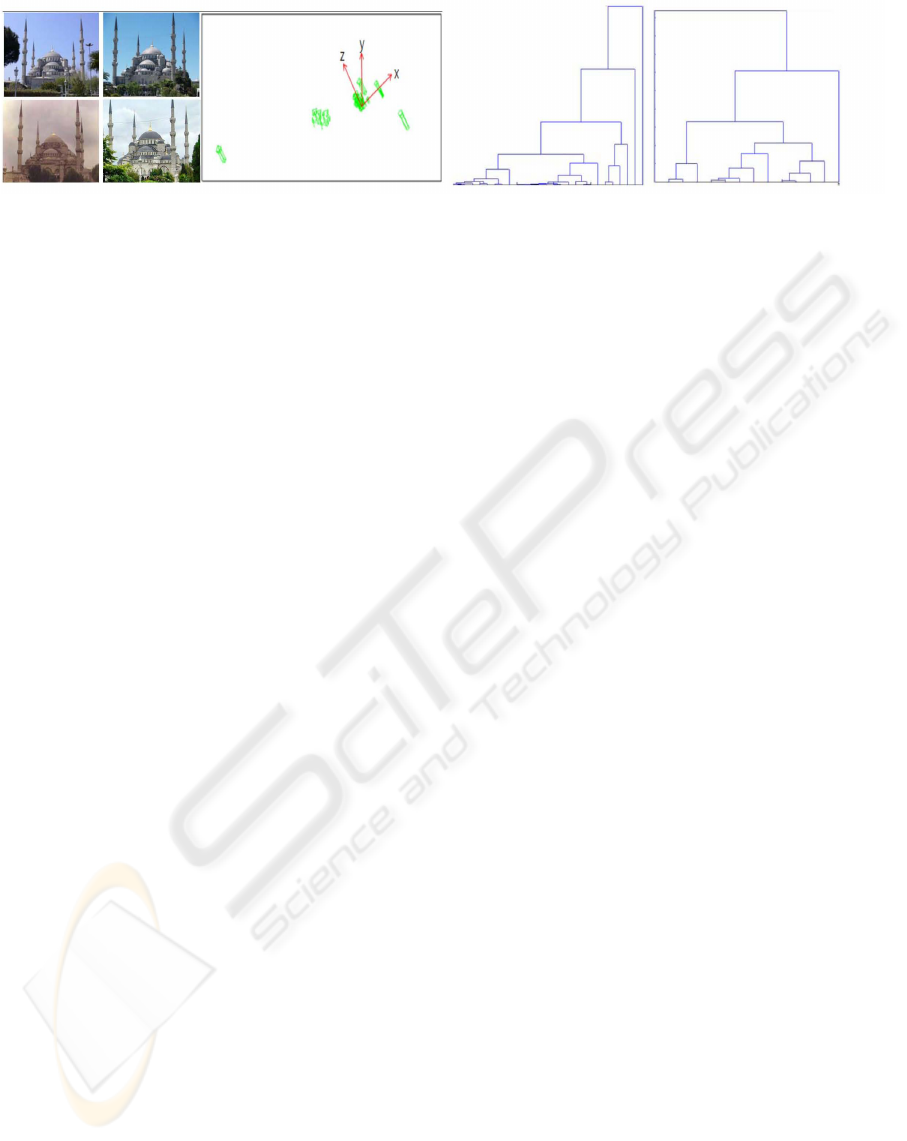

Figure 7: (a) Some representative images in the hierarchical structure of online images and recovery of 3D camera’s extrinsic

parameters at Blue Mosque, Istanbul, Turkey (b)Unconstrained and constrained agglomerative hierarchical clustering method

Hierarchical online image representation method in Blue Mosque, Istanbul, Turkey.

Chen, Y., and Wong, E., 1999. Augmented Image His-

togram for Image and Video Similarity Search. In

Proceeding of SPIE Storage and Retrieval for Image

and Video Database.

Comaniciu, D., and Meer, P., 2002. Mean Shift: A robust

approach toward feature space analysis. IEEE Trans-

action on PAMI.

Cormark, R., 1971. A review of classiﬁcation. Journal of

the Royal Statistical Society Series A 134.

Deng, Y., Manjunath, B. S., Kenney, C., Moore, M. S., and

Shin, H., 2001 An efﬁcient color representation for

image retrieval. IEEE Transaction on Image Process-

ing.

Duda, R. D., Har, P. E., and Stork, D. G., 2001. Pattern

Classiﬁcation. Wiley second edition

El Choubassi, M., Neﬁan, A. V., Kozintsev, I., Bouguet,

J.-Y, and YiWu., 2007. Web Image Clustering. In

Proceeding of IEEE ICASSP.

Fergus, R., Fei-Fei, L., Pernona, P., Zisserman,A., 2005.

Learning object categories from google’s image

search. In Proceeding of CVPR.

Gao,B., Lie, T., Qin, T., Zheng, X., Cheng, Q., and Ma, W.,

2005. Web image clustering by consistent utilization

of visual features and surrounding texts. In the Pro-

ceeding of ACM Multimedia.

Goldberger, J., Gordon, S., and Greenspan, H., 2006. Unsu-

pervised Image-Set Clustering Using an Information

Theoretic Framework. IEEE Transaction on Image

Processing.

Hartley, R., and Zisserman, A., 2004. Multiple View Ge-

ometry. Cambridge University Press.

Jaffe, A., Naaman,M., Tassa, T., and Davis, M., 2006. Gen-

erating summaries and visualization for large collec-

tion of geo-referenced photographs. In the proceed-

ing of ACM Workshop on Multimedia information Re-

trieval.

Jhanwar, N., Chaudhuri, S., Seetharaman, G., Zavidovique,

B., 2002. Content-based image retrieval using motif

cooccurence matrix. In Proceeding of Image Vision

Computing.

Krishnamachari, S., and Abdel-Mottaleb, M., 1999. Hierar-

chical Clustering Algorithm for fast Image Retrieval.

Naaman, M., Song, Y. J., Paepcke, A., and Garcia Molina,

H., 2004. Automatic organization for digital pho-

tographs with geographical coordinates. In the Pro-

ceeding of ACM/IEEE Joint Conference on Digital Li-

brary .

Lowe, D., 2004. Distinctive Image Features from Scale-

Invariant Keypoints. IJCV.

Rege, M., Dong, M., and Hua, J., 2007. Clustering web

image with multi-modal features. In Proceeding of

ACM Multimedia .

Qian, R., van Beek, L. P., and Ibrahim Sezan, M., 2000.

Image Retrieval Using Blob Histogram. In the Pro-

ceeding of ICME

Snavely, N., Seitz, S. M., and Syeliski, R., 2006. Photo

Tourism: Exploring collection in 3D. In the Proceed-

ing of SIGGRAPH.

Svoboda, T., Martinec, D., and Pajdla, T., 2005. A con-

venient multi-camera self-calibration for virtual envi-

ronments. PRESENCE: Teleoperators and Virtual En-

vironments.

Wang, J., Sun,J., Quan, L., Tang, X., and Shum, H. Y., 2006.

Picture Collage. In the Proceeding of CVPR.

Xu, D., Wang, Y. and An, J., 2005. Applying a New Spatial

Color Histogram in Mean Shift Based Tracking Algo-

rithm. In Proceeding of Image and Vision Computing.

Zeng, H. J., He, Q. C., Chen, Z., Ma, W. Y., and M, J. W.,

2004. Learing to cluster web search results. In Pro-

ceeding of 27th International ACM SIGIR Conference.

Zho, Y., and Karypis, G., 2005. Hierarchical Clustering

Algorithms for Document Datasets. In Proceeding of

Data Mining and Knowledge Discovery.

HIERARCHICAL ONLINE IMAGE REPRESENTATION BASED ON 3D CAMERA GEOMETRY
