SMILE DETECTION USING LOCAL BINARY PATTERNS AND

SUPPORT VECTOR MACHINES

D. Freire, M. Castrill

SIANI, Universidad de Las Palmas de Gran Canaria, Spain

O. D

eniz

SIANI, Universidad de Las Palmas de Gran Canaria, Spain

Keywords:

Facial analysis, SVM, K-NN, PCA, LBP.

Abstract:

Facial expression recognition has been the subject of much research in the last years within the Computer

Vision community. The detection of smiles, however, has received less attention. Its distinctive conﬁgura-

tion may pose less problem than other, at times subtle, expressions. On the other hand, smiles can still be

very useful as a measure of happiness, enjoyment or even approval. Geometrical or local-based detection

approaches like the use of lip edges may not be robust enough and thus researchers have focused on applying

machine learning to appearance-based descriptors. This work makes an extensive experimental study of smile

detection testing the Local Binary Patterns (LBP) as main descriptors of the image, along with the powerful

Support Vector Machines classiﬁer. The results show that error rates can be acceptable, although there is still

room for improvement.

1 INTRODUCTION

It is now known that emotions play a signiﬁcant role

in human decision making processes. Some facial ex-

pressions can be very difﬁcult to recognize even be-

tween humans. Besides, in human-computer interac-

tion the range of expressions displayed is typically

reduced. In front of a computer, for example, the

subjects rarely display accentuated surprise or anger

expressions as he/she could display when interacting

with another human subject.

The human smile is a distinct facial conﬁguration

that could be recognized by a computer with greater

precision and robustness. Besides, it is a signiﬁcantly

useful facial expression, as it allows to sense happi-

ness or enjoyment and even approval (and also the

lack of them) (Ekman et al., 1990). As opposed to fa-

cial expression recognition, smile detection research

has produced less literature. The lip zone is obvi-

ously the most important, since human smiles involve

mainly the Zygomatic muscle pair, which raises the

mouth ends. Edge features alone, however, may be

insufﬁcient.

This paper makes an extensive experimental study

of the smile detection problem, being organized as

follows. Section 2 describes the codiﬁcation algo-

rithms. The different classiﬁcation approaches are

brieﬂy presented in Section 3. The experimental re-

sults and conclusions are described in Sections 4 and

5 respectively.

2 REPRESENTATION

The Local Binary Pattern (LBP) is an image descrip-

tor commonly used for classiﬁcation and retrieval. In-

troduced by Ojala et al. (Ojala et al., 2002) for texture

classiﬁcation, they are characterized by invariance to

monotonic changes in illumination and low process-

ing cost.

Given a pixel, the LBP operator thresholds the cir-

cular neighborhood within a distance by the pixel gray

value, and labels the center pixel considering the re-

sult as a binary pattern.

Rotation invariance is achieved in the LBP based

representation considering the local binary pattern as

circular. The experience achieved by Ojala et al.

(Ojala et al., 2002) suggested that just a particular

subset of local binary patterns is typically present in

most of the pixels contained in real images. They re-

398

Freire D., Castrillón M. and Déniz O. (2009).

SMILE DETECTION USING LOCAL BINARY PATTERNS AND SUPPORT VECTOR MACHINES.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 398-401

DOI: 10.5220/0001792303980401

 SciTePress

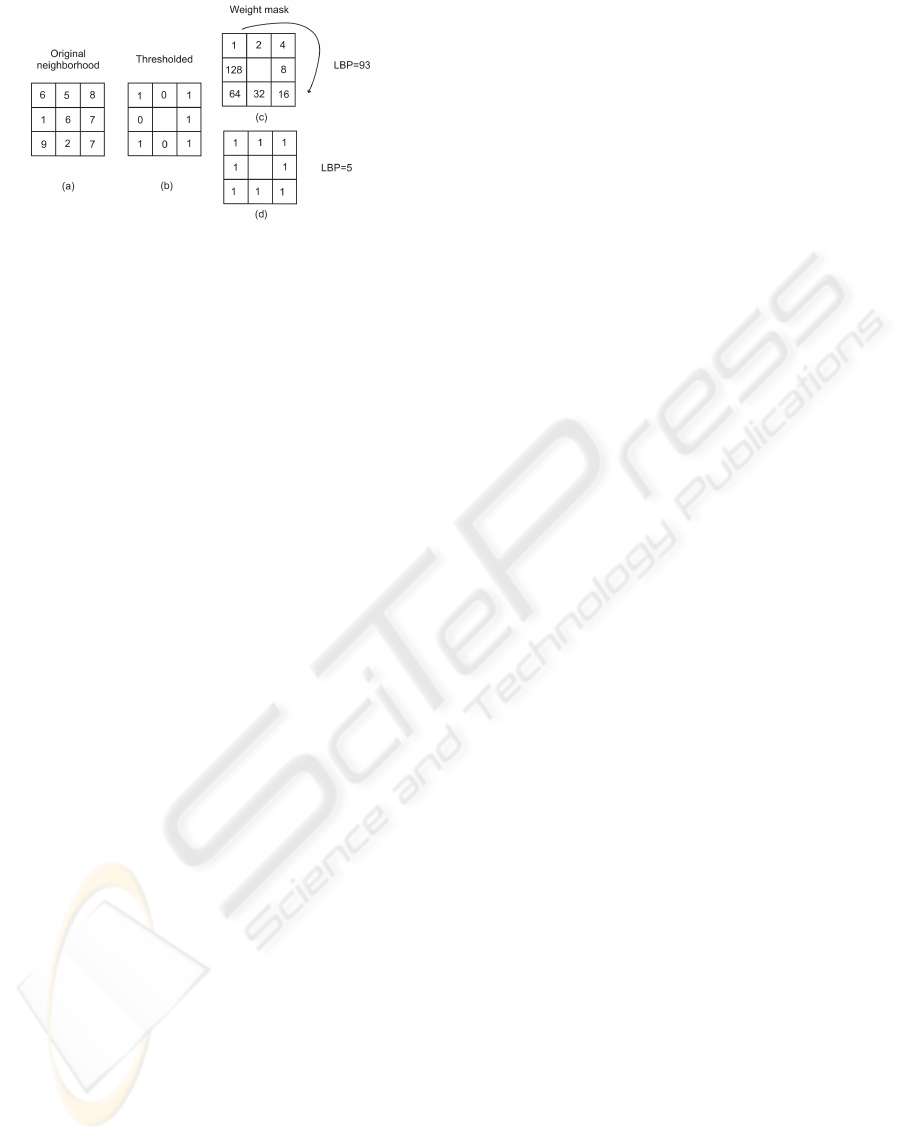

Figure 1: The basic version of the Local Binary Pattern

computation (c) and the Simpliﬁed LBP codiﬁcation (d).

fer to these patterns as uniform. Uniform patterns are

characterized by the fact that they contain, at most,

two bitwise transitions from 0 to 1 or viceversa. In the

experiments carried out by Ojala et al. (Ojala et al.,

2002) with texture images, uniform patterns account

for a bit less than 90% of all patterns when using the

3x3 neighborhood.

Using LBP as a preprocessing method has the ef-

fect of emphasizing edges and noise. To reduce the

noise inﬂuence, Qian Tao et al. (Tao and Veldhuis,

2007) recently proposed a modiﬁcation of the LBP

approach. Instead of weighting the neighbors differ-

ently, their weights are all the same, obtaining the

so called Simpliﬁed LBPs, see Figure 1-d. Their

approach has shown some beneﬁts applied to facial

veriﬁcation, due to the fact that by simplifying the

weights, the image becomes more robust to illumina-

tion changes, having a maximum of nine different val-

ues per pixel. The total number of local patterns are

largely reduced so the image has a more constrained

value domain.

In the experiments described at Section 4, both ap-

proaches will be adopted, i.e. using the histogram

based approach, but also using Uniform LBP and

Simpliﬁed LBP as a preprocessing step.

On the other hand, another problem to solve is that

raw face images are highly dimensional. A classical

technique applied for face representation to avoid the

consequent processing overload problem is Principal

Components Analysis (PCA) decomposition (Kirby

and Sirovich, 1990). PCA decomposition is a method

that reduces data dimensionality, without a signiﬁcant

loss of information, by performing a covariance anal-

ysis between factors. As such, it is suitable for highly

dimensional data sets, such as face images. A normal-

ized image of the target object, i.e. a face, is projected

in the PCA space. The appearance of the different in-

dividuals is then represented in a space of lower di-

mensionality by means of a number of those resulting

coefﬁcients, v

3 CLASSIFICATION

As mentioned above, LBP histograms have been used

as features to characterize images. For facial anal-

ysis, the face image is typically divided into blocks,

describing the whole face by means of the histogram

collection extracted from those rectangular blocks.

The L1 norm is often used as a simple and fast ap-

proach to compute the similarity between two his-

tograms with n bins. In the experiments reported in

Section 4, the block size has been ajusted to the size

of the image part to study depending on the kind of

test.

Support vector machines (SVM) are a set of re-

lated supervised learning methods used for classiﬁ-

cation and regression. They belong to a family of

generalized linear classiﬁers. A property of SVMs is

that they simultaneously minimize the empirical clas-

siﬁcation error and maximize the geometric margin;

hence they are also known as maximum margin clas-

siﬁers. LIBSVM (Chang and Lin, 2001) has been the

library employed in the experiment described below.

Another supervised learning method used in this

paper is the k-nearest neighbor (k-NN). It is a method

for classifying objects based on closest training exam-

ples in the feature space. k-NN is a type of instance-

based learning, or lazy learning where the function is

only approximated locally and all computation is de-

ferred until classiﬁcation.

4 EXPERIMENTS

The dataset of images used for the experimental setup

is separated into two classes: smiling and not smiling.

The previous classiﬁcation has been performed by hu-

mans who labeled each normalized image of 59 × 65

pixels. The ﬁrst set contains 2421 images of different

smiling faces, while the second set contains 3360 non

smiling faces.

As brieﬂy mentioned above, the experimental

setup considers two different possibilities as input: 1)

the whole normalized face image, and 2) the image

parts extracted from the face image corresponding to

both eyes and the mouth, which are the most impor-

tant facial regions to detect the human smile in psy-

chology (Ekman et al., 1990).

On this second possibility, there are two different

kinds of test depending of how the ocular area is ex-

tracted. The eyes can be considered separately or not.

This fact is important because the amount of informa-

tion that can be considered for each test is different

depending on the eye extraction.

The input image will be a grayscale image, and for

SMILE DETECTION USING LOCAL BINARY PATTERNS AND SUPPORT VECTOR MACHINES

399

Table 1: Error rate with k-NN based approaches considering

image parts. There is an entry for each experiment. For each

slot the name is composed by the abbreviated name of the

approach, of the parts involved in the experiment and a k-

NN classiﬁcation method. For the preprocessed input data,

there are three possibilites: LBPU, SLBP and GRAY, which

stands for Uniform LBP, Simpliﬁed LBP and Grayscale Im-

age respectively. For the image part, there are also three

possibilities: M, SE and ET, which stands for a Mouth, Sep-

arated Eyes and Eyes Together respectively. And for the

classiﬁcation methods there are two possibilities: 1NN and

5NN which stands for 1-NN and 5-NN respectively.

KNN Test Image Values Histogram

GRAY M 1NN 20.3% 37.5%

ULBP M 1NN 41.0% 32.0%

SLBP M 1NN 35.0% 36.5%

GRAY M 5NN 18.7% 34.5%

ULBP M 5NN 43.0% 28.5%

SLBP M 5NN 38.5% 32.0%

GRAY ET+M 1NN 26.0% 31.0%

ULBP ET+M 1NN 44.0% 32.5%

SLBP ET+M 1NN 42.0% 34.5%

GRAY ET+M 5NN 23.5% 30.0%

ULBP ET+M 5NN 43.0% 27.5%

SLBP ET+M 5NN 38.0% 33.0%

GRAY SE+M 1NN 24.0% 33.0%

ULBP SE+M 1NN 46.0% 33.5%

SLBP SE+M 1NN 42.0% 34.0%

GRAY SE+M 5NN 21.0% 30.0%

ULBP SE+M 5NN 42.0% 30.0%

SLBP SE+M 5NN 39.0% 33.5%

representation purposes we have used the following

approaches for the whole image and the image parts

tests:

• A PCA space obtained from the original gray

images or obtained after preprocessing the orig-

inal images using LBP. Two different approaches,

i.e. Simpliﬁed LBP (SLBP) and Uniform LBP

(ULBP), have been used.

• A concatenation of histograms based on the gray

image or the resulting LBP image (both ap-

proaches simpliﬁed and uniform were used).

• A concatenation of the image values based on the

gray images or the resulting LBP image (again

both LBP approaches were used).

Similar experimental conditions have been used

for every approach considered in this setup. The test

sets are built randomly, having an identical number of

images for both classes. The results presented corre-

spond to the percentage of wrong classiﬁed samples

of all test samples.

The average results presented on this paper are

achieved for each conﬁguration after ten random se-

lections with the 50% of the samples for training and

the 50% for testing. Therefore, for the experiment

we have used for training 2000 images, 1000 of each

class, and 2000 images for test, 1000 of each class.

Using the different input sources mentioned

above, for the k-NN image parts experiments, each

image part (grayscale or LBP preprocessed) is trans-

Table 2: Error rate with SVM based approach considering

the image parts. There is an entry for each experiment. For

each slot the name is composed by the abbreviated name of

the approach and of the parts involved in the experiment.

SVM Test Image Val. Hist. PCA 40 PCA 90 PCA 130

GRAY M 13.3% 37.8% 10.3% 11.4% 11.6%

GRAY ET+M 12.5% 30.8% 09.7% 10.2% 10.3%

GRAY SE+M 13.2% 30.7% 10.6% 10.9% 11.2%

ULBP M 23.5% 25.3% 27.2% 26.3% 25.1%

ULBP ET+M 32.1% 22.3% 29.9% 36.6% 36.0%

ULBP SE+M 31.2% 22.1% 29.0% 32.2% 30.1%

SLBP M 16.4% 27.7% 20.8% 18.0% 18.3%

SLBP ET+M 22.2% 25.3% 21.5% 19.9% 19.8%

SLBP SE+M 21.5% 25.0% 21.4% 21.5% 24.3%

Table 3: Error rate with k-NN considering the Whole Im-

age. For each slot the name is composed by the abbreviated

name of the approach and a k-NN classiﬁcation method.

k-NN Test Image Values Histogram

GRAY 1-NN 27.0% 43.0%

ULBP 1-NN 45.0% 43.5%

SLBP 1-NN 43.0% 43.0%

GRAY 5-NN 29.5% 41.5%

ULBP 5-NN 46.3% 41.0%

SLBP 5-NN 38.4% 46.0%

formed to a collection of normalized features. These

features can be the bins of a normalized histogram or

the image values, depending on the approach used.

Table 1 shows the error rates for each approach

varying the image parts considered to represent the

face. As it was expected, for the image values test,

the grayscale image based approach results are clearly

better. In this case the test is performed directly using

the normalized graylevels vector of the image parts.

The test for both LBP preprocessed images report

similar rates, and too far from the grayscale images

rates. This fact is due to the data compression that

both LBP approaches introduce.

For the normalized histogram test with image

parts, the results achieved for the grayscale images

are worse than those rates achieved for the image val-

ues test, although the test for both LBP preprocessed

images achieved better rates, especially the Simpliﬁed

LBP. Again, both LBP results seem quite similar.

Another important aspect to take care in this sec-

tion is the variation of behavior between 1-NN and

5-NN tests. 5-NN reported better results than the 1-

NN, because 5-NN works with more information than

1-NN does, and this fact affects the error rate.

Table 3 shows the results obtained by analyz-

ing the whole image. It is observable that the rates

achieved with the image values test are much better

than those obtained for the normalized histogram test.

This fact is justiﬁed by the presence of more informa-

tion in the image values based representation to take

the best decision. Another point to consider in this

case, is that the rates are worse than those achieved

for the image parts results. These results suggest that

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

400

Table 4: Error rate with SVM considering the Whole Image.

SVM Test Image Val. Hist. PCA 40 PCA 90 PCA 130

Grayscale image 10.6% 42.9% 11.3% 10.4% 10.1%

Uniform LBP 27.2% 35.7% 25.9% 27.6% 27.0%

Simpliﬁed LBP 26.2% 38.2% 27.5% 27.7% 28.8%

just analyzing eyes and mouth, there is an increase

of the amount of useful information to take the most

suitable decision.

For the next part of the experiments we have used

SVM as classiﬁcation criteria. It must be speciﬁed

that, for the SVM test, there are ﬁve possible repre-

sentation approaches: image values, normalized his-

tograms, PCA 40, PCA 90 and PCA 130. The number

next to PCA refers to the dimension of the representa-

tion space, i.e. it indicates the number of eigenvectors

used for projecting the face image.

As it can be seen on Tables 2 and 4 the error rates

achieved using the grayscale images are the best rates

in almost every situation. None of the LBP based rep-

resentations outperforms that approach. However, the

Uniform LBP approach evidences a larger improve-

ment when normalized histograms are used. Simpli-

ﬁed LBP approach reported better results than Uni-

form LBP except for the normalized histograms.

Restricting the input data to the most expressive

facial areas, again the Grayscale approach presents

the best performance with a clear improvement above

the k-NN tests rates. This effect suggests that focus-

ing on those areas, some noise is removed in the rep-

resentation information, situation not observed with

k-NN, and this allows the use of powerful classiﬁers.

When the normalized image values vector based

representation is used, the grayscale image test

achieved the lowest error rate.

For the PCA rates, the behaviour of those error

rates is quite similar to the behaviour obtained previ-

ously with the rates of the image values test. Again

grayscale image test achieved the lowest error rates.

When the histogram based representation is used,

the Uniform LBP error rate is the lowest. This ap-

proach seems to model properly the smile texture

even when the histogram is losing the relative location

information. However, this feature is quite similar

for the Simpliﬁed LBP approach, its histogram loses

information but the rates achieved are similar. The

grayscale image test achieved its highest error rate in

this case, higher than the Uniform LBP and Simpliﬁed

LBP approaches, which means that the Grayscale ap-

proach is very sensitive to the relative location of the

information.

For the SVM setting already explained, strategical

blocks of eyes and mouth for image parts are trans-

lated into a reduction of the number of dimensions.

The improvement of image parts is due to this fact.

Of course, it should be mentioned that PCA reduces

dimensions too, that is the reason why the grayscale

image test with PCA achieved better results than the

image values test.

5 CONCLUSIONS

This paper described a smile detection using differ-

ent LBP approaches, as well as grayscale image rep-

resentation, combined with two different classiﬁca-

tion methods: k-NN and SVM. It has been shown

the potentiality of Simpliﬁed LBP as a preprocessing

method for smile veriﬁcation, specially in SVM test.

Observing in detail the differences achieved be-

tween the Uniform LBP and the Simpliﬁed LBP. The

distribution of Simpliﬁed LBP can be used as a good

representation for images with more or less uniform

textures, but for the face image it is not enough.

Therefore, if the area is restricted to just the mouth,

the performance increases, due to the fact that other

textures are removed, even if it loses connection be-

tween patterns and their relative position in face.

In this paper we have developed a static smile

clasifﬁer achieving, in some cases, a 90% of success

rate. Smile detection in video streams, where tempo-

ral coherence is implicit, will be studied, as a cue to

get the ability to recognize the dynamics of the smile

expression.

REFERENCES

Chang, C.-C. and Lin, C.-J. (2001). LIBSVM: a library

for support vector machines. Software available at

http://www.csie.ntu.edu.tw/ cjlin/ libsvm.

Ekman, P., Davidson, R., and Friesen, W. (1990). The.

duchenne smile: emotional expression and brain phys-

iology. ii. Journal of Personality and Social Psychol-

ogy.

Kirby, Y. and Sirovich, L. (1990). Application of the

Karhunen-Lo

eve procedure for the characterization of

human faces. IEEE Trans. on Pattern Analysis and

Machine Intelligence, 12(1).

Ojala, T., Pietikinen, M., and Menp, T. (2002). Multiresolu-

tion gray-scale and rotation invariant texture classiﬁ-

cation with local binary patterns. IEEE Trans. on Pat-

tern Analysis and Machine Intelligence, 24(7):971–

987.

Tao, Q. and Veldhuis, R. (2007). Illumination normaliza-

tion based on simpliﬁed local binary patterns for a face

veriﬁcation system. In Proc. of the Biometrics Sympo-

sium, pages 1–6.

SMILE DETECTION USING LOCAL BINARY PATTERNS AND SUPPORT VECTOR MACHINES

401
