READING STREET SIGNS USING A GENERIC STRUCTURED

OBJECT DETECTION AND SIGNATURE RECOGNITION

APPROACH

Sobhan Naderi Parizi, Alireza Tavakoli Targhi, Omid Aghazadeh and Jan-Olof Eklundh

Computational Vision and Active Perception Laboratory

Royal Institute of Technology (KTH)

SE-100 44, Stockholm, Sweden

Keywords:

Structural object detection, Text detection, Text segmentation, Text recognition.

Abstract:

In the paper we address the applied problem of detecting and recognizing street name plates in urban images

by a generic approach to structural object detection and recognition. A structured object is detected using a

boosting approach and false positives are ﬁltered using a speciﬁc method called the texture transform. In a

second step the subregion containing the key information, here the text, is segmented out. Text is in this case

characterized as texture and a texton based technique is applied. Finally the texts are recognized by using

Dynamic Time Warping on signatures created from the identiﬁed regions. The recognition method is general

and only requires text in some form, e.g. a list of printed words, but no image models of the plates for learning.

Therefore, it can be shown to scale to rather large data sets. Moreover, due to its generality it applies to other

cases, such as logo and sign recognition. On the other hand the critical part of the method lies in the detection

step. Here it relied on knowledge about the appearance of street signs. However, the boosting approach also

applies to other cases as long as the target region is structured in some way. The particular scenario considered

deals with urban navigation and map indexing by mobile users, e.g. when the images are acquired by a mobile

phone.

1 INTRODUCTION

Recognition of an outdoor location from images taken

from an indeﬁnitely wide variety of scenes full of dif-

ferent objects is not a straightforward problem. It is

even more challenging if we want to search for spe-

ciﬁc elements of these scenes such as signs, logos or

speciﬁc buildings. One way of approaching the prob-

lem could be to recognize street name plates or other

landmarks in the scene. That would allow us to lo-

calize our position, index into a map and to recognize

the scene, whether or not we had access to additional

information from other knowledge sources including

GPS (Global Positioning System) which is not always

reliable or available in urban areas. In the application

behind this work the images come from cell phones

or other mobile devices. Then some general contex-

tual information that limits the scope of the problem

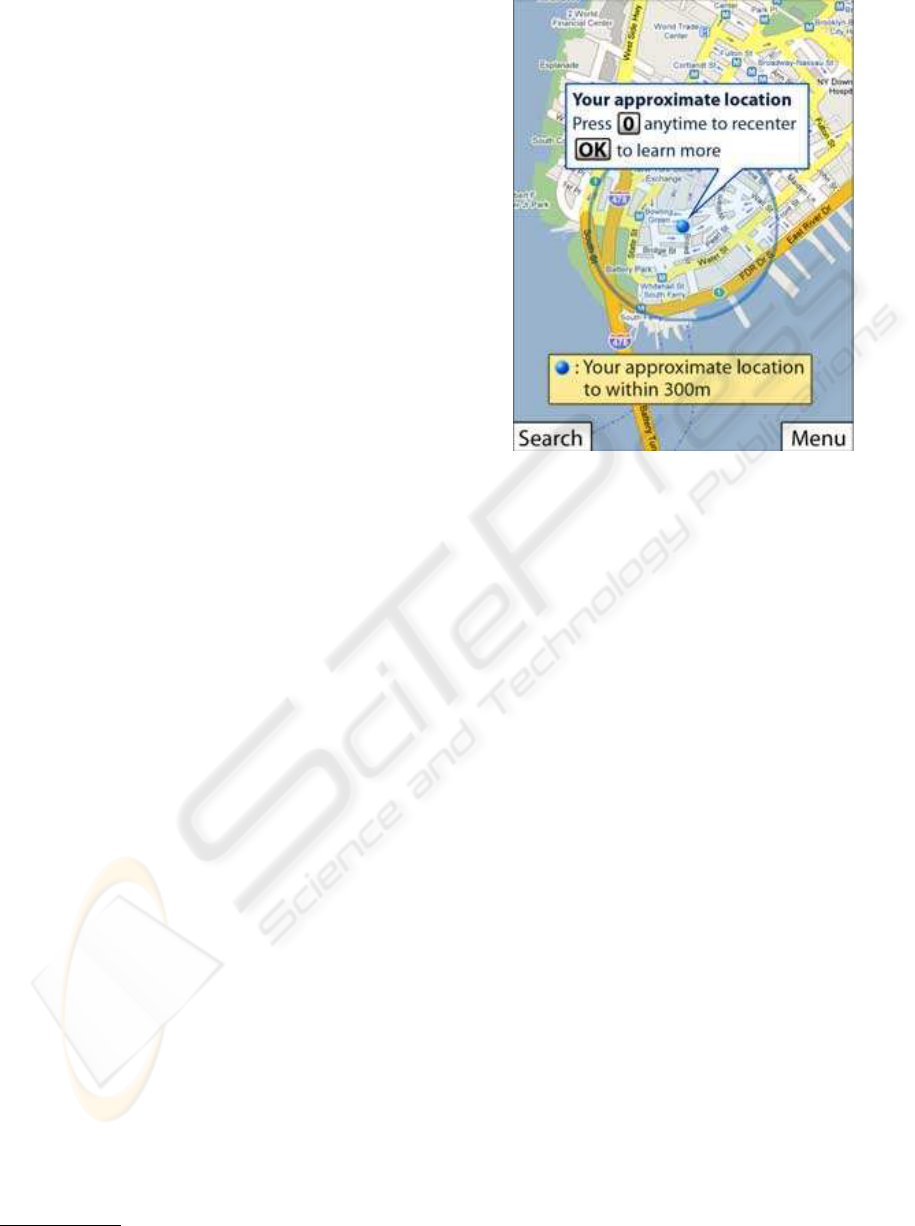

may be available. Positioning information can be sent

by cell phones to the service provider transceiver sta-

tions (BTSs). Result of this information is a rough

estimate of location of the cell phone user as shown

in Figure 16. We address the problem of recognizing

street name plates in urban scenes by a rather general

approach of structural object detection/recognition.

More precisely we deﬁne the problem as consisting

of three steps: the problem of detecting a speciﬁc

class of objects about which you have some a priori

knowledge, the object detection problem, the prob-

lem of ﬁnding an area which holds some representa-

tive information, in this case areas containing text, the

(within object) segmentation problem and ﬁnally, the

problem of recognizing the information in this area,

the recognition problem. In the paper we will intro-

duce a fast, accurate and general purpose framework

for dealing with the three mentioned steps, i.e. detec-

tion and recognition of parts holding some representa-

tive information, in this case text plates. It is assumed

that there is a signature that uniquely identiﬁes the

output. The way we have formulated the approach it

has many other applications as well, although we here

focus on ﬁnding and interpreting street name plates in

urban scenes. In order to have a full overview of what

is done in our detection and recognition scenario, you

346

Naderi Parizi S., Tavakoli Targhi A., Aghazadeh O. and Eklundh J. (2009).

READING STREET SIGNS USING A GENERIC STRUCTURED OBJECT DETECTION AND SIGNATURE RECOGNITION APPROACH.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 346-355

DOI: 10.5220/0001797703460355

 SciTePress

can have a look at Figure 3.

Throughout this paper we experiment with our

methods a new database of street plate objects taken

from central part of Graz city in Austria (mostly

around Herrengasse street)

. To have a sense of the

location where the images are taken from you can

have a look at Figure 1.

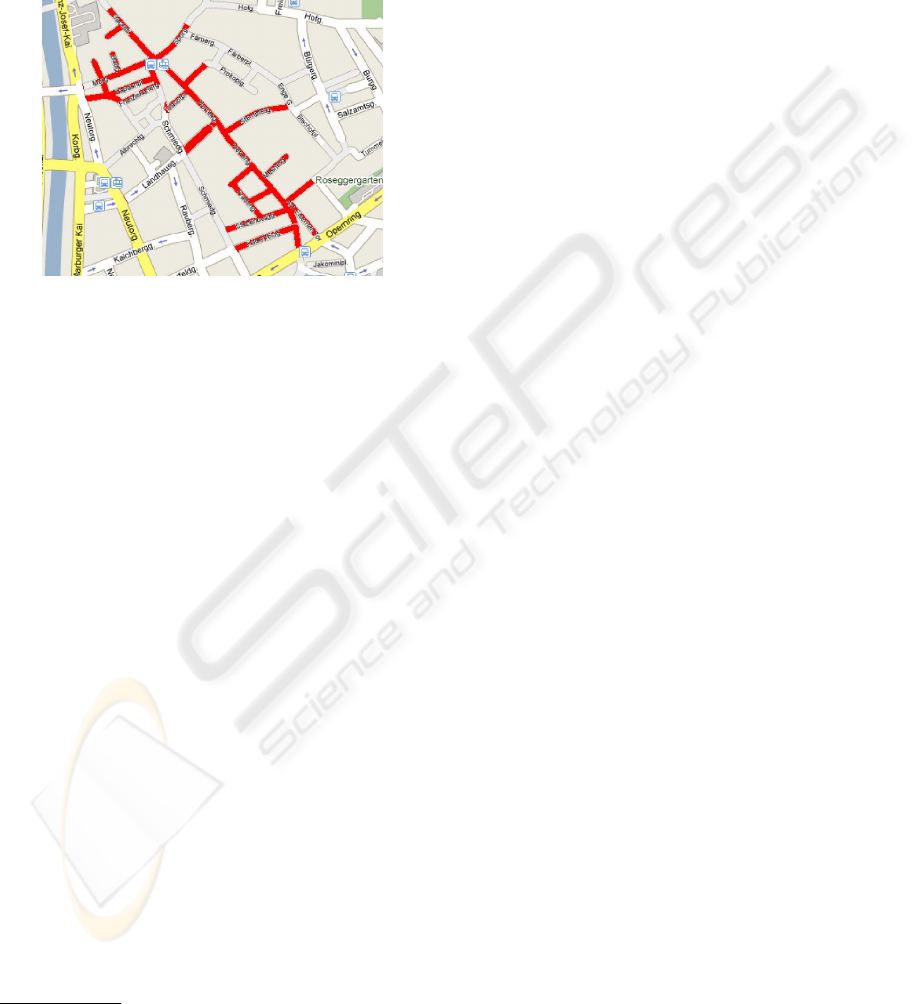

Figure 1: Streets included in the database are marked as red

in the map of Graz city. The long tilt street is Herrengasse.

This database consists of two sets of images. The

ﬁrst set contains 86 outdoor images of street plates in

various view points, scales and light conditions taken

by an ordinary cell phone camera with 1280 × 960

pixels of resolution. The second set is comprised of

120 images of similar scenes but taken by a different

camera (2448 × 3264 pixel images). For each single

plate, there are 9 images with three different scales

and three different viewpoints. Variation of scales and

orientations of the target objects within the database

are showed in Figure 2.

In the remainder of the paper we ﬁrst review

some related work. Section 2 goes through the detec-

tion and recognition phase. A detailed discussion on

methods investigated for localization of the target ob-

jects is found in Section 2.1. Filtering false positives

by post-processing is described in 2.1.1. In particular

we explain a speciﬁc technique, the LU-transform in

detail there. Then the methods used for segmentation

of textual regions of interest are presented in Section

2.1.3. The last step of our framework, recognition of

the text images, is explained in Section 2.2. In Sec-

tion 3 we present a system where our solutions come

in handy. We ﬁnally make some conclusions in Sec-

tion 4.

This is a new database created by us and will be avail-

able for public after publication of this paper.

Screen shot from Google map search.

1.1 Related Work

There has been a large amount of research on ob-

ject detection, text segmentation (detection) and text

recognition. We need a method which can provide a

solution to these three tasks simultaneously and we

want it to be accurate, fast, general and insensitive

to illumination variations and afﬁne transformations.

We also want the method to perform well without any

speciﬁc assumptions about the font, size and any other

characteristics of the text.

Although character based text recognition has at-

tracted considerable attention in research, there are

cases that character recognition is not easy or feasi-

ble e.g. at high levels of noise, low resolution pic-

tures (commercial OCR software usually works on

scanned data). There has been some work on word-

level text recognition that have shown promising re-

sults (Adamek et al., 2007) (Ishidera et al., 2002)

(Ataer and Duygulu, 2007). Due to the limitations

of character based methods and since we have a lim-

ited vocabulary, we based our method on such an ap-

proach.

The work most similar to ours is found in the so-

lutions to License Plate Recognition (LPR) problem

(Shapiro et al., 2006) (Shapiro and Gluhchev, 2004)

(Yan et al., 2001) which also addresses the three sub-

problems together. There are special constraints in

the LPR problem which do not hold in our problem

e.g. we have a larger variation of afﬁne transforma-

tions (scale and rotation) for street plates (Figure 2).

In addition, our approach deals with the detection and

recognition problems in a more general way which in

principle allows it to detect and recognize any speciﬁc

object, logo or sign.

There have also been successful solutions to the text

detection problem (Ye et al., 2007) (Kim et al., 2003)

(Merino and Mirmehdi, 2007) which do not provide

any solution to the recognition part. The approach

to the text detection problem presented in (Merino

and Mirmehdi, 2007) is very similar to ours. How-

ever, their method does not recognize the detected

text. Some other published text detection methods

require the text regions to have very speciﬁc charac-

teristics to work well (Kim et al., 2003) e.g. sharp

edges, good resolution, constraints on where the text

is located etc. Therefore, they have limited use, such

as detection of subtitles or rendered text on still im-

ages and video sequences and thus, are not appli-

cable in general outdoor scenarios. Some success-

ful solutions to the recognition problem in contexts

related to ours have been presented that either as-

sume the detection phase a solved problem (Ataer

and Duygulu, 2007) (Ganapathi and Lourde, 2006)

or use speciﬁc constraints e.g. high resolution (Ataer

READING STREET SIGNS USING A GENERIC STRUCTURED OBJECT DETECTION AND SIGNATURE

RECOGNITION APPROACH

347

(a) (b) (c) (d)

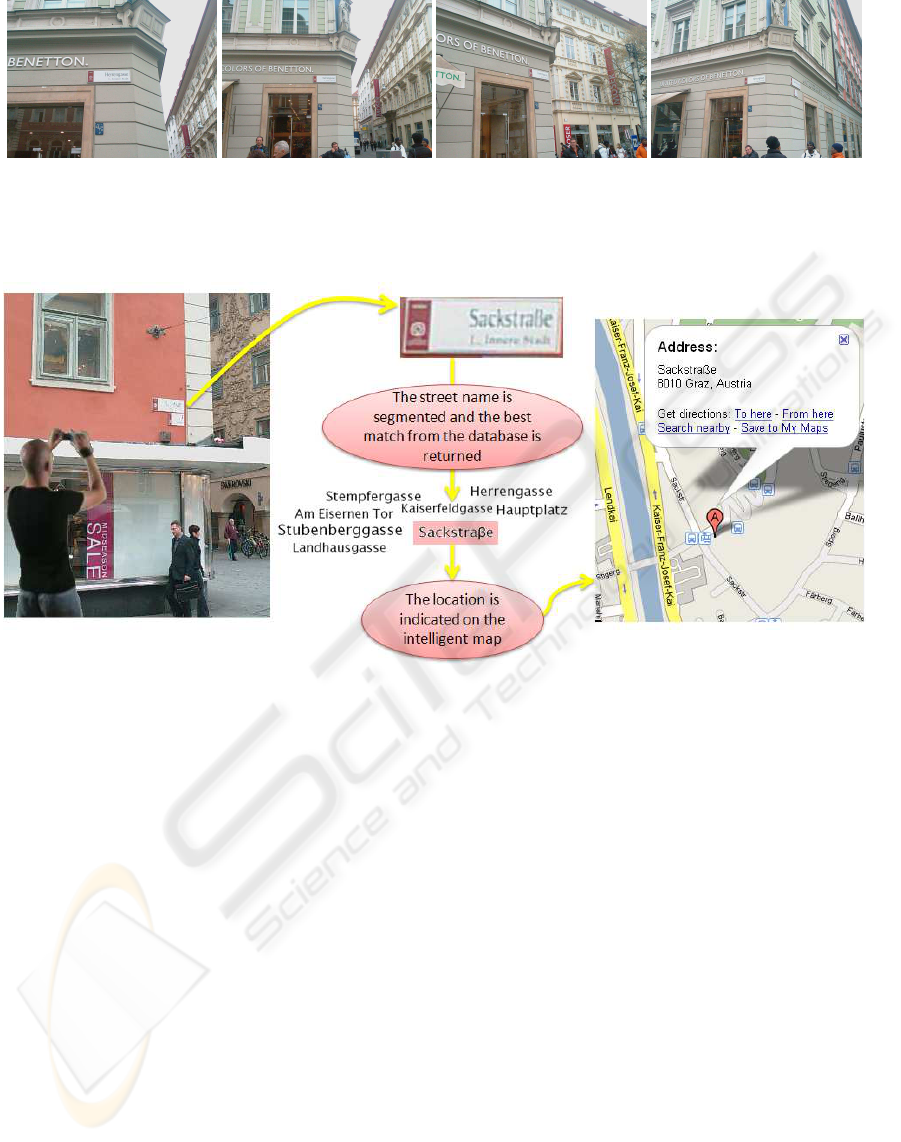

Figure 2: The database contains a wide variety of outdoor images each of which contains a street plate inside and comes with

3 different viewpoints {-45, 0, 45} and 3 scales {large, medium, small}. So, for each street plate we have 9 images in the

database. Range of viewpoint and scale variation is represented by these four pictures.

Figure 3: User takes an image from an urban place using his/her mobile phone and sends it to a server. Some target objects

within the image are detected (the street plate) such that location of the person can be identiﬁed by recognizing some uniquely

discriminant sign within the detected area of interest (the street name).

and Duygulu, 2007) and limited afﬁne transforma-

tions of text (Ataer and Duygulu, 2007) (Ganapathi

and Lourde, 2006). Hence, these methods still need

to be combined to detection methods to be able to per-

form well in more general cases.

To the best of our knowledge there is no method that

can provide an efﬁcient solution to the three men-

tioned tasks simultaneously in the full generality and

scale of our problem.

2 METHODOLOGY AND

FRAMEWORK

2.1 Detection Phase

Adaboost (Freund and Schapire, 1995) has been

proven to be fast and accurate for structural object de-

tection problems. It is an algorithm for constructing

a strong classiﬁer as a linear combination of simple

features, called weak classiﬁers. For general object

detection Haar features have been used as weak clas-

siﬁers(Papageorgiou et al., 1998). These features can

be deﬁned as the difference of the sum of pixels of

areas inside windows, which can be at any position in

the original image and have different scales, see Fig-

ure 4 for examples. Viola and Jones (Viola and Jones,

2001) introduced integral images as a fast method to

calculate the difference of the sum of pixels.

To detect street plates in outdoor images we use

adaboost in a similar way as in (Viola and Jones,

2001) where it was used for detecting faces. To train

the adaboost we need positive and negative samples.

As positive samples we consider rectangular regions

of the image containing only a plate. To get them we

annotate all the images in the database. Later we will

use half of the images in the database for training the

adaboost and the rest for test, but we need to annotate

all images to evaluate how detected windows inter-

sect true plate regions. The annotation consists of the

coordinates of the four corners of the polygonal plate

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

348

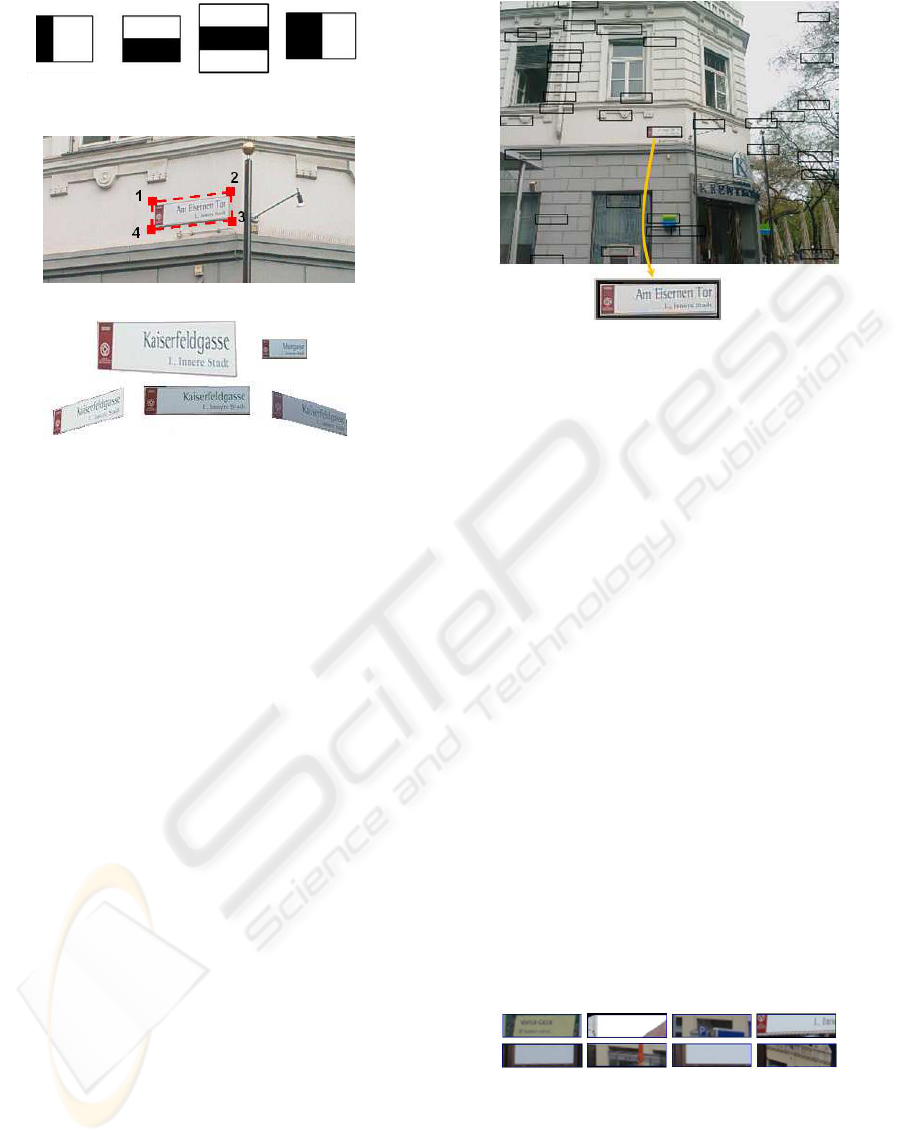

Figure 4: Representative of Haar feature samples.

(a)

(b)

Figure 5: Database annotation: (a) shows how images are

annotated. (b) several samples of segmented plate regions

from images with different views and scales. We use these

segmented regions as positive samples for training.

region, as is shown in Figure 5.a.

As illustrated in ﬁgure 5.b many plate regions

are not rectangular because of choice of viewpoints.

Therefore, we apply a set of afﬁne transformations

to the whole image to approximately ﬁt the plates to

an axis parallel rectangular region. These transfor-

mations are different in the sense of scale and an-

gle. We cover 5 different scales and 7 different an-

gles to make our detector invariant to viewpoint and

scale. Obviously, this may cause a loss of some part of

the plate region border or bring in a few pixels from

the background. Anyway we use these rectangular

plate regions as positive samples in training the ad-

aboost. To obtain negative samples a ﬁxed window is

slid over each image in the training database without

overlapping. We exclude those windows that inter-

sect plate regions. In our experiments we have used

approximately 100 positive and 7000 negative sam-

ples for initial training of the adaboost. We normalize

all samples by re-scaling them into a ﬁxed size win-

dow 20×70 and also normalize the pixel intensities by

converting the values to the interval [0, 1]. Now we

can apply this adaboost on the test images to detect

candidate plate regions in the entire image. Figure 6

shows an example of the initial adaboost result. As

is illustrated in the ﬁgure, we indeed detect plate re-

gions, but at the same time many non-plate regions

are labeled as plates (false positives).

Figure 6: The initial boosting has lots of false positives. We

use these detected windows to enrich our training database.

Improvement by Generating More Training Data.

To decrease the number of false positives we increase

the number of training samples. This idea is not new

and has been applied for texture classiﬁcation and ob-

ject detection (Laptev, 2006) (Tavakoli et al., 2008).

In previous work it is shown that the adding more

training data by generating new images increases de-

tection performance. Here to add new positive and

negativesamples to the training data, we apply the ini-

tial adaboost on the training images instead of the test-

ing images. We then analyze the detected windows as

follows. If they have more than 80% overlap with a

plate region we add them to positive samples and and

if they have less than 30% overlap they are added to

the negative samples. The overlap is checked using

the annotation information. The result of this sample

generation procedure is adding 10000 negative and

500 positive samples to our training set. Therefore,

the ﬁnal boosting is trained with this enriched set of

training samples. To try the ﬁnal adaboost to each test

image of the database, we ﬁrst apply a set of afﬁne

transformations by resampling the entire images at

varying scales and angles. Then we perform the ad-

aboost on the set of transformed images. By applying

these transformations the adaboost will detect plates

at different slopes and scales.

Figure 7: Most of remaining false positives are quite similar

to the plates and we can not expect adaboost to distinguish

it.

Even after applying the ﬁnal boosting, we still

have some false positives. However, many of these

false positives are structurally similar to the target ob-

jects and are not supposed to be removed in the cur-

READING STREET SIGNS USING A GENERIC STRUCTURED OBJECT DETECTION AND SIGNATURE

RECOGNITION APPROACH

349

rent boosting stage (Figure 7). In the next section you

will see how these false positives can be removed by

applying a ﬁltering method.

2.1.1 Filtering False Positives

The remaining false positives have similar structure,

so not surprisingly they also have similar Haar feature

responses. Therefore, a new feature is required to dis-

criminate the true positives that contain a text region

from the false positives. Apart from shape features

texture information reﬂects small scale structures

such as in regions containing text. There is an abun-

dance of texture descriptors in the literature, for ex-

ample various linear ﬁlters, wavelets, co-occurrence

matrices, energy measures from the Fourier trans-

form, Markov random ﬁelds, local binary patterns,

and texton histograms. Some of these could be used

in our case. However,several of them, for instance the

ﬁlters, respond to brightness edges which is not suit-

able in outdoor images. We applied also the fast com-

puted descriptors based on LBP (Ojala et al., 2002)

to our plate detection problem but it turned out that

lots of false positives remained after ﬁltering with that

method. We therefore went for yet another method.

LU-transform and Filtering. In recent work

Tavakoli Targhi et. al. proposed a fast and simple tex-

ture descriptor, called the Eigen-transform (Tavakoli

et al., 2006). The texture descriptor is derived from

image matrix decompositions. It has a number of

properties which are desirable for bottom up process-

ing in real-world applications. It captures small-scale

structure in terms of roughness or smoothness of the

image patch and unlike most other texture descrip-

tors, it does not generate spurious responses around

brightness edges. Also it is not sensitive to changes in

brightness. It is fast to compute and provides a com-

pact representation which is easy to store and perform

calculations on. Finally almost no parameters need to

be tuned.

The basic idea of Eigen-transfrom is to compute

the singular values or eigenvalues of matrices repre-

senting the local neighborhoods of a pixel and form a

descriptor as the average of the smallest of their abso-

lute values. This yields a one-dimensional descriptor

which ﬁres in ”rough” areas of the image. The de-

scriptor is computed for all pixels or on a sub-sampled

regular grid. In (Tavakoli et al., 2006) it is shown that

similar descriptors can be computed by any form of

triangulation of the image patch matrix, such as by the

LU-transform, which is rather fast. Mirmehdi and his

co-workers (Merino and Mirmehdi, 2007) used this

texture descriptor to track text regions in outdoor im-

ages. Their results demonstrated that the method ef-

ﬁciently can detect text in real time applications and

motivated us to use it to ﬁlter the false-positive win-

dows.

In ﬁltering we use the LU-transform to detect tex-

tured areas in the candidate regions under the assump-

tion that these contain text. Figure 8 illustrates the

output from a plate region. We see that the text re-

gions pop out from the background as desired. Hence,

we apply the LU-transform on all the (positive and

negative) samples of the training set. Then we train

a new adaboost on the transformed samples. We use

the same methodology as we used before to train ad-

aboost on transformed windows, that is we extract

Haar features from transformed samples instead of the

original ones. We call this the adaboost-ﬁlter. We also

add this step to our testing. More speciﬁcally, for ev-

ery test input image we apply the adaboost to discrim-

inate between true and false positives. To ﬁlter the

false positives we then perform the LU-transform on

each detected window and ﬁnally apply the adaboost-

ﬁlter. As a result of the ﬁltering step we have less than

two false positives on average for each test image. As

we will see below these false positives will in general

automatically be ﬁltered in the recognition phase.

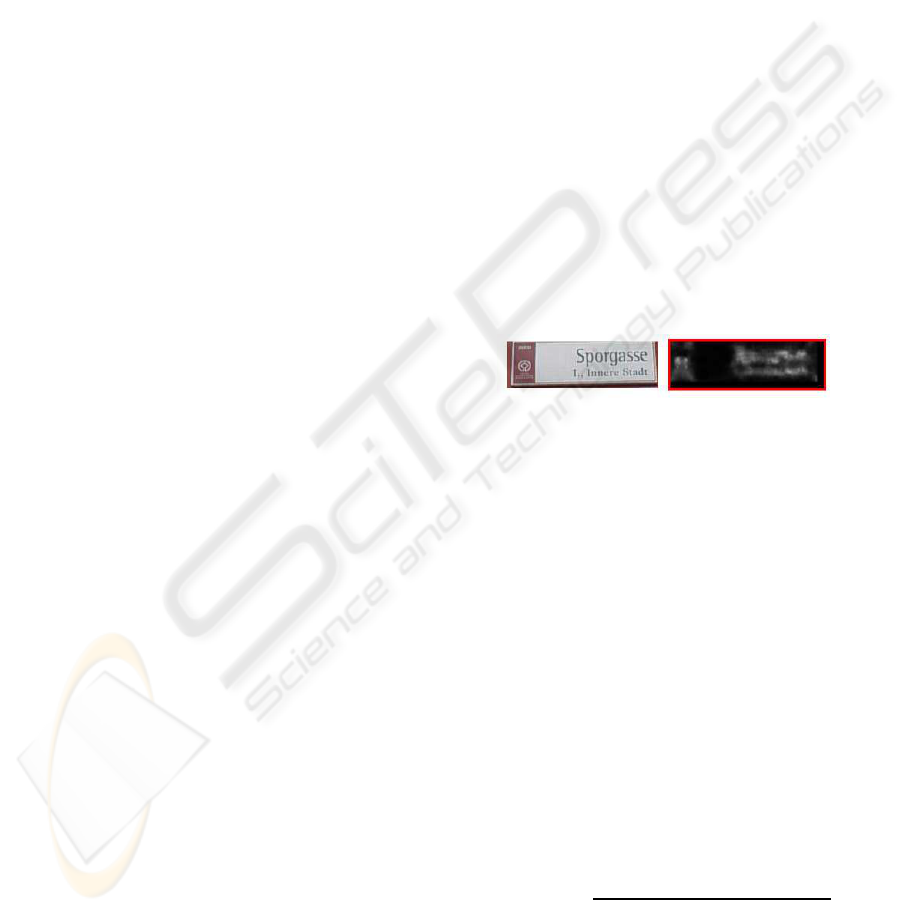

Figure 8: Result of LU-transform on a plate region.

2.1.2 Final Decision

As we mentioned before, to make our method afﬁne

invariant, each input image is transformed by differ-

ent afﬁne functions like rotation and scale. Then we

apply the detection separately on each of these trans-

formed images. Therefore we have several detection

windows of each plate. So we need to merge the over-

lapping detected windows which are close enough to-

gether. To do this, we use a threshold on the minimum

of the four euclidian distances between correspond-

ing corners of the windows. This threshold can be

between 100 to 300 pixels.

To evaluate the detection accuracy we deﬁne a

conﬁdence value for each detected window. Number

of windows merged together is considered as the con-

ﬁdent of each merged region. Also the overlap of the

detected windows is computed by (1).

overlap =

ground−truth

detected−window

ground−truth

detected−window

(1)

Where S

ground−truth

is the area of the whole plate

in the ground-truth and S

detected−window

is the area of

the detected window. The overall detection rate is

92% with 40% overlap and conﬁdence value 2. In

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

350

(a) (b) (c)

(d) (e) (f)

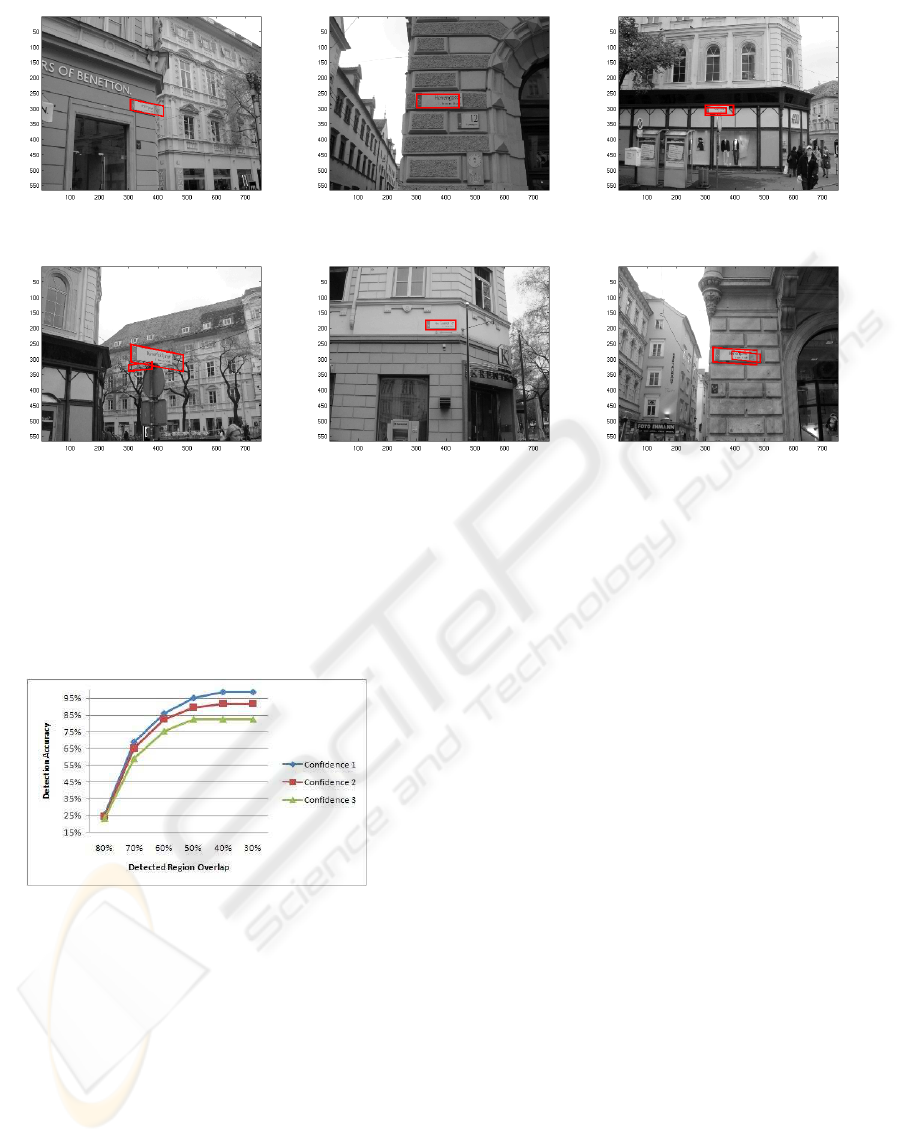

Figure 9: Some sample images after ﬁltering. As you see, even after ﬁltering, there may remain some false positives which

are almost guaranteed to be removed in recognition phase.

average the detection phase returns two candidate re-

gion at the end, one of which is always the plate. The

remaining false-positive will be rejected in the recog-

nition phase since no text match it.

Figure 10: Detection rate for required overlap and conﬁ-

dence. Different curves show the detection results for dif-

ferent conﬁdence values.

Figure 9 shows how the ﬁnal detection procedure

performs after making the ﬁnal decision.

2.1.3 Text Segmentation

In the previous section we explained how we detect

plates. For recognizing the street name we need to ex-

tract the text information from the plate region. This

is not a straightforward task because candidate win-

dows resulting from the detection phase don’t ﬁt ex-

actly to the borders of the plates. One of the main

reasons is perspective effects which cause detection

windows to be wider (or narrower) than the actual

plate when pictures are taken from different view-

points. Therefore, there is a need to have a more ac-

curate segmentation method to extract the text regions

inside a roughly detected plate region. Our text seg-

mentation strategy is based on a pixel-wise classiﬁca-

tion and segmentation method called single histogram

(Schroff et al., 2006) which use histograms of visual

words (or textons) as feature vectors. Histograms

of visual words (Varma and Zisserman, 2003) have

been effective in tasks such as image classiﬁcation

and object class recognition. The single-histogram

approach represents each object class by a single his-

togram from visual words unlike the common way

in which each object class is represented by a set of

histograms. Classiﬁcation is achieved by k-nearest

neighbor search over the exemplars. This method

perform simultaneous pixelwise segmentations and

recognition of image regions. We here consider the

single-histogram approach as a two class problem

namely the text regions containing street names and

the rest of plate region (background of the street

name).To train the classiﬁer we generate training data

by manually segmenting all street names in the train-

ing images by drawing a bounding box around the

street name region. Figure 11.a illustrates the man-

ual segmentation.

Then we extract the feature vectors densely at

each pixel location which here are raw 5 × 5 gray-

READING STREET SIGNS USING A GENERIC STRUCTURED OBJECT DETECTION AND SIGNATURE

RECOGNITION APPROACH

351

(a) (b) (c)

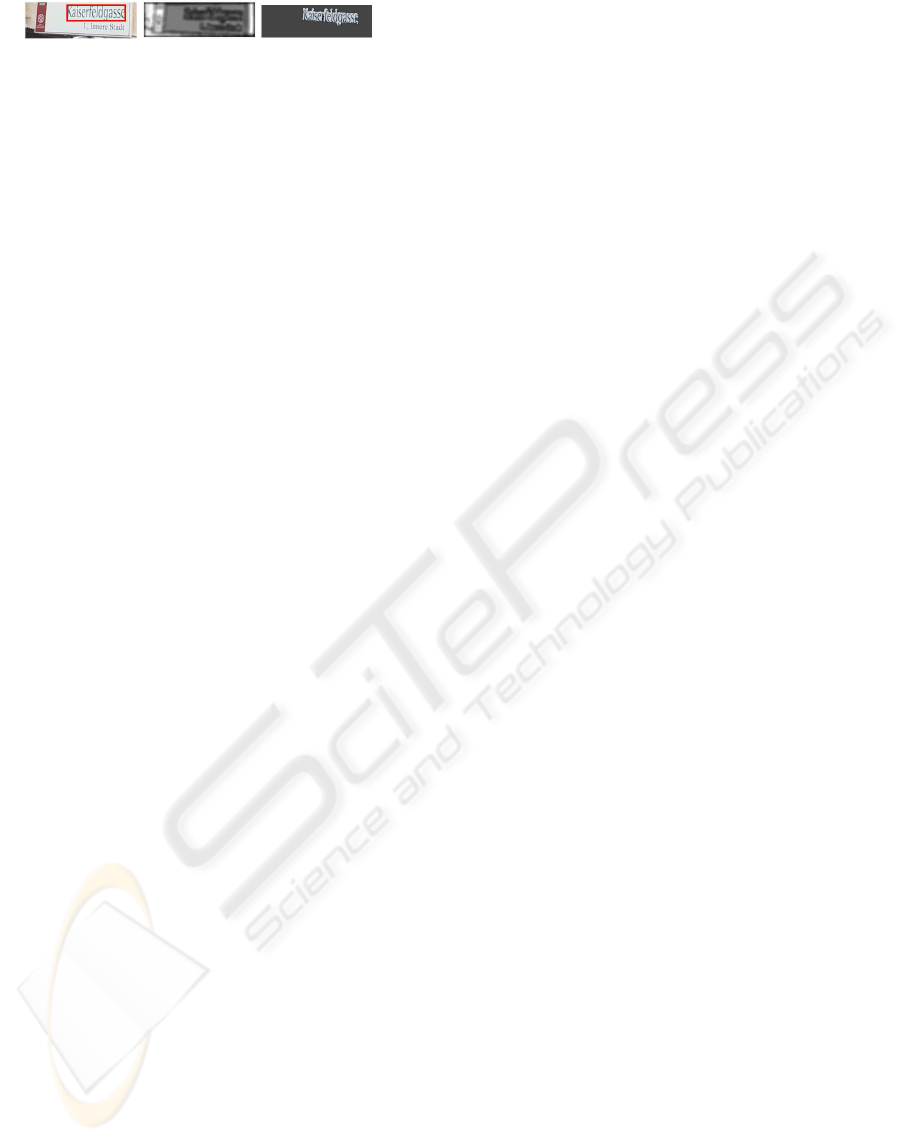

Figure 11: Segmentation scheme: (a). Original street plate

with annotation bounding box, (b) probability map, (c)

pixel-wise segmentation.

scale intensity patches. Thus, the dimensionality of

the feature vectors is 25. During training, the vocabu-

lary of visual words is built by clustering (performed

by K-means) the feature vectors extracted from the

training street name regions. We associate each pixel

in the training images with the closest visual word

(cluster center). Finally, we compute histograms of

visual words for each of the training regions and com-

bine them together to produce a single model for text

regions corresponding to street names.

During testing an input plate region image is con-

verted into its corresponding texton map by labeling

each pixel. Then pixelwise classiﬁcation is obtained

by a sliding window technique. A window of dimen-

sion 9 × 9 is slid across the plate region to generate

a histogram of visual words for each position in the

plate region. The center pixel is then assigned a value

which is a distance between the histogram at the pixel

and single histogram of text region model. Since we

here have only one object class, we build a probabil-

ity map which represents the distance from each pixel

in the plate region to the model. This is illustrated in

Figure 11.b. To end up with an accurate and coher-

ent text segment, we merge those pixels which have

high probability values in the map. This is done by

Connected Component (CC) extraction methods. We

apply an algorithm that has been used in (Leon et al.,

2005) for text detection where the Connected Com-

ponent are reconstructed at multiple gray scales. We

similarly deﬁne multiple thresholds and apply them

on the result of the single-histogram classiﬁcation.

To remove the small text region which often contains

some information about the city area, we simply use

a threshold. An example of the ﬁnal segmentation re-

sult after ﬁnding the Connected Component is given

in Figure 11.c. We ﬁnally ﬁt the segmented text re-

gion in a bounding box that will be used for recogni-

tion which will be explained in the next section.

2.2 Recognition Phase

The detection phase provides us with a set of candi-

date regions for which we know that they in over 98%

of the cases contain a target plate with at least 40%

of overlap (see Figure 10). Hence, we are given a

number of cropped regions that likely contains text

representing a street name. In order to recognize the

text in such an image (region) one can either apply a

character recognition approach or a direct matching

technique. The latter approach of course requires that

the texts that could appear in the images are known

beforehand, which we indeed do in our case. Since

our images of the plates often are noisy and low qual-

ity it is difﬁcult to ﬁnd individual characters in them.

Therefore, we preferred to use image matching ap-

proaches. Such methods can be based on extracted

features. In particular SIFT-features are considered

to be powerful. We applied such techniques, but al-

though we could achieve acceptable accuracy in that

way the method turned out to be extremely sensitive

to parameter selection, noise and other changes in the

test images. As a consequence we instead exploited

Dynamic Time Warping (DTW), (Sakoe and Chiba,

1990), which is a technique that has been used with

success in speech recognition problems.

This method works by simultaneously modifying the

1D test signal by compressing and extending inter-

vals on which it is deﬁned and measuring its similar-

ity to a reference model signal. The total matching

cost is deﬁned by combination of the cost of the inter-

val modiﬁcation with a measure of similarity between

the obtained test signal and the reference.

DTW as used in speech recognition works on 1D

signals, while here we have images. To adapt our

problem to DTW, we extract vertically projected fea-

tures from the image and consider them as a 1D signa-

ture along the text length (Shanker and Rajagopalan,

2007) (Rath and Manmatha, 2003). Experimentally

we found that the sum of pixel intensities along the

columns of the image were sufﬁciently informative.

Upper or lower contours of each column can be use-

ful as well and gave even more discriminative feature

vectors. In fact there are even more sophisticated pro-

jected features such as HOG descriptors (Dalal and

Triggs, 2005), but the three features mentioned in our

experiments sufﬁced for acquiring perfect matching

accuracy. Figure 12 shows the sum of intensities and

upper contour features for a sample text image. It is

worth noting that we also needed to perform certain

normalization and preprocessing tasks, but we don’t

go into detail about these rather straightforward tasks.

The matching results in our application were gen-

erally very good. However, we often also have a

rough estimate of our location in the map. For in-

stance it can be obtained from the mobile phone.

Based on (Ratti et al., 2007), there is one transceiver

antenna every 100-300 meters in urban places, though

this distance increases to several kilometers in ru-

ral areas. Therefore, the number of possible street

names in practice is very limited - only a few tens.

To investigate the matching performance we there-

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

352

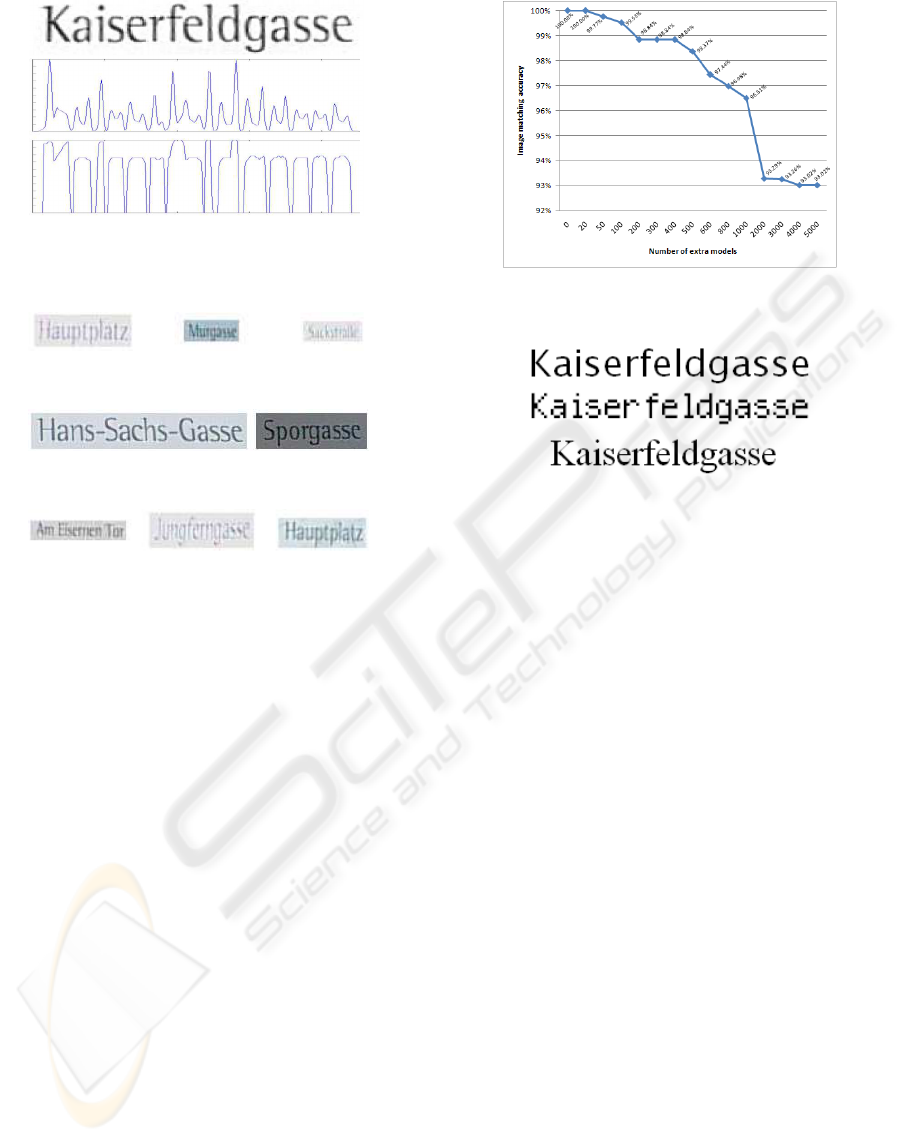

Figure 12: Topmost is a sample text image; in the middle,

sum of intensity values are showed; and at the bottom you

see upper contour of the text.

(a) Misclassiﬁed samples: Hauptplatz, Mur-

gasse, Sackstraβe respectively

(b) High quality sample images: Hans-Sachs-

Gasse, Sporgasse respectively

gasse, Hauptplatz respectively

Figure 13: For 1000 extra text models, as showed in Figure

14, recognition accuracy descends to 96.51% which means

three false samples. (a) shows those three samples. (b) rep-

resents some high quality samples which can probably be

recognized by OCR methods as well. (c) contains some

hard samples that are recognized correctly by our method

but are evidently very hard to be recognized by character

recognition based methods.

fore also tested the approach on larger sets. It turned

out that with up to a hundred real street names we

could not observe any considerable decrease in accu-

racy. An experiment performed on one hundred real

street names around Herrengasse street in Graz city

resulted in three misclassiﬁcations. To provide an in-

sight into the three incorrectly classiﬁed samples we

depict them in Figure 13.a.

We note that the samples are of low quality and

only with difﬁculty readable to a human. A simu-

lated experiment performed on a dictionary of 5000

English words showed that the matching accuracy re-

mained high also on such a large database, see Figure

14.

The ﬁgure shows that for 1000 extra models, the

accuracy is 96.51% which means that only the three

samples were matched incorrectly. Therefore, we

conclude that the critical parts of the problem are

found in the detection and text segmentation steps.

A strong point of this method is that it has no need

Figure 14: Text image matching accuracy over increasing

number of reference models.

Figure 15: Automatically generated street name models. As

we did not have the exact font used in our plates, differ-

ent similar fonts were tested but it has no sensible effect on

recognition results.

for reference models from real images. The only in-

formation used is a database containing a list of the

street names in text format. By inputting this list to

an image editor we artiﬁcially generate our text mod-

els, see Figure 15 for an example.

It turns out that the method to a great extent is in-

variant to the selection of the fonts used to generate

text models. Furthermore, the method is extremely

fast and needs only m × n × d operations where m,

n, d respectively stand for the length of test text, the

length of reference text, and the number of projected

features. In all this method has applications beyond

the one studied here. It should be added that remain-

ing false positives (if any) generally are rejected in the

recognition stage. Again we want to stress that our

experiments show that the recognition phase works

almost perfectly if segmentation of the text areas is

appropriate.

3 APPLICATION AND SYSTEM

USAGE

The methods we utilized for both detection and recog-

nition part are useful in different types of applications

and can be used as a stand alone module in place

recognition and urban area visit aid scenarios. For

most visitors of a new city it is of value to be able

READING STREET SIGNS USING A GENERIC STRUCTURED OBJECT DETECTION AND SIGNATURE

RECOGNITION APPROACH

353

to ﬁnd their path through streets and also ﬁnd desired

markets, hotels and restaurants around them. Google

has developed a mobile friendly version of its map

which can be downloaded for an increasing number

of cities world wide. Installing a map on your mobile

phone you would be able to track your paths. How-

ever, these maps need somehow well formatted input

hints about the location to start the search to provide

you with the required information.

For most cell phone users is not convenient to enter

name of the target location with the keypad. This

problem becomes much more sophisticated when you

need to locate yourself by looking at the street plates

nearby. Yet more complicated is the case where you

are in a country with an unfamiliar alphabet like Chi-

nese or Arabic. An effective way of doing this, is

to take a photo of the plate and extract the informa-

tion from the image as shown in this paper. Since we

are using image matching for recognition part, our ap-

proach can be used for any plate or sign with different

alphabet and characters.

Recently Google has released a software named

My Location

which can estimate position of a cell

phone user by just a simple packet of data transferred

between the cell phone and connection service tow-

ers around (Figure 16). This estimate, though goes

far rough (up to 5000 meters) in unsettled places, de-

pends on concentration of cell phone towers around.

In urban areas density of the towers is high enough to

assure an accuracy while GPS information is not al-

ways available nor accurate, especially in high density

aria. Integration of our plate detection and recognition

system with available functions like My Location will

result in a quite user friendly and applicable device.

The overall processing time of our system is less than

10 seconds per image (independent of picture size).

4 CONCLUSIONS

In the paper we have presented a method for detect-

ing and recognizing street name plates with applica-

tions to urban navigation and map indexing by mobile

users, e.g. when the images are acquired by a mobile

phone. We use a generic approach to structural object

detection and recognition. A structured object is de-

tected using a boosting approach and false positives

are ﬁltered using a speciﬁc method called the texture

transform. In a second step the subregion contain-

ing the key information, here the text, is segmented

out. Text is in this case characterized as texture and

a texton based technique is applied. Finally the texts

www.google.com/gmm

Figure 16: As an estimate, Google draws a circle on the map

of user’s cell phone, highlighting where the user probably

is.

are recognized by using Dynamic Time Warping on

signatures created from the identiﬁed regions. The

recognition method is general and only requires text

in some form, e.g. a list of printed words, but no im-

age models of the plates for learning. Therefore, it

can be shown to scale to rather large data sets. More-

over, due to its generality it can be applied to other

problems, such as logo and sign recognition. The de-

tection step relies on knowledge about the appearance

of street signs. However, the boosting approach also

can be applied to other cases as long as the target re-

gion is structured in some way.

In the experiments we obtain over 91% overall de-

tection and recognition accuracy on 100 test images

containing street plates from the city of Graz. The re-

sults show that the detection phase is the most crucial

and also time consuming part. The overall speed has

not yet been a major concern and presently the whole

system requires slightly less than 10 second per im-

age, of which segmentation and recognition takes less

than one second. We used a desktop PC with 3.2 GHz

CUP and 2 GB memory. The detection, as the ﬁrst

step, is of major importance and needs to be as accu-

rate and robust as possible. So, continued efforts are

on speeding-up this part without loss of accuracy. The

recognition method we utilized turned out to be accu-

rate enough, even if we have 1000 reference models.

However in practice we can in our application limit

this number to about 50 by estimating the location of

the mobile device. This would give an overall recog-

nition rate of almost 100 percent.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

354

ACKNOWLEDGEMENTS

The reported work has been performed within the EU-

IST project MOBVIS, FP6-511051. This support is

gratefully acknowledged.

REFERENCES

Adamek, T., OConnor, N., and Smeaton, A. (2007). Word

matching using single closed contours for indexing

handwritten historical documents. In International

Journal on Document Analysis and Recognition.

Ataer, E. and Duygulu, P. (2007). Matching ottoman words:

an image retrieval approach to historical document in-

dexing. In Proc. ACM international conference on Im-

age and video retrieval.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In Proc. Computer Vision

and Pattern Recognition.

Freund, Y. and Schapire, R. (1995). A decision-theoretic

generalization of on-line learning and an application

to boosting. In Proc. European Conference on Com-

putational Learning Theory.

Ganapathi, T. and Lourde, R. (2006). Thresholding and

character recognition from a digital raster image. In

Proc. International Confrence on System of Systems

Engineering.

Ishidera, E., Lucas, S., and Downton, A. (2002). Likeli-

hood word image generation model for word recog-

nition. In Proc. International Conference on Pattern

Recognition.

Kim, K., Jung, K., and Kim, J. (2003). Texture-based ap-

proach for text detection in images using support vec-

tor machines and continuously adaptive mean shift al-

gorithm. In IEEE Transactions on Pattern Analysis

and Machine Intelligence.

Laptev, I. (2006). Improvements of object detection using

boosted histograms. In Proc. British Machine Vision

Conference.

Leon, M., Mallo, S., and Gasull, A. (2005). A tree

structured-based caption text detection approach. In

In Fifth IASTED VIIP.

Merino, C. and Mirmehdi, M. (2007). A framework towards

realtime detection and tracking of text. In Interna-

tional Workshop on Camera-Based Document Analy-

sis and Recognition.

Ojala, T., Pietikinen, M., and Menp, T. (2002). Multireso-

lution gray-scale and rotation invariant texture classi-

ﬁcation with local binary patterns. In IEEE Transac-

tions on Pattern Analysis and Machine Intelligence.

Papageorgiou, C., Oren, M., and Poggio, T. (1998). A gen-

eral framework for object detection. In Proc. Interna-

tional Conference on Computer Vision.

Rath, T. and Manmatha, R. (2003). Word image matching

using dynamic time warping. In Proc. Computer Vi-

sion and Pattern Recognition confrence.

Ratti, C., Sevtsuk, A., Huang, S., and Pailer, R. (2007). Mo-

bile landscapes: Graz in real time. In Location Based

Services and TeleCartography.

Sakoe, H. and Chiba, S. (1990). Dynamic programming

algorithm optimization for spoken word recognition.

In Readings in speech recognition.

Schroff, F., Criminisi, A., and Zisserman, A. (2006). Single-

histogram class models for image segmentation. In

Computer Vision, Graphics and Image Processing.

Shanker, A. and Rajagopalan, A. (2007). Off-line signature

veriﬁcation using dtw. In Pattern Recognition Letters.

Shapiro, V. and Gluhchev, G. (2004). Multinational license

plate recognition system: Segmentation and classiﬁ-

cation. In Proc. International Conference on Pattern

Recognition.

Shapiro, V., Gluhchev, G., and Dimov, D. (2006). Towards

a multinational car license plate recognition system.

In Machine Vision and Applications.

Tavakoli, A., Bjrkman, M., Hayman, E., and Eklundh,

J. (2006). Real-time texture detection using the lu-

transform. In In Workshop on Computation Intensive

Methods for Computer Vision.

Tavakoli, A., GeuseBroek, J., and Zisserman, A. (2008).

Texture classiﬁcation with minimal training images.

In Proc. International Conference on Pattern Recog-

nition.

Varma, M. and Zisserman, A. (2003). Texture classiﬁcation:

Are ﬁlter banks necessary? In Proc. Computer Vision

and Pattern Recognition confrence.

Viola, P. and Jones, M. (2001). Rapid object detection us-

ing a boosted cascade of simple features. In Proc.

Accepted Confrence on Computer Vision and Pattern

Recognition.

Yan, D., Hongqing, M., Jilin, L., and Langang, L. (2001).

A high performance license plate recognition system

based on the web technique. In Proc. Intelligent

Transportation Systems confrence.

Ye, Q., Jiao, J., Huang, J., and Yu, H. (2007). Text detection

and restoration in natural scene images. In Journal of

Visual Communication and Image Representation.

READING STREET SIGNS USING A GENERIC STRUCTURED OBJECT DETECTION AND SIGNATURE

RECOGNITION APPROACH

355
