ROBUST NUMBER PLATE RECOGNITION IN IMAGE

SEQUENCES

Andreas Zweng and Martin Kampel

Institute of Computer Aided Automation, Vienna University of Technology, Pattern Recognition and Image Processing

Group, Favoritenstr. 9/1832, A-1040 Vienna, Austria

Keywords: License Plate Localization, License Plate Recognition, Character Classification, Character Segmentation,

Image Sequences, Blob Analysis.

Abstract: License plate detection is done in three steps. The localization of the plate, the segmentation of the

characters and the classification of the characters are the main steps to classify a license plate. Different

algorithms for each of these steps are used depending on the area of usage. Corner detection or edge

projection is used to localize the plate. Different algorithms are also available for character segmentation

and character classification. A license plate is classified once for each car in images and in video streams,

therefore it can happen that the single picture of the car is taken under bad lighting conditions or other bad

conditions. In order to improve the recognition rate, it is not necessary to enhance character training or

improve the localization and segmentation of the characters. In case of image sequences, temporal

information of the existing license plate in consecutive frames can be used for statistical analysis to improve

the recognition rate. In this paper an existing approach for a single classification of license plates and a new

approach of license plate recognition in image sequences are presented. The motivation of using the

information in image sequences and therefore classify one car multiple times is to have a more robust and

converging classification where wrong single classifications can be suppressed.

1 INTRODUCTION

Automatic license plate recognition is used for

traffic monitoring, parking garage monitoring,

detection of stolen cars or any other application

where license plates have to be identified. Usually

the classification of the license plates is done once,

where the images are grabbed from a digital network

camera or an analog camera. The resolution of the

license plates has to be very high in order to

correctly classify the characters. Typically

localization of the license plate is the critical

problem in the license plate detection process. For

localization, candidate finding is used in order to

find the region mostly related to a license plate

region. If the license plate is not localized correctly

for any reason (e.g. traffic signs are located in the

background), there is no other chance to detect the

license plate when taking only one frame into

consideration.

In this paper we propose an approach of

automatic license plate detection in video streams

when taking consecutive frames into consideration

for a statistical analysis of the classified plates in the

previous frames. The idea is to use standard methods

for the classification part and use the classification

of as many frames as possible to exclude

classifications where the wrong region instead of the

license plate region was found or the classification

of the characters was wrong due to heavily

illuminated license plates, partly occluded regions or

polluted plates. The algorithm has to perform with at

least 10 frames per second if the car is visible only

for some seconds to retrieve enough classifications

for the statistical analysis. To reduce the amount of

computation, grayscale images are computed from

the input images where it is also not necessary to

keep the information of all three color channels for

our approach.

The remainder of this paper is organized as

follows: In section 2, related work is presented, in

section 3 the methodology is reviewed (plate

localization, character classification and the

classification of the plate). In section 4 experimental

results are shown and section 5 concludes this paper.

Our approach has the following achievements:

Zweng A. (2009).

ROBUST NUMBER PLATE RECOGNITION IN IMAGE SEQUENCES.

In Proceedings of the First International Conference on Computer Imaging Theory and Applications, pages 56-63

DOI: 10.5220/0001801200560063

 SciTePress

• High improvement of existing approaches

• Real time classification in image sequences

• Converging progress of classification

2 RELATED WORK

Typically license plate recognition starts by finding

the area of the plate. Due to rich corners of license

plates Zhong Qin et.al. (2006) uses corner

information to detect the location of the plate.

Drawbacks of this approach are that the accuracy of

the corner detection is responsible for the accuracy

of the plate localization and the detection depends

on manual set parameters. Xiao-Feng et al. (2008)

use edge projection to localize the plate which has

drawbacks when the background is complex and has

rich edges. For character segmentation Xiao-Feng et

al. (2008) made use of vertical edges to detect the

separations of characters in the license plate where

Feng Yang et.al. (2006) use region growing to detect

blobs with a given set of seed points. The main

problem of this approach is, that the seed points are

chosen by taking the maximum gray-values of the

image which can lead to skipped characters due to

the fact that no pixel in the characters blob has the

maximum value. For character classification, neural

networks are used (Anagnostopoulos et al., 2006;

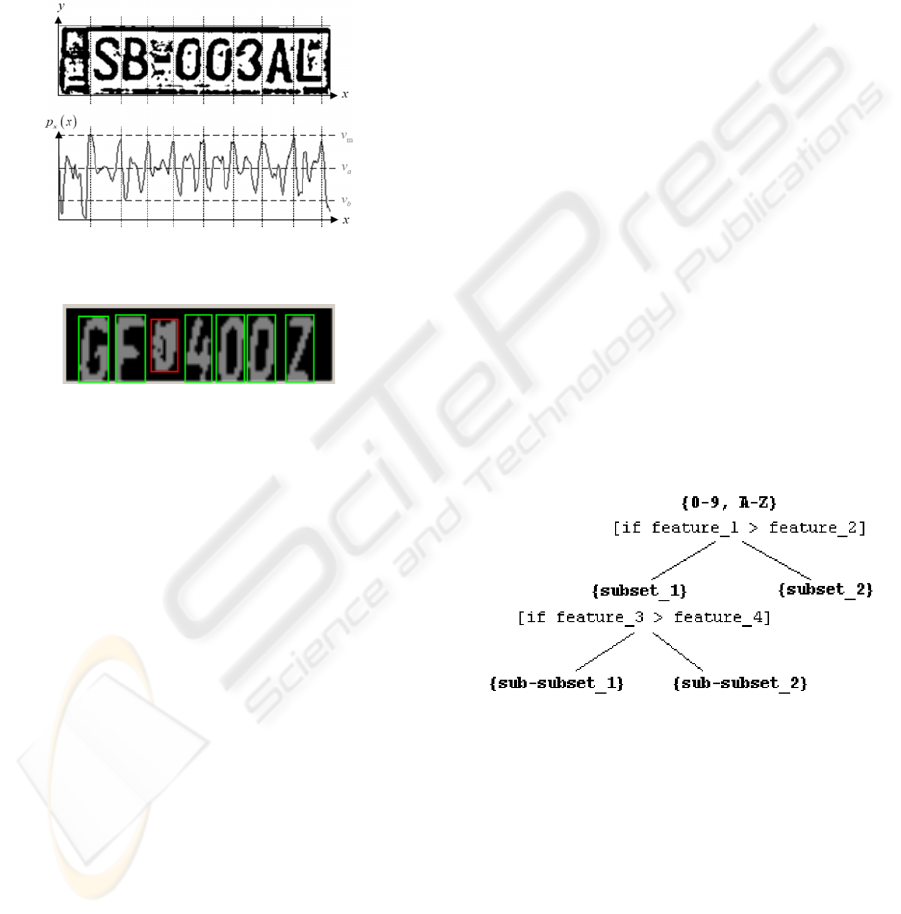

Peura and Iivarinen, 1997). Decision trees can also

be used to classify characters where each decision

stage splits the character set into subsets. In case of a

binary decision tree, each character-set is divided

into two subsets.

3 METHODOLOGY

The methodology is divided into three main points.

The license plate localization algorithms which finds

the region of the plate, the character segmentation

which extracts the digits on the plate and the license

plate classification which classifies the extracted

blobs. The license plate classification is separated in

three steps, namely the single classification, which is

done in each frame, the temporal classification

which uses the single classifications and is also done

in each frame and the final classification which uses

the temporal classifications and is done once per

license plate at a triggered moment (e.g.: after 20

classifications; when the plate is not visible

anymore). The algorithms in this paper are

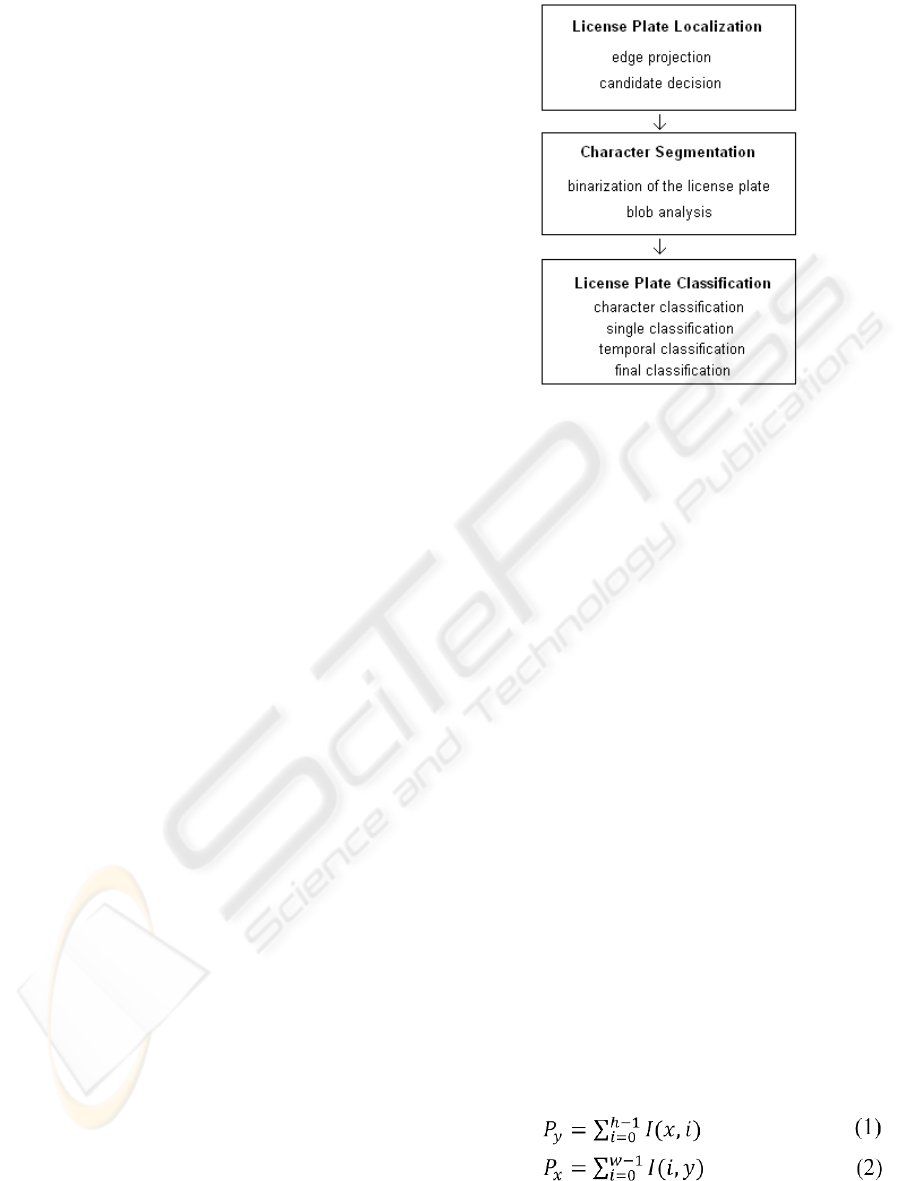

summarized in the graph shown in fig. 1.

Figure 1: Summary of algorithms.

3.1 License Plate Localization

In video streams license plates are not present in all

frames so the first part of the localization is to detect

whether a license plate is present or not. Edge

projection is used to find plate candidates, which is

described in section 3.1.1. To detect if a plate is

located in the region of interest in the image, the

highest edge projection value is stored for the past

frames. In our approach the past 1500 frames are

taken to compute the edge projection mean value. If

the highest edge projection value in the actual frame

is 10% higher than the mean value, further

computation in license plate detection is done,

otherwise the frame is rejected.

3.1.1 Localization of License Plates

License plates usually have high contrast due to the

characters in the plate region. This property can be

used to detect license plates localization. The

localization process is done in three steps. The first

step is to detect vertical positions of possible license

plates by projecting vertical edges onto the vertical

axis. The second step is to detect the horizontal

boundaries of the license plate by projecting

horizontal edges onto the horizontal axis (Martinsky,

2005).

is the horizontal edge projection of line y and

is the vertical edge projection of column x.

Regions of license plates produce a high edge

ROBUST NUMBER PLATE RECOGNITION IN IMAGE SEQUENCES

projection at their position, so the highest peaks of

the edge projections are the best candidates for

license plates. Sometimes other regions like the

regions of traffic signs or the cars grille produce

even higher projections at their positions than

license plates. An approach to suppress such objects,

is to find a certain amount of license plate candidates

and discard candidates which do not satisfy the

license plate properties (e.g. characters are in the

license plate or the regions width-to-height relation

is higher than 1, usually about 4.5 to 5). Edge

projection is affected by noise, so horizontal and

vertical median filtering is done before edge

detection. The horizontal median filter usually has

more columns than rows and vice versa for the

vertical median filter. We have used a horizontal

median filter of size 20 by 1 and a vertical median

filter of 1 by 20 pixel. For edge detection, the Sobel

Kernel was used to detect edges in horizontal and

vertical detection separately. Horizontal and vertical

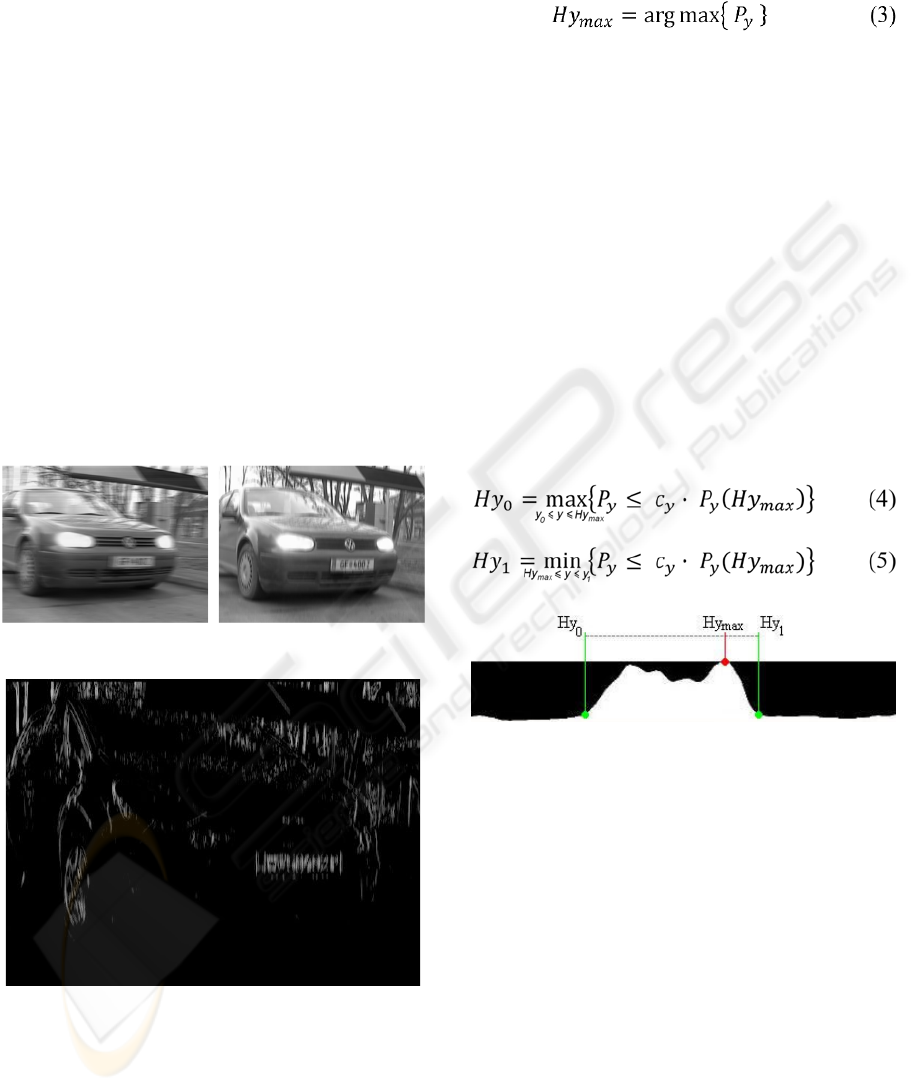

median filtering results can be seen in fig. 2 and

horizontal edge detection results are shown in fig. 3.

Figure 2: Horizontal and vertical median filtering.

Figure 3: Result of horizontal edge detection on a median

filtered image.

3.1.2 Band Clipping and Plate Clipping

The clipping of the top and bottom boundaries of the

license plate is called band clipping and the clipping

of the left and right boundaries is called plate

clipping (Martinsky, 2005). In order to find the best

candidates, the highest peaks of the projections have

to be found which is computed as follows:

Where P

is the resulting histogram of the horizontal

projection and Hy

max

is the maximum value of this

histogram. To be able to find the boundaries of the

plate, the histogram has to be iterated from the

position of the maximum value in both directions

until the histogram value reaches a value which is

lower than Hy

max

multiplied by a factor which is the

threshold value usually chosen as 0.42. This value

was chosen by experimental observation of the

results. This value turns out to be the best value for

the given image quality and compression which

sparsely influence the edge projection. Equation 4

and 5 describe the computation of these boundaries

where H

is the lower boundary and H

is the upper

boundary of the license plate, c

is the threshold

value and P

is the histogram (Martinsky, 2005). y

and y

denote the image-height limitations (y

=0,

=image-height) A possible result of this process is

illustrated in fig. 4.

Figure 4: Boundary detection of the edge projections.

Equivalent calculations are done when

calculating the right and left boundaries where the

edge values are only taken from the clipped

boundaries of the previous found horizontal band

(Martinsky, 2005).

3.1.3 License Plate Candidates

The candidate region found by taking the highest

peak of the edge projection is not necessarily the

region of the real license plate. The lights of a car

and the cars grille also produce high edge projection

values, so these candidates have to be rejected and

other peaks have to be analyzed. Our experience was

that three candidates for the horizontal projection

and three candidates for the vertical projection (for

each of the three horizontal projections) are enough

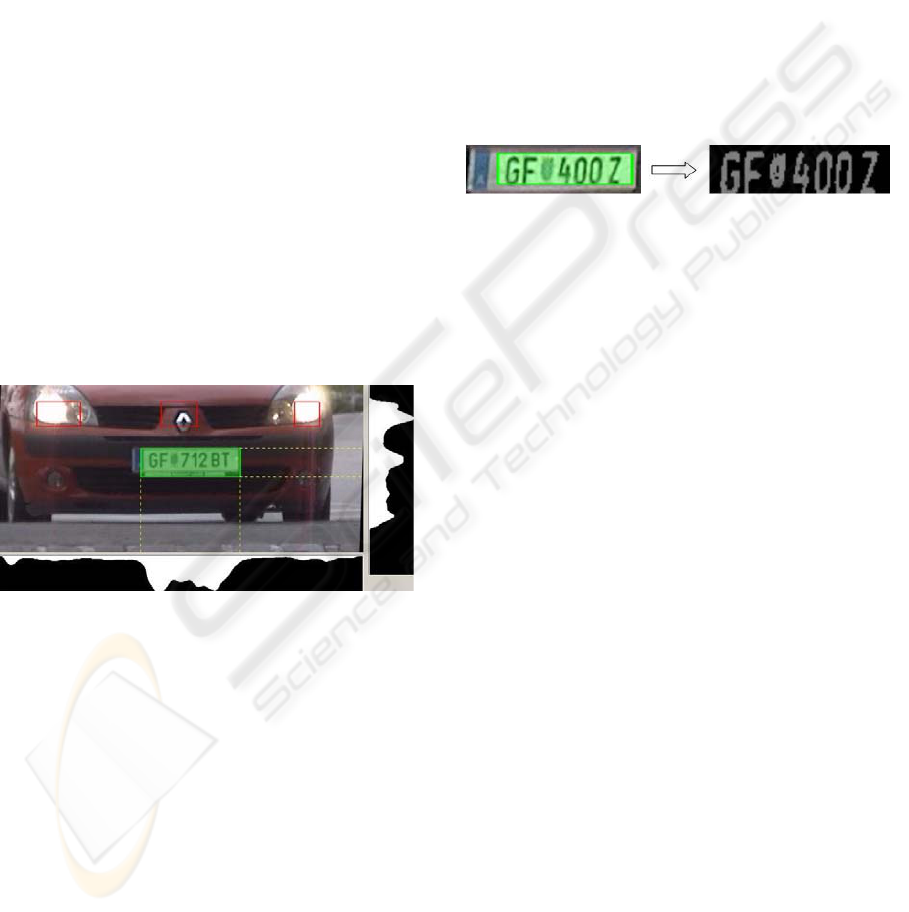

to find the real license plate. In fig. 5, the edge

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

projection at the position of the light is higher than

the projection of the plate. This is the reason why the

regions at the lights are detected as candidates (red

rectangles). After analyzing the regions, no

information of a license plate could be found, so the

three best candidates are rejected and the plate was

found at the second highest projection of the

horizontal edge histogram. The algorithm for finding

the license plate can be described as follows:

FOR i = 1 to 3

FOR j = 1 to 3

Find top and bottom limits

Find left and right limits

IF region is a license plate

FOUND = true

BREAK

ELSE

reject region

continue

ENDIF

ENDFOR

IF FOUND == true

further classification

ELSE

reject frame

ENDIF

Figure 5: Candidate finding and rejection.

3.2 Character Segmentation

Before the license plate can be classified, each

character has to be extracted and classified

separately. There are several possibilities to extract

the characters like blob analysis or segmentation

using the vertical edge projection. We used blob

analysis because the information of the blobs can be

used for candidate selection. To reduce the

complexity, the license plate region is converted into

a binary image. In order to detect connected

components (blobs) in the region, binarization of the

plate region has to be done to reduce the complexity.

After the binarization, the license plate is segmented

into foreground and background, where the

foreground are the characters and the background is

the plate itself. A threshold value is calculated using

the algorithms in (Ridler and Calvard, 1987). For

local non-uniform illumination conditions, the

algorithm in (Rae Lee, 2002) should be used.

The threshold is then used for the whole plate

region. This can lead to problems when the plate is

more illuminated in some regions than in others or

the plate is polluted in some regions. To solve that

problem the approach of Chow und Kaneko is used

which separates the region into sub-regions (e.g. 2

by 2 or 3 by 2 etc.), calculates the threshold for each

sub-region as described in the steps above and the

threshold for pixels between sub-regions are

interpolated using the weight of all neighboring

subregions. The result of this process is illustrated in

fig. 6.

Figure 6: Binarization of the license plate.

3.2.1 Segmentation using the Vertical Edge

Projection

This approach takes the vertical edge projection of

the plate region which is calculated in the

localization process and computes the first

derivative of the histogram to find black to white

and white to black changes (Martinsky, 2005; Zhang

Y., Zhang C., 2003). From the resulting histogram,

the highest peaks are at the positions of the character

separations. The algorithm takes the highest peak

and separates the plate into two subregions at this

position. For each sub-region, the highest peak is

taken and the plate is separated again. This process

is done until the region reach a certain width or the

peaks are to low compared to the highest value of

the whole histogram. A possible result can be seen

in fig. 7. For each sub-region, noise is removed and

the character blobs are extracted for further

classification.

3.2.2 Segmentation using Blob Analysis

Feng Yang et.al. uses region growing to detect blobs

with a given set of seed points (Yang et al., 2006).

The main problem of this approach is, that the seed

points are chosen by taking the maximum gray-

values of the image which can lead to skipped

characters when no pixel in the characters blob has

the maximum value. In order to solve this problem

all blobs should be considered as characters. In fact

the algorithm will find more blobs than characters so

further analysis is necessary. From the binary image,

the characters can be extracted directly by analyzing

ROBUST NUMBER PLATE RECOGNITION IN IMAGE SEQUENCES

the connected components of the region. For each

blob the size and the upper and lower boundary is

stored for the analysis. The median value of the sizes

is computed and all blobs with a difference of more

than 10% are discarded. The same procedure is done

for the positions of the blobs. Blobs like the one in

fig. 7 after “SB” are discarded in this process. A

typical result is illustrated in fig. 8. The third

character from the left is not classified as a character

due to the size of the blob and therefore discarded.

Figure 7: Segmentation using the vertical edge projection

from (Martinsky, 2005).

Figure 8: Blob extraction using blob analysis.

3.3 Feature Extraction and Character

Classification

In our approach, character classification is done by

using a decision tree. In each stage, characters are

separated by using a comparison of features until

only one character is in each leaf. The advantage of

this approach is, that it is not relevant that one

feature alone cannot separate characters and the

decision tree is better, the more features are used.

For each character features are extracted like:

• center of mass

• compactness

• euler number

• signature

and other features (Kim H. and Kim J, 2000; Peura

and Iivarinen, 1997; Siti Norul Huda Sheikh et al.,

2007). The signature of the blob is computed by

calculating the distance from the image border to the

first blobs border-pixel for each side (top-to-bottom,

left-to-right, bottom-to-top and right-to-left). It is

then normalized to a signature of 32 values (eight on

each side) and each value of the signature is used as

a feature. Another set of features are extracted by so

called “zoning” of the blob. Zoning separates the

blob into zones where local features of each zone are

computed. The signature of the zones can also be

used as features.

Before we are able to classify characters, we first

have to train the characters by computing all features

for the whole training set (about 250.000 characters

are used) and compute feature-to-feature relations

which separates the characters best. Decisions like

If feature_1 > threshold then

are not used due to the variance to rotation and

scale of most features. Instead following relations

are used:

if feature_1 > feature_2 then

The results are decisions like “the lower left

zone’s average gray level is higher than the top right

zone’s gray level”. The decision tree can look like

the tree in fig. 9. Due to the decisions, the tree is a

binary decision tree. The result of a decision stage in

the training phase could be that 99.5% of all samples

of character1 are classified to be on the left sub-tree,

99.7% of all samples of character2 are classified to

be on the right sub-tree and 70% of all samples of

character3 are also classified to be on the right

subtree. In such cases character3 is taken in both

subtrees for a more precise decision when other

features are taken for classification.

Figure 9: Binary decision tree.

3.4 The Use of Temporal Information

A license plate of a car may be present for 30

frames, which means that 30 classifications are

stored for this plate. The classifier stores the data of

each character for all frames. In each frame all

characters are classified and the number of

characters is stored. At the actual frame the

classification includes all previous classifications of

that license plate. Consider the following example.

The license plate is classified four times:

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

 128A

 28A

 12BA

 128H

We call these classifications single

classifications. The second classification did not

recognize the first character so all characters are

shifted to the left which causes errors in

classification. For that reason the first step is to

compute the median of the number of characters of

the classifications. In this case the median value is

four characters. For further analysis, only

classifications with the number of four characters are

taken to prevent, that classifications like the second

one in the example affects the classification. After

this step the following license plates are left:

 128A

 12BA

 128H

The second step is the computation of the median of

the characters for each position which results in the

classification “128A”. This process is done in each

frame which leads to a converging classification

what we call the temporal classification because it is

not the final decision of the license plate. The car

corresponding to the license plate which is in the

process to be detected may drive out of the cameras

view. The license plate in that case is partly outside

of the image and the classification recognizes less

characters than before for these frames. This can

lead to misclassification and the temporal

classification converges to a wrong license plate. To

suppress this problem, the final decision is computed

by taking the maximum occurrence of the temporal

classifications. Table 1 illustrates the process of the

classification steps by an example. (The real license

plate is 128A).

Table 1: Example of a classification process.

Frame

Single

classification

Temporal

classification

1 128A 128A

2 28A 128A

3 128H 128A

4 12B 128A

5 12B 128A

6 12B 128A

7 12B 12B

The temporal classification of the last frame

where the license plate is visible should be the best

classification because of the converge progress. In

this example the last three frames did not recognize

the most right character due to the position of the car

which may be partly outside the view. Due to this

problem, the median of the numbers of characters at

that position is three instead of the correct number of

four so the single classifications with three

characters are taken for the temporal classification.

The final classification in this example would be

“12B” which is wrong. In that case all temporal

classifications are used to compute the classification

of maximum occurrence. “128A” has the maximum

occurrence in this example although the single

classifications are correct only in one frame of

seven. Because of the fact, that later temporal

classifications include more single classifications,

the temporal classifications should be weighed in

order to support this approach. The temporal

classifications are weighed by their number of

including single classifications. The temporal

classification in the first frame contains only one

single classification, where the temporal

classification in frame 7 contains 7 single

classifications. The final result of the example from

table 1 can be calculated as follows. The final

classification is “128A” with a score of 21:

Score of “128A” = 1+2+3+4+5+6 = 21

Score of “12B” = 7

4 EXPERIMENTAL RESULTS

The huge amount of classifications for each license

plate requires a good computational performance of

the algorithm. Our implementation was tested on an

Intel Pentium M 1.8GHz where the performances

are shown in table 2. The input images are of

dimension 640 by 480 pixels and three channels.

The vertical edge detection was only computed on

the region of the horizontal band. The table shows

the minimum and maximum performances if a

license plate was found or not.

Table 2: CPU performances of different detections.

No plate

min

No plate

max

Plate min Plate

max

290 fps 350 fps 80 fps 250 fps

The classification rate of the license plate is

subdivided into three categories. One category is the

detection if a license plate is present in the actual

frame or not. The second category is the

classification of each character and the last category

is the result of the final decision of the license plate

classification. The results can be seen in table 3,

ROBUST NUMBER PLATE RECOGNITION IN IMAGE SEQUENCES

where about 350.000 characters are classified and

~2000 license plates are found and classified.

Table 3: Classification performances.

Character

classification

License plate

detection

License plate

classification

~98.5% 100% ~98%

The characters and the 2000 license plates are

extracted from a 12 hours video sequence and

manually annotated for evaluation and training tests.

The conditions for the license plate classification

varied over time from dawn until dusk. The video

sequence was recorded with a static camera at a

parking garage facing the incoming cars as

illustrated in figures 10 to 14. The detection if

license plates are present in one frame was correct in

every case. Sometimes when no license plate was

present and other objects caused a high edge

projection, candidate finding was started but in such

cases all candidates are rejected. Fig. 10 to 14 show

results of our approach.

Under bad conditions the algorithm performs not

better than the single classification because if the

single classifications of a single car are incorrect in

more than 50%, the statistical analysis chooses a

incorrect license plate. The statistical analysis takes

the correct license plate if the single classifications

of a single car are correct in more than 50%. In

general the percentage of correct single

classifications has to be higher than the most

frequent incorrect candidate for the statistical

analysis to choose the correct classification.

In fig. 10 the license plate is partly polluted (“9”

and “R”) so that the classification fails. Fig. 11

illustrates a correct temporal classification due to the

weight of the previous classifications although the

light may be a reason for segmentation errors. In fig.

14 the license plate was not correctly localized. Due

to the number of single classifications, the temporal

classification is not affected.

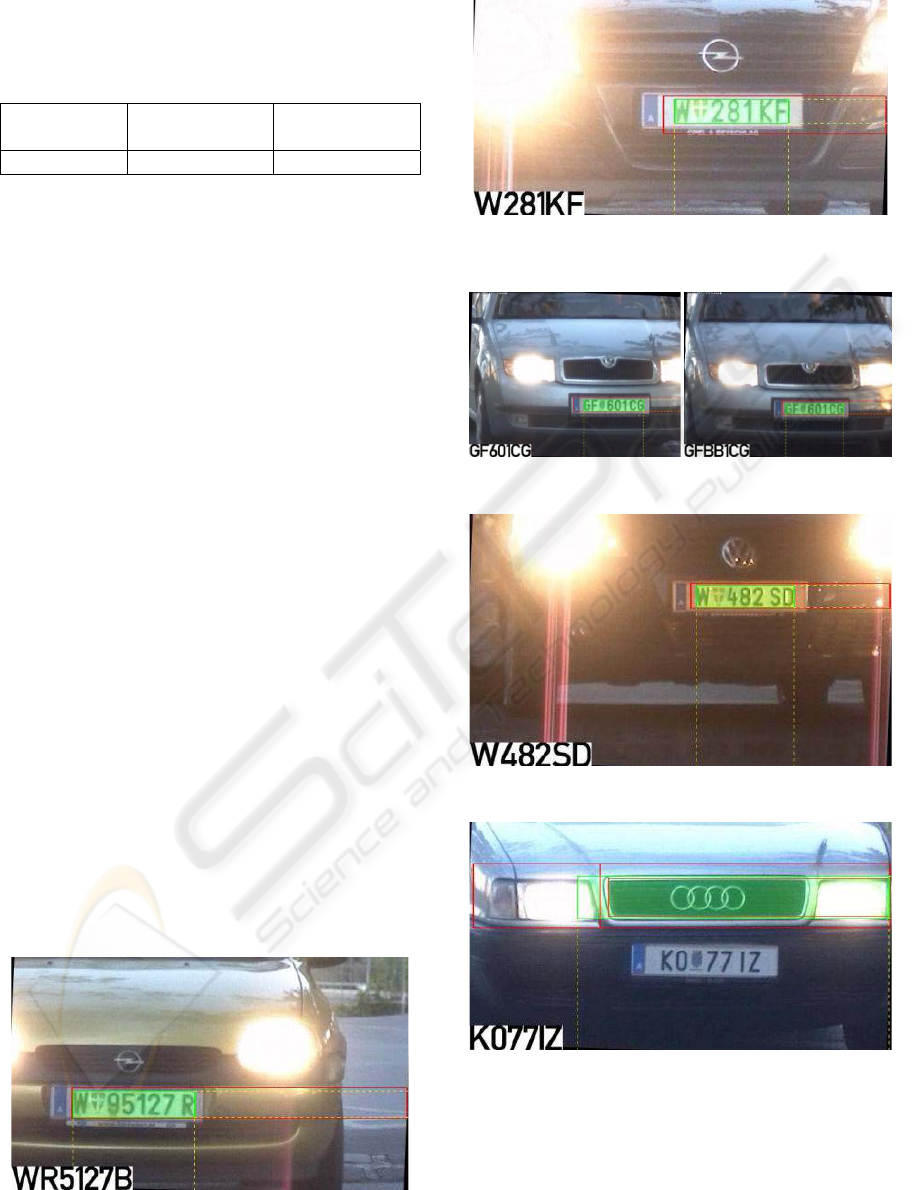

Figure 10: License plate with polluted characters.

Figure 11: Correctly identified plate although the lights of

the car influence the segmentation.

Figure 12: Converging classification.

Figure 13: Correct temporal classification.

Figure 14: Correct temporal classification although

incorrect single classification.

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

5 CONCLUSIONS AND FUTURE

WORK

In this paper a new approach of license plate

recognition is presented where the license plate is

not recognized only in one frame but in several

consecutive frames. For that a statistical approach is

presented in order to improve the classification

result. The single classification approach can be

adapted but in case of a real-time system, the single

classification approach should be able to be executed

several times per second. The single classification

approach used in our work performs at 70%

classification rate where our statistical analysis

improves that result to 98%. It can be predicted that

a better single classification approach combined

with our approach will achieve almost a

classification rate of 100% because single

classifications where the license plate is visible

under bad conditions can be suppressed. Our

approach extends existing approaches by analyzing

the classifications in each frame by the help of the

information from image sequences. This extension

always leads to a better classification result. For

future works the recognition should be independent

for the classification of other countries. For that a

decision tree for each countries license plate

characters and one decision tree for a “country

decision” is built. In the first step the characters are

analyzed to which country the characters belong and

in the second step the corresponding decision tree to

this country is chosen to classify the characters.

ACKNOWLEDGEMENTS

This work was partly supported by the CogVis

Ltd.

However, this paper reflects only the authors’ views;

CogVis

Ltd. is not liable for any use that may be

made of the information contained herein.

REFERENCES

Anagnostopoulos, C.N.E., Anagnostopoulos, I.E., et al.

(2006). A license plate-recognition algorithm for

intelligent transportation system applications.

Intelligent Transport Systems, 7(3): pages 377-392.

Feng Yang, Zheng Ma, Mei Xie, (2006). A novel

approach for license plate character segmentation. In

International Conference on Industrial Electronics

and Applications, pages 1-6.

Kim H., Kim J., (2000). Region-based shape descriptor

invariant to rotation, scale and translation. Signal

Process. Image Commun. 16 (2000) pages 87-93.

Martinsky O., (2007). Algorithmic and Mathematical

Principles of Automatic Number Plate Recognition

Systems, B.SC Thesis, Brno.

Peura M., Iivarinen J., (1997). Efficiency of simple shape

descriptors. In Proceedings of the Third International

Workshop on Visual Form, pages. 443-451.

Rae Lee B., (2002). An active contour model for image

segmentation: a variational perspective. In Proc. of

IEEE International Conference on Acoustics Speech

and Signal Processing, pages 1585-1588.

Ridler T.W., Calvard S., (1987). Picture Thresholding

Using an iterative Selection method. IEEE Trans. on

Systems, Man, and Cybern., vol. 8, pages 630-632.

Siti Norul Huda Sheikh A., Marzuki K., et al., (2007).

Comparison of feature extractors in license plate

recognition. In AMS '07: Proceedings of the First Asia

International Conference on Modelling & Simulation,

pages 502-506.

Xiao-Feng C., Bao-Chang P., Sheng-Lin Z., (2008). A

license plate localization method based on region

narrowing. Machine Learning and Cybernetics, 2008

International Conference, Volume 5, 12-15 July, pages

2700-2705.

Zhang Y., Zhang C., (2003). New Algorithm for Character

Segmentation of License Plate, Intelligent Vehicles

Symposium, pages 106-109.

Zhong Qin., Shengli Shi., Jianmin Xu., Hui Fu., (2006).

Method of license plate location based on corner

feature. In World Congress on Intelligent Control and

Automation, pages 8645-8649.

http://www.cogvis.at

ROBUST NUMBER PLATE RECOGNITION IN IMAGE SEQUENCES
