OPTIMIZING THE MANAGEMENT AND RENDERING OF RAIN

Anna Puig-Centelles, Oscar Ripollesa and Miguel Chover

Computer and Languages Department, Universitat Jaume I, Castellon, Spain

Keywords:

Real-time Rain, Particle Systems, Multiresolution, Virtual Environments, GPU, Geometry Shader.

Abstract:

Current rain solutions are capable of offering very realistic images. Nevertheless, this realism often involves

extremely high rendering costs. Our proposal is aimed at facilitating the creation and management of rain

scenes. On the one hand, we deﬁne the areas in which it is raining and, on the other hand, we perform a

suitable management of the particle systems inside them. The latter step is reached by means of level-of-

detail techniques which are applied directly in the Geometry Shader by modifying the size and the number

of rendered particles. Our results prove that fully-integrating the level-of-detail management in the GPU

considerably increases the ﬁnal performance.

1 INTRODUCTION

Realistic-looking rain greatly enhances scenes of out-

door reality, with applications including computer

games and motion pictures. Rain rendering has been

addressed by different authors in order to describe

methods which deﬁne not only the rainfall (Tatarchuk,

2006; Changbo et al., 2008), but also their interaction

with other surfaces (Wang et al., 2005) or even the

water accumulation (Fearing, 2000).

Traditionally, authors have developed rain simula-

tion frameworks which are based on particle systems.

These systems have been successfully used to simu-

late in real time different kinds of fuzzy phenomena,

like smoke or ﬁre. Nevertheless, they present some

limitations due to the cost of translating and rendering

the high amount of raindrops that must be represented

in order to offer a realistic rain appearance.

A possible solution to overcome these limitations

is the exploitation of the current GPU possibilities,

whose constant evolution can considerably increase

the ﬁnal performance. Moreover, it is worth consider-

ing the possibilities of applying multiresolution tech-

niques to existing particle systems.

Little work has been carried out in using level-of-

detail approaches within particle systems. It is impor-

tant to comment on the work presented in (O’Brien

et al., 2001) where the authors propose a hierarchy

of particles and consider the use of physical prop-

erties for switching among LODs in order to obtain

a higher resolution when necessary. Regarding rain,

we must also comment on the solution introduced in

(Puig-Centelles et al., 2008) which gives some initial

ideas on improving rain rendering by means of mul-

tiresolution techniques.

From a different perspective, it is interesting to

consider that real-world raining scenarios include

rainy areas and also non-rainy areas. Even when it is

raining in a very wide area, we must assume that we

could always ﬁnd non-rainy areas nearby. Tradition-

ally, rain simulation has not considered this issue and

their rain systems do not provide smooth transitions

between areas with different rain conditions.

The work presented in this paper is proposed as a

solution for diminishing the management cost of par-

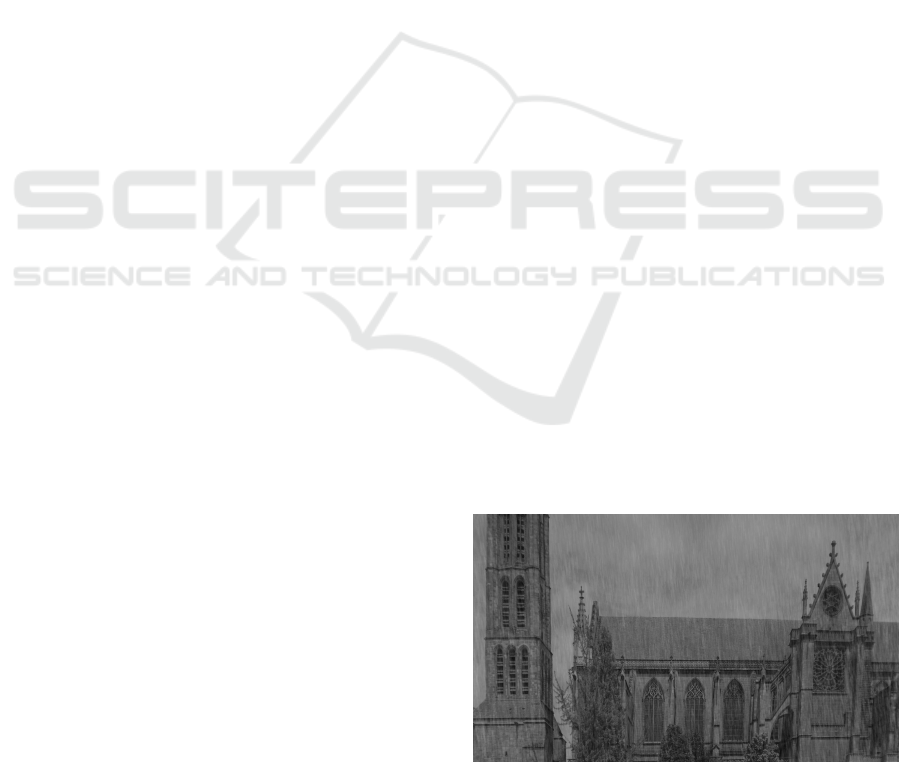

Figure 1: Rain sensation obtained with our solution in a

scene with a building-textured skybox.

373

Puig-Centelles A., Ripollesa O. and Chover M.

OPTIMIZING THE MANAGEMENT AND RENDERING OF RAIN.

DOI: 10.5220/0001801803730378

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications (VISIGRAPP 2009), page

ISBN: 978-989-8111-67-8

ticle systems. To achieve this objective we propose

a method for automatically generating rain environ-

ments with the deﬁnition of rain areas and with an

adequate management of the particles created inside

these areas. Furthermore, we include the LOD con-

cept in the GPU in order to adjust the size and the

number of particles to the conditions of the scene. In

Figure 1 we have an example of a rain scenario ob-

tained with our solution.

This paper is organized as follows. Section 2 con-

siders the state of the art on rain rendering. Section

3 introduces the concept of raining area as well as its

interactions. Section 4 presents the multiresolution

implementation. Section 5 offers the results. Lastly,

Section 6 contains some remarks on our solution.

2 STATE OF THE ART

Rain has been traditionally rendered in two ways, ei-

ther as camera-centered geometry with scrolling tex-

tures or as a particle system.

Scrolling Textures. This approach is based on the

idea of using a texture that covers the whole scene.

Then, the application scrolls it by following the

falling direction of the rain. However, this technique

exhibits certain properties that are stationary in time

(Soatto et al., 2001). In (Wang and Wade, 2004),

the authors present a novel technique for rendering

precipitation in scenes with moving camera positions.

They map textures onto a double cone, and translate

and elongate them using hardware texture transforms.

These methods fail to create a truly convincing

rain impression because of the lack depth and the rain

not reacting accurately to scene illumination. To over-

come this limitation, some authors (Tatarchuk, 2006)

have developed more complex solutions which in-

clude several layers of rain for simulating rainfall at

different distances, although the problem is not com-

pletely solved.

Particle Systems. Traditionally, this has been the

approach chosen for real-time rendering of rain, even

though particle systems tend to be expensive, espe-

cially if we want to render heavy rain. Lately, ren-

dering of rain has become very realistic, although the

management of these systems in real-time applica-

tions still poses severe restrictions.

The work presented in (Kusamoto et al., 2001)

introduced a physical motion model for rain render-

ing with particle systems. Later, the authors of (Feng

et al., 2006) considered the physical properties from

a different point of view. They developed a collision

detection method for raindrops and created a particle

subsystem of raindrops splashing after collision.

Wang et al. presented in (Wang et al., 2006) a

system formed by two parts: off-line image analysis

of rain videos and real-time particle-based synthesis

of rain. This solution is cost-effective and capable of

realistic rendering of rain in real time.

Following a similar approach, N. Tatarchuk

(Tatarchuk, 2006) developed a hybrid system of an

image-space approach for the rainfall and particle-

based effects for dripping raindrops and splashes. It

presents a detailed rainy environment and provides

a high degree of artistic control. The main issue is

that it requires 300 unique shaders dedicated to rain

alone. Moreover, the simulation requires the camera

to maintains a ﬁxed viewing direction.

Rousseau et al. (Rousseau et al., ) propose a rain

rendering method that simulates the refraction of the

scene inside a raindrop. The scene is captured to a tex-

ture which is distorted according to the optical prop-

erties of raindrops and mapped onto each raindrop by

means of a vertex shader.

In paper (Tariq, 2007), Tariq proposes a realistic

rain application that works entirely on the GPU. Rain

particles are animated over time and in each frame

they are expanded into billboards to be rendered us-

ing the Geometry Shader. The rendering of the rain

particles uses a library of textures, which encodes the

appearance of the raindrops under different viewpoint

and lighting directions (Garg and Nayar, 2006).

More recently, the work presented in (Changbo

et al., 2008) introduces a new framework which thor-

oughly address physical properties of rain, visual ap-

pearance, foggy effects, light interactions and scatter-

ing. The main drawback of this approach is that, de-

spite offering very realistic simulations, their method

cannot render a scene with a sufﬁcient framerate to

offer interactive walkthroughs.

Lastly, it is worth mentioning the study made in

(Puig-Centelles et al., 2008), where the authors give

some initial ideas and results about the application

of level-of-detail techniques when rendering realistic

rain. They propose the adaptation of the size of the

particles in the GPU, although the number of particles

and their distribution are initially ﬁxed in the CPU.

Moreover, their exploitation of the Geometry Shader

is quite limited.

3 RAIN MANAGEMENT

One of the main objectives of our model is to be able

to generate rainy environments automatically by cre-

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

374

ating raining areas where thousands of drops are sim-

ulated in real time. Within each rain area, we will sim-

ulate rain with a particle system in which we include

a new level-of-detail framework in order to improve

performance.

The rain framework we are introducing tries to es-

tablish with reasonable precision where it is raining

and where it is not raining inside a given scenario.

Furthermore, we also want to handle transitions in or-

der to create a visually realistic raining effect. An

important aspect of this realism is the possibility of

looking at a far rain area from a non-rainy place.

We have considered that a rain area is simulated

as an ellipse with two initially given radii.

3.1 Rain Container

It is necessary to create and manage a rain container,

which encloses the whole set of raindrops included in

our particle system. It will follow the camera move-

ments continuously so that the user does not lose the

rain perception.

In the literature, it is possible to ﬁnd meth-

ods which use a box-shaped container (Rousseau

et al., ), a cylindrical container (Tariq, 2007) and a

semi-cilyndrical rain container (Puig-Centelles et al.,

2008). Under our circumstances, we consider that a

semi-cilyndrical container with an ellipsoidal base is

more adequate for our purposes. It is more ergonom-

ically adjusted to the user’s ﬁeld-of-view than a box,

it is more efﬁcient than a whole cilynder and, in ad-

dition, it allows the user to perform small turns to

the right or to the left without requiring to reposition

the whole rain container. More precisely, if the user

makes changes in its orientation of less than 45

◦

any direction then it will not be necessary to reori-

ent the container as the rain perception is maintained.

This feature is possible due to the selected shape of

the container and improves previous solutions.

It is also important to take into account the size

of the container. The previously mentioned solutions

had difﬁculties in rendering scenes with heavy rain

and a continuously moving user. This happened due

to the fact that the management cost of their parti-

cle systems makes it impossible to manage these huge

number of particles.

In order to overcome this limitation and use a big-

ger container, our solution incorporates LOD tech-

niques to efﬁciently modify the particle size and lo-

cation while preserving the realistic appearance of

rain. Thus, by combining these techniques with the

selected shape of the container, our method offers an

appropriate solution for reacting efﬁciently to changes

in the position and direction of the frustum of the user.

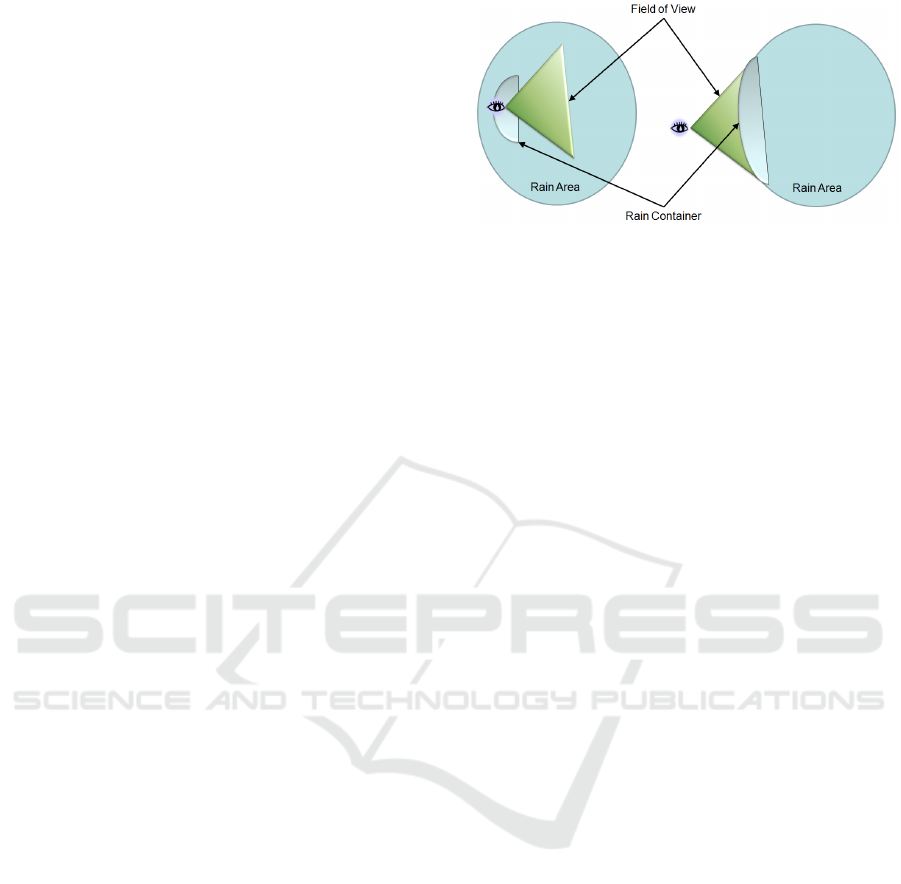

Figure 2: User point of view of the rain area, showing the

two possibilities.

3.2 Simulating Rain Areas

The user could interact with a rain area in two differ-

ent ways. On one hand, the user can be inside the rain

area, completely surrounded by raindrops. We have

named this situation Close Rain. On the other hand,

the user can be outside the rain area, while looking at

it from a distant place or moving away from the area.

In these cases we use the Far Rain model.

These two possibilities are shown in Figure 2. It

is important to note that the rain container has differ-

ent behaviors depending on whether we are using the

close rain or the far rain approach. So, the image on

the left refers to close rain while the other one shows a

possible circumstance in which we must use far rain.

3.3 Close Rain

This case occurs when the observer is inside the rain

area. The rain container is initially centered on the ob-

server. Nevertheless, the location of this container is

updated in order to follow the user’s movements. So,

if the user moves then the container moves with him;

if the user changes the view direction then the con-

tainer will be reoriented too. As we have mentioned

above, we establish different thresholds that must be

overcome before re-locating the rain container in or-

der to avoid updating its location continuously.

3.4 Far Rain

Far rain refers to a scenario where the observer is lo-

cated far away from the rain area. This situation hap-

pens when the camera is placed inside an area where

it is not raining and the camera can look at the area

where it is actually raining.

In order to check whether the user can see the rain

area, we do a simple test against the frustum. If the

test is passed, the ﬁrst step consists in centering the

rain container within the perimeter of the ellipsoidal

rain area, at the closest point to the observer. Then,

OPTIMIZING THE MANAGEMENT AND RENDERING OF RAIN

375

we should modify the size of the rain container in or-

der to cover the whole part of the rain area that the

observer can see. To do so, we consider again the

frustum to determine which is its relation with the el-

lipse that deﬁnes the rain area. Once we have tested

the intersections between the frustum and the ellipse,

we will know whether the observer can see the whole

rain area or just a part of it. If the observer can only

see a part of the container, the same test will tell us the

size of this part in order to adjust the size of the con-

tainer correctly. Figure 2 shows a possible adaptation

of the far rain container with regard to the features of

the observer view. Moreover, we must perform sim-

ilar tests to control the height of the rain container,

expanding it as necessary in order to assure that the

user perceives that the raindrops fall from the sky.

3.5 Transitions between Rain Cases

Within the proposed solution for simulating rain par-

ticles, it is essential to control properly the transitions

that an observer can experiment when changing from

close rain to far rain and vice versa. We must con-

trol whether it is necessary to perform the changes in

order to preserve the realism of our rain system.

The transition from close rain to far rain occurs

when the user leaves the rain area. Our system detects

that change when the user is positioned on the perime-

ter of the ellipse that deﬁnes the rain area. In that

case, the rain container remains static at that point.

The amount of raindrops will decrease progressively

while the user moves away from the rain container

which is no longer following the user’s movements.

Regarding the transition from far rain to close rain,

we again use the perimeter of the rain area. As we

have commented before, we calculate the size of the

rain area that the user can see, in order to adapt the

shape of the rain container. As the observer gets

closer to the rain area, the size of the user’s perceived

area becomes smaller and the container reacts accord-

ingly, decreasing its size. This decrease in size assures

that once the user reaches the perimeter of the rain

area the container will have the original size of the

container. Consequently, we can assure that changing

from far to close rain is almost imperceptible for the

user.

4 MULTIRESOLUTION

IMPLEMENTATION

In our work we decided to follow the particle distribu-

tion presented in (Puig-Centelles et al., 2008). These

authors described a level-of-detail distribution of par-

ticles which assured that there were more rain parti-

cles and smaller in those areas close to the viewer and

less particles but bigger in the areas far from the user.

Therefore, in the farther zones we will render less par-

ticles but with a bigger size so that the global view of

the system resembles the same intensity of rain.

The solution we are presenting proposes adapt-

ing the level-of-detail directly in the GPU. The previ-

ous multiresolution rain model (Puig-Centelles et al.,

2008) obliged the system to initially deﬁne the posi-

tion of each particles and their quantity. As a conse-

quence, the spatial distribution of the raindrops was

ﬁxed and initially deﬁned in the CPU. Our objective

consists in deciding to render more or less particles

directly in the GPU.

In order to accomplish this objective, our system

needs two rendering passes. The ﬁrst one is in charge

of updating the position of each particle, while the

second one applies the multiresolution techniques and

also renders the ﬁnal particle system. During the de-

velopment of this framework we tried to perform all

these tasks in only one single pass. The difﬁculties

appeared when working in the pipeline at the same

time with points and quads. The ﬁrst pipeline is in

charge of translating vertically each raindrop to simu-

late the rainfall. In this pass we use points as the ren-

dering primitive. Following that, the second pipeline

pass will initially receive points but will output quads

for the rain rendering. By updating directly the quads

we would be obliged to translate, re-locate and output

four vertices instead of one for each raindrop, which

our tests have proven to be much more costly.

4.1 Patterns for Creating Raindrops

The main idea of our solution is to use the GPU to

dynamically create more particles in those areas that

are closer to the user. The Geometry Shader facili-

tates this task by enabling to use each particle as a

seed to create many more replics (quads). As we have

mentioned before, the distance is the criterion used to

decide the most suitable size for a particle. This cri-

terion is also used to decide how many particles we

should render from each seed particle.

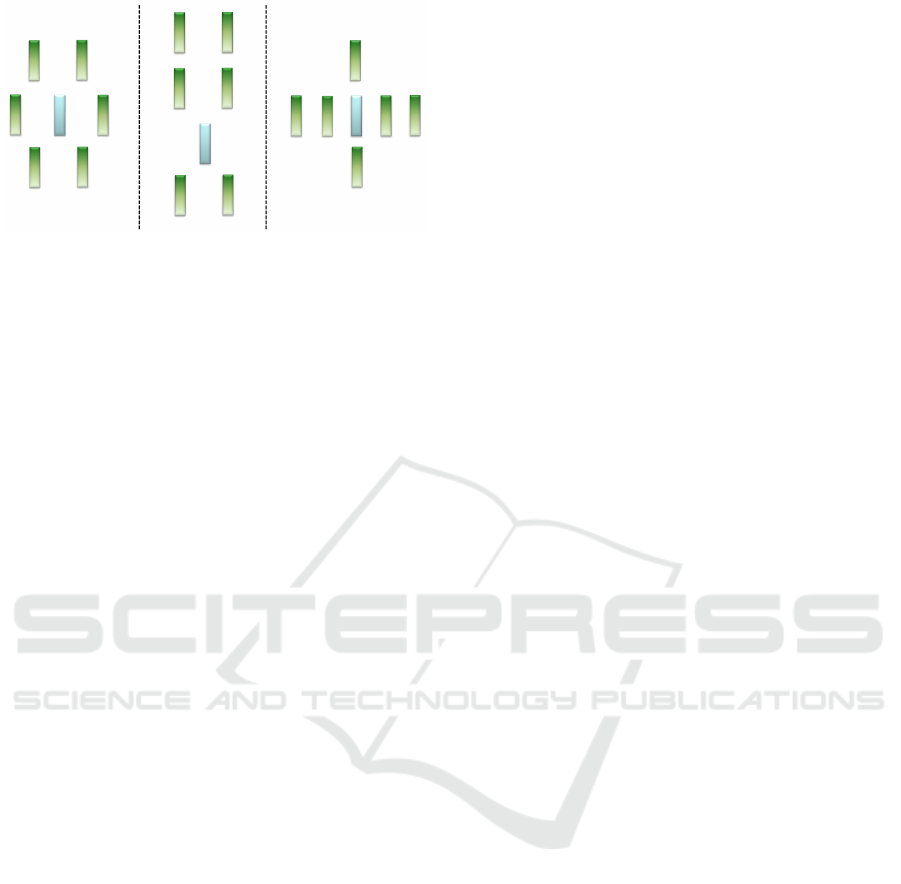

In Figure 3 we present three sample patterns that

are used to generate more particles from an initial one.

The seed particle is depicted in blue and the new gen-

erated ones in green. It is relevant to note that we have

decided to create a maximum number of 6 raindrops

per seed particles. Our tests have proven that with

that number it is enough to get a proper rain impres-

sion without increasing too much the rendering cost.

Moreover, we have applied those three patterns in our

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

376

Figure 3: Sample patterns for rain generation.

test as they are sufﬁcient to avoid the user to perceive

repeated patterns. Nevertheless, both the number of

generated particles and the patterns followed can be

easily modiﬁed in our framework.

4.2 GPU Implementation

In order to avoid all the raindrops following similar

falling paths, we initially give each particle a slightly

different falling speed and direction. Each particle is

given a falling vector, which indicates the displace-

ment direction and amount that have to be added ev-

ery time we update the position of the particles. The

speed is calculated by following the information given

in (Ross, 2000), trying to simulate the way that real

rain behaves.

Similarly, creating the particles strictly following

the presented patterns would entail noticeable repeat-

ing images. To avoid these visual artifacts, we have

included in the information of each particle a differ-

ent random value. This value will be used to modify

the ﬁnal positions of the particles created using the

patterns.

For each particle, the Geometry Shader of the sec-

ond pass will be in charge of applying the level-of-

detail. Thus, for each particle we calculate the appro-

priate size according to the distance. Then, we gen-

erate the 4 vertices of the quad using the information

of the original size and the new size adjusted to the

distance. We must also consider the position and ori-

entation of the user. Finally, if the particle is close

enough, we calculate the number of replicas we want

to create. For each of these new quads, we should

calculate the position of the new vertices using the

original ones and the random value.

4.3 Far Rain Implementation

In the previous paragraphs of this section we have pre-

sented the different characteristics of our multiresolu-

tion model for rendering rain in real time. Neverthe-

less, these features are only useful for the close rain

approach. The far rain needs further considerations.

On one hand, the rain container has to be expanded in

order to cover all the extension of the rain area that the

user can see. This size is calculated in the CPU and its

value is uploaded into the GPU, where all the particles

will be displaced horizontally and vertically in order

to cover the new rain container. On the other hand,

the rain particles should be much bigger to cover the

whole area of the expanded rain container.

5 RESULTS

In order to examine our presented rain framework, we

have conducted several tests to analyze both the visual

appearance and the obtained performance. These set

of tests were done with a Pentium D 2.8 GHz. with 2

GB. RAM and an nVidia GeForce 8800 GT graphics

card. The implementation of this solution is coded in

HSLS and C++ by using the possibilities of the recent

DirectX10.

One of the main objectives of our work is to in-

crease the performance of the rain simulation. We

present in Table 1 the frame rate obtained for the dif-

ferent rain intensities proposed above. In order to

compare the performance of the different rain frame-

works we render the amount of particles indicated,

which are necessary to simulate a similar rain inten-

sity in the different frameworks compared. It can be

seen how our approach can render the rain scenes with

a frame-rate increased in a 55%.

We have also considered interesting to test the dif-

ference in performance that can be obtained when cre-

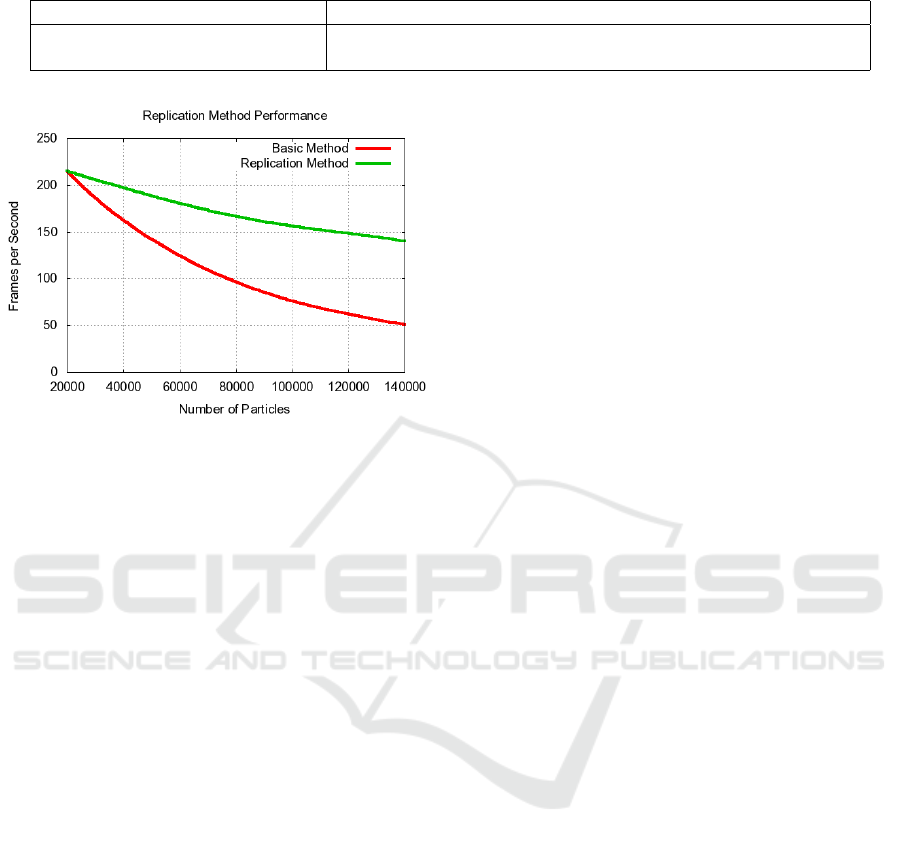

ating the raindrops in the GPU. In Figure 4 we depict

in blue the frame rate obtained when rendering dif-

ferent amounts of raindrops without creating multiple

quads on the GPU. In the same Figure, we show in

red the fps obtained when applying our new method.

We translate 20,000 particles but in the GPU we repli-

cate them by 2, 3 and so on in order to obtain as many

raindrops as desired. We can see how the replication

method outperforms drastically the previous method.

In this study we have considered that the seed rain-

drop only replicates into 6 more raindrops, rendering

at most 140,000 particles. The reason for selecting

this number of replicas is because it ﬁts more properly

with the objectives of our multiresolution proposal.

6 CONCLUSIONS

In this paper we have introduced a new framework

for optimizing the management and rendering of rain.

OPTIMIZING THE MANAGEMENT AND RENDERING OF RAIN

377

Table 1: Performance comparison for an intense rain scenario.

Model Our Model (Rousseau et al., ) (Tariq, 2007) (Puig-Centelles et al., 2008)

Number of Particles 25,000 95,000 167,000 100,000

Frame rate 140 74 66 86

Figure 4: Comparison of the performance obtained with

and without replicating particles on the GPU.

The solution presented here provides different ap-

proaches, depending on the relation between the user

location and the rain area location. In addition, we

have included multiresolution techniques which are

applied directly and uniquely in the GPU.

Our presented solution is capable of offering sim-

ilar rain intensity sensations with much less particles.

This reduction in particles directly involves an in-

crease of the obtained performance. Moreover, the

use of level-of-detail techniques that are fully inte-

grated into the Geometry Shader strongly decreases

the temporal cost of the rain system.

For future work we are currently considering the

interactions between the rain and the environment. In

this sense, we consider interesting the extension of

our model to include collisions, light interaction and

material modiﬁcations.

ACKNOWLEDGEMENTS

This work was supported by the Spanish Ministry of

Science and Technology (TSI-2004-02940, TIN2007-

68066-C04-02) and Bancaja (P1 1B2007-56).

REFERENCES

Changbo, W., Wang, Z., Zhang, X., Huang, L., Yang, Z.,

and Peng, Q. (2008). Real-time modeling and render-

ing of raining scenes. Visual Computer, 24:605–616.

Fearing, P. (2000). Computer modelling of fallen snow. In

SIGGRAPH ’00, pages 37–46.

Feng, Z.-X., Tang, M., Dong, J., and Chou, S.-C. (2006).

Real-time rain simulation. In CSCWD 2005, LNCS

3865, pages 626–635.

Garg, K. and Nayar, S. K. (2006). Photorealistic render-

ing of rain streaks. ACM Transactions on Graphics,

25(3):996–1002.

Kusamoto, K., Tadamura, K., and Tabuchi, Y. (2001). A

method for rendering realistic rain-fall animation with

motion of view. IPSJ SIG Notes, 1109(106):21–26.

O’Brien, D., Fisher, S., and Lin, M. (2001). Automatic sim-

pliﬁcation of particle system dynamics. Computer An-

imation, pages 210–257.

Puig-Centelles, A., Ripolles, O., and Chover, M. (2008).

Multiresolution techniques for rain rendering in vir-

tual environments. In 23 International Symposium on

Computer and Information Sciences.

Ross, O. N. (2000). Optical remote sensing of rainfall

micro-structures. Technical report, Freien Universitt

Berlin. Diplomarbeit thesis.

Rousseau, P., Jolivet, V., and Ghazanfarpour, D. Realis-

tic real-time rain rendering. Computers & Graphics,

30(4):507–518.

Soatto, S., Doretto, G., and Wu, Y. N. (2001). Dynamic

textures. In International Conference on Computer

Vision, pages 439–446.

Tariq, S. (2007). Rain. nvidia whitepaper.

http://developer.nvidia.com.

Tatarchuk, N. (2006). Artist-directable real-time rain ren-

dering in city environments. In ACM SIGGRAPH

Courses, pages 23–64.

Wang, H., Mucha, P. J., and Turk, G. (2005). Water drops

on surfaces. ACM Trans. Graph., 24(3):921–929.

Wang, L., Lin, Z., Fang, T., Yang, X., Yu, X., and Kang, S.

(2006). Real-time rendering of realistic rain. In ACM

SIGGRAPH Sketches, page 156.

Wang, N. and Wade, B. (2004). Rendering falling rain and

snow. In ACM SIGGRAPH 2004 Sketches, page 14.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

378
