A COMPLETE SYSTEM FOR DETECTION AND RECOGNITION

OF TEXT IN GRAPHICAL DOCUMENTS USING

BACKGROUND INFORMATION

Partha Pratim Roy, Josep Llad

Computer Vision Center, Universitat Aut

onoma de Barcelona, 08193 Bellaterra (Barcelona), Spain

Umapada Pal

Computer Vision and Pattern Recognition Unit, Indian Statistical Institute , Kolkata - 108, India

Keywords:

Graphics Recognition, Optical Character Recognition, Convex Hull, Skeleton Analysis.

Abstract:

Automatic Text/symbols retrieval in graphical documents (map, engineering drawing) involves many chal-

lenges because they are not usually parallel to each other. They are multi-oriented and curve in nature to

annotate the graphical curve lines and hence follow a curvi-linear way too. Sometimes, text and symbols fre-

quently touch/overlap with graphical components (river, street, border line) which enhances the problem. For

OCR of such documents we need to extract individual text lines and their corresponding words/characters. In

this paper, we propose a methodology to extract individual text lines and an approach for recognition of the ex-

tracted text characters from such complex graphical documents. The methodology is based on the foreground

and background information of the text components. To take care of background information, water reservoir

concept and convex hull have been used. For recognition of multi-font, multi-scale and multi-oriented charac-

ters, Support Vector Machine (SVM) based classiﬁer is applied. Circular ring and convex hull have been used

along with angular information of the contour pixels of the characters to make the feature rotation and scale

invariant.

1 INTRODUCTION

The interpretation of graphical documents does not

only require the recognition of graphical parts but the

detection and recognition of multi-oriented text. The

problem for detection and recognition of such text

characters is many-folded. Text/symbols many times

touch/overlap with long graphical lines. Sometimes,

the text lines are curvi-linear to annotate graphical ob-

jects. And the recognition of such characters is more

difﬁcult due to the usage of multi-oriented and multi-

scale environment. We show a map in Fig.1 to illus-

trate the problems.

Automatic extraction of text/symbols in graphical

documents like map is one of the fundamental aims

in graphics recognition (Fletcher and Kasturi, 1988),

(Cao and Tan, 2001). The spatial distribution of the

character components and their sizes, can be mea-

sured in a number of ways, and fairly reliable clas-

siﬁcation can be obtained. Using Connected Com-

ponent (CC) analysis (Fletcher and Kasturi, 1988),

(Tombre et al., 2002) and some heuristics based on

text features isolated text characters can be separated

from long graphical components. Difﬁculties arise

however, when either there is text and symbol em-

bedded in the graphics components, or text and sym-

bol touched with graphics. Luo et. al (Luo et al.,

1995) uses the directional mathematical morphology

approach for separation of long linear segments from

character strings. Cao and Tan (Cao and Tan, 2001)

proposed a method for extracting text characters that

are touched to graphics. It is based on the observation

that the constituent strokes of characters are usually

short segments in comparison with those of graphics.

There are a few pieces of published work on ex-

traction of multi-oriented and curved text lines in

graphical/artistic document. Due to curve nature of

text lines, their segmentation is a challenging task.

Goto and Aso (Goto and Aso, 1999) proposed a local

linearity based method to detect text lines in English

and Chinese documents. In another method, proposed

by Hones and Litcher (Hones and Litcher, 1994), line

anchors are ﬁrst found in the document image and

then text lines are generated by expanding the line an-

209

Pratim Roy P., Lladós J. and Pal U. (2009).

A COMPLETE SYSTEM FOR DETECTION AND RECOGNITION OF TEXT IN GRAPHICAL DOCUMENTS USING BACKGROUND INFORMATION.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 209-216

DOI: 10.5220/0001801902090216

 SciTePress

chors. These methods cannot handle variable sized

text, which is the main drawback of the methods. Loo

and Tan (Loo and C.L.Tan, 2002) proposed a method

using irregular pyramid for text line segmentation. Pal

and Roy (Pal and Roy, 2004) proposed a head-line

based technique for multi-oriented and curved text

lines extraction from Indian documents.

For the recognition purpose of multi-oriented

characters from engineering drawings, Adam et al.

(Adam et al., 2000) used Fourier Mellin Transform.

Some of the multi-oriented character recognition sys-

tems consider character realignment. The main draw-

back of these methods is the distortion due to realign-

ment of curved text. Parametric eigen-space method

is used by Hase et al. (Hase et al., 2003). Xie

and Kobayashi (Xie and Kobayashi, 1991) proposed

a system for multi-oriented English numeral recogni-

tion based on angular patterns. Pal et al. (Pal et al.,

2006) proposed a modiﬁed quadratic classiﬁer based

recognition method for handling multi-oriented char-

acters.

Figure 1: Example of a map shows orientation of text line

and their characters.

In our proposed method, combination of con-

nected component and skeleton analysis has been

used to locate text character layer. The portions where

graphical long lines touch text are marked. Using

Hough transform and skeleton analysis, these portions

are analyzed for text part separation. To handle the

wide variations of texts in terms of size, font, orien-

tation, etc., our approach includes the background in-

formation of the characters in a text line. It guides

our algorithm to extract text lines from the documents

containing multi-oriented and curved text lines. To

get this background portion we apply the water reser-

voir concept which is one of the unique features of

our proposed methodology. For recognition purpose,

to make the system rotation invariant, the features are

mainly based on the angular information of the ex-

ternal and internal contour pixels of the characters,

where we compute the angle histogram of successive

contour pixels. Circular ring and convex hull have

been used to divide a character into several zones

and zone wise angular histogram is computed to get

higher dimensional feature for better performance.

SVM classiﬁer has been applied for recognition of

multi-oriented and multi-scale characters.

The organization of the rest of the paper is as

follows. Text layer extraction methodology are dis-

cussed in Section 2. The curve text line segmentation

methods are explained in Section 3. Feature extrac-

tion for multi-oriented character recognition and Sup-

port Vector Machine are detailed in Section 4. Results

and discussion are given in Section 5. And ﬁnally,

conclusion is included in Section 6.

2 TEXT/SYMBOL EXTRACTION

For the experiment of present work, we considered

real data from map, newspaper, magazine etc. We

used a ﬂatbed scanner for digitization. Digitized im-

ages are in gray tone with 300 dpi. We have used a

histogram based global binarization algorithm to con-

vert them into two-tone (0 and 1) images (Here ‘1’

represents object point and ‘0’ represents background

point). The digitized image may contain spurious

noise points, small break points and irregularities on

the boundary of the characters, lead to undesired ef-

fects on the system. For removing these we have used

a method discussed in (Roy et al., 2004).

2.1 Component Classiﬁcation using CC

Analysis and Skeleton Information

In map, text and graphics appear simultaneously.

They frequently touch each other and sometimes

overlap. Here, the aim is to separate them into two

layers mainly Text and Graphics layers. We used the

connected component analysis (Tombre et al., 2002)

for initial segmentation of isolated text components.

The geometrical and statistical features (Fletcher and

Kasturi, 1988) of the connected component are good

enough to group a component into one between text

or graphics layer. For each connected component, we

use a minimum enclosing bounding box which de-

scribes the height and width of the character shape.

The components are ﬁltered to be as a member of

a text component based on its attributes (rectangular

size, pixel density, ratio of dimensions, area). A his-

togram on the size of components is analyzed for this

purpose. By a correct threshold selection obtained

dynamically from the histogram, the large graphical

components are discarded, leaving the smaller graph-

ics and text components. In our experiment, the

threshold T is considered as,

T = n ×max(A

avg

) (1)

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

210

where, A

and A

avg

are frequency of most popu-

lated area and average area respectively. The value

of n was set to 3 from the experiment (Roy, 2007).

The problems arise when some characters (“joined

characters”) cannot be split due to touching together.

We integrate skeleton information (Ahmed and Ward,

2002) to detect the long segments and to analyze them

accordingly. Long segments are assumed to be as

part of graphics. From the skeleton, we measure each

segment based on their minimum enclosing bounding

box (BB). The length (L

) of a segment is computed

as,

= Max(Height

,Width

) (2)

If there exist a segment of L

≥ T in a component,

we consider that component having graphical com-

ponent. Using these skeleton and connected compo-

nent analysis, we separate all the components into 5

groups namely, Isolated characters, Joined characters,

Dash components, Long components and Mixed com-

ponents (Roy et al., 2007). If there exists no long

segment in a component then it is included into one

of the isolated character/symbol, joined character or

dash component group. Otherwise it is considered as

mixed or long component.

2.2 Removal of Long Graphical Lines

The mixed components are analyzed further for the

separation of long segments. We perform Hough

Transform to detect the straight lines present in the

mixed component. In Hough space, all the collinear

pixels of a straight line will be found intersecting at

the same point (ρ, θ), where ρ and θ identify the line

equation. Depending on accumulation of pixels the

straight lines are sorted out. Some characters may

touch with these straight lines. To separate the char-

acters from the lines, we compute the stroke width L

of the straight line by scanning following the equation

of line. Then the portions of the line where the width

is more than L

are separated from straight line.

We assumed that the length of segments of the

characters are smaller compared to that of graphics.

Hence, the skeleton is analyzed to check the pres-

ence of long segments in mixed components. All the

skeleton segments are decomposed at the intersection

point. The segments having L

≥ T are chosen for

elimination. The remaining portion after removal of

long straight and curve line are considered as either

isolated characters or joined characters according to

their statistical features. We show the segmentation of

long straight lines of Fig.2(a) in Fig.2(b) and removal

of curve lines of Fig.2(c) in Fig.2(d) & Fig.2(e).

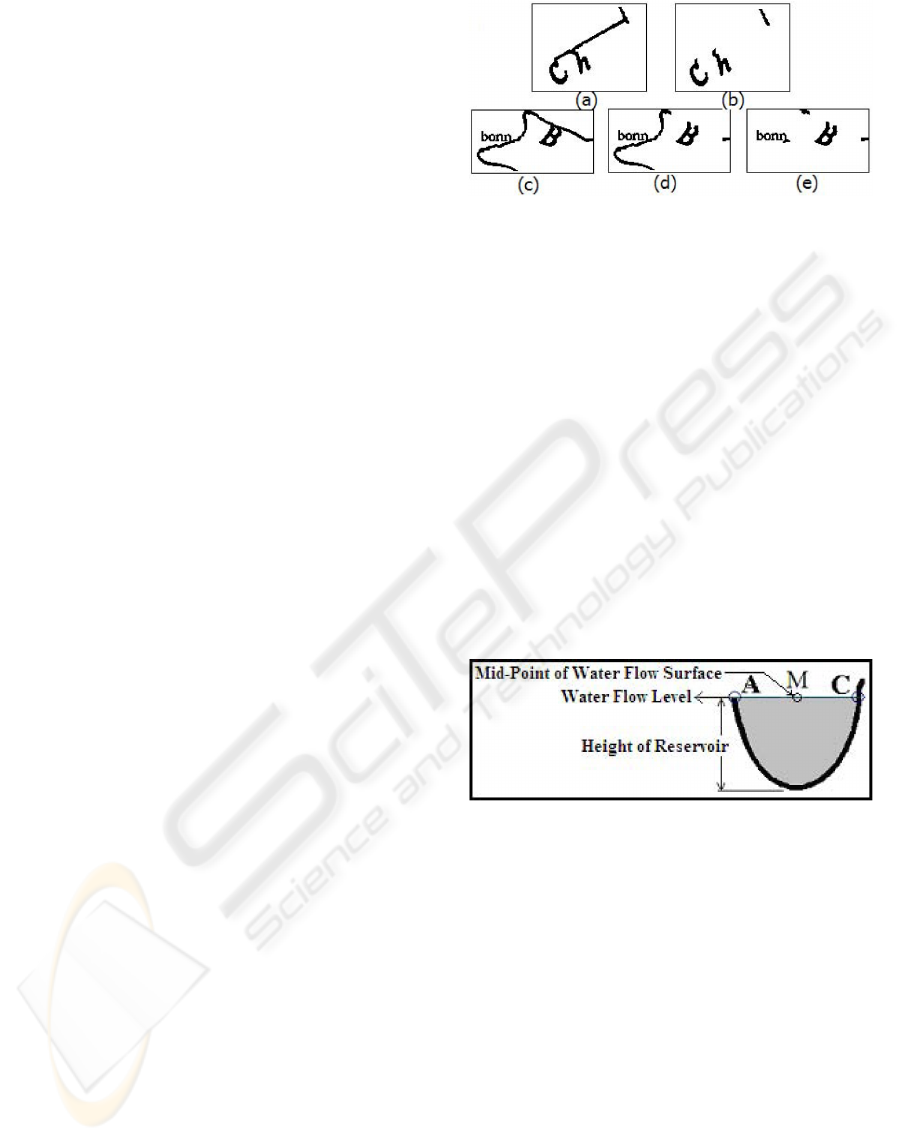

Figure 2: Separation of Text and Graphical lines.

3 TEXT LINE EXTRACTION

To detect text line in a document the water reservoir

principle (Pal et al., 2003) has been used in the ex-

tracted text character layer. If water is poured from a

side of a component, the cavity regions of the back-

ground portion of the component where water will be

stored are considered as reservoirs of the component.

Some of the water reservoir principle are shown in

Fig.3. By top (bottom) reservoirs of a component we

mean the reservoirs obtained when water is poured

from top (bottom) of the component. The background

region based feature obtained using water reservoir

concepts help our line extraction scheme. The line

detection process is discussed below.

Figure 3: A top water reservoir and different features are

shown. Water reservoir is marked by grey shade.

3.1 Initial 3-Character Clustering

For character clustering, the stroke width (S

) of indi-

vidual component (character) is computed (Roy et al.,

2008b). For each component (say, D

) we ﬁnd two

nearest components using boundary-growing algo-

rithm (Roy et al., 2008b). Let, the two nearest compo-

nents of D

are D

and D

. Also let, c

be the center

of minimum enclosing circle (MEC) of the compo-

nent D

. The components D

, D

and D

will form a

valid 3-character cluster if they are a) similar in size

b) linear in fashion and c) inter-character spacing is

less than 3×S

. The size similarity is tested based on

height information of the minimum enclosing bound-

ing box of the component. Let, H

be the height of a

component D

. The component D

will be similar in

A COMPLETE SYSTEM FOR DETECTION AND RECOGNITION OF TEXT IN GRAPHICAL DOCUMENTS USING

BACKGROUND INFORMATION

211

size of its neighbour component D

0.5 × H

≤ H

≤ 1.5 × H

(3)

Linearity is tested based on the angular information

of c

, c

and c

. If the angle formed by c

≥ 150

◦

then we assume the components are linear in fashion.

3.2 Grouping of Initial Clusters

From the initial clustering, we will get several 3-

character clusters which are to be grouped together

to have larger clusters. We make a graph (G) of these

components of different clusters, where components

of all the clusters are considered as nodes. An edge

between two component nodes exists if they are from

a same cluster and they are neighbors to each other.

If the 3-character clusters come from the same text

line then a node should have at most two edges. But,

after making the graph a node may have 3 or more

edges. This situation occurs when two or more text-

lines cross each other or they are very close. The

nodes having 3 or more edges are considered for re-

moval. If the angle of a node (of degree 2) with re-

spect to two connected nodes is less than 150

◦

, then it

is also marked for removal. These nodes are removed

and all the corresponding edges are deleted from G.

Thus the graph G will be split into sub-graphs or a

set of components. In each of these sets, we will have

components (nodes) having maximum 2 neighbor and

they are linear in fashion. Elements of each sub-graph

are considered as a large cluster.

3.3 Computation of Cluster Orientation

Using inter-character background information, orien-

tations of the extreme characters of a cluster group are

decided and two candidate regions are formed based

on these orientations. For each cluster group we ﬁnd

one pair of characters from both of the extreme sides

of the cluster. To ﬁnd background information water

reservoir concept is used. To do so, ﬁrst convex hull of

each character is formed to ﬁll up the cavity regions

of the character, if any. Next the resultant compo-

nents are joined by a straight line through their centre

of MEC. This joining is done to make the character

pair into a single component to ﬁnd the water reser-

voir in the background. Now water reservoir area is

computed of this joined character in 8 directions at

◦

interval. The area of water reservoirs in opposite

directions are added to get the total background area

in that direction. This is done for other 3 orientations.

The orientation, in which maximum area is found, is

detected and water ﬂow-lines of corresponding reser-

voirs are stored. The mid-points of the water ﬂow-

lines of the two reservoirs are the candidate points.

This gives the orientation of the extreme characters of

a cluster and it helps us to extend the cluster group for

text line extraction.

3.4 Extension of Cluster Group

For each extreme pair characters of a cluster group,

we know its candidate points and orientation. Using

these information, we ﬁnd a direction (D) perpendic-

ular to this orientation and a key-point (K) which is

along D, passes through the middle point of the candi-

date points and touches the bounding box of the clus-

ter. For cluster extension to extract line, at ﬁrst we

generate a candidate region of rectangular mask at the

key-point. Candidate regions for two key points of a

cluster ’INTRODUCING’ are shown in Fig.4(c). Let

α be the set of candidate clusters and isolated charac-

ters obtained from the text layer. We use a bottom-up

approach for line extraction and the approach is as

follows. First, an arbitrary cluster (say, topmost left

cluster) is chosen from α and a line-group L is formed

using this cluster. Two candidate regions are detected

from this cluster. For each line-group we maintain

two anchor candidate regions (ACR): left and right

ACR. Since at present L has only one cluster, the left

and right ACRs of L are the two candidate regions

of the cluster. Next, we check whether there exists

any extreme character of another cluster or individual

component whose a portion falls in these ACRs of the

line-group. If the orientation of extreme character of

another cluster is similar and their size is similar, then

we include it in L. The ACRs are modiﬁed accord-

ingly. The extension of this line-group continues in

both sides, till it does not ﬁnd any component or clus-

ter in any ACR or it reaches the border of the image.

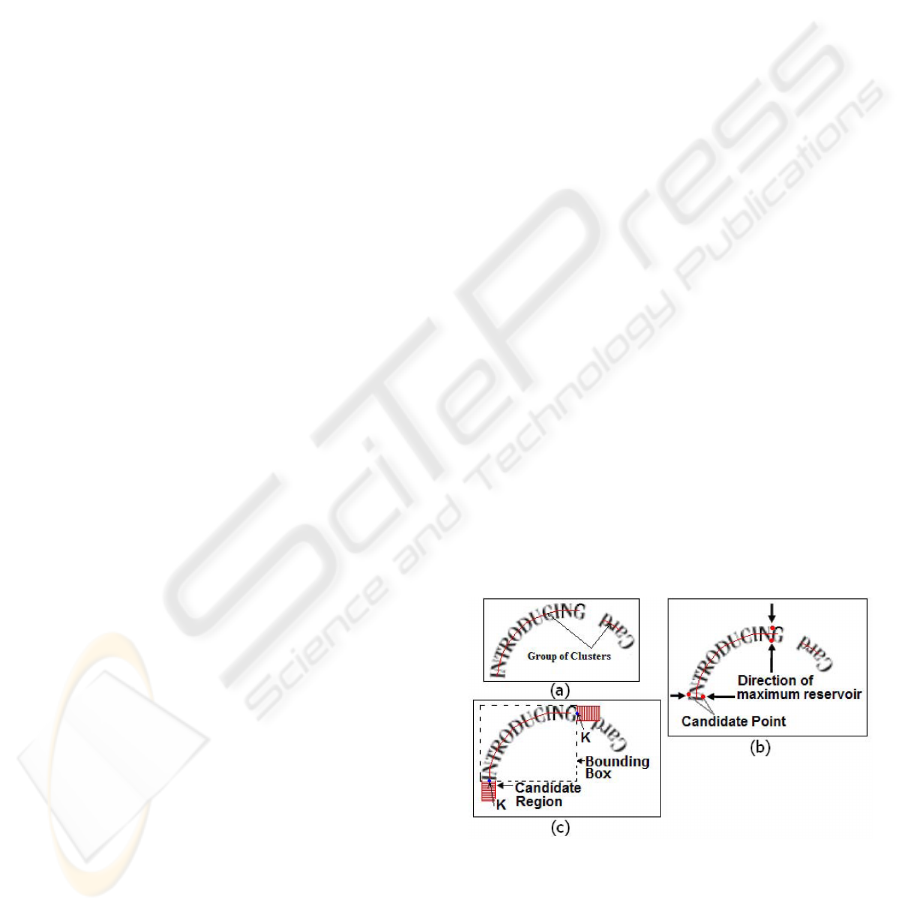

Figure 4: Example of candidate region detection from a

cluster. (a) Two clusters (b) Candidate points of the two

extreme pairs of characters for the cluster “INTRODUC-

ING”(c) Key points are marked by ‘K’. Candidate region is

marked by hatched-line box.

Components clustered into a single line-group are

the members of a single text line. To get other text

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

212

lines we follow the same steps and ﬁnally we get N

number of line-groups if there are N text lines in a

document. Since, we initially excluded the punctu-

ation marks. So, punctuation marks will not be in-

cluded by the above approach. To include such com-

ponents in the line-group of their respective text lines

we use a region growing technique (Pal and Roy,

2004).

4 CHARACTER RECOGNITION

Text characters of a single line are found to be aligned

in a curvi-linear way to describe long graphical lines.

So, we need a rotation invariant feature for character

recognition. The feature used in our experiment and

recognition method are explained below.

4.1 Feature Extraction

For a given text character, internal and external con-

tour pixels are computed and they are used to deter-

mine the angular information feature of the character.

Given a sequence of consecutive contour pixels V

...

... V

, of length n (n ≥ 7), the angular information

of the pixel V

is calculated from the orientation of

vector pairs V

i−k

, V

and V

, V

i+k

. For better accuracy,

we take the average of 3 orientations for each pixel,

considering k=1, 2 and 3. The angles obtained from

all the contour pixels of a character are grouped into

8 bins corresponding to eight angular intervals of 45

◦

(337.5

◦

to 22.5

◦

as bin no. 1, 22.5

◦

to 67.5

◦

as bin

no. 2 and so on). For a character, frequency of the

angles of 8 bins will be similar even if the character is

rotated at any angle in any direction. For illustration,

see Fig.5. We divide a character into several zones

and zone-wise angular information is computed to get

higher dimensional features. Circular ring and con-

vex hull have been used for this purpose (Roy et al.,

2008a).

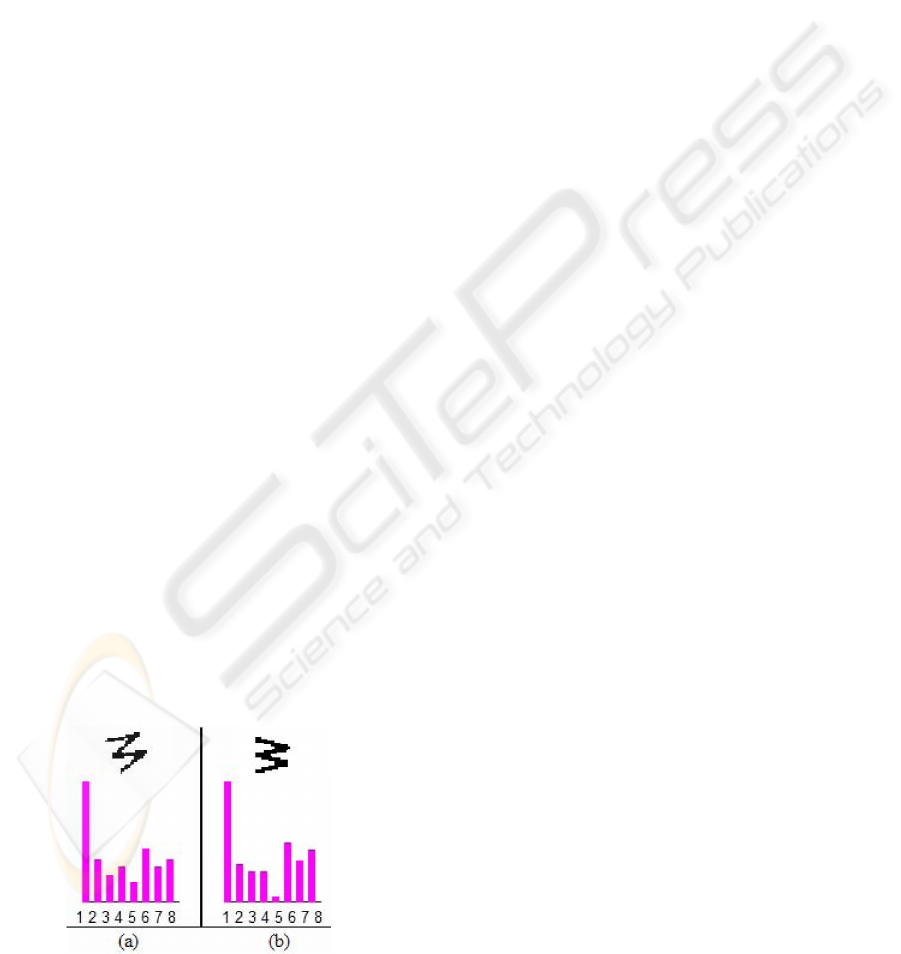

Figure 5: Input images of the character ’W’ in 2 differ-

ent rotations and their angle histogram of contour pixels are

shown. The numbers 1-8 represent 8 angular bins.

4.1.1 Circular Ring based Division

A set of four circular rings is considered here and they

are deﬁned as the concentric circles considering cen-

tre as the centre of minimum enclosing circle (MEC)

of the character and the minimum enclosing circle as

the outer ring. The radii of the rings are in arithmetic

progression. Let R

be the radius of MEC of the char-

acter, then the radii (outer to inner) of these four rings

are R

, R

and R

, respectively. Where R

-R

= R

-R

= R, where R is R

/4. These rings di-

vide the MEC of a character into four zones.

4.1.2 Convex Hull based Division

Convex hull rings are computed from the convex hull

boundary. We compute 4 convex hull rings and we

consider the outermost convex hull ring (say C

) as

the convex hull itself. Other 3 convex hull rings are

similar in shape and computed from C

by reducing

its size. The 2nd ring can be visualized by zooming

out the C

with R pixels inside. Other 2 rings are com-

puted similarly.

4.1.3 Reference Point and Reference Line

Detection

If we compute information of angular histogram on

the character portions in each of the ring, then we will

get 32 (4 rings × 8 angular information) dimensional

feature. To get more local feature for higher accuracy,

we divide each ring into few segments. To do such

segments, we need a reference line (which should

be invariant to character rotation) from a character.

The reference line is detected based on the back-

ground part of the character using convex hull prop-

erty. The mid-point of residue surface width (RSW)

of the largest (in area) residue of a character is found

and the line obtained by joining this mid-point and

the centre of MEC of the character is the reference

line of the character. If there are two or more largest

(in area) residue then we check the height of these

largest residue and the residue having largest height is

selected. If the heights of the largest residue are same,

then we select the residue having maximum RSW.

The mid-point of the RSW of the selected residue and

centre of MEC of the character is the reference line.

The mid-point of RSW is the reference point. If no

residue is selected by above, we consider the farthest

contour point (P

) of the character from the centre of

MEC and the line obtained by joining P

and the cen-

tre of MEC is the reference line. Here, P

is the ref-

erence point. A reference line can segment each ring

into two parts and if we compute the feature on each

A COMPLETE SYSTEM FOR DETECTION AND RECOGNITION OF TEXT IN GRAPHICAL DOCUMENTS USING

BACKGROUND INFORMATION

213

of the segment, then we will get 64 dimensional fea-

tures (4 rings × 2 segments × 8 angular information).

If we take another reference line perpendicular to this

reference line, then each ring will be divided into 4

segments and as a result, we will get 128 dimensional

features (4 rings × 4 segments × 8 angular informa-

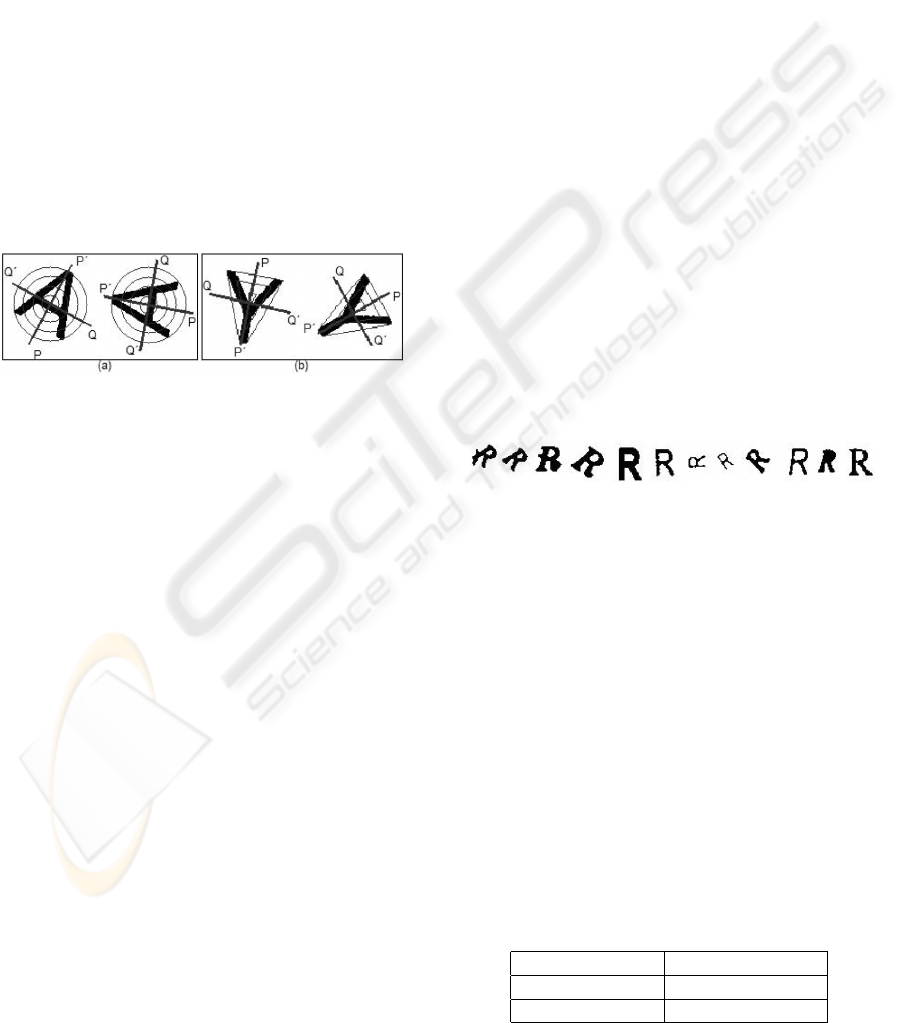

tion). See Fig.6, where two reference lines PP’ and

QQ’ are shown. To get 256 dimensional features each

ring will be divided into 8 block segments.

To get different segments sequentially we consider

the segment that starts from the reference point as seg-

ment number 1 (say S

). Starting from S

if we move

anti-clockwise then the segments obtained from outer

ring block (R

-R

) are designated as 1st, 2nd...8th.

Similarly, from the (R

-R

) ring block, we will get

9th, 10th. ..16th segment. Other segments are ob-

tained in similar way. To get size independent features

we normalize them. For normalization we divide the

number of pixels in each segment by the total number

of contour pixels.

Figure 6: Reference lines PP’ and QQ’ are shown with (a)

circular ring division in character ‘A’ (b) convex hull ring

division in character ‘Y’.

4.2 Recognition by SVM Classiﬁer

We use Support Vector Machine (SVM) classiﬁer for

recognition. The SVM is deﬁned for two-class prob-

lem and it looks for the optimal hyper-plane which

maximizes the distance, the margin, between the near-

est examples of both classes, named support vectors

(SV

). Given a training database of M data: x

k m =

{1...M}, the linear SVM classiﬁer is then deﬁned as:

f (x) =

∑

· x + b (4)

Where, {xj} is the set of support vectors and the pa-

rameters α

and b have been determined by solving a

quadratic problem (Vapnik, 1995). The linear SVM

can be extended to a non-linear classiﬁer by replacing

the inner product between the input vector x and the

, to a kernel function k deﬁned as:

k(x, y) = φ(x) · φ(y) (5)

This kernel function should satisfy the Mercer’s Con-

dition (Vapnik, 1995). Some examples of kernel func-

tions are polynomial kernels (x·y)

and Gaussian ker-

nels exp(−kx − yk2/c), where c is a real number. We

use Gaussian kernel for our experiment. Details of

SVM can be found in (Vapnik, 1995).

5 RESULT AND DISCUSSION

From our data we noticed that, text/symbols and

graphical lines are many times together in touch-

ing/overlapped way. In text string, the arrangement

of characters are of both linear and curvilinear. They

appear in multi-orientation way to describe the cor-

responding symbols. We built a dataset of these ex-

tracted graphical text characters for recognition pur-

pose. The size of this dataset is 8250. Some exam-

ples of such data are discussed as follows. The text

characters are of different font and size. To get an

idea of data quality, we have shown some samples of a

character ‘R’ in Fig.7. Both uppercase and lowercase

letters of different fonts are used in the experiment.

So we should have 62 classes (26 for uppercase, 26

for lowercase and 10 for digit). But because of shape

similarity of some characters/digits, here we have 40

classes. We are considering arbitrarily rotation (any

angle up to 360 degrees) so, some of the characters

like ‘p’ and ‘d’ are considered same since, we will

get the character ‘p’ if we rotate the character ‘d’ 180

degrees.

Figure 7: Some images of character ‘R’ from the dataset are

shown.

To check whether a text line is extracted correctly

or not we connect all components by line segments

that are clustered in an individual line. These line seg-

ments are drawn through the center of the minimum

enclosing circles of the components. By viewing the

results on the computer’s display we check the line

extraction results manually. To give an idea about dif-

ferent ranges of accuracy of the system we divide the

accuracy into two categories: (a) 97-100% (b) ≤ 97%.

Accuracy of line extraction module is measured ac-

cording to the following rule. If out of N components

of a line, M components are extracted in favor of that

line by our scheme then the accuracy for that line is

(M × 100)/N%. The results are given in Table1.

Table 1: Text line segmentation result.

Number of lines % of components

325 97-100%

30 ≤ 97%

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

214

One of the signiﬁcant advantages of the proposed

line extraction method is its ﬂexibility. Our scheme

is independent of font, size, style and orientation of

the text lines. As we mentioned earlier, our assump-

tion is that, distance between two lines of a docu-

ment is greater than inter-character distance of the

words. But sometimes distance between two words

of two different text lines is very small and hence our

method generates errors in some of these cases. An-

other drawback of our method is that it will not work

if the characters are broken and that broken part can-

not be joined through preprocessing. Here, neighbor-

hood component selection will not be proper. So, di-

rection from water reservoir concept cannot give the

candidate region properly and errors occur. Also, our

proposed method may not work properly if there are

many joining characters in a string.

For recognition, the dataset has been tested using

cross validation technique. For this purpose, we di-

vided the dataset into 5 parts. We trained our sys-

tem on 4 parts of the divided dataset and tested on

remaining part of the data. From the dataset, we have

obtained 96.54% (95.78%) recognition accuracy us-

ing circular (convex hull) based feature of dimension

256. Recognition accuracy obtained from circular and

convex hull features with their different dimension

are given in Table2. From the experiment we noted

that better accuracy can be achieved combining circu-

lar and convex hull features. Combining circular and

convex hull features of 256 dimension each we got

512 dimension feature. Using this 512 dimensional

combined feature we achieved 96.73% accuracy from

our SVM classiﬁer in this dataset. From the experi-

ment we also noticed that better results were obtained

in case of bigger font-size characters.

Table 2: Character recognition result.

Feature Type

Feature Dimension

32 128 256

circular ring 90.54 96.01 96.54

convex hull 82.77 93.76 95.78

In Fig.8(b) we have shown the detected text lines

and the recognition result of corresponding text char-

acters of Fig.8(a). Here, all the text lines have

been extracted correctly though there are some words

in curvi-linear text lines, for e.g. “ATLANTIC

OCEAN”. The recognition result is very encourag-

ing. Sometimes, due to “joining characters” and over-

lapping lines, the recognition of few characters are

not correct. For e.g. in the word “Tagus”, the join-

ing character “gu” is mis-recognized as ‘a’. From

Fig.8(b), it may be noted there are some small graph-

ical borders which were not eliminated due to our CC

analysis and hence we got erroneous result. We also

noticed that most of the errors occurred due to simi-

lar shape structures. We noted that highest error oc-

curred from the character pair ‘K’ and ‘k’, ‘f’ and ‘t’

and ‘t’ and ‘l’ pair. This is because of their shape sim-

ilarity. Other errors occurred mainly from noisy data

where residue from convex hull has not been extracted

properly. This wrong residue detection sometimes in-

ﬂuences error. In comparison, we have checked that,

Adam et al. (Adam et al., 2000) received 95.74% ac-

curacy on real English characters, whereas our system

performs better with 96.73%.

6 CONCLUSIONS

In this paper we proposed a complete system for

graphical documents. Here, we separated text from

graphical components and extracted the correspond-

ing text lines. The multi-oriented text characters are

recognized using convex hull information. From the

experiment, we have obtained encouraging result.

ACKNOWLEDGEMENTS

This work has been partially supported by the Spanish

projects TIN2006-15694-C02-02 and CONSOLID-

ERINGENIO 2010 (CSD2007-00018).

REFERENCES

Adam, S., Ogier, J. M., Carlon, C., Mullot, R., Labiche, J.,

and Gardes, J. (2000). Symbol and character recogni-

tion: application to engineering drawing. In Interna-

tional Journal on Document Analysis and Recognition

(IJDAR).

Ahmed, M. and Ward, R. (2002). A rotation invariant rule-

based thinning algorithm for character recognition. In

IEEE Transactions on Pattern Analysis and Machine

Intelligence.

Cao, R. and Tan, C. (2001). Text/graphics separation in

maps. In Proc. of International Workshop on Graphics

Recognition (GREC).

Fletcher, L. A. and Kasturi, R. (1988). A robust algorithm

for text string separation from mixed text/graphics im-

ages. In IEEE Transactions on Pattern Analysis and

Machine Intelligence.

Goto, H. and Aso, H. (1999). Extracting curved lines using

local linearity of the text line. In International Journal

on Document Analysis and Recognition (IJDAR).

Hase, H., Shinokawa, T., Yoneda, M., and Suen, C. Y.

(2003). Recognition of rotated characters by eigen-

space. In International Conference on Document

Analysis and Recognition (ICDAR).

A COMPLETE SYSTEM FOR DETECTION AND RECOGNITION OF TEXT IN GRAPHICAL DOCUMENTS USING

BACKGROUND INFORMATION

215

Hones, F. and Litcher, J. (1994). Layout extraction of mixed

mode documents. In Machine vision and applications.

Loo, P. K. and C.L.Tan (2002). Word and sentence extrac-

tion using irregular pyramid. In Document Analysis

Systems.

Luo, H., Agam, G., and Dinstein, I. (1995). Directional

mathematical morphology approach for line thinning

and extraction of character strings from maps and line

drawings. In International Conference on Document

Analysis and Recognition (ICDAR).

Pal, U., Belad, A., and Choisy, C. (2003). Touching nu-

meral segmentation using water reservoir concept. In

Pattern Recognition Letters.

Pal, U., Kimura, F., Roy, K., and Pal, T. (2006). Recognition

of english multi-oriented characters. In International

Conference on Pattern Recognition.

Pal, U. and Roy, P. P. (2004). Multi-oriented and curved

text lines extraction from indian documents. In IEEE

Transactions on SMC - Part B.

Roy, K., Pal, U., and Chaudhuri, B. B. (2004). A system for

joining and recognition of broken bangla numerals for

indian postal automation. In In Proc. of 4th ICVGIP.

Roy, P. P. (2007). An approach to text/graphics separa-

tion from color maps. In M.S. thesis, CVC, UAB,

Barcelona.

Roy, P. P., Pal, U., Llados, J., and Kimura, F. (2008a). Con-

vex hull based approach for multi-oriented character

recognition from graphical documents. In Interna-

tional Conference on Pattern Recognition.

Roy, P. P., Pal, U., Llados, J., and Kimura, F. (2008b).

Multi-oriented english text line extraction using back-

ground and foreground information. In Proc. of Doc-

ument Analysis Systems.

Roy, P. P., Vazquez, E., Llados, J., Baldrich, R., and Pal, U.

(2007). A system to segment text and symbols from

color maps. In Proc. of International Workshop on

Graphics Recognition (GREC).

Tombre, K., Tabbone, S., Peissier, L., Lamiroy, B., and

Dosch, P. (2002). Text /graphics separation revisited.

In Proc. of Document Analysis Systems.

Vapnik, V. (1995). The nature of statistical learning theory.

Springer Verlang.

Xie, Q. and Kobayashi, A. (1991). A construction of pat-

tern recognition system invariant of translation, scale-

change and rotation transformation of pattern. In

Trans. of the Society of Instrument and Control En-

gineers.

(a)

(b)

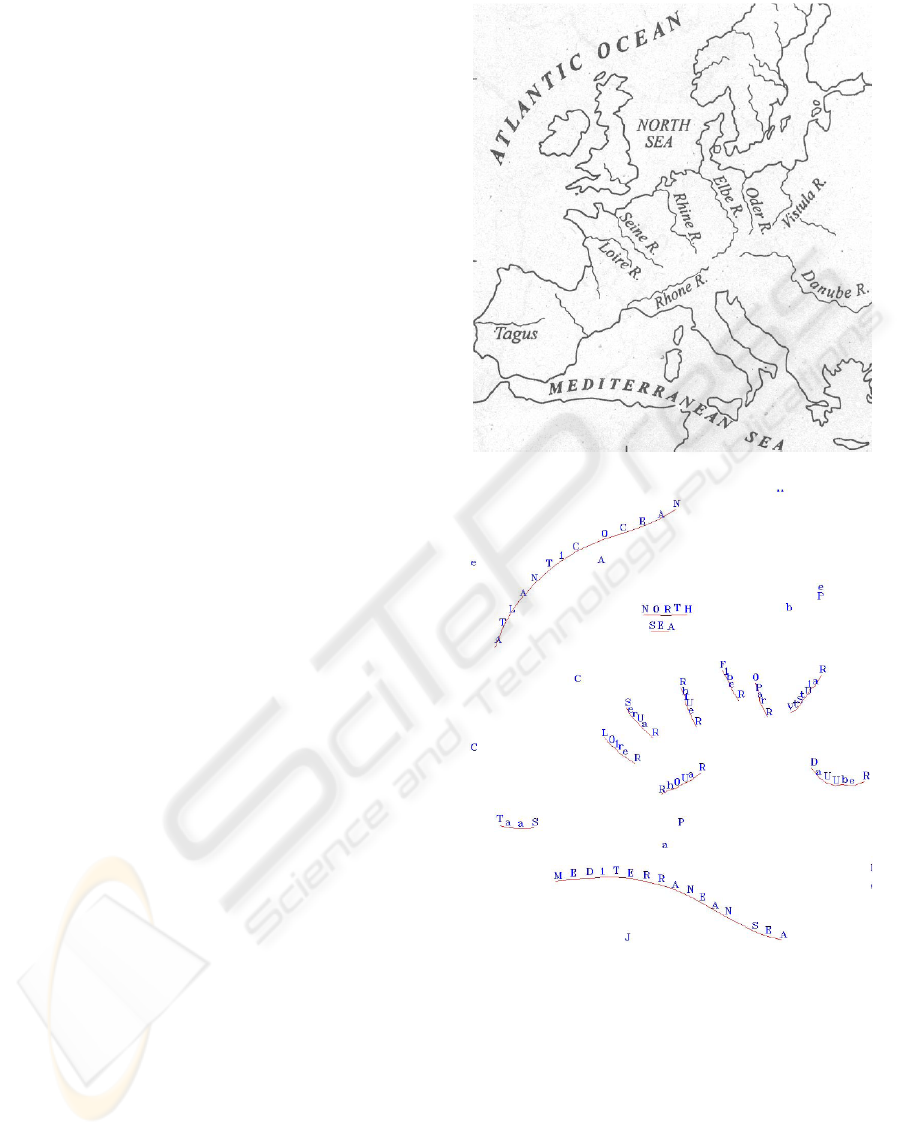

Figure 8: (a)Original Image (b) Line extraction and individ-

ual character recognition result of (a).

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

216
