DIGITAL IMAGE STABILIZATION IN A VIDEO-STREAM

Stabilization of (Undesirable) Image Movements in a Video-Stream

Martin Drahansky and Filip Orsag

Faculty of Information Technology, Brno University of Technology, Bozetechova 2, 61266, Brno, Czech Republic

Keywords: Image, Stabilization, Video-stream, DSP, FPGA.

Abstract: This paper deals with an image stabilization for video based tracking systems. At the beginning an introduc-

tion to the image stabilization is stated. Short description of known algorithms for image stabilization fol-

lows including our solution based on these methods with some optimizations. At the end, we represent a

suitable hardware platform, which was developed and constructed by us and uses DSP, FPGA and SDRAM.

The connection of our software and our hardware is new and very promising.

1 INTRODUCTION

Classical security monitoring systems using video-

cameras are well known. Resolution of such cameras

often doesn’t play an important role, but, in some

cases (especially for military purposes), a high reso-

lution is requested. In this situation, not only a detec-

tion of some movements is awaited, but some recog-

nition or tracking is needed as well. The recognition

can classify the object to one predefined category,

i.e. a tank, soldier, ship, civil person, etc. If the ob-

ject is recognized, the system should be able to track

(follow the motion) this object, so that an automatic

storage system has every time the tracked object in

the middle of the video sequence or an operator can

see this object in the middle of the screen.

Placing of the monitoring system plays an impor-

tant role, especially to the output video stream. If we

have a camera with a high resolution and the camera

is placed in someone’s hand or on a moving object

(car, tank etc.), then the resulting video-stream is of

very poor quality. An optimal solution is to place the

camera on some stable holder, but if the height of

such holder is inconsiderable, the camera will be

exposed to the influences of the surroundings, e.g.

wind, asperity of the road, waves on the sea etc.

Therefore, the image stabilization in a video-stream

is needed (see Fig. 1). The significant object is al-

ways in the same position in the screen.

We distinguish between two types of movements

with the camera:

 Weak shaking (app. ±10° variation in the hori-

zontal and vertical directions and/or some

small units of Hertz)

 Strong shaking (more then ±10° variation in the

horizontal and vertical directions and/or tens

of Hertz).

equenc

e of i

ages

fter

tabi

equenc

e o

ages

bef

e s

abi

ati

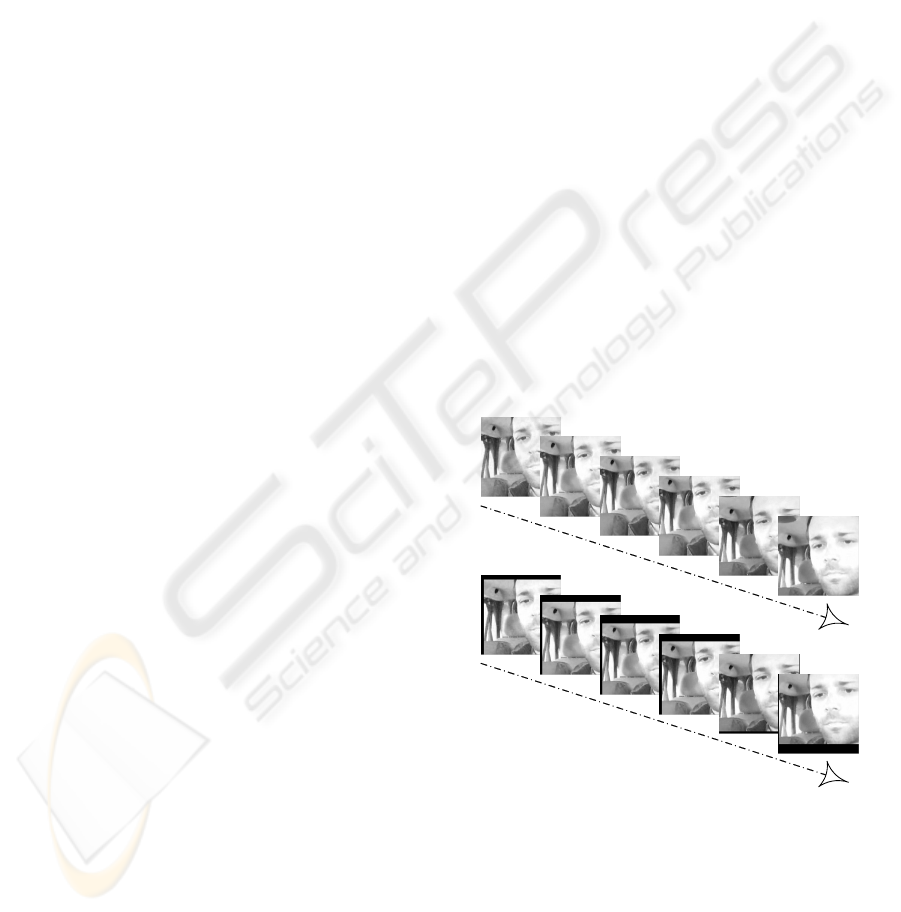

Figure 1: Sequence of images before and after the digital

image stabilization.

In the first case, the problem with shaking could

be solved using pure software (digital) image stabili-

zation. On the other hand, strong shaking is imposs-

ible to stabilize only with the software solution, i.e.

some additional hardware is needed. This hardware

can be based either on a servomotor unit or pneu-

matic/hydraulic unit, which are able to compensate

621

Drahansky M. and Orsag F. (2009).

DIGITAL IMAGE STABILIZATION IN A VIDEO-STREAM - Stabilization of (Undesirable) Image Movements in a Video-Stream.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 621-625

DOI: 10.5220/0001803806210625

 SciTePress

the movements of the camera system in the opposite

direction. Such hardware solution exceeds the scope

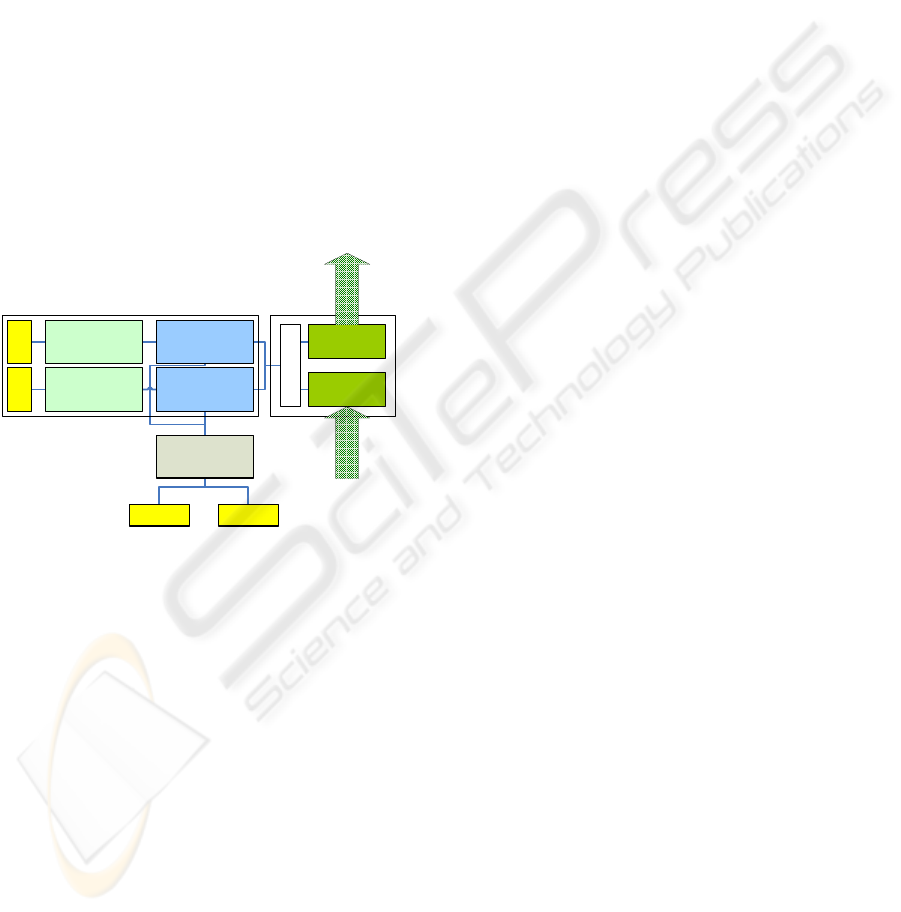

of this article. Nevertheless, the hardware computing

unit for digital image stabilization is described in the

third chapter. This hardware unit is composed of two

DSP processors with connected FPGAs and

SDRAMs. The purpose of this unit is to ensure suf-

ficient computational power for the digital image

stabilization algorithm, which is introduced in the

following chapter.

2 IMAGE STABILIZATION

ALGORITHMS

Image stabilization algorithms mostly consist of

three main parts: motion estimation, motion smooth-

ing and motion compensation. Main task of the first

block is to estimate a several local motion vectors

and on the basis of these local estimates calculate a

global motion vector. The second block deals with

filtering, integration (respectively), of the estimated

global motion vector. The main purpose of this stage

is to smooth the calculated value and prevent large

and undesirable differences between motion vectors

calculated in past. The last block shifts the acquired

image in inverse direction according to the global

motion vector. This block can take into account

more sophisticated transformations like rotation or

warping.

A lot of various approaches exist nowadays. The

main difference lies in the resultant accuracy of

global motion vector and algorithm used for estima-

tion of local motion vector. We distinguish between

pixel and sub-pixel resolution. Second approach is,

however, complicated and more time consuming

than the previous one because an interpolation me-

thod is needed. So it is rarely used in real-time ap-

plications. Some algorithms consider rotation or

more complex warping in addition to translation.

Table 1 summarizes several basic algorithms and

their parameters. Other algorithms are described e.g.

in (Sachs et al., 2007).

Table 1: Some variants of stabilization algorithms.

Algorithm Accuracy Transformation Ref.

Parametric

Block Matching

sub-pixel translation, rotation

(Vella et

al., 2002)

Gray-Coded Bit

Plane Matching

pixel translation

(Ko et al.,

1999)

Block Matching pixel translation

(Brooks,

2003)

We will concentrate on algorithms that use trans-

lation with pixel accuracy only. In the following

section is described a simply plain matching algo-

rithm and some basic ideas of the stabilization. The

next section will be devoted to one promising algo-

rithm modification of which we used.

2.1 Plain Matching Algorithm

As stated above, the algorithms that deal with stabi-

lization are based on estimation of a motion

represented by a motion vector. The straightforward

solution leads to use of a discrete correlation, cross-

correlation respectively (Brooks, 2003). The discrete

correlation produces a matrix of elements. The ele-

ments with a high correlation (value) correspond to

the locations where a chosen pattern and image

match well. It means that the value of element is a

measure of similarity in relevant point and we can

find locations in an image that are similar to the pat-

tern.

The input is formed by a pattern (in the form of

an image) F and an input image I. It is not necessary

to search the whole image, thus a smaller area

(search window N×N) is defined. At the same time,

this area specifies the maximal shift in vertical and

horizontal direction and is chosen in this manner.

Eq. (1) represents a discrete 2D correlation func-

tion

),( yxIF D

∑∑

−=−=

++=

jyixIjiFyxIF ),(),(),(D

(1)

Note that matching according to the first defini-

tion is problematic. Correlation can also be high in

locations where the image intensity is high, even if it

doesn’t match the pattern well. Better performance

can be achieved by a normalized correlation

(Brooks, 2003):

()

∑∑∑∑

∑∑

−=−=−=−=

−=−=

jiFjyixI

jyixIjiF

),(),(

(2)

Figure 2 shows an input image, pattern (red

small area) and correlation matrix obtained by the

normalized correlation. We defined the search win-

dow (green big area) and the pattern is searched

within this window. The result matrix has the same

dimensions as the search window (M×M). The pixel

with the maximum value determines position of the

pattern in the search window. Hence, it determines

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

622

position of an area in the search window which is

most similar to the pattern.

The correlation can be calculated in the original

(time) domain according to equation 2 however this

approach is rarely used due to enormous time con-

sumption. Note that for every point of correlation

matrix is necessary to perform 2N×N multiplications

and additions. We can obtain the same result with

lesser effort in the frequency domain (Brooks,

2003).

On the other hand, the Equation (2) appears as

an ideal choice from the hardware processing point

of view. The computation involves only the fixed-

point arithmetic (adders and multipliers) which is

suitable for an FPGA based implementation.

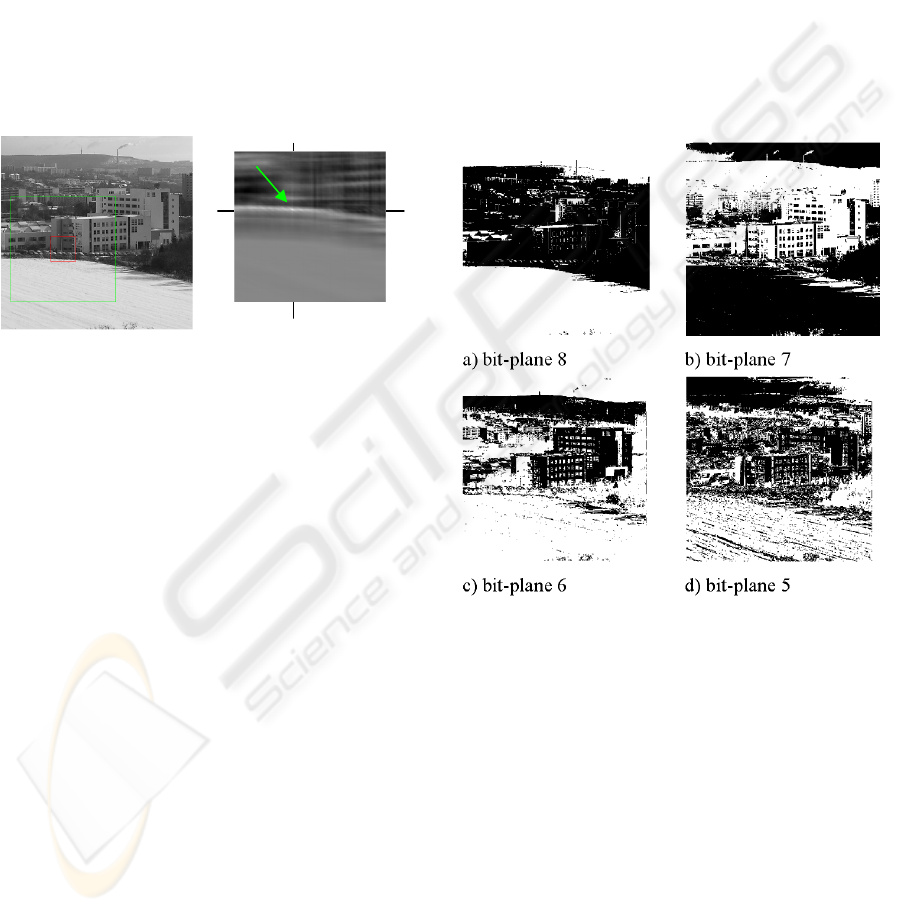

Figure 2: a) Input image with marked search window

(left); b) Correlation matrix obtained by correlation (right).

Stated principle is theoretically ideal solution

when we consider only translation. But in practice

we have to deal with two problems. The first prob-

lem arises from finite resolution of registers and

sampling and it causes existence of several points

with maximal values in the correlation matrix. The

second problem is dependency of results on the

background noise which is present in the input video

signal.

It is necessary (in case of the image stabilization)

to define several independent areas and to calculate

correlation matrices for each of them. We obtain

several local motion vectors and the global motion

vector is calculated as their average or median. This

method prevents errors coming from the correlation

on problematic areas (e.g. with the same intensity).

2.2 Bit Plain Matching Algorithm

Some algorithms, in quest of improving the results,

calculate the correlation from the images passed thru

an edge detector (Ko et al., 1999). This technique

provides certain improvements, but the edge detec-

tors tend to produce many useless pixels and are

sensitive to the image intensity. Last but not least,

the detector introduces additional time-consuming

operation to the phase of processing. As most of

edge detectors are nonlinear systems, it is not possi-

ble to make convolution in the frequency domain.

The noise can be suppressed by ignoring the

least significant bits. Then we can consider only the

higher bits or take only some bit-planes and calcu-

late the correlation using that plane, which consists

only from one and zero values.

Better results can be achieved by gray coded bit

planes. The gray coding allows estimate motion vec-

tor using a single bit-plane by encoding most of the

useful information into a few planes. A small change

in the gray level leads to a small change in the bi-

nary digits representing the intensity. Figure 3 shows

four most significant bit-planes of selected image.

Figure 3: Gray-coded bit planes of image from Fig. 2.

Bit plane matching algorithm does not use corre-

lation, as defined above, and defines a new, but very

similar, operator (see Equation (3)) that has to be

minimized. Note that, in the previous task, we deal

with maximization. In fact, it is the definition of

correlation where the multiplication operator is re-

placed by the binary operator – exclusive or.

∑∑

−=−=

++⊕=

jyixIjiFyxE ),(),(),(

(3)

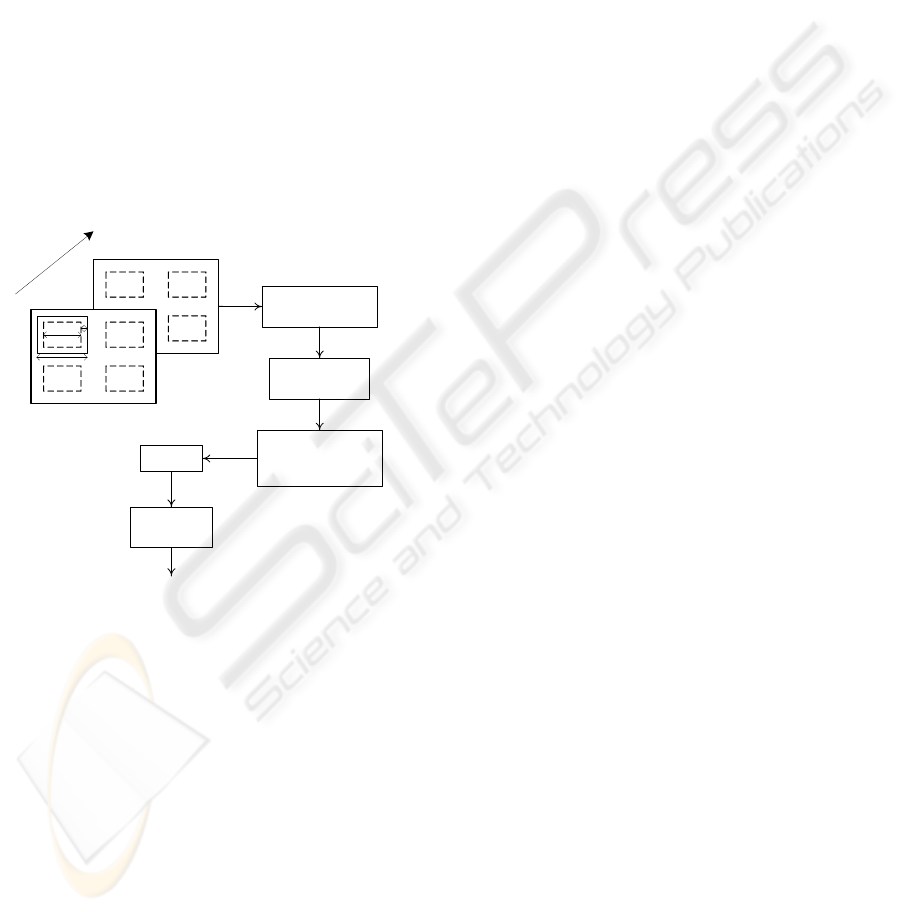

This error operator is calculated by minimizing

the resulting local motion vector. Several (typically

four) local motion vectors from each area along with

the previous global motion vector are passed through

DIGITAL IMAGE STABILIZATION IN A VIDEO-STREAM - Stabilization of (Undesirable) Image Movements in a

Video-Stream

623

a median operator to produce the current global mo-

tion vector estimate.

Then, the global motion estimate can be option-

ally passed through a filter that is tuned in order to

preserve intentional camera motion while removing

the undesirable high frequency motion.

The final filtered motion estimate is used then

for shifting the current frame by an integer number

of pixels in the opposite direction of the motion. The

whole system is depicted at Figure 4.

2.3 Proposed Solution

The method described in the previous section uses

only one bit plane to estimate the local motion vec-

tor. In order to improve the estimation of the local

motion vector, we experimentally determined that at

least two bit planes are suitable to increase the relia-

bility of estimation.

Current Frame

Past Frame

Preprocessing –

Gray-Coded Bit

Plane

Four Region

Motion Estimation

Global Motion

Estimation Using

Median

Integration

Motion

Compensation

(Pixel)

OUT

Figure 4: Scheme of digital image stabilization.

The next improvement lies in the usage of more

than one maximum. This solution will be stable in

the situations, where the edges have very low con-

trast. Now we are trying to use 5 highest maximum

peaks in the searching area. This could be taken into

the account by the computation of global motion

vector.

The last optimization is to split the image to

some predefined number of regions, in which the

maximums are searched. Robustness of such algo-

rithm increases using this optimization.

Our intention is to reduce the computational de-

mands on processor (DSP – see next chapter) that

the standalone unit without cooling could operate,

and our algorithm should be stable also in regions,

where nearly no clear edges exist, e.g. desert, sea

etc.

3 HARDWARE SOLUTION

Algorithms mentioned in the previous chapter can be

easily implemented in a common PC. Our goal,

however, is to design a standalone solution to the

image stabilization, which has to fulfill defined spe-

cifications. Result of our aims should be a device

able to stabilize an input video stream and send the

stabilized stream to an output.

The specifications that must be fulfilled are de-

fined as follows:

• Size of the final board must not exceed 100

× 120 mm.

• Height of the final product must be lower

or equal to 12 mm.

• The board should contain four layers not

exceeding total width of 1.5 mm.

• The final product must be able to operate

under military conditions, e.g. temperature

of operation ranges from -40° to 85° C.

The board consists of input/output connectors,

persistent storage units, processing units, microcon-

troller, and video processing unit.

The connectors serve simply for the video input

and output purposes. The persistent storage is in a

form of a FLASH memory containing software,

which is booted after reset of the board. There is a

slot for an SD card too, which enables user to up-

grade the software. A new version of the software is

uploaded to the FLASH memory automatically

when an SD card is present in the slot. The micro-

controller provides means of communications be-

tween the individual components (FLASH memory

– SD Card, FLASH memory – FPGA etc.). The vid-

eo processing unit consists of an encoder and decod-

er determined to encode/decode the video stream.

The main part of the board is the processing unit.

For this task we decided to use a combination of an

FPGA and digital signal processor (FPGA-DSP

combination) as the engine of the board.

Since the board must count on future upgrades, it

contains an independent pair of the FPGA-DSP

combination (see Figure 5) working in parallel. Each

FPGA-DSP combination has its own memory bank

to avoid memory stalls and shared memory issues.

This way there is one FPGA-DSP pair for the image

stabilization and the other FGPA-DSP pair for the

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

624

future upgrades (e.g. for an object tracking). Each

module can operate separately, is independent (even

though they can use each other’s results), and can be

omitted from the final design, which makes the

board very variable.

The first processing unit serves for the purposes

of the image stabilization. It can read frames from

the input video stream, store it in its memory and

process it. The result frame can be sent to the output

video stream. The second processing unit doesn’t

need to be included on the board. When it is present

on the board however, it can communicate directly

with the first module. It can read frames of the input

video stream and send them to the output video

stream too. When both units are functional and

working, the output stream is given by the second

unit. Each module can be turned off so that each

stage of the video stream processing can be easily

bypassed (it can be useful in some situations to see

the original, unprocessed input video stream).

DSP unit 1

DSP unit 2

SDRAM 1SDRAM 2

FPGA unit 1

FPGA unit 2 Video input

Video output

Interface

Microcontroller

SD cardFlash

Figure 5: Proposed design of the board for the image stabi-

lization.

This solution is a compromise between the

hardware specifications, given constraints and algo-

rithm requirements. The combination of an FPGA

and DSP allows us to spread tasks given by the algo-

rithm between both – the processor and gate array.

Hence, FPGA can perform some general operations

(preliminary steps of the algorithm), whereas the

DSP can focus itself on the calculations (e.g. Fast

Fourier Transform).

4 CONCLUSIONS

We have a standalone unit with two DSP processors

ready to realize digital image stabilization. One

backup DSP-FPGA pair is ready for future use, e.g.

for the task of an object tracking.

At the moment, three parallel ways for the algo-

rithm of image stabilization are used. We try to use

common algorithms for this task, but with our opti-

mizations and improvements to ensure strong ro-

bustness.

The future work is to load the optimized paralle-

lized program to the hardware unit. Testing and fur-

ther optimizations, especially in parallelism, will be

performed soon. Of course, further improvements

will be needed, e.g. for different regions of usage

(e.g. arctic ice region, windy areas etc.). In the fu-

ture, we want to try to implement the image stabili-

zation on another DSP platform which does not use

a fixed point as our contemporary solution.

ACKNOWLEDGEMENTS

This research has been done under the support of the

grant “Security-Oriented Research in Information

Technology”, MSM0021630528 (CZ).

REFERENCES

A.C. Brooks, “Real-Time Digital Image Stabilization”, EE

420 Image Processing Computer Project Final Paper,

EED Northwestern University, USA, March 2003, p.

10.

D. Sachs, S. Nasiri, D. Goehl, “Image Stabilization Tech-

nology Overview”, InvenSense Inc., USA, 2007, p. 18.

S.J. Ko, S.H. Lee, S.W. Jeon, “Fast Digital Image Stabi-

lizer Based on Gray-Coded Bit-Plane Matching”,

IEEE, USA, 1999, pp. 90-91, ISBN 0-7803-5123-1.

F. Vella, A. Castorina, M. Mancuso, G. Messina, “Robust

Digital Image Stabilization Algorithm Using Block

Motion Vectors”, IEEE, USA, 2002, pp. 234-235,

ISBN 0-7803-7300-6.

DIGITAL IMAGE STABILIZATION IN A VIDEO-STREAM - Stabilization of (Undesirable) Image Movements in a

Video-Stream

625
