MULTIPLE VEHICLE TRACKING USING GABOR FILTER

BANK PREDICTOR

James Graham

, Mehmet Celenk

, John Willis

, Tom Conley

and Haluk Eren

2•

School of Electrical Engineering and Computer Science, Ohio University, Athens, OH 45701, U.S.A.

TBMYO, Computer Technology Department, Firat University, Elazig, Turkey

Keywords: Multiple vehicle tracking, Change detection, Gabor filter bank predictor, Motion estimation.

Abstract: This paper presents a time-varying Gabor filter bank predictor for use with vehicle tracking via surveillance

video. A frame-based 2D Gabor-filter bank is selected as a primary detector for any changes in a given

video frame sequence. Detected changes are localized in each frame by fitting a bounding box on the

silhouette of the vehicle in the region of interest (ROI). Arbitrary motion of each vehicle is fed to a non-

linear directional predictor in the time axis for estimating the location of the tracked vehicle in the next

frame of the video sequence. Real-time traffic-video experimentation dictates that the cone Gabor filter

structure is able to tune itself into a selected target and trace it accordingly. This property is highly desirable

in the fast and accurate moving vehicle or target tracking purposes in range and intensity driven sensing.

1 INTRODUCTION

This work focuses on the tracking of multiple

vehicles by fitting them with image oriented

bounding boxes as the ROIs and predicting their

positions in a given traffic image sequence using a

Gabor filter bank. Detecting the ROIs is carried out

by using a bank of Gabor filters to determine the

relevant ROI, paired with change detection and

analysis to track objects from frame to frame. Many

other traffic surveillance and prediction methods

have been proposed and implemented for the same

purposes. Such schemes include the studies Wang,

et. al, 2006, Maire and Kamath, 2005, Celenk and

Graham, 2008, Zhi-fang and Zhisheng, 2007, Wang

and Lien, 2008, Atev and Papanikolopoulos, 2008,

Taj, Maggio, and Cavallaro, 2008, Qian Yu, and

G´erard Medioni, 2008. Our approach uses the

Gabor filtering as an estimator for robust ROI

detection.

Gabor filters are able to discriminate the

minimum bound via concurrent utilization of the

spatial and the spectral domain information.

Moreover, an extension application of the Gabor

filter is the Gabor filter bank, which is comprised of

a set of Gabor filters of different frequencies and

orientations that provide a complete cover of the

spatial frequency domain. An example is Macenko

et al.’s (2007) work, which provides both a good

explanation of the approach to using Gabor filtering

and a highly relevant practical application in lesion

detection within the brain. The following sections

describe the overall approach and experimental

results. Conclusions are given at the end.

2 TRACKING BY GABOR

FILTER BANK

In this paper, the vehicle tracking problem is tackled

by selecting the Gabor filter bank responses as the

error invalidation criterion for estimation based

tracking and surveillance. The basic premise behind

the underlying objective is that prediction of an

entire image is not necessarily useful, desired, or

even practical. In lieu of this reasoning, the Gabor

filter is chosen to help determine an ROI in the next

frame as the most likely location of the moving

target. More specifically, the current frame’s results

are projected “forward” for processing in the next

frame as illustrated in Figure 1. The approach has a

flaw in its operation due to the fact that only a

portion of the each frame is processed. This is

alleviated by interspacing a full frame analysis every

few frames. Assuming piece-wise linearity,

prediction of a vehicle V in the next frame at time

632

Graham J., Celenk M., Willis J., Conley T. and Eren H. (2009).

MULTIPLE VEHICLE TRACKING USING GABOR FILTER BANK PREDICTOR.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 632-635

DOI: 10.5220/0001806006320635

 SciTePress

+1 from its identified location in the present frame

t is defined by

()

,; 1 , ;

Vxyt Vx d y dt+= − − (1)

where d

and d

are the horizontal and vertical

displacements of the vehicle in the next frame,

respectively. Notice that these two displacements are

determined by the speed of the motion of a vehicle.

Piece-wise linearity assumption will not be a

limiting factor for the generality of the method being

presented here since any motion can be represented

as a superposition of piece-wise linear motion.

Keeping this in mind, frame rate needs to be

sufficiently high to maintain a steady sample flow of

moving target or vehicle.

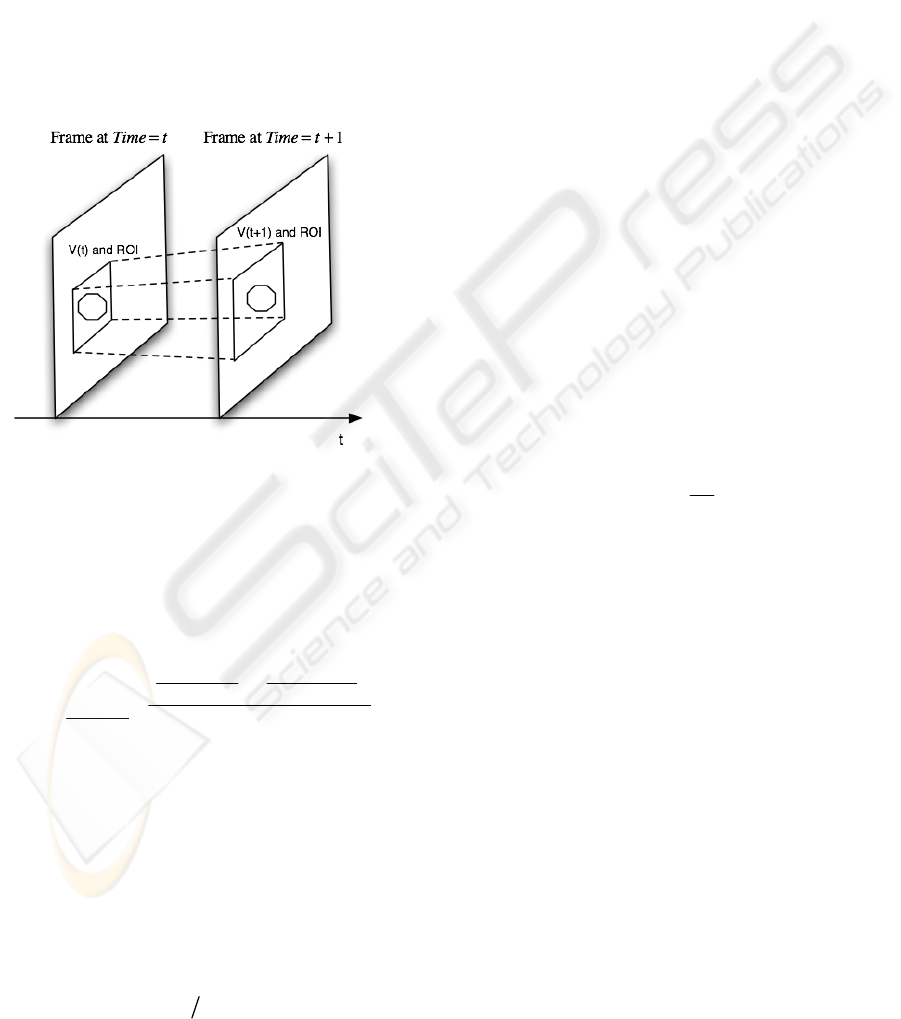

Figure 1: Gabor filter projective estimation in time.

Initially, the first two frames are used to detect

any changes due to the vehicle motion. Based on the

bounding box ROI results of this initialization step, a

Gabor filter bank is generated as one per ROI using

() ()

(

)

hxy gxy e

ωω

=⋅ (2)

cos sin sin cos

(, )

xy xy

gxy e

θθ θθ

⎛⎞

⋅+⋅ −⋅+⋅

⎜⎟

⎝⎠

−

(3)

That is,

()

xy is a Gaussian that is spatially scaled

and rotated by

. S

and S

are the variances along

the x and y axes and are equal to λσ and σ,

respectively. The parameter

is the spatial scaling,

which controls the width of the filter impulse

response. The value

defines the aspect ratio of the

filter, which determines the directionality of the

filter. The orientation angle

is usually chosen to

be in the direction of the filter’s center circular

frequency (

= tan

−1

). In the proposed

system, the current frame is fed to a Gabor filter

bank which calculates the output images for a series

of Gabor bases with varying orientations. Here, the

filter bank, which has a set of frequencies and

orientations, will cover the spatial-frequency space

and capture as much shape information as possible.

A combined Gabor saliency map is produced from

these resultant images. A set of bounding boxes is

created with the saliency image and previous error

results from the two corresponding Gabor filter. The

prediction error (E) is calculated as

()()

,; 1 ,;

Ecxytcxytdxdy=+−

⎡⎤

⎣⎦

∫∫

(4)

(

)

(

)( )

,; ,; ,;c xyt V xyt h xyt=∗ (5)

(

)

(

)( )

,; 1 ,; 1 ,; 1c xyt V xyt h xyt

=+∗+ (6)

Here,

cx, y;t

(

)

represents the convolution of the

vehicle image value

(

)

,;Vxyt with the Gabor filter

impulse response

(

)

,;hxytin the video frame at time

(

)

,; 1cxyt

denotes the convolution of the

tracked vehicle image value

()

,; 1Vxyt+ with the

Gabor filter’s impulse response function

(

)

,; 1hxyt

in the image taken at time t+1, and R is

the region of support, or local spatial region used to

estimate d

and d

, respectively. The solution to

equation (4) requires the solution of

∂E

∂R

= 0 (7)

Since the analytical solution of equation (7) is a

nonlinear problem due to the randomly varying

nature of R, the solution space is searched iteratively

using the initial value and an incremental adjustment

term. For computational efficiency, the estimated

ROIs are searched in nine different positions for

vehicles’ images which match to those found in

previous frames. The search strategy selected in this

work is similar to the Matching Pursuit transform

and the corresponding Gabor wavelets (Servais,

2006). In our case, however, the Gabor wavelet basis

functions are adaptively formed in accordance with

the shape and size of each vehicle being tracked.

3 EXPERIMENTAL RESULTS

A pair of data sets is used in experimentation from

the Institut für Algorithmen und Kognitive Systeme

of Karlsruhe University’s traffic image sequence

database; e.g., the Taxi and Rheinhafen sequences.

MULTIPLE VEHICLE TRACKING USING GABOR FILTER BANK PREDICTOR

633

Images provided in the databases are in 2-D

intensity format. The 2-D scene data used for this

experiment is from a static surveillance camera. In

the collected images, only the scene contents move

while the camera remains stationary. The Taxi and

Rheinhafen video frames have been converted into

JPEG images for the sake of commonality with

resolutions of 256x191 and 688x565, respectively.

Figure 2 shows two example images from the

selected databases depicting the scenes from which

they were acquired.

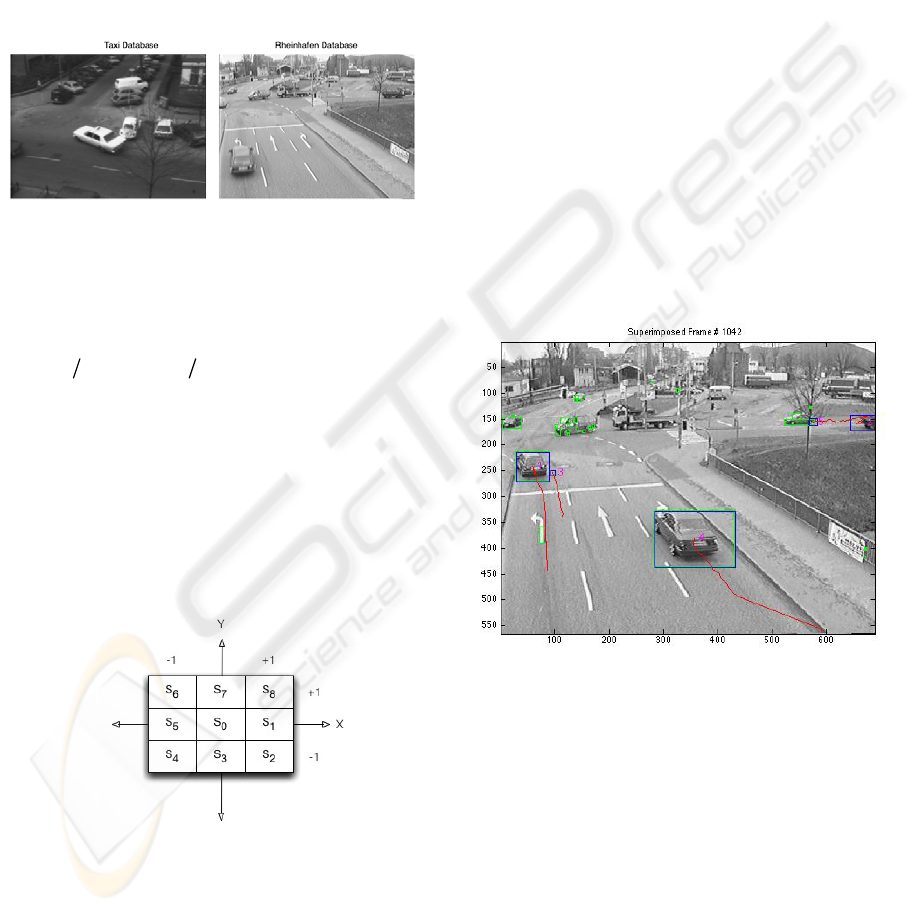

Figure 2: Samples from Taxi and Rheinhafen databases.

In the implementation, we follow the same

discrete formulation of the Gabor filter as in

Macenko et. al (2007), which specifies the Gabor

filter variables to be

= 1,

= 1

, and

= 0,

4,...,

,...,7

{}

. Eight different

orientations for the Gabor filter bank are adapted

since more would not provide any significant

improvement and fewer would begin to lose

significant information about the image content. The

aforementioned eight orientations have been realized

via the nine predicate templates of size given by the

bounding boxes obtained at time t. Below, the nine

templates are shown in the order in which the spatial

coordinates x and y are offset from the predicted

location at position zero.

Figure 3: Spatial offset templates.

Upon passing an image through the filter bank

consisting of nine Gabor wavelets arranged in the

above shown structure, we have created a combined

saliency image as described in (Celenk, Zhou,

Vetnes, and Godavari, 2005). The saliency image

has the background saliency map subtracted to leave

only the correct region of interest (ROI). The

resulting ROI is then passed through a noise

reduction and blocking filter to remove specks

which result from small background changes and to

square the edges of the ROI to improve reliability.

Figure 4 shows the results of the algorithm’s

tracking features. Over the course of the image

progression, the algorithm tracks the movement and

contents of the ROI boxes and attempts to isolate

and track relevant objects. The red lines in the figure

represent the tracked path of the objects, while the

numbers act as bounding box labels. Close

observation of the images shows that there are 2

kinds of tracked bounding boxes. One type is the

single blue box as seen with regards to boxes 2 and

3, and the double lines green and blue boxes.

Regions such as those of 2 and 3 exist because their

associated feature is no longer being tracked, at least

in the current frame. This can happen for one of

three reasons; the object has moved off the screen,

tracking has been temporarily lost on the object, or

the object is an erroneously tracked region as in the

case of region 3. Region 3 was an artifact associated

with region 1 that was tracked across several frames.

Figure 4: Tracking of various moving vehicles.

Quantitative measurements of tracking error

have been made in the least mean square sense

(LMSE) yielding an acceptably low tracking error as

in (Celenk and Graham, 2008). Here, the main goal

is to capture and track the moving objects in various

road conditions. Figure 5 illustrates the progression

of tracking over time, while Figure 6 simply shows

an overlay of both Figures 4 and 5 at a slightly later

time. Comparing the images of Figures 4, 5, and 6

with the Rheinhafen data as seen from Figure 2

gives a better idea of exactly how the objects have

progressed.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

634

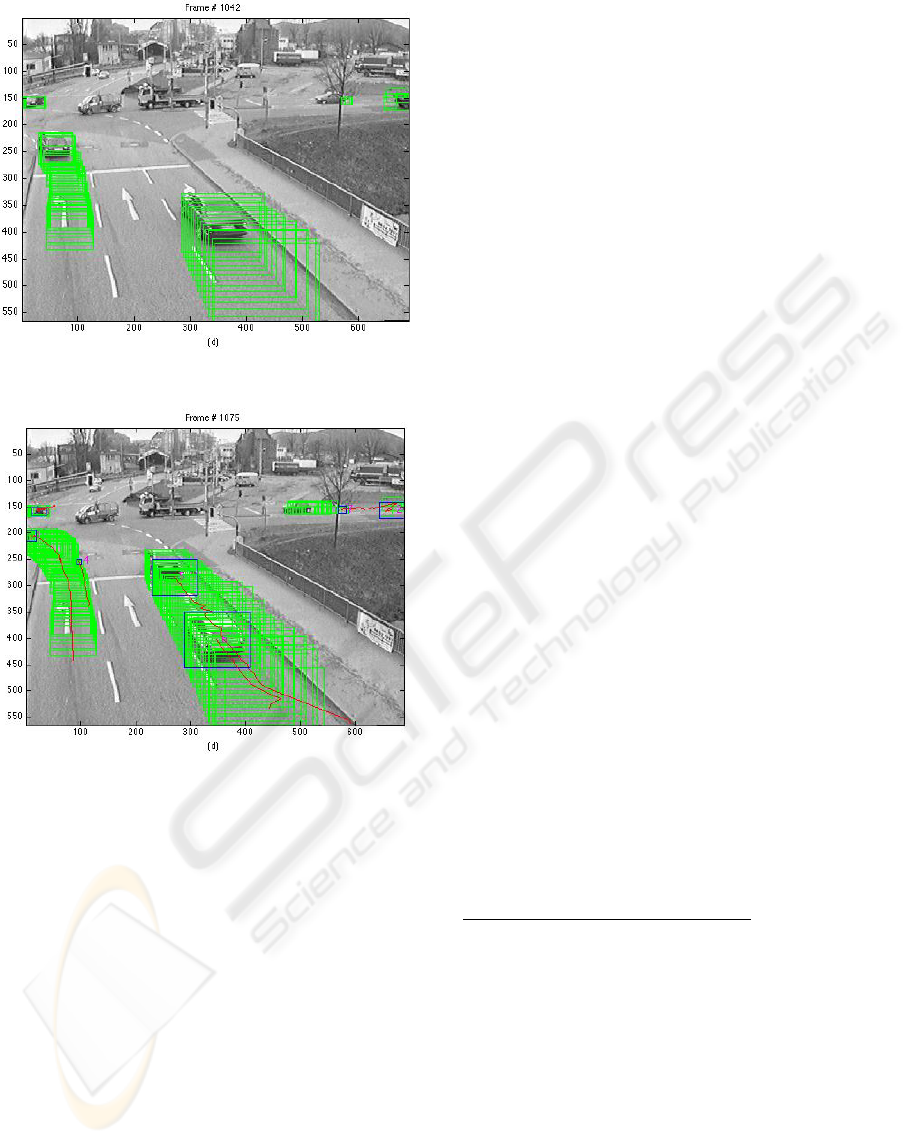

Figure 5: Progression of tracked boxes.

Figure 6: Overlap of tracking and progression data.

4 CONCLUSIONS

This paper presents a time-varying Gabor filter bank

predictor for use with vehicle tracking via

surveillance video. Detected changes are localized

and motion is fed to a non-linear directional

predictor in the time axis for estimating the location

of the tracked vehicle in the next frame of the video

sequence. Real-time experimentation has shown that

the cone Gabor filter structure can adjust itself into a

selected target and track its motion. This property is

highly desirable for processing a fast moving vehicle

or target tracking purposes. Future work involves

extending the plane structured Gabor filter bank to a

3D spatio-temporal arrangement with feature

selectivity. For high performance and/or real time

implementation the Gabor filter bank lends itself to

parallel (e.g., GPU or FPGA) implementation.

REFERENCES

Atev, S. and Papanikolopoulos, N., 2008, “Multi-view 3d

vehicle tracking with a constrained filter,” 2008 IEEE

ICRA, May 19-23, pp. 2277 - 2282.

Celenk, M. and Graham, J., 2008, “Traffic Surveillance

Using a Gabor Filter Bank Based Kalman Motion

Predictor,” Proc. VISAPP ‘08, Funchal, Maderia –

Portugal, Jan 22-25.

Celenk, M., Zhou, Q., Vetnes, V., and Godavari, R., 2005,

“Saliency field map construction for ROI-based color

image querying,” Journal of Electronic Imaging, Vol. 4,

No. 3, pp 033012-1 ~ 033012-9, July –September

Institut für Algorithmen und Kognitive Systeme, Image

Sequence Server, Karlsruhe University.

http://i21www.ira.uka.de/image_sequences/

Macenko, M., Luo, R., Celenk, M., Ma, L., and Zhou, Q.,

2007, “Lesion detection using Gabor-based saliency

field mapping,” Medical Imaging 2007, Proc. SPIE

Vol. 6512, Feb. 17-24, San Diego, CA.

Maire, M. and Kamath, C., 2005, “Tracking Vehicles in

Traffic Surveillance Video,” Lawrence Livermore

National Lab., Technical Report UCRL-TR-214595.

Servais, M., 2006, “Content-based motion compensation

and its application to video compression,” Ph.D.

Thesis, Univ. of Surrey.

Taj, M., et. al, “Objective evaluation of pedestrian and

vehicle tracking on the CLEAR surveillance dataset,”

Multimodal Technologies for Perception of Humans,

Vol. 4625/2008, June 27, 2008, pp. 160-173.

Wang, C.C.R. and Lien, J.J.J., 2008, “Automatic vehicle

detection using local features—a statistical approach,”

IEEET-ITS, Vol. 9, No. 1, March, pp. 83-96.

Wang, Y., et. al, 2006, “Renaissance: A real-time freeway

network traffic surveillance tool,” Proc. IEEE ITSC,

pp. 839-844.

Yu, Q. and Medioni, G., 2008, “Integrated detection and

tracking for multiple moving objects using data-driven

mcmc data association,” IEEE WMVC, pp. 1-8.

Zhi-fang, L. and Zhisheng, Y., 2007, “A Real-time Vision-

based Vehicle Tracking and Traffic Surveillance,” 8

ACIS Int. Conf. Software Eng., AI, Networking, and

Parallel/Distributed Computing, Vol. 1, pp. 174-179.

•

Mr Haluk Eren’s contribution is supported by TUBITAK

MULTIPLE VEHICLE TRACKING USING GABOR FILTER BANK PREDICTOR

635
