SIMPATROL

Towards the Establishment of Multi-agent Patrolling as a

Benchmark for Multi-agent Systems

Daniel Moreira, Geber Ramalho and Patrícia Tedesco

Centro de Informática, Universidade Federal de Pernambuco, Prof. Moraes Rego Av., Recife, Brazil

Keywords: Multi-agent systems (MAS), Multi-agent patrolling (MAP), MAS benchmarks, MAS testbeds, SimPatrol.

Abstract: This paper discusses the establishment of multi-agent patrolling (MAP) as a benchmark for multi-agent

systems (MAS). It argues that MAP can be a good benchmark for MAS, and points out what is lacking in

order for this to happen. From the identified lacuna of not having a testbed, it presents SimPatrol, a

simulator of MAS constructed strictly for the patrolling task. With such testbed, new results of performance

are obtained for some of the previously proposed patrolling strategies.

1 INTRODUCTION

AI began to focus less on component technologies

and more on complete, integrated systems (Hanks,

Pollack and Cohen, 1993). In this scenario, multi-

agent systems (MAS) offer a good way to design

such integrated systems (Russell and Norvig, 2003).

The concept of multiple agents perceiving and acting

on an environment allows the integration of many

distinct technologies, and also systemizes the use of

such combined technologies to craft a solution that

meets the needs of a specific application.

From the industrialization process, Computer

Science inherited the necessity to evaluate and

compare the performance of distinct logic systems

(algorithms, architectures, etc.). Drogoul, Landau

and Muñoz (2007) justified such necessity as a

manner to determine what systems are better

indicated to solve a given problem, usually called

benchmark.

Succinctly, benchmarks are precisely described

problems, solvable by distinct techniques and

representative of a class of problems. Hanks, Pollack

and Cohen (1993) discussed the importance of

establishing benchmarks for MAS, as well as Stone

(2002), and Drogoul, Landau and Muñoz (2007)

criticized the currently most popular MAS

benchmarks: the RoboCup and the TAC

competitions.

Initially not aware of the benchmark issue, many

researchers have been conducting studies about

multi-agent patrolling (MAP) since 2002 (Machado,

2002; Almeida, 2003; Santana, 2004; Chevaleyre,

2005; Menezes, 2006). Informally, patrolling is the

act of moving around a field in order to visit

regularly its areas. The goal is to minimize the time

lag between two visits to a same place.

MAP is useful for domains where distributed

surveillance, inspection or control is required. For

instance, patrolling agents can help administrators in

the surveillance of failures or specific situations in

an Intranet, or detect recently modified or new web

pages to be indexed by search engines (Machado,

2002).

Despite the quantity of developed work, up until

this point, MAP researchers did not have the means

to accurately compare the proposed solutions.

Dealing with such difficulties and being inspired by

the criticism done about the RoboCup and TAC

competitions (Stone, 2002; Drogoul, Landau and

Muñoz, 2007), one additional issue born was just

related to the potential of the MAP problem as a

benchmark for MAS.

Thus, this work aims to discuss the establishment

of the MAP problem as a benchmark for MAS. Also,

as a very first step to fulfil the identified gaps,

SimPatrol is introduced as a MAS software

simulator that offers a testbed for the MAP problem.

Next section discusses benchmarks for MAS,

and section 3 presents MAP as a MAS benchmark.

Section 4 introduces SimPatrol, bringing some

interesting new results obtained with the simulator.

570

Moreira D., Ramalho G. and Tedesco P. (2009).

SIMPATROL - Towards the Establishment of Multi-agent Patrolling as a Benchmark for Multi-agent Systems.

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence, pages 570-575

DOI: 10.5220/0001807005700575

 SciTePress

2 BENCHMARKS FOR

MULTI-AGENT SYSTEMS

Benchmarks are well-defined problems that simplify

a more complex reality. The first goal of such

simplification is to support fair comparisons of

distinct solutions, as long as it facilitates the

submission of such solutions to the same situations.

Being a science of the artificial, besides an

analytic-theoretical vein, AI has a growing empirical

facet where controlled experimentation is

fundamental (Pereira, 2001). So, for such science,

benchmarks play an important role that exceeds the

issue of comparing competing systems. They are

part of the apparatus of empirical AI.

As pointed by Hanks, Pollack and Cohen (1993),

AI systems are intended to be deployed in large,

extremely complex environments. But before the

application to real problems, AI researchers submit

their methods, algorithms and techniques to

simplified, simulated versions of such environments

(i.e. to benchmarks).

Thus, the experimental process consists in the

researcher varying the features of the simulated

environment, or even the benchmark task, in order to

measure the resulting effects on system

performance. With such information, the researcher

shall be able to discriminate between uninteresting

isolated phenomena, and relevant general results,

adequately explaining why his (or her) system

behaves the way it does.

2.1 Definition

For AI, a benchmark is a problem sufficiently

generic in order to be solved by various different

techniques, sufficiently specific to let such distinct

techniques be compared, and sufficiently

representative of a class of real applied problems

(Drogoul, Landau and Muñoz, 2007).

Well-known AI benchmarks are the knapsack,

the n-queens, and the traveling salesman problems

(Drogoul, Landau and Muñoz, 2007). As one can

see, such problems are sufficiently generic – since

they can be solved by plenty of techniques – and

also sufficiently specific, as shown by the number of

studies comparing such techniques (Martello and

Toth, 1990; Russell and Norvig, 2004; Cook, 2008).

These problems are sufficiently representative, too,

since they are NP-complete problems (Garey and

Johson, 1979.)

However, as pointed by Hanks, Pollack and

Cohen (1993), since AI began to focus less on

component technologies and more on complete,

integrated systems (specially MAS), such classic

benchmarks revealed their limitations. They evaluate

the performance of component technologies

individually, ignoring the interactions of such

components one with the others and with the

environment.

So, what characterizes a benchmark for MAS? In

the same manner as the other benchmarks for AI,

benchmarks for MAS must be sufficiently generic

and sufficiently specific. Their particularity is

constituted just by the sufficiently representative

issue. As explained by Stone (2002), as long as the

complexity of MAS exceeds the NP-completeness

theory, their representativeness is related to AI

subfields like collaboration, coordination, reasoning,

planning, learning, sensor fusion, etc.

2.2 Good Benchmarks

Besides defining what a benchmark is for MAS, an

important aspect is defining what turns a benchmark

into a good benchmark.

As defined by Drogoul, Landau and Muñoz

(2007), a good benchmark is the one that makes the

representation and the understanding of new

methods easier, letting the researcher focus on the

solution rather than on the representation of the

problem.

From the point of view of Hanks, Pollack and

Cohen (1993), a good benchmark must also count

with a testbed. Succinctly, a testbed is a complete

software environment that offers an interface to

configure the parameters of a benchmark, as well as

assures that distinct techniques are being tested and

evaluated in equivalent situations.

2.3 RoboCup and TAC Competitions

As pointed out by Stone (2002), the RoboCup and

the TAC competitions comprise the currently most

popular benchmarks for MAS. The reason for such

popularity is related to the problems that such

competitions simplify through their benchmarks.

RoboCup challenges competitors to win soccer

games (one of the most popular sports of the world),

played by computer agents (Robocup, 2008). TAC,

the Trading Agent Competition, challenges

competitors to build trading agents that dispute for

resources in an e-market (Tac, 2008).

Both competitions have yearly promoted

international tournaments. Their benchmarks are

indeed sufficiently generic, given the diversity and

the quantity of proposed solutions by the many

competitors. Such benchmarks are also sufficiently

specific, once the proposed techniques are

SIMPATROL - Towards the Establishment of Multi-agent Patrolling as a Benchmark for Multi-agent Systems

571

confronted in tournaments. In other words, it is

expected that the winner presented a better

performance than the looser.

Having the representativeness issue in mind,

TAC can be considered sufficiently representative,

once the trading agents deal with many situations of

which solutions contribute in the fields of reasoning,

planning and learning. However, in the case of

RoboCup, its representativeness is somehow

questioned (Drogoul, Landau and Muñoz, 2007).

Considering, for example, a solution for

gathering relevant data from the combination of the

sensors of a player, it contributes for the sensor

fusion field, being representative. Nevertheless, a

solution for the problem of avoiding off sides during

a goal attack may not be so representative.

Stone (2002) presented more criticism to the two

competitions, pointing out problems like obsession

with winning, barriers to enter and even monetary

advantages of one competitor over the others.

Despite such drawbacks, both competitions count

with stable and consolidated testbeds that improve

the quality of their benchmarks. These testbeds are

the Soccerserver, that supports the simulation

benchmark of RoboCup (Robocup, 2008), and the

Classis Server, that supports the TAC Classic

benchmark of TAC (Tac, 2008).

Inspired by the discussion about benchmarks for

MAS, one issue that occurs to MAP researchers is

related to the possibility of establishing the MAP

problem as one of these benchmarks.

3 MULTI-AGENT PATROLLING

The multi-agent patrolling problem is stated as a

MAS of which environment is represented by a

graph and of which agents act as tokens moving on

it, visiting the nodes through the edges. So, the goal

is to minimize the time lag between two visits for

each node.

3.1 Can Multi-agent Patrolling be a

Benchmark for Multi-agent

Systems?

In order to evaluate the possibility of establishing

the MAP problem as a benchmark for MAS, the

following questions must be answered:

• Is MAP sufficiently generic?

• Is MAP sufficiently specific?

• Is MAP sufficiently representative?

The answer for the first question is shown to be

positive by the number of existing techniques

developed to solve the MAP problem. Since 2002, a

series of works has been carried out. While some

researchers tested empirically various techniques –

like reactive behaviour (Machado, 2002), machine

learning (Santana, 2004) and negotiation

mechanisms (Menezes, 2006) – Chevaleyre (2005)

presented a graph-based theoretical analysis of the

topic.

Taking the second question into consideration,

the answer is again positive. MAP is specific enough

in order to let the distinct proposed techniques be

compared; examples of such comparative studies are

Almeida et al. (2004), and Santana (2004).

In all studies, the proposed strategies were

compared based on the performance of the patroller

agents when submitted to each one of the six maps

described by Santana (2004) – actually, an effort to

represent the topologies he found to be the most

likely to face in real problems.

Finally, having in mind the third question, MAP

can be considered sufficiently representative for two

reasons. First, from the AI point of view, it deals

with situations where solutions contribute to the

fields of collaboration and coordination of agents

(Machado, 2002), planning (Almeida, 2003),

learning (Santana, 2004), communication of agents

(Menezes, 2006), etc.

Second, MAP is proven representative enough

given the diversity of possible applications.

Machado (2002) noticed that it is useful for every

domain where distributed surveillance, inspection or

control is required.

Answered the three questions, a relevant issue is

related to how good MAP is, as a benchmark for

MAS. MAP turns the representation and the

understanding of new patrolling methods easier in

the following ways:

1. The territories to be patrolled are

represented by generic graphs. So, when a

virtual patroller agent visits the nodes of a

graph, it can be the night watchman visiting

the rooms of a museum, or maybe a bot

inspecting the links of an intranet.

2. The collected metrics are all based on the

time lag between two visits to a node (i.e.

the idleness of the node). So, it does not

matter how the agents decided the order and

the exact time to visit the nodes; to impact

on the performance of the system, all they

have to do is to visit the nodes quickly.

Despite the benefits inherited from the definition

of the MAP problem, some criticism can be done

about its state-of-art.

ICAART 2009 - International Conference on Agents and Artificial Intelligence

572

3.2 Criticism to the State-of-art of

Multi-agent Patrolling

One source of criticism to the previous works of

MAP is related to the features that were not taken

into consideration by researchers yet. Issues like

graphs of which nodes have distinct visiting

priorities (like it can occur in the patrolling of a

bank, where the room of the main safe must be

visited more frequently than the others), or of which

nodes and edges can become unavailable in

simulation time were not considered in the first

proposed patrolling strategies.

In the same way, open societies of agents (i.e.

societies of which agents can appear or disappear

during simulation) and the possibility to associate

energetic costs to the actions and perceptions of the

patrollers were not explored.

Actually, one of the most important features not

analyzed until this work is related to the counting of

time. Taking into consideration the comparisons

done among the various proposed patrolling

strategies (Almeida et al., 2004), all of them were

experimented in simulators that counted the time of

simulation based on the agents' perceive-think-act

cycle.

So, when researchers simulated their strategies in

1000 cycles (for example), they were actually letting

their agents perceive, think and act 1000 times.

Similarly, the metrics of idleness were calculated

based on such numbers, what means that in the

worst case, the maximum possible idleness for the

graph being patrolled was 1000.

Due to the diversity of applied techniques and

reasoning mechanisms, it was perceived that such

method of time simulation represents a problem to

the comparing studies. It does not take into

consideration the real time spent by the agents when

deciding their next actions. So, if a strategy really

chooses the best actions but, as a consequence,

spends too much time reasoning, it will not be

penalized in any form.

Another source of criticism is the lack of a

testbed to let researchers easily implement their own

techniques and compare it to the previous ones. If

deciding to use one of the simulators applied to the

previous works, a developer should study carefully

the internal mechanisms of such programs, due to

the high coupling of modules.

Someone wanting to add new behaviours to the

patroller agents, or maybe to implement a new

graphical interface to show the simulation, should

first know the internal models of graphs, agents,

actions and perceptions, and also understand how

the eventual controlling classes manipulate them.

Add to that, they should also codify their routines in

the C/C++ programming language.

Bearing in mind the issues discussed, the

necessity for the creation of a better testbed was

noticed, in order to support the promotion of the

MAP problem as a benchmark for MAS.

In this light, SimPatrol was developed.

4 SIMPATROL: A TESTBED FOR

MULTI-AGENT PATROLLING

SimPatrol is a simulator of multi-agent systems

constructed for the patrolling task. Since it is open

source, someone wanting to check its code can do it

at any time in a SVN-manner by the following

address:

http://SimPatrol.googlecode.com/svn/SimPatrol/.

Its initial version has the basic requiements of

territory simulation, where a new graph to be

patrolled can be initially loaded, since it is in a XML

adequate form. Besides this, there is also the

simulation of perceptions and actions provided to the

patroller agents: fundamental mechanisms of

movement through the nodes and edges of the graph,

communication and vision of the neighbourhood and

near agents are implemented.

Technically inspired by Soccerserver – the

simulator of RoboCup (Robocup, 2008) – and by

Classic Server - the simulator of TAC (Tac, 2008) –

SimPatrol operates using a client-server architecture.

Succinctly, the graph and other configurations

are loaded at the server, while patrollers connect to

ports on the server in order to perceive and act on

the generated environment (working as clients). Due

to this feature, such agents can be coded in any

language, as soon as they implement the defined

communication protocols.

So, the internal models are updated based on the

actions intended by the agents, while the simulator

periodically provides them their appropriated

perceptions. Additionally, some auxiliary ports are

reserved to output the MAP metrics, and others are

reserved for logging the main events of the

simulation, in a way that such events can be

obtained online, or properly stored to be played

later.

As an effort to extend the MAP research, the

simulator also permits the creation of dynamic

territories, i.e. graphs of which edges and nodes are

associated to time probability distributions that rule

the appearing and disappearing of such elements.

Moreover, it is possible to give distinct visiting

priorities to each node, as well as to create open

SIMPATROL - Towards the Establishment of Multi-agent Patrolling as a Benchmark for Multi-agent Systems

573

societies of agents on the simulation, i.e. in some

user defined cases, new patrollers can be added or

die in simulation time. With these features,

developers can test their strategies in very dynamic

environments, adding a new step to the MAP

research.

Additionally, having in mind the robotic aspect

of MAP, SimPatrol provides mechanisms to set a

stamina feature to the agents, which means that they

can spend an amount of energy when perceiving or

acting on the environment. In such cases, the

territory can have some supply points where agents

can recharge their stamina.

Finally, the simulator also provides the option to

count the time of simulation considering the time

spent by the agents to think and decide for their next

action.

4.1 New Results Obtained with

SimPatrol

In the work of Almeida et al. (2004), some of the

previously proposed patrolling strategies were

compared. The set-up of experiments was

compounded by the six maps proposed by Santana

(2004), all expressed in figure 1. For each map,

randomly generated configurations for the initial

positions of the patroller agents were equally applied

to each strategy.

Figure 1: Maps proposed by Santana (2004). In (a), there

is the so-called A Map. In (b), there is the B Map. In (c),

there is the Circular one, while in (d) there is the

Corridor. In (e) there is the Islands map, and in (f) comes

the Grid.

Figure 2 shows the results of 4 patrolling

strategies applied to each one of the six maps. In

each experiment, 5 agents were used to patrol the

graph territory.

The y-axis indicates the average idleness of the

graphs (see equation 1), measured in the agents’

perceive-think-act cycles.

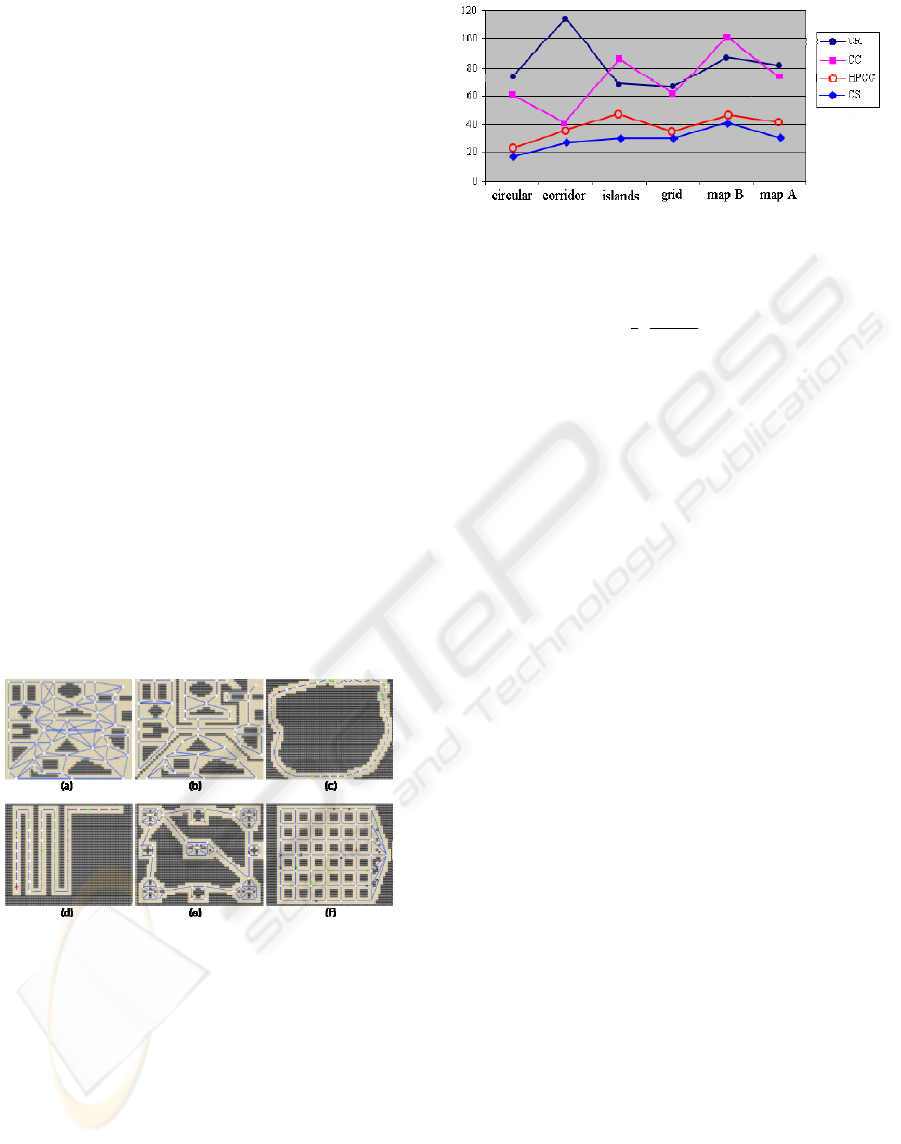

Figure 2: Results for the patrolling task executed by 5

agents (Almeida et al., 2004).

()

ord

∫

∑

)(

(1)

In equation 1,

)(ti

is the time lag between the

last visit of node k and time t (i.e. its idleness), and

ord is the order of the graph to be patrolled.

Admitting that the average idleness is inversely

proportional to the performance of a strategy, the

strategy that presented the best performance was the

SC one (Single Cycle strategy). In such architecture,

agents are let to patrol the graph moving on its TSP

solution, all to the same direction and equally far

from its predecessor (Chevaleyre, 2005).

From figure 2, the second best strategy was the

HPCC one (Heuristic Pathfinder Cognitive

Coordinated agents). In that solution there is a 6

agent that coordinates the others and decides their

next goal nodes to visit. In such decision, the

coordinator uses a heuristic that takes into

consideration the idlenesses and the distances of the

nodes (Almeida, 2003).

Similarly, the CC strategy (Cognitive

Coordinated agents) also counts with a 6

coordinator, but this one decides the next goals of

the patrollers based only on the idlenesses of the

nodes (Machado, 2002).

Finally, the strategy that showed worst

performance was the CR one (Conscientious

Reactive agents). As its name suggests, its agents are

reactive, deciding as the next node to visit the one

that has the biggest idleness on the neighbourhood

(Machado, 2002).

Interested in the impact of the time used by the

agents to decide their next nodes, the same described

experiments were reproduced in SimPatrol.

Nevertheless, with the new method of time counting,

the obtained average idleness was not based on the

agents’ perceive-think-act cycles anymore. It was

measured in seconds, and reflected the deliberating

spent times.

Figure 3 shows the new results obtained with

SimPatrol. As it was expected, the CR agents, being

ICAART 2009 - International Conference on Agents and Artificial Intelligence

574

reactive, presented a better performance, due to the

small time spent to decide their next actions.

On the other hand, the coordinated strategies (CC

and HPCC agents) were penalized for the concurred

and long service executed by the coordinators in

order to determine the goals of all the others agents.

Figure 3: New results obtained with SimPatrol for the

patrolling task executed by 5 agents.

Curiously, for the maps of which nodes had the

smallest degrees (Circular and Corridor ones), the

CR agents presented performance similar to the so-

good SC ones. The reason for such behaviour was

the small amount of nodes and idlenesses to check

due to the small neighbourhoods.

5 CONCLUSIONS

Multi-agent patrolling (MAP) has recently gained

attention from MAS researchers due to its

representativeness and potential for practical

applications. As a contribution to such fields, this

paper argued that MAP can be a good benchmark for

MAS. Additionally, it also identified what was

lacking in order to assure this to happen: a testbed

that could let researchers primarily focus on the

solution, rather than on the representation of the

problem, as well as define parameters that could let

them easily apply the proposed techniques in many

varied situations (with dynamic environments, open

societies of agents, energetic-expensive actions and

perceptions, for example).

So, SimPatrol was proposed as a software

simulator of MAS constructed strictly for the

patrolling task. With such testbed, new results of

performance were shown for some of the previously

proposed patrolling strategies. From these first

results, it was perceived the necessity of re-evaluate

the performance of all the previously proposed

strategies, as a further work.

Due to the new method of time counting

implemented, that considers the time spent by the

agent patrollers to decide their next actions, different

results of the comparative study of the patrolling

strategies have been obtained.

REFERENCES

Almeida, A. 2003. Patrulhamento Multiagente em Grafos

com Pesos. MSc dissertation. Universidade Federal de

Pernambuco.

Almeida, A., Ramalho, G., Santana, H., Tedesco, P.,

Menezes, T., Corruble, V., Chevaleyre, Y. 2004.

Recent Advances on Multi-agent Patrolling. In: XVII

Brazilian Symposium on Artificial Intelligence.

Springer-Verlag. São Luís. p. 474-483.

Chevaleyre, Y. 2005. Le probleme multi-agents de la

patrouille. In: Analles du LAMSADE n. 4. [S.n.]. Paris.

Cook, W. 2008. The Traveling Salesman Problem.

[online]. Available from: http://www.tsp.gatech.edu/.

[Accessed 12 April 2008].

Drogoul, A., Landau, S., Muñoz, A. 2007. RoboCup: un

benchmark pour l’IAD? Unpublished paper.

Garey, M., Johnson, D. 1979. Computers and

Intractability: A Guide to the Theory of NP-

Completeness. Bell Telephone Labs. Murray Hill.

Hanks, S., Pollack, M., Cohen, P. 1993. Benchmarks,

Testbeds, Controlled Experimentation and the Design

of Agent Architectures. Technical Report –

Department of Computer Science and Engineering,

University of Washington.

Machado, A. 2002. Patrulhamento Multiagente: uma

Análise Empírica e Sistemática. MSc dissertation.

Universidade Federal de Pernambuco.

Martello, S., Toth, P. 1990. Knapsack Problems:

Algorithms and Computer Implementations. John

Wiley & Sons. West Sussex.

Menezes, T. 2006. Negociação em Sistemas Multiagente

para Patrulhamento. MSc dissertation. Universidade

Federal de Pernambuco.

Pereira, L. 2001. Inteligência Artificial: Mito e Ciência.

[online]. Available from:

http://www.geocities.com/revistaintelecto/iamc.html.

[Accessed 30 September 2008].

Robocup. 2008. Robocup. [online]. Available from:

http://www.robocup.org. [Accessed 21 May 2008].

Russell, S., Norvig, P. 2003. Artificial Intelligence: A

Modern Approach. Prentice Hall. New Jersey. 2

ed.

Santana, H. 2004. Patrulha multiagente com

aprendizagem por reforço. MSc Dissertation.

Universidade Federal de Pernambuco.

Stone, P. 2002. Multi-agent Competitions and Research:

Lessons from RoboCup and TAC. In: RoboCup 2002.

Fukuoka. Robot Soccer World Cup VI, Lecture Notes

in AI. Springer-Verlag. Berlin. p. 224-237.

TAC. 2008. Trading Agent Competition. [online].

Available from: http://www.sics.se/tac/page.php?id=1.

[Accessed 23 May 2008].

SIMPATROL - Towards the Establishment of Multi-agent Patrolling as a Benchmark for Multi-agent Systems

575
