TEXT SEGMENTATION FROM WEB IMAGES USING

TWO-LEVEL VARIANCE MAPS

Insook Jung and Il-Seok Oh

Department of Computer and Information science, Chonbuk National University, Jeonju, Korea

Keywords: Text segmentation, Web images, Two-level Variance maps, Text location.

Abstract: Variance map can be used to detect and distinguish texts from the background in images. However previous

variance maps work as one level and they revealed a limitation in dealing with diverse size, slant,

orientation, translation and color of texts. In particular, they have difficulties in locating texts of large size

or texts with severe color gradation due to specific value in mask sizes. We present a method of robustly

segmenting text regions in complex web color images using two-level variance maps. The two-level

variance maps works hierarchically. The first level finds the approximate locations of text regions using

global horizontal and vertical color variances with the specific mask sizes. Then the second level segments

each text region using intensity variation with a local new mask size, in which a local new mask size is

determined adaptively. By the second process, backgrounds tend to disappear in each region and

segmentation can be accurate. Highly promising experimental results have been obtained using the our

method in 400 web images.

1 INTRODUCTION

While existing search engines index a page on the

text that is readily extracted from its HTML

encoding, an increasing amount of the information

on the Web is embedded in images. In extreme

cases, all of the text on a page might be present

solely in image format. Existing Web commercial

search engines are limited to indexing the raw

ASCII text they find in the HTML-they cannot

recover image text. This situation presents new and

exciting challenges for the fields of Web document

analysis and text information retrieval, as WWW

image text is typically rendered in color and at very

low spatial resolutions.

Considering traditional Optical Character

Recognition (OCR), one may initially think that

Web images containing texts present some

advantages over scanned documents, such as the

lack of digitisation-induced noise and skew.

However, the task is considerably difficult for

traditional OCR for a number of reasons. First, these

(often complex) Web images tend to be of low

resolution (just good enough for display and usually

72 dpi) and the font size used for text is very small

(about 5~7pt) or very large (about 50~70pt). Such

conditions clearly pose a challenge to traditional

OCR, which works with 300dpi images and

character sizes of usually 10pt. Moreover, Web

images tend to have various artefacts (anti-aliasing,

colour quantization and lossy compression), colour

schemes (multi colour text over multi colour

background) and character effects (characters not

always on a straight on a line, 3D-effects, shadows,

outlines, etc.).

The goal of locating the text in image form can

be split into two objectives.

Text segmentation. The image must be

segmented first so that regions corresponding to

potential character components are separated from

the background. A successful segmentation will be

one where background and foreground regions are

not merged.

Text extraction. It classifies the segmented

regions as text/non-text and then character-like

components that fulfil criteria of constituting text

(e.g., they appear to form a text line) are extracted.

In view of the difficulties posed by the image

and text characteristics, it can be appreciated that the

segmentation stage is by far the most challenging.

The performance at that stage affects quite crucially

the degree of success in a subsequent recognition.

This paper presents a new approach to segment text;

363

Jung I. and Oh I. (2009).

TEXT SEGMENTATION FROM WEB IMAGES USING TWO-LEVEL VARIANCE MAPS .

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 363-370

DOI: 10.5220/0001808303630370

 SciTePress

especially in complex Web images (e.g., see Figure

1).

There are two primary methods to segment texts

in images: colour representation-based (or region-

based) methods and texture-based methods (Jung

and Kim, 2004), (Jung et al., 2004).

It argues that the colour representation

(commonly used by previous approaches) is not

suited to this particular task for Web images. Their

method for text segmentation and extraction is based

on clustering in the colour space. However, they are

not appropriate for low-resolution and various

character effects. They depend on the effectiveness

of the segmentation method, which should guarantee

that a character is segmented into a few connected

components (CC) separated from other objects and

the background. These methods produce good

results for relatively simple images, but fail when

more complex images are encountered for the

following reasons. These approaches mostly deal

with a very small number of colors (they do not

work on full-color – e.g., JPEG – images). They also

assume a practically constant and uniform color for

text (Zhou and Lopresti, 1997), (Antonacpoulos and

Delporte, 1999) and fail when this is not the case. In

practice, there are many situations where gradient or

multi colour text is present (see Figure 1).

The situation where dithered colors are present

(especially in GIF images) has received some

attention (Zhou and Lopresti, 1998), (Lopresti and

Zhou, 2000) but such colours can only be found in a

relative small number of Web images. Furthermore,

the background may also be complex (in terms of

colour) so that the assumption that it is the largest

area of (almost) uniform colour in the image (Jain

and Yu, 1998) does not necessarily hold.

Unlike the above color representation, the texure

based methods employ distinct textual properties of

texts compared with their backgrounds. In these

methods, the textual properties of an image are often

detected by using techniques of Gabor filters,

wavelets, spatial variance, etc.

2 OUR APPROACH

2.1 Conventional Variance Map

If a document or an image containing texts is viewed

at a certain distance far from a person, the person

sees a blurred image of the document, but is still

able to detect the different blocks of the document.

Detection is possible since each block has a specific

texture pattern. These patterns correspond to regions

of text, regions of graphics and regions of pictures.

Thus document image can be segmented into regions

of text, and regions of graphics and/or pictures using

the texture of low resolution images.

The assumption of the variation map is that each

part of a document image has a different texture.

Text regions have different textures from that of

graphics and pictures. Graphic regions have different

textures from that of text and pictures, and the same

may be applied to regions with pictures. Under this

consideration document segmentation may be

considered as a texture segmentation problem.

One of the variations of this method compared to

others is that it maps the variance around the pixel to

just one value. This value represents the variance of

the texture variance around the pixel of interest.

Also, in the computation of the variances, a mean

value is used instead of the actual value of the pixel

at the center of the mask. The texture at a pixel is

defined as the average value of the variance of the

neighbors of the pixel in four or 8 different

directions, vertical, horizontal, left diagonal, and

right diagonal. Thus the document image is mapped

into the texture image.

(a) Images with multi colour text over multi colour background.

(b)

(b) Images containing 3D-effects, shadows, and outlines text.

Figure 1: Texts in Web images.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

364

Despite its simplicity, variance maps have shown

to be effective and robust. (Mario and Chucon,

1998) proved that a document image can be

segmented into regions of text, and regions of

graphics and/or pictures using gray-level spatial

variation of low resolution images. It was designed

to work with free format documents, text in

background other than white, skew greater than 10

degrees. Besides it requires less computation than

the segmentation methods using the other textures

described in other papers.

(Karatzas and Antonacoppoulos, 2006) abandons

analysis by the RGB colour clustering and adopts a

segmentation method based on analysing differences

in color and lightness that is closer to how humans

perceive distinct objects. However it only present a

method to the topical problem of segmenting

characters in colour Web images containing text

(headers, titles, banners etc.) and fail when image

size is not small or character size is large. (Song et

al, 2005) proposed an extraction method to detect

text regions from the images using the intensity

variation and color variance but the method has

difficulties in locating large size texts or texts with

severe illuminations changes.

In such a global approach, the mask of variation

maps was applied to a single value for the entire

image. Global mask has a good performance in the

case that there is uniform size of texts and width of

character is less than width of mask width. However,

very often, Web images are exposed to other cases.

Although very effective in text localization, the

variation maps have some shortcomings:

(1) difficulties in designing a locality of the mask

information (type, value) to satisfactory the wide

variations of text size.

(2) cannot ensure accurate location of texts. For

example, the resulting variation map suffers from a

great amount of background in the case that there is

non-uniform size of texts and/or not on the straight

line.

2.2 Proposed Method

In this paper, variance maps are used to detect and

distinguish texts from the background in web images.

We propose a method to deal with local information

for masks in variance maps using two levels. Local

information may guide the adaptive mask size for

the local text region only.

The two-level variance maps works

hierarchically. The first level variance finds the

approximate locations of text regions using

horizontal and vertical color variances with the

specific mask sizes to ensure extraction of large size

texts as well as small size ones. At the first level, we

can increase the recall rate using color variance map

with the specific mask size to approximately

segment text like region and apply CC analysis

(CCA). Then it segments text components in these

regions using local thresholds, in each of which a

new mask size is determined adaptively. As a second

level, the automatic and non heuristic gray variance

map using the new mask size is applied to each

region. By the second process, backgrounds tend to

disappear in each region and segmentation can be

accurate. In second level, we can also increase the

precision rate using intensity variation map with

adaptive mask size to find accurate text like regions.

This technique has been widely used an image

analysis because it has a better performance in

segmenting the objects from an image that contains

spatially uneven texture features.

Our method is to improve the variance map to

overcome shortcomings in previous variance maps

and then to accurately locate complicated cases such

as multicolor and/or various sizes of texts and texts

arranged on not a straight line.

Figure 2 shows an overview of our extraction

method.

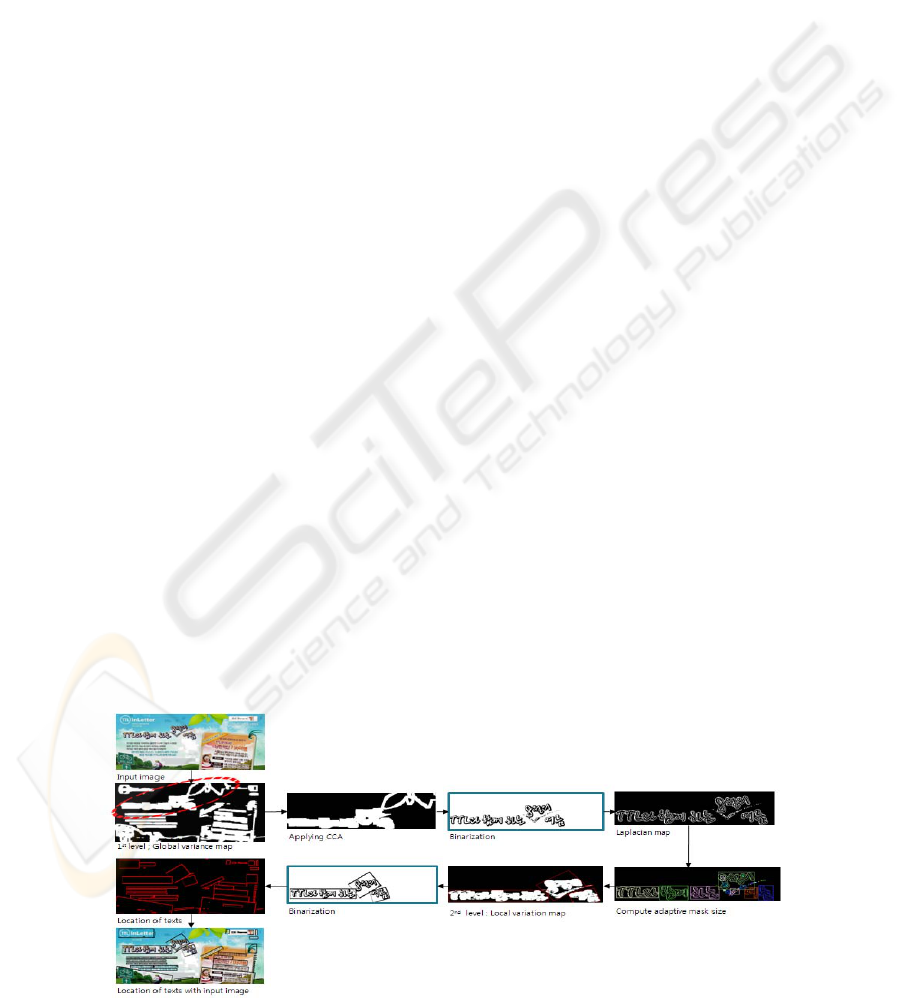

Figure 2: Overview of two-level variance maps.

TEXT SEGMENTATION FROM WEB IMAGES USING TWO-LEVEL VARIANCE MAPS

365

First, the global variation of the input image is

computed to segment text regions in the input image.

This is because readable text usually appears with

sufficient differences with the background. Applying

CCA, every CC of the variance image is binarized

using a local threshold. Each CC is processed

seperately afterwards. This image is passed through

a Laplacian filter which is useful to extract variances

which occur in texts of CC region. Next, for every

CC, determine the new mask value based on the

laplacian map and then apply local variance map

with the new mask value to segment text region

accurately. Finished when the local variation is

computed and applied to all the image area (The

result after this step will be an image having two

level variation map).

Our approach is to segment the image into

text/no-text regions as best as possible, and then let

the OCR system do the detailed refinement. In other

words, we would like to find all text areas and as

few spurious non-text areas as possible, without

actually classifying the characters.

Section 3 provides a detailed description of our

method and section 4 shows the experiment results.

Conclusion is given in Section 5.

3 DETAILED ALGORITHM

3.1 Parameterization of Variance Map

We find variance image by applying each pixel with

masks (Jung et al, 2008). Then we transform the

variance image into a binary image. The pixels that

were assigned to 0 are regarded as background and

excluded in subsequent process. At this processing,

we have various maps that depend on mask shape,

mask size, and combination between masks if multi

masks are used. Let's define them in terms of

parameters as follows.

θ=(m,s,p)

m=subset of {rectangle, vertical form, horizontal

form, cross, diagonals from the upper-right and

upper-left corner, diagonal cross,.....}

s= mask size, (3≤s)

p={and, or, ...}

The possible shapes, m, of the mask are displayed in

Figure 4. They can have different sizes according to

shapes. Size s must be greater than at least 3 to

obtain its variances. Size s is defined as the number

of pixels in the mask.

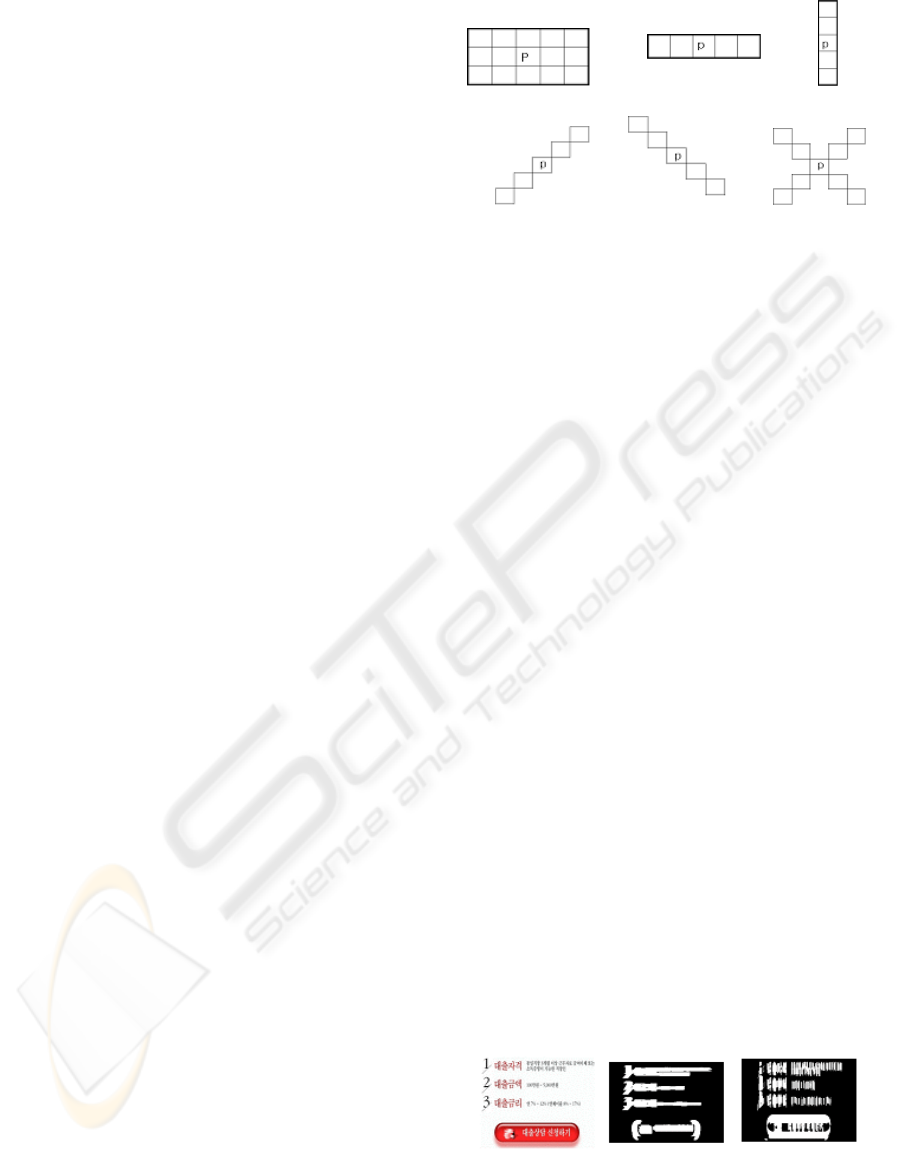

(a) Rectangle (b) Horizontal (c) Vertical

(d) Right-upper (e) Left-upper (f) Diagonal cross

Figure 3: Mask shape m.

|m| is the number of masks used. It is necessary

to combine |m| maps into one when |m| is larger than

1. We need combination operations are required.

Usually bitwise 'and' or bitwise 'or' is used. In this

paper, we use the following parameters.

m= {rectangle, vertical, horizontal}

s=3x21 rectangle, 17x3 rectangle,

1x21 horizontal, 17x1 vertical

p={ and }

In the RGB colour space, the variance at each

pixel (x,y) in applying the horizontal mask is defined

as follows. The variances by the other masks are

defined in the similar way.

Horizontal mask operation:

(x,y) = Variance of a pixel (x,y) in applying the

horizontal mask to the pixel in the R plane (with 21

neighbour pixels)

(x,y) = Variance of a pixel (x,y) in applying the

horizontal mask to the pixel in the G plane (with 21

neighbour pixels)

(x,y) = Variance of a pixel (x,y) in applying the

horizontal mask to the pixel in the B plane (with 21

neighbour pixels)

(x,y)=1/3*(σ

(x,y)+σ

(x,y)) (1)

Figure 4 shows the horizontal variance image

(x,y) and vertical variance image σ

(x,y) that are

obtained in this way.

(a) (b) (c)

Figure 4: Binary horizontal and vertical variance

images.(a) – Input image; (b) – Horizontal variance image;

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

366

Next we transform the two variance images to a

variance image T(x,y) using a threshold value t and

a combination operation 'and'.

T(x,y)=1, σ

(x,y)>t and σ

(x,y)>t

0, otherwise

Figure 5 displays the variance image obtained

from the two variance maps.

Figure 5: Variance map.

In applying colour variances, there can be many

varieties according to the parameters used.

3.2 First Level: Global Variance Step

In our method, we first compute the global

horizontal and vertical variations using the equation

(1) with 3x21 horizontal and 19x3 vertical masks.

The mask sizes are determined by experiments of

previous studies. At this step, we obtain a rough

estimation of text regions. Our intention is to

proceed to an initial segmentation of text

(foreground) and non-text (background) regions that

will provide us a superset of the correct set of

foreground pixels. This is refined at a later step, so-

called local variance map. Figure 6 shows the image

of the variance map.

(a) Input image (b) variance map

Figure 6: Global variance map.

We see that the text areas are high in variances

(white pixels in Figure 6 (b)).

To remove further the noisy regions, we also

apply morphological operations. The operations

have structuring elements with sizes 2x5 for dilation

and 3x3 for erosion to emphasize more on horizontal

texts. Morphological closing, opening and opening

are applied. Figure 7(a) shows the results of the

morphological operations, and Figure 7(b) shows the

connected components (CC) which are randomly

colored.

Figure 7: (a) Morphological operations applied (left), and

(b) CC (right).

3.2.1 CC Analysis

As shown in Figure 7 (b), every CC usually contains

texts of the image, however, in a sub-optimal

fashion: some CC spans more than one line and/or

column of text, others contain no text, while in many

the background makes up a large portion of the

pixels. Fortunately, these shortcomings can

overcome by the next step, local variation map.

3.3 Second level: Local Variance Step

3.3.1 Binarization

We generate a bounding box around each CC region

on the variance map in the first level. Once the

bounding box of each CC is obtained, each region in

the bounding box is binarized using Otsu

thresholding. This step produces binary text regions

to be used as inputs to the local variance map (It is

possible to run local color image directly but we

obtain substantially worse performance if we do so).

Every CC region provided by the variance map is

expected to contain only text, implying the

background and foreground should be easily

separable through thresholding.

To ensure the correct labelling of both the dark-

on-light and light-on-dark text, the proportion of

pixels which fall above and below the thresholds is

considered. Since in a block of text there is always a

larger area of background than text elements, the

group of pixels with the lower proportion is labelled

as text, and the other group as background. The

example is shown in Figure 8.

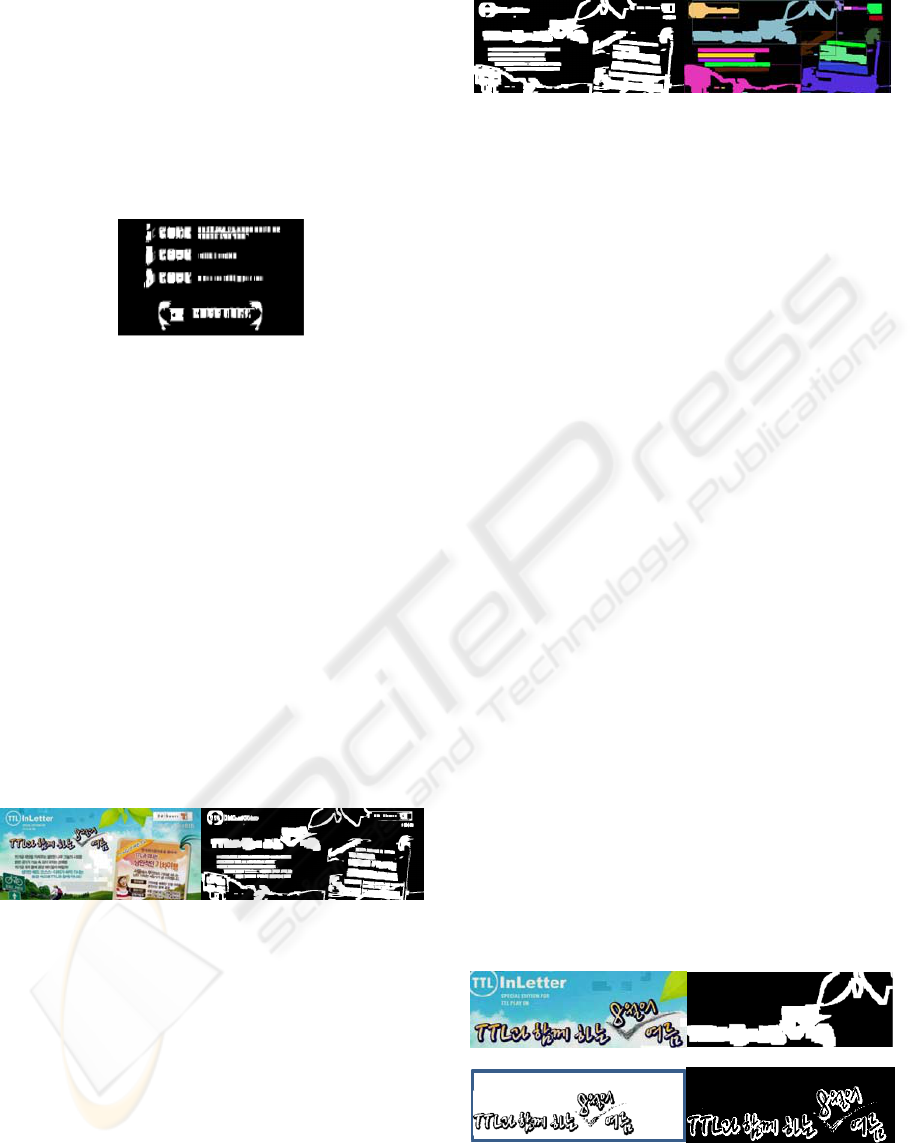

(a) Input image (b) CC of global variance

Figure 8: Local binary image.

TEXT SEGMENTATION FROM WEB IMAGES USING TWO-LEVEL VARIANCE MAPS

367

3.3.2 Laplacian Map and CC Analysis

In our approach, the local binary image is passed

through a Laplacian filter which is useful in

applying the local variation map. The Laplacian

edge detector produces closed edge contours

because edge strength is not considered, so even the

slightest, most gradual intensity transition produces

differences of pixel values. Next, CCA is generated

based on the Laplacian image.

CCA detects character candidates and enables us

to estimate their size and the spacing between them.

These estimates will be used to apply local variance

map with adaptive mask for texts into regions

directly.

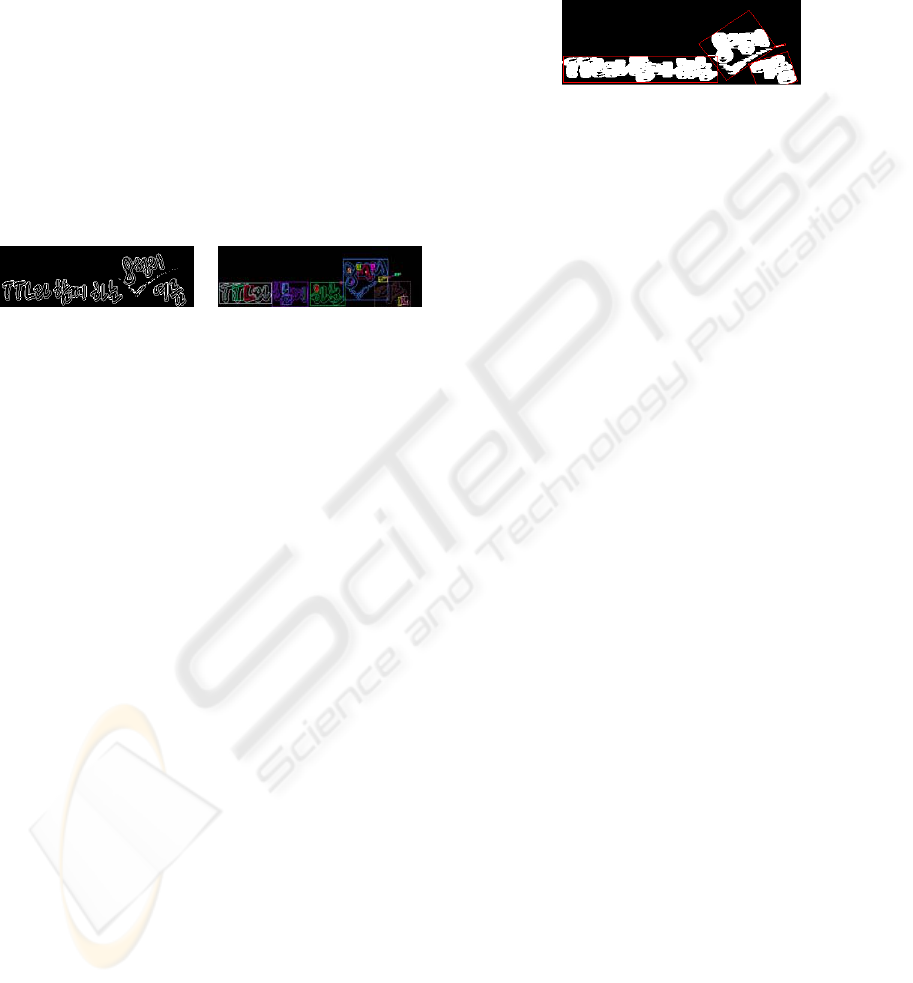

We show results for the Laplacian map and CCs

in figure 9 for the text region shown in Figure 8.

Figure 9: Laplacian map and CCs.

3.3.3 Estimation of Adaptive Mask

In applying the local variance map, the key-problem

is how to determine the mask type and size.

Determination of a adaptive mask value is very

important and perhaps the most sensitive part of any

image segment scheme of variation maps because a

wrong value of mask may result in being dropped

some texts information (an object can be considered

as part of background and vice versa).

The well-known local adaptive method uses

mean and standard deviation to compute mask value

over a CC text region (e.g., bounding box of every

CC in Figure 9).

We use the mean and the standard deviation

along with widths of all bounding boxes in every CC

to compute another mask value for the CC region. In

other words, we compute the adaptive mask value to

apply the local variance map, which uses adaptive

contribution of mean and standard deviation in

determining local mask value.

3.3.4 Local Variance Map

Local variance map is an adaptive one in which a

mask value is determined over a CC region. Local

method performs better in case of nonlinearly

aligned texts and wide variation of text sizes. The

segmentation quality is dependent on the above

adaptive mask value.

We apply intensity variance map to the CC

region presented by the Laplacian filter with

adaptive mask value. Our method compute the local

horizontal variation only using equation (1) with the

mean and the standard deviation as a mask value for

every CC region.

We show results for the local variance map and

red bounding boxes of CCs in Figure 10.

Figure 10: Local variation map and CCs.

4 EXPERIMENTAL RESULTS

The proposed method was tested using 400 Web

images which were selected randomly from WWW.

Some of them contain extremely large or small text,

non-homogeneously-colored text and/or non-

horizontal layouts. No assumptions are made about

the size of input images. All images had almost low

resolution and the sizes of characters varied from 4pt

to 72pt.

Based on visual criteria, the proposed method

outperforms the global variation map. False alarms

are currently ignored. We have shown a few of them

in this paper. We have also segmented the same

images using (Song et al., 2005) method in order to

provide comparison. Each experiment is performed

both of (Song et al., 2005) method and our method.

The (Song et al., 2005) method used the different

mask sizes (3x21 horizontal and 19x3 vertical

masks).

Figure 11 illustrates the results of segmenting

Web images using (Song et al., 2005) method (left)

and our method (right) and the improvement can be

seen at right sides of the resulting images.

Our method has removed the background as

much as possible while not disturbing any text area.

This is an improvement from the (Song et al., 2005)

method. By looking at results of the second level

variance step, we have observed that by applying

adaptive mask sizes, we get the unnecessary pixels

eliminated from the image background in a better

way while preserving characters and vice versa. In

this way, we have found adaptive local mask values

to be appropriate for this kind of Web images.

In the experiments, we found that fragmentation

often appears at those text lines that are isolated in

both horizontal and vertical orientations. Because

headlines vary in size greatly, some headline

components are erroneously segmented into body of

text components. The fragmentation rate of headline

regions is higher than that of body text regions.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

368

(a) Image 1.

(b) Image 2.

(d) Image 4.

(e) Image 5.

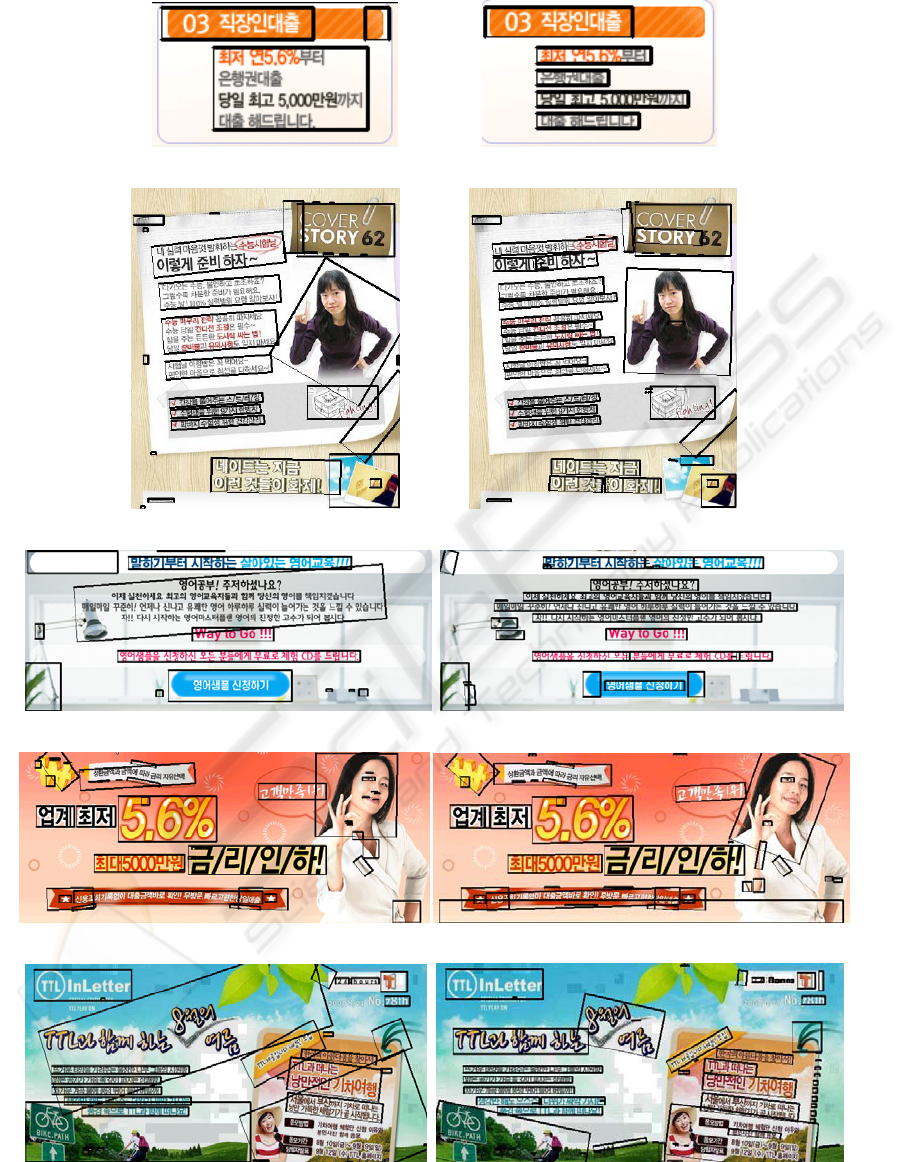

Figure 11: The images of different segmentation results, where the segmented results are contained in the rectangles: (left)

for the (Song and Kim, 2005) method; (right) for our proposed method.

TEXT SEGMENTATION FROM WEB IMAGES USING TWO-LEVEL VARIANCE MAPS

369

5 CONCLUSIONS

In this paper, we propose a local adaptive approach

of variation maps to segment texts in Web images.

The proposed method is less sensitive to parameters

by user and can deal with segmentations where

shadows, non-uniform character sizes, low

resolution and skew occur. After the local approach,

our method demonstrated superior performance on

Web images using visual criteria.

Also, our method has the additional advantage

that it can be applied directly to the line segment

without requiring de-skew algorithm.

Further research will be focus on developing

the text or non-text classifier and character

segmentations.

ACKNOWLEDGEMENTS

This research was financially supported by the

Ministry of Education, Science Technology (MEST)

and Korea Industrial Technology Foundation

(KOTEF) through the Human Resource Training

Project for Regional Innovation.

REFERENCES

Jung, I. S., Ham, D. S., and Oh, I. S., 2008. Empirical

Evaluation of Color Variance Method for Text

Retrieval from Web Images, In Proceeding of the 19th

Workshop on Image Processing and Image

Understanding (IPIU’08).

Zhou. J., and Lopresti, D., 1997, Extracting Text from

WWW Images, Proceedings of the 4th International

Conference on Document Analysis and Recognition

(ICDAR'97), Ulm, Germany, August.

Antonacopoulos, A., and Delporte, F., 1999, Automated

Interpretation of Visual Representations: Extracting

textual Information from WWW Images, Visual

Representations and Interpretations, R. Paton and I.

Neilson (eds.), Springer, London.

Zhou. J., Lopresti, D., and Tasdizen, T., 1998, Finding

Text in Color Images, proceedings of the IS&T/SPIE

Symposium on Electronic Imaging, San Jose,

California, pp. 130-140.

Lopresti, A. D., and Zhou, J., 2000, Locating and

Recognizing Text in WWW Images, Information

Retrieval, vol. 2, pp. 177-206.

Jain, A. K., and Yu, B., 1998, Automatic Text Location in

Images and Video Frames, Pattern Recognition, vol.

31, no. 12, pp. 2055–2076.

Karatzas. D., and Antonacoppoulos, A., 2006, Colour Text

Segmentation in Web Images Based on Human

Perception, Image and Vision computing , 2006.

Song, Y. J., Kim, K. C., Choi, Y. W., Byun, H. R., Kim, S.

H., Chi, S. Y., Jang, D. K., and Chung, Y. K., 2005,

Text Region Extraction and Text Segmentation on

Camera Captured Document Style Images,

Proceedings of the Eight International Conference on

Document Analysis and Recognition (ICDAR’05).

Mario, I., and Chucon, M., 1998, Document segmentation

using texture variance and low resolution images,

Image Analysis and Interpretation, IEEE Southwest

Symposium on.

Jung, K. C. and Han, J. H., 2004, Hybrid approach to

efficient text extraction in complex color images,

Pattern Recognition Letters, vol. 25, pp. 679–699.

Jung, K. C., Kim, K. I., and Jain, A. K., 2004, Text

Information Extraction in Images and Video: A

Survey, Pattern Recognition, vol. 37, no. 5, pp. 977–

997.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

370
