END-USER DEVELOPMENT IN A GRAPHICAL USER INTERFACE

SETTING

Martin Auer, Johannes P

olz and Stefan Bifﬂ

Institute of Software Technology and Interactive Systems, Vienna University of Technology

Favoritenstr. 9-11, A-1040 Vienna, Austria

Keywords:

End-user development, Software customization, UML, UML tools.

Abstract:

In many areas, software applications must be highly conﬁgurable - using a pre-deﬁned set of options or pref-

erences is not ﬂexible enough. One way to improve an application’s ﬂexibility is to allow users to change

parts of the source code - and thus the application’s behavior - on-the-ﬂy; modern languages like Java greatly

facilitate this by providing reﬂection features. Such an approach, however, is often limited to user-deﬁned

mathematical formulas, e.g., in software like cash ﬂow engines, reporting tools etc. This paper applies the

concept to a more generic area: the graphical representation of diagrams in a UML tool. Users can create new

types of graphical elements by directly programming how the elements are drawn, all within the UML tool,

and at run time. The approach is ﬂexible, and the user-deﬁned extensions are consistent with the tool’s core

source code.

1 INTRODUCTION

“Using a computer” evolved considerably over the

last decades from an end-user point of view. In the

early days, end users had to actually program the

computer, which provided only a basic set of func-

tionality. Soon, of course, some of those early pro-

grams evolved into ever more sophisticated special-

purpose applications to be distributed to an ever-

growing set of potential end users. These applica-

tions provided a speciﬁc, constrained set of high-

level functionality (e.g., the Unix set of command line

tools), while relieving end users from dealing with

low-level programming. This process towards spe-

cialized, stand-alone applications was consolidated

with the advent of graphical user interfaces (GUIs).

These apps provide higher-level functionality (e.g., a

word processor), and they are arguably easier to use

for a wider audience. However, the ﬂexibility and

intra-tool communication is further restricted: the end

user can no longer tweak the tool thoroughly.

This outline - from basic, general-purpose pro-

gramming systems to less ﬂexible, high-level custom

applications - greatly simpliﬁes the manifold currents

in the evolution of software, its application and user

base, and its ﬂexibility. Several counter-trends can be

readily identiﬁed:

1. Many modern applications (Eclipse, Excel,

Firefox, to name but a few) can be enhanced and

modiﬁed using plugins. The underlying tech-

niques differ; the approaches are similar: in an

external tool some partial functionality is deﬁned

and packaged, and then attached to the main ap-

plication.

2. A variety of tools allows to add user-deﬁned func-

tions or statements. OLAP applications, for ex-

ample, let users enter SQL statements if the usual

drag-and-drop GUI can’t easily assemble particu-

larly complex queries. Financial applications like

cash-ﬂow engines and pricing tools let users enter

additional business logic and payoff functions—

basically additional mathematical formulas and

functions. Usually, the end user is allowed to ac-

cess some basic set of mathematical functions, to

which some restricted data structures are exposed.

The modiﬁcations can usually be done within the

tool, at run time.

3. On a larger scale, applications or operating sys-

tems can provide a whole macro language or

Auer M., Pölz J. and Bifﬂ S. (2009).

END-USER DEVELOPMENT IN A GRAPHICAL USER INTERFACE SETTING.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Human-Computer Interaction, pages 5-14

DOI: 10.5220/0001809800050014

 SciTePress

framework (VBA for MS Ofﬁce, AppleScript..).

In this discussion, we’ll focus on VBA-like macro

languages due to their wide-spread use. This ap-

proach exposes more of the main application’s

functions and data structures to the end user. The

macro language’s scope, however, is often still

restricted to a subset of the internal APIs, in

part because the language is usually simpler that

the application’s core language (e.g., Basic vs.

C++). Often, inconsistencies arise: see, for exam-

ple, how Excel’s native cell formulas like MMult

are accessed within VBA. Advanced operations

are possible, but often require embedding exter-

nally created library functions (in VBA, with the

Declare Function command).

4. Finally, open source software discloses an appli-

cation’s entire source code. End users can inspect

and modify all aspects of the software. Users, par-

ticularly large institutions, regularly adapt open

source software to their needs, e.g., database soft-

ware like PostgreSQL is modiﬁed to handle new

data types.

Approach (1) is appealing—our main critique is the

media break: the plugin is developed externally and

must be included explicitly in the main application.

In many instances, it is preferable to allow run-time

modiﬁcations seamlessly, within the application, like

in approach (2).

Approach (4) is geared towards power users; other

end users might be overwhelmed by the setup and

sheer complexity of the code. Too much is exposed—

many parts of the code are unlikely to be modiﬁed.

The highest degree of ﬂexibility is achieved, but at

the expense of severely reducing the target audience.

This paper describes an approach of providing

seamless ﬂexibility for many end users, by letting

users alter parts of the core source code at run time.

Conceptually, it lies between approach (2) and ap-

proach (3):

• Users can access the full core API and data struc-

tures of the tool, unlike in (2). Not only mathe-

matical functions, but the graphical behavior and

the GUI’s reaction to user input can be modiﬁed.

• Users can use the tool’s core language (Java in our

case), not a stripped-down or simpliﬁed macro di-

alect. API calls and data access are thus consistent

in the user-deﬁned code parts and the surrounding

original code, unlike in (3). This avoids redun-

dancies in the interfaces, data structures, and their

documentation; it is also preferable, for example,

if the code should later be included in the ofﬁcial

distribution branch of the application.

• There is no media break, i.e., no need for external

tools or explicit imports like in (1), or for external

DLLs like in (3). Such media breaks are tedious,

time-consuming and a prime source for errors.

• While the end user has access to the full range of

the internal API and data structures, he can mod-

ify only those parts of the code that are expected

to require this additional level of ﬂexibility. The

proposed approach thus resembles “sand box”, as

opposed to the “sand bucket” in (2) or the “sand

mine” in (3).

This paper addresses two target audiences: end users

and developers of ﬂexible software applications. To

end users we present where and how UMLet provides

ﬂexibility. To developers we outline the implemen-

tation setting and some technical details. We argue

that users should demand this increased level of ﬂex-

ibility, not only in a setting where they are allowed

to deﬁne mathematical expressions, but in ones with

more complex tool behavior as well. Developers, in

turn, should embrace this way of deferring design de-

cisions to later stages, up to the end user. Often, they

themselves will ﬁnd that developing new tool features

is best done at run time, within the tool.

Section 2 gives on overview on related work. Sec-

tion 3 describes this paper’s goal in greater detail.

Section 4 outlines implementation issues. Section 5

presents several examples of UMLet’s end-user de-

velopment process. Section 6 concludes and points

out future research directions.

2 RELATED WORK

2.1 End-User Development

The concept of end-user development (EUD) - de-

ﬁned by Beringer as a “design problem to enable

subject matter experts to create or modify executable

software components” (Beringer, 2004) - has been in-

vestigated for several decades (Martin, 1984). How-

ever, as several authors notice, the advances are be-

hind expectations (Sutcliffe, 2005; Fischer et al.,

2004). Beringer, for example, notes that EUD appli-

cations “only realize a fraction of EUD’s potential and

still suffer from several ﬂaws” (Beringer et al., 2008).

He lists only a handful of partially successful applica-

tions, like macros, spreadsheets, and email ﬁlters.

The need for EUD applications, however, be-

comes more evident as increasing numbers of do-

main experts need to customize their software tools

to ever higher degrees, preferably at “use time” (Ko

and Myers, 2005): they become “unwitting program-

mers” (Costabile et al., 2008) as they evolve from cus-

ICEIS 2009 - International Conference on Enterprise Information Systems

tomizing software to creating new software function-

alities. Fischer identiﬁes an even bigger group of end

users, the “much larger population of intellectually

disenfranchised knowledge workers who are forced

into a consumer role” as opposed to the traditional

“population of elite scribes who can act as design-

ers” (Fischer and Scharff, 2000).

Several papers describe the requirements for suc-

cessful EUD applications: Ruyter, for example,

stresses that such applications should be simple, give

proper user feedback, and motivate the end user to

play with the system (Ruyter and Sluis, 2006). Segal,

on the other hand, focuses on the problems such ap-

proaches need to deal with and overcome, especially

the problems of sharing knowledge and of software

reuse in a EUD context (Segal, 2007). Also, com-

mon important software engineering activities (like

documentation) are unlikely to be performed by the

task-focused end users (Segal, 2007). The “con-

ﬂict between complexity and power” (Fischer et al.,

2004) leads Sutcliffe to a cost-beneﬁt analysis of

EUD (Sutcliffe, 2005). Others, like Heng (Heng,

2003), emphazize the need for more communication

between system developers and end users to achieve

ﬂexible and maintainable systems.

Another issue - the possible technical frameworks

underlying EUD applications - is discussed, for ex-

ample, by Paterno, who states the need for a transfor-

mation between intuitive representations of function-

ality to more precise, but more difﬁcult to develop,

ones (Berti et al., 2006). Similarly, Fischer describes

some frameworks (like the high-level language Java)

as having a high cost of learning, and thus not being

an ideal EUD environment (Fischer et al., 2004).

Several organizations have recently focused on

this topic, for example, EUD-Net

, EUDISMES

EUSES

2.2 UML

The Uniﬁed Modeling Language (UML) (Booch

et al., 2005) is widely used for modeling object-

oriented software systems. It aims to cover most

parts of the software development process and has

been applied in various environments (e.g., real-time

systems (Evans and Wellings, 1999), or decentral-

ized production control systems (Kohler et al., 2000)).

It was developed between 1994 and 1997 by the “3

Amigos”: Jim Rumbaugh, Ivar Jacobson, and Grady

Booch. Version 1.1 was standardized in November

http://giove.isti.cnr.it/eud-net.htm

http://www.eudismes.de

http://eusesconsortium.org

1997 by the Object Management Group (OMG)

. The

OMG is a non-proﬁt industry group now responsi-

ble for deﬁning and maintaining the UML speciﬁca-

tion. The next major revision—UML 2.0—became

the standard in October 2004 and since then evolved

to the current version 2.1.2 of the UML superstructure

and infrastructure speciﬁcations.

UML has uniﬁed and standardized the concepts

of previous graphical notations like Booch or OMT.

It currently features six types of structure diagrams

(e.g., class diagram, deployment diagram..), as well

as seven types of behavior diagrams (e.g., activity di-

agram, use case diagram..). All in all, UML deﬁnes

more than 130 elements

; new ones are being added

in each new version. This puts some strain on UML

tools—they often do not cover the whole range of the

graphical notation, and need to be continuously up-

dated to reﬂect new UML versions.

Due to the widespread use of UML, a large num-

ber of tools is available. According to Smith (Smith,

2004), these can be categorized into:

• UML drawing tools;

• code-centric tools; and

• framework tools.

UML drawing tools focus on fast diagram sketch-

ing and offer great ﬂexibility. Code-centric tools re-

strict the UML speciﬁcation to ﬁt speciﬁc program-

ming languages, but provide additional features like

code generation and reverse engineering. Framework

tools go one step further by supplying the user with

extended code generation mechanisms as well as pro-

viding automated test case generation.

An overview of many UML tools is available on

Jeckle’s Web site

. IBM Rational Rose

and Vi-

sual Paradigm

are two commonly used commercial

framework tools that attempt to support a host of de-

velopment procedures, as well as code generation and

reverse engineering. In contrast, the open source tool

UMLet

(Auer et al., 2003) concentrates on fast di-

agram sketching (Auer et al., 2007) and ﬂexibility.

Another aspect of UMLet—presented in this paper—

is the adaptability to new element types via custom

elements, where users can deﬁne new UML element

types at run time.

http://www.omg.org

http://www.omg.org/spec/UML/2.1.2

http://www.jeckle.de

http://www-306.ibm.com/software/awdtools/developer/rose

http://www.visual-paradigm.com

http://www.umlet.com

END-USER DEVELOPMENT IN A GRAPHICAL USER INTERFACE SETTING

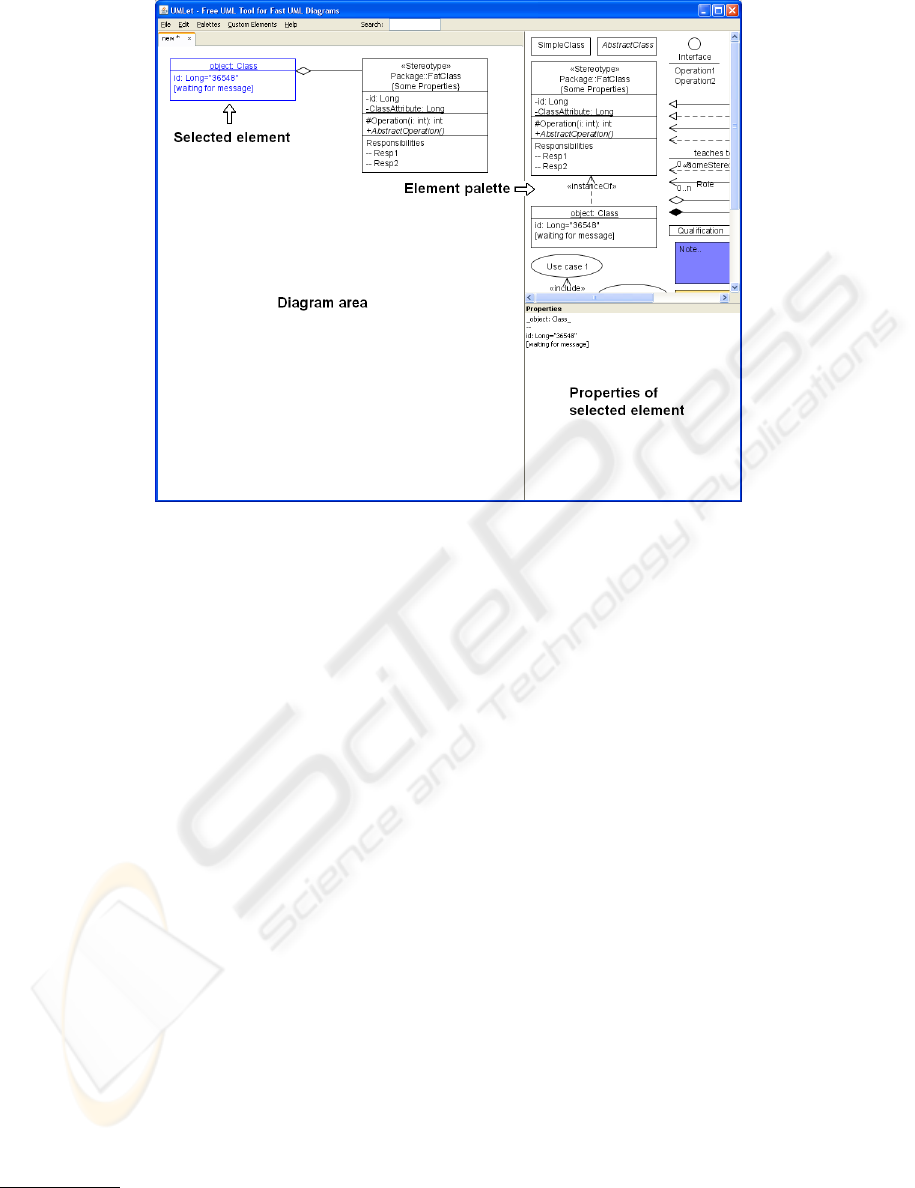

Figure 1: UMLet screenshot.

2.3 Reﬂection

Reﬂection is the ability of a programming language

to query and operate with language meta-information,

e.g., to get a list of all available members of a class

in an object-oriented framework. Cazzola (Cazzola

et al., 2000) describes its properties of “transparency,

separation of concerns, and extensibility” as “ac-

cepted as useful for software development and de-

sign” and as “likely to be of increasing relevance in

the modern software engineering scenario”.

Reﬂection is especially useful to delay parts of

a software design from compile time to run time.

This property is valueable for addressing ﬂexibility

issues in modern software development—it is applied

in COTS components (e.g., Hibernate

), in plug-

and-play supporting software (e.g., Firefox

), and in

highly customizable software (e.g., UMLet).

A prominent example of a language providing re-

ﬂection capabilities is Java. An established applica-

tion of reﬂection concepts in the Java environment

is, e.g., the Enterprise JavaBeans component technol-

ogy

http://www.hibernate.org

http://www.mozilla-europe.org/en/ﬁrefox

http://java.sun.com/products/ejb

3 GOALS AND APPROACH

UML deﬁnes a wide variety of graphical elements;

each new UML version modiﬁes them, or adds new

ones—so there is a constant need for UML tool up-

dates. End users can thus either wait for a new ver-

sion of a given UML tool, or design their own UML

elements. This paper proposes a way how end users

can develop such new graphical elements within the

UML tool UMLet (Auer et al., 2003).

Following Ruyter’s suggestions (Ruyter and Sluis,

2006), the goal is to keep the approach simple and

to provide immediate feedback to the user—see sec-

tion 3.1. The way users create new elements is that

they can specify—via Java code—how new elements

are painted. This deﬁnition takes place within the tool

UMLet, at run time. To reduce the complexity of this

user generated code we use a code frame or template

to avoid exposing unnecessarily complex objects to

the user—see section 3.3.

We use Java as end-user programming language.

The main reason for choosing Java is the greater ﬂexi-

bility compared to a custom domain speciﬁc language

(DSL). This allows the user to access both some meth-

ods pre-deﬁned for user convenience, as well as Java’s

complete set of graphics and core libraries. Further-

more, Java’s reﬂection features make the implemen-

tation of this additional degree of ﬂexibility straight-

forward. Another reason for using a popular object-

ICEIS 2009 - International Conference on Enterprise Information Systems

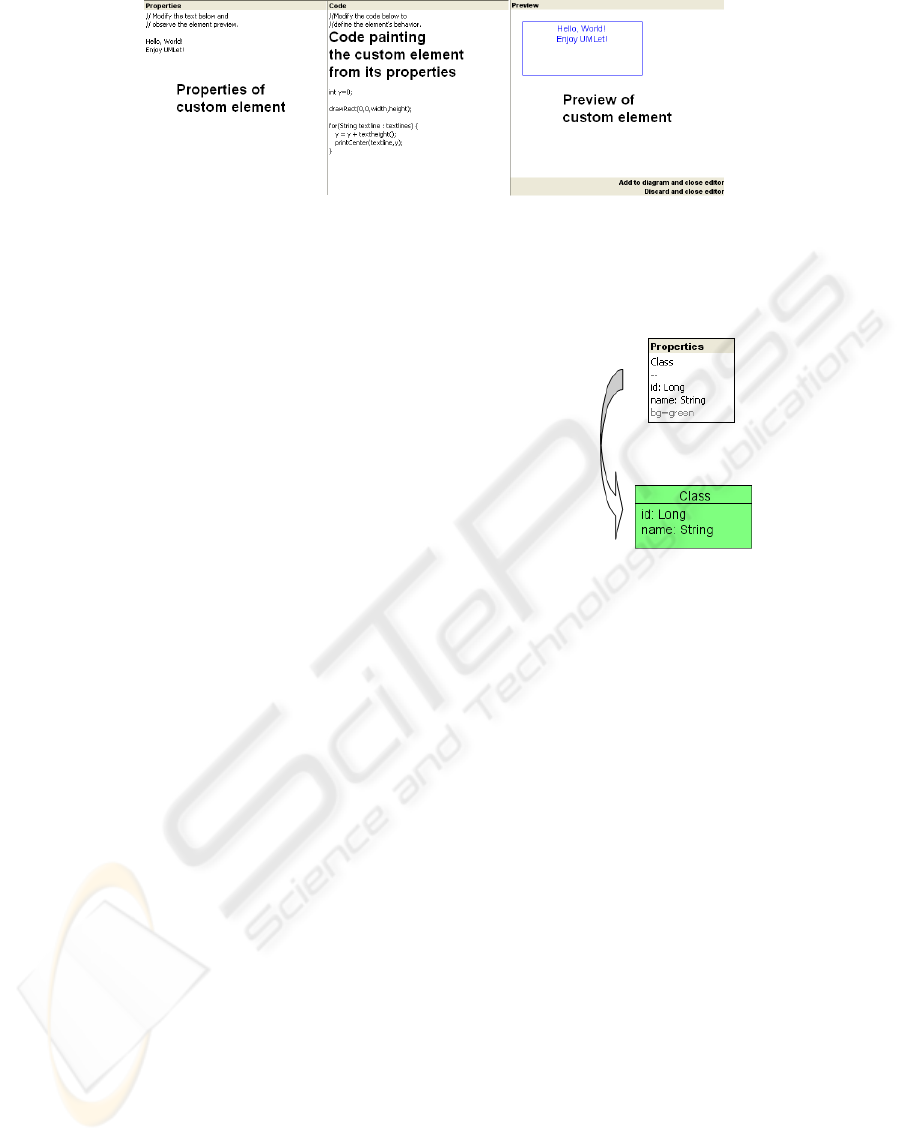

Figure 2: UMLet screenshot. - custom element UI

oriented language is that many UML tool users are

already familiar with it.

3.1 UMLet’s User Interface

UMLet’s user interface (ﬁgure 1) basically provides

three panels - the diagram panel, the palette panel,

and the property panel. The diagram panel, of course,

displays the diagram and all the UML elements it con-

tains, and lets the user modify their location—just

like other graphical tools. The palette panel exposes

all available elements and lets users add instances of

those elements to the diagram panel (it does not rep-

resent elements by icons; instead, it represents them

like they would look on the diagram). Finally, the

properties panel is a text panel that lets users view

and modify the properties of a UML element.

In most UML tools, element properties are modi-

ﬁed via pop-up windows, where users can change el-

ement attributes. The property panel in UMLet pro-

vides a shortcut to this workﬂow: it displays—as a

single string—all relevant properties; users can fast

and easily modify the element’s properties by chang-

ing this string. For example, to add new methods to a

UML class element, one can simply enter their names

as several new lines to the string given in the property

panel.

For each UML element, UMLet’s display or draw-

ing logic is simple: the string given in the property

panel is interpreted, and the graphical representation

of that UML element is modiﬁed according to this in-

terpretation. More speciﬁcally, all UML elements on

a diagram correspond to a Java object that “draws it-

self”, i.e., interprets its own property panel string and

modiﬁes its own graphical representation.

For example, in ﬁgure 3 the property panel’s text

of a UML class element is interpreted by that class

element to draw itself. The ﬁrst line is interpreted as

the class name and printed on top of the class, aligned

centrally. Subsequent lines are treated as method or

attribute names, which are printed left-aligned. The

string “– –” (a double dash) is interpreted as a hor-

izontal line separating class name, attribute names,

and method names; the string “bg=green” sets the el-

ement’s background color to green.

Figure 3: Property text parsing example.

3.2 Custom Elements

To keep the development of new custom elements

simple, the development environment has to be in-

tegrated into the application itself. Integration via a

separate window or by providing a plugin interface

would be possible, but it would represent a media

break and an additional barrier for end users. A more

direct way is provided: as soon as a new custom ele-

ment is created, the property panel expands into three

panels. The panels shown in ﬁgure 2 are (from left

to right) the property panel, a source code panel, and

a preview panel. The user can now modify the cus-

tom elements on two different levels. First, as be-

fore, he can change the text in the property panel and

see the consequences in the graphical representation

in the preview panel. But in addition, in the source

code panel he can change the source code that is re-

sponsible for interpreting the property panel text and

for drawing the element in the preview panel. At the

same time, thus, a user can change an element’s prop-

erties, and how those properties are transformed into

a graphical representation.

The code is compiled continuously in the back-

ground, and immediate feedback is provided to the

end user by re-drawing the element in the preview

panel. If the code contains errors, the affected source

END-USER DEVELOPMENT IN A GRAPHICAL USER INTERFACE SETTING

code lines are highlighted. Several examples of sim-

ple custom elements are shown in section 5.

3.3 Code Template

End users can thus modify the Java code that de-

termines how a UML element properties are con-

verted to that UML element’s graphical representa-

tion. To avoid exposing to much application logic to

the end user, UMLet provides a code template that

hides most of the the UML element’s internal struc-

ture (i.e., its Java class deﬁnition) from the user. Now,

the user only has to modify the source code for a

single method—the drawing method of the graphi-

cal component. Implementing a single method rather

than a full class is easier because it does not re-

quire background knowledge of the object-oriented

architecture; in addition, most surrounding or sup-

port functionality—like ﬁle dialogs, context menus,

ﬁle exports—are unlikely to need change, and would

only be a distraction.

Another simpliﬁcation is that the user does not

need to worry about color settings and command pars-

ing. In general, this is done by a global parsing

method. The template takes care of applying the

global parsing mechanism like the color settings, or

the default behavior of element resizing. This way,

some settings are consistent for all, even newly cre-

ated, elements. Only properties speciﬁc to a new ele-

ment have to be processed by the user’s code.

Whenever the user’s code needs to be compiled, it

is inserted at the appropriate position in the template

class, and the entire class is compiled. If successful,

the element is generated (i.e., an object of that class is

instantiated), and put on the preview panel, where it

draws itself using the user-provided drawing method.

4 IMPLEMENTATION

The following sections gives a brief implementation

overview of the approach presented in section 3: it de-

scribes the workﬂow to create a new custom element,

the available predeﬁned methods, the saving of cus-

tom elements, error handling, and code completion.

Finally, some security issues are discussed that arise

when custom elements are exchanged between users.

Although UMLet is implemented in Java, the imple-

mentation details are presented—when possible—in

a language-independent way. The approach should

be readily applicable in other programming languages

that support reﬂection, provide a compilation API,

and some sort of security manager.

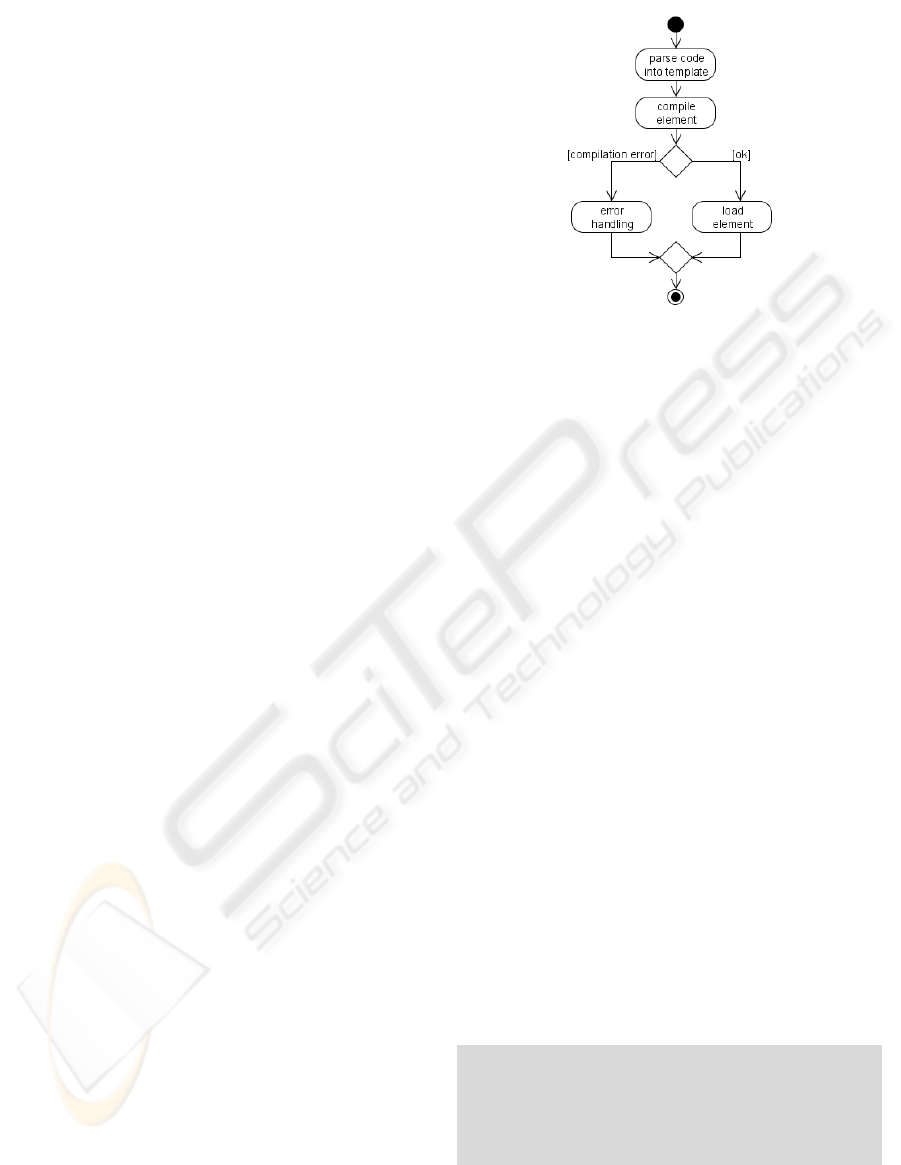

Figure 4: Compilation process.

4.1 Element Generation

The general workﬂow of the element generation is

shown in ﬁgures 4.

First, the custom element class is generated by in-

serting the user code into the template. Then the class

is compiled, loaded, and instantiated via the Java class

loading mechanism. If a compilation error occurs, an

error element is returned instead. After a successful

compilation the generated element may be used just

like predeﬁned elements.

4.2 Class Template Api

The template class provides several predeﬁned meth-

ods. Since the entire Java API is still available, these

methods are not a restriction for the end user but

rather a help to get started.

4.2.1 Text Drawing Methods

The text drawing methods provide the user with draw-

ing functionality such as text printing and boundary

calculation. Text can be printed at either a ﬁxed po-

sition or at a ﬁxed vertical position with an alignment

relative to the element’s horizontal bounds.

The textheight and textwidth methods return a text

line’s height and width in pixels.

void print ( String text , i nt x , in t y)

vo i d prin t L e f t ( St r i ng te xt , in t y)

vo i d pri n t R i g h t ( St r i n g text , in t y )

vo i d pr i n t C e n t e r ( St r i n g tex t , int y )

in t t ex t h e i g h t ( )

in t t ex t w i d t h ( St r i n g t e x t )

ICEIS 2009 - International Conference on Enterprise Information Systems

Figure 5: Compilation panel.

4.2.2 Drawing Methods

The predeﬁned drawing methods just call some of the

Java AWT package’s drawing methods. The advan-

tage when using these methods is that they automati-

cally use a consistent back- and foreground color han-

dling.

vo i d drawRec t ( i nt x , in t y , in t w id th , int heig h t )

vo i d drawLin e ( i nt x 1, in t y 1 , in t x 2 , in t y 2 )

vo i d d r a w L in e H o ri z o nt a l ( int y )

vo i d d r a w L i ne V e r ti c a l ( int x )

vo i d dra w C i r c l e ( int x , in t y , int radius )

vo i d dr a w E l l i p s e ( int x , in t y , int r a d ius X , in t

radiusY )

vo i d dr a w P o l y g o n ( Polygon p o l y g o n )

4.2.3 Resizing Methods

Resizing methods help the user to handle ele-

ments that dynamically resize themselves. If the

allowResize method is invoked with the value false,

the user will be unable to resize the element manu-

ally. In this case the element’s dimensions have to be

set in the—user-provided—paint method.

The setElementCentered method moves the ele-

ment’s anchor point to its horizontal center. Any up-

date to the element’s width is then applied in equal

measure on both sides. If the element resizable—i.e.,

the allowResize(false) method has not been called—

the setElementCentered method has no effect.

The isManualResized() method enables the han-

dling both manual and automatic resizing. The el-

ement’s dimensions still have to be computed in its

paint method but only if isManualResized() returns

false. It returns true if the user has already manually

resized the element—in this case, automatic resizing

is suppressed. To switch back to automatic resizing,

the user has to remove the property autoresize=false

that is automatically added to the element’s properties

as soon as the user manually resizes the element.

vo i d al l o w R e s i z e ( boolean a l l o w )

vo i d s e t E l em e n t Ce n t er e d ( )

boolean i sM a n u al R e s iz e d ( )

4.2.4 Other Methods

The addStickingPoint method alters the element’s

sticking polygon. The sticking polygon speciﬁes

where exactly UML relations (basically, the arrows

in a diagram) stick to the element and if they should

be repositioned when a UML element they stick to is

moved by the user. The sticking polygon defaults to a

rectangle enclosing the entire element.

The min and max methods return the minimum

or maximum of its parameters. This is a shortcut to

Java’s Math package to provide faster access to these

frequently used methods.

in t m in ( in t v a l u e 1, i nt v alue 2)

in t m ax ( in t v a l u e 1, i nt v alue 2)

vo i d a d d S t i ck i n g Po i n t ( int x , in t y )

4.3 Error Handling

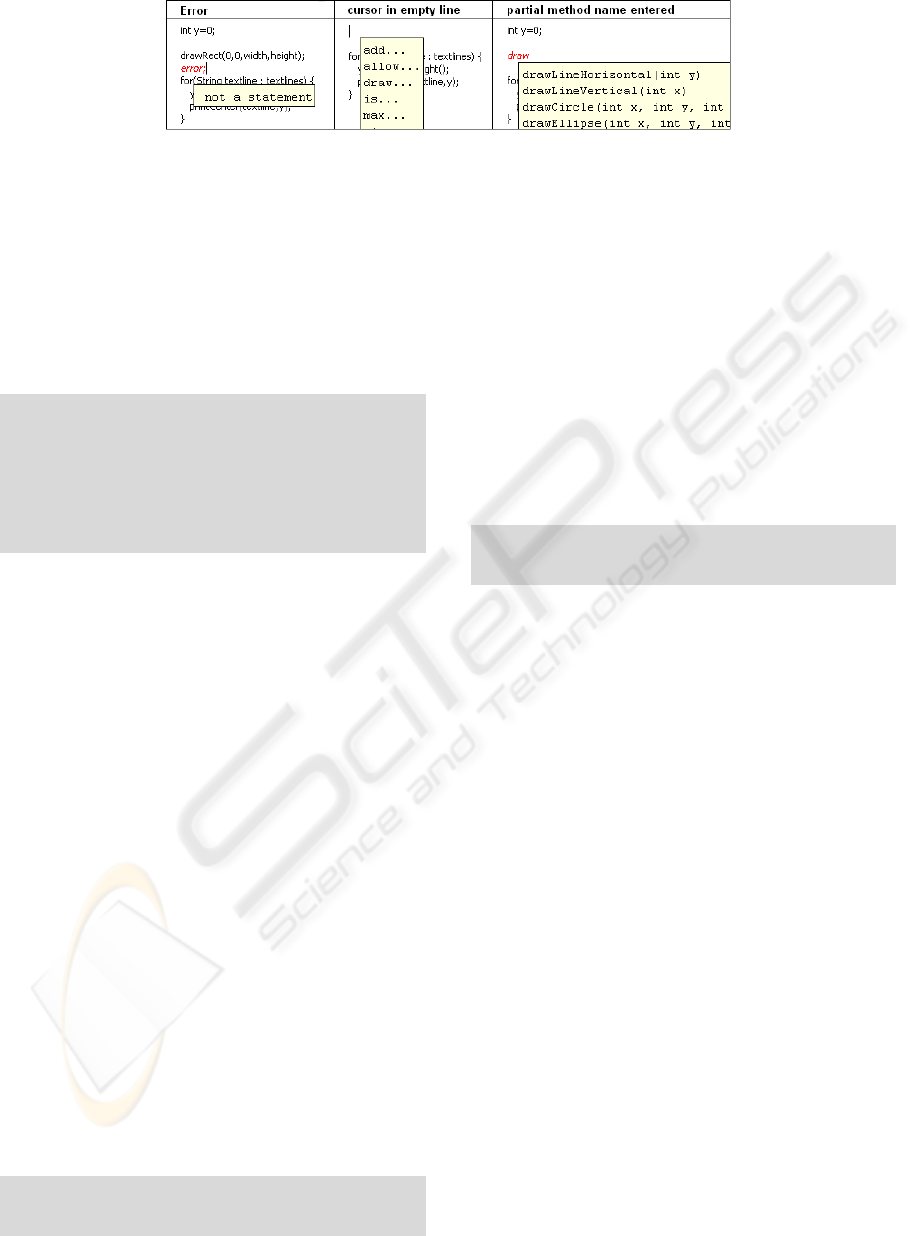

The error handling mechanism (ﬁgure 5) for show-

ing compilation errors in the code follows standard

IDE conventions: it takes the generated compiler er-

ror messages and marks the erroneous lines. If the

user moves the mouse over those lines, the error mes-

sage is displayed.

4.4 Code Completion

Many popular development tools (e.g., Eclipse) im-

plement a code completion feature, where a list of

all available methods and variables is displayed as the

user types. In order to provide the user with a quick

overview of the available predeﬁned methods (see

section 4.2), the method preﬁxes are displayed when

the user moves to an empty line (ﬁgure 5); as soon as

the user starts typing, a detailed list of methods and

variables matching the user input is displayed.

4.5 Saving and Sharing an Element

There are several ways to save and distribute a custom

element; they have different advantages and disadvan-

tages:

END-USER DEVELOPMENT IN A GRAPHICAL USER INTERFACE SETTING

1. The custom elements can be stored in separate

ﬁles, or within the UML diagram ﬁle they are part

of.

2. The custom elements can be stored as Java code,

or as compiled class ﬁle.

3. If a copy of a custom element is created on the

same or a different diagram, it can be treated as

another instance of the same custom element (the

copy changes when the original custom element’s

source code is modiﬁed), or as a new type of cus-

tom element (changes to the source code in the

original custom element do not affect the copy).

UMLet stores the element’s code directly in the dia-

gram (or palette) containing the element, mostly be-

cause it eases the exchange of diagrams as they re-

main single, self-contained ﬁles, and don’t exhibit ad-

ditional dependencies on external ﬁles. To keep the

diagram ﬁle as small as possible, only the user’s code

is stored, not the surrounding template class. Loading

a custom element internally works just like generating

a new custom element—see section 4.1. The obvious

drawback is the performance impact when loading a

diagram that contains a large number of custom el-

ements. The transparency of the source code-based

ﬁle format, though, makes up for the performance

penalty.

Finally, UMLet treats copies of custom elements

as new element types, instead of new instances of the

same element type, in order to handle copies of ele-

ments within a diagram and between diagrams con-

sistently.

One drawback of this “hidden” element exchange

is that an attacker could distribute diagrams contain-

ing malicious custom elements. This security aspect

will be discussed in more detail in section 4.6.

4.6 Security

As mentioned in section 4.5, loading a custom ele-

ment may be a security risk if the user is allowed to

use the entire scope of the underlying programming

language (e.g., a custom element could access the ﬁle

system). To protect end-user systems from damage,

several measures can be taken.

The ﬁrst measure is very easy to implement and

thus commonly used. Whenever a diagram contain-

ing custom elements is loaded, a warning message

that informs the user about the potential risk is dis-

played. The diagram is only loaded after the user con-

ﬁrms that the source can be trusted. One problem with

this simple solution is that a lot of users will ignore

these warnings as they are not aware of security risks

or have become insensitive to security related alerts.

Even if the user is aware of the risks he may be still

be fooled to open a malicious diagram—e.g., if the

attacker resembles a trusted source. Another problem

is that users may create malicious elements by acci-

dent and thus harm their own system during custom

element development.

The second security measure does not depend on

the user but relies on the programming language’s se-

curity mechanism. First, all but the paint method of

the abstract custom element class are declared as ﬁnal

methods—this ensures that these methods cannot be

overridden by the custom element. As a consequence,

custom code can only be placed in the paint method,

even if the attacker ﬁnds a way to break out of it. A

security manager (like the one in Java) then enforces

that no security critical operations (e.g., ﬁle access)

are performed during execution of the paint method.

To ensure that end users are unable to deactivate the

security manager, a random token only visible to the

method calling the paint method is used for authenti-

cation.

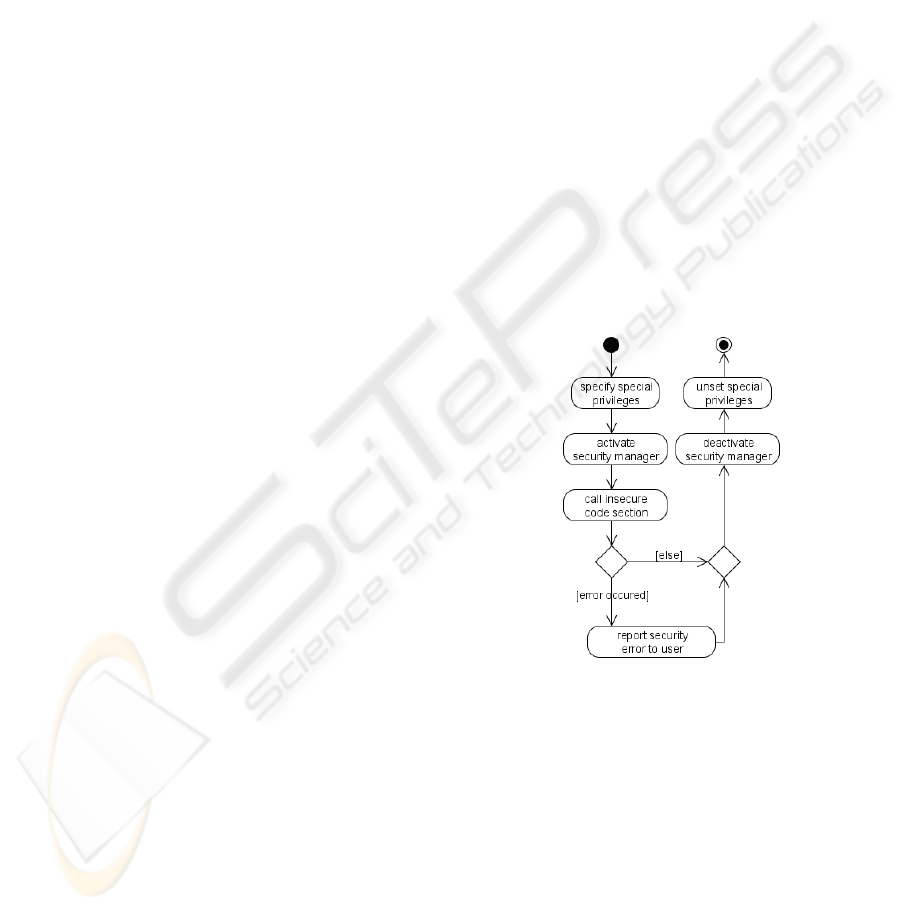

Figure 6 gives an overview how a method call to

paint is handled.

Figure 6: Security workﬂow.

5 EXAMPLES

The following four custom element examples give a

quick overview of UMLet’s live-compilation possibil-

ities. The examples’ ﬁgures show the property panel,

the code panel, and the preview panel.

The textlines variable inside the code panel con-

tains the property panel’s text. The user code then

parses this text to generate the appropriate graphical

representation for the preview panel.

As soon as the source code is modiﬁed in the

ICEIS 2009 - International Conference on Enterprise Information Systems

Figure 7: Custom element example 1.

Figure 8: Custom element example 2.

source code panel, the code is recompiled. If it com-

piles successfully, the code is applied to the text in

the property panel and the element’s preview is up-

dated. If the property panel’s text is changed, the last

successfully compiled code version is applied to the

changed property text, and the element’s preview is

refreshed.

The example shown in ﬁgure 7 creates a rectan-

gular textual element with a small circle in the upper

right corner. The drawCircle and drawRect method

calls draw the bounding rectangle and the circle in

the element’s upper right corner. Finally, the for-loop

draws the text that has been entered in the property

panel.

Figure 8 shows an example with more complex

functionality. It prevents the user from manually re-

sizing the element by calling the allowResize(false)

method and goes on to calculate the component’s di-

mensions. The setElementCentered method moves

the element’s anchor point to its horizontal center.

Any update to the element’s width is then applied in

equal measure on both sides. The for-loop not only

draws the text but also tests for lines containing “– –”

and draws a horizontal line instead.

The example in ﬁgure 9 adds optional manual re-

sizing to the element. The isManualResized function

automatically checks if the element has been resized

manually. As soon as the user resizes the element,

the autoresize=false string is appended to the prop-

Figure 9: Custom element example 3.

Figure 10: Custom element example 4.

erty panel. The function isManualResized returns

true whenever the property panel contains that string

(autoresize=false). In example 9, the user has already

resized the element manually so the if-block that cal-

culates the size automatically is not executed. As

soon as the autoresize=false string is removed from

the property panel, the size is computed and adjusted

automatically again.

The last example in ﬁgure 10 demonstrates the

implementation of sticking polygons, which specify

where relations stick to a UML element on the dia-

gram. The addStickingPoint method adds points to

the sticking polygon. At least two points are required.

The sticking polygon is drawn as dashed lines. If

no polygon is speciﬁed, the relations will stick to the

rectangle deﬁned by the outer borders of the compo-

nent. The other methods used in example 10 are sim-

ple: ﬁrst the text is drawn at the center of the element;

then a diamond is drawn around it.

END-USER DEVELOPMENT IN A GRAPHICAL USER INTERFACE SETTING

6 CONCLUSIONS

Letting users extend applications by programming

has been a research topic for quite some time without

producing many widely-used results (except custom

mathematical expressions). In this paper we describe

a UML tool that enables users to create new graphical

UML elements by using the internal graphical API of

the tool itself. While this is a very special application,

the concept may be applied to other areas.

The approach is simple and provides immedi-

ate feedback to the end, addressing Ruyter’s require-

ments for successful EUD applications. A crucial dif-

ferences to other end-user development approaches is

that the development environment is integrated into

the main application window and thus no media break

occurs. In addition, this paper addresses several prob-

lems including persisting the code, exchanging ele-

ments and security.

Future research will focus on an easier exchange

of custom elements between end users, potentially

over a Web service, and on custom UML relation

types.

REFERENCES

Auer, M., Meyer, L., and Bifﬂ, S. (2007). Explorative UML

modeling: Comparing the usability of UML tools.

In Proceedings of the 9th International Conference

on Enterprise Information Systems (ICEIS’07), pages

466–474, Madeira.

Auer, M., Tschurtschenthaler, T., and Bifﬂ, S. (2003). A ﬂy-

weight UML modeling tool for software development

in heterogeneous environments. In Proceedings of the

29th EUROMICRO Conference, pages 267–272, An-

talya.

Beringer, J. (2004). Reducing expertise tension. Communi-

cations of the ACM, 47(9):39–40.

Beringer, J., Fischer, G., Mussio, P., Myers, B., Patern, F.,

and Ruyter, B. d. (2008). The next challenge: From

easy-to-use to easy-to-develop. Are you ready? In

Proceedings of the Conference on Human Factors in

Computing Systems (CHI’08), pages 2257–2260, Flo-

rence.

Berti, S., Patern, F., and Santoro, C. (2006). Natural de-

velopment of nomadic interfaces based on conceptual

descriptions. In End-User Development, pages 143–

160. Springer.

Booch, G., Rumbaugh, J., and Jacobson, I. (2005). The Uni-

ﬁed Modeling Language User Guide. Addison Wes-

ley, 2. edition.

Cazzola, W., Stroud, R., and Tisato, F. (2000). Reﬂection

and Software Engineering. Springer.

Costabile, M., Mussio, P., Provenza, L., and Piccinno, A.

(2008). End users as unwitting software developers.

In Proceedings of the 4th International Workshop on

End-User Software Engineering (WEUSE’08), pages

6–10, Leipzig.

Evans, A. and Wellings, A. (1999). UML and the formal

development of safety-critical real-time systems. In

IEE Colloquium on Applicable Modelling, Veriﬁca-

tion and Analysis Techniques for Real-Time Systems,

pages 2/1–2/4.

Fischer, G., Giaccardi, E., Ye, Y., Sutcliffe, A., and

Mehandjiev, N. (2004). Meta-design: A manifesto for

end-user development. Communications of the ACM,

47(9):33–37.

Fischer, G. and Scharff, E. (2000). Meta-design: Design for

designers. In Proceedings of the 3rd Conference on

Designing Interactive Systems (DIS’00), pages 396–

405, New York.

Heng, M. (2003). Beyond end user computing. In Pro-

ceedings of the 5th International Conference on En-

terprise Information Systems (ICEIS’03), pages 594–

598, Angers.

Ko, A. and Myers, B. (2005). A framework and methodol-

ogy for studying the causes of software errors in pro-

gramming systems. Journal of Visual Languages &

Computing, 16(1-2):41–84.

Kohler, H., Nickel, U., Niere, J., and Zndorf, A. (2000). In-

tegrating UML diagrams for production control sys-

tems. In Proceedings of the 22nd International Con-

ference on Software Engineering (ICSE’00), pages

241–251, Limerick.

Martin, J. (1984). An Information Systems Manifesto. Pren-

tice Hall, 1. edition.

Ruyter, B. d. and Sluis, R. v. d. (2006). Challenges for end-

user development in intelligent environments. In End-

User Development, pages 243–250. Springer.

Segal, J. (2007). Some problems of professional end-user

developers. In Proceedings of the IEEE Symposium

on Visual Languages and Human-Centric Computing

(VL/HCC’07), pages 111–118, Coeur d’Alne.

Smith, H. (2004). On tool selection for illustrating the use of

UML in system development. Journal of Computing

Sciences in Colleges, 19(5):53–63.

Sutcliffe, A. (2005). Evaluating the costs and beneﬁts of

end-user development. SIGSOFT Software Engineer-

ing Notes, 30(4):1–4.

ICEIS 2009 - International Conference on Enterprise Information Systems
