A SIP-BASED WEB SESSION MIGRATION SERVICE

Michael Adeyeye, Neco Ventura

Department of Electrical Engineering, University of Cape Town, Private Bag X3, Rondebosch 7701, South Africa

David Humphrey

School of Computer Studies, Seneca College, Toronto, Canada

Keywords: Web Session Migration, SIP, HTTP, Web Browser Extension.

Abstract: Web session handoff is one of the ways of improving the web browsing experience; other ways include the

use of bookmarks and web history synchronization between two PCs. This paper discusses the

implementation and evaluation of a SIP-based web session migration service. A graphical tool, which is

called Data Flow Diagram, is used to describe how the session migration service works. This work is

compared with other existing web session migration approaches. In addition, the large scale deployment and

limitations of the service are also discussed. Although all web sessions could not be migrated, the session

mobility service worked in a Peer-to-Peer environment and offered SIP functionalities within web browsers.

That is, a web browser can now act as an adaptive User Agent Client to surf the Internet and set-up

multimedia sessions like a SIP client. In summary, it is a novel approach to web session migration in which

SIP is used to transfer session data. It also borrowed SIP Mobility mechanisms to introduce new service,

namely content sharing and session handoff, to the web browsing experience.

1 INTRODUCTION

There already exist client-based, server-based and

proxy-based architectural schemes for web session

handoff (Canfora et al, 2005; Hsieh et al, 2006; Song

H. 2002). A hybrid-based architectural scheme is

proposed and implemented in this research work.

Existing web browsers architecture is modified by

installing an extension, and an optional SIP proxy

can be used for client (web browser) registration and

session data encryption. An extension enables one to

pass information and add functionality to existing

interfaces. The extension developed in this work is

referred to as “TransferHTTP Extension”. The

implementation leverages the Mozilla Framework

and solely works on Mozilla Firefox version 2.0.

Mozilla Products developed by Mozilla Corporation

are Free Open Source Software (FOSS), though the

Corporation has flexible licenses, which interested

party could choose from, to develop commercial

products. Session Initiation Protocol (SIP) is a

signalling protocol for establishing, modifying and

terminating multimedia sessions. Although

Hypertext Transfer Protocol (HTTP) is a stateless

protocol (Fielding et al, 1999) SIP can be used as a

stateful or stateless protocol (Rosenberg et al, 2002).

HTTP is a stateless protocol because it makes

multiple and unique HTTP Requests for every

component, such as pictures, of a web page. HTTP

was not developed with the intention of migrating its

session between a web server and a web browser to

another web browser.

In this research work, a SIP stack is integrated

into a web browser to transfer web session data and

provide multimedia services. The SIP for Instant

Messaging and Presence Leveraging Extensions

(SIMPLE) was exploited. Web session data are

transferred between web browsers using the SIP

MESSAGE method in a pager mode. In previous

work, we proposed a modification to web browsers

architecture by the use of an extension (Adeyeye and

Ventura, 2007). The new service, namely Content

Sharing and Session handoff, is borrowed from

Third Party Call Control and Session handoff in SIP

Mobility, respectively. Session handoff is defined as

the ability to move existing web session between

two web browsers, and content sharing is defined as

the ability to simultaneously view the same web

page on two web browsers at the same time. Content

sharing requires transferring only a web page

Adeyeye M., Ventura N. and Humphrey D.

A SIP-BASED WEB SESSION MIGRATION SERVICE.

DOI: 10.5220/0001810600390046

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

Universal Resource Locator (URL); for example,

Alice refers Bob to visit the same news website that

she is browsing at the same time. On the other hand,

Session handoff requires the transfer of a web page’s

URL with its session data; for example, moving an

email session between two PCs.

The rest of this paper is arranged as follows:

Section 2 discusses related SIP projects. Section 3

discusses related Industry work. Section 4 describes

the design of the TransferHTTP Extension. Section

5 and 6 discuss the implementation and results,

respectively. The results entail HTTP session

mobility test, possible deployment and

commercialization. Section 7 discusses evaluation of

the extension with other existing web session

handoff approaches. Lastly, Section 8 presents

conclusions for this paper.

2 RELATED SIP PROJECTS

Projects that take advantage of SIP extensibility

include the Akogrimo Project (The Akogrimo

Project, 2008). It involves embedding web service

data in a Session Description Protocol (SDP). In

addition, in an expired IETF Internet draft (Wu and

Schulzrinne, 2001), two approaches are identified

for transferring URL between two web browsers.

The first approach is by sending the URL via a SIP

MESSAGE method. This research work is similar to

this first approach. Furthermore, in this research

work, the session data attributed to the URL can also

be transferred. The second approach identified by

Wu and Schulzrinne is by using SIP NOTIFY

method. This approach is described as a way of

achieving conference model of web browsing

whereby a browser could be notified when a web

page on another browser has changed. The

shortcoming of the project is that it is discontinued

neither are the approaches standardized. However,

the approaches show different ways of achieving

web share using SIP MESSAGE and SIP NOTIFY

methods.

Another project that exploits the SIP extensibility

and very similar to this research work was carried

out by (Munkongpitakkun et al, 2007). In the

project, a SIP stack is also integrated into a web

browser, and a SIP MESSAGE method is used to

transfer session data as well. Although it is very

similar to this research work, the project, like other

related academic work, only addresses session

handoff. In terms of the signalling, two web

browsers have to establish a call session using a SIP

INVITE method before a session handoff can take

place. This approach introduces unnecessary

overheads in the signalling because it is not stated if

users need to be involved in a multimedia session,

such as voice call, before session handoff can take

place. Although the work is also an attempt to solve

the session handoff problem, the implementation

details are limited and no software is available to

confirm their findings.

3 RELATED INDUSTRY WORK

Google Browser Sync is an extension for the

Mozilla Firefox, which makes it possible for users to

synchronize their currently opened tabs and

windows across different PCs, where the extension

must have been installed (The Google Browser

Sync, 2008). Mozilla Weave aims to create a

repository where users’ bookmarks, history, privacy

settings and preferences can be stored and retrieved

as they move across PCs (The Mozilla Weave,

2008). Extensible Messaging and Presence Protocol

(XMPP), formerly known as Jabber Protocol, is also

widely used to achieve interaction between User

Agent Clients (UACs) (Saint-Andre, Ed. P., 2004).

It is commonly used for instant messaging and

developing online games between two or more

UACs.

These industry solutions, such as Google Browser

Sync, Mozilla Weave and XMPP, are distinctively

different from this research work, though all of them

tend to improve the web browsing experience.

Although Google Browser Sync transfers session

data between PCs used by the same person, it suffers

a triangular delay. That is, session data are first

pushed to the Google web server and then pulled by

the extension at another end after user’s

identification. Similarly, Mozilla Weave also suffers

the same triangular delay found in Google Browser

Sync, though it gives users more control over their

data and personal information than Google Browser

Sync (The Google Browser Sync, 2008).

In addition, both Mozilla Weave and Google

Browser Sync are based on conventional HTTP,

which does not provide support for Peer-to-Peer

(P2P) interaction, pure asynchronous events and

multimedia sessions. XMPP, however, could be used

in place of SIP to move session data, but it is not

capable of providing multimedia services that SIP

offers.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

4 DESIGN OF THE TransferHTTP

EXTENSION

A Data Flow Diagram (DFD) is a graphical tool in

software engineering used for modeling information-

processing systems, whole organizations, business

planning and strategic planning (Yourdon, E., 1989).

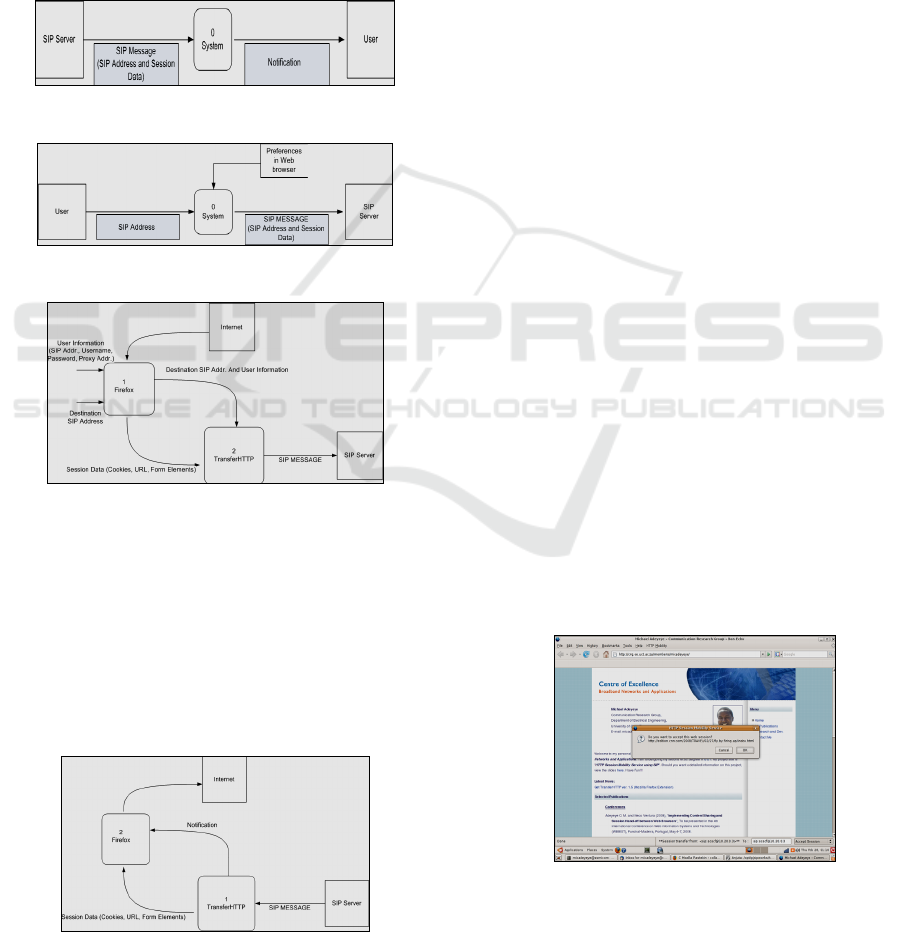

Figures 1 and 2 provide the highest DFD levels

(Level 0) of two major functionalities in the

extension, namely web session transfer and web

session receipt. Figures 3 and 4 present Level 1 for

the same functionalities.

Figure 1: Level 0 DFD for web session transfer.

Figure 2: Level 0 DFD for web session receipt.

Figure 3: Level 1 DFD for web session transfer.

In Figure 1, a user enters the destination SIP address,

and the SIP client’s credentials and proxy address

are pulled from the Preferences of the browser into

the system. Thereafter, the system pushes the session

data with the destination SIP address to the SIP

proxy server. In Figure 2, the web session receipt,

the SIP proxy server forwards the received

information to the destination system, and the

system sends a notification to the user.

Figure 4: Level 1 DFD for web session receipt.

Figures 3 and 4 provide more detailed diagrams. In

Figure 3, the two arrows indicate that the SIP client

credentials and the destination SIP address are

entered by the user. During a web session transfer,

the login details, also referred to as the user

information, are sent with the destination SIP

address to the TransferHTTP extension.

Simultaneously, the session data with the URL are

sent to the extension. An arrow from the Internet to

the browser (Firefox) shows that the browser is

currently accessing the Internet. TransferHTTP

processes this information and sends it out as a SIP

MESSAGE to the appropriate SIP proxy server. In

Figure 4, the SIP MESSAGE is forwarded to

TransferHTTP of the destination browser. First,

TransferHTTP sends a notification to the browser. If

the notification is accepted, the session data will be

forwarded to the browser, and the resource will be

pulled from the Internet.

5 IMPLEMENTATION

Until now, SIP had only been integrated into

application servers. For example, IBM Websphere

Application Server Version 6.1 was built on SIP

Servlet 1.0 specification. The SIP Servlet 1.0

specification was standardized through Java

Specification Request (JSR) 116 (Burckart E.,

2008).

In this implementation, a small footprint SIP stack

was used. Its file size was 2.2MB, while a typical

web browser installer could be 9MB. After a

successful integration of the SIP stack, the web

browser was subjected to performance tests to

determine if its memory consumption, upload speed

and download speed changed when the SIP stack

was running as a background service. The browser’s

performance was not hindered, and the results were

discussed in a previous paper.

Figure 5: The TransferHTTP Web Browser Extension.

The SIP stack was wrapped as a shared library, and a

new Cross Platform Component Object Model

A SIP-BASED WEB SESSION MIGRATION SERVICE

(XPCOM) was written to interact with it. XPCOM

makes it possible to write language-agnostic

components thereby separating an implementation

from its interface (Boswell et al, 2002). This

approach provided a new layer of abstraction to the

web browser in order to integrate the new protocol,

SIP.

6 RESULTS AND DISCUSSION

Figure 5 shows the installed extension in a web

browser. A new menu “HTTP Mobility” is

introduced at the menu bar. A sub-menu

“Preferences” can be found under the “HTTP

Mobility” menu when clicked. In the Preferences,

though not shown here in order to save space, a user

sets among other things, his SIP address, SIP proxy

address, username and password. Figure 5 shows a

typical web session transfer notification at the status

bar. Next to this notification message is a text field

that accepts the destination UAC’s SIP address. A

drop-down menu with options - Register Client,

Make a Call, Content Sharing, Transfer Session,

Accept Session and De-register Client - exists next

to the text field. This implementation also provides a

voice interaction between two UACs (web browsers)

when the option “Make a Call” is chosen after the

UAC must have registered to a SIP proxy server.

The following sub-sections discuss the HTTP

session mobility test, possible deployment and

commercialization of this new service.

6.1 HTTP Session Mobility Test

Figure 6 shows that the web session data vary

among websites. This web browser extension was

tested on some prominent websites. The intentions

were to gather information on the size of data

transferred during a session handoff and find out if

session handoff could fail on some websites. The

compositions of session data can be URL, cookies

and hidden input elements. These session data are

sent between web browsers in an XML format

(Adeyeye and Ventura, 2008).

The packet size of the SIP MESSAGE body was

measured when transferring each website’s

homepage before and after signing in. This packet

size refers to the content-length of the SIP

MESSAGE header, which is always zero when there

is no data in the SIP MESSAGE body. The sampled

websites already had some cookies in the cookies

list of the web browser before signing in. Results

obtained from analyzing the XML data showed that

Yahoo and Hotmail had almost the same amount of

cookies. After signing in, more cookies were

generated in Gmail and Hotmail than in Yahoo. In

Figure 6, Yahoo session data size skyrocketed

because it contained many input elements, especially

button type, at the user’s homepage. Hotmail had

more cookies than Gmail and its user’s homepage

had very few input elements. Facebook, before and

after signing in, had more cookies than its hidden

input elements. Session handoff was also

successfully tested on websites that used SSL to

encrypted submitted data. Examples were the

department’s private web mail service (at

https://crgmail.ee.uct.ac.za) and an eCommerce

website (at https://www.firstinlandonline.net). Each

website had a session data size less than 500B.

Session handoff on some websites, however, was

partially successful or not successful. Although

session data were successfully transferred, the exact

web page with it current interaction, such as a web

chat session, could not be continued on some

websites. An example was Meebo, which is based

on AJAX. AJAX enables websites to use

XMLHttpRequest to asynchronously post and

retrieve data via HTTP without changing a URL.

Some Mash-ups, websites that present information

gathered from other websites to users, also failed.

Examples of these Mash-ups were

http://www.alertnet.org, http://www.3dgeomaps.com

and http://www.rockstarapps.com.

This failure can also be attributed to their ability

to update web page’s contents without changing its

URL, during a HTTP POST or GET request. Other

websites that achieved partially successful session

handoff were those made up of FRAME/IFRAME

HTML tags. In such cases, a column or row of the

FRAME-based/IFRAME-based website redirected a

user to a log-in page. The reason is that only cookies

of the parent FRAME/IFRAME were transferred

when session handoff was tested on these websites.

As a result, a prompt or log-in request appeared in a

column or row of the FRAME-based /IFRAME-

based website.

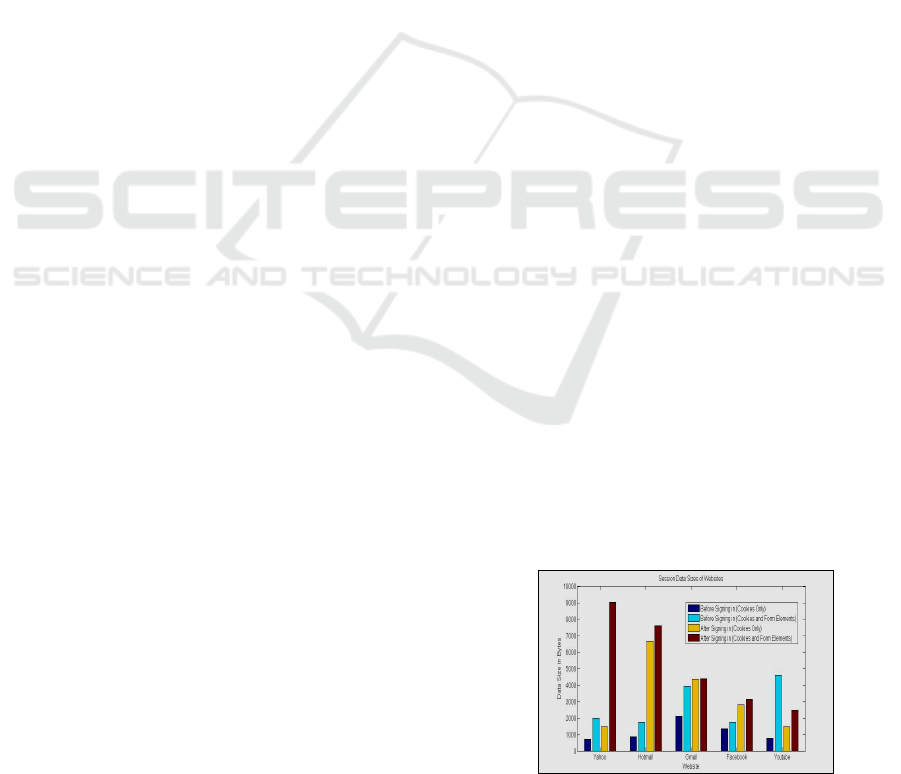

Figure 6: Session Data Size (Cookies and Hidden Input

Elements) on prominent Websites.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

An example was this URL:

http://www.ngportal.com/Certdumps/parent_sites.ph

p. The web page had a frame pointing to

http://www.actualtests.com/default.asp?show=exams

. Both websites, NGPORTAL and ACTUALTESTS,

require logging in, though the log-in processes could

be done at the parent website, NGPORTAL. During

a session handoff, only cookies of NGPORTAL

were transferred thereby resulting in a log-in request

into ACTUALTESTS at the destination web

browser.

In summary, web browsers are based on Same

Origin Policy (SOP) in which cookies are selectively

sent to a web server based on its domain or sub-

domain (Wang et al, 2007). RFC 2965 (Kristol and

Montulli, 2000) provides information on how

cookies should be selectively sent to a web server

and what modifications to cookies are not

encouraged from end users. This implementation

makes no change to cookies. It also deletes cookies

from the source UAC during session handoff to

prevent two or more UACs from having the same

session data. In addition, the current web browser

tab is also closed during a session handoff. This

measure ensures all hidden input elements are

cleared and will require logging in again to access

the newly generated cookies and hidden input

elements.

6.2 Deployment and

Commercialization

This HTTP mobility service is an application layer

solution that could migrate web sessions of websites,

SSL-based websites inclusive. While this

implementation successfully runs in a P2P

environment, it is strongly recommended that it is

used in a client-server environment. To provide data

integrity and confidentiality, it is advised that the

SIP server should implement TLS in order to

provide HTTP Digest Authentication and encryption

of data during UACs interaction. An alternative is

the use of UACs that support Secure Multi-purpose

Internet Mail Extension (S/MIME). S/MIME is a

feature required in a SIP stack that might be used in

the implementation, though it is not currently found

in most of the available SIP stacks. It offers end-to-

end data encryption, while TLS-supported proxy

servers offer a hop-by-hop data encryption

(Camarillo and Mugiel, 2006).

In Figure 6, the data sizes in bytes represent the

number of characters and could be used as a

yardstick for charging users. These data sizes

account for the cookies and the hidden input

elements. It was observed that the session data size

varies among web pages in the same website. An

example was Youtube. Although not indicated in

Figure 6, its session data size, after signing in, at the

homepage was 2kB, and at a randomly selected

page, it was 15kB. The session data size in this case

also depends on the number of HTML Form

elements in the webpage. Considering the varying

session data sizes, a charging function could be

integrated into the SIP server, and a web interface

could be provided for users to monitor their usage.

7 EVALUATION OF

TransferHTTP EXTENSION

Table 1 shows the comparison of TransferHTTP

with other existing web session migration

approaches. These approaches are discussed here

because each is based on one of these architectural

schemes – client, proxy and server – and were

carried out in the academic environment unlike those

works discussed in sections 2 and 3, which are more

of Industry products. Although (Canfora et al, 2005)

and (Hsieh et al, 2006) are proxy-based architectural

schemes, only (Hsieh et al, 2006) is used in this

evaluation. (Hsieh et al, 2006) is chosen because it

has more functionalities, such as support for optional

client program, than (Canfora et al, 2005).

The works compared with TransferHTTP are

Browser State Preservation and Migration (BSPM)

(Song H., 2002) and Stateful Session Handoff for

mobile WWW (Hsieh et al, 2006). BSPM is a client-

based architectural scheme, while mobile WWW

(that is, Stateful Session Handoff for mobile WWW)

is a proxy-based architectural scheme. Our

implementation is based on a hybrid-based

architectural scheme.

Both BSMP and mobile WWW provide web

session handoff between two web browsers. This

research work (TransferHTTP) also provides web

session handoff. Session handoff in the three works

requires that all cookies are sent to the web browser,

though these cookies are sent using different

mechanisms. In addition to functionalities in

TransferHTTP, it also offers content sharing, which

entails one web browser referring another web

browser to have access to the same web resource.

These works however have more differences than

similarities. Regarding modifications made to web

browsers architecture, BSPM is a client-based

architectural scheme that requires modifying the

architecture of a web browser. TransferHTTP, which

is a hybrid-based architectural scheme, also requires

A SIP-BASED WEB SESSION MIGRATION SERVICE

Table 1: Comparison of TransferHTTP with other existing web session migration approaches.

Item Approaches

BSPM Mobile WWW TransferHTTP

Modification to

user devices

Substantially modified browser No but an optional small client program can

be installed.

A small client program is required

Session

registration/tracking

Supports user authentication By accessing UAP’s web pages or by the

client program

Unnecessary but supports client

authentication

Tracking session

information

Unnecessary By UAP; Unable to track unsubmitted form

fields when client program is not installed.

Unnecessary

Handoff action Source saves to BSPM

repository and then Target

retrieves from it.

Target retrieves from UAP; UAP retrieves

unsubmitted form fields from source via small

client program.

Source sends session data,

unsubmitted form fields inclusive,

to Target via an optional SIP proxy

(or UAP).

History and Cookie

handoff

History is directly loaded into

browser.

All cookies are sent to browser.

History is sent as a list of web pages.

UAP sends necessary cookies to browser

during browsing and tracking step.

History is unnecessary.

All cookies are sent to browser.

Web pages handoff Content is directly loaded into

browser.

UAP redirects browser to open URLs.

With small client program, UAP sends URLs

to client program and then browser opens the

URLs.

Browser interacts with client

program and opens URL.

Summary A client-based scheme.

Needs a repository that stores

session data.

A client is modified.

No user-client interaction.

Introduced session handoff.

A proxy-based scheme.

A proxy is required to perform the session

transfer process.

An optional client program can be used to

support user-client interaction.

Introduced session handoff.

A hybrid-based scheme.

Introduced SIP into the client and

can use an optional SIP proxy.

Supports user-client interaction.

Introduced voice call, session

handoff and content sharing.

modifying the architecture of a web browser. On the

contrary, mobile WWW is a proxy-based

architectural scheme that does not require modifying

the architecture of a web browser. It however

supports an optional client program that modifies the

architecture of the web browser when the client

program is installed.

BSPM lacks user-client interaction, while mobile

WWW provides user-client interaction when its

optional client program is installed. TransferHTTP,

like mobile WWW, also provides user-client

interaction. User-client interaction offers a user the

ability to continue a task, such as filling a form,

rather than starting afresh at another end after a

session handoff.

In terms of session registration/tracking, BSMP

offers only user authentication, which is used to

session tracking in addition to user authentication.

Although TransferHTTP supports user or client

authentication, it does not offer session tracking.

History handoff is a feature found in BSPM and

mobile WWW but not in TransferHTTP.

TransferHTTP assumes a degree of privacy in its

service. Since content sharing involves someone

referring another person to the same web resource, it

is unnecessary and considered to be an invasion of

privacy to include the history of the source web

browser. Session tracking is not provided in

TransferHTTP, since a proxy is required to achieve

it.

TransferHTTP could work in a P2P environment

without a SIP proxy server. In addition, it introduces

a new Protocol, SIP, into a web browser that makes

it possible to set up voice call with the destination

web browser. This offers a new way of

collaboration in the web-browsing context. Lastly,

unlike other approaches, it does not break the HTTP

security rules. It was ensured during the

implementation that no two web browsers would

have the same session data, most notably cookies

and hidden input elements.

8 CONCLUSIONS

This implementation (The TransferHTTP Extension,

2008) is referred to as a loosely-coupled approach

because the SIP stack was not integrated into the

core of the web browser; rather an abstraction was

provided for the web browser and SIP stack to

interact. Modifications made to the browser

architecture were described in [Adeyeye and

Ventura, 2007; Adeyeye and Ventura, 2008). This

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

implementation helps improve collaboration and

mobility among the web users and encourages

adaptive UACs. In this case, the web browser can

also be used as a SIP client to make voice calls and

be extended to perform other functionalities.

The packet size of the SIP stack was extended to

16kB in order to send session data at once. The data

could be sent in chunks and merged at the

destination UAC in order to propagate most SIP

servers, should it be used over a large network. This

is a custom implementation and could be deployed

in a P2P environment. SIP is an extensible signaling

protocol, and this implementation leverages its

instant messaging capability to provide web session

mobility. In addition, the implementation offers

voice interaction alongside the web browser

capabilities.

Regarding possible service commercialization, a

flat rate could be charged periodically regardless of

the varying session data sizes. Another approach

could be to render it as a Value Added Service

(VAS) to customers. Other areas that could be

explored include implementing a policy control to

block unwanted web session transfer request. Such

restriction could be based on a domain name or a

SIP address. While a session-based cookie expires in

a short time of inactivity, a persistent cookie can

provide access to a website over a long period of

time. A session management mechanism could also

be integrated so that a web session transfer request

could be held for a long time without expiring when

the destination SIP address can not be reached or a

session-based cookie that expires in a short time is

used by a web server.

In terms of specific contributions of this research

work, while session handoff has been widely

explored, content sharing is a new service in the

web-browsing context that could encourage

collaboration or community interaction between the

Internet users. This implementation has provided a

fast and efficient way of referring someone else to

the same web page currently viewed by the referrer

rather than the slow way of copying, pasting and

sending the URL in a chat session or an email. In

addition, web browsers now have unique SIP

addresses to interact with one another like PCs,

which have unique Media Access Control (MAC) or

IP addresses.

REFERENCES

Canfora, G., Santo, G. Di, Venturi, G., Zimeo, E. and Zito,

M.V. (2005) “Proxy-based Handoff of Web Sessions

for User Mobility,” Proceedings of the Second Annual

International Conference on Mobile and Ubiquitous

Systems: Networking and Services (MobiQuitous

’05).

Ming-Deng Hsieh, Tsan-Pin Wang, Ching-Sung Tsai and

Chien-Chao Tseng (2006) “Stateful session handoff

for mobile WWW,” Information Sciences, Elsevier

Science Press, volume 176, pp. 1241-1265.

Song, H. (2002) “Browser Session Preservation and

Migration,” In Poster Session of WWW 2002, Hawaii,

USA, May 7-11, 2002, pp. 2.

Fielding, R., Gettys, J., Mogul, J., Frystyk, H., Masinter,

L., Leach, P. and Berners-Lee, T. (1999) “Hypertext

Transfer Protocol – HTTP/1.1,” IETF RFC 2616, June

1999.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston,

A., Peterson, J., Sparks, R., Handley, M. and Schooler,

E. “SIP: Session Initiation Protocol,” IETF RFC 3261,

June 2002.

Adeyeye, M. and Ventura, N. (2007) “Extending Web

Browsers Architectures to support HTTP Session

Mobility,” Proceedings of CoNEXT ’07, New York,

U.S.A, Dec. 10-13, 2007.

The Akogrimo Project (2008),

http://www.mobilegrids.org, June 19, 2008.

Xiaotao, Wu and Schulzrinne, H. (2001) “Use SIP

MESSAGE method for shared web browsing,”

http://www3.tools.ietf.org/id/draft-wu-sipping-

webshare-00.txt, November 14, 2001.

Munkongpitakkun, W., Kamolphiwong, S. and Sae-Wong,

S. (2007) “Enhanced Web Session Mobility based on

SIP,” Proceedings of the 4th International Conference

on Mobile Technology, Applications and Systems

(Mobility 2007), Singapore, September 10-12, 2007,

pp. 346-350.

Google Browser Sync (2008),

http://www.google.com/tools/firefox/browsersync/,

June 10, 2008

A prototype of Mozilla Weave (2008),

http://labs.mozilla.com/2007/12/introducing-weave/,

June 10, 2008.

Saint-Andre, Ed. P. (2004) “Extensible Messaging and

Presence Protcol (XMPP): Core,” IETF RFC 3920,

October 2004.

Yourdon, E. (1989) Modern Structure Analysis. Prentice

Hall, 1989.

Burckart, E.(2008) “Session Initiation Protocol in

WebSphere Application Server V6.1,” [Online],

Available:

http://www.ibm.com/developerworks/websphere/techj

ournal/0606_burckart/0606_burckart.html [May 16,

2008].

Boswell, D., King, B., Oeschger, I., Collins, P. and

Murphy, E. (2002) Creating Applications with

Mozilla, O’Reilly Press, USA, First Edition, 2002, pp

1-8.

Adeyeye, M. and Ventura, N. (2008), "Performance and

Possible Deployment of HTTP Session Mobility

Service using SIP," Proceedings of the 11th South

African Telecommunication Networks and

A SIP-BASED WEB SESSION MIGRATION SERVICE

Applications Conference (SATNAC), Durban,

September 7-10, 2008.

Wang Helen J., Fan X., Howell, J. and Jackson, C. (2007)

“Protection and Communication Abstractions for Web

Browsers in MashupOS,” Proceedings of the SOSP’

07, Stevenson, Washington, USA, October 14-17,

2007.

Kristol, D., Montulli L. (2000) “HTTP State Management

Mechanism,” IETF RFC 2965, October 2000.

Camarillo G., Garcia-Martin, M. (2006) The 3G IP

Multimedia Subsystem, Wiley Press, England, Second

Edition, 2006, pp. 97, 213-229.

The TransferHTTP Extension (2008)

http://transferhttp.mozdev.org, September 5, 2008.

Adeyeye, M., Ventura, N. (2008) “Implementing Content

Sharing and Session handoff between Web Browsers,”

Proceedings of the 4th International Conference on

Web Information Systems and Technologies, Funchal,

Madeira, Portugal, May. 4-7, 2008.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies
