MULTI-LAYERED CONTENTS GENERATION FROM REAL

WORLD SCENE BY THREE-DIMENSIONAL MEASUREMENT

M. K. Kim

, Y. Nakajima

1, 2

, T. Takeshita

, S. Onogi

, M. Mitsuishi

and Y. Matsumoto

1, 2

School of Engineering, the University of Tokyo, Tokyo, Japan

Intelligent Modeling Laboratory, the University of Tokyo, Tokyo, Japan

Keywords: Layer Content, Three-dimensional measurement, Depth from Focus, Spatio-Temporal image analysis.

Abstract: In this paper, we propose a method to create automatically multi-layered contents from real world scene

based on Depth from Focus and Spatio-Temporal Image Analysis. Since the contents are generated by layer

representation directly from real world, the change of point of view is able to freely and it reduces the labor

and cost of creating three-dimensional (3-D) contents using Computer Graphics. To extraction layer in the

real images, Depth from Focus is used in case of stationary objects and Spatio-Temporal Image Analysis is

used in case of moving objects. We selected above two methods, because of stability of system. Depth from

Focus method doesn’t need to search correspondence point and Spatio-Temporal Image Analysis has also

simple computing algorithm relatively. We performed an experiment to extract layer contents from

stationary and moving object automatically and the feasibility of the method was confirmed.

1 INTRODUCTION

Three-dimensional (3-D) contents are required in

various field of Virtual Reality. It is various from

cultural asset to cityscape. In case of cultural asset,

its digitalization is required quite complex and

precise description. The cultural asset is digitalized

by using 3-D range measurement information of

object and Computer Graphics for delicate contents.

In this case, contents generation is also necessary to

measurement apparatus such as helicopter or Global

Positioning System. Hence, it needs huge labor and

cost.

On the other hand, 3-D content digitalization of

cityscape (e.g. building, car) is not necessary

delicateness such as cultural asset. For instance,

when you go sightseeing or visit virtual space, used

all contents should not be elaborate like the cultural

asset contents.

In the latter case, if real image is used to create

3-D contents directly, it is possible to generate

simply more real 3-D contents by less effort and

cost.

However, it has been a little problem. When we

see the street through the Street View, we often

don’t go where we want to see. Since photograph

data is expressed discretely.

Therefore it has limitation of viewpoint. Google

Street View is one example of latter case.

To solve this problem, we employ a solution for

3-D scene description. The concept is 3-D

representation with 2-D real image layer. In this

method, 3-D space and contents is represented by

using arrangement of 2-D layers and concerning

psychology factor. This 3-D representation method

is proposed and explained their effects by Ogi

(Ogi07). There are the following two advantages.

First, data volume is small, because one layer can

express multi-point of view. Second, we can get

continuous point of view that doesn’t get before.

Our team with Ogi have been developing Dome

Display Layer Representation System based on

Figure 1. In this system, 2-D contents are presented

in dome display and psychology factor (Seno08) is

considered at the same time. So, high presence is

obtained. In addition, data size is small because of

layer representation. And this system is preformed

three steps. First, 2-D layer contents are made and

segmented from the real world image. Next, Layers

are integrated according to the relation of the point

of view and the relation of 3-D position of layer.

Finally, these 2-D layer contents are presented on

dome display in consideration of the distortion.

109

Kim M., Nakajima Y., Takeshita T., Onogi S., Mitsuishi M. and Matsumoto Y. (2009).

MULTI-LAYERED CONTENTS GENERATION FROM REAL WORLD SCENE BY THREE-DIMENSIONAL MEASUREMENT.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 109-112

DOI: 10.5220/0001820501090112

 SciTePress

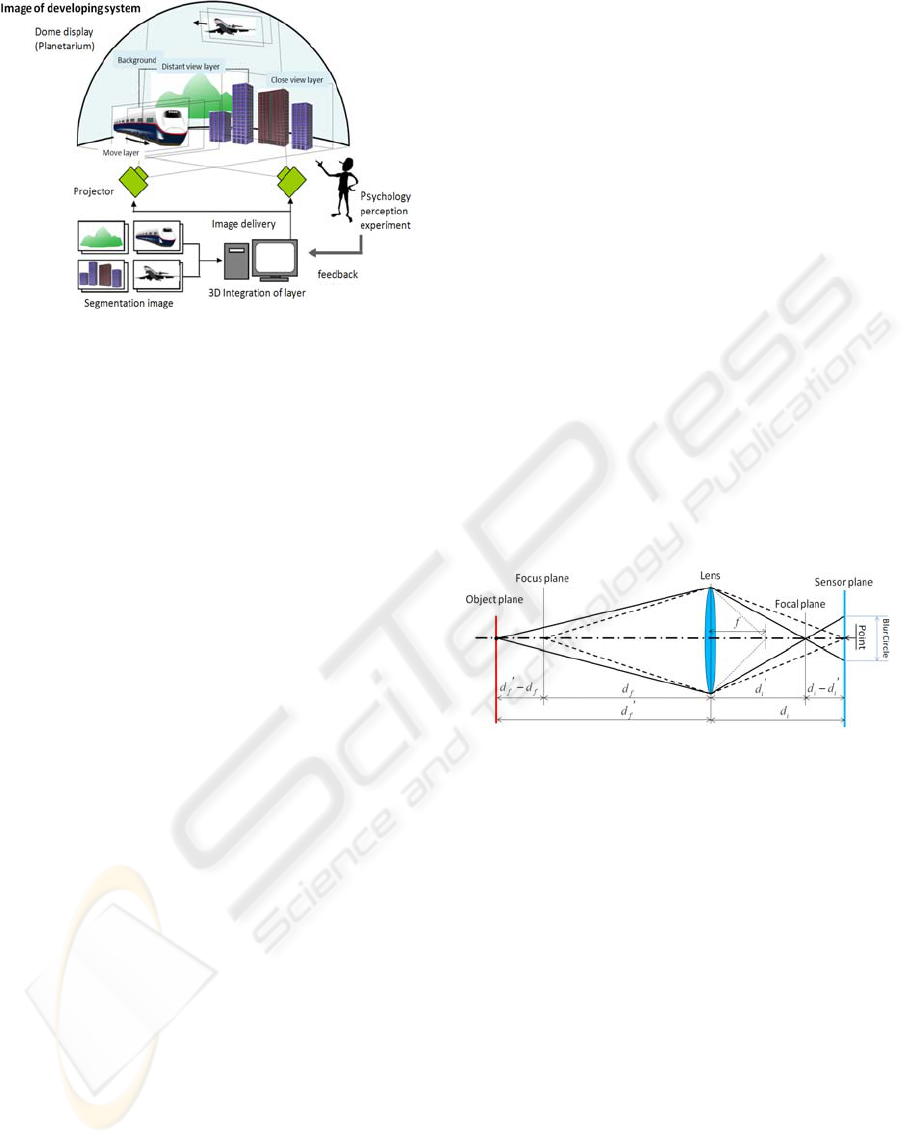

Figure 1: Dome Display Layer Representation System.

In this project, we have been developing

automatic extraction method of layer contents with

real world image. Layers are made from real world

by 3-D measurement. 3-D measurement is necessary

to extract layer from 2-D image. By using this

method we can record cityscapes or landscapes and

change point of view everywhere we want. Actually,

the 3-D measurement performs discretely but we can

go to midpoint between measurement points and get

the scene naturally.

In this paper, two methods are proposed to layer

extraction.

First, in case of extraction of stationary layer, we

selected Depth from Focus method to extraction

layer. DFF is depth measurement method by the

degree of focus in different focus position image

((Nayar94) (Pentland87)). Mainly, using motion,

stereo or focus method is used for 3-D measurement

method from 2-D image. Motion and stereo utilize

changes of point of view. So they need to search

corresponding point. The search algorithm is quite

complex. Meanwhile focus method doesn’t need to

search corresponding point and the algorithm is

simple. Then we use focus information as extraction

method. Second, extraction of moving object is

performed by Spatio-Temporal Image Analysis

method. This method is relatively more stable in

terms of search less correspond point than other

method. And it is also possible to generate 3-D layer

contents from already existing video contents. But it

is unsuitable to extract still object.

If consider two methods, both still object and

moving object can be extracted at the same time. We

proposed a method to generate multi-layer contents

from real world scene by Depth from Focus and

Spatio-Temporal image analysis and we extracted

layer contents automatically.

2 METHOD

In this section, we introduce Depth from Focus and

Spatio-Temporal Image Analysis methods that

extract layer contents from real world scene.

2.1 Depth from Focus

In general, using motion and stereo camera method

is widely used for depth measurement from camera

to objects

(Birch) (Krotkov). Motion and stereo

methods basically utilize changes of point of view.

These methods need to search and compute

correspondence points. The search and computing

algorithm is quite complex. Meanwhile Depth from

focus method doesn’t need to search corresponding

point and the algorithm is simple.

Depth from focus method uses focus information.

Focus condition depends on the geometry setting of

the focal plane and object plane in a camera.

Roughly speaking, we can get more blurred image,

according to image plane is more distant from sensor

plane. The geometry of imaging is shown in

Figure 2.

Figure 2: Geometry of imaging.

Depth estimation performed following steps.

First, two or more images of different focused

position in each image can be acquired by changing

the sensor plane position or lens position at the

identical viewpoint. Next, the focus measure is

evaluated. In DFF, focus measure means degree of

focus in each image pixel. In third step, best focus

lens position is found. And then, the relation

between camera setting and the focal plane is

previously calculated by law of lens. Consequently,

we can estimate depth information from this process.

2.2 Spatio-Temporal Image Analysis

An image hexahedron is obtained by arranging the

video image sequence like Figure 3 (a). The cross

section view of the hexahedron perpendicular to

image plane is the image like Figure 3(b). The axis

of the image is position-time. So the image is called

Spatio-Temporal image. Spatio-Temporal image has

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

110

a feature at the position that color is not changed, the

image becomes stripe pattern in the time direction.

In this paper, the moving object is extracted using

this feature. To detect the stripe pattern, we use

frequency analysis by 2-D Fourier transformation.

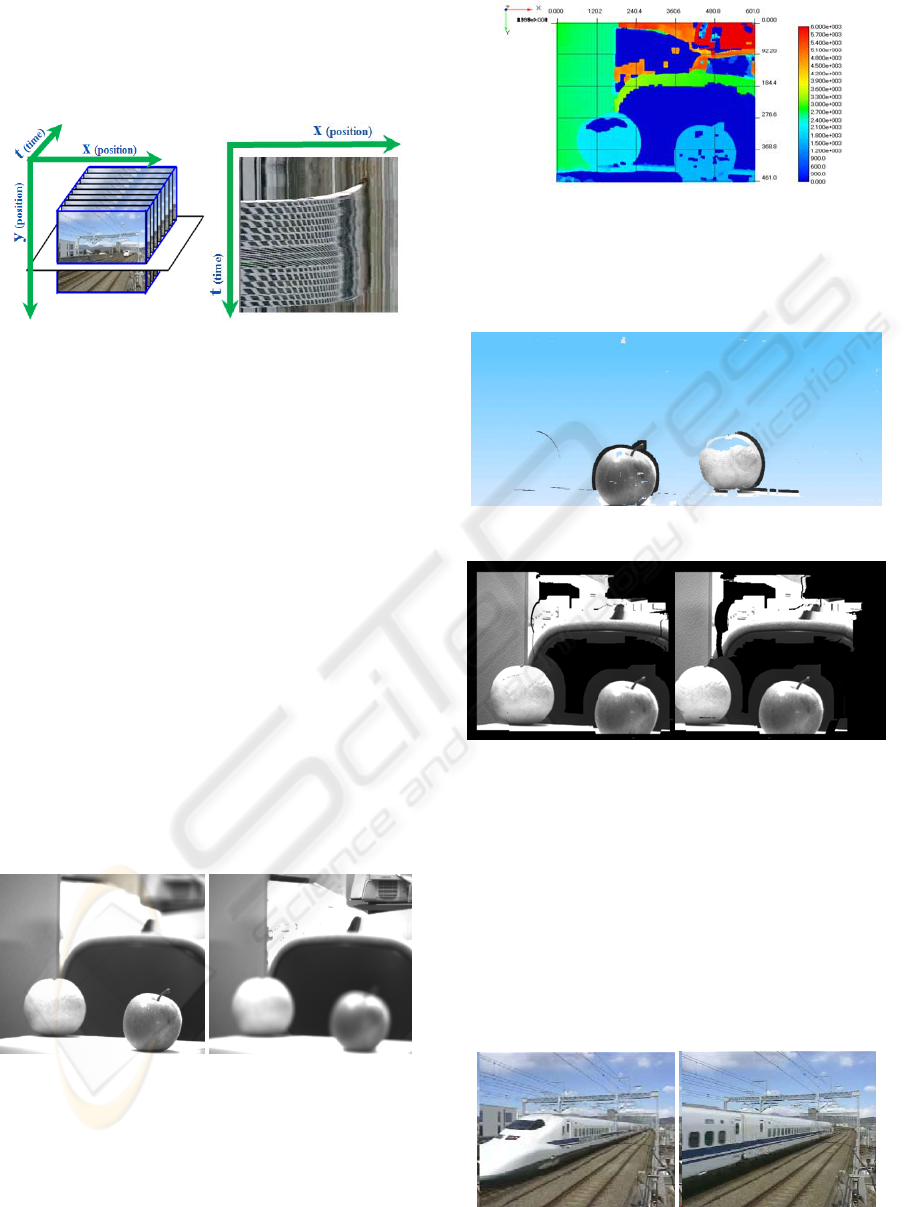

Figure 3: (a) image sequence (b) Spatio-Temporal image.

3 EXPERIMENTAL RESULTS

3.1 Layer Generation based on Depth

from Focus

In this section, we computed the depth of object

using DFF, and extracted layered object contents by

dividing image layer according to depth information.

3.1.1 Depth Estimation with Apple and

Orange

Depth distribution was estimated from real scene

images shown in Figure 4. And the computed depth

map of Figure 4 is shown in Figure 5 (all depth is

expressed by color) by different focused images

about 40 as Figure 4. For instance, an apple and an

orange have different depth. Some areas are not

computable (dark blue) because of low texture or

CCD saturation.

Figure 4: (a) Defocused image. (b) Focused image.

3.1.2 Layer Segmentation Using Depth

Information

Layer segmentation using depth information was

performed. In the result, an apple and an orange

were extracted from real scene as shown in Figure 6

Figure 5: computed depth map.

And Figure 7 (a) shows the layers arrangement

according to 3-D positions. And Figure 7 (b) is the

same arrangement but different point of view.

Figure 6

Extracted layer of orange and apple.

Figure 7: (a) Object layers arrangement according to three

dimensional positions. (b) The arrangement virtually

changed view point (by camera position).

3.2 Layer Generation based on

Spatio-Temporal Image Analysis

In the experiment, the extraction of moving train in

video image was conducted by shown as Figure 10.

One of the spatio-temporal images is shown in

Figure 7(a). And in Figure 7 (b) the background

region judged by our method was expressed with

blue. The final result is shown in Figure 8.

Figure 8: Train image.

MULTI-LAYERED CONTENTS GENERATION FROM REAL WORLD SCENE BY THREE-DIMENSIONAL

MEASUREMENT

111

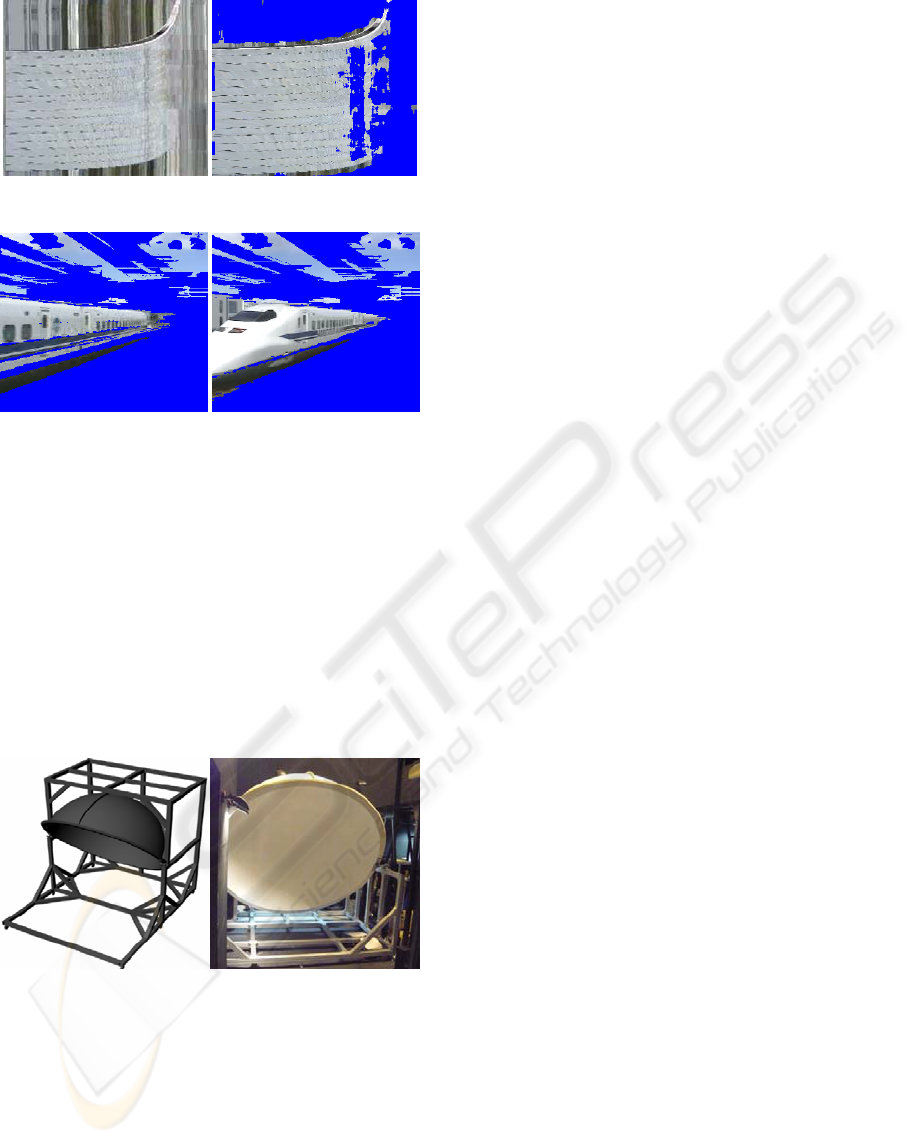

Figure 9: (a) Spatio-Temporal Image. (Blue is still region).

Figure 10: Extracted train.

3.3 Presenting Extracted Contents to

Dome Display

We use a hemispherical dome display with 3 meter

of diameter for presenting layered images in

Intelligent Modeling Laboratory of the University of

Tokyo. A design drawing and actual appearance of

display are shown in Figure 13. The layered images

were integrated into a projection image. Then the

image was projected from the floor just under the

screen. We performed direct fusion of real-image

layer on the display by using depth information.

Figure 11: (a) Design drawing. (b) Appearance of dome

display.

4 DISCUSSION

Two major problems occurred in implementing the

system. First problem is concerning texture of object.

If object has no texture or too low texture, it is

difficult to detect the motion or degree of focusing.

So position detection becomes unstable. This

problem is also occurred when the object is too

bright or dark. In this case, the object has no texture

because of the saturation of image sensor. To cope

with it, the region enclosed by one object layer.

The next problem is about boundaries of object.

To calculate Fourier transform in Spatio-Temporal

image or the degree of focusing of a point,

information of surrounding area information is

needed in the images. Therefore, in Figure 6 and

Figure 10, the edge of object is larger than real

object size. So to extract objects accurately, it is

necessary to optimize Fourier transform window or

filter size.

5 CONCLUSIONS

We proposed a method to generate multi-layer

contents from real world scene by using Depth from

Focus

and Spatio-Temporal Image Analysis

method. Although some problems mentioned above

are remained, the feasibility of the method was

confirmed.

REFERENCES

T. Ogi, M. Hayashi, 2007, Dome Image Contents based on

Layered Image Representation, ASIAGRAPH 2007 in

Tokyo Proceedings, Vol.1, No.2, pp.113-118, 2007.10.

Takeharu Seno, Masahiro Hayashi, Tetsuro Ogi, Takao

Sato: Virtual Depth Effects for Non-Stereoscopic

Dome Images -The Estimation of the Depth Effects of

the Dome Image by Psychophysics, ASIAGRAPH 2008

in Shanghai Proceedings, Vol.2, No.1, pp.121-126

2008.6.

S. K. Nayar and Y. Nakagawa, 1994, Shape from focus:

An effective approach for rough surface, IEEE

Transaction, On Pattern Analysis and Machine

Intelligence, 16(8):824-831.

A. Pentland, 1987, A new sense for depth of field, IEEE

Transaction, On Pattern Analysis and Machine

Intelligence, 9(4):523-531.

S. Birch_eld and C. Tomasi, 1999, Multiway cut for stereo

and motion with slanted surfaces, in ICCV, pp.489-495.

E. Krotkov and R. Bajcsy, 1993, Active vision for reliable

ranging: cooperating focus, stereo, and vergence,

International Journal of Computer Vision, 11:187–203.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

112
