STEREO VISION USING HETEROGENEOUS SENSORS FOR

COMPLEX SCENE MONITORING

Sanjeev Kumar and Claudio Piciarelli

Department of Mathematics and Computer Science, University of Udine

Via Della Sceinze 206, Udine- 33100, Italy

Keywords:

Disparity, Epipolar Geometry, Focal Ratio, PTZ Camera, SIFT Matching, Stereo Vision, Zero Padding.

Abstract:

The intelligent monitoring of complex scenes usually requires the adoption of different sensors depending

on the type of application (i.e. radar, sonar, chemical, etc.). From the past few years, monitoring is mainly

represented by visual-surveillance. In this ﬁeld, the research has proposed great innovation improving the

surveillance from the standard CCTV to modern systems now able to infer behaviors in limited contexts.

Though, when environments allow the creation of complex scenes (i.e. crowds, clutter, etc.) robust solutions

are still far to be available. In particular, one of the major problems is represented by the occlusions that often

limit the performance of the algorithms. As matter of fact, the majority of the proposed visual surveillance

solutions processes the data ﬂow generated by a single camera. These methods fail to correctly localize an

occluded object in the real environment. Stereo vision can be introduced to solve such a limit but the number

of needed sensors would double. Thus, to obtain the beneﬁts of the stereo vision discharging some of its

drawbacks, a novel framework in stereo vision is proposed by adopting the sensors available in common

visual-surveillance networks. In particular, we will focus on the analysis of a stereo vision system which

is build from a pairs of heterogeneous sensors, i.e., static and PTZ cameras with a task to locate objects

accurately.

1 INTRODUCTION

The problems of understanding complex scenes and

detecting different moving objects (Foresti et al.,

2005) are hard to solve without an accurate localiza-

tion of the objects moving in the scene. Such a pro-

cess requires that any point in the image is associated

to a point in the real environment. This is possible

only by imposing some constraints (i.e. ground hy-

pothesis) that are not maintained in case of occluded

objects. To solve such a limit, stereo vision can be

performed better than a single camera processing.

Stereo vision is used to recover 3-D shape infor-

mation of a real world scene from two or more images

taken from different viewpoints (Faugeras, 1993). In

the existing literature, there are two research cate-

gories related to stereo vision. The ﬁrst category re-

lies on the use of a monocular camera with known

scene information, and the second is the traditional

stereo vision using dual cameras systems. The best

example of latter one is human eyes system and a

lot of researches have been done on this category

(Forsyth and Ponce, 2003). The present work also

belongs to the second category.

In general, researchers use static and ideal cam-

eras (or homogeneous sensors) in the stereo vision for

their low cost and relative simpleness in modeling.

The problem of matching and rectiﬁcation becomes

simple using homogeneous cameras (Brown et al.,

2003). As PTZ cameras are able to obtain more de-

grees of freedom and cover large ﬁeld of view, a com-

bination of static and PTZ cameras is able to develop

more signiﬁcant results when compared to results ob-

tained from a traditional stereo vision (Wan and Zhou,

2008). Apart from this fact, the precession of depth

can be increased by improving the image resolution,

since PTZ camera posses multi-resolution properties.

However, there are many difﬁculties in the implemen-

tation of a vision system which contains a combina-

tion of heterogeneous sensors for stereo vision task,

such as the variation in the internal and external pa-

rameters of PTZ camera in utility, variation in inten-

sities in two images for the corresponding pixels and

the most importantly the difference in resolution of

two images due to the different zoom setting of both

cameras. Therefore, the use of heterogeneous sensors

is more challenging than the traditional homogenous

approach, even though it can lead to better results.

551

Kumar S. and Piciarelli C. (2009).

STEREO VISION USING HETEROGENEOUS SENSORS FOR COMPLEX SCENE MONITORING.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 551-556

DOI: 10.5220/0001821105510556

 SciTePress

In this paper, a novel method for the stereo vision

is presented using pairs of heterogeneous images. To

achieve such a result, the focal ratio between the focal

lengths of the two images is computed for resizing the

narrower image. The resized image has homogeneous

focal information with respect to the wider image and

to make it homogenous in terms of image resolution,

zero padding is performed around the resized image.

Once the images are made homogeneous by these two

steps, then rectiﬁcation process is run. Scale invari-

ant features (Lowe, 2004) and (Micheloni and Foresti,

2003) are detected from both images to obtain pairs of

matching points . Rectifying transformations are ob-

tained by solving a nonlinear constrained minimiza-

tion problem (Fusiello and Irsara, 2006), (Isgro and

Trucco, 1999). The gray-level values are normalized

in stereo images based on the intensities information

of matching pairs. Disparity values have been com-

puted to build range images from the given pairs of

stereo images (Scharstein and Szeliski, 2002). In the

disparity estimation, SSD criterion (Tao et al., 2001)

is used to ﬁnd the best candidate for matching.

The rest of the paper is organized as follows: Sec-

tion 2 is devoted to the detailed description of trans-

forming process from heterogeneous to homogeneous

pair of images. In section 3, SIFT matching is ex-

plained. Section 4 contains the stereo matching pro-

cess. In section 5, experimental results using our

methodology are given and ﬁnally in section 6, the

concluding remarks are given.

2 TRANSFORMING PAIR INTO

HOMOGENEOUS IMAGES

The images captured by a pair of heterogenous cam-

eras have different imaging parameters. These make

the acquired images heterogeneous due to camera po-

sitions, orientations, zoom and illumination. If we di-

rectly perform the further operations like SIFT, recti-

ﬁcation and stereo matching on these images, the re-

sults would be affected by major performance degra-

dation. To overcome this difﬁculty, the pair of images

is made homogeneous before performing further op-

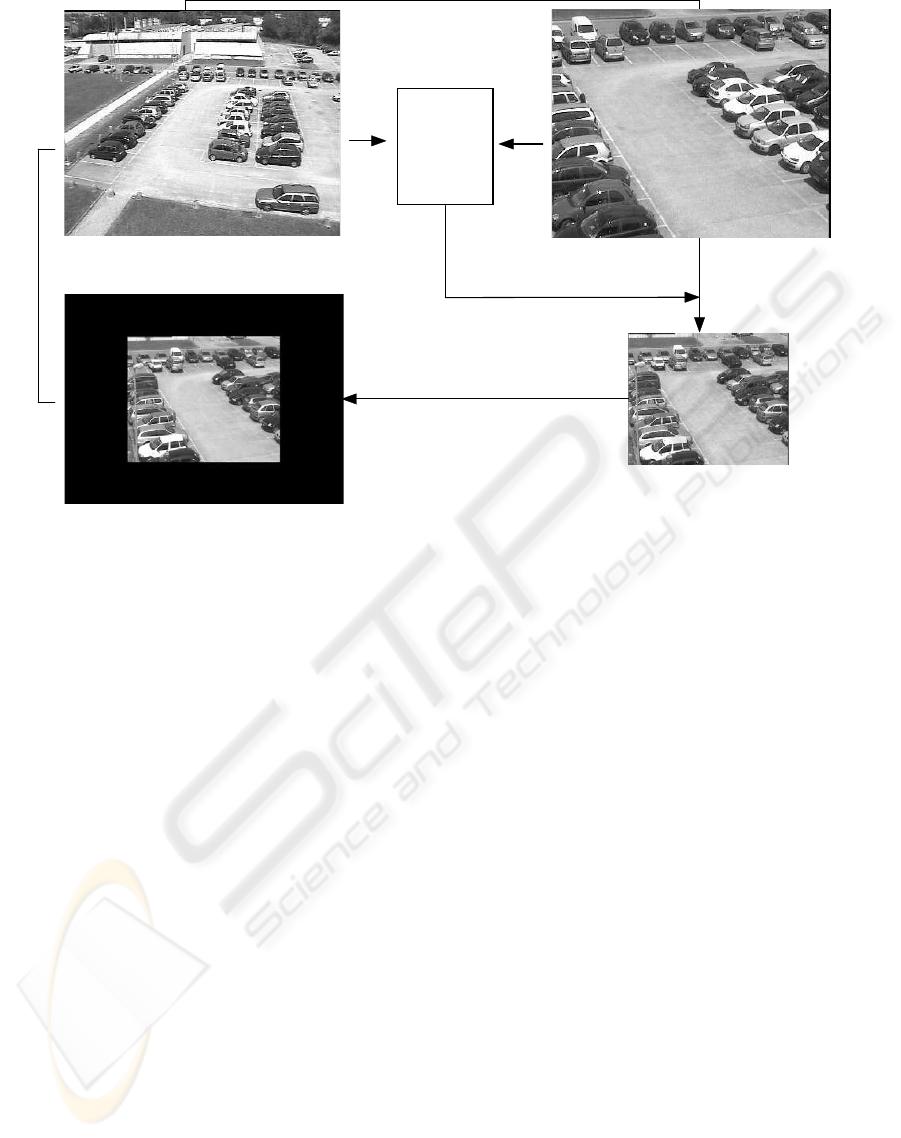

erations. The process to make the heterogeneous pair

of images as homogeneous is shown in Figure 1.

Let f

and f

be the focal lengths of the static and

the PTZ cameras respectively when images are cap-

tured. The focal ratio is R =

is computed and the

image captured by the PTZ camera is shrunk by a fac-

tor of R. The shrunk image is then made homoge-

neous with respect to the static image by performing

zero padding. Pairs of corresponding points (m

, m

′

)

are then extracted by exploiting a SIFT matching al-

gorithm. Such points are therefore used to compute

the rectiﬁcation transformations H and H

′

by mini-

mizing

∑

′

′T

∞

)

where F

∞

is the fundamental matrix for rectiﬁed

pair. To perform this minimization we choose the

Levenberg-Marquardt algorithm because of its effec-

tiveness and popularity. However, rectiﬁcation pro-

cess is performed to simplify a stereo matching pro-

cedure, and if the ﬁrst row of H and H

′

is not chosen

carefully in minimization, it may lead to a larger er-

ror and so failure in matching. Therefore, it is nec-

essary to introduce some constraints in minimization

process. Here, we have used the constraint that the

distance between corresponding epipolar lines along

vertical axis should be zero or very close to zero.

3 SIFT MATCHING

The process to obtain the matching points from the

pair of stereo images is divided into two steps. First,

we detect the scale invariant features in each image

separately. In the next step, matching process of these

features is performed between stereo pair of images.

The process of identifying locations in image

scale space that are invariant with respect to image

translation, scaling and rotation is based on the local-

ization of a key. This task can be performed in fol-

lowing steps:

1. Perform the convolution operation on input image

I with the Gaussian function with variance σ =

√

2. Let this operation gives an image I

2. Repeat the step 1 on image I

to get a new image

3. Subtract image I

from image I

to obtain the dif-

ference of Gaussian function as

√

4. Resample the image I

using bilinear interpolation

with a pixel spacing of 1.5 in each direction. A

1.5 spacing means that each new sample will be a

constant linear combination of 4-adjacent pixels.

From this we generate a new pyramid level.

5. Determine the maxima and minima of this scale-

space function by comparing each pixel in the

pyramid to its neighbors.

6. Select key locations at maxima and minima of a

difference of Gaussian function applied in scale

space.

The scale invariant features can be detected from the

locations of these keys. These features are detected

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

552

Calculate R

R=f

Perform Zero Padding

x h

Resize based

on focal ratio

x p

Non-Homogeneousl Pair

Homogeneous Pair

x h

x h'

x h

R * w

x h

Figure 1: Overall process to obtain the pair of homogeneous images.

on the exact key locations as well as locations around

it so that reliable matching between different views

of an object or scene can be performed. These fea-

tures are invariant to not only image orientation but

also image scale, and provide robust matching across

a substantial range of afﬁne distortion, change in 3-D

viewpoint, addition of noise, and change in illumina-

tion. For stereo image matching, SIFT features are

extracted from left image and stored in a database.

The right image features are matched by individually

comparing each feature to this database and ﬁnding

candidate matching features based on Euclidean dis-

tance of their feature vectors. We have performed fea-

tures matching between stereo pair using the process

given in (Lowe, 2004). The process of rectiﬁcation is

performed based on these pairs of matching points.

The RANSAC is used to remove the outliers from

the pairs of matching points obtained from SIFT.

More generally speaking, the basic assumption is that

the data consist of inliers,i.e., data points which can be

explained by some set of model parameters, and out-

liers which are data points that do not ﬁt the model. In

addition, the data points are subject to noise. An ad-

vantage of RANSAC is its ability to robustly estimate

the model parameters. It ﬁnds reasonable estimates

of the parameters even if a high percentage of outliers

are present in the data set.

4 STEREO MATCHING

Once the pair of stereo images is rectiﬁed, the next

step is to compute disparity between the matching

pair. There are two approaches to obtain stereo

matching, i.e., feature based and pixel (region) based

methods. Due to the difference in intensities of stereo

images captured from heterogeneous sensors, these

methods can not be applied directly to obtain the

stereo matching. To avoid this problem, here we per-

form this process in two steps, i.e., a combination of

feature based and pixel based methods.

The ﬁrst step is related to normalize the intensi-

ties in two images for the matching pairs. In order to

perform this task we detect the matching pixels using

SIFT matching from the pair of images. Then im-

age can be normalized by a simple algorithm, which

computes the parameters α, β of the gray level global

transformation

(x, y) = α S

(x, y) + β

by ﬁtting a straight line between the intensities of all

matching pixels which are obtained using SIFT. Once

the values of α and β are computed then the left image

can be normalized in the range of right image.

For each pixel in the left image (reference im-

age I

), similarity scores are computed by compar-

ing a ﬁxed, small window of size 5 ×5 centered on

STEREO VISION USING HETEROGENEOUS SENSORS FOR COMPLEX SCENE MONITORING

553

the pixel to a window in the right image (I

), shifting

along the corresponding horizontal scan line. Win-

dows are compared through the normalized SSD mea-

sure, which quantiﬁes the difference between the in-

tensity patterns:

C =

∑

(ξ,η)

(x+ ξ, y+ η) −I

(x+ d + ξ, y + η)]

∑

(ξ,η)

(x+ ξ, y+ η)

∑

(ξ,η)

(x+ ξ, y+ η)

where ξ ∈[−n, n] and η ∈[−m, m]. The disparity esti-

mate for pixel (x, y) is the one that minimizes the SSD

error:

(x, y) = arg min C(x, y, d)

However we can observe that squared differences

need to be computed only once for each disparity,

and the sum over the window need not be recomputed

from scratch when the window moves by one pixel.

5 RESULTS AND DISCUSSIONS

To evaluate the performance of the proposed frame-

work, several experiments have been conducted on

the images captured by a ﬁxed and a PTZ cameras.

For each experiment, the left image of the stereo pair

does not change as it is captured by the static camera,

while the right image is different as it is captured by

the PTZ camera with four different zoom levels. The

focal length information has been acquired online for

these images and so the focal ratio. The SIFT match-

ing is performed to obtain the pairs of corresponding

points from the left and right images. The rectiﬁca-

tion error has been computed in the rectiﬁed pair of

images using the criterion of the mean of the error in-

dex r

= |(Hm

)

−(H

′

)

|, i.e., the vertical distance

between corresponding epipolar line.

The given results aim to show the improved per-

formance of the proposed solution (using homoge-

neous images) over a method in which stereo pro-

cess is applied directly on heterogeneous images. The

ﬁrst set of experiments consists in computing the er-

ror in rectiﬁcation when the pair of images has been

obtained using identical focal lengths. Since the im-

age size of the two images is the same that implies the

two images are homogenous. In this context, Figure 2

presents the results for a pair of images having focal

ratio 1. The mean pixel error for rectiﬁed pair of im-

ages is 0.0696 when 10 pairs of matching points are

used.

Since the main goal of the proposed algorithm is

to perform stereo process on heterogeneous images,

we run a set of experiments by progressively reduc-

ing the focal ratio. In Figures 3, 4 and 5 , the results



 

(a) (b) 



 

(c) (d) 



(e) 

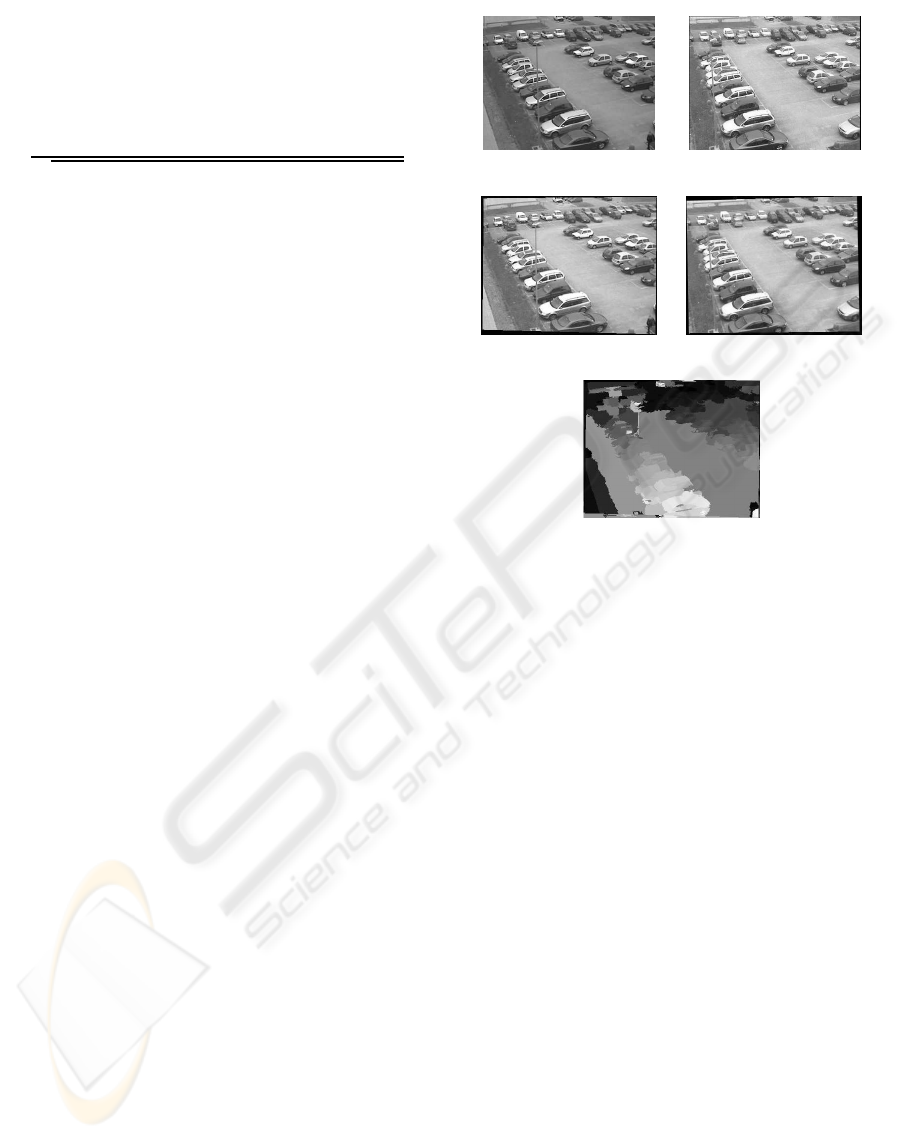

Figure 2: Results for a pair of stereo images having focal

ratio 1.0. Left stereo image (a); right stereo image (b); rec-

tiﬁed stereo images (c & d); range image (e).

are shown for a pair of stereo images having focal ra-

tio 0.97, 0.94 and 0.90, respectively. As it can be seen

from these ﬁgures and from the results in table 1, the

proposed solution much better than standard stereo

matching on heterogeneous images.

The error in the rectiﬁed pairs is shown in table 1

for both the cases, i.e., when the rectiﬁcation process

has been performed on heterogeneous and homoge-

neous pairs of stereo images. The error has been esti-

mated for different pairs which have different values

of focal ratio. It is clear from the table that the error

is high when the rectiﬁcation process has been per-

formed directly using heterogeneous pairs of images

while the error is very small when the pairs of images

are made homogeneous before performing the rectiﬁ-

cation process. Apart from this comparison, one more

thing is noticed about the difference between the qual-

ity of range images obtained from heterogeneous and

homogeneous pairs of images. In the range images

obtained from pairs of homogeneous images, the den-

sity is regularly decreasing as the distance of the ob-

ject is increasing along the optical axis, i.e., objects

near to camera have brighter intensity compared to

the far ones. This phenomenon is not so regular in

the range images which are obtained from the pairs of

heterogeneous images.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

554

  

(a) (b) 



  

(c) (d) 



  

(e) (f) 



  

 (g) (h) 

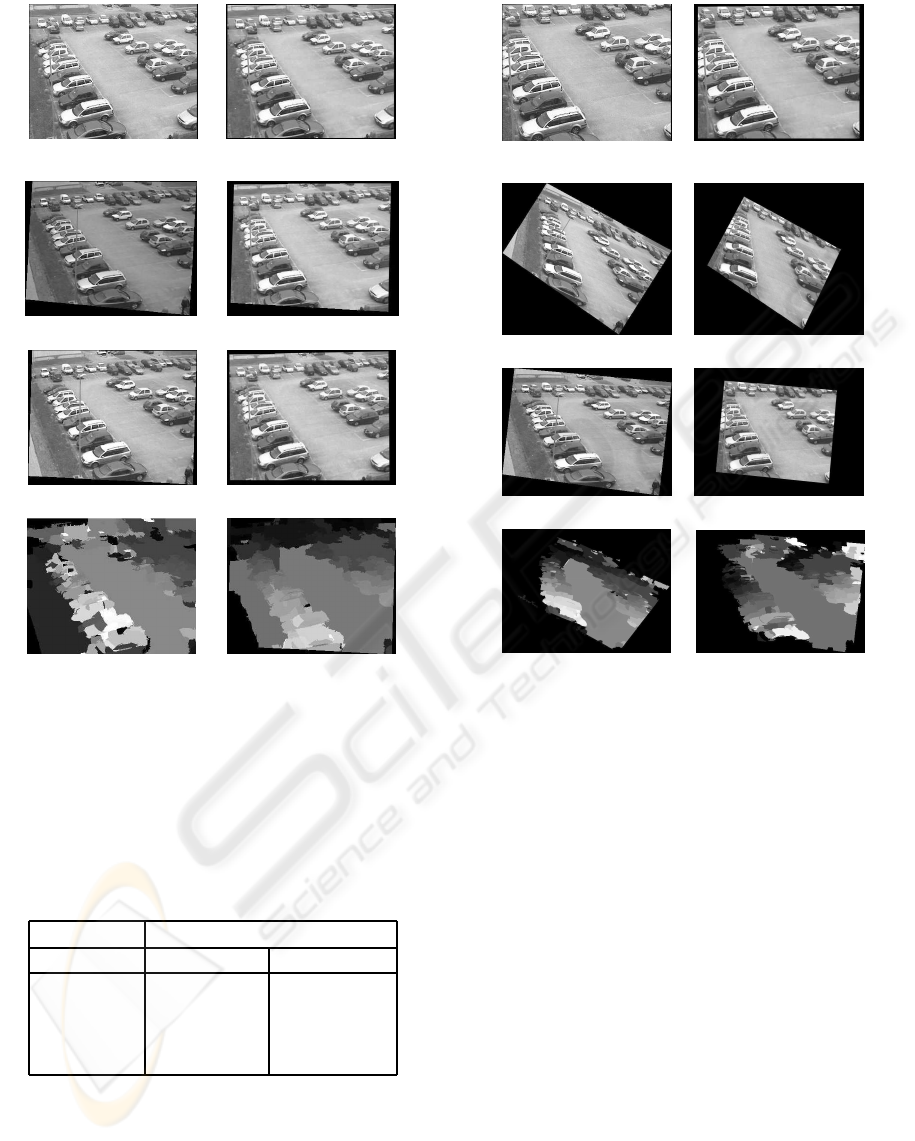

Figure 3: Results for a pair of stereo images having focal

ratio 0.97. Heterogeneous right image (a); homogeneous

right image (b); heterogeneous pair of rectiﬁed images (c

& d); homogeneous pair of rectiﬁed images (e & f); range

image using heterogeneous rect. pair of images (g); range

image using homogeneous rect. pair of images (h). Left

image of input stereo pair is same as in Figure 1(a).

Table 1: Mean Pixel-Error between corresponding epipolar

lines between the rectiﬁed pairs of images.

Focal Ratio Mean Error

Homo. Case Hetero. Case

1.00 0.0696 0.0696

0.97 0.0714 0.0698

0.94 0.2891 0.0743

0.90 0.3367 0.0984

6 CONCLUSIONS

We have presented a framework for stereo vision

using heterogeneous sensors to monitor a complex

scene. The pair of images has been made homoge-

 

(a) (b) 



 

(c) (d) 



 

(e) (f) 



 

(g) (h) 

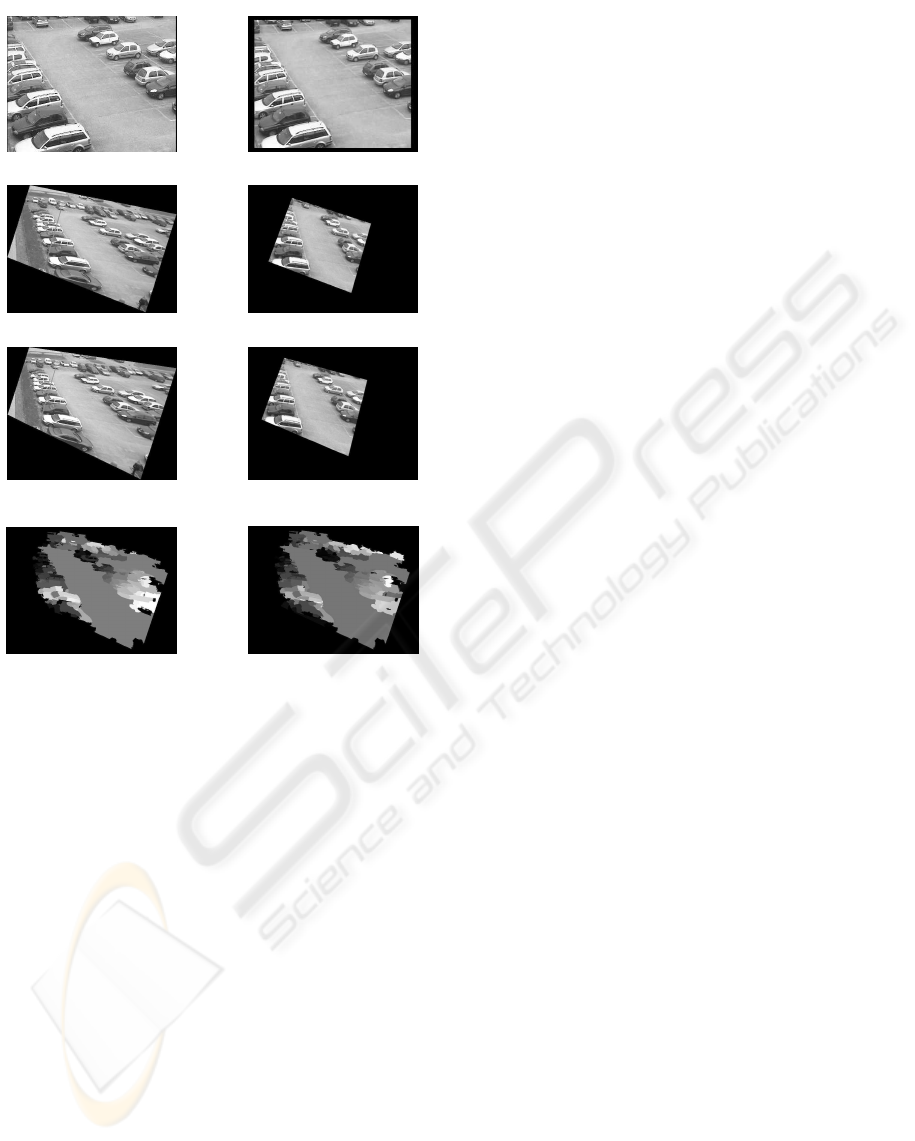

Figure 4: Results for a pair of stereo images having focal

ratio 0.94. Heterogeneous right image (a); homogeneous

right image (b); heterogeneous pair of rectiﬁed images (c

& d); homogeneous pair of rectiﬁed images (e & f); range

image using heterogeneous rect. pair of images (g); range

image using homogeneous rect. pair of images (h). Left

image of input stereo pair is same as in Figure 1(a).

neous based on a focal ratio information and then by

performing zero padding on the shrunk image. The

pairs of corresponding points have been obtained us-

ing SIFT matching in stereo pair of images. The rec-

tiﬁcation transformations have been obtained by solv-

ing a nonlinear optimization problem. Experimental

results show that the combination of static and PTZ

cameras gives good results only if the captured im-

ages are made homogenous. This approach thus leads

to better results if compared to a traditional stereo vi-

sion system in terms of depth accuracy when moni-

toring a complex scene.

STEREO VISION USING HETEROGENEOUS SENSORS FOR COMPLEX SCENE MONITORING

555



 

(a) (b) 



 

(c) (d) 



 

(e) (f) 



  

(g) (h) 

Figure 5: Results for a pair of stereo images having focal

ratio 0.90. Heterogeneous right image (a); homogeneous

right image (b); heterogeneous pair of rectiﬁed images (c

& d); homogeneous pair of rectiﬁed images (e & f); range

image using heterogeneous rect. pair of images (g); range

image using homogeneous rect. pair of images (h). Left

image of input stereo pair is same as in Figure 1(a).

ACKNOWLEDGEMENTS

This work was partially supported by the Italian Min-

istry of University and Scientiﬁc Research within the

framework of the project entitled Ambient Intelli-

gence: event analysis, sensor reconﬁguration and

multimodal interfaces (2006-2008). Sanjeev Kumar

is also thankful to Department of Mathematics and

Computer Science, University of Udine for the ﬁnan-

cial support during this work under the grant MIUR

n. 179 dd. 29/01/2007 provided by Italian Ministry

of University and Scientiﬁc Research.

REFERENCES

Foresti,G.L., Micheloni, C. and Piciarelli, C. (2005). De-

tecting Moving People in Video Streams, Pattern

Recognition Letters, 26(15), 2232–2243.

Faugeras, O. (1993). Three-Dimensional Computer Vision,

MIT Press, Cambridge, MA, USA.

Forsyth, D.A. and Ponce, J. (2003). Computer Vision: A

Modern Approach, Prentice Hall.

Brown, M.J., Burschka, D. and Hager, G.D. (2003). Ad-

vances in computational stereo, IEEE trans. of Pattern

Analysis and Machine Intelligence, 25(8), 993–1008.

Fusiello, A., Irsara, L. (2006). Quasi-euclidean uncalibrated

epipolar rectiﬁcation, Research Report RR 43/2006,

Department of Computer Scince, Univ. of Verona.

Isgro, F., Trucco, E. (1999). On robust rectiﬁcation for un-

calibrated images, in proc. of IEEE International Con-

ference on Image Analysis and Processing.

Lowe, D.G. (2004). Distinctive image features from scale-

invariant keypoints, International Journal of Com-

puter Vision 60(2), 91–110.

Micheloni, C. and Foresti, G.L. (2003). Fast Good Features

Selection for Wide Area Monitoring, in proc. of IEEE

International Conference on Advanced Video and Sig-

nal Based Surveillance, Miami (FL), USA.

Scharstein, D. and Szeliski, R. (2002). A taxonomy and

evaluation of dense two-frame stereo correspondence

algorithms, Int. Journal of Computer Vision, 47(1-3),

7–42.

Tao, H., Sawhney, H.S. and Kumar, R. (2001), A global

matching framework for stereo computation, in proc.

of IEEE Int. Conferece on Computer Vision, 532–539.

Wan, D. and Zhou, J. (2008). Stereo vision using PTZ cam-

eras, Computer vision and Image Understanding, arti-

cle in press.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

556
