AN AGENT-BASED PROGRAMMING MODEL FOR DEVELOPING

CLIENT-SIDE CONCURRENT WEB 2.0 APPLICATIONS

Giulio Piancastelli, Alessandro Ricci and Mattia Minotti

DEIS, ALMA MATER STUDIORUM—Universit

a di Bologna

Keywords:

Concurrent Programming, Agent-Oriented Programming, Web 2.0.

Abstract:

Using the event-driven programming style of JavaScript to develop the concurrent and highly interactive client-

side of Web 2.0 applications is showing more and more shortcomings in terms of engineering properties

such as reusability and maintainability. Additional libraries, frameworks, and AJAX techniques do not help

reduce the gap between the single-threaded JavaScript model and the concurrency needs of applications. We

specialise the model in the context of client-side Web development, by characterising common domain agents

and artifacts that form an extension of an existing programming framework. Finally, we design and implement

a simple but signiﬁcant case study to showcase the capabilities of the model and verify the feasibility of the

technology.

1 INTRODUCTION

One of the most important features of the so-called

Web 2.0 is a new interaction model between the client

user interface of a Web browser and the server-side of

the application.

Such rich Web applications allow the client to

send multiple concurrent requests in an asynchronous

way, avoiding complete page reload and keeping the

user interface live and responding. Periodic activities

within the client-side of the applications can be per-

formed in the same fashion, with clear advantages in

terms of perceived performance, efﬁciency and inter-

activity.

The client user interface of rich applications is

programmed with extensive use of JavaScript and

AJAX techniques.

Being JavaScript a single-threaded language, most

of those programs are written in an event-driven style,

in which programs register callback functions that

are triggered on events such as timeouts. A single-

threaded event loop dispatches the appropriate call-

back when an event occurs, and control returns back

to the loop when the callback completes. To imple-

ment concurrency-intensive features, still keeping the

interface responsive, programmers must chain call-

backs together—typically, each callback ends by reg-

istering one or more additional callbacks, possibly

with a short timeout.However, this style of event-

driven programming is tedious, bug-prone, and harms

reusability (Foster, 2008).

The limitations of the JavaScript programming

model have been faced by introducing libraries that

attempt at covering event-based low-level details be-

hind the emulation of well-known concurrent abstrac-

tions.

Concurrent.Thread (Maki and Iwasaki, 2007)

builds a thread abstraction on top of the event-

driven JavaScript model, converting multi-threaded

code into an efﬁcient continuation-passing style. The

WorkerPool API in Google Gears

simulates a col-

lection of processes that do not share any execution

state, thus can not directly access the browser DOM

of Web pages. Albeit working in practice, neither ap-

proach is feasible to support a sound programming

model for concurrency in Web 2.0 applications (Lee,

2006). Frameworks such as Rails,

with its Ruby-to-

JavaScript compiler plug-in, and Google Web Toolkit

(GWT)

approach the problem from a different an-

gle, by adopting the programming model of the single

language employed for implementing both the client-

and server-side of the application. Even if the appli-

cation development beneﬁts from the use of object-

oriented languages in terms of decomposition and en-

http://gears.google.com

http://www.rubyonrails.org/

http://code.google.com/webtoolkit/

Piancastelli G., Ricci A. and Minotti M.

AN AGENT-BASED PROGRAMMING MODEL FOR DEVELOPING CLIENT-SIDE CONCURRENT WEB 2.0 APPLICATIONS.

DOI: 10.5220/0001822900130020

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

capsulation, the limitations of the target execution en-

vironment make such solution less effective: for ex-

ample, GWT does not allow the use of Java threads,

and only offers a timer abstraction to schedule tasks

(implemented as methods) within the single-threaded

JavaScript interpreter.

We argue that, despite these several efforts, Web

application client-side technologies do not offer suit-

able abstractions to manage the coordination and in-

teraction problems of typical distributed applications

in a simple yet complete fashion.

With the aim of supporting the development of

Web applications as much similar as possible to dis-

tributed desktop applications, JavaScript and AJAX

are not enough: a different programming model is

needed, so as to provide mechanisms and abstrac-

tions really oriented to collaboration and cooperation

among concurrent computational entities.

In this sense, even the object-oriented paradigm

promoted by GWT shows its shortcomings.Indeed,

mainstream object-oriented programming languages

such as Java are currently undergoing a concurrency

revolution (Sutter and Larus, 2005), where (i) sup-

port for multi-threading is extended by synchronisa-

tion mechanisms providing a ﬁne-grained and efﬁ-

cient control on concurrent computations, and (ii) it

is becoming more and more important to also provide

more coarse-grained entities that help build concur-

rent programs from a set of higher-level abstractions.

We believe that, to effectively face challenges

such as distributed computation, asynchronous com-

munication, coordination and cooperation, agents

represent a very promising abstraction, natively cap-

turing and modeling concurrency of activities and

their interaction; therefore, they can be considered

a good candidate for deﬁning a concurrent program-

ming model beyond languages and technologies cur-

rently available within browsers on the client-side of

Web applications.

The agent abstraction is meant to model and de-

sign the task-oriented parts of a system, encapsulating

the logic and control of such activities. Not every en-

tity in the system can (or should) be modeled in this

way, though; we also introduce the companion arti-

fact abstraction, as the basic building block to design

the tools and resources used by agents during their ac-

tivities.

Accordingly, in this paper we ﬁrst describe the

agent and artifact abstractions as deﬁned by the A&A

(Agents and Artifacts) programming model (Omicini

et al., 2008), recently introduced in the ﬁeld of

agent-oriented programming and software engineer-

ing; then, we specialise the model in the context of

client-side Web application development, by char-

acterising common domain agents and artifacts that

form a small extension of an existing programming

framework based on A&A.

Further, we describe the design and implementa-

tion of a simple but signiﬁcant case study to showcase

the capabilities of the framework, and conclude with

some ﬁnal remarks.

2 THE AGENTS AND ARTIFACTS

PROGRAMMING MODEL

In the A&A programming model, the term “agent” is

used to represent an entity “who acts” towards an ob-

jective or task to do pro-actively, and whose com-

putational behaviour accounts for performing actions

in some kind of environment and getting information

back in terms of perceptions. Differently from the

typical software entity, agents have no interface: their

interaction with the environment takes place solely in

terms of actions and perceptions, which concerns in

particular the use of artifacts. The notion of activity is

employed to group related actions, as a way to struc-

ture the overall behaviour of an agent.

The A&A model is currently accompanied with

the simpA framework

as a Java technology to pro-

totype concurrent applications using the agent and

artifact abstractions as basic building blocks (Ricci

and Viroli, 2007). To deﬁne a new agent template

in simpA, only one class must be deﬁned, extending

the alice.simpa.Agent base class provided by the

framework API.For example, on the client-side of a

Web e-mail application, an agent that fetches all the

messages from an account, and periodically checks if

new messages arrived, may be structured as follows:

public class MailAgent extends Agent {

@ACTIVITY_WITH_AGENDA(

todos={

@TODO(activity="setup",

persistent=false),

@TODO(activity="fetch",

persistent=false,

pre=completed(setup)),

@TODO(activity="check",

persistent=true)

}

) void main() {}

@ACTIVITY void setup() { /* ... */ }

@ACTIVITY void fetch() { /* ... */ }

@ACTIVITY void check() { /* ... */ }}

Agent activities in simpA can be either atomic or

structured, composed by some kinds of sub-activities.

Atomic activities are implemented as methods with

http://simpa.sourceforge.net

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

the @ACTIVITY annotation, with the body of the

method deﬁning the computational behaviour of the

agent corresponding to the accomplishment of the ac-

tivity. Structured activities introduce the notion of

agenda to specify the hierarchical set of the potential

sub-activities composing the activity, referenced as

todo in the agenda. Each todo names the sub-activity

to execute, and optionally a pre-condition. When a

structured activity is executed, the todos in the agenda

are executed as soon as their pre-conditions hold, but

if no pre-condition is speciﬁed, the todo is immedi-

ately executed. Thus, multiple sub-activities can be

executed concurrently in the context of the same (su-

per) activity. A structured activity is implemented

by methods with an @ACTIVITY WITH AGENDA an-

notation, containing todo descriptions as a list of

@TODO annotations. A todo can be speciﬁed to be

persistent—in this case, once it has been completely

executed, it is reinserted in the agenda so as to be pos-

sibly executed again. This is useful to model cyclic

behaviour of agents when executing some activities.

In the A&A programming model, the artifact ab-

straction is useful to design passive resources and

tools that are used by agents as basic building blocks

of the environment. The functionality of an artifact

is structured in terms of operations whose execution

can be triggered by agents through artifact usage in-

terface.Similarly to the interface of objects or compo-

nents, the usage interface of an artifact deﬁnes a set

of controls that an agent can trigger so as to execute

operations, each one identiﬁed by a label and a list of

input parameters.Differently from the notion of ob-

ject interfaces, in this use interaction there is no con-

trol coupling: when an agent triggers the execution

of an operation, it retains its control (ﬂow) and the

operation execution on the artifact is carried on inde-

pendently and asynchronously. The information ﬂow

from the artifact to agents is modeled in terms of ob-

servable events generated by artifacts and perceived

by agents; therefore, artifact interface controls have

no return values. An artifact can also have some ob-

servable properties, allowing to inspect the dynamic

state of the artifact without necessarily executing op-

erations on it. Artifact templates in simpA can be cre-

ated by extending the base alice.simpa.Artifact

class. For example, an artifact representing a Web

page, storing its DOM model in an observable prop-

erty, and exposing an operation to change an attribute

of an element in the model, may be structured as fol-

lows:

public class Page extends Artifact {

@OBSPROPERTY Document dom;

@OPERATION void setAttribute(String id,

String attr,

String val) {

Element e = dom.getElementById(id);

e.setAttribute(attr, val);

updateProperty("DOM", dom);

}

Each operation listed in the artifact user interface is

deﬁned as a method with an @OPERATION annotation.

Besides the usage interface, each artifact may deﬁne

a linking interface, applying the @LINK annotation on

operations that are meant to be invoked by other arti-

facts. Thus, it becomes possible to create complex

artifacts as a composition of simpler ones, assem-

bled dynamically by the linking mechanism. An ar-

tifact typically provides some level of observability,

either by generating observable events during execu-

tion of an operation, or by deﬁning observable proper-

ties using the @OBSPROPERTY annotation. An observ-

able event can be perceived by the agent that has used

the artifact by triggering the operation generating the

event; changes to observable properties, triggered by

the updateProperty primitive, can be sensed by any

agent that has focussed on the artifact, without neces-

sarily having acted on it. Besides agents and artifacts,

the notion of workspace completes the basic set of ab-

stractions deﬁned in A&A: a workspace is a logic con-

tainer of agents and artifacts, and it is the basic means

to give an explicit (logical) topology to the working

environment, so as to help scope the interaction inside

it. We conclude this section by focussing on the main

ingredients of the agent-artifact interaction model: a

more comprehensive account and discussion of these

and other features of agents, artifacts and workspaces

– outside the scope of this paper – can be found in

(Omicini et al., 2008; Ricci and Viroli, 2007).

2.1 Agent-Artifact Interaction: Use and

Observation

The interaction between agents and artifacts strictly

mimics the way in which people use their tools. For

a simple but effective analogy, let us consider a cof-

fee machine. The set of buttons of the coffee machine

represents the usage interface, while the displays that

are used to show the state of the machine represent

artifact observable properties. The signals emitted by

the coffee machine during its usage represent observ-

able events generated by the artifact.

Interaction takes place by means of a use action

(stage 1a in Figure 1, left), performed by an agent in

order to trigger the execution of an operation over an

artifact; such an action speciﬁes the name and param-

eters of the interface control corresponding to the op-

eration. The observable events, possibly generated by

the artifact while executing an operation, are collected

AN AGENT-BASED PROGRAMMING MODEL FOR DEVELOPING CLIENT-SIDE CONCURRENT WEB 2.0

APPLICATIONS

use opX(params)

opX EXECUTION

TRIGGERED

XYZ

opX EXECUTION

SENSOR

my_event1

op_exec_completed

sense with-my-ﬁlter

Figure 1: Abstract representation of an agent using an artifact, by triggering the execution of an operation (left, step 1a) and

observing the related events generated by the operation execution (right, step 1b).

by agent sensors, which are the parts of the agent

conceptually connected to the environment where the

agent itself is situated.Besides the generation of ob-

servable events, the execution of an operation results

in updating the artifact inner state and possibly arti-

fact observable properties. Finally, a sense action is

executed by an agent to explicitly retrieve the observ-

able events collected by its sensors. It must be noted

that, dually to indirect interaction through artifacts,

agents can also directly communicate with each other,

through a message passing mechanism provided by

the framework.

3 AN AGENT-ORIENTED MODEL

FOR CLIENT-SIDE WEB

PROGRAMMING

The main objective of our programming model based

on agent and artifact abstractions is to simplify devel-

opment of those parts on the client-side of Web appli-

cations that involve elements of concurrency, by re-

ducing the gap between design and implementation.

At the design level, it is ﬁrst necessary to identify

the task-oriented and function-oriented parts of the

client-side system; then, such organisation drives to

the deﬁnition of agents and artifacts as depicted by

the A&A model. At the implementation level, the de-

sign elements can be directly realised using the simpA

framework. The notion of activity and the hierarchi-

cal activity model adopted in the agent abstraction al-

low a quite synthetic and readable description of pos-

sibly articulated behaviours, dealing with coordina-

tion management on a higher level than threads, time-

outs, and callbacks. The adopted model of artifacts

permits to specify possibly complex functionalities

to be shared and concurrently exploited by multiple

agents, abstracting away from low-level synchronisa-

tion mechanisms and primitives. In the domain of

client-side Web development, all computation takes

place in the browser environment, that can be straight-

forwardly mapped onto the workspace abstraction;

agents and artifacts downloaded as the client-side part

of Web applications will join this workspace, interact-

ing and cooperating in a concurrent fashion. Among

those agents and artifacts, there are a number of re-

curring elements in the majority of applications; here

follows a description of the main elements that we

identiﬁed, along with the role they will play in our

programming model.

Page. The page is typically represented by an acces-

sible, tree-like, standardised DOM object, allowing to

dynamically update its content, structure, and visual-

isation style; also, the page generates internal events

in response to user’s actions. The direct mapping of

the DOM API onto operations, and of the response to

user’s actions onto observable events, suggests the ar-

tifact as the most natural abstraction to model pages.

HTTP Channel. An entity is needed to perform

transactions in the HTTP protocol, allowing to spec-

ify the operation to execute (e.g. GET, POST, PUT,

DELETE), set the header values and possibly a pay-

load in the request; such an entity also has to receive

responses and make them available to the other enti-

ties in the system. The channel does not account for

autonomous actions, but it is supposed to be used by a

different, pro-active entity; it is therefore modeled as

an artifact, so that asynchronous communication to-

wards the server can be ensured by the agent-artifact

interaction model.

Common Domain Elements. Common compo-

nents that are frequently and repeatedly found in

speciﬁc application domains can also be modeled

in terms of agents and artifacts. As an example,

consider the shopping cart of any e-commerce Web

site: since its control logic and functionalities are

almost always the same, it could be implemented

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

as a client-side component, in order to be used by

a multiplicity of e-commerce transactions towards

different vendors, and allowing comparisons and

other interesting actions on items stored for possibly

future purchase. Given the possibly complex nature

of the computations involved, such common domain

elements would probably need to be modeled as a

mix of both agents and artifacts.

There also are some important issues in client-side

Web application development that, due to the lack of

space, we only intend to acknowledge without provid-

ing a complete description of their possible modeling

and programming solution. First, security needs to be

addressed, in order to manage read/write permissions

on the ﬁle system, mobile code authentication, origin

control, and access authorisation; to this purpose, the

RBAC model (Sandhu et al., 1996) provided by simpA

can be exploited. Then, albeit architecturally depre-

cated, also cookies need to be taken into account as a

popular mechanism to allow data persistence between

working sessions; they can be devised as another par-

ticular kind of artifact template.

3.1 From simpA to simpA-Web

simpA-Web is a thin layer that exploits classes and

mechanisms of the simpA framework to deﬁne agent

and artifact templates oriented to client-side Web de-

velopment. Whereas simpA supports A&A abstrac-

tions, simpA-Web offers speciﬁc agents and artifacts

representing the common elements comprised by the

programming model explained above.

For example, simpA-Web provides implementa-

tions for the HTTP Channel and the Page artifacts.

The HTTP Channel artifact represents a HTTP work-

ing session used by a part of the client-side Web ap-

plication. The artifact allows communication through

the HTTP protocol, and is able to store and manage

both local and remote variables. The user interface of

HTTP Channel exposes three operations:

• setDestination. stores the URI of the server to

which the session represented by this artifact will

communicate. This operation takes the destina-

tion URI as a parameter, and generates a Destina-

tionChanged observable event.

• setHeader. adjusts a HTTP header for subse-

quent requests. It takes the header name and value

as parameters, and generates a HeaderChanged

observable event.

• send transmits a HTTP request to the server iden-

tiﬁed by the stored URI. It takes the HTTP pay-

load as a parameter, and generates three events:

RequestSent, as soon as the HTTP request has

been committed; Response, containing headers

and body, when a HTTP response is received;

Failure, if no response has been sent back.

The Page artifact represents the interface to access

the page visualised by the browser, encapsulating its

events and its main characteristics. The Page arti-

fact features an observable property called DOM, rep-

resenting the Document Object Model of the whole

page. The artifact interface exposes six operations,

each generating a corresponding observable event at

the end of a successful execution:

• changeDOM. substitutes the old DOM with a new

object taken as a parameter, thus changing the rep-

resentation of the whole page.

• setElement. changes the content of a DOM el-

ement identiﬁed by the ﬁrst id parameter to the

string passed as second parameter.

• setAttribute. does the same as the previous

operation, but on a property of a DOM element.

• addChild. appends a DOM element as a child to

an element with a given id.

The presented entities in the simpA-Web layer repre-

sent a common agent-oriented infrastructure deployed

as an additional library alongside simpA, so as to free

client-side Web application developers from dealing

with such a support level and let them focus on appli-

cation domain issues.

4 A SAMPLE AGENT-ORIENTED

WEB 2.0 APPLICATION

To verify the feasibility of our A&A-based program-

ming model and test-drive the capabilities of the

simpA-Web framework, we designed a sample Web

application to search products and compare prices

from multiple services. The characteristics of concur-

rency and periodicity of the activities that the client-

side needs to perform make this case study a signiﬁ-

cant prototype of the typical Web 2.0 application.

We imagine the existence of N services (of type A)

that offer product lists with features and prices, codi-

ﬁed in some standard machine-readable format. Each

type A service lets users download an agent (typi-

cally programmed by the service supplier) that allow

product searching on that service; each agent commu-

nicates with the corresponding service using its own

protocol, possibly different from the protocols of the

other agents in the system.We further imagine the ex-

istence of an additional service (of type B) offering a

AN AGENT-BASED PROGRAMMING MODEL FOR DEVELOPING CLIENT-SIDE CONCURRENT WEB 2.0

APPLICATIONS

static list of type A services or allowing to dynami-

cally search the Web for such services.

The client-side in this sample Web application

needs to search all type A services for a product that

satisﬁes a set of user-deﬁned parameters and has a

price inferior to a certain user-deﬁned threshold. The

client also needs to periodically monitor services so

as to search for new offerings of the same product.

A new offering satisfying the constraints should

be visualised only when its price is more convenient

than the currently best price. The client may ﬁnish

its search and monitoring activities when some user-

deﬁned conditions are met—a certain amount of time

is elapsed, or the user interrupts the search with a

click on a proper button in the page displayed by the

browser. Finally, if such an interruption took place, by

pressing another button it must be possible to let the

search continue from the point where it was blocked.

It’s worth remarking that the sample application

should be considered meaningful not for evaluating

the performance or efﬁciency of the framework –

which is part of future work – but for stressing the

beneﬁts of the agent-oriented programming model in

facing the design of articulated and challenging appli-

cation scenarios. The main value in this case is having

a small set of high-level abstractions that make it pos-

sible to keep a certain degree of modularisation, sep-

aration of concerns, and encapsulation in designing

and programming applications, despite of the com-

plexities given by aspects such as concurrency, asyn-

chronous interactions, openness/dynamism, distribu-

tion.

4.1 Design

From the above description, it is fairly easy to use

high-level abstractions such as agents and artifacts

in order to represent the different computational el-

ements in the client-side of the application.

We deﬁne the Application Main (AM) Agent

as the ﬁrst agent to execute on the client, with the

responsibility to setup the application once down-

loaded. Immediately after activation, the agent pop-

ulates the workspace with artifacts and other agents

needed to perform the product search as deﬁned by

the requirements. After validating user-deﬁned data

for product querying, the agent spawns another agent

to interface with the B service so as to get a list of A

services and commence the product search. The AM

Agent also needs to control results and terminate the

research when a suitable condition is veriﬁed; more-

over, it has to manage search interruption and restart-

ing as a consequence of user’s explicit commands.

The task of the Service Finder (SF) Agent is to

use the type B service so as to ﬁnd a list of type A

services, and to concurrently download search agents

from their sites, asking them to start their own activ-

ity. The SF Agent also has to periodically monitor the

type B service for new type A services to exploit.

The Product Finder (PF) Agent instances inter-

act with their own type A service by a possibly com-

plex communication protocol, so as to get a list of

products satisfying the user-deﬁned parameters. Af-

ter, each agent passes the resulting list to another ele-

ment in the workspace dealing with product data stor-

age. Each PF Agent also periodically checks its ser-

vice in order to possibly ﬁnd new products or remov-

ing from the list products that are no more available.

The Product Directory (PD) Artifact stores

product data found by the PF agents, and applies ﬁl-

tering and ordering criteria to build a list of available

products, possibly containing only one element.The

artifact also shows a representation for its list on the

page in the browser, updating results as they arrive.

Finally, an additional Pausing Artifact is intro-

duced to coordinate the agents in the workspace on

the interruption or restarting of the research activi-

ties in response to a user’s command.While the con-

trol logic of search interruption and restarting is en-

capsulated in the AM agent, the agent does not di-

rectly know all the PF agents; in such a case when

direct communication between agents is unfeasible,

an intermediate coordination element is needed to ask

agents to perform the actions requested by the user.

The complete architecture of the client-side ap-

plication is depicted in Figure 2, where interactions

with pre-deﬁned artifacts and agents in the browser

are shown. In particular, it must be noted that the Ser-

vice Finder and Product Finder agents use their own

instances of the HTTP Channel artifact to commu-

nicate through the Web with the correspondent sites;

also, the Product Directory artifact links the Page ar-

tifact in order to visualise the product list by directly

use the DOM API operations that are made available

through the Page artifact linking interface.

It’s worth noting that we chose to place all the

agents and artifacts described above on the client side

to maximise the distribution of the workload (with re-

spect to the server-side): however, it is straightfor-

ward to devise different design solutions where some

of the agents (and artifacts) run on the server side and

interact with agents on the client side by using proper

artifacts like the HTTP Channels.

4.2 Implementation

Since we wanted our application case study to exploit

existing Web clients, so as to verify the feasibility of

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

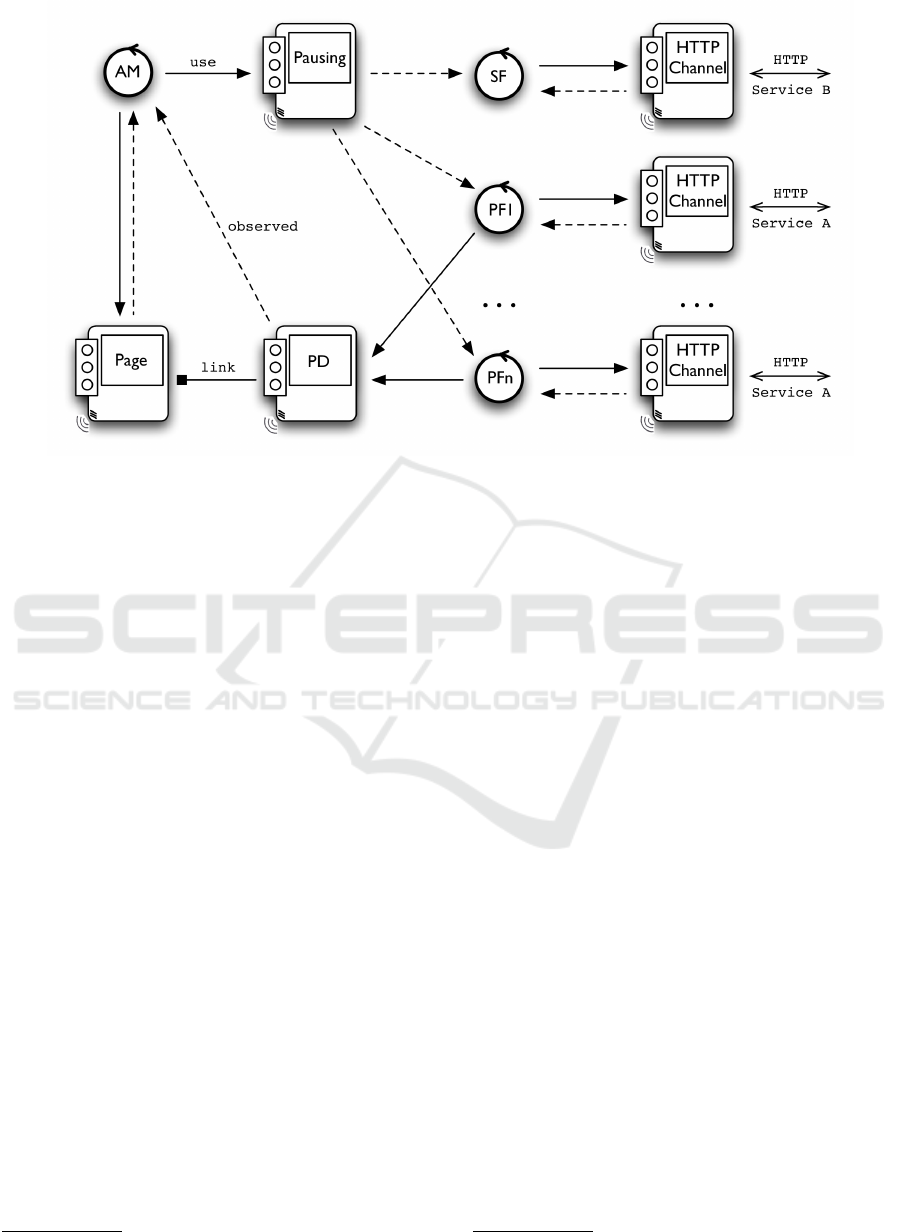

Figure 2: The architecture of the sample client-side Web application in terms of agent, artifacts, and their interactions.

current technologies w.r.t. our new model, resorting to

design or implementation compromise when needed,

we had to face some discrepancies that emerged dur-

ing the implementation phase.

As we could not use JavaScript, due to its single-

threaded nature, as a language for the client-side of

our sample Web application, we adopted the other

mechanism for code mobility that browsers make

available, that is Java applets. Applets allow to trans-

fer code from a server to a browser and have it exe-

cuted within a controlled secure environment known

as sandbox; in particular, signed applets drop much of

the security constraints of the sandbox, for instance

allowing Java classes to open their own connections

towards multiple servers. Furthermore, the Java Vir-

tual Machine invoked by the browser does not force

any restriction on the number of threads that a pro-

gram may spawn, thus providing a truly concurrent

environment where to execute our application. Ac-

cess to the page DOM representation in the browser

is granted by a suitable JavaScript library called Live-

Connect,

that can be conveniently invoked from the

JVM multi-threaded execution context. Another is-

sue is that browsers start without any notion of agents

or artifacts: for this reason, the simpA-Web frame-

work has to be entirely downloaded at the same time

as the agents and artifacts belonging to the real client-

side application. In particular, we exploit the applet

mechanism allowing a speciﬁc class to start as soon

as the JAR ﬁles have been completely fetched from

the Web site in order to activate the Application Main

http://developer.mozilla.org/en/LiveConnect

agent. The Page artifact is programmed to access the

DOM API by using the Rhinohide

library, a conve-

nient wrapper around LiveConnect that offers a sim-

pler and more complete support for page event man-

agement. The HTTP Channel artifact does not exploit

the HTTP protocol support in the browser, instead re-

lying on functionalities offered by the Java standard

library. As a relevant code snippet, we show the Prod-

uct Finder Agent interacting with the HTTP Channel

artifact to get the product list from its type A service.

public class ProductFinder extends Agent {

@ACTIVITY void find() {

ArtifactId http =

lookupArtifact("HTTP_" + getId());

String url = getServiceURL() + getQuery();

// Make the Request

use(http, new Op("setDestination", url));

SensorId sid = getSensor("s0");

use(http, new Op("send", "GET", ""), sid);

// Sense the Response

Perception p = sense(sid, "Response");

String body = p.stringContent(0);

// ...

}

The source code of the application – including a PHP

back-end simulating type A and B services, used to

test the system – can be downloaded from simpA web

site.

http://zelea.com/project/textbender/o/rhinohide

AN AGENT-BASED PROGRAMMING MODEL FOR DEVELOPING CLIENT-SIDE CONCURRENT WEB 2.0

APPLICATIONS

5 CONCLUDING REMARKS

Current languages and techniques used to develop

the client-side of Web 2.0 applications have clearly

shown their shortcomings in terms of programming

model and code organisation. Even for a mildly com-

plex application such as the presented case study, a

possible JavaScript-based approach is not feasible to

effectively manage concurrent and periodical activ-

ities so as to promote engineering properties such

as maintainability, extendibility, and reusability. In

particular, the use of callbacks and timeouts to ﬁt

the single-threaded event-based programming style of

JavaScript constrains developers to work at such a low

abstraction level that a high degree of ﬂexibility and

a solid design are hard to achieve within reasonable

amounts of time and effort. In this scenario, toolkits

such as GWT appear only to partially help: while they

may reduce the time-to-market and improve the over-

all structure and organisation of applications, their

programming abstractions still lack the expressivity

to represent the coordinating and cooperating entities

of typical concurrent systems.

Agents have been shown to natively capture con-

currency of activities and their interaction, both at

the design and the implementation level. In the pre-

AJAX era, agents had already been used as the ba-

sic building block for client-side concurrent Web pro-

gramming (Hong and Clark, 2000). This suggests

that agent-oriented programming models such as A&A

may effectively help construct the kind of highly in-

teractive applications that populate the Web 2.0 and

exploit concurrency as their primary computational

paradigm. As a signiﬁcant prototype of this kind

of applications, the presented case study has been

designed and implemented by employing a set of

engineering best practices and principles (including

modularisation, separation of concerns, encapsula-

tion) that are directly supported by the A&A model,

but that are hardly represented in the current technolo-

gies for client-side Web development. The integration

difﬁculties that agent-oriented technologies such as

simpA have to overcome in order to seamlessly work

on modern Web clients should not be considered as

diminishing the value of the programming model, but

as a temporary accident due to the lack of proper sup-

port for the concurrency paradigm in the mainstream.

As a ﬁnal note, the use of agents to represent

concurrent and interoperable computational entities

already sets the stage for a possible evolution of

Web 2.0 applications into Semantic Web applications.

From the very beginning (Berners-Lee et al., 2001;

Hendler, 2001), research activity on the Semantic

Web has always dealt with intelligent agents capa-

ble of reasoning on machine-readable descriptions of

Web resources, adapting their plans to the open In-

ternet environment in order to reach a user-deﬁned

goal, and negotiating, collaborating, and interacting

with each other during their activities. Concurrency

and intelligence being two orthogonal programming

concepts, agent-oriented models that combine both

aspects are likely to be adopted for future mainstream

technologies.

REFERENCES

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

Semantic Web. Scientiﬁc American.

Foster, J. S. (2008). Directing JavaScript with Arrows.

In ICFP 2008: The 13th ACM SIGPLAN Interna-

tional Conference on Functional Programming, Vic-

toria, British Columbia, Canada. Poster paper.

Hendler, J. (2001). Agents and the Semantic Web. IEEE

Intelligent Systems, 16(2):30–37.

Hong, T. W. and Clark, K. L. (2000). Concurrent program-

ming on the Web with Webstream. Technical report,

Department of Computing, Imperial College, London.

Lee, E. A. (2006). The problem with threads. IEEE Com-

puter, 39(5):33–42.

Maki, D. and Iwasaki, H. (2007). A portable JavaScript

thread library for Ajax applications. In OOPSLA ’07:

Companion to the 22nd ACM SIGPLAN conference

on Object oriented programming systems and appli-

cations, pages 817–818, Montreal, Quebec, Canada.

Omicini, A., Ricci, A., and Viroli, M. (2008). Arti-

facts in the A&A meta-model for multi-agent sys-

tems. Autonomous Agents and Multi-Agent Systems,

17(3):432–456.

Ricci, A. and Viroli, M. (2007). simpA: an agent-oriented

approach for prototyping concurrent applications on

top of Java. In PPPJ ’07: The 5th international sym-

posium on Principles and practice of programming in

Java, pages 185–194, Lisboa, Portugal.

Sandhu, R. S., Coyne, E. J., Feinstein, H. L., and Youman,

C. E. (1996). Role-based access control models. IEEE

Computer, 29(2):38–47.

Sutter, H. and Larus, J. (2005). Software and the concur-

rency revolution. ACM Queue: Tomorrow’s Comput-

ing Today, 3(7):54–62.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies
