MAKING FORMS ACCESSIBLE

Norbert Kuhn, Stefan Naumann, Stefan Richter, Michael Schmidt and Andreas Truar

∗

Institute for Software Systems in Economics, Environment and Administration

University of Applied Sciences Trier, Umwelt-Campus Birkenfeld, Birkenfeld, Germany

Keywords:

Accessibility, Adaptable User Interfaces, Access to e-Government forms and processes.

Abstract:

We observe that paper is still the dominant means to transport information. In particular, for the communi-

cation between governmental authorities and citizens paper based documents still play a vital role. In this

paper we discuss ideas how documents can be designed so that they can adapt almost automatically to an

actual reader. Therefore, we describe an approach to design documents and governmental forms so that they

may change their appearance in accordance to the preferences of their recipients. This allows the creation of

documents that can better be understood by different target groups, among them elderly people, people with

visual impairments or people with dyslexia.

1 INTRODUCTION

In recent years much effort has been spent in Hu-

man Computer Interfaces to improve access for hand-

icapped persons to computer systems. To a major ex-

tent these activities were enforced by legislative con-

straints that exist in the US, e.g. the Americans with

Disabilities Act (United States of America, 1990) as

well as in the European Union (European Commis-

sion, 2000), and in its member countries (e.g. (Bun-

desrepublik Deutschland, 2006)). In particular, gov-

ernmental authorities are in charge to provide acces-

sible solutions. However, to a large amount current

realizations allow only to download particular forms,

to print them, and to send it back to the governmental

institution after some information has been inserted.

This yields a point of media disruption which is dif-

ﬁcult to handle for many users with particular hand-

icaps. Therefore, we discuss in more detail an ap-

proach to build interfaces to governmental forms.

In this paper we focus on the requirements of vi-

sual impaired humans when they communicate with

public authorities. For this kind of communication

electronic information systems are increasingly used.

However, when an authority has to contact a citizen

usually this is still done by sending paper documents.

In the context of governmental processes these are

predominantly forms. While for the web based in-

∗

This work is supported by the German Federal Ministry

of Research and Technology under grant 1771X07.

formation systems accessibility aspects are often con-

sidered in e-Government platforms, for the procedure

of ﬁlling paper forms support for disabled persons is

almost missing. Hence, we believe that an integrated

view to printed and electronic media is of particular

value for disabled people. Moreover, what is some-

times mentioned in the context of efforts to improve

accessibility, this may also improve access for users

without handicaps.

We suggest document representations based on

XML structures and the implementation of commu-

nication by using web services. This guarantees inde-

pendence from software and hardware platforms. For

electronic forms different XML representations have

been developed, among them the XForms standard

from W3C ((World Wide Web Consortium, 2007)),

or the XFA-Standard ((World Wide Web Consortium,

1999)), which built the basis for Adobe’s Acroforms

format ((Adobe Corp., 2003)). We can use these stan-

dards for certain parts of our document representa-

tion, e.g. XForms for describing the the different

ﬁelds of a form. Acroforms allows even more infor-

mation to be described, e.g. information for speech

synthesis of a document. However, in our setting we

need to store even more information, e.g. to control

the OCR software to read a form containing informa-

tion which has been already ﬁlled in.

403

Kuhn N., Naumann S., Richter S., Schmidt M. and Truar A.

MAKING FORMS ACCESSIBLE.

DOI: 10.5220/0001823504030406

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

2 SYSTEM ARCHITECTURE

In order to demonstrate our ideas of interfaces which

are able to handle forms which may either be avail-

able as printed version or in electronic form we

implemented a prototypical system called GUIDO

enerating User-speciﬁc Interactive Documents).

This system maintains documents that adapt their ap-

pearance according to the needs of an actual user. We

concentrate on users which have problems to perceive

information in a conventional document representa-

tion. This group comprises blind people, people with

low vision, defective vision, color deﬁciencies or dal-

tonism, but also illiterates and immigrant people.

All these users pose quite different requirements

to the design of and the interaction with an informa-

tion system. In order to be able to economically de-

velop adequate interfaces the system should react al-

most automatically to the actual user’s needs.

Therefore, our system consists of different com-

ponents. The core component is a document database

where all the digital documents of a governmental au-

thority are stored. A database entry for a document

consists of different data. This encompasses an im-

age of the document which can be used to print it or

display it on a screen. Furthermore, we use a seman-

tic description of the document, including informa-

tion about the ﬁelds of a form, their type, and possible

relations between them, which ones are already ﬁlled

with information and which ones have to be com-

pleted by the current user. Also a link to the work-

ﬂow management in the authority should be present.

We call the universe of information associated with

a governmental document or form the Generic Docu-

ment Structure (cf. chapter 2.1).

When a user wants to process a form which he

has received from an authority we assume that he

starts communication with the governmental server

by sending an image of this form to the server. To-

gether with the image, the device proﬁle and his user

proﬁle are sent (cf. chapter 4).

2.1 The Generic Document Structure

Forms in administrative processes represent informa-

tion in a structured form. We map this structure into

the Generic Document Structure. It addresses aspects

like layout and semantics, as well as particular func-

tions to process a form.

The layout part for a document is concerned with

its graphical elements, e.g. its pages, blocks, para-

graphs and words. They may be regarded as elements

of a GUI which we describe in a form similar to ap-

proaches known e.g. from the eXtensible Applica-

tion Markup Language (XAML, (Microsoft MSDN,

2008)) or the XML User Interface Language (XUL,

(The Mozilla Foundation, 2008)). A user agent which

is able to understand such a language is able to draw

the form as a GUI. The features of the user agent are

communicated by the device proﬁle.

Within the semantics part we consider contextual

relationships between layout elements and the mean-

ing of speciﬁc ﬁelds. One example can be the gen-

der information in a form which is often given by two

checkboxes (female/male). The exclusive choice be-

tween the two checkboxes is stored in the semantics

part of the generic document structure. In the function

part we deﬁne rules to verify the user’s input against

the desired semantics. This can e.g. check whether

the given city code may be correct and whether it

matches the name of the city given in another ﬁeld.

Additionally, we may include information for the pro-

cess to which the form belongs to. Such an extension

allows to describe what happens to the form after it

has been completed and sent by the user.

2.2 The Server Workﬂow

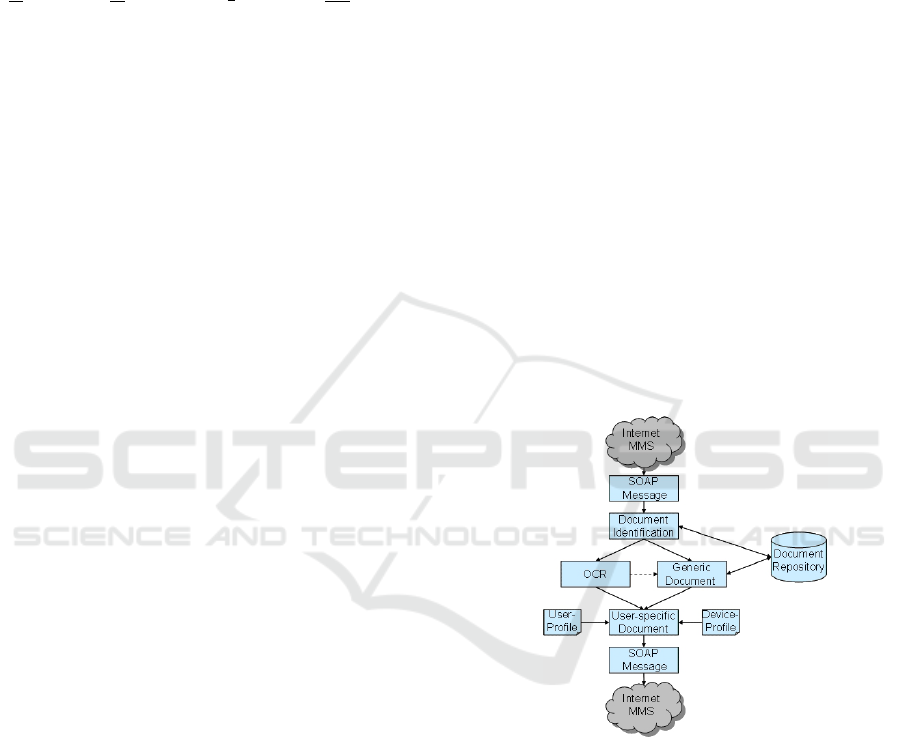

Figure 1: The server workﬂow.

Figure 1 sketches the computation steps on the

server side when a user wants to process a docu-

ment. The GUIDO system aims to derive for him a

suitable representation of the governmental document

with which he is currently concerned with. We call

this representation the User-speciﬁc Interactive Doc-

ument. The client can specify the reference to the

Generic document structure either by a URL or by

an image of the printed form. Given the image, which

is transmitted together with the information speciﬁed

below via the SOAP message in the upper part of ﬁg-

ure 1, the server tries to retrieve the suitable document

template from its document repository.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

404

The server also needs information about the user’s

perceptual and physical capabilities. This data is con-

tained in the user proﬁle. For instance it can specify

that the user wants to receive no image but an audio

version of the document. With this proﬁle the user

can customize the document representation to his per-

sonal requirements. Besides the user’s physical capa-

bilities a user speciﬁc answer needs to consider the

user’s device conﬁguration. The technical conﬁgu-

ration is stored in the device proﬁle. For example

the audio representation can either be constructed on

the server or on the user’s device. The choice can

be based on the actual bandwidth available for the

client-server communication and on the features of

the user’s device. If the client computer has no speech

synthesis program available the audio information has

to be computed on the server. Bandwidth or prefer-

ence parameters will then determine the compression

rate of the audio information.

3 USER AGENTS

The user can access the document service with differ-

ent devices which may have different hard- and soft-

ware conﬁgurations. This has to be considered for the

delivery of the service. In the following we sketch our

implementation of a User Agent on a smart phone. A

description of a desktop user agent may be found e.g.

in (Kuhn et al., 2008).

Today a wide range of mobile devices with mul-

timedia capabilities is available, among them cell

phones and PDAs (Personal Digital Assistants). An

important difference between cell phones and PDAs

concerns the display. The size of cell phone displays

fairly varies and is often too small to display large

content. In many cases these are only black and white

dot-matrix displays without color. PDA displays are

more homogeneous in their size and colored. Dis-

playing an image on a small dot-matrix display makes

no sense, whereas playing an audio stream is easily

possible. When using a device with a QVGA screen

resolution we may also display an image. For exam-

ple, ﬁgure 2 shows the representation of a governmen-

tal form on a smart phone device. The word with the

focus (the one, which is actually read) is surrounded

by a colored box.

Another fact to consider is the lack of a keyboard

on most mobile devices. Instead, we can use the

microphone that mobile phone devices have always

built-in. We will record the user’s voice and perform

speech recognition. The recognition process can be

executed on the device itself or on the server that hosts

the document repository. All these differences be-

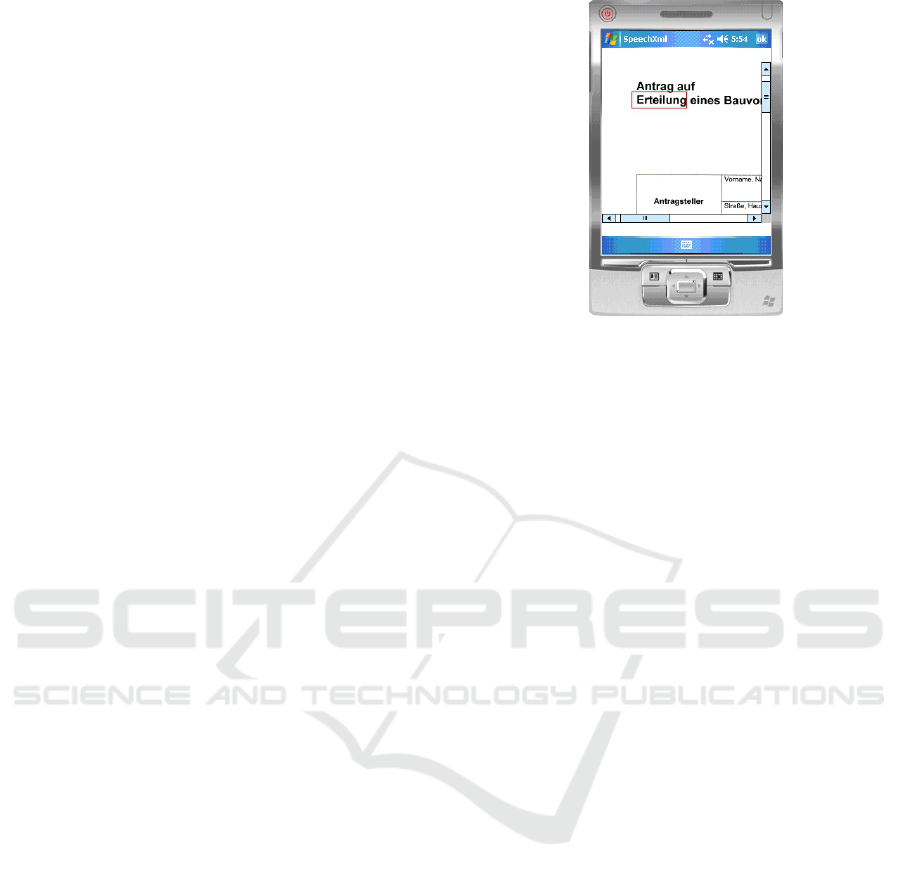

Figure 2: User Agent on a smart phone.

tween the many devices are represented in the device

proﬁle.

4 USER PROFILE AND DEVICE

PROFILE

To transform forms into a user speciﬁc format we use

the user and the device proﬁle. The user proﬁle de-

ﬁnes personal preferences for the visual and the audi-

ble representation of a document. An example of an

entry in the user proﬁle would be the preferred color

combination of the document when it is displayed on

a device (e.g. black-white, black-cyan, cyan-yellow,

or none). For the audio result the user proﬁle contains

the compression method and the sampling rate. The

following code shows some parameters of the user

proﬁle.

<User>

<OCR> true/false </OCR>

<TTS> true/false </TTS>

string

</COLORTRANSFORMATION>

<TTS_SPEED>speed </TTS_SPEED>

<TARGET_LANGUAGE>

language

</TARGET_LANGUAGE>

<TTS_VOICE> voicename </TTS_VOICE>

<COMPRESSION_RATE>

compression

</COMPRESSION_RATE>

</User>

The user proﬁle is almost the same no matter

which hardware is used. This is different for the de-

vice proﬁle. It contains information about the client

that is used to display the document. Depending on

MAKING FORMS ACCESSIBLE

405

the hardware and software conﬁguration of the de-

vice it may be different for each client. An example

for an entry is the screen resolution which inﬂuences

the document representation. E.g., we consider dis-

play dimensions, resolution or colors. To produce a

sound ﬁle it is important to know which audio formats

are accepted by the client. This information is also

included in the device proﬁle. The following code

shows an excerpt from a device proﬁle.

<DEVICE_RESOLUTION_HEIGHT>

screenheight

</DEVICE_RESOLUTION_HEIGHT>

<DEVICE_RESOLUTION_WIDTH>

screenwidth

</DEVICE_RESOLUTION_WIDTH>

format

</AUDIOFORMAT>

<OCR>true/false </OCR>

<GUIDO_PLAYER>

useragent

</GUIDO_PLAYER>

<NETWORK_CONNECTION>

connection

</NETWORK_CONNECTION>

</Device>

5 CONCLUSIONS

Since the beginnings of the 1990s, when the GUIs

developed more and more, the development of inter-

faces for disabled people is always a couple of steps

behind (Glinert and York, 2008). To shorten this dis-

tance we regard our approach as something similar to

what Vanderheiden calls a pluggable user interface

(Vanderheiden, 2008). He states that

the ability to

invoke any assistive technologies or special features

that are needed directly from the Net to use on what-

ever displays are nearby, may be the most effective

means of access

At the moment the GUIDO system provides hu-

mans with reading disabilities with much better ac-

cess to information. In particular, access to printed

documents, which are still important in business pro-

cesses or in government applications, is substantially

improved. In this paper we have sketched our ideas to

automatically adapt the output of a centralized infor-

mation portal of a governmental authority to the spe-

cial need of a citizen looking for information. Fur-

thermore, the service can also be used for simpler

tasks, e.g. when a visual impaired person comes to

a bus stop and wants to read the schedule.

Currently, we focus mainly on the group of users

with visual disabilities. This group of users will in-

crease in number at least in many European countries

due to the demographic development. A further possi-

ble target group are people with difﬁculties in reading

comprehension, e.g. immigrants or dyslexic people.

REFERENCES

Adobe Corp. (2003). Acrobat Forms API

Reference, Technical Note #5181.

http://www.adobe.com/devnet/acrobat/pdfs/ Form-

sAPIReference.pdf. visited: 2009/01/19.

Bundesrepublik Deutschland (2006). Allgemeines Gleich-

behandlungsgesetz der Bundesrepublik Deutschland.

http://bundesrecht.juris.de/agg/. visited: 2009/01/19.

European Commission (2000). Gleichbehandlung Behin-

derter in Beruf und Bildung: Richtlinie des Rates

2000/78/EG vom 27. November 2000.

Glinert, E. P. and York, B. W. (2008). Computers and Peo-

ple with Disabilities (reprint from 1992). In ACM

Trans. Access. Comput. Vol. 1, Issue 2, page Article

No. 7 (October 2008).

Kuhn, N., Richter, S., Schmidt, M., and Truar, A. (2008).

Improving Accessibility to Governmental Forms. In

Human-Computer Interaction Symposium, volume

272/2008, pages 118–128, Milano, Italy. Springer

Boston.

Microsoft MSDN (2008). Windows Presentation Foun-

dation - XAML. http://msdn.microsoft.com/en-

us/library/ms747122.aspx. visited: 2009/01/19.

The Mozilla Foundation (2008). XML User Inter-

face Language (XUL) - Project Documentation.

http://developer.mozilla.org/en/docs/XUL. visited:

2009/01/19.

United States of America (1990). Americans with

Disabilities Act, Public Law 336 of the 101st

Congress. http://www.ada.gov/pubs/ada.htm. visited:

2009/01/19.

Vanderheiden, G. C. (2008). Ubiquitous accessibility, com-

mon technology core, and micro-assistive technology.

In ACM Trans. Access. Comput. Vol. 1, Issue 2, page

Article No. 10 (October 2008).

World Wide Web Consortium (1999). XML Forms

Architecture. http://www.w3.org/1999/05/XFA/xfa-

template.html. visited: 2009/01/19.

World Wide Web Consortium (2007). XForms 1.0 (Third

Edition). http://www.w3.org/TR/xforms/. visited:

2009/01/19.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

406
