EXTRACTING OBJECT-RELEVANT DATA FROM WEBSITES

Jianqiang Li and Yu Zhao

NEC Laboratories China,14F, Bldg.A, Innovation Plaza, Tsinghua Science Park, Beijing 100084, China

Keywords: Web data extraction, Web mining, Vertical web search, Web page clustering.

Abstract: This paper proposes a method to identify the object relevant information which is distributed across multiple

web pages in a website. Many researches have been reported on page-level web data extraction. They

assume that the input web pages contain the data records of interested objects. However, in many cases for

data mining from a website, the group of web pages describing an object are sparsely distributed in the

website. It makes the page-level solutions no longer applicable. This paper exploits the hierarchy model

employed by the website builder for web page organization to solve the problem of website-level data

extraction. A new resource, the Hierarchical Navigation Path (HNP), which can be discovered from the

website structure, is introduced for object relevant web page filtering. The found web pages are clustered

based on the URL and semantic hyperlink analysis, and then the entry page and the detailed profile pages of

each object are identified. The empirical experiments show the effectiveness of the proposed approach.

1 INTRODUCTION

The research on web data extraction has been widely

conducted (Laender et al, 2002; Kevin et al., 2004).

Basically, the existing approaches are page-level

solutions. They utilize inductive learning (Cohen et

al., 2002; Kushmerick, 2000; Muslea et al., 2001) or

deductive reasoning (Arasu and Garcia, 2003; Liu et

al., 2003; Crescenzi et al., 2001) to find the template

of target web pages for data extraction. Generally,

the identified data records correspond to

recognizable objects (or concepts) in the real world,

such as products, projects, or persons. Based on the

assumption that (1) the input web pages contain the

data records of interested objects, and (2) all the

information about one objects is contained in one

web page, most of them can achieve reasonable

accuracies in their evaluations.

However, a large amount of real-world objects

are described in the current Web by multiple web

pages (Zhu et al., 2007; Kevin et al., 2004). E.g., a

product manufacturer might utilize multiple pages

for describing each of its products. To extract the

structural data of such objects, a new research, i.e.,

web data extraction across multiple web pages, is

derived. Since the multiple pages relevant to an

object are hyperlinked each other and serve as a

constitutional part of the whole website, we call it

website-level data extraction in this paper.

Different from page-level data extraction, the

website-level data extraction assumes that (1) the

group of pages describing an object are sparsely

distributed in the website (only a small part of given

pages contain relevant information of interested

object), and (2) each relevant page contains only a

piece of descriptions of the interested object. Since a

website generally includes multi-types of objects

(e.g., products and projects), the website-level

solution needs to allow the user to specify the type

of objects he/she is interested in. Therefore, the

input of this task is also different from that of the

page-level solutions, which comprises two parts: one

is a whole collection of web pages of the website;

and the other is the possible type information of the

interested objects, e.g., the user might utilize the

keyword “product” to represent that he/she wants to

extract all the published products in a website.

These differences make the existing page-level

solutions cannot be applied for the website-level

data extraction. This paper describes our solution for

this problem, which can serve as a complement

technology to the page-level solution.

Intuitively, the solution of this problem can start

with object identification (discovering the group of

relevant pages of each object) and followed by

applying the page-level techniques on the identified

pages for structured data extraction. Due to space

limitation and the fact that many page-level

solutions have been reported, our focus is on the

601

Li J. and Zhao Y.

EXTRACTING OBJECT-RELEVANT DATA FROM WEBSITES.

DOI: 10.5220/0001823705970604

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

object identification problem, i.e., finding the entry

page and other detailed profile pages for each object.

We examine how to utilize the hierarchical

model adopted by website builder for the web page

organization to help identify the interested objects in

a website. Correspondingly, a two-stage strategy is

adopted in the proposed approach: 1) object relevant

web page filtering and 2) object identification based

on hierarchical web page clustering. The first stage

finds all the object relevant pages. Its basic idea is

derived from following observations: Readers

generally utilize the information appearing in

multiple levels of hierarchical hyperlinks as a guide

in website navigating; The anchor texts, URLs, page

titles associated with the hyperlinks appeared in a

reader’s navigation path often give clear indication

of the nature of the destination page. Then, the

navigation paths are used to find all the object

relevant pages in the website. The second stage first

clusters the object relevant web pages into multiple

groups, and then the objects are identified from each

of the web page group. The underlying assumption

is that a hyperlink referencing to an object generally

selects the entry page of the object as the target. We

validate our approach on the product extraction from

45 company websites in the IT domain. The result

shows the effectiveness of the proposed approach.

2 RELATED WORK

Many research results have been reported to exploit

the HTML DOM-trees of the web pages to discover

the templates for the page-level data extraction. The

earliest solutions (Arocena and Mendelzon, 1998;

Hammer et al., 1997) mainly utilize the manual

approach to acquire the knowledge of the template.

To construct the wrapper through a semi-automatic

way, supervise learning is adopted for wrapper

induction (Cohen et al., 2002; Kushmerick, 2000;

Muslea et al., 2001). For fully automatic web data

extraction, several methods are proposed to discover

the repeated patterns appeared inside a web page

(Liu et al., 2003; Chang and Lui, 2003) or across

multiple web pages (Wong and Lam, 2007;

Crescenzi et al., 2001). Recently, the researches

incorporating vision-based features for data

extraction are reported (Cai et al., 2003; Zhu et al.,

2006; Zhai and Liu, 2006).

Basically, the technologies discussed above can

achieve reasonably accuracies. They all assume that

target web page is generated automatically from a

template. It causes the solutions can only be applied

for the page-level data extraction.

This paper focuses on the problem of website-

level data extraction. The most related work is the

discovery of the logical domain (Li et al., 2001) or

information unit (Tajima et al., 1998; Li et al., 2001).

However, since their purposes are web search or

search result organization, the solutions cannot be

utilized directly for web data extraction. Also, the

content-based solutions make the accuracy of

resultant web page group not good enough.

For the website-level data extraction, our

proposed approach differentiates the object relevant

web page filtering as a distinct step. The time-

consuming task for learning or page layout analysis

on large scale web pages is avoided. Also the HNP

based web page filtering can guarantee the high

accuracy of the final object identification. Although

the page layout analysis is involved in the following

hierarchical web page clustering and page-level data

extraction, since the target pages are only a small

part of pages in the website, it is feasible for

accurate object identification and data extraction.

3 WEBSITE-LEVEL DATA

MINING

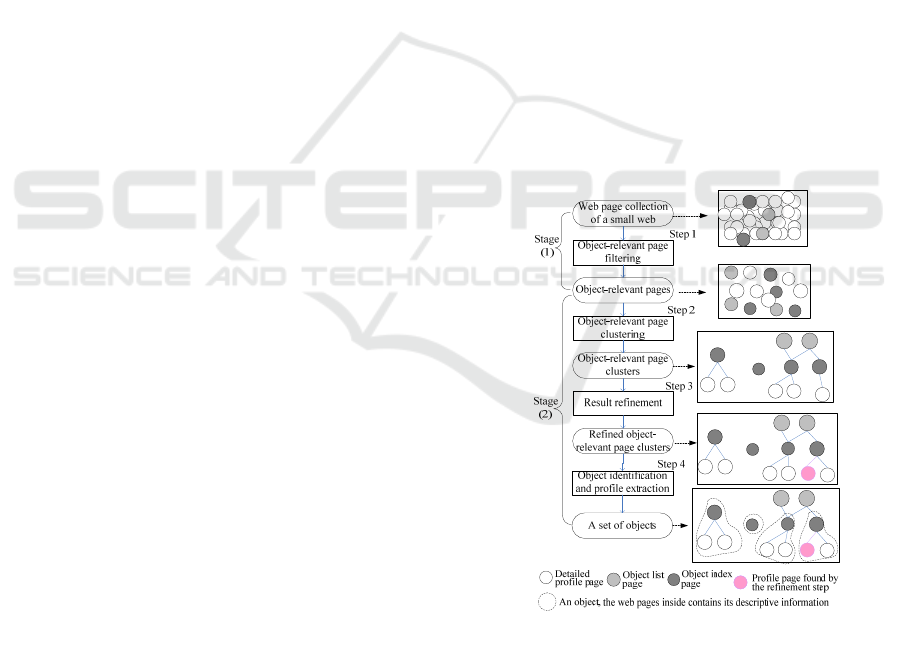

Figure 1: Procedures of object mining.

In this paper, we call the web page containing

descriptions about the interested objects as the object

relevant pages. They mainly refer to the object list

pages (i.e., a navigation page including a list of

hyperlinks pointing to multiple object entry pages)

and profile pages (including certain profile

information). For each object, its profile pages can

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

602

be classified into two types, i.e., the entry and

detailed-profile pages. The entry page is the home

page of the object. It contains a brief overview of the

object, where the page reader can be guided to the

detailed-profile pages. Each detailed-profile page

describes one aspect of the object. The website

builder generally uses one entry page and multiple

detailed-profile pages for one object. Sometimes,

there might be only one page includes both the

overview and detailed information of one object.

Our proposed approach mainly comprises two

stages, i.e., (1) object relevant web page filtering and

(2) object identification based on hierarchical web

page clustering. Concretely, it is embodied as four

steps shown in Figure 1. The first step is web page

filtering to obtain all the object-relevant pages from

the page collection of corresponding website. In

succession, the object-relevant web pages are

clustered into multiple groups. The web pages in

each group are linked together with certain

hierarchical relations (HRs). In the third step, the

result of above two steps is refined based on the

layout based hyperlink analysis. The final step finds

the entry and detailed-profile pages for each object.

3.1 Web Page Filtering

This step finds all the object relevant pages in a

website. The traditional content based techniques

(Baeza-Yates and Ribeiro-Neto, 1999) can be used

here. However, the accuracy is not good, since the

content of a page is generally not self-contained. We

propose a HNP based approach for this task.

Formally, a hyperlink h is defined h=<p

, at, p

where p

is the source page, at is the anchor text

displayed for h, and p

is the destination page of h.

The constitutional hyperlinks of a HNP, which we

call as Hierarchical hyperLinks (HLs), are different

from those Reference hyperLinks (RLs) which

convey the peer-to-peer recommendation, and also

different from those Pure Navigational hyperLinks

(PNLs) which provide just shortcut from a page to

another page. HLs are utilized for web page

organization and imply the HRs (e.g., whole-part or

parent-child) between pages. Then the semantic of

ancestor pages could be inherited to descendant

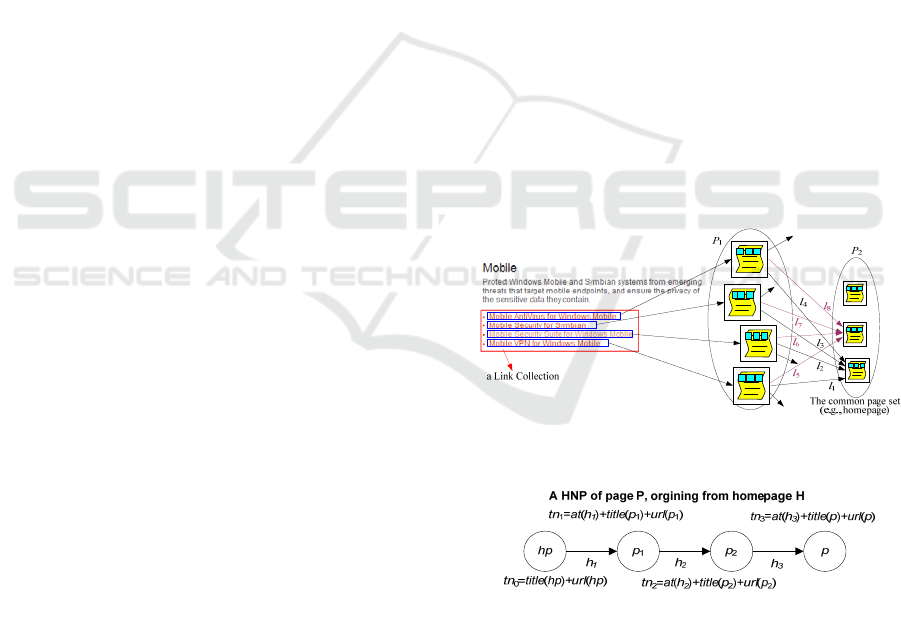

pages along the HLs. A HNP is composed of multi-

step HLs which constitute the assumed entry path to

guide users’ navigation from the root page to the

destination page. It can afford meaningful indication

on the content of its destination page.

3.1.1 HNP Construction

To extract HNPs from a website, first we need to

realize the HL identification, i.e., to remove the

PNLs as the noise information from the intra-site

hyperlinks. The algorithm includes two parts: 1)

syntactical URL analysis, and 2) semantic hyperlink

analysis. The first part utilizes the directory

information embedded in URLs to determine

whether there is HR between the source and

destination pages. The second part for semantic

hyperlink analysis is adopted to find the PNLs that

cannot be determined by the URL. The basic

heuristic is originated from the observation that the

destination pages of the hyperlinks from the same

link collection (A link collection is a semantic block

defined in Cai et al., 2003 that containing only a set

of hyperlinks in a web page.) are siblings each other.

Then, they should share the same parent and have

different child pages. As shown in Figure 2, since

the web pages in P

are outbound pages of a link

collection (the rectangle in red line hosted by a web

page), and their outbound hyperlinks {l

, l

}

share a same destination page in P

, then {l

, l

} are identified as PNLs. Similarly, {l

, l

}

are PNLs. Although the HL identification method is

heuristic, the experiment has proved that it can

discover most of the HLs in a website.

Figure 2: Semantic hyperlink analysis.

Figure 3: An example of HNP.

After the HLs are identified, the HNPs for each

web page can then be generated by concatenating

sequential HLs without a circular path, where the

homepage serves as the root node of all these HNPs.

Since a HNP is utilized to discover the semantic

meaning of its target page, the linguistic contents

within HNP, i.e., the URLs, anchor texts, and page

EXTRACTING OBJECT-RELEVANT DATA FROM WEBSITES

603

titles along it, are collected. For a HNP <hp, h

, h

,…,

, p>, we represent t(h

) as the target page of link h

and then its linguistic contents as a text node list

{tn

}, i=0, 1, .., n, where tn

=<title(hp), url(hp)>, and

=<at(h

), title(t(h

)), url(t(l

))>, i=1, 2, …, n.

Figure 3 lists the text nodes for the example HNP.

3.1.2 HNP based Web Page Filtering

We formulate the object relevant web page filtering

as a process of web page retrieval with given queries.

More concretely, the query is modelled into two

steps, i.e., path-query and content-query. For the

path-query, HNPs serve as the intermedia between

the query and the pages, i.e., whether a web page is

relevant to the object is determined by its associated

HNPs. The content-query is based on the result of

path-query. It utilizes the page content to judge

whether a web page is relevant or not.

The path-query is to retrieve object-relevant

pages by querying the HNPs’ text nodes with the

object type names. For example, if a user wants to

extract products from a company website, he/she

might directly use the keywords such as “product”

as the input query (the white keywords). If some text

nodes of a page’s HNPs contain such keywords, the

page could be regarded as object-relevant.

Optionally, in order to improve the performance of

the path-query, a keywords blacklist including the

names of other popular object types in the websites

could be employed to filter out noise pages. That is

to say, if the HNP of a page contains the keywords

in the blacklist, the page could be regarded as a

noise page. For example, if a page’s HNPs include

the keywords such as “news” or “projects” which is

used popularly in the websites for objects other than

products, this page might not be product-relevant.

A simple algorithm for HNP based filtering

would treat each HNP as a document, therefore the

similarity between the query and the HNP texts

could be used to determine if the page is relevant.

However, we found that the term frequency itself is

not enough to determine if a web page is really

relevant: white keywords (regarding to interested

objects) and black keywords (regarding to

uninterested objects) might coexist in different

nodes of a HNP or in different HNPs of one page.

The indication of a HNP on the content of the

destination pages comes from not only its contained

texts but also the position of the texts in the HNP.

Correspondingly, we designed a weighting policy

for object-relevant page filtering by use of HNPs:

the position of the node containing the white/black-

keywords is nearer to the destination page of

corresponding HNP, more weight is given to the

destination page indicating that it is object-

relevant/irrelevant page.

Assume that HNP

is the set of HNPs pointing to

web page p. The HNP with maximum length in

HNP

contains N

nodes (the length of a HNP is n

means that it contains n text nodes). For a text node

(i=0, 1, …, n-1) in a n-length HNP hnp∈HNP

the distance between tn

and p along hnp is n-i-1.

Since shorter is the distance, higher the weight of the

node should be taken, we defined the weight of tn

s(tn

)=N

-(n-i-1). If tn

contains any white keyword,

let w(tn

)=1, otherwise, let w(tn

)=0. Similarly, if tn

contains any black keywords, let b(tn

)=1, otherwise,

let b(tn

)=0. Then, the decision function is defined

as:

∑

−=

HNP tn

iii

tnbtnwtnspD )]()()[()(

Then, when D(p)>0, p is considered as an object-

relevant page, otherwise, it is a noise page.

Since the results of the path-query might contain

not only object profile pages but also object list

pages, the content-query is designed for filtering out

the object list pages. It utilizes the unique

ontological property names of the object type as

keywords for further filtering. E.g.,, for describing a

product, the unique property names include such as

“function”, “feature”, and “price”. The content-

query is conducted on the results of the path-query.

Since the property description appears only in the

object entry or detailed-profile pages, the object list

pages could be removed by the content-query. We

need to mention here is that since the content-query

depends on the pre-defined knowledge on the object,

it is optional for the given solution in this paper.

3.2 Web Page Clustering

Figure 4: Example of HR identification.

After the object relevant web pages P={p

, p

…, p

} is obtained, this section describes a clustering

technique to separate P into multiple groups. The

basic idea is to adopt certain hyperlink analysis to

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

604

find the HRs between web pages, and then, naturally,

each web page set linked together forms a cluster.

The above identified HLs can be utilized directly

to construct the hierarchy of the object relevant

pages. However, its underlying assumption depends

too much on the existence of the link collection, and

also the result’s accuracy is not good enough for

object identification. In addition to utilizing the URL

for HR identification, we adopt a more general

assumption here for discovering the HR between

web pages: when the page author utilizes a hyperlink

for reference to an object, he/she prefers to select the

entry page of corresponding object as the destination

of the hyperlink. So, for a detailed-profile page, its

in-bound hyperlinks usually come from the object

entry page or other sibling pages. Since all the

detailed-profile pages are contained in the out-bound

page set of the object entry page, the in-bound page

set of the detailed-profile pages should be the subset

of the out-bound page set of the object entry page.

Thus, a basic rule for identifying the HR between

two pages is: if there exists a hyperlink from page p

to page p

, and at the same time, p

’s outbound page

set contains p

’s inbound page set, we regard p

as an

ancestor page of p

. For simplicity, p

itself is also

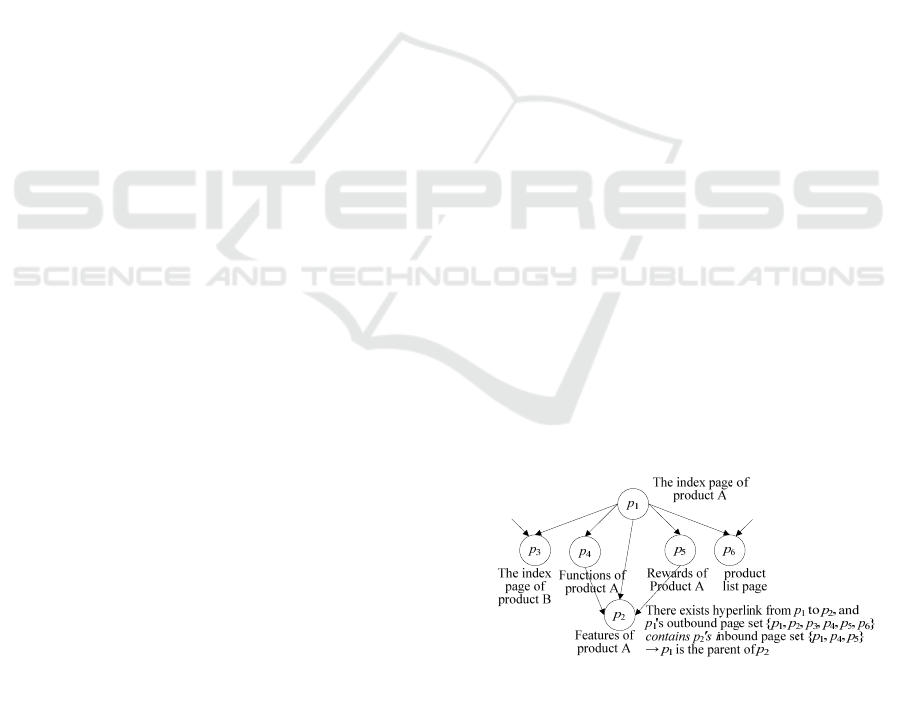

included into its outbound page set virtually. Figure

4 is an example of using this rule.

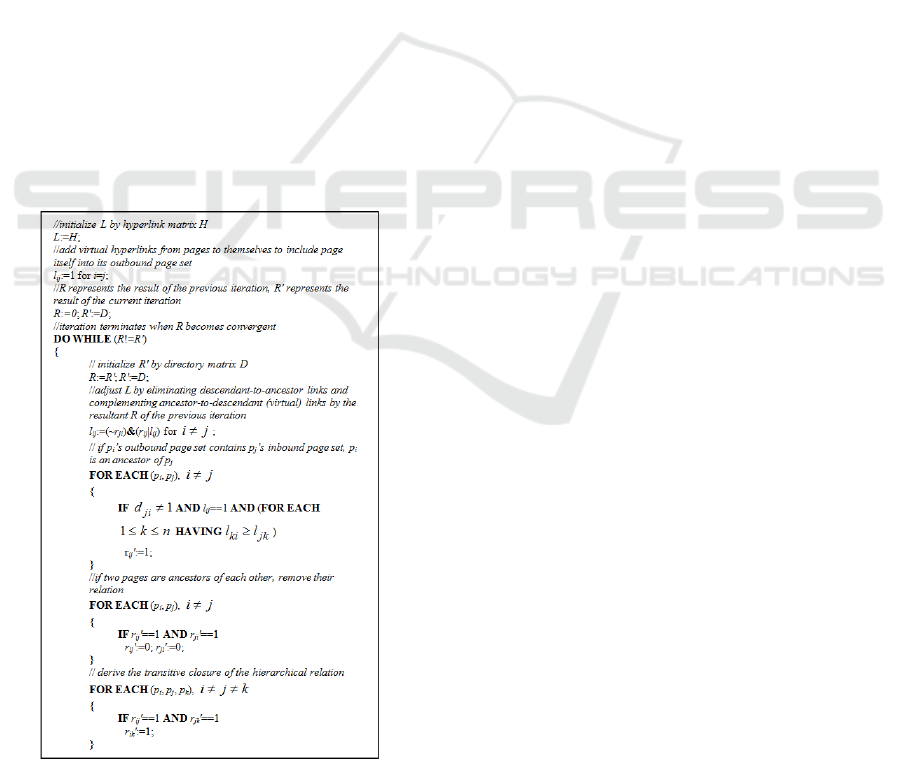

Figure 5: The algorithm for finding the HRs web pages.

Let P={p

, p

, …, p

} denotes the resultant page

set of object-relevant web page filtering, where n is

the amount of object-relevant pages. H is an n×n

matrix. It represents the hyperlink relationships

among pages of P, where the value of h

is 1 if there

exists a hyperlink from p

to p

, and 0 otherwise. The

n×n matrix D represents the HRships acquired

directly from syntactic URL analysis, among pages

of P, where d

equals to 1 if p

is at a higher level

than p

in the directory structure implied in the URL,

and 0 otherwise. Thus, an iterative algorithm for

finding the HRs among the web pages in P is

proposed, as shown in Figure 5, where P, H and D

are the inputs, and the output, i.e., the resultant

HRships among pages of P, are represented by n×n

matrix R, where, r

=1 denotes that p

is an ancestor

of p

, and r

=0 denotes there is no HR between them.

The essence of the algorithm is to construct R

from H and D, where the syntactical URL analysis

result is prior to that of semantic hyperlink relation.

L is a virtual hyperlink matrix. Its initial value is set

as H. For each cycle, L is updated by eliminating the

descendant-to-ancestor hyperlink relation and

complementing the ancestor-to-descendant hyperlink

relation (i.e., virtual hyperlink). The termination

condition of the iteration is that R converges.

It can be proved that, from the second iteration,

the amount of page pairs with l

=1 decreases

monotonically, and then the iteration is convergent.

After the HRs between pages in P={p

, p

, …,

} are extracted, a graph of object-relevant pages

could be generated by considering a page as a node

and a HR between pages as an edge. Then the pages

are naturally separated into multiple groups.

3.3 Result Refinement

Considering that both the web page filtering and

clustering might raise some errors, which will be

propagated to final object identification, we design a

coordinated approach to refine the result of the two

steps. The underlying idea is that the destination

pages of the hyperlinks from the same link

collection should be siblings each other. It means

that if the destination pages of some hyperlinks in a

link collection are judged as object relevant pages,

the destination pages of other hyperlinks within the

same link collection should also be object relevant.

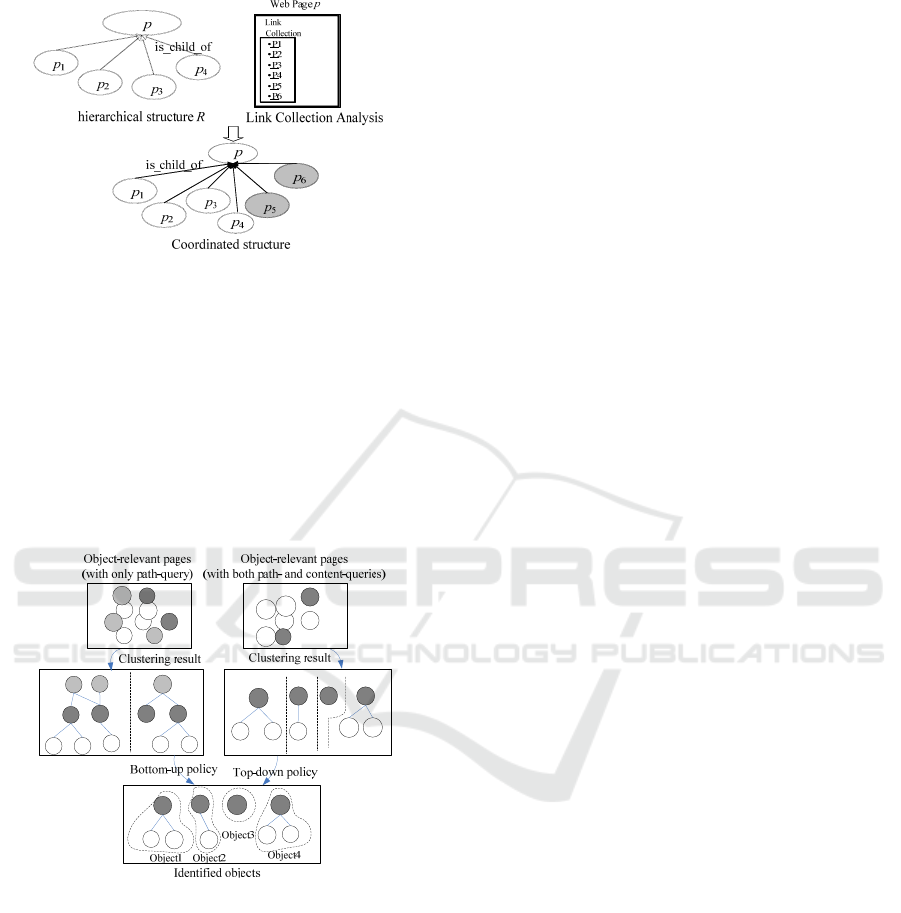

Figure 6 shows an example. Within the

hierarchical structure from clustering, the page p has

the children p

-p

. p also has a link collection

including the hyperlinks directed to not only p

-p

but also two other pages p

, p

. The link collection

could imply that p

and p

should be sibling of p

-p

EXTRACTING OBJECT-RELEVANT DATA FROM WEBSITES

605

Then, we coordinate the result by adding p

and p

p’s children.

Figure 6: Coordinating R with Link Collections.

3.4 Object Identification

This section will identify each distinct object and its

profile pages from those refined clusters. Since the

entry page and the detailed-profile pages of each

object are linked together with certain HRs, we can

assume that all the profile pages of a specific object

are completely contained within one cluster. Then,

to find all the objects and their profile pages, we

only need to consider each cluster one by one.

Figure 7: A schematic diagram on the object

identification.

Depending on if the content-query is conducted,

we design two policies for the object identification

from each cluster:

Top-down policy: If the content-query has been

done for web page filtering, i.e., the object list pages

have been removed, we can consider the page

without parent in a cluster as the entry page. Then,

all its descendant pages are naturally identified as

the detailed-profile pages of corresponding object.

Bottom-up policy: The bottom-up policy is

employed for the case that the content-query is not

conducted (i.e., the pages without parent in a cluster

may refer to object list pages). The HRs between

web pages determine that the details of the object are

described in the lowest level pages of each cluster.

Since the website builders generally use only one or

two levels of pages for describing the objects, the

bottom-up policy only investigates the pages at the

two levels from the bottom of each cluster.

Considering that an object entry page is the

exclusively parent of other detailed-profile pages,

and seldom two objects share one detailed-profile

page, the bottom-up policy is embodied as two rules:

1) If a page at the lowest level has more than one

parent, this page is an object entry page, which

means its profile is described by only one page; 2)

For a page at the second level from the bottom of the

cluster, if all of its direct children have only one

parent, this page is an object entry page and its

children are the detailed-profile pages.

Figure 7 shows the application of two policies

for object identification. The left part is the bottom-

up policy applied on the clustering result of the

object relevant web pages from only the path-query.

The right part is the top-down policy conducted on

the clustering result of the object relevant pages

from both the path- and content-query. We can see

that, no matter the content-query is conducted or not

(which cause that the intermediate object relevant

web page collection and clustering result are

different), the final sets of the identified objects are

the same. Our empirical observation shows that it is

a typical scenario for website-level object

identification, specifically the small granularity

objects (e.g., products and people). However, for the

object with large granularity, the profile pages may

span more than two levels. It would make the results

from the two policies different. In this case, content-

query with the predefined knowledge of the general

way that how these objects are described is

preferred.

4 EVALUATION

4.1 Task and Data Set

Gathering the published product information in

company websites can produce many value-added

applications. A task to find out all the products and

their descriptions in company websites is considered.

To set up a well-controlled experiment, a group

of students are hired to help us select the dominate

companies in the IT domain. We use three languages,

i.e., English, Chinese, and Japanese, to verify if the

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

606

Table 1: Dataset and ground truth data.

Websites Total

pages

Products ( entry

pages)

Product detailed

profile pages

en 15 0.5M 1312 2753

cn 15 0.4M 1119 1692

jp 15 0.3M 632 855

approach is language dependent. For each language,

15 websites are considered. The representative

companies include Symantec, McAfee, Cisco,

Huawei, etc. Some global companies are picked in

duplicate for different languages, e.g., the Symantec

websites in three languages are selected respectively

for English, Chinese and Japanese experiment. As

shown in Table 1, we identify all the distinct

products and their profile pages from these websites

manually as ground truth data.

4.2 Evaluation Criteria

According to the convention of information

retrieval, the Recall and Precision are adopted here.

For product-relevant web page filtering, the

precision is defined as the proportion of actual

product relevant pages among all web pages

returned by the filtering approach. The recall is the

proportion of the correctly identified product

relevant web pages by the approach among all the

product relevant web pages in the website.

For product identification, the qualities of the

identified entry page and the detailed-profile pages

are evaluated respectively. The recall/precision of

the entry page identification reflects how well the

products are discovered in the website; the

recall/precision of the detailed-profile page

identification reflects how well the detailed-profile

pages are discovered for each specific product.

4.3 Experiment Results

We apply our approach for product extraction on

these company websites. During the product-

relevant page filtering stage, we conducted two

experiments for the path-query, one by using

whitelist keywords only, and another by using both

whitelist and blacklist keywords. Then, the content-

query is adopted to refine the web page filtering

results from two kinds of path-query, respectively.

Since our target is product mining, we define a

product-specific keyword list for product-relevant

page filtering. The pre-defined values are set as

shown in Table 2. Subsequently, the steps of

hierarchical web page clustering and results

refinement are operated under two situations, with

only path-query results and with both path- and

content-queries results. Finally, the product

identification is conducted.

Table 3 is the evaluation results of average

recall/precision for the 45 test websites. Basically,

the figures verify the usability of our proposed

approach. The effective results of the product entry

page and detailed profile page identification

demonstrate indirectly that the performance of the

given web page clustering method is promising.

Table 2: Parameter setting for experiments.

Filtering Phase: Path-query Keyword Whitelist

en product

cn 产品, 商品

jp 製品, 商品

Filtering Phase: Path-query Keyword Blacklist

news, about us, bbs, forum, story, event, job, career, sitemap,

service

cn 新闻,关于我们,论坛,市场活动,工作机会,招聘,网站地图,服

务

連絡, ニュース,会社情報,サイトマップ, フォーラム,伝言,

会社案内,サービス

Filtering Phase: Content-query Ontological Keywords

en function, specification, feature, benefit, advantage, performance

cn 功能,特性,特点,优点,优势,特色,亮点,规格,性能

jp 機能,特徴,特長,メリット,長所,仕様,スペック, 利点

Moreover, the figures in Table 3 show that the

performance of our proposed algorithm is language

independent. And the positive effect of considering

blacklist in path-query is a bit, while considering

content-query can increase accuracy notably.

Considering the incorrect results, one main

reason is that some product entry pages are

identified as product list pages, and then the actual

product entry page is considered mistakenly as the

detailed profile pages. For 11 such websites without

product list page, the average recall/precision of

product entry pages is 78.2/81.6. However, for the

websites with product list pages, the average

recall/precision of product entry pages is 80.8/86.3.

Since the experiment of the later step is conducted

based on the result of earlier steps, the errors are

propagated from earlier steps to the later steps. So

some errors in product identification is inherited

from the errors happened in the steps of product

relevant web page filtering and web page clustering.

Additionally, the identified HL for HNP

extraction in web page filtering phase could also be

used for finding HRs between object relevant pages,

so we can use such HRs directly for clustering

(called rough clustering) and product identification.

EXTRACTING OBJECT-RELEVANT DATA FROM WEBSITES

607

Table 3: Experiment results.

Object relevant web page filtering

Product identification without refinement step

(entry page / detailed profile pages)

Product identification with refinement step

(entry page / detailed profile pages)

W W+B W+O W+B+O W W+B W+O W+B+O W W+B W+O W+B+O

en Rec. (%) 95.2 93.7 85.2 83.9 76.5/79.3 77.3/79.7 80.2/81.1 78.3/82.5 78.2/82.7 79.9/83.1 80.5/85.7 82.5/86.3

Prec. (%)

79.4 81.2 82.5 89.9 72.6/80.9 75.2/81.3 81.1/82.7 83.1/83.2 74.2/83.2 75.9/85.7 81.9/87.0 87.3/88.5

cn Rec. (%) 91.4 90.9 83.1 79.5 74.3/78.8 72.9/80.2 75.6/80.3 73.2/84.8 76.1/80.2 76.3/81.5 76.9/83.4 77.3/85.3

Prec. (%) 75.1 78.3 80.0 88.8 71.1/77.5 75.4/77.9 79.9/81.2 81.0/81.9 75.9/78.0 75.8/79.1 80.4/81.6 82.1/83.6

jp Rec. (%) 94.6 93.7 86.3 81.5 79.4/76.7 74.2/77.3 75.0/79.2 75.5/80.6 80.1/77.2 75.3/79.5 79.7/85.0 81.1/90.5

Prec. (%) 80.2 81.5 81.3 89.2 72.9/79.1 75.8/79.7 82.5/82.3 84.8/83.5 73.2/80.3 77.0/82.1 85.7/82.8 86.8/84.0

Ave Rec. (%) 93.7 92.8 84.9 81.6 76.7/78.3 74.8/79.1 76.9/80.2 75.7/82.6 78.1/80.0 77.2/81.4 79.0/84.7 80.3/87.4

Prec. (%)

78.2 80.3 81.3 89.3 72.2/79.2 75.5/79.6 81.2/82.1 83.0/82.9 74.4/80.5 76.2/82.3 82.7/83.8 85.4/85.4

W: filtering with white wordlist of path query; B: filtering with black wordlist of path-query; O: filtering with ontological wordlist of content-query

The corresponding experiments are conducted to

verify the effects of the adopted new web page

clustering method in Section 3.2. Figure 8 is the

comparison of the final product identification results

with two web page clustering methods. We can see

that the performance from the proposed clustering

algorithm is enhanced significantly comparing with

the results from the identified HLs. The impact of

the refinement step can also be found in this figure,

i.e., averagely, it improves performance about 3-8%

with respect to both the recall and precision.

Figure 8: Comparison of product identification results.

5 CONCLUSIONS

Most existing solutions for web data extraction

assume each given page includes several data

records. It makes them not applicable for the

problem of website-level data extraction, which

assumes the relevant information of an object is

distributed sparsely in the website. This paper

proposes a novel approach to address this new

problem. It exploits HLs for web page organization

in websites as a novel resource for not only the

object relevant web page finding but also the object

centred web page clustering. The experiment results

verify the usability of the proposed approach. And

also some limitations exist in this method. The major

limitation is that the object-relevant keywords need

to be set manually. How to collect the keywords

(semi-)automatically is our future work.

REFERENCES

Laender, A., da Silva, A., B. Ribeiro-Neto, and Teixeira.,

J., 2002. A Brief Survey of Web Data Extraction

Tools. SIGMOD Record.

Arocena, G. O., and Mendelzon, A. O., 1998. WebOQL:

Restructuring documents, databases, and webs. Proc.

of ICDE.

Arasu, A. and Garcia-Molina, H., 2003. Extracting

Structured Data from Web Pages. SIGMOD-03.

Liu, B., Grossman, R., and Zhai, Y., 2003. Mining data

records in Web pages. In Proc. of the ACM SIGKDD.

Chang, C., Lui, S., 2001. IEPAD: Information extraction

based on pattern discovery. Proc. of WWW

Cohen, W., Hurst, M., and Jensen, L. 2002. A flexible

learning system for wrapping tables and lists in HTML

documents. Proc. of WWW

Cai, D., Yu, S., Wen, Ji-Rong, and Ma, W.-Y., 2003.

VIPS: a vision-based page segmentation algorithm.

Microsoft Technical Report (MSR-TR-2003-79).

Hammer, J., Mchvoh, J., and Garcia-Molina, H., 1997.

Semistructured data: The TSIMMIS experience. Proc.

of the First East-European Symposium on Advances in

Databases and Information Systems.

Davulcu, H., Vadrevu, S., Nagarajan, S., Gelgi, F., 2005

METEOR: metadata and instance extraction from

object referral lists on the web. Proc. Of WWW.

Zhu, H., Raghavan,S., Vaithyanathan, S., 2007. Alexander

Löser: Navigating the intranet with high precision.

Proc. WWW.

Kao, H.-Y., Lin, S.-H., 2004. Mining web informative

structures and content based on entropy analysis. IEEE

Trans. on Knowledge and Data Engineering.

Zhu, J., Nie, Z., Wen, J.-R., Zhang, B., Ma, W.-Y., 2006.

Simultaneous record detection and attribute labeling in

web data extraction. Proc. Of KDD

Park, J. Barbosa, D., 2007. Adaptive record extraction

from web pages, Proc. WWW

Tajima, K. Mizuuchi, Y. Kitagawa, M., K. Tanaka., 1998.

Cut as a querying unit for WWW, Netnews, and E-

mail. In Proc. Of ACM Hypertext.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

608

Kevin S. McCurley, A. T., 2004. Mining and Knowledge

Discovery from the Web. ISPAN

Kushmerick, N., 2000. Wrapper induction: efficiency and

expressiveness. Artificial Intelligence.

Muslea, I., Minton, S., Knoblock, C., 2001. Hirarchical

wrapper induction for semi-structured information

sources Autonomous Agents and Multi-Agent Sys.

Baeza-Yates, R., B. Ribeiro-Neto, 1999. Modern

Information Retrieval. Addison-Wesley.

Wong, T.-L., Lam, W., 2007. Adapting Web information

extraction knowledge via mining site-invariant and

site-dependent features. ACM Trans. Internet Techn.

Crescenzi, V., Mecca, G. and P. Merialdo, 2001.

Roadrunner: Towards Automatic Data Extraction from

Large Web Sites, Proc. VLDB

Li, W. S., Ayan, N. F., H. Takano, H. Shimamura, 2001.

Constructing multi-granular and topic-focused web

site maps. Proc. Of WWW

Li, W., Candan, Vu, K. Q., Agrawal, D., 2001. Retrieving

and Organizing Web Pages by Information Unit, Proc.

Of WWW

Nie, Z., Ma, Y. J., Ma,W.-Y., 2001. Web Object Retrieval.

Proc. of WWW.

Zhai, Y. H., Liu B. 2006. Structured data extraction from

the Web based on partial tree alignment. IEEE Trans.

on Knowledge and Data Engineering.

EXTRACTING OBJECT-RELEVANT DATA FROM WEBSITES

609
