HOW DOES ALGORITHM VISUALIZATION AFFECT

COLLABORATION?

Video Analysis of Engagement and Discussions

Ari Korhonen

Department of Computer Science and Engineering, Helsinki University of Technology

P.O. Box 5400, FI-02015 TKK, Finland

Mikko-Jussi Laakso

Department of Information Technology, University of Turku, FI-22014 Turun Yliopisto, Finland

Niko Myller

Department of Computer Science and Statistics, University of Joensuu, P.O. Box 111, FI-80101 Joensuu, Finland

Keywords:

Extended engagement taxonomy, Collaborative learning, Algorithm animation, Visual algorithm simulation.

Abstract:

In this paper, we report a study on the use of Algorithm Visualizations (AV) in collaborative learning. Our pre-

vious results have conﬁrmed the hypothesis that students’ higher engagement has a positive effect on learning

outcomes. Thus, we now analyze the students’ collaborative learning process in order to ﬁnd phenomena that

explain the learning improvements. Based on the study of the recorded screens and audio during the learning,

we show that the amount of collaboration and discussion increases during the learning sessions when the level

of engagement increases. Furthermore, the groups that used visualizations on higher level of engagement,

discussed the learned topic on different levels of abstraction whereas groups that used visualizations on lower

levels of engagement tended to concentrate more on only one aspect of the topic. Therefore, we conclude that

the level of engagement predicts, not only the learning performance, but also the amount of on-topic discus-

sion in collaboration. Furthermore, we claim that the amount and quality of discussions explain the learning

performance differences when students use visualizations in collaboration on different levels of engagement.

1 INTRODUCTION

Empirical evaluations have yielded mixed results

when determining the usefulness of Algorithm Vi-

sualizations (AV) with empirical experiments. The

meta-analysis by (Hundhausen et al., 2002) con-

cluded that the activities performed by the students

are more important than the content of the visual-

ization. This has led to the proposition of Engage-

ment Taxonomy by (Naps et al., 2002) to characterize

the different levels of activities the students can per-

form with AV. The taxonomy is based on the Cogni-

tive Constructivistlearning theory (Hundhausenet al.,

2002; Garrison, 1993; Piaget, 1977) and a student is

supposed to achieve better learning results on higher

engagement levels. Moreover, (Myller et al., 2008)

have developed the taxonomy further by introducing

Extended Engagement Taxonomy (EET), which de-

scribes the levels of engagement in ﬁner level of de-

tail. Furthermore, they have correlated the qualities

of students’ collaboration processes to different EET-

levels, and therefore, extended the taxonomy into the

direction of Social Constructivism (Palincsar, 1998;

McMahon, 1997; Vygotsky, 1978).

Collaborative learning has become popular in

Computer Science education (Beck and Chizhik,

2008; Teague and Roe, 2008; Valdivia and Nuss-

baum, 2007). Although visualizations have been em-

ployed in collaborative learning, collaboration intro-

duces new challenges for the visualization tools. For

example, the exchange of experiences and ideas, and

coordination of the joint work are needed when stu-

dents are no longer working individually (Suthers and

Hundhausen, 2003). Furthermore, visualizations can

479

Korhonen A., Laakso M. and Myller N.

HOW DOES ALGORITHM VISUALIZATION AFFECT COLLABORATION? - Video Analysis of Engagement and Discussions.

DOI: 10.5220/0001825104790488

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

provide a shared external memory that can initiate ne-

gotiations of meanings and act as a reference point

when ideas are explained or misunderstandings are

resolved (Suthers and Hundhausen, 2003). This im-

plies that also new theories or extension of the pre-

vious ones are needed to guide the development and

research of the visualization tools for collaborative

learning.

In this paper, we study the use of AV in collabora-

tive learning. We have utilized EET as a framework

to test the impact of engagement levels on the learning

process when the students work in pairs. In this exper-

imental study, students collaborating on different en-

gagement levels were compared with each other while

they were learning concepts related to binary heaps.

This is a follow-up study in a series of studies. The

previous studies have shown that the engagement lev-

els have a role to play in learning and showed that the

use of visualizations on higher levels of engagement

improves learning results (Laakso et al., 2009; Myller

et al., 2007). However, this further investigation re-

vealed new results that support the view that higher

engagement levels have an effect not only on learning

outcomes, but also on the amount of collaboration or

discussion students have during the learning sessions.

In other words, the engagement seems to have an ef-

fect not only on the student-content interaction, but

also on the student-student interaction (see (Moore,

1989)). We hypothesize that these two together have

inﬂuenced the students learning results.

Although a plethora of studies that concentrate on

students’ performance (Grissom et al., 2003; Naps

and Grissom, 2002; Naps et al., 2002; Hundhausen

et al., 2002) exist, we also need to understand the

learning process and how the visualizations affect it

(Hundhausen, 2002; Hundhausen and Brown, 2008).

This information is essential when developing new

systems in order to enhance students’ learning with

algorithm visualizations.

The structure of this paper is as follows: section 2

presents previous work on visualizations, engagement

and interaction. The setup and design of the study are

described in section 3. In section 4, the results are

presented and they are further discussed in section 5.

Finally, conclusions and future directions are given in

section 6.

2 PREVIOUS WORK

2.1 Engagement

As an attempt to describe the mixed results of previ-

ous research in AV usage (Hundhausen et al., 2002)

in learning and teaching of algorithms and data struc-

tures, Engagement Taxonomy (ET) was introduced by

(Naps et al., 2002). The central idea of the taxonomy

is that the higher the engagement between the learner

and the visualization, the higher the positive effects

on learning outcomes. ET consists of six levels of en-

gagement between the user and the visualization:

No viewing – There is no visualization to be viewed.

Viewing – The visualization is only looked at with-

out any interaction.

Responding – Visualization is accompanied with

questions, which are related to the content of the

visualization.

Changing – Modiﬁcation of the visualization is al-

lowed, for example, by varying the input data set

or algorithm simulation.

Constructing – Visualization of program or algo-

rithm is created.

Presenting – Visualizations are presented to others

for feedback and discussion.

ET has been used in the development of AV

tools and several studies have utilized the frame-

work and provided further support for it (?, see,

e.g.,)]Grissom2003, Grissom2002. There are also

other studies which have shown that visualizations

improve learning results, without actually utilizing

the ET framework in the design of the study (Ben-

Bassat Levy et al., 2003). In addition to this, research

in educational psychology and multimedia learning

have received similar results (Evans and Gibbons,

2007).

Although there is some anecdotal evidence on

how the visualizations could affect collaborative

learning process (Hundhausen, 2002; Hundhausen,

2005), there have been very few formal studies in-

vestigating it, especially from the point of view of

engagement (Hundhausen and Brown, 2008). In this

paper, we aim to research how the engagement be-

tween the learners and the visualization affects the in-

teractions (i.e. collaboration and discussion) between

learners.

(Myller et al., 2008) have proposed an extension

to the ET called Extended Engagement Taxonomy

(EET). The idea of this extension is to let the design-

ers and researchers of visualizations to use ﬁner gran-

ularity of engagement levels in their tools and exper-

imental designs. They provide the following engage-

ment levels to be used together with the original ones:

controlled viewing, providing input, modiﬁcation, and

reviewing. In this study, we will utilize the controlled

viewing level in order to make a difference between

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

480

the visualizations that can only be viewed by the stu-

dent (EET level: viewing, e.g. static visualizations or

animations with only a playing option) compared to

those which can be controlled (EET level: controlled

viewing, e.g., animations with VCR-like controls in

order to step and play the animation both forwards

and backwards).

2.2 TRAKLA2

TRAKLA2 is a practicing environment for visual al-

gorithm simulation exercises (Korhonen et al., 2003;

Malmi et al., 2004) that are automatically assessed

tracing exercises solved by a student in a web-based

learning environment. The system distributes individ-

ually tailored exercises to students and provides in-

stant feedback on students’ solutions. In visual algo-

rithm simulation exercises, a student directly manipu-

lates the visual representations of the underlying data

structures. Thus, the student actually manipulates real

data structures through operations of the graphical

user interface (GUI) with the purpose of performing

the same changes on the data structures as the actual

algorithm would perform. Each change leads the data

structure to a new state. An answer to an exercise is

a sequence of these states, and the task is to perform

the correct operations that will simulate the running

of the algorithm.

Each TRAKLA2 exercise consists of a description

of the exercise accompanied with pseudo-code repre-

sentation of the algorithm, and possibly support ma-

terial that introduces the theory and examples of the

algorithm in question, instructions on how to interact

with the GUI, and an interactive Java applet that is

utilized to enter the answer. The current exercise set

consists of over 50 assignments on basic data struc-

tures, search structures, hashing methods as well as

sorting and graph algorithms.

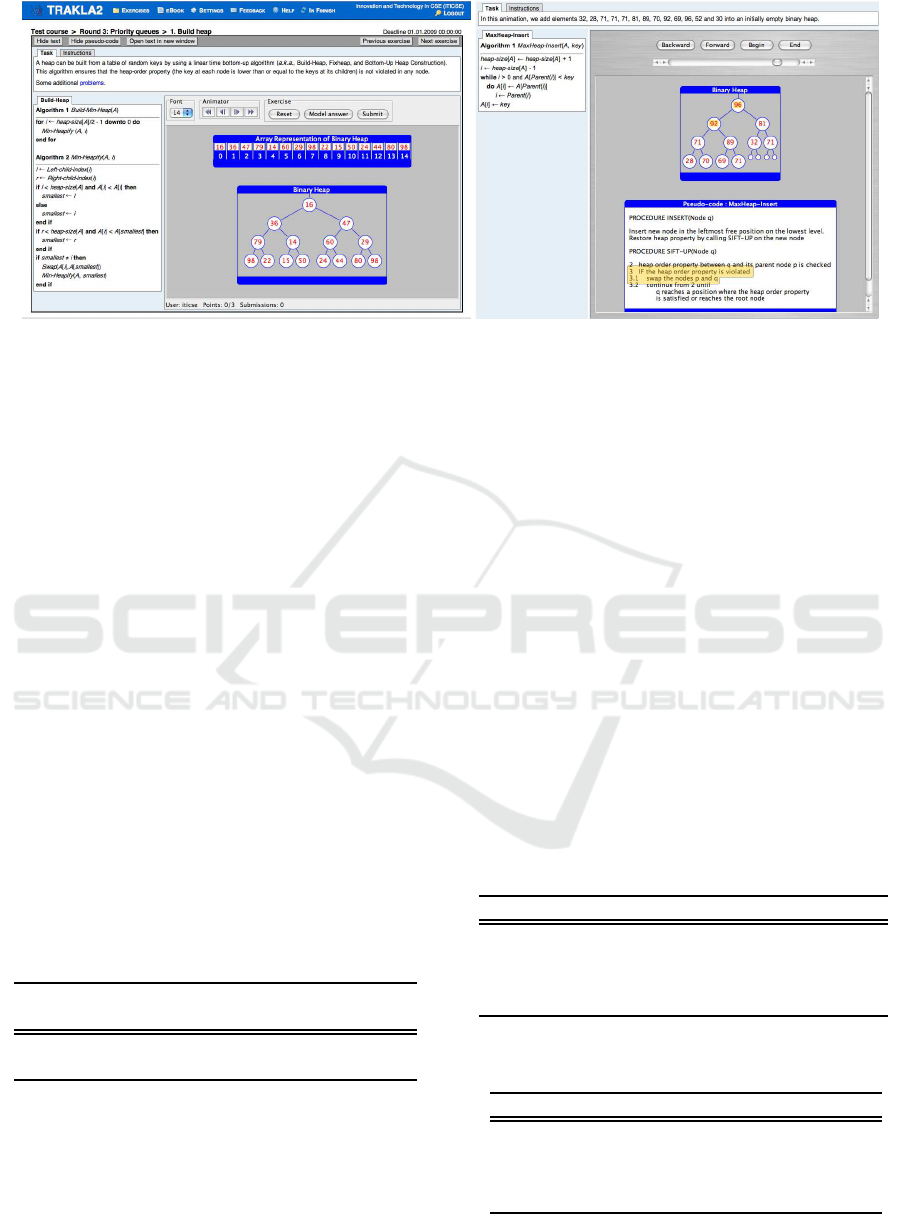

Example: Let us consider the exercise in Fig-

ure 1. The student is supposed to manipulate the vi-

sual representation(s) of the Binary Heap data struc-

ture by invoking context-sensitive drag-and-drop op-

erations. The idea is to simulate the linear time Build-

Heap algorithm. The manipulation can be done in ei-

ther of the representations shown in the ﬁgure (i.e. the

array or the binary tree representation). A key can be

shifted up in terms of swap operations with its par-

ent until the heap property is satisﬁed (the key at each

node is smaller than or equal to the keys of its chil-

dren). A single swap operation is performed by drag-

ging and dropping a key in the heap on top of another

key

An exercise applet is initialized with randomized

input data. The BuildHeap exercise, for example, is

initialized with 15 numeric keys that correspond to

the priority values. The student can reset the exer-

cise by pressing the Reset button at any time. As a

result, the exercise is reinitialized with new random

keys. When attempting to solve the exercise, the stu-

dent can review the answer step by step using the An-

imator panel. Moreover, the student can Submit the

answer for immediate assessment and feedback. The

feedback reports the number of correct steps out of

the total number of steps in the exercise. This kind

of automatic assessment is possible due to the fact

that the student is manipulating real data structures

through the GUI. Thus, it is possible to implement

the same algorithm the student is simulating, and exe-

cute it so that the algorithm manipulates the same data

structures with same data, but different instances, as

the student. Therefore, the assessment is based on

the comparison of the two instances of the same data

structures with each other.

An exercisecan be submitted an unlimited number

of times. However, a solution for a single instance of

an exercise with certain input data can be submitted

only once. In order to resubmit a solution to the ex-

ercise, the student has to reset the exercise and start

over with new randomized input data. A student can

also review a Model answer for each attempt. It is

represented in a separate window as an algorithm an-

imation accompanied with a pseudo code animation

so that the execution of the algorithm is visualized

step by step. The states of the model solution can

be browsed back and forth using a similar animator

panel as in the exercise. For obvious reasons — af-

ter opening the model solution — the student cannot

submit a solution until the exercise has been reset and

resolved with new random data.

2.3 Our Previous Studies on the Same

Topic

The study reported in this paper belongs to a series of

studies that have been run since autumn 2006 (Laakso

et al., 2009; Myller et al., 2007). This is actually

a follow-up video analysis of an experiment that we

carried out in spring 2007 (Laakso et al., 2009). The

objective of the experiment was to compare the learn-

ing outcomes of students who collaboratively used al-

gorithm visualizations on two different EET levels,

namely controlled viewing and changing. The results

in sections 2.3.1 and 2.3.2 have already been reported

and explained in more detail elsewhere (Laakso et al.,

2009) but are given here in order to allow the discus-

sion of them in relation to the ﬁndings that are re-

ported in this paper in section 4. In the sections 2.3.1

and 2.3.2, the analysis was done for all the partic-

HOW DOES ALGORITHM VISUALIZATION AFFECT COLLABORATION? - Video Analysis of Engagement and

Discussions

481

Figure 1: TRAKLA2 algoritm simulation exercise is on the left and corresponding model answer animation on the right.

ipants or groups of the same experiment that is re-

ported in this paper. See section 3 for further descrip-

tion of the study design.

2.3.1 Learning Results

The pre- and post-test results for both conditions are

given in Table 1. Based on the two-tailed t-test, the

differences in the pre-test scores between conditions

were not statistically signiﬁcant meaning that the stu-

dents’ preliminary knowledge on the topic was sim-

ilar. The differences in the post-test scores between

conditions, both individual and group averages, were

statistically signiﬁcant based on the one-tailed t-test

(t(69) = −1.73, p < 0.05 and t(31) = −1.97, p <

0.05, respectively). We used the one-tailed t-test to

analyze the post-test scores because of our hypothe-

sis that the treatment group was expected to perform

better. This hypothesis was formed based on the En-

gagement Taxonomy (Naps et al., 2002) and the pre-

vious results in similar studies performed by others

(Grissom et al., 2003; Hundhausen and Brown, 2008;

Naps and Grissom, 2002) and us (Myller et al., 2007).

Table 1: The pre- and post-test results between conditions

(standard deviations are given in parentheses) (n = 71).

Pre-test Post-test Post-test

individual avg group avg

Control 8.9 (6.1) 30.5 (6.5) 30.4 (4.6)

Treatment 9.3 (5.7) 33.3 (6.7) 33.5 (4.3)

2.3.2 Time Allocation between Engagement

Levels

Table 2 presents the distribution of the average times

spent on each EET level. This was measured by

watching the videos and marking times when the EET

level changed from one to another, and then summing

up the times on each EET level. Based on this anal-

ysis, we made the ﬁnal classiﬁcation of groups into

different conditions, because although some students

were originally assigned to treatment condition, in

which they were supposed to work on changing level,

they never did, and therefore belonged to the control

condition. This also shows that the amount of time

that students spent on reading or looking at static im-

ages is almost the same in both groups and only the

looking at the animations, which they could control,

and the algorithm simulation exercises were used dif-

ferently. In the control condition, the animations were

the only active form of engagement whereas in treat-

ment condition they also had the option of solving al-

gorithm simulation exercises. The latter was more im-

portant due to the fact that this group used animations

almost only for ﬁguring out how they should simulate

the algorithm.

Table 2: The distribution of time between EET levels (stan-

dard deviations are given in parentheses) (n = 35).

Control Treatment

No viewing 48.1% (15.8) 43.2% (19.2)

Viewing 38.3% (15.8) 38.1% (13.1)

Controlled viewing 13.8% (6.0) 5.1% (6.0)

Changing 0.0% (0.0) 12.6% (2.0)

Table 3: The number of times each EET level is entered

(standard deviations are given in parentheses) (n = 35).

Control Treatment

No viewing 6.9 (2.1) 6.2 (1.7)

Viewing 7.7 (3.4) 6.7 (3.2)

Controlled viewing 5.2 (2.8) 2.4 (2.6)

Changing 0.0 (0.0) 4.1 (1.6)

Table 3 shows how many times students used ma-

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

482

terials on each EET level. For example, students

in the control group used user-controlled animations

(controlled viewing) 5 times on average, whereas stu-

dents in the treatment group used them 2 or 3 times on

average. This also shows the shift from the use of an-

imations to the algorithm simulations in the treatment

condition.

3 METHODOLOGY

This is a follow-up analysis for the quantitative study

(Laakso et al., 2009), in which we showed that the use

of higher engagement levels has an positive effect on

the students’ learning outcomes. Thus, the descrip-

tion of the experiment in this section is in many ways

similar to the previous report. However, as we ana-

lyze the learning process — not its outcomes — the

methodology is naturally different.

The objective in this study is to compare the learn-

ing processes of students who collaboratively used al-

gorithm visualizations on two different EET levels,

namely controlled viewing and changing. This is an

observational study based on screen capture and audio

recording analysis of students’ interactions during the

experiment. Students’ activities were recorded utiliz-

ing a screen capturing software. The recordings were

accompanied by an audio track and thus, contained

on-screen activities, i.e., mouse movements, keyboard

typings, scrolling of the tutorial page back and forth

in the browser window, as well as the conversation

between the pair members.

3.1 Participants

Students were mainly ﬁrst year students, however,

some students from other years were also on the

course. All students had previously been using

TRAKLA2 during the course to complete three as-

signment rounds related to basic data structures (e.g.

lists, stacks and queues) and algorithm analysis, sort-

ing and binary tree traversing. Thus, all students

should have known how to use TRAKLA2, been fa-

miliar with its visualizations and all its features that

were needed to complete the assignments.

Students were randomized to the computer lab

sessions and sessions were randomly assigned to each

condition with the limitation that parallel sessions be-

longed to different EET levels. The total number of

participating students was 92. However, not all of

them allowed to monitor their performance, nor were

they willing to do group work. In addition, in some

of the workstations, the Java applet was not work-

ing properly and there were problems in data cap-

ture. Thus, the total number of participants (students)

was 71, divided into 7 groups (sessions). The original

number of lab sessions was 8, but the last one (that

would have been a control group) was excluded be-

cause it was an English speaking group, and the ma-

terials were mostly in Finnish.

The study was performed at the computer lab ses-

sions that lasted for 2 hours, and they were run on two

days in two consecutive weeks. Each day, there were

two times two sessions with different conditions (con-

trol and treatment) running simultaneously. There

were 10 to 15 participants in each session in both con-

ditions. The external conditions, such as noise level,

were similar in all sessions and based on the video and

audio analysis it did not affect the learning process.

3.2 Procedure

In the beginning of the session, students took the in-

dividual pre-test, in which they answered questions

related to binary heaps in 15 minutes. There were 9

simple questions about binary heaps, which could be

answered with a few words, and one question asked

students to draw a binary heap’s tree representation.

After this, they freely formed pairs with their peers

and gave their consent to participate in the experiment

and to be monitored during the experiment. If there

was an odd number of students, one group consisted

of 3 students. Each pair was allocated to a single com-

puter.

After the pre-test, students had 45 minutes to go

through the learning materials of their condition. The

collaboration was monitored by recording their talk-

ing and capturing their activities on the computer

screens. In addition, in this learning phase student

were given three paper-and-pencil assignments. The

session ended with an individual post-test. The stu-

dents were given 30 minutes to answer the questions

in the post-test. The post-test contained six questions

which were the same as in the pre-test, and in ad-

dition to that, there were seven questions that were

more difﬁcult and comparable to the questions stu-

dents needed to answer during the learning session.

Each question in the pre- and post-tests was ana-

lyzed on a scale from 0 and 4. Zero points meant less

than 25 percent of the answer was correct in the an-

swer, and each point meant a 25 percent increase in

the correctness of the answer.

3.3 Method

In this overt research method, we observed the stu-

dents in their activities, i.e., by watching the record-

ings afterwards (Gall et al., 2006). Participants were

HOW DOES ALGORITHM VISUALIZATION AFFECT COLLABORATION? - Video Analysis of Engagement and

Discussions

483

Computer Science major students on a data structures

and algorithms course at Helsinki University of Tech-

nology. The students worked in pairs, and they were

aware of being observed. We asked a permission to

monitor them in advance.

We utilized TRAKLA2 in order to provide the stu-

dents with algorithm simulation exercises that act on

the EET level changing (i.e, treatment group). How-

ever, the students did not have the option to reset the

exercise in order to obtain a new similar exercise with

new input data, but they had to work with a ﬁxed input

data for each exercise for the whole session. The an-

imations that the students used on controlled viewing

level (i.e., control group) were similar to the model

answers provided by the TRAKLA2 system.

There was a total of 35 videos (about 45 minutes

each), and we included three videos from both con-

ditions into this analysis, in total six videos. From

each video, we randomly selected a clip about 20 min-

utes long that contained activities on all applicable en-

gagement levels. The videos were analyzed in ﬁve

second time slots that were classiﬁed according to the

following four factors.

The ﬁrst factor classiﬁed the engagement level ac-

cording to the extended engagement taxonomy: no

viewing (e.g., reading phase), viewing (e.g., watching

ﬁgures), controlled viewing (e.g., watching anima-

tions or model solutions step-by-step with user in con-

trol), and changing (i.e., solving an algorithm simula-

tion exercise). However, if the students were solving

the paper-and-pencil exercises, these episodes were

classiﬁed into a separate class that was not used in the

analysis. The second factor categorized each time slot

based on audio analysis and determined whether the

pair was having a conversation (or if they were silent).

The third aspect speciﬁed the content of the conversa-

tion according to the following six categories: algo-

rithm and data structure (DS) behavior (e.g., students

discuss the features of binary heap), the tool and its

features (e.g., students discuss how to use the tool),

exercise (e.g., students discuss how to solve the ex-

ercise), referring to the learning materials (e.g., stu-

dents are reading parts of the learning material out

loud and then discussing that part of the materials),

on-topic (i.e., students are discussing something that

is related to the learning but does not belong to any

other category) and off-topic (i.e., student are dis-

cussing something that does not relate to the learning

process in any way).

Three different persons classiﬁed randomly se-

lected videos with the restriction that each person an-

alyzed at least one video from the control group and

one from the treatment group.

4 RESULTS

In this section, we present the results of our study in

which we analyzed the students’ behavior during their

learning process. Six groups were randomly selected

(three groups from both conditions) from a total of 35

groups. We analyzed a 20-minute-long clip of screen

capturing video and audio for each group in order to

collect the amount of discussions, their contents, and

the EET-level at each moment in order to understand

the differences in the amount of discussions and their

contents between the engagement levels.

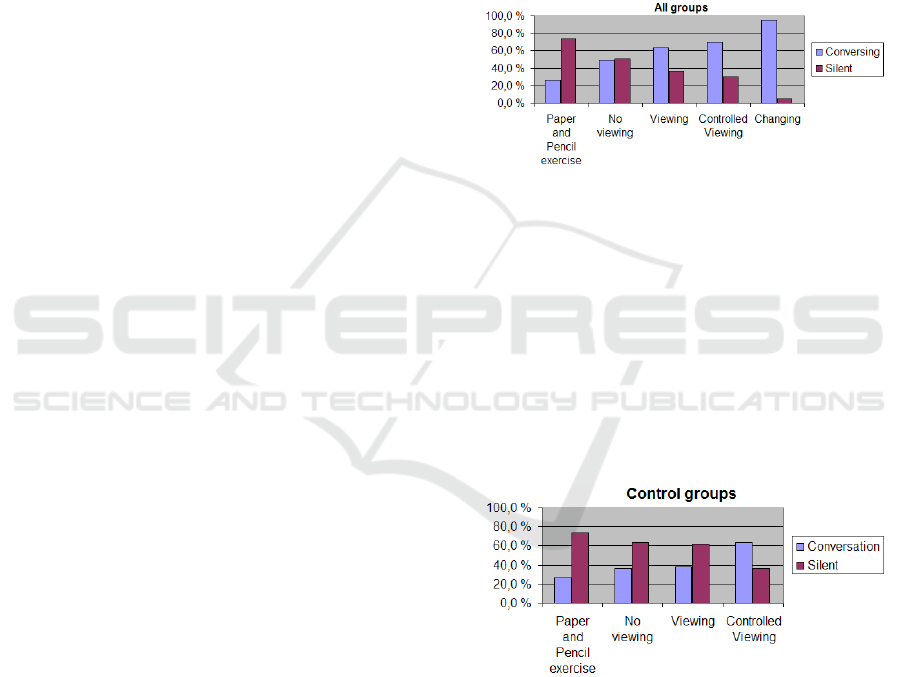

Figure 2: Distribution of activities in all groups on all EET-

levels.

Figures 2, 3 and 4 show the distributions between

the percentages of time that the students were con-

versing and silent. Based on the ﬁgures, one can

see that the amount of conversation increases when

the engagement level increases. This was also con-

ﬁrmed by using the χ

-test on counts (all: χ

(4) =

330.5, p < .001, control: χ

(4) = 84.1, p < .001,

treatment: χ

(4) = 134.4, p < .001), which showed

that the engagement level has an effect on the amount

of discussion, overall and in each condition.

Figure 3: Distribution of activities for control groups on all

EET-levels.

Pairwise comparison of the distributions on each

EET level between conditions (see Figure 5) with the

-test on counts showed that the distributions were

different on levels no viewing (χ

(1) = 9.2, p < .001),

viewing (χ

(1) = 24.4, p < .001) and controlled view-

ing (χ

(1) = 21.4, p < .001), but not when students

were doing a paper and pencil exercise. The test could

not be performed on the changing level as it was only

available to treatment condition.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

484

Table 4: Discussion content for all groups on all EET-levels.

Alg. & DS Code Exercise Referring to Tool Coordination On Off

behavior reading learning mat. topic topic

Paper and pencil 65.2% 0.9% 11.3% 0.0% 0.0% 15.7% 1.7% 5.2%

exercise

No viewing 39.2% 14.9% 5.4% 14.2% 4.1% 6.8% 10.1% 5.4%

Viewing 32.8% 24.8% 5.1% 4.4% 2.2% 7.3% 16.8% 6.6%

Controlled 68.7% 19.4% 0.9% 3.3% 1.9% 3.8% 0.0% 1.9%

viewing

Changing 65.0% 0.0% 7.8% 0.0% 13.8% 1.8% 9.7% 1.8%

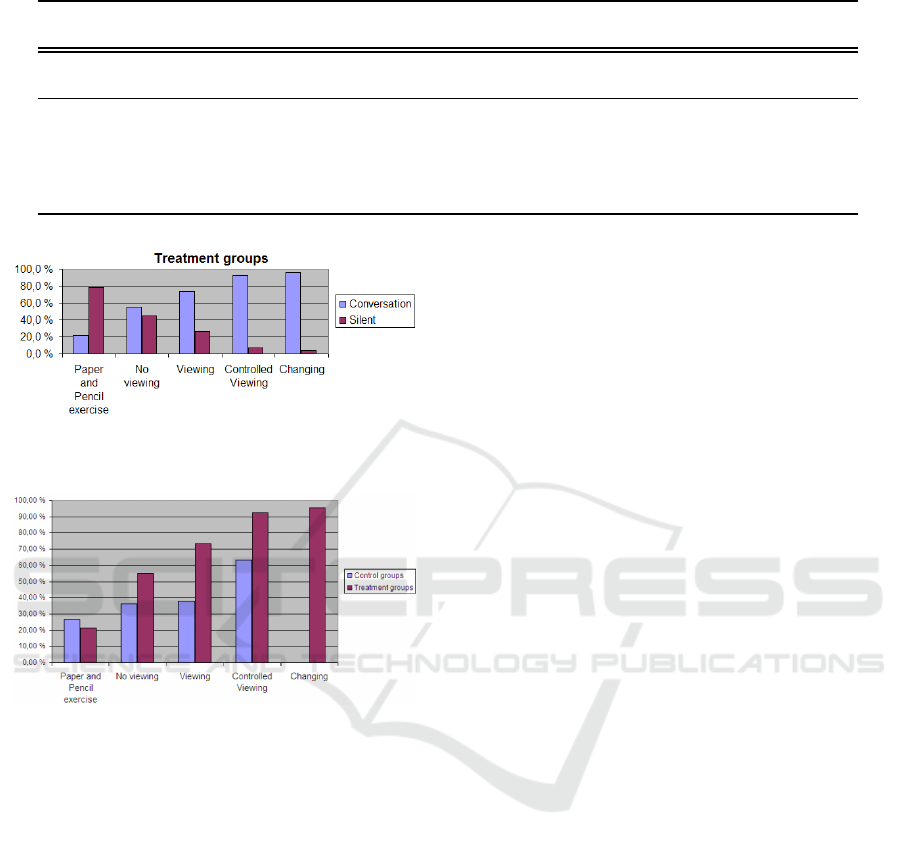

Figure 4: Distribution of activities for treatment groups on

all EET-levels.

Figure 5: The percentages of time that students were dis-

cussing on each EET-level. The rest of the time students

were silent. The control group does not have a value for the

changing level, because it was unavailable for them.

Tables 4 and 5 showthe distributions of the discus-

sion contents on each engagement level and in each

condition. When looking at the overall distribution,

one can observe that the distributions of the discus-

sion contents are similar on the controlled viewing

and changing levels and when students are doing the

paper and pencil exercises. Similarly, the distribu-

tions of no viewing and viewing seem more alike.

However, when the distributions between the con-

ditions are compared, it can be seen that the no view-

ing, viewing and controlled viewing levels induce dif-

ferent kinds of discussions between the conditions.

In control condition, the discussions are more re-

lated to the algorithm and data structure (DS) be-

havior, whereas in treatment condition larger propor-

tions of the discussions on these levels are related to

the pseudo code reading. In treatment condition, the

changing level seems to be similar to the controlled

viewing level and the paper and pencil exercise doing.

5 DISCUSSION

In this study, we have investigated the collaboration

process when students were learning with visualiza-

tion on different engagement levels. We can con-

clude that higher engagement with the visualization

has a positive effect on students interaction with each

other. Moreover, it seems that when students work on

a larger number of engagement levels, their collabo-

ration and communication is further improved.

Our results support the ﬁndings of (Hundhausen

and Brown, 2008; Hundhausen, 2002), i.e., the higher

engagementlevel between the visualization and learn-

ers increases the peer-to-peer (or student-student by

(Moore, 1989)) communication. Students are more

actively involved as the engagement level increases.

Based on the results, we can say that if students work

on higher engagement levels, their activities also pos-

itively change on lower levels. This phenomenon can

be easily observed when we investigate the changes

in the amount of discussion in the Figures 3 and 4

on controlled viewing and viewing between control

and treatment groups. When students were working

on changing level in the treatment group, the amount

of silence dramatically decreased as the engagement

level increased. At the two highest levels, the silence

is practically absent. In control condition, the amount

of silence decreases, but the change is smaller. For

example, there is over 30% of the time when stu-

dents are silent on controlled viewing level in con-

trol group while the time of being silent is well below

10% for the treatment group. The same difference is

much more drastic in the viewing-level between the

groups. Our understanding is that this is due to the

fact that while students are solving a paper-and-pencil

or TRAKLA2 algorithm simulation exercise, they re-

alize that they cannot solve it. Therefore, they need to

go back to the learning materials or the correspond-

HOW DOES ALGORITHM VISUALIZATION AFFECT COLLABORATION? - Video Analysis of Engagement and

Discussions

485

Table 5: Discussion content for control and treatment groups on all EET-levels.

Alg. & DS Code Exercise Referring to Tool Coordination On Off

behavior reading learning mat. topic topic

CONTROL

Paper and pencil 67.0% 0.9% 11.6% 0.0% 0.0% 13.4% 1.8% 5.4%

exercise

No viewing 25.7% 0.0% 11.4% 25.7% 14.3% 14.3% 2.9% 5.7%

Viewing 54.2% 0.0% 12.5% 4.2% 0.0% 8.3% 8.3% 12.5%

Controlled 79.7% 7.4% 0.7% 4.7% 0.7% 4.1% 0.0% 2.7%

viewing

TREATMENT

Paper and pencil 0.0% 0.0% 0.0% 0.0% 0.0% 100.0% 0.0% 0.0%

exercise

No viewing 43.4% 19.5% 3.5% 5.3% 0.9% 4.4% 12.4% 5.3%

Viewing 28.3% 30.1% 3.5% 5.3% 2.7% 7.1% 18.6% 5.3%

Controlled 42.9% 47.6% 1.6% 0.0% 4.8% 3.2% 0.0% 0.0%

viewing

Changing 65.0% 0.0% 7.8% 1.8% 13.8% 1.8% 9.7% 1.8%

ing animation in order to understand, how to solve

the exercise. The reason that this is happening more

in the treatment condition is the instant feedback that

TRAKLA2 provides on each simulation, which helps

students to understand when their mental models of

the algorithms and data structures are not viable and

they need to revise them. This example also indicates

that the visiting of the engagement levels does not

happen in any particular order, but can happen ran-

domly.

(Teasley, 1997) has found that talking is correlated

with better learning results. This, at least partially,

explains why students learned better in the treatment

condition compared to the control condition. The

visualization helped them to discuss relevant topics

in order to learn them. Because the topic that the

participants were studying was unfamiliar to most of

the participants, the conversations in the group aided

students to better cope with the questions and prob-

lems that arose during the learning process. There-

fore, we believe that pair-support is one of the key

factors in enhancing students’ learning, and it should

be taken into account when designing and developing

next generation learning tools and methods. Teasley

has also found that transactive reasoning (Berkowitz

and Gibbs, 1983) is strongly correlated with learning

results, and in the future studies, we will also ana-

lyze the amount of transactive reasoning in the dis-

cussions.

In addition to the amount of discussion, we an-

alyzed the discussion contents. Based on the analy-

sis, we found that the students’ discussions were re-

lated to the learned topic, otherwise there were no

large differences. The only noticeable difference was

the absence of code reading on the changing level.

When we compared the distributions between condi-

tions, there were more noticeable difference. In the

treatment condition, the discussions related to the al-

gorithm and data structure behavior and code read-

ing were more balanced on levels no viewing, viewing

and controlled viewing compared to the control con-

dition, where students concentrated on the algorithm

and data structure behavior and had very little discus-

sion on the code. One could argue that the discus-

sions on various levels of abstraction increased the

students’ understanding of the topic, and therefore,

this could also be an explanation why students per-

formed better in the post-test in the treatment condi-

tion.

6 CONCLUSIONS

Many studies related to the use of algorithm visualiza-

tions (AV) in teaching and learning have focused on

the learning outcomes. On the one hand, (Extended)

Engagement Taxonomy (EET) has been suggested to

answer the question, if an AV system is effective in

this respect or not. On the other hand, collaborative

learning (CL) has proven to be an efﬁcient teaching

and learning method. However, very little is known

about the interconnection between EET and CL.

We have investigated the use of AV in CL in many

repeated studies. Our previous studies have conﬁrmed

that the engagementlevels havea role to play in learn-

ing outcomes. The pairs of students that used AV

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

486

on higher engagement levels performed better in the

post-test than those pairs learning on lower engage-

ment levels. The research in this paper has revealed

that the amount of discussion in collaboration is also

different between engagement levels, and increases as

the engagement level increases.

Based on this study, EET not only predicts the in-

crease in learning performance when student groups

learn with visualization on higher engagement level,

but also explains it by enabling students to have more

discussions on topics that are relevant for learning.

Thus, engagement goes hand in hand with collabora-

tion so that the engagement taxonomy level has an in-

ﬂuence over the collaborativelearning process as well

as the learning outcomes.

6.1 Future Directions

(Teasley, 1997) has found that transactive reasoning

(Berkowitz and Gibbs, 1983) (TR) is strongly corre-

lated with learning results. Transactive reasoning is

discussion about one’s own or collaboration partner’s

reasoning and logical thinking. TRAKLA2 exercises

have interesting interconnections with the character-

izations of TR categories. For example, Teasley de-

scribes prediction type TR as “explaining ..., stating

a hypothesis about causal effects ... .” Moreover, the

feedback request category can be characterized with a

question: “Do you understand or agree with my posi-

tion?”

Even though these do not correspond directly to

TRAKLA2 exercises, the same elements are present

in the exercise solving process. The student is sup-

posed to predict each step in the algorithm simulation;

and s/he receives instant feedback from the exercise.

Thus, this kind of framework could function as a fu-

ture testbed to explain good learning results that also

individual learners get in the TRAKLA2 environment

or in any other environment.

ACKNOWLEDGEMENTS

This work was supported by the Academy of Finland

under grant numbers 111396. Any opinions, ﬁnd-

ings, and conclusions or recommendations expressed

in this material are those of the authors and do not

necessarily reﬂect the views of the Academy of Fin-

land.

REFERENCES

Beck, L. L. and Chizhik, A. W. (2008). An experimental

study of cooperative learning in CS1. In SIGCSE ’08:

Proceedings of the 39th SIGCSE technical symposium

on Computer science education, pages 205–209, New

York, NY, USA. ACM.

Ben-Bassat Levy, R., Ben-Ari, M., and Uronen, P. A.

(2003). The Jeliot 2000 program animation system.

Computers & Education, 40(1):15–21.

Berkowitz, M. W. and Gibbs, J. C. (1983). Measuring the

development of features in moral discussion. Merill-

Palmer Quarterly, 29:399–410.

Evans, C. and Gibbons, N. J. (2007). The interactivity ef-

fect in multimedia learning. Computers & Education,

49(4):1147–1160.

Gall, M. D., Gall, J. P., and Borg, W. R. (2006). Educa-

tional Research: An Introduction (8th Edition). Allyn

& Bacon.

Garrison, D. R. (1993). A cognitive constructivist view of

distance education: An analysis of teaching-learning

assumptions. Distance Education, 14:199–211.

Grissom, S., McNally, M., and Naps, T. L. (2003). Algo-

rithm visualization in CS education: Comparing levels

of student engagement. In Proceedings of the First

ACM Symposium on Software Visualization, pages

87–94. ACM Press.

Hundhausen, C. D. (2002). Integrating algorithm visual-

ization technology into an undergraduate algorithms

course: Ethnographic studies of a social constructivist

approach. Computers & Education, 39(3):237–260.

Hundhausen, C. D. (2005). Using end-user visualization

environments to mediate conversations: A ‘Commu-

nicative Dimensions’ framework. Journal of Visual

Languages and Computing, 16(3):153–185.

Hundhausen, C. D. and Brown, J. L. (2008). Designing,

visualizing, and discussing algorithms within a CS 1

studio experience: An empirical study. Computers &

Education, 50(1):301–326.

Hundhausen, C. D., Douglas, S. A., and Stasko, J. T.

(2002). A meta-study of algorithm visualization ef-

fectiveness. Journal of Visual Languages and Com-

puting, 13(3):259–290.

Korhonen, A., Malmi, L., and Silvasti, P. (2003).

TRAKLA2: a framework for automatically assessed

visual algorithm simulation exercises. In Proceedings

of KolinKolistelut / Koli Calling – Third Annual Baltic

Conference on Computer Science Education, pages

48–56, Joensuu, Finland.

Laakso, M.-J., Myller, N., and Korhonen, A. (2009). Com-

paring learning performance of students using algo-

rithm visualizations collaboratively on different en-

gagement levels. Accepted to the Journal of Educa-

tional Technology & Society.

Malmi, L., Karavirta, V., Korhonen, A., Nikander, J.,

Sepp¨al¨a, O., and Silvasti, P. (2004). Visual algo-

rithm simulation exercise system with automatic as-

sessment: TRAKLA2. Informatics in Education,

3(2):267 – 288.

HOW DOES ALGORITHM VISUALIZATION AFFECT COLLABORATION? - Video Analysis of Engagement and

Discussions

487

McMahon, M. (1997). Social constructivism and the world

wide web – a paradigm for learning. In Proceedings

of the ASCILITE conference, Perth, Australia.

Moore, M. G. (1989). Editorial: Three types of interac-

tion. The American Journal of Distance Education,

page 16.

Myller, N., Bednarik, R., Ben-Ari, M., and Sutinen, E.

(2008). Applying the Extended Engagement Taxon-

omy to Collaborative Software Visualization. Ac-

cepted to the ACM Transactions on Computing Ed-

ucation.

Myller, N., Laakso, M., and Korhonen, A. (2007). Analyz-

ing engagement taxonomy in collaborative algorithm

visualization. In Hughes, J., Peiris, D. R., and Ty-

mann, P. T., editors, ITiCSE ’07: Proceedings of the

12th Annual SIGCSE Conference on Innovation and

Technology in Computer Science Education, pages

251–255, New York, NY, USA. ACM Press.

Naps, T. L. and Grissom, S. (2002). The effective use of

quicksort visualizations in the classroom. Journal of

Computing Sciences in Colleges, 18(1):88–96.

Naps, T. L., R¨oßling, G., Almstrum, V., Dann, W., Fleis-

cher, R., Hundhausen, C., Korhonen, A., Malmi, L.,

McNally, M., Rodger, S., and Vel´azquez-Iturbide,

A. (2002). Exploring the role of visualization and

engagement in computer science education. In Work-

ing Group Reports from ITiCSE on Innovation and

Technology in Computer Science Education, pages

131–152, New York, NY, USA. ACM Press.

Palincsar, A. S. (1998). Social constructivist perspectives on

teaching and learning. Annual Review of Psychology,

49:345–375.

Piaget, J. (1977). The Development of Thought: Equilibra-

tion of Cognitive Structures. Viking, New York.

Suthers, D. D. and Hundhausen, C. D. (2003). An exper-

imental study of the effects of representational guid-

ance on collaborative learning processes. Journal of

the Learning Sciences, 12(2):183–219.

Teague, D. and Roe, P. (2008). Collaborative learning: to-

wards a solution for novice programmers. In ACE

’08: Proceedings of the tenth conference on Aus-

tralasian computing education, pages 147–153, Dar-

linghurst, Australia, Australia. Australian Computer

Society, Inc.

Teasley, S. (1997). Talking about reasoning: How important

is the peer in peer collaboration. In Resnick, L., S¨alj¨o,

R., Pontecorvo, C., and Burge, B., editors, Discourse,

Tools and Reasoning: Essays on Situated Cognition,

pages 361–384. Springer, New York.

Valdivia, R. and Nussbaum, M. (2007). Face-to-face col-

laborative learning in computer science classes. Inter-

national Journal of Engineering Education, 23:434–

440(7).

Vygotsky, L. S. (1978). In Cole, M., John-Steiner, V., Scrib-

ner, S., and Souberman, E., editors, Mind in Society.

Harvard University Press, Cambridge, Mass.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

488
