INCREMENTAL END-USER QUERY CONSTRUCTION FOR

THE SEMANTIC DESKTOP

Ricardo Kawase, Enrico Minack, Wolfgang Nejdl

L3S Research Center, Leibniz Universität Hannover, Appelstrasse 9a, 30167 Hannover, Germany

Samur Araújo, Daniel Schwabe

Departamento de Informática, Catholic University of Rio de Janeiro

Rua M. de S. Vicente, 222 Rio de Janeiro RJ 224530-900, Brazil

Keywords: Semantic Desktop, User interface, Visual query system, Graphical query language, Ontology, RDF,

SPARQL, Personal information management.

Abstract: This paper describes the design and implementation of a user interface that allows end-users to

incrementally construct a query over the information in the Personal Information Management (PIM)

domain. It allows semantically enriched keyword queries, implemented in the Semantic Desktop of the

NEPOMUK Project. The Semantic Desktop user is able to explicitly articulate machine-processable

knowledge, as described by its metadata. Therefore, searching this semantic information space can also

benefit from the knowledge articulation within the query. Contrary to keyword queries, where it is not

possible to provide semantic information, structured query languages as SPARQL enable exploiting this

knowledge explicitly.

1 INTRODUCTION

Whereas traditional folder-based storage and

navigation-based retrieval used to be sufficient for

our personal information management needs, the

sheer number of items on our Desktop calls for the

integration of Desktop search in its interfaces. The

paradigm of Desktop search is similar to Web

search, but shows some interesting differences:

 We typically search for items that we have

created, received or stored earlier – which

means that we try to re-locate (re-find) rather

than to find (discover) something new.

 We typically have a (most likely incomplete)

picture of how the data on our Desktop is

organized (which means that navigation might

be more apt than keyword search).

From Teevan et al. (Teevan, 2004) we know that

users use a combination of search and navigation to

relocate information on the Web. For personal

information management this is likely to be the

same, provided that the appropriate tools are

available.

To allow the personal information management

in the Desktop we first need to introduce an

ontology language that can be used to express

personal mental models – the personal information

model ontology (PIMO)

. The use of such an

ontology gives the user a better understanding of her

Desktop and her tasks, and a way to express her

knowledge about the information items. By adding

explicit, processable meta-data to the information

items in the Desktop, it becomes a “Semantic

Desktop”, a concept we will elaborate later.

As it has been identified in previous works

(Teevan, 2004) (Bates, 1989) (Belkin, 1993) a

progressive modelling search activity can provide

better results than a single, static search. Yet, strong

methods and interaction mechanisms are still

missing for searching the Desktop.

In this paper we fill this gap by presenting a

methodologically designed interface for the

http://www.semanticdesktop.org/ontologies/2007/11/01/pimo/

270

Kawase R., Minack E., Nejdl W., AraÃžjo S. and Schwabe D.

INCREMENTAL END-USER QUERY CONSTRUCTION FOR THE SEMANTIC DESKTOP.

DOI: 10.5220/0001825902700275

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

(Semantic) Desktop search that combines and

exploits current interaction mechanisms. It benefits

from what the user knows (the vocabulary and the

mental model), respects what the user does not know

(the data structure and query languages), to finally

give her what she wants.

In the remaining of this paper we discuss in more

details searching activities in the Semantic Desktop

and our proposed work in Section 2. In Section 3 we

describe our implementation and the architecture.

Finally, in Section 4 we draw our conclusions and

the sketch future work.

2 SEARCHING THE

SEMANTIC DESKTOP

In (Sauermann, 2005), the authors argued, that the

typical user uses the (information on the) Desktop to

complete a certain task. For this, documents that are

relevant to the user’s current task are retrieved,

processed and stored. Such documents contain

relevant information that is processed by the user,

allowing the user to generate knowledge. This

knowledge is implicitly stored in the documents.

Making this implicit knowledge explicitly

expressible and machine-processable, is one of the

goals of the Semantic Desktop. Allowing the user to

exploit knowledge for retrieval at the Semantic

Desktop, as implemented in the NEPOMUK

project, is the goal of our proposed user interface.

The definition given by Sauermann et al.

(Sauermann, 2005) depicts, that the Semantic

Desktop paradigm brings the ideas of the Semantic

Web paradigm to the user’s personal Desktop where

the conceptualization of the personal mental model

is described in formal ontologies. The standard data

format for a common representation is RDF

(Resource Description Format). Finally, the different

Desktop applications are integrated using the same

concept of the Semantic Web, for exchanging data

and accessing resources.

The NEPOMUK project integrates research,

industrial and open source community efforts to

develop a new technical and methodological

platform: the Social Semantic Desktop. This is an

extension of the personal Desktop that aims at

collaboration and personal information management.

The NEPOMUK framework PSEW

(P2P

Semantic Eclipse Workbench) is an integrated

http://nepomuk.semanticdesktop.org/

http://nepomuk-eclipse.semanticdesktop.org/xwiki/bin/view/

Main/PSEW

environment that is based on the NEPOMUK

architecture. Since NEPOMUK still requires some

semantic knowledge from the user, user-friendly

interfaces are a crucial milestone to achieve the goal

of bringing the Semantic Desktop to the common

user. Walking in a two way path, first we aim at

designing interfaces that solve the user’s needs on

the Semantic Desktop, and on the other direction, we

design interfaces to show the user the potential of

the Semantic Desktop and still hide its complexity.

In both cases, first we take a look at the way people

think and express their mental models, so that we

understand how the Semantic Desktop can support

this (Sauermann, 2005).

As we mentioned before, we use the Personal

Information Model Ontology (PIMO) to describe

and work within the PIM in the Semantic Desktop.

The PIMO forms the basis for all custom, user-

created types and relations. It defines basic types

such as Document, a Person, a Location, etc. and

relations such as creator, hasLocation, etc. and is

intended to be extended by the user in any way he or

she likes. Note that we use the terms “type” and

“relation” throughout the paper as user-friendly

terms for RDF Class and RDF Property. We also use

these less technology-based terms consistently in our

user interface and the implementation.

The user can extend the PIMO ontology and use

it to articulate arbitrary knowledge in an explicit

way. For the task of re-finding information on the

Semantic Desktop, NEPOMUK provides two

different mechanisms. First, a type and instance

browser that is analogous to most operating system

file browsers where users type hierarchy and the

instances of each type. Alternatively, there’s a full-

text keyword search that analyses the extracted

metadata from the instances returning a relevance

sorted list classified using complex ranking

algorithms.

It happens that in both cases the potential

combination of user knowledge and system

functionality is not fully merged. The browser does

not allow the user to input her knowledge about the

instances and its relations. Conversely, the keyword

search does not permit the user to use her knowledge

of her PIMO.

Consider the case when the user is looking for an

email (or a presentation document) that was sent (or

created) by a certain person, containing a certain

information (e.g., a telephone number or a quote). In

a pure keyword-based interface, the user should

input a query such as “email sent by person

telephone number”. However, this is very unlikely,

since most purely keyword-based interfaces assume

INCREMENTAL END-USER QUERY CONSTRUCTION FOR THE SEMANTIC DESKTOP

271

the search will be made exclusively in the contents,

and it would not be expected to understand the

semantics of “sent by”, or the type of item (email).

Being able to leverage such semantic information

greatly reduces the search space, since, for instance,

only a small fraction of items in the Desktop would

have a relation “sent by”.

A similar argument can be made when the query

must span several items, e.g., “email sent by the

author of a given presentation”. In such cases,

keyword-based searches would, at best, retrieve

partial answers, that must be combined by the user

by filling in the semantic information that allows the

binding between the partial answers returned.

The user would now need to know the exact

semantic terms that are used in her semantic

repository. Recommendations help to reduce the

burden to find them, by presenting only sensible

choices of types and relations for selection.

Keyword filters further provide quick access in case

parts of the semantic terms are known.

From these observations, we developed a

modular incremental end-user query construction

interface that enables the users to build coherent

semantic queries. Our interface does not cover all

possible queries expressible in a query language

such as SPARQL

(Prud'hommeaux, 2008).

However, we are confident that our user interface

allows for the construction of most of the usual

structured user queries. This can be justified by

looking at the features of the SPARQL query

language, see Section 12 of (Prud'hommeaux, 2008).

Hence, while it is not the ultimate user interface

for RDF querying, it is still a clear step ahead from

the traditional textual queries demonstrating the

benefits of knowledge-enriched queries.

2.1 Incremental Query

Our task in the development of this tool was to

provide to NEPOMUK users a mechanism for re-

finding information where the user could also reuse

her knowledge about the instances, their types and

relations. To achieve this goal we developed a

modular incremental end-user query construction

interface based on the query-by-example paradigm

(Zloof, 1977).

The crux of this paradigm is to create a query

mechanism analogous to the mental model that the

user has about the representation of data. For the

relational database model, Zloof (Zloof, 1977) used

a two-dimensional table. The query is formulated

filling the blank spaces of the table with examples of

the solution. The results are given based on the

records that match the pattern of this table.

Considering the graph properties of the RDF

model (Pérez, 2006), our solution was based on

allowing the user to create a graph visually and

incrementally, which then is translated to a graph-

matching query language. Analogous to what was

done by Zloof, we are giving to the user a visual

model where she can provides examples of the

reality it wants to get. The incremental feature of our

solution is that each new node added to the graph,

the user is able to view the intermediate result of her

query.

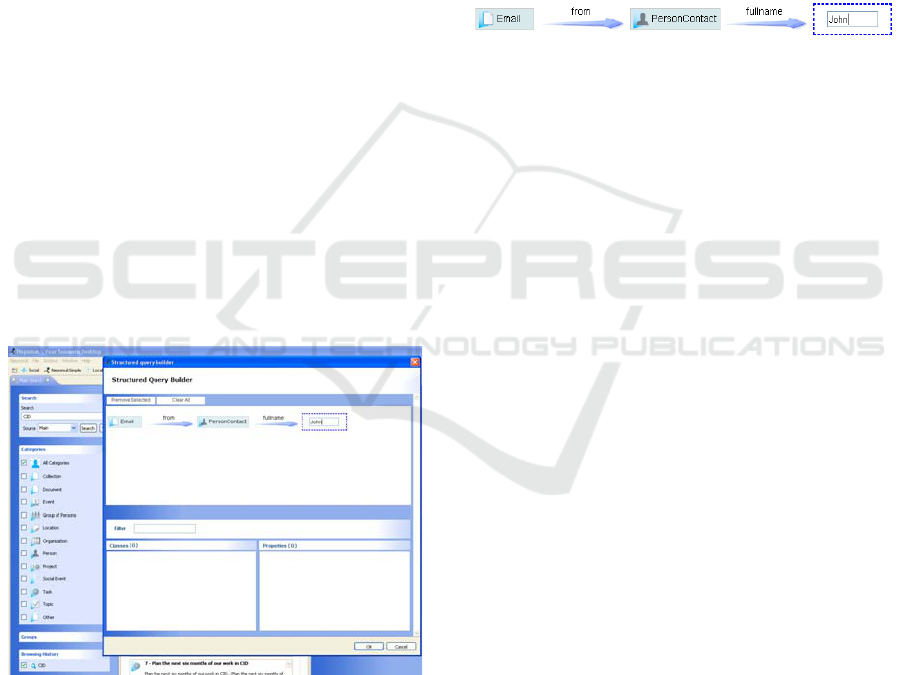

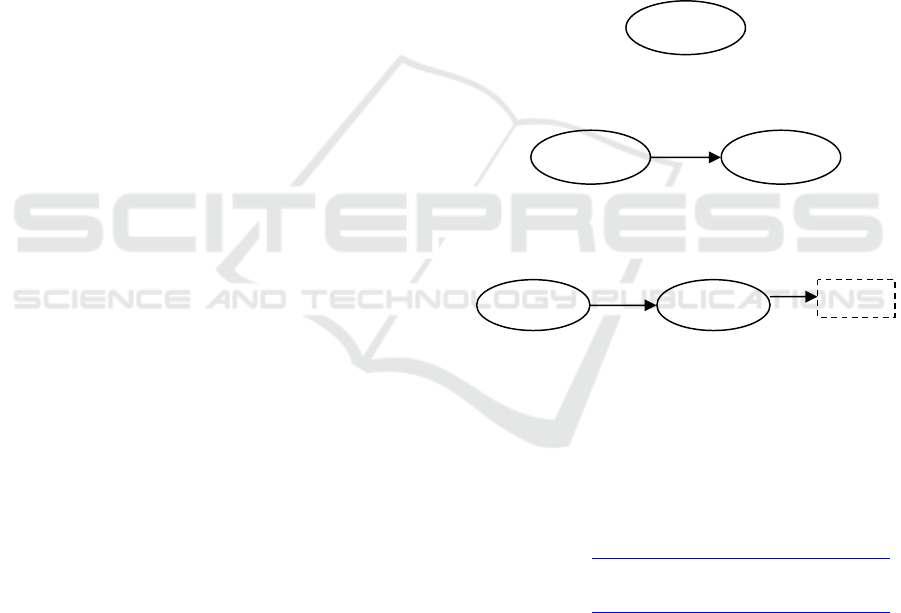

Below is an example of how the user can make a

query using a graph structure. Suppose you want to

get all emails sent by John. This query can be made

in 3 steps:

Figure 1: Retrieve all instances of type Email.

Figure 2: Retrieve all instances of type Email that have

been sent by instances of type Person.

Figure 3: Retrieve all instances of type Email that have

seen sent by instances of type Person whose name is John.

This graph would be translated to SPARQL as:

SELECT ?s WHERE {

?s <http://ontologies.opendfki.de/repos/

ontologies/pim/pimo#from> ?o.

?s <http://www.w3.org/1999/02/22-rdf-synta

x-ns#type> < http://ontologies.opendfki.de/r

epos/ontologies/pim/pimo#Email> .

?o <http://www.w3.org/1999/02/22-rdf-synta

x-ns#type> < http://ontologies.opendfki.de/r

epos/ontologies/pim/pimo#Person> .

?o <http://ontologies.opendfki.de/repos/on

tologies/pim/pimo#name> “John” .

}

As we can see in this translation, creating such a

query in a traditional textual query interface

demands from the users a full comprehension of the

data structure and the query language syntax,

therefore leading to a high cognitive load for less

experienced users.

from

Email Person

fro

Email Person

John

name

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

272

Our tool is able to query all instances of a given

type, possibly restricting instances through their

relations with other instances, which in turn may

also be related to other instances, and so on,

recursively. Since NEPOMUK users only instantiate

PIMO types, this kind of query is enough to allow

them to find them, for example, to find the author of

a presentation mentioned in a given email .

While not being able to build completely

arbitrary queries, the allowed ones enable the user to

leverage her knowledge about the ontology in the

incremental query construction interface. The

system recommends only valid types and relations

for the user, thus constraining her to formulate valid

queries within the domain of the instances. In short,

this system allows the user to:

 apply the knowledge about her PIMO,

 formulate a query visually without recurring to

a textual language,

 formulate a query step-by-step

2.2 Proposed Interface

As discussed before, our system is based on a

complex semantic architecture that establishes an

integrated Semantic Desktop. However, the

functionality of its architecture would be blurred by

the conventional user interface paradigm or by

ordinary developers’ semantic interfaces present on

most of semantic systems so far.

Figure 4: The structured query builder interface in

NEPOMUK.

Our interface is divided into three main

canvases: the construction area, the instances

container and the properties/relations container

(Figure 4).The graphic representation of the

instances and relations is straightforward and similar

to the modelling language. We have a box

representation for the instances containing its name

and an icon (e.g. the “Email” box at the left of

Figure 5). The incoming and outgoing relations are

represented by oriented arrows (e.g. the “from”

arrow in Figure 5). Note that both instances and

properties may be an unlabeled item representing

“any type” and “any relation”.

For the literal values required we use the HTML

text input box. And to structure the query visualiza-

tion we incrementally build a horizontal tree where

the branches are visually grouped by a curly bracket.

This arrangement allows indefinitely number of

relations on the query, moreover, it’s visually clean

and of easy recognition.

Figure 5: The graphic representation of a constructed

query.

For the query construction interactions steps, the

user begins with a node of any type. This node is

select in the construction canvas and the possible

recommendations are listed in their respective

canvas. Optionally, the user can filter out some

items using a dynamic text filter. Once the user

clicks on a type, the selected node is set to be of the

clicked type. Clicking on a relation adds both, the

relation and a new target node or a literal input text

box.

Our first designs focused on the core functionali-

ties of the incremental query construction and the

recommendations algorithms having the features and

usability fulfilling the user needs within the

NEPOMUK project context. In this context we

assume that the user is trying to apply her

knowledge to reduce the number of results and to

raise the precision of her query. The neatness of the

interface, the usability and the clear-cut interactions

are possible due to the underlying recommendation

system discussed in the next session. Moreover, the

interface implementation uses HTML, Javascript

and Cascading Style Sheets (CSS) to style all

components. This simple implementation brings the

benefit of modularity of the interface and easy

design tailoring possibilities.

2.3 Type and Relation

Recommendations

We argued for the usefulness of type and relation

recommendations in the user interface. In order to

control the amount of information and options that

have to be processed by the user, good

INCREMENTAL END-USER QUERY CONSTRUCTION FOR THE SEMANTIC DESKTOP

273

recommendations are essential. In case of

sufficiently large ontologies, a type can have

hundreds of possible (sub- or super-) types. This

occasionally large list can be reduced to:

1. direct super- / subtypes

2. only the types that actually have instances

3. closest super- / subtypes that have instances

4. only meaningful types

5. etc...

However, reducing the number of options per

step to a handy list, even if then the number of steps

for the complete query construction increases is a

desirable goal. The proposed keyword filter is a first

helpful feature to handle such large collections of

options.

On top of that, ordering can push more relevant

types to the top of the list and thus push them faster

into the awareness of the user. Such an ordering

could be based on:

i. number of according instances

ii. utility estimation metrics

iii. usage frequency during previous queries

iv. etc...

The fact that the subtypes and subrelations form

a hierarchy is exploited to reduce the number of

choices per step. While (1) decomposes any level of

super- or subtypes into a single step, (2) and (3)

reduce this number to useful target types. However,

if all intermediate types have instances, this leads to

the same number of steps.

3 IMPLEMENTATION

We decided for a two layer architecture which

separates the upper presentation layer from the lower

query construction model layer. The lower layer

wraps the data and its schema, and implements the

iterative query construction based on the given data

and schema. The upper presentation layer uses the

functions of the lower layer to provide query

construction options to the user. It collects and

forwards feedback to the query construction layer in

order to proceed with to the next construction step.

This separation allows for easily plugging different

presentation layer implementations (i.e. Graphical

User Interfaces) on top of the same query

construction layer. Further, the GUI does not need

any knowledge about the data itself, it only needs to

know the idea of the graphical query and its

construction process. The query construction in

return does not need to care about presentation of

recommendations and graphical queries.

For the implementation of the proposed

interface we adopted the approach of add semantic

annotations in the HTML code to define the

behaviour of the interface widgets. To that end, we

used the Prototype

library, which allows us to select

elements in the DOM tree by their class attribute

values - by its CSS- and link operations to interface

events like onclick, onmouseover, onkeyup, etc., of

each selected HTML elements. This technique

enables us to create dynamical interfaces for direct

manipulation.

The query construction model layer provides two

services to the upper layer. Firstly, this is the

recommendation of types and relations. Secondly,

this is the actual modification of the current

structured query based on the user’s action, as it was

described in Section 2.1. These actions are:

 set the type of a resource

 set the type of a relation

 add a relation to a resource

After each of these actions, the current structured

query object is updated and provided to the

presentation layer, which in return updates the

visualization of the query and the recommendations.

This cleanly separates visualisation and user actions

from the query construction model and the

underlying ontology.

The structure finally provides a method that

generates an equivalent SPARQL which is

syntactically correct and uses the proper ontology

elements. This query is then evaluated against the

stored data.

4 RELATED WORK

Several visual query systems (VQS) were proposed

since the QBE (Zloof, 1977) developed in 1970.

Below, we will discuss some significant works in

this area..

Harth et al. (Harth, 2006) sketch the piece-by-

piece construction of a SPARQL query, and the

possible visualization of these pieces. This is more a

graphical notation than a query construction system.

However, it is a remarkable early visualization

approach of RDF queries. Due to the piece-wise

graphical translation, this notation contains the same

technical complexity and terminology as SPARQL,

which we want to hide from the user in our system.

http://www.prototypejs.org/

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

274

The iSPARQL

is powerful tool for specifying

all kinds of SPARQL queries. However, its visual

concepts are far away from the user’s mental model.

To formulate even a simple query, the user must

know technical concepts such as variable and

properties. Another tool, the NITELIGHT (Russell,

2008), is quite similar to the iSPARQL. The main

difference between them lies in the visual notations

adopted by each one. In spite of all the expressive-

ness of these tools, its visual notations are not

suitable for the profile of the NEPOMUK’s users.

SEWASIE (Catarci, 2004) uses an interface

closer to the mental model of users, allowing them

to make a limited set of queries; furthermore, the

user is guided during the query formulation by a

recommendation system based on the ontology

behind the data domain. It is a work conceptually

very similar to what we have done but little

conclusive due to limited information contained in

the paper.

To sum up, none of these tools were focused on

the scenario of a Semantic Desktop. We designed an

approach that takes into account the user’s

knowledge about her virtual belongings, and it is

simple enough to allow naïve users to perform a

query.

5 CONCLUSIONS AND

OUTLOOK

In this paper we presented a simple nevertheless

powerful interface to visually construct structured

SELECT SPARQL queries through direct

manipulation. We pondered functionality and

simplicity in real user cases and scenarios in a way

to provide the naïve user means to interact with the

ontology underneath without the usual cognition

load of a semantic querying tool. The first version of

the UI has been completed and it is available within

NEPOMUK. A usability test for evaluating the UI’s

efficiency is underway together with a full

evaluation of the project and the results will be soon

posted.

ACKNOWLEDGEMENTS

We wish to express our thanks to DLR and CNPq

for the financial support, as well as the European

http://demo.openlinksw.com/isparql/

Union IST fund (Grant FP6-027750, Project

NEPOMUK).

REFERENCES

Bates, M., 1989. The design of browsing and berrypicking

techniques for the online search interface. Online Review,

13: 407-424.

Belkin, N. J., 1993. Interaction with texts: Information

retrieval as information-seeking.

Catarci, T., Dongilli, P., Mascio, T. D., Franconi, E.,

Santucci, G., and Tessaris, S., 2004. An ontology

based visual tool for query formulation support, 16th

European Conference on Artificial Intelligence 2004.

Harth, A., Kruk, S. R., Decker, S., 2006. Graphical

representation of RDF queries. Proceedings of the

15th international conference on World Wide Web,

WWW 2006, Edinburgh, Scotland, UK, May 23-26,

2006.

Pérez P., Arenas M., and Gutierrez C., 2006. Semantics

and Complexity of SPARQL , 5th International

Semantic Web Conference, ISWC 2006, Athens,

Georgia, USA, November 2006.

Prud'hommeaux, E., Seaborne, A., 2008. SPARQL Query

Language for RDF. W3C Recommendation, 15 Jan.,

2008, http://www.w3.org/TR/rdf-sparql-query/

Russell, A., Smart, P. R., Braines, D. and Shadbolt, N. R.

(2008) NITELIGHT: A Graphical Tool for Semantic

Query Construction. In: Semantic Web User

Interaction Workshop (SWUI 2008), 5th April 2008,

Florence, Italy.

Sauermann, L., Bernardi, A., Dengel, A., 2005. Overview

and Outlook on the Semantic Desktop, in: Stefan

Decker, Jack Park, D.Q., Sauermann, L., eds.:

Proceedings of the 1st Workshop on The Semantic

Desktop at the ISWC 2005 Conference.

Teevan, J., Alvarado, C., Ackerman, M. and Karger, D.,

2004. The Perfect Search Engine Is Not Enough: A

Study of Orienteering Behavior in Directed Search.

Proceedings of CHI 2004, pp. 415–422. ACM Press

Zloof, M. M., 1977. Query-by-example: a database

language. IBM System Journal 16, 324-343, 1977.

INCREMENTAL END-USER QUERY CONSTRUCTION FOR THE SEMANTIC DESKTOP

275
