A USABILITY STUDY ON HOW NON-TECHNICAL STUDENTS

INTERACT WITH A FREE-TEXT COMPUTER ASSISTED

ASSESSMENT SYSTEM

Ismael Pascual-Nieto, Diana Pérez-Marín and Pilar Rodríguez

Computer Science Department, Universidad Autónoma de Madrid

Francisco Tomás y Valiente, 11, 28049, Madrid, Spain

Keywords: Free-text Computer Assisted Assessment, Usability Evaluation, Blended Learning, Web-Based Formative

Assessment, Open Learner Modelling, Human-Computer Interaction.

Abstract: Willow is a free-text Computer Assisted Assessment system, which can automatically assess students' short

written answers in Spanish or in English. Willow is based on the combination of techniques from Natural

Language Processing and User Modelling to generate students’ conceptual models (i.e. a set of

interconnected concepts of a certain area-of-knowledge associated with an estimated value that indicates

how well each concept has been assimilated by the student) from the students’ free-text answers. In the past,

the system was used by a group of students of an Operating Systems course within an Informatics degree.

The results of that study suggested that the system was useful for these students. Nevertheless, our

hypothesis was that the procedure implemented in Willow is also suitable for non-technical domains and,

that students without computer training are able to use Willow without any technical difficulty. Therefore,

we asked a group of voluntary students of a Pragmatics course within an English Studies program to use the

system. The results achieved support our hypothesis that Willow can successfully be applied to a non-

technical domain, and it can be used by non-technical students.

1 INTRODUCTION

Computer Assisted Assessment (CAA) is the field

that studies how computers can effectively be used

for evaluating students' work. In early work, CAA

tools were only used to score Multiple Choice

Questions (MCQs) or fill-in-the-blank exercises.

This can be explained because these types of items

are easier to automatically evaluate with computers.

However, according to the general opinion of the

field, other types of assessment are necessary to

cover higher cognitive skills (Sigel, 1999).

On the other hand, the automated assessment of

students' free-text answers has been regarded by

many as the Holy Grail of CAA. Regardless, several

factors have supported the increasing interest in this

field including i) advances in Natural Language

Processing (NLP), ii) teachers not having sufficient

time to give students appropriate feedback (despite

the general assumption of its importance), and iii)

the conviction that assessment should not be based

only on MCQs.

Currently, there are many different free-text

CAA programs, used both in academic and

commercial environments, and which are able to

process many European and Oriental languages.

Moreover, they have been applied both to technical

and non-technical domains. For instance, the

Automark system (Mitchell et al., 2002) uses

Information Extraction techniques to automatically

score Science essays in English; the Japanese Essay

Scoring System (Jess) (Ishioka and Kameda, 2004)

automatically assesses Japanese students' general

topic essays using LSA. Table 1 gathers a

representative list of free-text CAA systems together

with the technique and domain applied.

For the evaluation, the metric reported by the

author is the one used: Corr, correlation; Agr,

Agreement; EAgr, Exact Agreement; CAcc,

Classification accuracy; f-S, f-Score; and, - for not

available. When the authors have presented several

values for the evaluation, the average value has been

taken.

127

Pascual-Nieto I., P

erez-Mar

ın D. and Rodr

ıguez P. (2009).

A USABILITY STUDY ON HOW NON-TECHNICAL STUDENTS INTERACT WITH A FREE-TEXT COMPUTER ASSISTED ASSESSMENT SYSTEM.

In Proceedings of the First International Conference on Computer Supported Education, pages 127-132

 SciTePress

Table 1: Domains to which the current existing CAA of free text answers systems have been applied, the technique

that they use and their evaluation (Pérez-Marín, 2007).

SYSTEM DOMAIN TECHNIQUE EVAL.

AEA Marketing, engineering LSA Corr:.75

Apex Assesso

Sociology of education LSA Corr:.59

ATM Factual disciplines Pattern matching ---

Automark Science Information Extraction Corr:.95

Auto-marking Biolog

Pattern matching EAgr:.85

BETSY Text classification tasks Bayesian networks CAcc:.77

CarmelTC Physic Machine learning f-S:.85

C-rater Comprehension, algebra

LP Agr:.83

EGAL Opinion and factual texts

LP ---

E-rate

GMAT exa

LP Agr:.97

IEA Psychology and military LSA Agr:.85

IEMS

on-mathematical texts Pattern matching Corr:.80

IntelliMetric K-12 and creative writing

LP Agr:.98

Jess General topic essays Pattern matching Corr:.71

Larkey’s syste

Social and opinion TCT EAgr:.55

MarkIT General topic essays

LP Corr:.75

MRW Semantic networks Logical inference ---

PEG

on-factual disciplines Linguistic features Corr:.87

PS-ME

CA or GCSE exa

LP ---

RMT Research on Psycholog

LSA ---

SEAR Histor

Pattern matching Corr:.45

As can be seen, free-text CAA systems have

been applied to many different domains, and there is

no a clear trend of using certain techniques for

certain domains. For instance, according to their

authors, the best correlation between the automatic

and the teachers' scores (95%) is achieved by

Automark, which uses Information Extraction in a

technical domain. On the other hand, the highest

Agreement value (98% measured as the percentage

of times that the automatic and the teacher scores

only differed by a certain small margin) is achieved

by Intellimetric, which uses full Natural Language

Processing techniques in a non-technical domain.

In previous work, we implemented Willow, a

free-text CAA system. Willow is based on the

synergic combination of NLP and User Modelling

techniques to automatically assess students' short

answers written both in Spanish and English.

The core idea of the system is that the student's

answer should be similar to the teachers' correct

answers (reference answers).

During the 2005-2006 and 2006-2007 academic

years, students of the Informatics degree at our

university were given the possibility of using

Willow to review their Operating Systems course

(Pérez-Marín, 2007). We used this course for initial

trials of the system for two reasons. Firstly, our

algorithm for grading free-text answers depends on

comparing student answers to the reference answers

of teachers, and thus the more restricted the correct

answers are, the better the system works. In

technical domains, correct answers are reasonably

restricted. Secondly, students of Informatics can be

expected to have more ability to handle innovative

software.

However, in the 2007-2008 course, we wanted to

test that Willow can also successfully be used in

non-technical domains (i.e. non-Informatics

domains) with students without Informatics training.

Therefore, we asked teachers of other faculties to

collaborate with us. The English Studies Faculty

took notice of our petition. In particular, the teachers

CSEDU 2009 - International Conference on Computer Supported Education

128

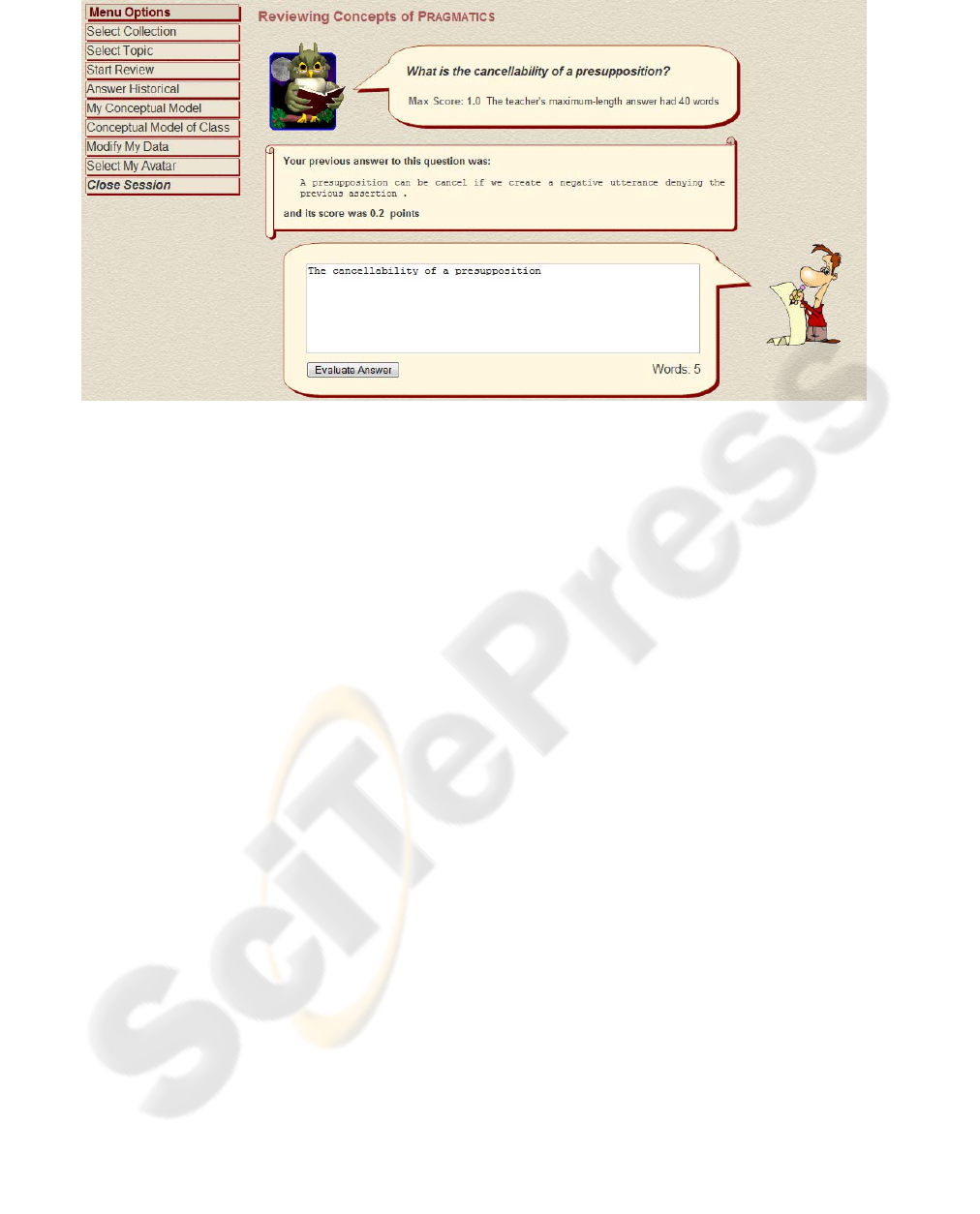

Figure 1: Sample snapshot of the interface of Willow.

of the Pragmatics subject were willing to use Willow

as a complement of their lessons. 22 Pragmatics

students volunteered to use Willow during one

semester.

The results achieved support our hypothesis that

Willow not only can be successfully applied to a

non-technical domain, but also that Willow can be

used by students without Informatics training with

very little introduction to the system.

The paper is organized as follows: Section 2

provides a description of Willow; Section 3

describes the settings and results of the usability

study conducted; and, finally, Section 4 ends with

the main conclusions.

2 WILLOW

Willow is a web-based application able to assess

students' short answers written both in Spanish and

English in an automatic way. The goal is not to

replace the teacher but to help him or her by

providing students with an alternative mean of

reviewing the course material. Willow scores the

student's answer in terms of its similarity to a set of

correct answers provided by the teacher. The more

similar the answer is to the teachers' answers, the

higher the score assigned is.

Figure 1 shows a snapshot of the Willow’s

interface. As can be seen, the interface tries to

emulate a dialogue between two animated agents: an

owl representing the system, and a character chosen

by the student from a gallery representing the

student.

The rationale to choose an owl as the animated

agent to represent Willow is because in most

Western cultures an owl is usually regarded as a bird

of wisdom. The reason for this can be found in the

Greek mythology. In fact, Athena, the Greek

goddess of wisdom is often depicted holding an owl.

On the other hand, the rationale to let the student

choose his or her own animated agent is to increase

the possibilities that the student feels that the

character chosen represents him or her.

Willow is intended for formative assessment

rather than summative assessment. That is, the goal

of Willow is to provide more training to the students

before their final exam. Thus, the system does not

only provide a numerical score as feedback, but also

the student's processed answer and the correct

answers as provided by the teachers.

Therefore, Willow is similar to the other free-

text CAA systems reviewed in the previous section

as its goal and core idea is the same. The goal is to

automatically assess free-text students’ answers to

provide the students with immediate feedback. The

core idea is that the more similar the student’s

answer is to the correct answers provided by the

teachers, the higher the score the student should

achieve.

Willow has usually been applied to the

Informatics domain because we are teachers of this

subject. Thus, it is easier for us to do the first

experiments of the system with technical students

that are both more used to new software and, more

approachable as they attend lessons in our faculty.

A USABILITY STUDY ON HOW NON-TECHNICAL STUDENTS INTERACT WITH A FREE-TEXT COMPUTER

ASSISTED ASSESSMENT SYSTEM

129

The NLP techniques used by Willow are

different for Spanish and English languages. In fact,

the experiments performed highlight that there is a

different optimum combination of NLP techniques

for each language used in Willow (Pérez-Marín,

2007).

In particular, for Spanish the optimum

combination found is NLP+LSA+Genetic

Algorithms reaching up to 63% Pearson correlation

between the automatic and the teachers’ scores

(Pérez-Marín, 2007). For English, the Genetic

Algorithms could not be applied as Willow has not

been used by English students and thus, we do not

have the information needed to run the algorithms.

Hence, the optimum combination found is

NLP+LSA reaching up to 56% Pearson correlation

between the automatic and the teachers’ scores

(Pérez-Marín, 2007).

Willow has a unique feature: it is able to

automatically generate students’ conceptual models

from the students’ free-text answers. A student

conceptual model can be defined as a set of concepts

and their relationships for a certain area-of-

knowledge. Each concept is associated an Estimate

of Learner Level of Competence (ESLOC) value by

the system. The ESLOC value of a concept can be

between 0 and 1.

The procedure to automatically generate the

student model will not be described here, as it is out

the scope of this paper and, it has already been

published (Pérez-Marín, 2007).

3 USABILITY STUDY

3.1 Setting Up the Experiment

After using Willow in a technical domain during two

years, we wanted to test our hypothesis that the

system could also be applied to non-technical

domains and used by non-technical students.

Therefore, we asked the rest of faculties of our home

university to collaborate with us. The English

Studies faculty took notice of our petition and, the

Pragmatics teachers told us that they were willing to

use Willow with their students.

Hence, we asked the Pragmatics teachers to

provide us with the questions they usually ask their

students in order to check whether it was really

possible to apply Willow’s core idea to Pragmatics.

That is, to measure if it is possible to write a set of

correct answers to the Pragmatics questions and, to

automatically compare these correct answers to the

students’ answers.

We observed from the sample questions and

correct answers provided by the Pragmatics teachers,

that there is indeed more openness in what can be

answered in Pragmatics than in Operating systems.

On the other hand, we also realized that there were a

defined set of concepts that should be reviewed.

Furthermore, we decided that given that providing

definitions for concepts was more difficult in

Pragmatics, it was not necessary that all questions

were in the form of requesting a definition.

Therefore, we asked the Pragmatics teachers to

introduce non-ambiguous questions using Willow’s

authoring tool (Willed), or a text editor.

The two teachers of the subject agreed that they

would rather use the text editor. Although they knew

the application was easy to use, they already have

information in text documents and they considered it

would be easier for them to prepare the

documentation in plain text.

After one month of non-full time work, the

Pragmatics teachers came up with 49 questions, with

three different correct answers per question, and

covering the first four topics of the subject.

3.2 The Experiment

Once the domain has been established and the

information introduced in Willow, we asked the

Pragmatics teachers to allow us to go one day at

their class to present Willow to the students who

voluntarily wanted to use the system.

That way, we could immediately solve any

problem or doubt the students may have, and at the

same time, we could start observing how the

students interact with the system.

Moreover, given that it was the first time that we

had non-technical students using the system, we

wanted to know the students' opinion before using

Willow (to find out if they were somehow

prejudiced against automatic free-text scoring) and

thus, we asked them to fill in a questionnaire before

starting the experiment.

The questionnaire consisted of three closed-

answer items and two open-answer items. The

closed-answer items asked the students about their

degree of familiarity with computers, on-line

applications and concept maps. The open-answer

items asked the students whether they thought they

would prefer to view just their conceptual model, or

that for the class as a whole, and which

representation format they would prefer: concept

map, conceptual diagram, table, bar chart or textual

summary.

CSEDU 2009 - International Conference on Computer Supported Education

130

22 students out of the 45 students enrolled in the

Pragmatics course (i.e. 49%) volunteered to take part

in the experiment. From them, 19 students filled in

the questionnaire on a voluntary and anonymous

basis. The analysis of these questionnaires revealed

us that they are not prejudiced at all with on-line

scoring systems.

On the other hand, these students, albeit they did

not have any computer training, were quite familiar

with computers: 47% of the students claimed that

they were familiar with on-line applications and

none of the students stated that s/he did not know

how to use an on-line application.

The questionnaire also suggested that the

students' knowledge of concept maps was low with

58% of the students answering that they were little

familiarized with concept maps. Some students even

asked what concept maps are. Nevertheless, when

we explained what concept maps are, it turned out

that 37% of the students prefer this form of

representation to view conceptual models over the

other formats available in Willow. Most of the

students also stated that they would prefer just to

look at their the individual conceptual model (74%),

giving reasons such as that they are more interested

to find out which concepts they do not yet fully

understand, than in looking at the general picture for

the class as a whole.

According to the results of the questionnaire, the

first day the students use Willow in class with us, we

could observe that none of the non-technical

students had any technical difficulty in using any of

the system's features. On the contrary, all of the

students were able to answer several systems’

questions with very little explanation (just a 5-

minute Powerpoint presentation of the interface).

In fact, 123 students’ answers were recorded, and

as can be seen in Figure 2: 95% of the students

modified which lessons they wanted to be asked,

77% students modified the animated agent used to

represent them, 77% looked at the history of

questions, 27% changed their personal data, 79%

looked at the model and even 18% of the students

try to cheat the system by copying the correct

answers of the teachers as if they were their answers.

None of the students complaint about the

interface of Willow and, they thought that the owl

was a quite friendly animated agent.

Figure 3 shows a graph displaying the average

number of questions answered by each student since

November 16th 2007 (the first day the experiment

started in class) till December 15th 2007 (i.e. the

first month of experiment). And, again since

February 5th 2008 till February 7th 2008, the next

time the students started using Willow after

Christmas holidays (from the end of December till

the beginning of January) and the other exams in

January, to review before the final exam on February

8th 2008.

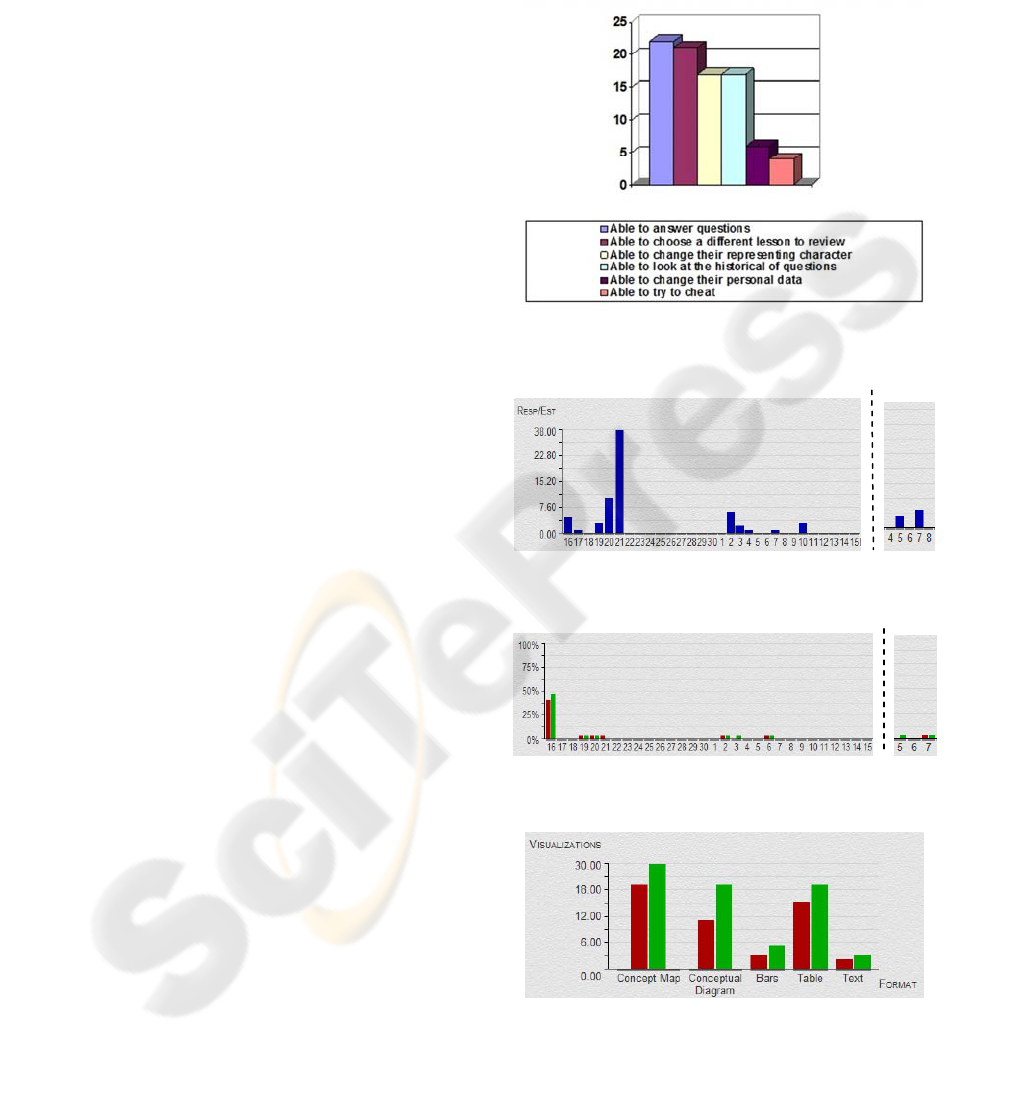

Figure 2: Number of non-technical students who have

used some Willow’s features.

Figure 3: Average number of questions answered by the

non-technical students.

Figure 4: Percentage of students who have looked at their

generated conceptual models.

Figure 5: Number of times the students have looked at

different representation formats.

As can be seen, the students have not regularly

used Willow, although they have valued this

A USABILITY STUDY ON HOW NON-TECHNICAL STUDENTS INTERACT WITH A FREE-TEXT COMPUTER

ASSISTED ASSESSMENT SYSTEM

131

possibility by using Willow again in the days

previous to the exam. Some comments that the

students have emailed us about the use of Willow

have been to thank us and their teachers for giving

them this opportunity. Additionally, and despite

students have not complaint about the interface and

have regarded it as friendly, some of them (specially

the ones who have used the system longer, even in

2-hour sessions, while the average assessment

session was half an hour) have expressed their wish

of being presented a higher variety of exercises. That

is, not only open-ended questions, but also

interactive games of choosing a solution or directly

relating concepts.

It is also interesting to highlight that one of the

student who has used more Willow has been the

woman in her fifties. Contrarily to what could be

thought giving the digital gap between young people

and adult people, she has completed 93% of the

questions of the course whereas the average

percentage of completion of the course has been

17% (22% standard deviation).

Regarding the use of the generated conceptual

models, 32% of the 19 students have looked again at

them. Even, sometimes the students have entered the

system just to look at their concept map

representation and the class concept map

representation without answering any questions.

Figure 4 shows the percentage of students who

have entered Willow to look at their particular

conceptual model (painted in green, light colour) or,

to look at the class conceptual model (painted in red,

dark colour). As can be seen, not only the students

have valued the possibility of getting more training

before the exam with Willow, but also of looking at

the generated conceptual model. In fact, the logs

revealed how, in the days previous to the final exam,

some students have also looked again at their

individual and class conceptual models.

Regarding whether they prefer the individual or

the class conceptual model, according to their

answers in the questionnaire, most students thought

they would prefer the individual conceptual model

(74%), as stated before, and the logs confirmed this

preference. Finally, concerning which form of the

representation formats available they prefer (concept

map, conceptual diagram, bar chart, table and textual

summary), it can be seen in Figure 5 how although

the students have looked at all of them, the one they

have inspected more is the concept map.

4 CONCLUSIONS

In this paper, the hypothesis that Willow can also be

applied to non-technical domains and be used by

students without Informatics training has been

proved. Willow has, in the past, been used to review

the Operating systems subject of an Informatics

degree. However, in the 2007-2008 academic year

we thought that it could also be applied to non-

technical domains. Our belief was based on the fact

that free-text scorers have been used both for

technical and non-technical domains and, that the

core idea of Willow (i.e. that the student's answer

should be similar to the teachers' answers) is

applicable to non-technical domains too, provided

that a fairly limited and non-ambiguous set of

correct answers can be written for each question.

Therefore, we carried out an experiment in the

English Studies faculty, in which 22 students

without English training have been able to interact

with the system without problem.

In the future, we would like to do a more

systematic experiment to collect more data about the

differences in using free-text scoring systems such

as Willow by non-technical or technical students.

ACKNOWLEDGEMENTS

This work has been sponsored by Spanish Ministry

of Science and Technology, project TIN2007-64718.

REFERENCES

Ishioka, T. and Kameda, M. (2004), 'Automated Japanese

Essay Scoring System: JESS', Proceedings of the 15th

International Workshop on Database and Expert

Systems Applications, 4-8.

Mitchell, T.; Russell, T.; Broomhead, P. and Aldridge, N.

(2002), Towards Robust Computerised Marking of

Free-Text Responses, in 'Proceedings of the 6th

Computer Assisted Assessment Conference'.

Pérez-Marín, D. 2007. Adaptive Computer Assisted

Assessment of free-text students’ answers: an

approach to automatically generate students’

conceptual models, PhD thesis, Computer Science

Department, Universidad Autónoma de Madrid, Spain.

Sigel, I., ed. (1999), Development of mental

representations: Theories and Applications, Lawrence

Erlbaum Associates, New Jersey, U.S.A.

CSEDU 2009 - International Conference on Computer Supported Education

132
