GENERIC APPROACH TO

AUTOMATIC INDEX UPDATING IN OODBMS

Tomasz M. Kowalski, Kamil Kuliberda, Jacek Wiślicki and Radosław Adamus

Technical University of Lodz, Stefanowskiego 18/22, 90-924 Lodz, Poland

Keywords: Index maintenance, Automatic index updating, Indexing, Triggers, OODBMS, SBA, SBQL, ODRA.

Abstract: In this paper, we describe a robust approach to the problem of the automatic index updating, i.e. maintaining

cohesion between data and indices. Introducing object-oriented notions (classes, inheritance, polymorphism,

class methods, etc.) in databases allows defining more complex selection predicates; nevertheless, in order

to facilitate selection process through indices, index updating requires substantial revising. Inadequate index

maintenance can lead to serious errors in query processing what has been shown on the example of Oracle

11g ORDBMS. The authors work is based on the Stack-Based Architecture (SBA) and has been

implemented and tested in the ODRA (Object Database for Rapid Applications development) OODBMS

prototype.

1 INTRODUCTION

The general idea of indexing in object-oriented

databases does not differ from indexing in relational

databases (Elmasri, 2004). Indices are data-

structures improving the speed of retrieving database

objects according to a given criteria. Database

indices ought to ensure transparency, i.e. are used

automatically during query evaluation. In this paper

authors focus on the index maintenance.

Indices, like all redundant structures, can lose

cohesion if the data stored in the database are

mutated. Thus, to ensure validity of indices the

update of data has to be combined with rebuilding of

appropriate indices. The rebuild process should be

transparent to relieve a programmer of an

inconvenient and error prone task. Furthermore, the

additional time required for an index update in

response to a data modification should be

minimized. This is critical from the point of view of

the large databases efficiency. To achieve this,

database systems should efficiently find indices

which became outdated due to a performed data

modification. Next, the appropriate index entries

should be corrected so that all index invocations

would provide valid answers. However finding a

general and optimal solution for index updating is

not possible due to the complexity of DBMSs. Such

a task requires analysis of many different real life

situations occurring in the database environment in

order to minimize deterioration of performance.

ODRA OODBMS prototype is based on Stack

Based Architecture (SBA) (Adamus,

2008)(SBA&SBQL, 2008). Proposed

implementation of indexing in ODRA enables

creation, transparent optimisation and automatic

maintenance of indices facilitating processing of

selection predicates based on arbitrary deterministic

expressions.

The rest of the paper is organized as follows. The

next section comprises an overview of indexing

facilities and theirs limitations with emphasis on

capabilities resulting from an approach to the index

maintenance, section 3 presents SBA, section 4

describes the approach to index updating in ODRA,

section 5 presents a summary and concludes.

2 OVERVIEW OF INDEXING IN

RDBMS AND OODBMS

Almost 40 years of research on relational systems

resulted in development of various indexing aspects

(Elmasri, 2004): primary index, clustered index,

secondary access paths, multi-key index,

development of diverse index structures, etc.

In RDBMSs keys defining an index on a table

usually are simply values stored in columns. Such

index requires straightforward mechanisms

255

M. Kowalski T., Kuliberda K., Wi

slicki J. and Adamus R. (2009).

GENERIC APPROACH TO AUTOMATIC INDEX UPDATING IN OODBMS.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

255-260

DOI: 10.5220/0001834702550260

 SciTePress

providing user transparency. Modifications to an

indexed table are easy to detect by the DB engine

Therefore, details of the automatic index updating

for RDBMSs are omitted in technical database

specifications and considered rather as an

implementation issue.

Topics of index organization and optimization in

object-oriented database management systems have

been deeply researched, e.g. (Bertino,

1997)(Henrich, 1997)(Płodzień, 2000). Major

research has been dedicated to cope with improving

the efficiency of processing nested query predicates

(i.e. accessed using path-expression) and considering

inheritance. The most important proposed solutions

are Multi-Index, Inherited Multi-Index, Nested-

Inherited Index, Path Index, Access Support

Relations. In the approach to automatic index

updating presented in (Bertino, 1997) all instances

of classes associated with a path-expression based

index need to be taken into consideration to ensure

index validity after data modifications.

The distributed object management system H-

PCTE developed in University of Siegen proposed a

different solution to automatic index maintenance

(Henrich, 1997). The solution handles complex

derived attributes defined e.g. employing regular

path expressions and aggregate functions. On the

other hand, its authors outline some limitations of

this approach concerning efficiency and

consideration of user-methods giving general

suggestions how these disadvantages should be

overcame.

Another approach to index maintenance

discussed for function-based indexing developed in

context of Thor, a object-oriented database system

by the Massachusetts Institute of Technology uses

so-called objects registration schema (Hwang,

1994). Despite the theoretical generality of this

approach, it has not been fully implemented.

According to the best of the authors knowledge

very little amount of indexing techniques proposed

in the scientific literature have been incorporated

into commercial OODBMSs products and major

prototypes. Careful inspection of applied indexing

facilities is possible through analysis of major

object-oriented databases.

Transparent indexing in the db4o OODBMSs by

db4objects is provided only for attributes of classes

defining indexed collections (db4objects, Inc.) The

Objectivity/DB by Objectivity additionally supports

concatenated index on more attributes (Objectivity,

2006). The only tested database which supports

transparent indexing employing path-expressions is

GemFire (GemStone, 2008). The ObjectStore

supports adding an index defined using complex

path-expressions as a key but provides only partial

index maintenance transparency. Updating an index

entry after data modification must be explicitly

triggered by a programmer (Progress, 2008).

The above mentioned prototypes and commercial

products provide sufficiently complete overview of

the indexing state of art in OODBMSs.

2.1 Limitations of Function-Based

Index Maintenance in ORDBMS

The authors did not found any object-relational

databases supporting indexing using aggregate

functions or path-expressions.

Function-based index (Oracle by Oracle

Corporation) (Strohm, 2008) and other similar

solutions enabling defining keys using expressions

addressing more than one table column and internal

functions or user-written functions generally do not

introduce conceptual difficulties. Nevertheless, this

aspect of indexing becomes complex when object-

oriented model and language extensions are

considered. The Oracle documentation does not

provide extensive information concerning the

automatic maintenance of such indices.

To identify properties of the Oracle’s approach

the authors performed tests introducing a schema

shown below:

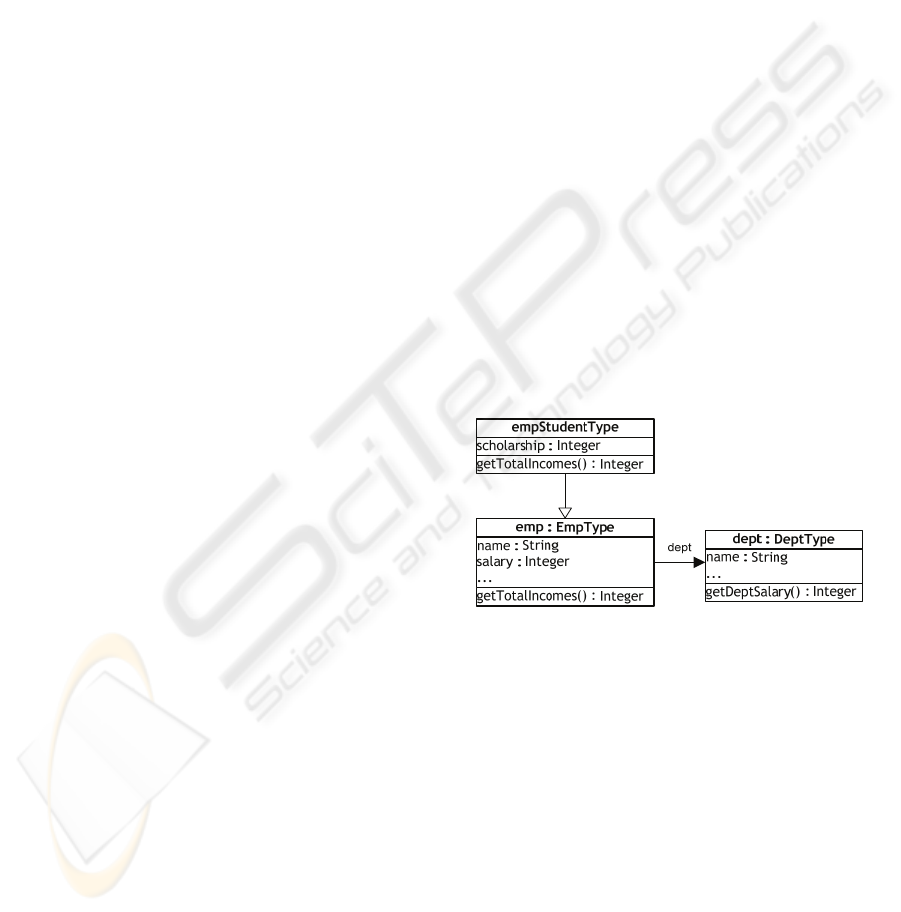

Figure 1: Example object-relational schemata.

The Oracle approach to index updating in case of

method-based indices consists in triggering an index

update routines during modifications done to any

data in a tuple with associated index entries.

The disadvantage mentioned above grows to a

large problem in case when the method used to

define an index key accesses a data outside an

indexed object. For example the method

getDeptSalary of the DeptType has the following

definition:

CREATE TYPE BODY dept_type IS

MEMBER FUNCTION getdeptsalary RETURN

NUMBER DETERMINISTIC IS

BEGIN DECLARE aux NUMBER;

BEGIN

ICEIS 2009 - International Conference on Enterprise Information Systems

256

SELECT sum(salary) INTO aux FROM emp

e WHERE e.dept.name = self.name;

RETURN aux;

END; END; END;

It accesses not only the given DeptType tuple

data but also reaches the emp collection. This

method calculates a sum of department employees

salaries and can be used as a selection predicate.

Oracle also enables indexing dept collection

according to getDepSalary method:

CREATE INDEX dept_getdeptsalary_idx ON

dept d (d.getDeptSalary());

Similarly like in case of emp_gettotalincomes_idx, a

command altering dept tuples triggers updating of

the index. However, any modifications done to emp

objects, e.g.

INSERT INTO EMP

SELECT emp_type ('Smith',350,REF(d))

FROM DEPT d WHERE d.name = 'HR';

are not taken into consideration and

dept_getdeptsalary_idx index loses cohesion with

the data. Unfortunately, queries which use this

index, e.g.:

SELECT d.name, d.getDeptSalary() FROM

DEPT d

WHERE d.getDeptSalary() < 24500;

can return incorrect answers, since the selection

processes and final results depend on the index

content. Hence, the applied index updating solution

is not proper to handle indices with keys based on

“too complex” methods. In practice function-based

indices feature in Oracle can lead to erroneous work

of database queries and applications.

3 SBA AND SBQL

SBA (Stack Based Architecture) (SBA&SBQL,

2008)(Subieta, 2008) a theoretical and

methodological framework for the designed solution

presented in this paper. SBA reconstructs query

languages’ concepts from the point of view of

programming languages (PLs). In SBA a query

language (called SBQL – Stack Based Query

Language) is considered a special kind of a

programming language.

The inherent property of languages based on

SBA is the naming-scoping-binding principle. Each

name occurring in a query is bound to the

appropriate run-time entity (an object, an attribute, a

method a parameter, etc.) according to the scope of

its name. The principle is supported by means of the

environment stack (ENVS) containing binders. This

mechanism is well known from popular

programming languages implementations.

The use of the ENVS can also be extended

beyond the query execution to other aspects like

runtime support for index updating. This expansion

will be presented, as a part of a whole proposed

index updating mechanism, in the following section.

4 SOLUTION TO INDEX

UPDATING

4.1 Example Database

The schema in Figure 2 is introduced to exemplify

indexing description in ODRA OODBMS

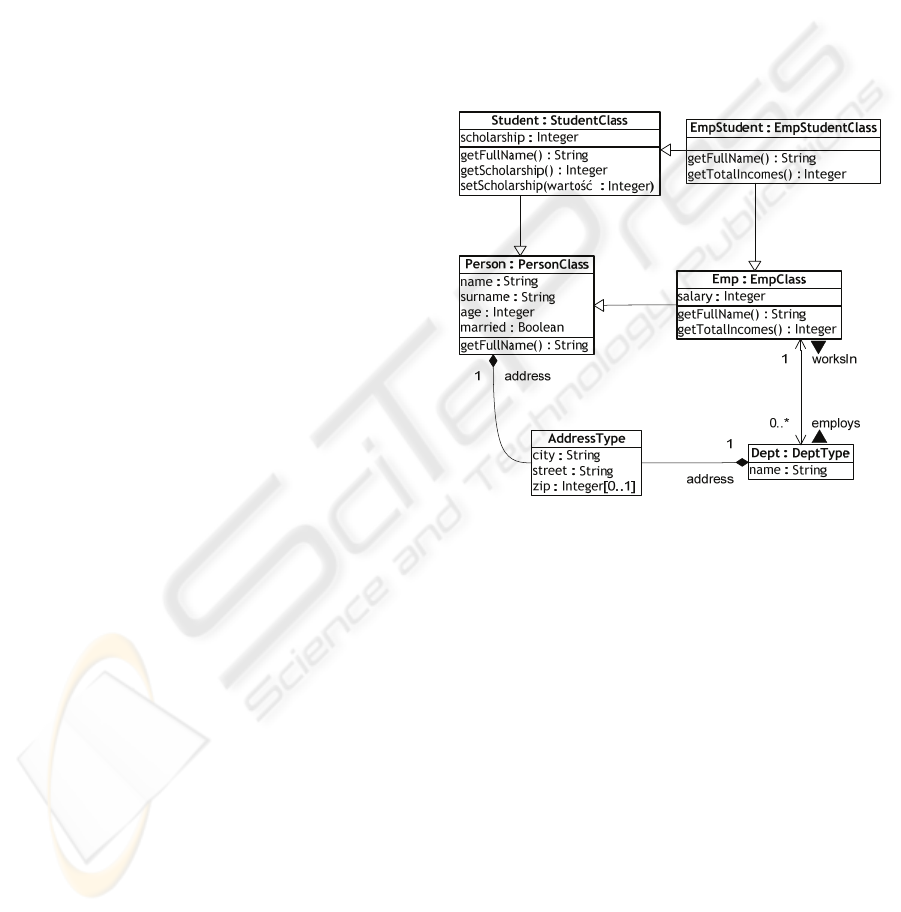

Figure 2: Example object-oriented schema.

The example schema illustrates personnel

records of the company. Persistent instances of the

depicted classes can be accessed using theirs

instance names Person, Student, Emp and finally

EmpStudent. Using Person name in SBQL query

results in returning all instances of PersonClass

class and its subclasses.

Classes can contain methods taking advantage of

the polymorphism; hence, are overridden in derived

subclasses. E.g. getTotalIncomes() method of

EmpClass returns the value of a salary attribute, but

for instances of the EmpStudentClass it returns sum

of salary and scholarship attributes.

Referring to the data schema in Figure 2 above

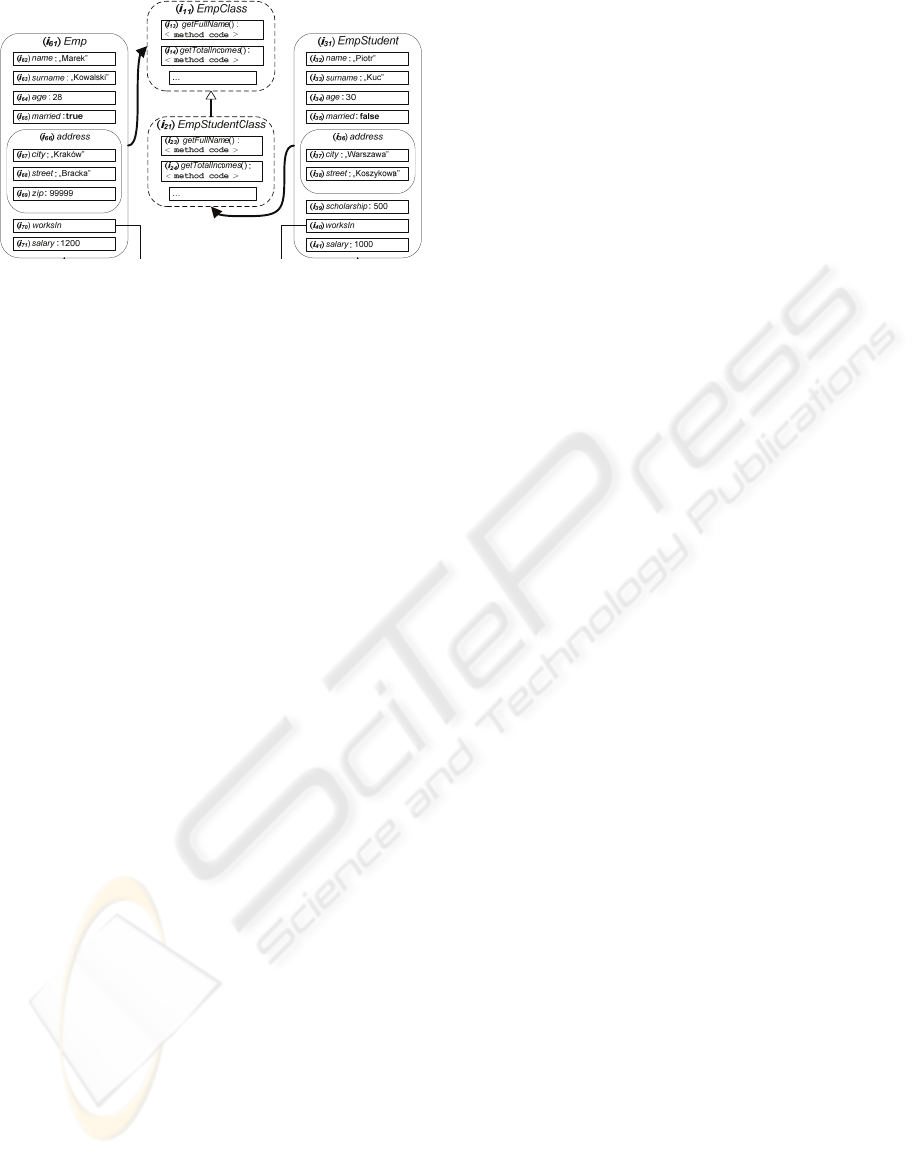

we introduce the example store shown in Figure 3

presenting classes and objects, their values,

identifiers and the most important relations between

them.

GENERIC APPROACH TO AUTOMATIC INDEX UPDATING IN OODBMS

257

Figure 3: Sample store comprising of classes and objects.

4.2 Indexing in ODRA OODBMS

The theoretical idea for query optimization using

indices was developed and presented in (Płodzień,

2000).

The schema in Figure 2 gives the opportunity to

present wide variety of indices supported by the

ODRA OODBMS indexing engine. The authors

approach index updating will be explained using the

following example indices:

• idxAddrStreet – this is the index which returns

address subobjects of Person objects according

to a street attribute. Nonkey objects are defined

by a path expression, i.e. Person.address.

Nevertheless, even more complex indices can

facilitate query processing, e.g.:

• idxEmpTotalIncomes – the index which uses an

Emp class method getTotalIncomes() as a key

for selecting Emp objects. This method is

overridden for the EmpStudent class instances.

• idxDeptYearCost – the index for Dept objects

based on the sum(employs.Emp.salary)*12

expression returning an approximate total cost

of a given department for the year period.

4.3 Index Update Triggers

Each modification performed on objects (creation,

update and deletion) is done by the ODRA object

store CRUD (Create, Retrieve, Update, Delete)

interface. The proposed approach to index updating

concentrates on this element of the system as it is the

easiest and certain way to trace data modifications.

Possible modifications that can be performed on an

object are the following:

• updating a value of an integer, double, string,

Boolean, date or object reference,

• deleting,

• adding a child object,

• other database implementation dependent

modifications.

The implementation introduces a group of

special auxiliary structures called Index Update

Triggers (IUT) together with Triggers Definitions

(TD). These elements are essential to perform index

updating:

• each IUT associates one database object with

an appropriate index through a TD. Existing

IUTs automatically initialize the index

updating mechanism when a modification

concerning the given object is about to occur.

More than one IUT can be connected with a

single object.

• TDs provide means to find objects which

should be equipped with IUTs. TD specifies

the type of an IUT.

An object is associated with IUTs when it

participates in accessing nonkey objects or

calculating key values for indices. Therefore,

modification to objects not linked with any index

does not trigger unnecessary index updating.

Altering objects equipped with IUTs is likely to

influence topicality of the indices and IUTs.

Our implementation introduces four basic types

of IUTs (each IUT refers to different TD type):

• Root Index Update Trigger (R-IUT) – is by

default associated with the root database entry

which is a superparent for all indexed database

objects. When a new object is created in the

databases root the trigger can cause generation

of an NonkeyPath- or Nonkey- Update Trigger

(described below) for the new child object.

This trigger is also used to initialize and

terminate all triggers associated with an index.

• Key Index Update Trigger (K-IUT) –

associated with objects used to evaluate a key

value for the specific nonkey object (identifier

passed together with TD as an additional

parameter). Each modification to such objects

can potentially modify the process of

evaluating a key and its value. Therefore, an K-

IUT is responsible for updating an appropriate

index entry and maintaining appropriate K-

IUTs associated with the given nonkey object.

• NonkeyPath Index Update Trigger (NP-IUT) –

a trigger similar to R-IUT. It is generated when

an index nonkey object is defined by a path

expression (e.g. idxAddrStreet index).

• NonKey Index Update Trigger (NK-IUT) – a

trigger that is assigned to indexed (nonkey)

objects. It is generated by parent objects update

triggers (R-IUT or NP-IUT). The process of

creating NK-IUT consists of the following

steps:

o first a NK-IUT is assigned to the given

nonkey object

ICEIS 2009 - International Conference on Enterprise Information Systems

258

o the key value is calculated,

o the corresponding index entry is created

(if a valid key value is found),

o K-IUTs are generated and parameterised

with the nonkey object identifier.

Basing on the sample store depicted in Figure 3

example IUTs for index idxAttrStreet shown in

Figure 4 would be generated. Let us assume that i

the identifier of the databases root. Nonkey objects

associated with K-IUTs are stated in parentheses.

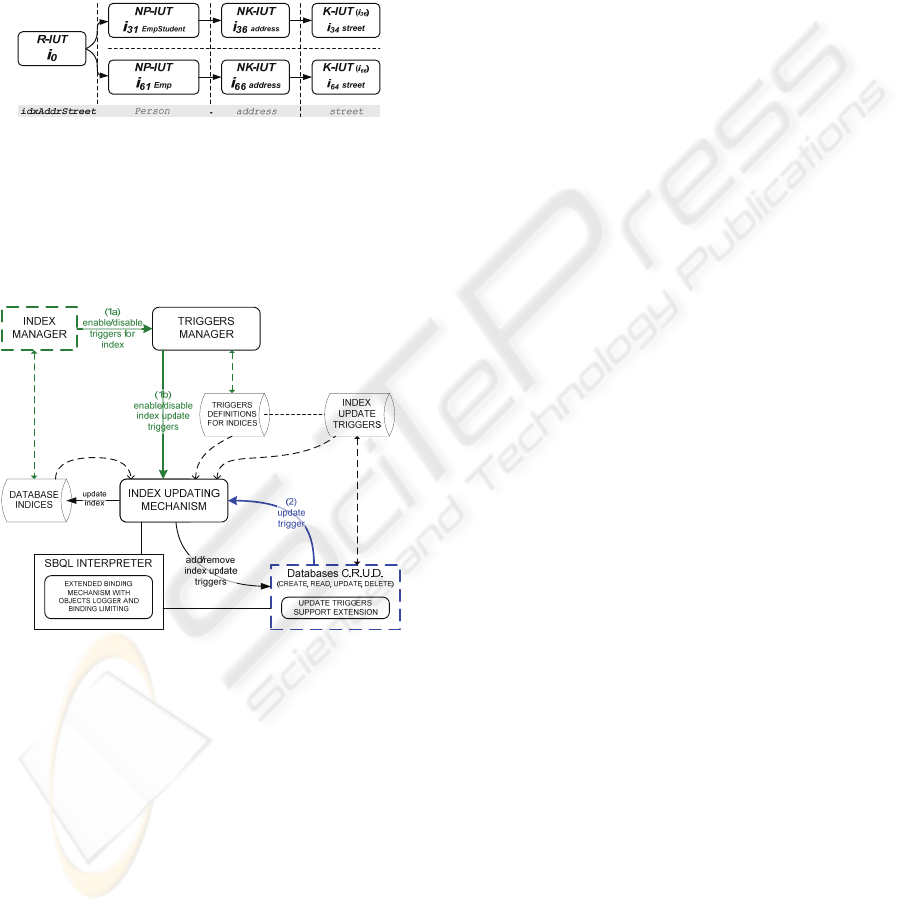

Figure 4: Example of index update triggers.

4.4 The Approach to the Index Update

Process

The architectural view of the proposed index update

process is presented in Figure 5.

Figure 5: Index Updating Engine architecture.

When the administrator adds an index, TDs are

created before IUTs (this step is shown using the

green coloured arrows numbered 1a and 1b):

1. Index Manager initializes a new index and

issues Triggers Manager a message to build

TDs,

2. next, the Triggers Manager activates the Index

Updating Mechanism which basing on the

knowledge about indices and TDs proceeds to

add IUTs.

Removing an index causes removal of IUTs

(together with NK-IUTs corresponding index entries

are deleted) and TDs. The mediator managing the

addition and removal of IUTs is a special extension

of the CRUD interface.

The second case when the Index Updating

Mechanism is activated is when the store CRUD

interface receives a message to modify the object

which is marked with one or more IUTs (shown in

Figure 5 using the blue coloured arrow with number

2). CRUD notifies the Index Updating Mechanism

about forthcoming modifications and all necessary

preparation before database alternation are

performed. This step is particularly important in case

of changes which can affect a key value for the

given nonkey object. It consists of:

1. locating the index entry which corresponds to

the nonkey object (key value is necessary),

2. identifying objects that are accessed in order to

calculate the key value (they are equipped with

an identical K-IUT).

After gathering required information CRUD

performs requested modifications and following

operations are executed by the Index Updating

Mechanism:

1. update of index entries for the given nonkey

object by,

2. update of existing IUTs by generating new or

removing outdated ones.

4.5 SBQL Interpreter and Binding

Extension

A significant element used by the Index Updating

Mechanism is the SBQL interpreter (also shown in

Figure 4) extended with the ability to:

• Log database objects during evaluation of an

index key expression. This process occurs

during binding object names on ENVS (other

database entities like procedures, views, etc.

and literals are discarded) – this feature is used

to locate all objects which are or should be

equipped with K-IUTs.

• Limit the first performed binding only to one

specified object – this feature significantly

accelerates and facilitates verification whether

a new child sub-object added to an object with

R-IUT or NP-IUT should be equipped with

NP-IUT or NK-IUT, i.e. to check whether a

new child is a nonkey object or potential

superparent of a nonkey object.

The basic functions of the interpreter used by the

Index Updating Mechanism are:

• traversing from the databases root or objects

equipped with NP-IUTs to nonkey objects,

• generating a key value for nonkey objects.

GENERIC APPROACH TO AUTOMATIC INDEX UPDATING IN OODBMS

259

5 CONCLUSIONS

The ODRA OODBMS is a proof of concept

prototype as well as the implemented Index

Updating Mechanism. The fair comparison can be

conducted considering general properties to the

index maintenance and its influence on capabilities

of a database indexing.

An undoubtful advantage of the index updating

approach in majority of relational and object-

relational databases is an economic usage of the data

store. In the implemented solution for the ODRA

OODBMS index update triggers are in many cases

written together with complex objects and objects

containing single values. This situation is acceptable

considering that nowadays databases administer a

very large amount of memory (or disk) space.

Improving performance among other depends on

the diversity of used index structures and flexibility

in defining an index. The properties of the SBQL

language, i.e. orthogonality and compositionality,

enable easy formulating of complex selection

predicates (including usage of complex expressions

with polymorphic methods and aggregate operators).

The proposed organization of indexing in ODRA

OODBMS provides all necessary mechanisms for

creating indices with keys based on such predicates.

As it was shown, the most popular DBMSs do not

provide similar indexing capabilities and flexibility.

Furthermore, attempts to extend the power of

indexing facilities (Oracle function-based indices)

lead to mistakes in obtaining queries results and

erroneous work of database applications.

In contrast to all implemented solutions to the

automatic index updating issue presented in research

literature or incorporated in commercial products,

the authors approach based on Index Update

Triggers implemented in ODRA OODBMS provides

transparent, complete and generic support for variety

of index definitions. Moreover, the additional data

modification costs associated with the index

maintenance concerns exclusively objects used to

access the indexed objects or to determine a key

value. One can argue about increased storage cost

caused by IUTs. Nevertheless, as it is shown in

(Bertino, 1997) the maintenance of indices defined

using complex expressions require introducing a lot

of additional information in the index structure.

Other advantage of the authors IUTs set on objects

used to determine a key value is that they include

direct reference to an indexed object, whereas other

solutions are often forced to identify it indirectly

(e.g. by reverse navigation methods) (Bertino,

1997)(Henrich, 1997).

The presented solution to index updating in

OODBMS is generic and versatile; however, it

requires optimizations to avoid unnecessary

performance deterioration particularly in simple

updating cases. Such optimizations have been

developed and partially implemented. Discussion

concerning this subject is omitted due to the paper

size restrictions.

ACKNOWLEDGEMENTS

This research work is funded from the science

finances in years 2008/2009 as a research project nr

N516 383334.

R. Adamus and J. Wislicki are scholarship holders

of project entitled "Innovative education..."

supported by European Social Fund.

REFERENCES

Adamus R., Kowalski T.M., Subieta K., et al., 2008.

Overview of the Project ODRA. Proceedings of the

First International Conference on Object Databases,

ICOODB 2008, Berlin, ISBN 078-7399-412-9, pp.

179-197.

Bertino E. et al., 1997. Indexing Techniques for Advanced

Database Systems. Kluwer Academic Publishers,

Boston Dordrecht London.

db4objects Inc., 2008. db4o Tutorial for Java. Production

Release V6.3.

Elmasri R. and Navathe S. B., 2004. Fundamentals of

Database Systems 4th ed. Pearson Education, Inc.,

ISBN: 83-7361-716-7

GemStone, 2008. GemFire Enterprise Developer’s Guide,

Version 5.7.

Henrich A., 1997. The Update of Index Structures in

Object-Oriented DBMS. Proceedings of the Sixth

International Conference on Information and

Knowledge Management (CIKM'97), Las Vegas,

ACM 1997, ISBN 0-89791-970-X: pp. 136-143.

Hwang D. J., 1994. Function-based indexing for object-

oriented databases. PhD thesis, Massachusetts

Institute of Technology.

Objectivity, 2006. Objectivity/SQL++. Part Number: 93-

SQLPP-0, Release 9.3.

Płodzień J., 2000. Optimization Methods In Object Query

Languages. PhD Thesis. IPIPAN, Warszawa.

Progress Software Corporation, 2008. ObjectStore Java

API User Guide. ObjectStore, Release 7.1 for all

platforms.

SBA & SBQL Web pages: http://www.sbql.pl/

Strohm R., et al., 2008. Oracle® Database Concepts. 11g

Release 1 (11.1), Part Number B28318-05.

ICEIS 2009 - International Conference on Enterprise Information Systems

260
