MANAGING TRANSACTIONAL COMPOSITIONS OF

WEB SERVICE APPLICATIONS

Juha Puustjärvi

Helsinki University of Technology, Innopoli 2, Tekniikantie 14, Espoo, Finland

Keywords: Web service composition, Transaction coordination protocols, Fault tolerance, Ontologies.

Abstract: The ACID transaction model has evolved over time to incorporate more complex transaction structures and

to selectively relax the atomicity and isolation properties. Such advanced transaction models are more

appropriate for SOA, which is geared toward open environments consisting of autonomous and

heterogeneous systems. However, due to the autonomy and heterogeneity of local systems supporting

transactional compositions of Web service applications is problematic in SOA. In addition, the interfaces of

Web services are not usually designed for transactional compositions. Neither there are mechanisms for

registering Web services’ abilities to participate transactional compositions nor mechanisms for registering

Web services’ coordinators. How these problems can be avoided by introducing a Composition server is the

topic of this paper.

1 INTRODUCTION

The goal of Web services is to achieve universal

interoperability between applications by using web

standards. The full potential of Web services will be

achieved only when applications and business

process interactions are coordinated in a

transactional way.

The Web Services Transactions specifications

(IBM, 2008; Singh and Huhns, 2005) define

mechanisms for transactional interoperability

between Web services domains. Particularly, they

describe an extensible coordination framework (WS-

Coordination) and specific coordination types for

short duration ACID transactions (WS-

AtomicTransaction) and for Longer running

business transactions (WS-BusinessActivity).

WS-Coordination (Papazoglou and Heuvel,

2007) is a general and extensible framework in the

sense that its use is not restricted to WS-

AtomicTransaction and WS-BusinessActivity but it

can be exploited in developing coordinators for any

transaction model suitable for composing Web

service applications.

During the past few years many transaction

models suitable for composing Web services are

proposed. For example, the isolation requirements

have been relaxed in the models presented in (Alrifai

et al., 2006; Puustjärvi, 2004; Choi et al., 2005;

Guabtni et al, 2006). The use of semantic

information in weakening the atomicity criterion is

studied in (Ding et al., 2006; Zhao et al., 2005;

Puustjärvi, 2006), and the use of semantics in

compensating the failed actions are studied e.g., in

(Fauvet et al., 2005; Schmit et al., 2005), and the

atomicity protocols are studied in (Xu et al., 2006;

Younas and Chao, 2006).

Many of these transaction models and

coordination protocols would be usable and

appropriate in Service Oriented Architecture (SOA)

(Singh and Huhns, 2005). However, their

deployment suffers from the absence of appropriate

Web services’ interfaces as each atomicity protocol

and each concurrency control protocol set their own

requirements on the functionality and interfaces of

the participating Web services.

Further, in many cases, such requirements

contradict with the autonomy of the sites providing

Web services. The reason for this is that autonomy

requires that the components in an environment

function solely under their own control but

achieving global consensus is not always possible

under such settings.

This situation is analogous with distributed

database systems, where the atomicity of the

distributed transaction is carried by the 2-phase

commit protocol (2PC) (Gray, 1993) and

concurrency control is carried out by 2-phase

311

PuustjÃd’rvi J.

MANAGING TRANSACTIONAL COMPOSITIONS OF WEB SERVICE APPLICATIONS.

DOI: 10.5220/0001836403110316

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

locking protocol (2PL) (Gray and Reuter, 1993).

Here the problem is that each participant must keep

log record required by the termination protocol of

the 2PC protocol, and locks on data items required

by the 2PL protocol until the coordinator of the

protocol requests to release the locks. The actual

problem here is that local applications are not

allowed to access the locked data items, i.e., local

systems have lost their autonomy. This is a reason

why strict transactional properties are not usually

provided in SOA.

Due to the autonomy of local systems supporting

transactions is more complex in SOA. Some Web

services may not have transactional functionalities

(e.g., keeping log records) at all, some may have the

ability to perform compensating actions, and some

may have the ability to set locks on data items.

Another problem is that the descriptions of Web

services, i.e., their WSDL-descriptions (WSDL,

2001), are based on assumption that a single

requester uses the service, but in transactional

composition requires different dialog where the

coordinator has to communicate with the service,

and hence each Web service should have a specific

interface description (WSDL description) for each

coordination protocol.

How to cope with these problems is the topic of

this paper. The cornerstone of our solution is a

Composition server, which specifies how and which

Web services can be composed in a transactional

way. Technically the Composition server is a Web

service supporting an update and querying

interfaces.

The rest of the paper is organized as follows. In

Section 2, we first give a short overview of the

transaction models that are proposed for composing

Web services in a transactional way. Then, we

present the structure of our used Composition

ontology, and the functionality of the Composition

server. In Section 3, we first describe how WS-

Coordination specifications can be used in

developing coordinators for various coordination

types (transaction models). Then, we give an

example how UDDI registry and Composition server

are exploited in Web services composition. In

particular, we describe the message exchange

between coordinators and Web service applications

in a fault tolerant atomicity communication protocol.

Finally Section 4 concludes the paper by discussing

the advantages and disadvantages of our developed

solutions.

2 MANAGING WEB SERVICES’

TRANSACTIONAL

PROPERTIES

2.1 Transaction Models

The traditional notion of a database transaction is so

called ACID-transaction (Gray and Reuter, 1993),

which has the following properties: Atomicity means

that either all of a transaction is executed or none of

it is. Consistency means that the state of a database

satisfies the consistency constraints of the database.

Isolation means that concurrently executed

transactions do not interfere with each others.

Durability means that if a transaction has completed

its work, then its effect should not get lost even if

the system fails.

Supporting ACID-transactions in a distributed

environment requires specific concurrency control

mechanism and an atomic commitment protocol,

e.g., 2PC- protocol.

An alternative optimistic model has been

proposed in database research (originally called

Sagas), where actions have explicit compensatory

actions which negate the effect of the action. In the

real world of actions, the existence of compensatory

actions is quite common for some actions. For

example, for a debit a credit card 100, the

compensatory action is to credit the credit card $100.

On the other hand, some actions may be difficult to

compensate. For example, rolling back a business

transaction (e.g., reservations on a flight) is not

always free of charge.

XLang (Xlang, 2002) is actually a workflow

model but it is based on Sagas and therefore we can

also regard it as transaction model, which do not

support any of the ACID- properties but rather

semantic atomicity. Thus XLang is actually a

notation for expressing the compensatory actions for

any atomic transaction that needs to be undone.

Hence XLang is appropriate transaction model for

the actions having common compensatory actions.

BTP Atomic Transactions (BTP, 2002), are

similar to transactions in tightly coupled systems

(i.e., to ACID-transactions), but the isolation

property is relaxed. Thus, BTP has improved the

notion of traditional distributed ACID transaction to

loosely coupled environments with the required

weakening of the I-property (Isolation-property).

However, providing BTP-transaction models

requires the implementation of the 2PC-protocol.

In order to avoid the problems related to

compensatory actions, a transaction model, called

rdf:RDF

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

312

Composed Web Service Transaction model, or

CWS-transaction model (Puustjärvi, 2006) for short

is also proposed. It deviates from other advanced

transaction models in that it is not based on

compensating transactions, but rather it divides the

traditional business transaction into two successive

transactions, called request transaction and decision

transaction. The commitment of the request

transaction ensures that the decision transaction will

not fail, and so the atomicity of the CWS-transaction

can be ensured. For example, with hotel reservation

case, the successfully executed request transaction

makes only a preliminary reservation (not an actual

reservation), which is then confirmed to real

reservation or rejected by the decision transaction.

2.2 Composition Ontology

The term ontology originates from philosophy where

it is used as the name of the study of the nature of

existence (Gruber, 1993). In the context of computer

science, the commonly used definition is “An

ontology is an explicit and formal specification of a

conceptualization” (Davies et al., 2002). It consists

of a finite set of concepts and the relationship

between the concepts. Essentially the used ontology

must be shared and consensual terminology as it is

used for information sharing and exchange.

The purpose of our used Composition ontology

is to specify transaction models, Web services,

transaction coordinators, and their relationships.

This ontology is described by OWL (Web Ontology

Language) (OWL, 2005), and for illustrative

purposes it is graphically presented in Figure 1,

where ellipses represent classes and boxes represent

properties.

transaction

model

Web

service

coordinator

coordinatessupports

uses

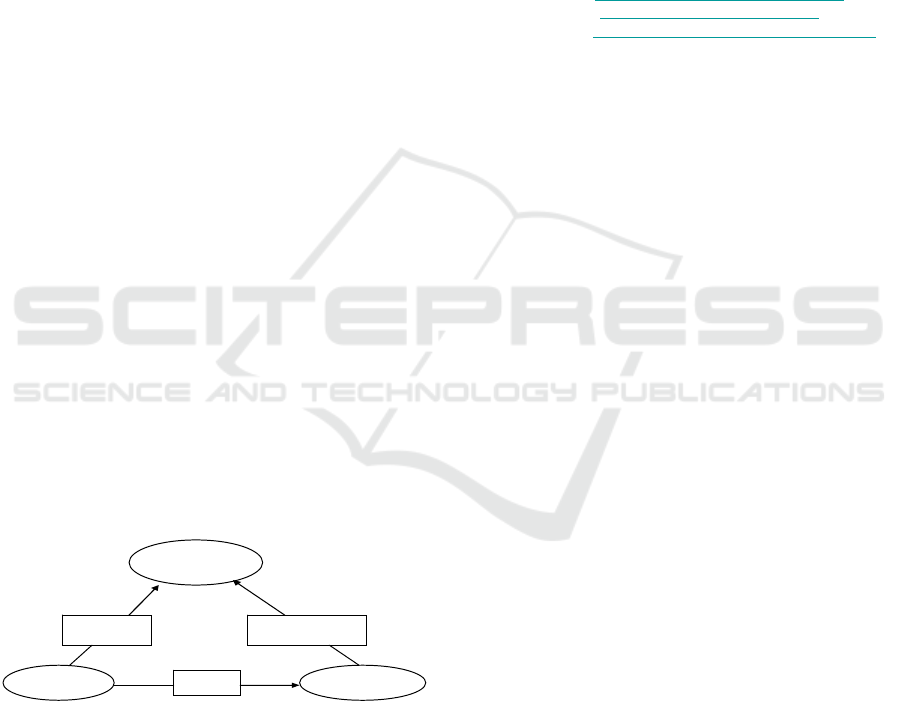

Figure 1: Composition ontology.

The instances of the ontology are defined by

RDF-statements. The RDF (Resource Description

Framework) model (RDFS, 2005) is called a triple

because it has three parts: subject, predicate and

object. Each triple is an RDF-statement. For

example the statement “Hotel Lord’s Web service

supports BTP transaction model” is an RDF

statement, where “Hotel Lord’s Web Service” is the

subject, ”supports” is the predicate, and “BTP-

transaction model” is the object.

In order that RDF-statements can be represented

and transmitted it needs syntax. The syntax has been

given in XML. So an RDF-statement can be

represented as an XML-element. Further, an RDF-

document is comprised of one ore more RDF-

descriptions, and each RDF-description is comprised

of one or more RDF-statement.

In Figure 2, an RDF description, which is

comprised of the three RDF-statements, is presented.

<rdf:RDF

xmlns : rdf=”http://www.w3.org/1999/02/22-rdf-syntax-ns

#”

xmlns : xsd=”http://www.w3.org/2001/XMLSchema#

”

xmlns : co=“http://www.lut.fi/ontologies/composition-ontology#

”

<rdf:Description rdf:about=”Lord’s_hotel_web_service”>

<rdf:type rdf:resource=“&co;web-service”/>

<co : supprts>BTP-transaction</co : supports>

<co : coordinates>Coordinator-123Y</co : coordinates>

</rdf : Description>

</rdf:RDF

Figure 2: An RDF – descriptu in RDF/ XML serialization

format.

Note that, in the above RDF-description XML

namespace “xmlns:co” refers to the used

composition–ontology. The first RDF-statement in

the description states that “Lords-hotel-web-service”

is an instance of the class web-service, which is a

class in the Composition ontology.

2.3 Composition Server

Composition Server is a Web service, which

function is to provide querying and update interface

for the Composition ontology. It is used in

constructing contexts for Web services’

compositions. Each context includes context

identifier, the services to be coordinated, the

coordinators as well as the coordination type

(transaction model).

Composition server has a publishing interface

and an inquiry interface. Using the publishing

interface new instances to the ontology can be

inserted. Using the inquiry interface an application

(or a human) can make for example the following

queries:

• What are the transaction models that Hotel

Lord’s Web service supports?

• Give the information of the coordinator that

is used by the Hotel Lord’s Web service.

• What are the transaction models that are

coordinated by the Coordinator C1.

MANAGING TRANSACTIONAL COMPOSITIONS OF WEB SERVICE APPLICATIONS

313

3 COORDINATING WEB

SERVICES

3.1 WS-Coordination

A way to coordinate the activities of Web services is

to provide a web service which function is to do the

coordination. In order to alleviate the development

of such coordinators WS-Coordination provides a

specification that can be utilized in developing the

coordinator. As we use this specification in

developing the coordinator, we first consider this

specification and then illustrate the functionality of

the fault tolerant atomicity coordinator by an

example.

According to the WS-Coordination a coordinator

is an aggregation of the following services (Singh

and Huhns, 2005). As illustrated in Figure 3, the

Activation service defines the operation that allows

the required context to be created. In particular, a

context identifier is created and passed to the Web

services that participate to the same coordination.

The Registration service defines the operation that

allows a Web service to register its participation in a

coordination protocol. A coordination protocol

service coordinates a supported coordination type

(transaction model).

Protocol

for transaction

model A

Activation

service

Registration

service

Create Coordination

Context

Protocol

messages

Protocol

for transaction

model B

Protocol

for transaction

model C

Protocol

messages

Protocol

messages

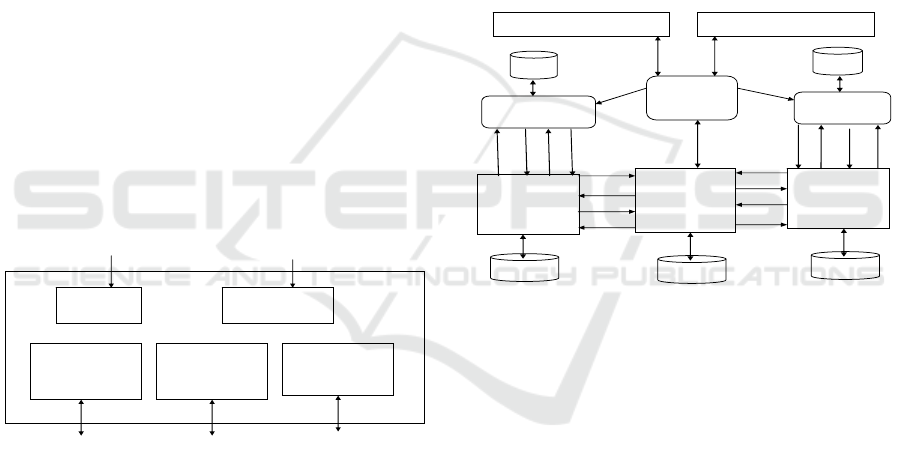

Figure 3: Coordinator for transaction models A, B and C.

The architecture (following the specification of

WS-Coordination) of the coordinator that supports

transaction models A, B and C is presented in Figure

After an application has created a coordination

context, it can send it to another application. The

context contains the information required for the

receiving application to register into the

coordination. In principle, an application can choose

either the registration service of the original

application or use some other (own) coordinator. In

the latter case the application forwards the context to

the chosen coordinator.

3.2 Message Exchange in Fault

Tolerant Coordination

In our used architecture we assume that each

participating application use its own coordinator

which have the role of participant in the

coordination. The message exchange between the

coordinator, participant and the applications (in the

case of no failures) is illustrated in Figure 4. The

figure illustrates the case where a travel agent tries

to make reservation on a flight and a room

reservation on a hotel. The used coordination type

follows the 2PC-protocol. The protocol is fault

tolerant in the sense that a termination protocol is

invoked when a participant in the coordination has

been waiting a predetermined time for a message.

The functionality of the termination protocol is

shortly presented in Section 3.3.

Travel

agent’s

Travel

agent’s

coordinator

Hotel’s

Airliner’s

Hotel’s

coordinator

Airliner’s

coordinator

8912

Log

UDDI registry

Context Server

Figure 4: Communication structure.

The communication in the figure proceeds as

follows:

1. Travel agent’s Web service queries from

the UDDI registry which airlines have flights, say

from Amsterdam to London, and which Hotels are in

centre of London. From the returned choices the

travel agent’s Web service decides to choose, say

Lufthansa and Hotel Lord.

2. Travel agents Web service queries from

the Context server which transaction models

Lufthansa’s and Hotel Lord’s Web services support.

Both Web services support fault tolerant atomic

commitment protocol (FTACP), and so travel

agent’s Web service chooses the protocol.

3. Travel agent’s Web service asks its

coordinator to create a coordination context for

FTACP-type coordination, and then the coordinator

returns the context, which includes information

where its registration service can be found.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

314

4. Travel agent’s Web service sends

reservation messages to hotel’s and airliner’s Web

services. Both messages include the context

information.

5. Hotel’s Web service and Airliner’s Web

service send the context information to their own

coordinators.

6. Hotel’s coordinator and airliner’s

coordinator register to travel agent’s coordinator.

7. Travel agent’s coordinator sends the

request message to hotel’s and airliner’s coordinator

and writes start-record in its log.

8. Hotel’s coordinator and airliner’s

coordinator request whether their Web services are

able to execute the reservation.

9. Hotel’s Web service and airliner’s Web

service write their votes (Prepared or Aborted) into

their logs and inform their coordinators about their

votes.

10. Hotel’s coordinator and airliner’s

coordinator write the vote in their logs, and then

inform travel agent’s coordinator about their vote.

11. If there were no Abort-message (i.e.,

airliner’s and hotels Web services’ votes were

Prepared), then travel agent’s coordinator sends the

Commit-message to hotel’s and airliner’s

coordinator; and otherwise it sends the Abort-

message.

12. Hotel’s coordinator writes the decision

(commit-record or abort-record) in its log and

informs hotels’ Web service whether the transaction

is committed or aborted, and respectively airliner’s

coordinator writes commit-record in its log and

informs airliner’s Web service.

A salient feature of the above protocol is that

each Web service can unilatery decide Abort at any

time, if it has not voted Prepared: After voting

Prepared a Web service cannot take unilateral

action. The period between the moment a Web

service votes Prepared and the moment it has

received sufficient information to know what the

decision will be is called the uncertainty period for

that Web service. A Web service is called uncertain

while it is in its uncertainly period.

During this period (during the steps 8-12 in the

previous example) the Web service does not know

whether it will eventually decide Commit or Abort,

nor can it unilaterally decide Abort. So, for example,

during the uncertain period the Hotel is not allowed

to reserve the room for any other customer. How

these kinds of constraints are enforced is application

or system dependent, e.g., by setting a write-lock on

reservation data, or by using semantic information in

the reservation application.

3.3 Managing System and

Communication Failures

In the case of system or communication failure a

service must await the repair of failures before

proceeding, and so the service is blocked. Blocking

is undesirable, since it can cause services to wait for

an arbitrarily long period of time.

In order that a blocked service can proceed it

must communicate with the coordinator (travel

agent’s coordinator in the case of previous example).

This kind of communication is carried out in a

termination protocol, which is activated by the

participant (hotels or airliner’s coordinator in the

case of previous example) when it has been waiting

a predetermined time for a message.

Our used termination protocol of the atomic

commitment protocol goes as follows:

1. Hotel’s coordinator (or airliner’s

coordinator) sends decision-request-message to

travel agents coordinator.

2. Travel agent’s coordinator sends the

response-message to hotel’s Coordinator (travel

agent’s coordinator).

Hotels coordinator (travel agent’s coordinator)

repeats the request,, if it has not receive the response

in a predetermined time period. Note that travel

agent’s coordinator is always able to response to the

request as it has no uncertainty period.

4 CONCLUSIONS

The full potential of Web services will be achieved

only when applications and business process

interactions are coordinated in a transactional way.

The issue of Web services coordination is widely

studied, and many transaction models suitable for

composing Web services are proposed. However,

the deployment of the transaction models is not

straightforward as Web services’ interfaces are not

usually designed for compositions. This is

regrettable, since it is obvious that by supporting one

or more coordination types, a Web service can

increase its usability, and more advanced composed

Web services can be designed.

MANAGING TRANSACTIONAL COMPOSITIONS OF WEB SERVICE APPLICATIONS

315

In order to simplify the composition of Web

services we have introduced the Composition server,

which can be used in publishing and querying Web

services’ abilities to participate on various

coordination types.

In the future work we will also analyze the

replacement of the Composition server by extending

the UDDI registry by the information included in the

Composition server. However, it is obvious that a

drawback in this approach will be that the querying

features of UDDI registry are restricted to keywords,

and so we would loose the expression power that can

be achieved by the ontology based Composition

server.

REFERENCES

Alrifai, M., Dolog, P., Nejdl, W., 2006. Transactions

concurrency control in web service environment.

Proceedings of the 4th European Conference on Web

Services, pages. 109-118.

BTP, 2002. BTP- Business Transaction Protocol,

http://www.oasis-open.org/committees/business-

transactions/documents/primer/

Choi, S., Jang, H., Kim, H., Kim, J., Kim, S., Song, J.,

Lee, Y., 2005. Maintaining consistency under isolation

relaxation of web services transactions. Proceedings of

6th International Conference on Web Information

Systems Engineering, In Lecture Notes in Computer

Science, 245-257.

Davies, J., Fensel, D., Harmelen, F., 2002. Towards the

semantic web: ontology driven knowledge

management. West Sussex: John Wiley & Sons.

Ding, X.,Wei, J., Huang, T., 2006. User-defined atomicity

constraint: A more flexible transaction model for

reliable service composition. Proceedings of 8th

International Conference on Formal Engineering

Methods, In Lecture Notes in Computer Sciences,

pages 168-184.

Fauvet, M., Duarte, H., Dumas, M., Benatallah, B., 2005.

Handling transactional properties in web service

composition. Proceedings of 6th International

Conference on Web Information Systems Engineering,

In Lecture Notes in Computer Sciences, pages 273-

289.

Gray, J., Reuter A., 1993. Transaction Processing:

Concepts and Techniques. Morgan Kaufman.

Gruber, T., 1993.Toward principles for the design of

ontologies used for knowledge sharing. Padua

workshop on Formal Ontology.

Guabtni, A., Charoy, F., Godart, C., 2006. Concurrency

management in transactional web services

coordination. 17th International Conference, DEXA.

In Lecture Notes in Computer Science, pages. 592-

601.

IBM, Web Services Transactions specifications, 2008.

http://www.ibm.com/developerworks/library/specificat

ion/ws-tx/

OWL–WEB Ontology Language, 2005.

http://www.w3.org/TR/owl-ref/

Papazoglou, M., van den Heuvel, W., 2007. Service

oriented architectures: approaches, technologies and

research issues.The International Journal on Very

Large Data Bases, 16, 3.

Puustjärvi, J., 2004. Concurrency control of Internet-based

workflows. In Proc of the Sixth International

Conference on Information Integration and Web-

based Applications & Services (iiWAS2004), pages

647-654.

Puustjärvi, J., 2006. CWS-transactions: An approach for

composing web services. Second International

Conference on Web Information Systems and

Technologies (WEBIST), pages, 69-74.

RDFS. 2005. http://www.w3.org/TR/2000/CR-rdf-

schema-20000327/.

Schmit, B. ja Dustdar, S., 2005. Towards transactional

web services. Proceedings of the 7th IEEE

International Conference on E-Commerce Technology

Workshops (CECW'05), pages 12-20.

Singh, M., Huhns, M., 2005.

Service Oriented Computing:

Semantics, Processes, Agents. John Wiley &Sons, Ltd.

WSDL, 2001. WSDL- Web Services Description

Language.http://www.w3.org/TR/2001/NOTE-wsdl-

20010315.

XLang–Web Services for Business Process Design.

2002.http://www.gotdotnet.com/team/xml_wsspecs/xl

ang-c/default.htm

Xu, W., Cheng, W., Liu, W., 2006. A transaction-aware

coordination protocol for web services composition.

Proceedings of 7th International Conference on Web

Information Systems Engineering, In Lecture notes in

Computer Science. Springer, pages126-131.

Younas, M., Chao, K., 2006. A tentative commit protocol

for composite web services. Journal of Computer and

System Sciences.

Zhao, W., Moser, L., Melliar-Smith, P., 2005. A

reservation-based coordination protocol for web

services”. Proceedings of the IEEE International

Conference on Web Services (ICWS'05), pages, 49-56.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

316
