APPLICATION VERSIONING, SELECTIVE CLASS

RECOMPILATION AND MANAGEMENT OF ACTIVE INSTANCES

IN A FRAMEWORK FOR DYNAMIC APPLICATIONS

Georgios Voulalas and Georgios Evangelidis

Department of Applied Informatics, University of Macedonia, 156 Egnatia St., GR-54006 Thessaloniki, Greece

Keywords:

Model-driven development, Dynamic applications, Runtime compilation, Java platform, Data versioning, Se-

lective recompilation, Meta-model.

Abstract:

In our previous research we have presented the core functional and data components of a framework for the

development and deployment of web-based applications. The framework enables the operation of multiple

applications within a single installation and supports runtime evolution by dynamically recompiling classes

based on the source code that is retrieved from the database. It is structured upon a universal database schema

(meta-model). The contributions of this paper include a versioning mechanism that enables access to old data

in their real context (i.e., within the version of the application that created this data), a proposal for selective

recompilation of new classes that allows applications to evolve safely at the minimum processing cost, and

a policy for handling active classes (i.e., classes that have running instances) that need to be dynamically

recompiled in order to reﬂect changes.

1 INTRODUCTION

There is a growing class of applications that are large

and complex, exploit object persistence, and need

to run uninterrupted for long periods of time. Al-

most all of these applications require a combination

of complex data models, advanced logic and per-

sistence (Atkinson and Jordan, 2000). At present,

these requirements are supported by a combination of

database systems, programming languages and soft-

ware production tools. In parallel, the steady increase

in affordable computational power removes inhibi-

tions on application complexity and results in demand

for more complex software systems. On the other

hand, this availability of powerful computational re-

sources encourages the elaboration of sophisticated

development platforms that enable developers to ef-

ﬁciently cope with the demand for more and better

software.

Towards this goal, we presented (Voulalas and

Evangelidis, 2008a), (Voulalas and Evangelidis,

2007) and (Voulalas and Evangelidis, 2008b) a de-

velopment and deployment framework that targets to

web-based business applications. The main principles

that manage the operation of the framework are the

following:

• The framework is structured on the basis of a uni-

versal database schema (meta-model).

• Deployment is supported by generic components

and application-speciﬁc components that are re-

trieved from the database and compiled at run-

time (Biesack, 2007) in order for the application

to be dynamically created.

• The Database tier is common for all applications.

The user does not write SQL code. Instead, he

uses generic methods that materialize and dema-

terialize objects.

• For the development of the Application tier (i.e.,

classes) the user should be provided with a custom

editor implementing a moderated environment, or

(ideally) a code generation tool for transforming

functional speciﬁcations provided by the user to

code. In both cases the code is stored in the

database along with the dependencies between the

classes.

• For the Presentation tier, a more ﬂexible and less

moderated approach is proposed in order for the

user to be able to creatively develop the user in-

terface of the application.

• The framework supports the operation of multi-

ple applications within a single installation. There

317

Voulalas G. and Evangelidis G.

APPLICATION VERSIONING, SELECTIVE CLASS RECOMPILATION AND MANAGEMENT OF ACTIVE INSTANCES IN A FRAMEWORK FOR DYNAMIC APPLICATIONS.

DOI: 10.5220/0001836703170322

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

always exists one deployed application, indepen-

dently of the actual number of running applica-

tions.

• We can efﬁciently manage continuously evolving

applications. We can deal with business logic

changes at deployment time without interrupting

the operation of the application, since changes are

embedded in the application through the dynamic

recompilation of modiﬁed classes.

• We can anytime refer to a previous version of an

application and examine old data in its real con-

text (i.e., within the version of the application that

created this data) by retrieving the correspond-

ing data instances from the database, without the

need of maintaining additional installations (one

for each different application version).

In order to verify the feasibility of our proposal,

we have developed the core functional and data mech-

anisms. The underlying database schema resides in

MySQL. For the functional components, Java was an

obvious choice for us considering its high and still

growing popularity, its increasing adoption for de-

velopment of large and long-lived applications and

of course the fact that it supports run-time compila-

tion of classes in Java Platform

, Standard Edition

6 (Sun Microsystems, 2008). However, it is clear that

a number of aspects of our research can be gener-

alised for other programming languages that support

run-time compilation (e.g. .NET). Last but not least,

despite the fact that our framework focuses on web-

based business applications, we believe that it can be

extended to other families of applications.

This paper elaborates on three important mecha-

nisms:

• a simple data versioning technique that allows us

to keep all different versions of the modelled ap-

plications (Section 2),

• a method for selecting only those classes that have

been modiﬁed and need to be recompiled, in order

for redundant processing costs to be avoided (Sec-

tion 3), and

• a policy for handling active instances of classes

that need to be recompiled in order to reﬂect

changes (Section 4).

In Section 5, we provide a conclusive summary of

the paper and we identify our future research plan.

2 MAINTAINING DIFFERENT

VERSIONS OF APPLICATIONS

Since source code and data structures of the deployed

applications are stored in the database, in order to be

able to return to a previous version of an application,

we just need to apply a data versioning technique. As

a basis for the data versioning technique we used the

Envers Project (entity versioning) of the jboss com-

munity. Envers project (Warski, 2008) was mainly

selected due to its simplicity in comparison with other

techniques (Zhu, 2003).

For each versioned entity a “versions” table is cre-

ated. The versions table has the following ﬁelds:

• primary key – auto number

• id of the original entity

• revision number – an integer

• revision type – a small integer: this ﬁeld can

have four values: 0, 1, 2, 3 which mean, re-

spectively, ADDED, MODIFIED, DELETED and

UNCHANGED. A row with a revision of type

DELETED will only contain the id of the entity

and no data (all ﬁelds NULL), as it only serves

as a marker saying ”this entity was deleted at that

revision”.

• creation date and time – timestamp

• versioned ﬁelds from the original entity

The current entity data is stored in the original ta-

ble and in the versions table. According to Envers

members, this duplication of data is acceptable, since

it makes the query system much faster. However, this

aspect will be tested with real production data since

performance issues in versioning systems depend on

how often old data is accessed.

The proposed technique supports global revisions,

i.e., for each modiﬁcation of a data instance a new re-

vision is created that includes not only modiﬁed but

also unchanged data. Global revisions are suitable for

data that is not often modiﬁed. Since a real-word ap-

plication is not modiﬁed on a daily basis, we believe

that this technique meets our needs.

In Figure 1, we present an improved version of the

Database Model (Voulalas and Evangelidis, 2008b).

Region A holds the functional speciﬁcations of the

modelled application. In includes the following en-

tities: Classes, Attributes, Methods, Arguments, As-

sociations and Imports (class dependencies).

Region A’ is the new part of the database model.

It includes all tables that are required in order for

versioning to be supported. Note that versioning ap-

plies only to Region A, i.e., to the part of the model

that holds the functional and data speciﬁcations of the

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

318

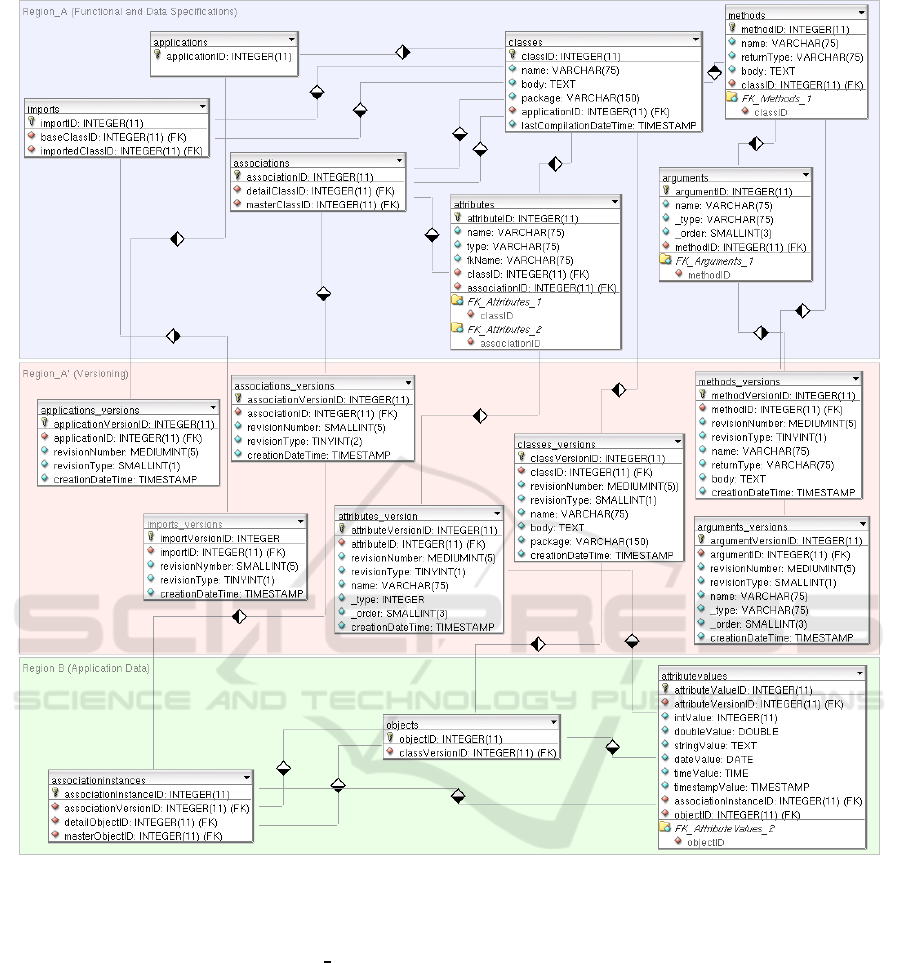

Figure 1: The Database Model.

modelled applications. For each versioned table we

have created a companion table using “ versions” as

sufﬁx. Note that:

• Although the combination of the primary key of

the original entity with the revision number is

unique and not null, we have created a new ﬁeld

to be used as primary key. This is because we

wanted to avoid extra complexity produced by the

complex primary keys (consisting of more than

one ﬁelds) of the original entities.

• Foreign keys are not versioned. For example the

methodID ﬁeld in the arguments table is not ver-

sioned, since an argument is tightly associated

with a method and cannot be moved to another

method.

• The versions table that is associated with the asso-

ciations table does not include any versioned ﬁeld.

This is because an association can only be deleted

and not modiﬁed.

Region B includes tables that store data produced

by the applications, structured in a way that is inde-

pendent of the actual data structure of the applica-

tions. Thus, changing the database of a modelled ap-

plication (e.g. adding a ﬁeld in an existing table or

creating a table) does not affect Region B. Versioning

of the data that is produced by the deployed applica-

tions is out of the scope of our research.

APPLICATION VERSIONING, SELECTIVE CLASS RECOMPILATION AND MANAGEMENT OF ACTIVE

INSTANCES IN A FRAMEWORK FOR DYNAMIC APPLICATIONS

319

3 SELECTIVE CLASS

RECOMPILATION

In our previous research (Voulalas and Evangelidis,

2008b), we have presented a generic method that han-

dles the execution of entry methods of the deployed

applications. The method works as follows:

• Using the input arguments (className and pack-

ageName) identiﬁes the class that implements the

method and retrieves its source code from the

database.

• Along with the main class, all imported classes

are also retrieved from the database (see Imports

table in Region A). Note that this applies only to

application-speciﬁc classes and not to java classes

or generic classes of our framework that do not

change.

• All classes are recompiled and the method is exe-

cuted using the getDeclaredMethod operation that

is implemented by java.lang.Class. Arguments

are passed as an array of java.lang.Class objects.

This simple approach needs to be improved in or-

der to reduce or even zero unnecessary recompilations

and avoid runtime errors (e.g. runtime type incompat-

ibility, method not found) produced because not all

dependent classes have been correctly identiﬁed and

recompiled.

The main idea is that a class needs to be recom-

piled only in case it has changed itself or a class that

is dependent on has changed. This requires for the

following two improvements.

First, we have to query the database in order to

see if the class or an associated class has changed

until the last time it was compiled. For this rea-

son we have added a ﬁeld in the Classes table (Re-

gion A) that is used for tracking the exact date

and time each class was compiled for the last time.

The query just needs to select only those records

from the classes table that are associated with the

method to be invoked and satisfy the following con-

dition: LASTCOMPILATIONDATETIME is smaller

than the MAX(CREATIONDATETIME) of all ver-

sions of the class having revision type different than

UNCHANGED. In case no such class exists the last

class ﬁle can be loaded and used for the execution of

the method.

Second, since classes that belong to the same

package are not imported when used by a class, it is

not safe to identify dependencies only by recursively

analyzing imports. Recompiling by default all classes

of the same package is not efﬁcient, especially for

large systems with many classes. Thus, we should use

a tool for analyzing classes and ﬁnding all dependen-

cies between them. Dependencies, for instance, stem

from class inheritance or subtyping, method calls, and

attribute accesses. Dependency information is typi-

cally gathered from source code. In the case of Java,

it is possible to get this information from class ﬁles.

Although the approach of ﬁnding dependencies based

on the class ﬁles seems to be more effective (Barowski

and Ii, 2002), in our case it is not applicable since

dependencies are needed in order to decide which

classes should be recompiled. Using old class ﬁles

is not safe because the modiﬁed source code may in-

clude additional dependencies that will be ignored, re-

sulting in runtime errors. Examples of existing tools

that analyze class ﬁles are jGRASP (Barowski and Ii,

2002), CDA (Class Dependecy Analyzer) and STAN

(STructure ANalysis). In contrast, OptimalAdvisor,

RECODER and DA4J (Pinzger et al., 2008) identify

dependencies by analyzing the source code ﬁles. In-

telliJ IDEA is an advanced Integrated Development

Environment (IDE) that supports compilation of all

source ﬁles that have been modiﬁed since the last

compilation in the selected module as well as in all

modules it depends on recursively. Its current version

(IntelliJ IDEA 7) includes the Dependency Structure

Matrix (DSM), a sophisticated tool for visually ana-

lyzing the dependencies between project classes (In-

telliJ IDEA, 2008).

Selecting and incorporating a technique that iden-

tiﬁes dependencies between Java Classes is one of our

future steps. The main point is that the preliminary re-

search that we have conducted shows that such tools

and methods already exist.

4 HANDLING OF ACTIVE

CLASSES

A class that is replaced at run-time may have active

methods. Thus, the biggest problem of runtime evolu-

tion is to match the old and the new program code and

state. In a relevant research effort (Dmitriev, 2001),

three policies for dealing with active old methods of

changed classes are presented. Although the particu-

lar effort is focused on the implementation of an envi-

ronment that supports evolution of Java applications

at a lower level (as part of the Java Virtual Machine)

compared to our research, the presented policies are

quite interesting and relevant:

On-the-ﬂy Method Switching. According to this

policy a point in the new method that “corresponds”to

the current execution point in the old method, should

be identiﬁed. Then, execution is continued from this

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

320

point in the new method. Identifying this point is

quite hard and even if this is done, it seems that many

security gaps exist.

Wait Until there are no Active Old Versions of

Evolving Methods. This policy guarantees that two

versions of any method can never co-exist simultane-

ously for a given application. In order for this policy

to be applied in practice, the developer must somehow

ensure that the execution will reach the point where

no active old methods exist. The implementation of

this policy would have to keep track of all of the acti-

vations of the old methods. Once the last such activa-

tion is complete, the threads should be suspended and

method replacement should be performed. Again, this

task is more complex in case of a multi-threaded ap-

plication, since it may happen that while one thread

completes the last activation of the old method, an-

other thread calls this method once again. Also, this

solution may not always work (we may wait forever),

if, for example, one of the evolving methods is the

main method of the program.

All Existing Threads Continue to Call Old Code,

whereas New Threads (Threads Created after

Class Transformation) Call New Code. This pol-

icy looks more difﬁcult to implement than the others,

since it allows the old and the new code to coexist,

and the old code can be called over and over again.

It is currently unclear, if possible at all, to determine

whether or not an arbitrary thread may call a given

class. Perhaps the developer should specify this ex-

plicitly. This policy may be the most suitable solution

for certain kinds of applications, e.g., servers that cre-

ate a new, relatively short-lived thread in response to

every incoming request.

It looks that none of these solutions can be re-

garded as panacea. They are different policies and

each one of them may be preferable in certain sit-

uations. Evaluating them in the context of our re-

search project, it seems that the third policy (all ex-

isting threads continue to call old code, whereas new

threads call new code) best suits the needs of the fam-

ily of applications that we are targeting to. Web-based

applications, in general, generate short-lived threads

in response to different incoming requests initiated by

end-users (e.g., when a user submits data through a

web form, the system creates a thread that parses sub-

mitted data and stores it in the database).

Now, we have to ﬁnd out a way to support this

policy. Returning back to the database model we can

see that objects (in Region B) are associated with the

classes versions table (in Region A) and not with the

classes table that was our initial approach in the ﬁrst

version of the database model (Voulalas and Evange-

lidis, 2008b). This modiﬁcation enables us to identify

all objects, including the values of their attributes and

the way they are associated with other objects, that

have been produced from a speciﬁc version of an ap-

plication. Thus, this information can be used in order

to identify which version of the application should be

invoked in order for a speciﬁc object to be processed.

Before concluding this section we must make an

important note. Suppose that we have a web-based

business application that supports the submission of

requests by public (external) users and the processing

of the requests in multiple steps by enterprise (inter-

nal) users. A business change forces the developer to

implement and make available a new version of the

application without interrupting the operation of the

system. According to the policy presented above, the

running instances of the objects will be handled by

the old version of the application. This means that, a

request submitted by a user before the system change,

will be parsed and stored in the database by the meth-

ods of the old classes. Based on the same policy, when

the request will be fetched from the database in order

to be processed by an internal user, the new object in-

stance will be created by the new version of the class.

However, in our platform the developer may have an-

other advanced option: depending on the type of the

change he can declare that objects created by a pre-

vious version of the application should be processed

throughout their lifecycle by the same version of the

application. This extra option is very useful in case of

changes that seriously affect business rules. Deﬁning

the lifecycle of an object is a critical issue that should

be examined, since it may involve not only the spe-

ciﬁc object but also associated objects (with their own

lifecycle). This implicitly entails that we should con-

sider introducing the concepts of roles, activities and

workﬂows that are present in all business systems ei-

ther embedded in code, or handled by a discrete work-

ﬂow system.

5 CONCLUSIONS & FURTHER

RESEARCH

Our research effort aims to provide a platform that

will support the development and deployment of con-

tinuously evolving web-based business applications.

The operation of the platform complies with the fol-

lowing rules:

• Source code resides in the database and is re-

trieved and compiled at run-time. Changes are

dynamically embedded in the application without

the need of interrupting its operation.

APPLICATION VERSIONING, SELECTIVE CLASS RECOMPILATION AND MANAGEMENT OF ACTIVE

INSTANCES IN A FRAMEWORK FOR DYNAMIC APPLICATIONS

321

• The platform facilitates the developer in the

implementation process by providing pre-build

mechanisms for the interaction with the database.

The user does not have to design a database since

all applications rely upon a common database

model.

• Multiple applications and multiple versions of the

same application can operate in parallel upon a

single installation of the platform.

Code modiﬁcations can be either simple changes,

for example, additional System.out.println() state-

ments for better logging, or even complex changes

that require the implementation of a new method or

new information to be stored in the database. Even in

the case of simple changes, it is of great importance

to implement them without interrupting the operation

of the system.

Having implemented an architectural prototype

that enabled us to verify the feasibility of the proposed

solution in general (Voulalas and Evangelidis, 2008b),

this paper elaborated on three important aspects:

Versioning of the Modelled Applications. We pre-

sented a simple data versioning technique that allows

us to keep all different versions of the modelled appli-

cations. We modiﬁed the database schema in order to

embed the versioning mechanism.

Selective Class Recompilation. We presented a

method for selecting only those classes that have been

modiﬁed after being compiled. Further work is re-

quired in order to embed a process for identifying

class dependencies. Having this information will en-

able us to safely select all classes that need to be re-

compiled.

Managing Active Instances of Classes that have to

be Recompiled in Order to Reﬂect Changes. We

selected a policy that deﬁnes that all existing threads

should continue to call old code, whereas new threads

(threads created after class transformation) should

call new code. We presented the way this policy can

be efﬁciently supported by our system, plus some ex-

tra thoughtsfor extending the policyin order to enable

complex business processes to evolve more smoothly.

Our next research effort will focus on testing the

feasibility of the platform with some real application

scenarios. Based on the case study that we have pre-

sented in our previous work (Voulalas and Evange-

lidis, 2008b), we are going to apply all possible types

of changes in order to evaluate how the system reacts.

We should also validate in practice how the system

operates when two different versions of the same ap-

plication co-exist, especially when they have active

instances in parallel.

REFERENCES

Atkinson, M. and Jordan, M. (2000). A Review of the Ratio-

nale and Architectures of PJama: a Durable, Flexible,

Evolvable and Scalable Orthogonally Persisteng Pro-

gramming Platform. Sun Microsystems, Inc., Moun-

tain View, CA.

Barowski, L. A. and Ii, J. H. C. (2002). Extraction and use

of class dependency information for java. In WCRE

’02: Proceedings of the Ninth Working Conference on

Reverse Engineering (WCRE’02), page 309, Washing-

ton, DC, USA. IEEE Computer Society.

Biesack, D. (2007). Create dynamic applications

with javax.tools.

http://www.ibm.com/

developerworks/java/library/j-jcomp/index.

html

Dmitriev, M. (2001). Towards ﬂexible and safe technology

for runtime evolution of java language applications. In

In Proceedings of the Workshop on Engineering Com-

plex Object-Oriented Systems for Evolution, in asso-

ciation with OOPSLA 2001 International Conference.

IntelliJ IDEA (2008). Dependency analysis.

http://www.jetbrains.com/idea/features/

dependency_analysis.html

Pinzger, M., Graefenhain, K., Knab, P., and Gall, H. C.

(2008). A tool for visual understanding of source

code dependencies. In ICPC ’08: Proceedings of the

2008 The 16th IEEE International Conference on Pro-

gram Comprehension, pages 254–259, Washington,

DC, USA. IEEE Computer Society.

Sun Microsystems (2008). The reﬂection API.

http://java.sun.com/docs/books/tutorial/

reflect/index.html

Voulalas, G. and Evangelidis, G. (2007). A framework

for the development and deployment of evolving ap-

plications: The domain model. In ICSOFT Interna-

tional Conference on Software and Data Technolo-

gies, Barcelona, Spain.

Voulalas, G. and Evangelidis, G. (2008a). Developing and

deploying dynamic applications: An architectural pro-

totype. In Filipe, J., Shishkov, B., and Helfert, M., ed-

itors, Communications in Computer and Information

Science, volume 10, pages 293–306. Springer Berlin

Heidelberg.

Voulalas, G. and Evangelidis, G. (2008b). Developing and

deploying dynamic applications: An architectural pro-

totype. In ICSOFT International Conference on Soft-

ware and Data Technologies, Porto, Portugal.

Warski, A. (2008). Data versioning and en-

vers.

http://www.jboss.org/downloading/

?projectId=envers&url=/envers/downloads/

presentations/envers_nurnberg.pdf

Zhu, N. (2003). Data versioning systems. Technical report,

Computer Science Department, Stony Brook Univer-

sity.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

322
