VISUALIZATION OF AND RETRIEVAL OF BACKGROUND

INFORMATION RELATING TO WORDS IN WEB DOCUMENTS

A Visualization Interface based on Vector Representation

Kouji Shimatsuka and Tatsuhiro Yonekura

Graduate School of Science and Engeneering, Ibaraki University, Ibaraki, Japan

Keywords: Visualization, Multi Media, User Interface, Text Mining, Vector Space Model.

Abstract: When people encounter unfamiliar words, they often use tools such as search engines to obtain background

information on these words. However, the semantic content of words can be complex, and it is not always

possible to understand the meaning of words from textual information alone. In this paper we quantify the

semantic content of words by means of a simple and convenient text-based method whereby the semantic

content is constructed from linguistic, visual and auditory characteristic values. Using characteristic vectors

generated in this way, users are able to visually check and search for background information on unfamiliar

terms in a web document.

1 INTRODUCTION

The Web was originally used for the exchange of

text-based information, but with the growth of the

Internet, a vast and rich collection of multimedia

information such as images, music and video content

is now available online. As a result, the Web has

become an extremely useful tool for looking up the

meaning of words. When people encounter

unfamiliar words, they often use tools such as search

engines to obtain background information on these

words. However, the semantic content of words can

be complex, and it is not always possible to

understand the meaning of words from textual

information alone. In this paper we quantify the

semantic content of words by means of a simple and

convenient text-based method whereby the semantic

content is constructed from linguistic, visual and

auditory characteristic values. Using characteristic

vectors generated in this way, users are able to

visually check and search for background

information on unfamiliar terms in a web document.

2 RELATED RESEARCHES

The field of semantic visualization methods is

currently being actively researched.

Words can be related in many different ways

parent-child relationships and sibling relationships

can be determined in some cases, and counterfactual

relationships are exhibited in other cases. However,

most of these techniques only concentrate on

linguistic characteristics. This is because it is

generally not possible to systematically handle the

weighting of words and the weighting of images and

audio in a simple manner.

3 VECTOR SPACE MODEL

(Gerard Salton, Michael J. MeGill, 1983)A vector

space model is a search model where a document is

represented with vectors whose elements are the

weightings applied to the search terms.

3.1 Weighting of Indexing Terms

3.1.1 TF-IDF

In this paper, weightings are determined by using the

TF-IDF method, which is widely used for the

weighting of indexing terms. The frequency at

which an indexing term t

appears in a set of

documents d

is called the term frequency (TF) and

is expressed as tf

. The inverse document frequency

(IDF) is used to express the specificity of these

terms. The inverse document frequency idf is

defined as follows:

419

Shimatsuka K. and Yonekura T.

VISUALIZATION OF AND RETRIEVAL OF BACKGROUND INFORMATION RELATING TO WORDS IN WEB DOCUMENTS - A Visualization Interface based on Vector Representation.

DOI: 10.5220/0001839204190422

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

idf log=

(1)

These two parameters are combined in order to

apply weightings to the indexing terms:

ijjijij

tfidftfw log** ==

(2)

3.2 Document Vector

A document vector and the entire set of documents

is expressed by an m×n matrix as follows:

[]

⎥

⎦

⎤

⎢

⎣

⎡

mnmm

www

MOMM

22221

11211

dddD

(3)

4 PROPOSED METHOD

In this proposal, background information on words

in a web document is visualized by quantifying the

intended semantic content of words into three

characteristic values — linguistic, visual and

auditory.

To apply these weightings, the Web is used as a

corpus, and MeCab is used for Japanese word

segmentation and morphological analysis. The

processing flow is shown in Fig. 1.

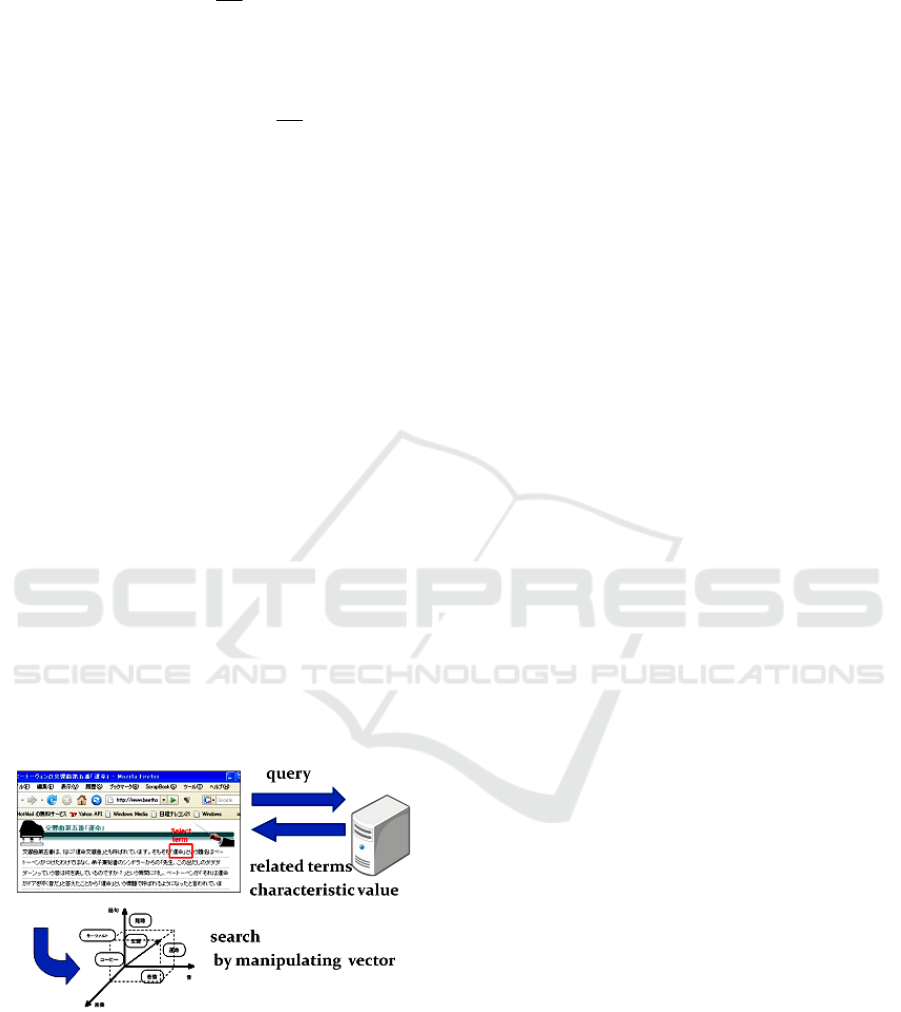

Figure 1: Flow Diagram.

4.1 Extraction from Browsing

Documents

4.1.1 Extraction of Principal Terms

In the visualization of background information, the

first step is to identify the subject of the Web

document that the user is currently browsing. In this

paper, the subject of the document is called the

principal term, and the principal term is extracted as

the word with the highest weighting obtained by the

TF-IDF method. On the system side, the word to be

searched for is transmitted along with the principal

terms as a query.

4.1.2 Extraction of Related Terms

When expressing the meaning of a particular word,

the existence of related terms that describe this word

is an essential requirement. The greater the coverage

of the related terms included in a web document, the

greater the amount of information this document is

likely to contain regarding these terms. The TD-IDF

method is used to extract terms except for the word

being searched for and the principal terms. These

form a set of related terms for the query in the

document bring browsed.

4.1.3 Extraction of Names

In the calculation of characteristic values, it is

necessary to specify the names of image data and

audio data in the web document. However, it is

difficult to specify names from the content of data,

and in general the name is taken from the

surrounding text associated with the data. Thus for

image data the name is obtained from the text of alt

attributes, and for audio data the name is obtained

from the text content of surrounding elements such

as <a> tags and <table> tags.

4.2 Calculation of Characteristic

Values

In this paper, various characteristic values are

calculated from linguistic statements. It is possible

to determine the degree of correspondence of words

by matching them with a suitable set of related terms.

It can be confirmed if characteristic value is closer to

the ideal value of one page, the degree of

correspondence is higher. This set of related terms is

derived from the snippets appearing next to links in

search engine results. The use of snippets make it

possible to extract related terms that have strong co-

occurrence.

4.2.1 Linguistic Characteristic Values

First, search results are obtained from a search

engine based on a query. Next, snippets consisting

of the summarized search results are analyzed to

calculate the TF-IDF values of each word. The 10

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

420

highest ranking terms (other than the search

keywords) that are obtained in this way are assumed

to be related terms that are suitable for the query.

This set of related terms is treated as a query vector,

and its inner product with the document vector is

calculated with a weighting of 1. The value

calculated by the inner product is the sum of the

weightings of the related terms in the document

being browsed. The total weighting of the related

terms in the document the user is looking at is

defined as Total, Total is calculated as follows:

∑

=⋅=

iij

qwTotal qd

(4)

Finally, the ideal of one page is calculated.

The entire set of documents from search results

is defined as R, the total weighting of related terms

in the search results is defined as RTotal, analyzed

number of pages is defined as tn, the ideal value of

one page is defined as OneTotal.

[]

⎥

⎦

⎤

⎢

⎣

⎡

mtnmm

rrr

MOMM

22221

11211

121

rrrR

(5)

∑∑

⋅

iij

tntn

RTotal

OneTotal

(6)

Then the characteristic value is calculated as

follows:

OneTotal

Total

(7)

4.2.2 Visual Characteristic Values

Images in web pages are often described in some

way by the page’s text content. Since this descriptive

text often includes terms that are related to the

image’s visual appearance, the visual appearance

information provided by these words can be used to

apply weighting to the content expressed by the

image. As in the calculation of linguistic

characteristic values, suitable related terms relating

to the visual appearance information are acquired

from the snippets. The discrimination of words

expressing visual appearance information is

performed by using a dictionary in which the visual

appearance attributes have been previously declared.

The visual characteristic value is also calculated

as follows:

limtOneTota

imgTotal

(8)

A list of visual appearance attributes for the Golden

Pavilion temple in Kyoto is shown in Table

1(browsing document ‘

http://onseno06.com/’).

Table 1: List of visual appearance attributes for the

Golden Pavilion temple “Kinkakuji-ji(金閣寺)”.

term browsing

document

ideal weight of

one page(in=5)

山荘

8 9

庭園

0 8

池

5 8

三層

0 7

二層

0 5

金箔

7 5

境内

6 4

4.2.3 Auditory Characteristic Values

Music and speech data is also often associated with

text descriptions in web documents including

information such as the track name or onomatopoeia

words. Auditory information obtained from these

words can be used as weightings representing the

audio content. As in the calculation of linguistic

characteristic values, suitable related terms relating

to the audio information are obtained from snippets.

The discrimination of words expressing audio

information is performed using a dictionary in which

the audio attributes have been previously declared.

The the auditory characteristic value is also

calculated as follows:

lsndOneTota

sndTotal

(9)

4.3 Creation of Characteristic Vector

From the calculated characteristic values, a

characteristic vector is created for the word to be

searched. If v1, v2 and v3 correspond to the

linguistic, visual and auditory characteristics, then

the characteristic vector of the word to be searched

can be expressed as follows:

[

]

321

vvv

(10)

4.4 Search Background Information

In case Linguistic characteristic values, in order to

VISUALIZATION OF AND RETRIEVAL OF BACKGROUND INFORMATION RELATING TO WORDS IN WEB

DOCUMENTS - A Visualization Interface based on Vector Representation

421

make the value of formula (11) and search results

weight more than 0 for every

i, search results is

obtained.

∑

−

iijij

(11)

5 EXPERIMENTAL

VISUALIZATION/ SEARCH

INTERFACE

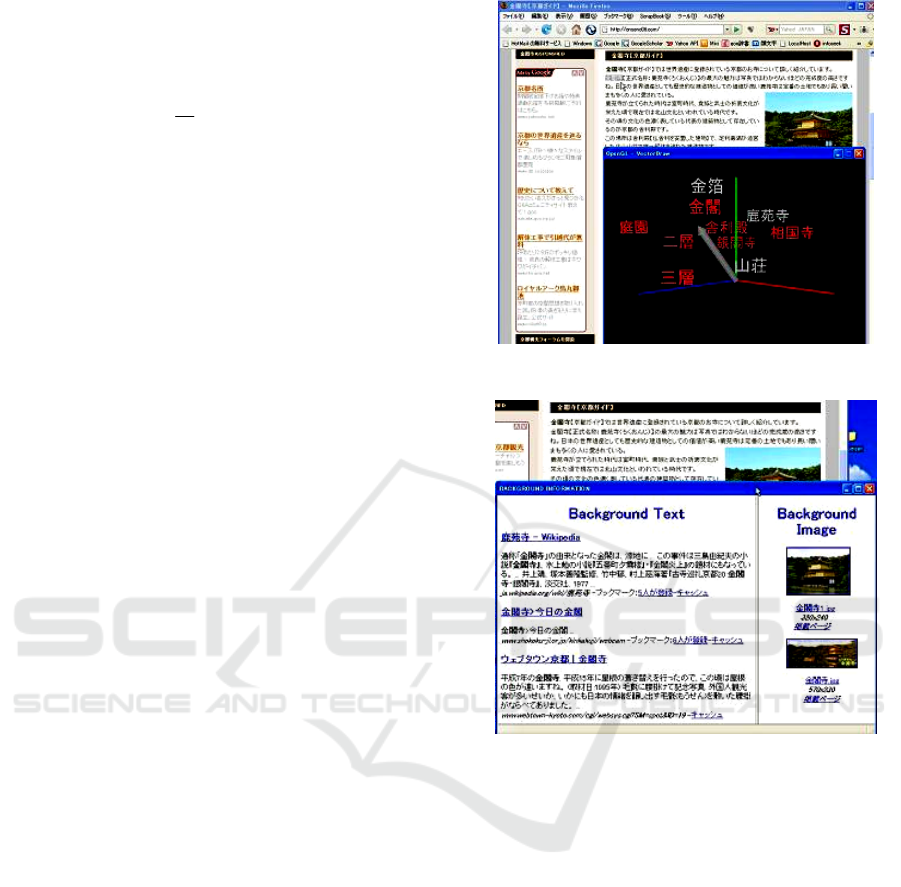

The characteristic vectors of the words and the

related terms were mapped into three dimensions,

and by manipulating the characteristic vectors and

text strings, it was possible to obtain a specified

quantity of information from multiple types of media

at the same time, and to check unfamiliar words

from the emphasized related terms. If the related

terms are musical terms then they are mapped closer

to the auditory axis, and if they are terms expressing

visual appearance information then they are mapped

closer to the visual axis, whereby different terms are

mapped closer to their related axes.

6 CONCLUSIONS

In this proposal we have described how the semantic

content of words can be quantified by defining the

semantic content intended by words as being

expressed by three types of characteristic quantities

— linguistic, visual and auditory. The characteristic

vector generated in this way allows users to visually

check and search for unfamiliar words. In this way,

it should be possible for users to efficiently ascertain

the semantic content intended by unfamiliar words.

ACKNOWLEDGEMENTS

This work was partially supported by the JSPS

Grant-In-Aid no.18300027.

Figure 2: Vector manipulation.

Figure 3: Acquisition of search results.

REFERENCES

Gerard Salton, Michael J. MeGill, 1983. Introduction to

Modern Information Retrieval. MeGraw-Hill.

E. Chisholm, T. Kolda, 1999. New term weighting

formulas for the vector space method in information

retrieval. Technical Memorandum ORNL-13756.

K. Kita, K. Tsuda, and M. Shishibori, 2002. Information

Retieval Algorithms. Kyoritsu Shuppan Press.

Kanada, Y., 1999. A Method of Geographical Name

Extraction from Japanese Text for Thematic

Geographical Search. 18th International Conference

on Information and Knowledge Management

(CIKM'99), pp. 46-54.

Matsuo, Y., Ishizuka, M., 2002. Keyword Extraction from

a Document using Word Co-occurrence Statistical

Information.Journal of the Japanese Society for

Artificial Intelligence(17-3D), pp.217-223.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

422
