PACD: A BITMAP-BASED FRAMEWORK FOR PROCESSING

XML DATA

Mohammed Al-Badawi

, Barry Eaglestone

and Siobhán North

Department of Computer Science, The University of Sheffield, Sheffield, U.K.

Department of Information Studies, The University of Sheffield, Sheffield, U.K.

Keywords: XML Processing, XML Update, Mapping, Sparse-Matrix.

Abstract: Current XML/RDBMS storage models and query processing technologies are reviewed in this paper,

leading to the identification of query expressiveness and performance limitations. A novel serialized XML

query processing framework is proposed to address these. The proposed query processor (called PACD) is

based on a bitmap representation for XML’s structural relationships. XPath axes, plus their extension (i.e.

“next” axis) for accessing the document order, are translated to sparse matrices allowing data compression,

query complexity reduction and XML updates relaxation. Experimental results, outlined in this paper, show

promising performance improvements over conventional techniques in a wide range of query types.

1 INTRODUCTION

Current performance limitations of native XML

technology (Abiteboul et al. 2000) determine that

XML-encoded data sets are mainly stored and

manipulated using the more mature relational

technology (e.g Amer-Yahia et al. 2004, DeHaan et

al. 2003, and Rys 2005). This poses the challenge of

devising methods of utilising relational technology

to manage XML data sets, such that query

performance is comparable to that achieved for

conventional tabular data.

Our survey of storage models and query

processing techniques for native and relational

representations of XML data identifies current

limitations with respect to performance and query

expressiveness. To address these, a novel storage

model for mapping XML data into a bitmap

representation and an associated query processor are

proposed. Additionally we implemented and

evaluated our framework as a new XML-to-RDBMS

mapping technique. Our experiment has

demonstrated support for a wider range of

XPath/XQuery (Schmidt et al. 2001) queries, greater

potential for optimisation through parallel

processing of query components, reduced resource

overheads, and reduced complexity of XML updates

compared to alternatives in the literature.

The rest of this paper is organized as follows.

Section 2 reviews XML/SQL related work. The new

framework is introduced in Section 3 while Section

4 describes our implementation of the proposed

framework as an XML-to-RDBMS mapping

technique, which is evaluated in Section 5. Finally,

Section 6 concludes the paper and suggests paths for

future work.

2 RELATED WORK

Technologies for managing XML data sets are either

native XML (e.g. Fiebig et al. 2002, and Sipan et al.

2004) or extensions to relational technology (e.g.

Amer-Yahia et al. 2004, Rys 2005, and Abdel-Kader

et al. 2008). Of the latter, SQL/XML is the

mainstream approach, and extends the SQL standard

by including XML types, XPath and XQuery

capabilities (e.g. Rys 2005), and transformation

between XML and relational representations (Amer-

Yahia et al. 2004; Abdel-Kader et al. 2008). XML-

to-RDBMS mapping inherits the advantages of

established relational database engines for storing,

querying and indexing XML data; and is widely

used because of immaturity and poor performance of

native XML technology (Sipan et al 2004).

Therefore, relational storage models for XML data

Al-Badawi M., Eaglestone B. and North S.

PACD: A BITMAP-BASED FRAMEWORK FOR PROCESSING XML DATA.

DOI: 10.5220/0001839700660071

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

(such as in-lining/Edge (Florescu and Kossmann

1999) and ShreX (Amer-Yahia et al. 2004)) with

their associated query processors remain a focus for

research. There is an ongoing need for more

comprehensive performance evaluation of these

techniques. Such research must address complexities

introduced by storing irregular and deeply structured

XML data in the orderly and shallow structures

inherent in the relational model. Problems include

path navigation, representation of sequence within

XML data structures and associated query

optimisation.

An approach to support path navigation that

resonates with the database approach is to directly

model XML structures within the database design.

Within the relational model this can be achieved

through storage of XML paths in fixed (Jiang et al.

2002; Lau and Ng 2004) or dynamic (Amer-Yahia et

al. 2004) pre-defined relations in order to preserve

the XML structure (e.g. parent/child and

ancestor/descendant relationships). This is an

attractive approach, since it avoids overheads

incurred by alternative approaches, such as parsing

the XML schema and/or data to determine structure

(Sipan et al 2004; Rys 2005). However, dynamic

pre-defined mapping schemas become insufficient

when the XML schema is missing or changes

frequently. On the other hand, fixed pre-defined

mapping schemas introduce inefficiencies for certain

classes of query (e.g. twig-queries (Choi et al.

2003)), particularly when expensive recursive joins

must be computed.

The inherent sequence of XML structures poses

additional complexity for relational database

technology, since relational data is un-sequenced.

This is addressed in many models by node labelling

approaches; prefix-based and region-based. In the

former, the label of a child node contains its parent’s

label (Tatarrinov et al. 2002; Wong et al 2003),

whereas in the later; labels identify each node’s

descendants (DeHaan et al. 2003; Yoshikawa et al.

2001). However, existing node numbering

algorithms suffer from high or unpredictable storage

size for node labels, and/or complex label update

processes. Solutions, such as interval-labelling (i.e.

using gaps) and the use of floating point numbering

instead of integers, defer the re-labelling process, but

do not avoid it completely ( Yu et al. 2005; Li et al.

2004).

Finally, existing XML-to-RDBMS techniques

predominantly translate XPath/XQuery queries into

a single SQL-SELECT statement (Yoshikawa et al.

2001; Jiang et al. 2002). However, this is

problematic in three respects: queries are restricted

to what can be expressed in a single SQL-SELECT;

path navigation necessitates a potentially large

numbers of self-joins, even for simple path queries;

and the query translation process itself can be

complex, resulting in long SQL statements which

might not be supported by many existing RDBMSs

and which present complex optimisation challenges.

It is therefore not surprising that recent performance

analyses have demonstrated that using only XML

types and XQuery or XPath can lead to poor query

performance, with exponential query speed

deterioration for some classes of query as the

database size increases (Krishnamurthy et al. 2004;

Abdel-Kader et al. 2008). However, understanding

of the trade-offs between different XML and

XML/Relational technologies is limited since

performance studies, such as (Florescu and

Kossmann 1999), have considered only query

execution time, while ignoring other resources, such

as memory and CPU usage and IO-Read Operations.

In summary, the above review has identified

three main problems in existing XML data-storages

and query optimization techniques. These are; the

large storage requirement for representing XML data

or its indexes, the high computational cost during

querying and updating XML data, and the

restrictions in the query processor domain incurred

by the XML data/index representation. The

following section hypothesises a novel bitmap

framework to overcome these limitations.

3 SYSTEM DESIGN

To address the issues identified in Section 2, we

propose a framework, called PACD (Parent-

Ancestor/ Child-Descendant relationships) for

storing and querying XML databases. PACD can be

implemented natively or as a XML-to-RDBMS

mapping technique. This section initially motivates

the new system and then describes its main

components. Sections 4-5 discuss the design of an

XML/relational model based on the proposed

system.

3.1 Motivation

PACD is designed to address issues identified in the

above literature by exploitation of the concept of

transitive closures, as implemented in XPath axes

(Wang et al. 2006

). The set of transitive closures

(described in Section 3.2) are utilised as indexes to

achieve efficient XML querying and manipulation.

Firstly, these indexes provide an abstraction of path

PACD: A BITMAP-BASED FRAMEWORK FOR PROCESSING XML DATA

information that can be compressed using sparse-

matrix compression techniques, thus allowing

memory-based index processing, which in turn

speeds up query execution. Secondly, the PACD

data model reduces the high computation/storage

cost associated with the document’s order while

querying and updating. Instead of using the

expensive following-sibling/preceding-sibling axes,

the document’s order is represented by an extended

XPath axis (called ‘next’ axis) which is encoded in

the ‘nextOf’ index in the PACD’s design. Also, by

abstracting out path and sequence information into

the matrices, PACD supports low cost operations for

updating index structure when the XML data is

updated (e.g. adding and deleting nodes). Finally, we

propose a query processor for PACD which

decomposes the XML query into multiple sub-

queries, thus avoiding the complexities associated

with executing long and complex XML queries, and

providing potential for parallel processing.

A further advantage of PACD is that the number

and type of matrices can be configured for specific

applications, in order to increase or decrease the

XPath/XQuery coverage. For example, for most

data-centric (Abiteboul et al. 2000) XML databases,

where document order is irrelevant, childOf and

descOf matrices are sufficient to answer XML

queries (Pettovell and Fotouhi 2006). The PACD’s

data model and query processor are described next.

3.2 The PACD Data Model

The PACD system consists of two main operations;

the Index Builder (IB) and its Query Processor (QP).

IB initially translates XML data into a list of the

nodes, called nodeSet, and translates the structural

relationships into a set of sparse matrices. This is

done using a single SAX parsing operation (SAX

Project 2004). The nodeSet is a set of node

descriptions, each comprising a node’s name, type,

identifier and value. Each matrix represents an

XPath axis (W3C 2007), i.e. nextOf, childOf, and

descOf, as follows. The matrix is coordinated by

node identifiers and each of its elements, <x,y> say,

indicates whether the x node is related to the y node

by the associated XPath axis relationship. Thus, for

example, if y is a child of x, the element <x,y> of

the childOf matrix will be 1; otherwise 0.

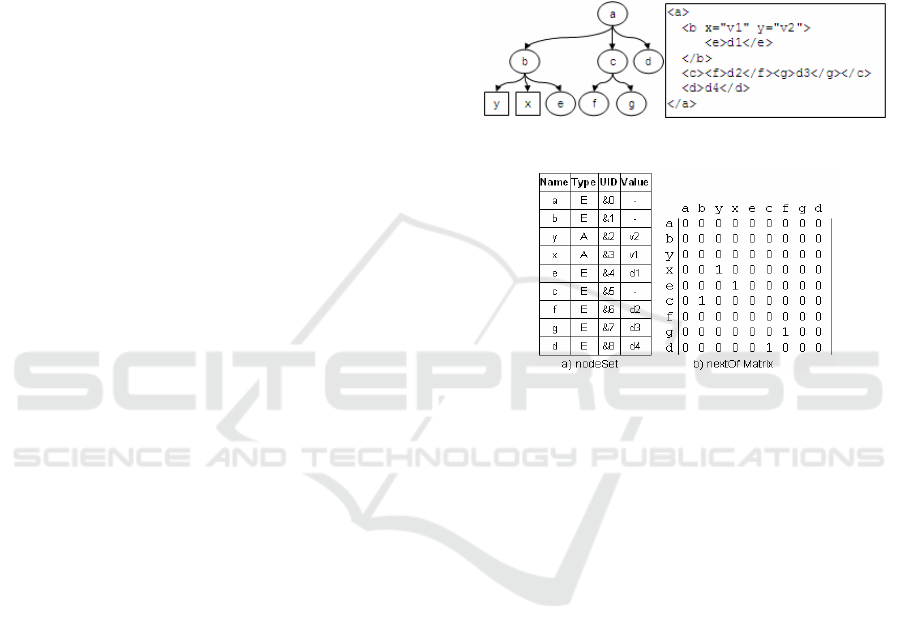

This representation is illustrated in Figure 1 and

Figure 2, which respectively depict an example of

XML data and its tree structure, and its ‘nodeSet’

and ‘nextOf’ matrix representations.

To reduce the storage requirement, the IB

incorporates a Data Compression/De-compression

model (DCD) which compresses the underlying

matrices using established sparse-matrix

compression techniques so that the compressed data

can reside in the main memory. DCD is also used to

decompress the stored data during the query

processing phrase. The storage-space requirement,

without using any DCD model; of the childOf and

nextOf matrices require no more than

O(n) storage-

unit, whereas the maximum size of the descOf

matrix is O(n

Figure 1: An Illustrative XML Example.

Figure 2: The PACD Sub-representation of Fig 1.

3.3 Query Processor

During query processing (QP), XML queries are

decomposed into sub-queries in order to reduce the

complexity of the query evaluation process. This is

achieved by following the approach in (Choi et al.

2003; Vagena et al. 2004; Chen et al. 2006) whereby

the XPath query is graphically represented as a twig-

tree, and twig queries are executed using a Finite-

State-Machine (FSM). In the FSM execution; a

transition from one state to another returns a subset

of the original node-set, while the current state’s

node-set becomes the input node-set for the

following transition(s) to the next state(s). The final

result is generated by joining the respective node-

sets of all paths in the FSM at the final state.

An advantage of using such an execution plan is

that a decision about a NULL result-generation can

be made early in the process when a transition from

one state to another returns an empty node-set.

PACD query processor exploits this feature as part

of its query processing optimisation. Also, whereas

existing FSM-based query processors use the stack,

TwigStack (Vagena et al. 2004) to accumulate

intermediate states’ results, the PACD processor

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

frees its stack at every state transition. This allows

more free memory resource for other computations.

4 PACD MAPPING TECHNIQUE

The previous two sections have overviewed the

XML data representation and query processing

strategy deployed by PACD. Here we demonstrate

their application using a worked example, in which

PACD is implemented using an RDBMS.

The mapping schema consists of four base

relations, each of which corresponds to an IB’s

component (underlining denotes the use of RDBMS

indexes):

nodeSet(UID, Typel, Name, Value)

childOf(childID

, parentID)

descOf(descID

, anceID)

nextOf(nextID

, prevID)

This relational implementation of IB applies the

simplest form of sparse-matrix compression

technique, i.e., Zero-element Removal algorithm

(Bell and McKenzie 1998). Based on this, the

PACD’s relations include one record per each non-

zero element of structure-based matrices. The QP

then translates an XML query into multiple SQL-

SELECT statements.

An illustrative example is provided in Figure 3

and Table 1, which respectively present the example

XQuery and associated FSM, and the resulting set of

SQL sub-queries.

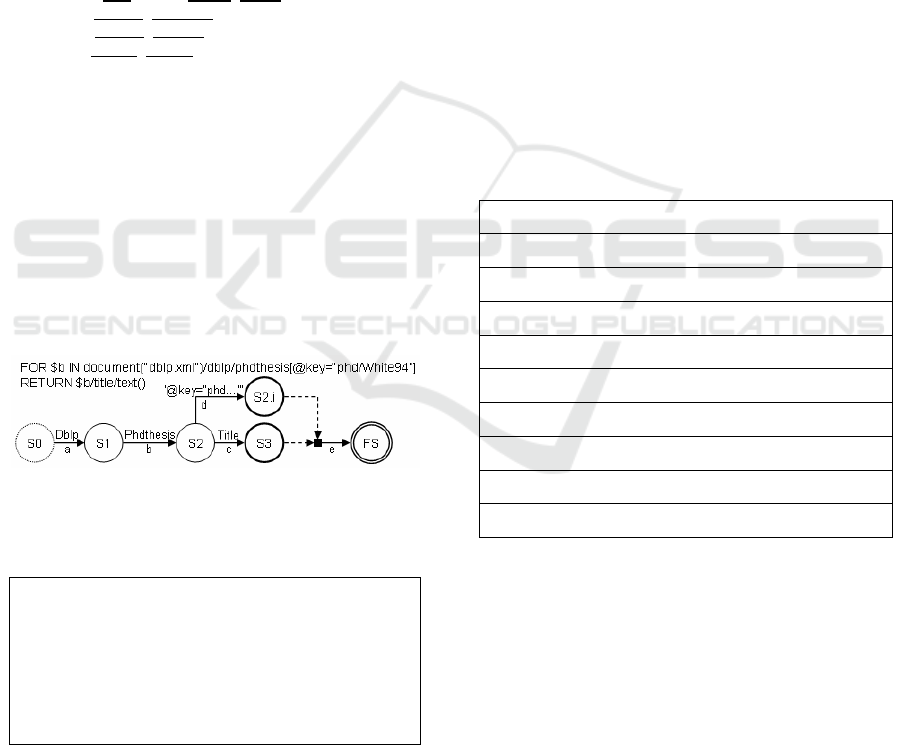

Figure 3: An XQuery Example and its FSM Execution

Plan.

Table 1: An SQL Translation of XQuery in Fig 3.

a:: SELECT childID AS dblp FROM childOf c, nodeSet n

WHERE (c.parentID=-1) & (c.childID=n.uid) &

(n.name="dblp") & (n.type="E")

b:: SELECT childID AS phdthesis FROM childOf c, s1,

nodeSet n WHERE (c.parentID=s1.dblp) &

(c.childID=n.uid) & (n.name="phdthesis") & (n.type="E")

…

e:: SELECT n.value FROM nodeSet n, s2i, s3 WHERE

(s2i.title=s3.title) & (n.uid=s3.title)

Using the DBLP database, the XQuery example

displays the title of a PhD thesis identified by

‘phd/white94’. The execution plan starts at S0 and

proceeds to finish at FS whenever there is a

transition from a state S

to S

i+1

via the marked labels

(e.g. ‘dblp’ and ‘title’). A separate SQL statement is

generated for every transition. (Table 1 lists the first

(a), second (b) and last SQL (e) of the generated

SQL sub-queries.

5 A PERFORMANCE STUDY

5.1 Experiment Setup

The comparative performance of PACID has been

evaluated against the Edge (Florescu and Kossmann

1999) and XParent (Jiang et al. 2002) techniques.

The latter two techniques were selected bacause; a)

both are schema-oblivious, like PACD, b) Edge is a

single-relation mapping schema while XParent

represents multi-relations mapping techniques, and

c) unlike PACD, Edge and XParent use node-

labelling algorithms to support XML order.4-6

We considered eight database functionalities

(extracted from the XMark project (

Schmidt et al.

2001)), listed in Table2.

Table 2: Query-set.

Q1: Shallow Exact Matching→ Return the name of the item

with ID ‘item?????’ registered in North America?

Q1B: Deep Exact Matching→ Return all text elements for the

category with ID ‘category0’?

Q2: Order Access→Return the initial increase of all open

auctions?

Q3: Regular Path Expression using “*”→ How many items are

listed on all continents?

Q3B: Regular Path Expression using “//”→ How many text

elements are listed under all items from all continents?

Q4: Joins on Values→ How many emails sent about each item

in Asia and Europe at every date?

Q5: Path Traversal→ Print the text in annotations of closed

auctions?

Q6: Missing Elements→ Which person does not have a

homepage?

Q7: Sorting→ Give an alphabetically ordered list of all items

along with their location?

Q8: Aggregation→ Group customers by their incomes and

output the cardinality of each group?

The query-sample tests critical aspects of processing

XML databases over relational databases, in line

with the XMark benchmark, and other performance

studies (e.g Li et al. 2004; DeHaan et al. 2003).

Table 3 summarises features of the XML databases

used. Our experiment was designed to determine the

impacts of the depth and breadth of XML structure

on system performance.4-6 Four performance

variables were measured;in case of query-processing

evaluation Execution Time, Memory Usage, CPU

Usage, and IO-Read Operations, and an additional

variable (IO-Write Operations) in case of XML-

updates evaluation. Due to space limitation, only the

execution-time is discussed in this paper. Ninety

PACD: A BITMAP-BASED FRAMEWORK FOR PROCESSING XML DATA

queries were executed by the FoxPro

9.0 database

engine installed on a stand-alone PC (Pentium

3.60GHz dual processor, 1GB physical memory,

160GB HD) running Windows XP SP2.0.

5.2 Results Discussion

Experimental results are represented in Figures 4-6

and summarised in Table 4.

PACD vs. Edge. Results shown that PACD

outperforms Edge for queries; Q3 (TreeBank &

DBLP), Q3B (TreeBank & XMark), and Q4

(TreeBank). Comparing to Edge, PACD was ≈0.16

and ≈5.5 times faster in the 1

case; ≈0.5 and ≈8.5

times faster in the 2

case; and ≈0.07 times faster in

the 3

case. The superiority of PACD against Edge

is valid for 10%, 33.4% and 10% of the query-

sample over the DBLP, TreeBank and XMark

databases respectively. These low-percentages, in

terms of execution-time, are ameliorated by a better

performance in terms of other measurements such as

memory-usage. On the negative side, PACD was

extremely slow for Q1 over the DBLP and TreeBank

databases and for Q3 over the XMark database.

PACD vs. XParen. PACD outperformed XParent for

queries; Q1B-Q8 (XMark≡80%), Q1B-Q2 and Q5-

Q7 (TreeBank≡50%), and Q2 and Q6-Q8

(DBLP≡40%). The best performance in the 1

case was for Q3 and Q8 where PACD was more

than 6 times faster than XParent; while in the 2

case, it was ≈7.5 times faster for Q5, and in the 3

case was ≈8.6 times faster for Q7. In contrast, the

worst performance of PACD against XParent was in

Q1 (≈140 times slower) and Q1B (≈58.5 times

slower) over the DBLP databases.

Our experiment shows that, Edge and XParent

failed to execute Q3B and Q8 using single-SQL

translations. Overall, PACD is more suitable for

depth-oriented XML databases for most XQuery

types.

6 CONCLUSIONS

In this paper we have introduced a novel XML

processing framework which is based on a bitmap

data representation and serialized query processing.

The new framework aims to overcome three major

problems identified in the existing XML storage-

models and optimization techniques.

The large storage-size problem is addressed by

employing sparse-matrix compression techniques

while the query-domain is increased by using a

special serialized query processor that acts on the

proposed XML data representation. In terms of

order-access, the storage and update problems are

Table3: Characteristics of the Tested Dataset.

DB Name Nodes

Value

Nodes

Level

Size

(MB)

XMARK 2,437,669 1,547,337 10 153.627

DBLP 2,439,294 2,166,223 6 85.344

TREEBANK 2,437,667 1,392,833 36 84.065

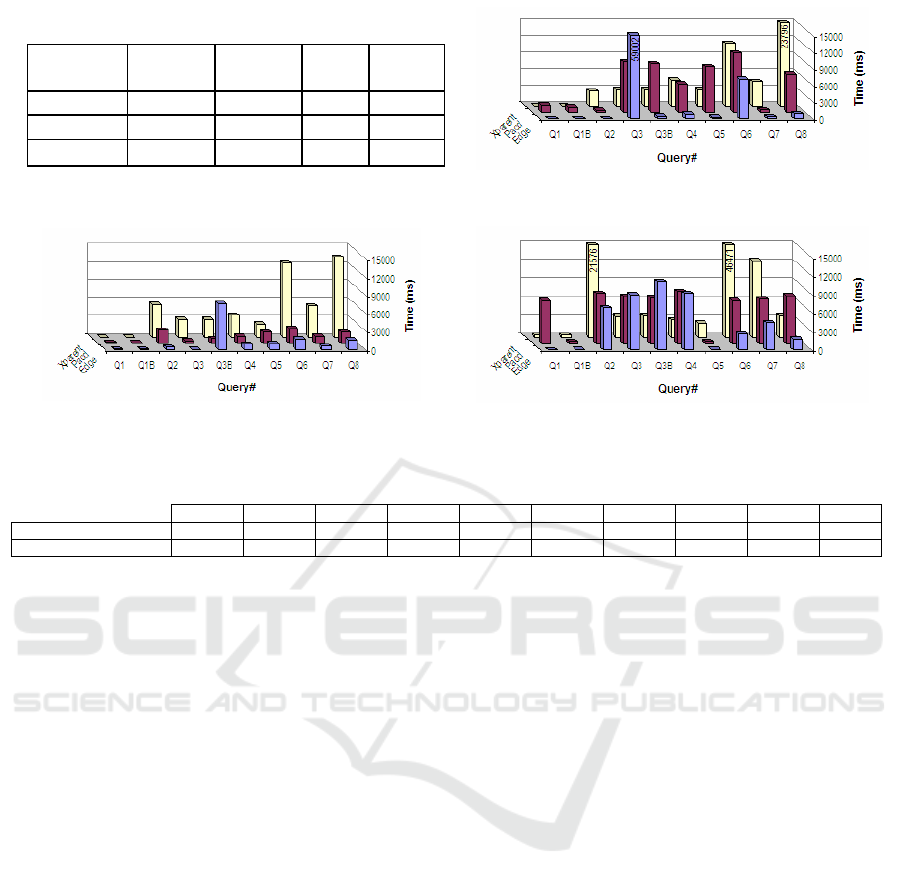

Figure 4: Execution Time over DBLP Database.

Figure 5: Execution Time over XMARK Database.

Figure 6: Execution Time over TREEBANK Database.

Table 4: Result Summary (Execution Time).

Q1 Q1B Q2 Q3 Q3B* Q4 Q5 Q6 Q7 Q8*

PACD vs. Edge - - - B, D A, D D - - - -

PACD vs. XParent - D B, A, D A A A A, D B, A, D B, A, D B, A

[D=Depth-oriented, B=Breadth-oriented, A=Average-oriented], * Edge and/or XParent’s fail to satisfy this query; multiple-SQL were used instead

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

solved by extending XPath axes to include the

“next” axis as described in Section 3.

We have evaluated our framework as an XML-

to-RDBMS mapping technique (also called PACD).

Our preliminary results show several enhancements

in terms of query-coverage, query processing and

storage management. Table 4 summaries our

experimental results.

On the other hand we are less successful in

handling complex ordering-queries and achieving

optimum performance for some query types. Our

ongoing research investigates optimizing the use of

the ‘next’ axis to address the first issue and the use

of parallelism to address the second. We are also

aiming to achieve better storage performance by

testing more sophisticated data compression

techniques.

REFERENCES

Abdel Kader, Y., Eaglestone, B., and North, S. (2008) ‘An

Analysis of Relational Storage Strategies for Partially

Structured XML’, WebIST’08, Madeira, Portugal, pp

165-170.

Abiteboul, S., Buneman, P., and Suci. D. (2000) Data on

the Web: From Relations to Semistructured Data and

XML, California: Morgan Kaufmann Publishers.

Amer-Yahia, S., Du, F., and Freire, J. (2004) ‘A

Comprehensive Solution to the XML-to-Relational

Mapping Problem’, In Proceedings of the 6

annual

ACM/IWIDM’04, Washington DC, USA, pp 31-38.

Bell, T., and McKenzie, B. (1998) ‘Compression of Sparse

Matrices by Arithmetic Coding’, ICDC’98, pp 23-32.

Chen, S., Li, H., Tatemura, J., Hsiung, W., Agrawal D.,

and Candan, K. (2006) ‘Twig2Stack: Bottom-up

Processing of Generalized-Tree-Pattern Queries over

XML Documents’, VLDB’06, Seoul, Korea, pp 283-

294.

Choi, B., Mahoui, M., and Wood, D. (2003) ‘On the

Optimality of Holistic Algorithms for Twig Queries’,

LNCS 2736, pp 28-37.

DeHaan, D., Toman, D., Consens, M., and Ozsu, M.

(2003) ‘A Comprehensive XQuery to SQL Translation

using Dynamic Interval Encoding’,

ACM/SIGMOD’03, San Diego, CA, USA, pp 623-634.

Fiebig, T., Helmer, S., Kanne, C., Moerkotte, G.,

Neumann, J., and Weld, R.. (2002) ‘Anatomy of a

native XML base management system’. VLDB

Journal, 11(4), pp 292-314.

Florescu, D., and Kossmann, D. (1999) ‘A Performance

Evaluation of alternative Mapping Schemas for

Storing XML Data in a Relational Database’,

TR:3680, May 1999, INRIA, Rocquencourt, France.

Jiang, H., Lu, H., Wang, W., and Yu, J. (2002) ‘XParent:

An Efficient RDBMS-Based XML Database System’,

ICDE’02, CA, USA, pp 1-2.

Krishnamurthy, R., Kaushik, R., and Naughton, J. (2004)

‘Efficient XML-to-SQL Query Translation: Where to

Add the Intelligence?’, VLDB’04, Toronto, Canada,

pp 144-155.

Lau, H., and Ng, V. (2004) ‘INode*: An Effective

Approach for Storing XML using Relational

Database’. Int’l Journal of WET, 1(3), pp 338-352.

Li, H., Lee, M., Hsu, W., and Chen, C. (2004) ‘An

Evaluation of XML Indexes for Structural Join’,

ACM/SIGMOD, 33(3), pp 28-33.

Pettovello, P., and Fotouhi, F. (2006) ‘MTree: An XML

XPath Graph Index’, ACM/Sym. on Applied

computing’06, Dijon, France, pp 474-481.

Rys, M. (2005) ‘XML and Relational Database

Management Systems: Inside Microsoft SQL Server

2005’, ACM/SIGMOD’05, Baltimore, Maryland, pp

958-962.

SAX Project. (2004) Simple API for XML (SAX).

(Online) Avail: http://sourceforge.net/projects/sax/

(20/09/2008).

Schmidt, A., Waas, F., Kersten, M., Florescu, D.,

Manolescu, I., Carey, M., and Busse. R. (2001) ‘The

XML Benchmark Project’, INS-R0103 Apr30, pp 1-18.

Sipan, S., Verma, K., Miller, J., and Aleman-Meza, B.

(2004) ‘Designing a high-performance database

engine for the ‘Db4XML’ native XML database

system’, The Journal of Systems and Software-69, pp

87-104.

Tatarrinov, I., Viglas, S., Beyer, K., Shanmugasundaram,

J., Shekita, E., and Zhang, C. (2002), ‘Storing and

Querying Ordered XML Using a Relational Database

System’, ACM/SIGMOD’02, Madison, Wisconsin, pp

204-215.

Vagena, Z., Moro, M., and Tsotras, V. (2004) ‘Twig

Query Processing over Graph-Structured XML Data’,

int’l workshop on the Web & Data., Paris, France,

pp 43-48.

W3C. (2007) XML Path Language (XPath) 2.0, [Online]

Avail: http://www.w3.org/TR/xpath20/ (30/10/2008).

Wang, H., He, H., Yang, J., Yu, P., and J Yu. (2006) ‘Dual

Labelling: Answering Graph Reachability Queries in

Constant Time’, ICDE’06, pp 75-86.

Wong, W., Jiang, H., Lu, H., and Yu, J. (2003) ‘PBiTree

Coding and Efficient Processing of Containment

Joins’, ICDE’03, Boston, USA, pp 391-402.

Yoshikawa, M., Amagasa, T., Shimura, T., and Uemura,

S. (2001) ‘XRel: A Path-based Approach to Storage

and Retrieval of XML Documents using Relational

Databases’, ACM/IT., 1(1), NY, USA, pp 110-141.

Yu, J., Luo, D., Meng, X., and Lu, H. (2005)

‘Dynamically Updating XML Data: Numbering

Scheme Revisited’, WWW, 8(1), pp 5-25.

PACD: A BITMAP-BASED FRAMEWORK FOR PROCESSING XML DATA
