SHIP – SIP HTTP INTERACTION PROTOCOL

Proposing a Thin-client Architecture for IMS Applications

Joachim Zeiß, René Gabner, Sandford Bessler

Telecommunications Research Centre Vienna (ftw.) Donau-City-Straße 1, A-1220 Vienna, Austria

Marco Happenhofer

Vienna University of Technology Favoritenstraße 9/388, A-1040 Vienna, Austria

Keywords: Distributed mobile computing, HTTP, IMS thin client, Mobile client s/w virtualization, Mobile widgets,

SaaS, SIP

Abstract: IMS is capable of providing a wide range of services. As a result, terminal software becomes more and

more complex to deliver network intelligence to user applications. Currently mobile terminal software needs

to be permanently updated so that the latest network services and functionality can be delivered to the user.

In the Internet, browser based user interfaces assure that an interface is made available to the user which

offers the latest services in the net immediately. Client software is virtualized using script and widget

technologies, which allow user interfaces to run on different hardware platforms and operating systems. Our

approach, called SHIP, combines the benefits of the Session Initiation Protocol (SIP) and those of the HTTP

protocol to bring the same type of user interfacing to IMS. SIP (IMS) realizes authentication, session

management, charging and Quality of Service (QoS), HTTP provides access to Internet services and allows

the user interface of an application to run on a mobile terminal while processing and orchestration is done

on the server. A SHIP enabled IMS client only needs to handle data transport and session management via

SIP, HTTP and RTP and render streaming media, HTML and Javascript.. Furthermore, the SHIP

architecture allows new kinds of applications, which combine audio, video and data within a single

multimedia session.

1 INTRODUCTION

The IP Multimedia Subsystem (IMS) (3GPP, 2009)

is expected to provide convergent applications to

mobile terminals using the Session Initiation

Protocol (SIP) (Rosenberg et al., 2002). The IMS

architecture envisions mobile terminals supporting

SIP. SIP messages are routed from a user terminal

across the IMS infrastructure to a specific

application server in the system. A service

application or component is triggered which, in turn,

orchestrates service enablers (such as presence,

location, etc.).

Besides SIP, currently, additional protocols are

required to be supported by an IMS capable client:

the XML Configuration Access Protocol (XCAP)

(Rosenberg, 2007) for configuration of XML

documents on XML Document Management Server

(XDMS), the Message Session Relay Protocol

(MSRP) (Campbell et al., 2007) for stateful

messaging, and of course HTTP (Fielding et al.,

1999) – for accessing the services via web front-

ends. From the observation above, we see the need

to simplify the interactions with service applications,

to reduce the number of required protocol stacks and

the amount of processing in the terminal.

The lack of IMS terminals on the market is a

major obstacle for IMS/NGN roll-out. Like existing

SIP clients, current IMS clients support in general a

non-extensible set of applications like VoIP, video,

chat, presence, and address book functions.

Interlinking the SIP and HTTP protocols, as

presented in this paper, however, will provide the

basis for an open model of SIP/IMS terminals. With

this model new services and enablers become

available to the mobile terminal instantly; there is no

need to deploy additional client software or even

upgrade the operating system to support new

network capabilities and services.

ZeiÃ§ J., Gabner R., Bessler S. and Happenhofer M.

SHIP â

A ¸S SIP HTTP INTERACTION PROTOCOL - Proposing a Thin-client Architecture for IMS Applications.

DOI: 10.5220/0001840600210028

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

We propose a thin client architecture for IMS

applications by introducing a distributed MVC

software pattern (Gamma et al., 1995). The user

interface components (view and control) run on the

terminal and interact with processing components

(model) executed on the application server. The

components communicate via HTTP session

controlled by SIP, concurrently with voice or video

transport inside the same dialog.

Generally, the SHIP solution follows the

Software as a Service (SaaS) model already

envisioned by Bennett et al. (Bennett et al., 2000) to

unburden the user of software maintenance, ongoing

operation, and support. Our architecture enables on-

demand pricing of applications, a better protection

of intellectual property for the software vendor and

the network operator to control services and act as

application service provider.

The main objective of this work is to present a

solution for a better exploitation of the SIP signaling

towards a seamless, secure, user friendly and

provider-efficient deployment of IMS services. Such

a solution would satisfy a number of wishes of

network operators and users:

• User micro-portal: IMS subscribers can connect

to a user-friendly, appealing personalized

homepage in which relevant information and

their commonly used functions are presented.

The users can manage their own profile data,

application preferences and privacy settings.

• Single sign-on: a user authenticated to IMS

doesn’t need to authenticate again to perform

actions for them she is authorized or consume

services to which she is subscribed.

• Web based user interface: in order to avoid the

development and installation of client

applications, web and web 2.0 technology

could be used in the browser.

• Asynchronous (HTTP push) events dispatched

by applications towards user terminals are

supported.

The SHIP (SIP/HTTP interaction protocol)

architecture is a blending of the SIP and HTTP

protocols. IMS authentication is used to manage

HTTP sessions within a SIP dialog. This approach

leads to a novel, web based, universal IMS terminal.

1.1 Related Work

Addressing the single-sign-on feature, 3GPP has

proposed the Generic Bootstrapping Architecture

(GBA) (3GPP, 2008) (M. Sher, T. Magedanz, 2006).

This framework introduces two new functions called

Bootstrapping Server Function (BSF) and Network

Authentication Function (NAF). The BSF has access

to the Home Subscriber Server (HSS) and can

download user profiles and credentials. The NAF

offers services to the User Equipment (UE). In order

to use the service, the UE has first to authenticate on

the BSF and the NAF can later check the UE

authentication. This requires an implicit

authentication at the network; our approach realizes

the authentication explicit.

The Sun JSR 281 specification (Java

Specification, 2006) describes the IMS API that

enables IMS applications to be installed on a

JSR281-enabled device. The API assumes the

existence of basic capabilities such as Push-to-Talk

over Cellular (PoC), presence, instant messaging,

etc. as well as the access to SIP headers and message

bodies. Complementary to our approach, the use of

JSR 281 implies the development and deployment of

each new application on the terminal. Thus often

CPU-intensive and complex orchestration of IMS

enablers has to be done at the client’s terminal.

In the EU FP6 project Simple Mobile Services

(SMS) the authors propose to transport serialized

messages coded in JSON (scripts) via SIP messages,

taking advantage of the asynchronous character of

SIP. This approach uses the signaling infrastructure

(SIP proxies) to transport user data. Our approach

uses the infrastructure only to establish a session and

transports the user data point to point and reduces so

the load on the SIP infrastructure.

1.2 Structure of this Paper

The rest of the paper is organized as follows: section

2 describes the proposed system architecture, section

3 explains the mechanisms to integrate bi-directional

HTTP transport into a SIP session, section 4

explains the implementation of the SHIP concept on

clients and servers and section 5 describes a design

example for a typical SHIP based application.

Section 6 concludes our work and gives further

research directions.

2 SYSTEM ARCHITECTURE

In the following we assume that the environment for

deploying our solution is that of an IMS service

provider. First we introduce the SHIP concept and

analyze the functionality required by the (mobile)

terminal as well as on the server. Section 2.2

explains the integration of SHIP into an IMS overlay

network.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

2.1 General Architecture

The basic concept of SHIP is to combine and

manage HTTP sessions with SIP. A SIP INVITE

message is used to negotiate a TCP channel for

HTTP connections. To achieve this, the media

capabilities of a User Agent to handle HTTP

requests are extended. A detailed explanation of the

session setup is given in section 3. Of course it is

still possible to establish additional media sessions

(e.g. voice and video) within the same SIP dialog.

Figure 1: SHIP architecture.

Figure 1 gives an overview of the involved

functions. It illustrates the SHIP terminal on the left

hand side and a SHIP server on the right hand side.

Both components are connected via a mobile IP

network.

A traditional User Agent for voice and audio

calls, called “SIP basic services” is depicted in

Figure

1 . For these services a client uses both a

SIP and a RTP stack. The SHIP terminal reuses the

existing functionalities while adding additional

capabilities. The SHIP logic

uses SIP to establish

a dialog that negotiates a TCP channel for HTTP

traffic. The processing logic establishes, manages

and terminates the SIP dialog for the SHIP session.

It also ensures that each HTTP request is associated

with a secret session key. The SHIP logic is the only

component, which is aware of the 1:1 relation

between a SIP dialog and a SHIP session. The Web

front-end

(e.g. a web browser or html rendering

engine) uses the SHIP logic to send and receive

HTTP messages and to display the HTTP part of the

service. It is possible to access services which offer

audio, video and data in any combination with only

one user agent. This approach makes the SHIP

architecture flexible for service developers and can

be used to run the user interface at the user terminal,

whereas service logic is being processed at the

server.

At the server side HTTP and RTP traffic as well

as SIP signaling are terminated. The RTP media is

being processed by the SIP basic services

component and the HTTP traffic by the SHIP logic

component. SIP signaling is terminated in one or

both components, depending on the requested media

type. Since the SIP signaling and the HTTP traffic of

the client terminates at the server, the SHIP logic

can correlate both sessions with a unique secret

session key negotiated via SIP. The SHIP logic

assigns the key to each incoming valid HTTP

request and forwards the request to the application.

The latter can be a value-added service

depicted in Figure 1, or a proxy which forwards the

request with the user identification to a 3

party

application in a trusted domain.

A SHIP server consists of two main components

the SIP Session Manager (SSM) and an HTTP

proxy.

The SSM is the endpoint for SIP messages sent

by a client to establish a SHIP session. It stores a

unique session ID for each SHIP session.

Subsequent HTTP requests from the client’s

terminal containing a valid session ID are forwarded

by the HTTP proxy. The proxy optionally replaces

the SHIP session ID with the “P-Asserted-Identity”

(Jennings et al., 2002) header value to assure the

identity of the requester to subsequent AS.

2.2 Integration of SHIP in IMS

This section shows a possible integration of SHIP

into a mobile provider’s IMS. Figure 2 depicts the

provider’s IMS core, the SHIP server and IMS

service enablers, like presence, location or group

management. The enablers provide beneficial IMS

features, which can be easily used and combined by

SHIP services without the need of deploying enabler

specific software on the user terminals. SHIP clients

and 3

party providers can connect to the SHIP

server. The IMS core is the point of contact for any

SIP based communication from and to the end-user.

SIP requests, addressing a SHIP service, received at

the IMS Call Session Control Functions (CSCFs) 0

are routed to the SHIP server, by executing Initial

Filter Criteria (IFC) or by resolving the provided SIP

URI. The connection from the SHIP terminal to the

IMS core and the SHIP server is provided by the

PLMN using HSDPA, WLAN, etc. 3

party content

and service provider are connected via Internet.

However, it is possible to build more

sophisticated services using a SHIP terminal as

shown in section 5. Similar to enabler services, 3

party data and applications could be used to create

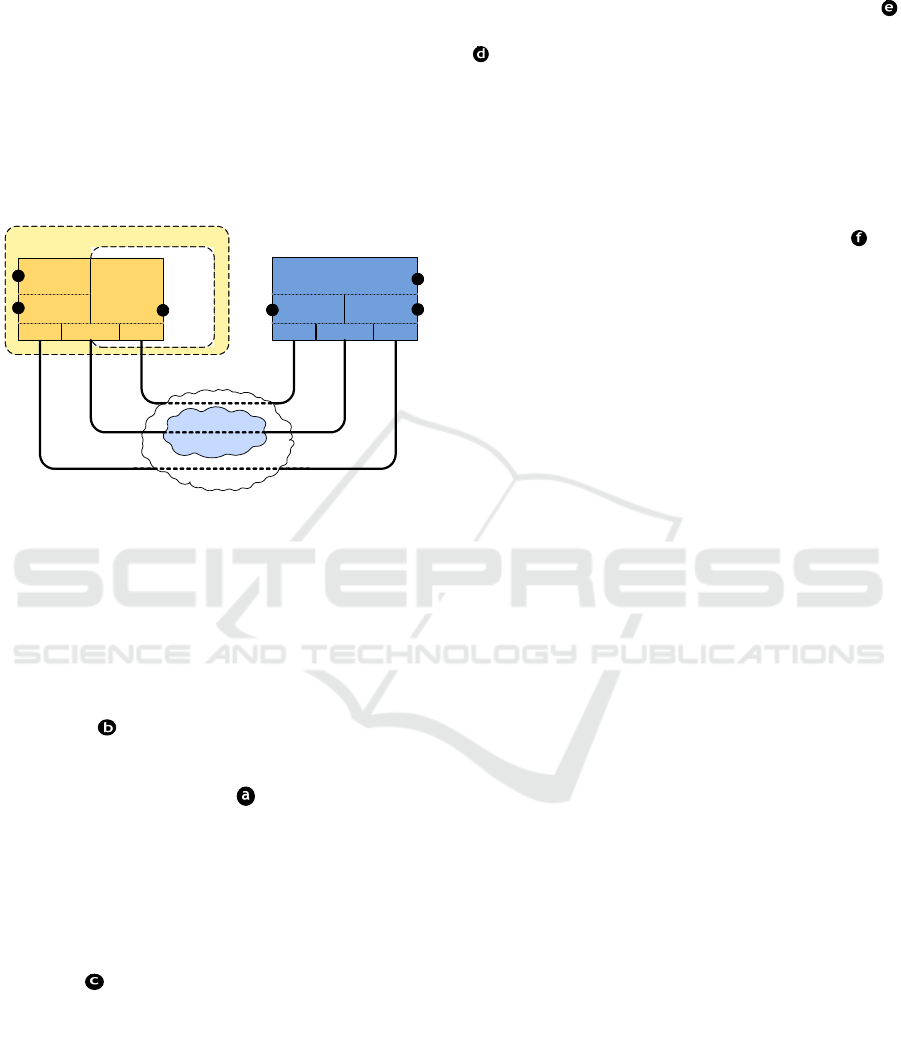

RTP

SIP

HTTP

SHIP

logic

SIPBasic

Services

RTP SIP HTTP

SHIP

logic

SIPBasic

Services

SIP/IMS

core

IPnetwork

Video‐

Audio

Client

Value‐addedservices

(audio,videoanddata)

Web

Frontend

SHIP - SIP HTTP INTERACTION PROTOCOL - Proposing a Thin-client Architecture for IMS Applications

valuable services.

The existence and correctness of the “P-

Asserted-Identity” header provided by the IMS

overlay network is essential for the functionality and

authentication, because the involved components

may authenticate the subscriber by using this header.

To realize correctness, all involved SIP entities and

HTTP entities which receive or forward SIP or

HTTP requests, have to guarantee that this header is

not manipulated and therefore they have to be in a

domain of trust. In the case of IMS this could be the

home network of the subscriber or just a trusted 3

party service provider.

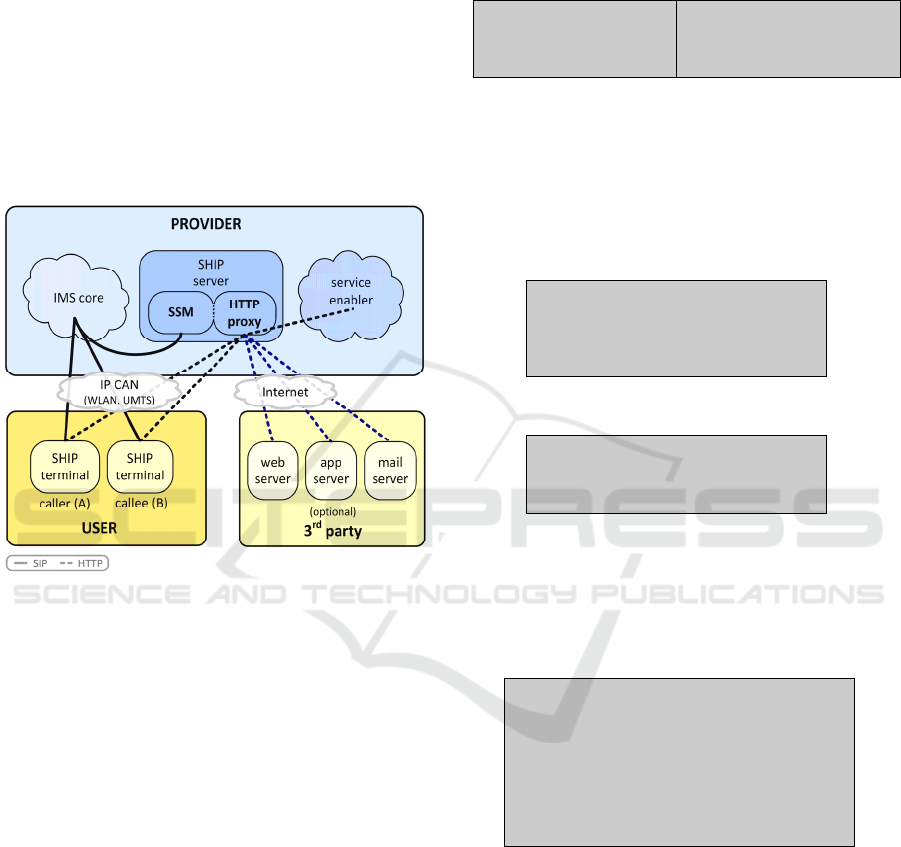

Figure 2: SHIP in IMS.

3 MANAGING THE HTTP

SESSION

SIP uses the Session Description Protocol (SDP)

(Handley, Jacobson, 1998) to negotiate the

parameters of a session like protocol, media type, IP

addresses and port numbers. Media types in SDP

are: video, audio, application and data, with UDP as

transport protocol. Currently, it is not possible to

specify HTTP interactions with SDP since HTTP

relies on TCP as transport protocol. In (Gamma et

al., 1995) the authors specified an extension to SDP

to enable the transport of fax data using SIP. For that

purpose an extension is defined that expresses TCP

data as a media type.

According to (Yon, Camarillo, 2005) in which a

TCP connection for transmitting a fax is announced

via SDP (see figure 3) we propose a similar

extension for HTTP sessions. If the calling party

offers the SDP of Figure 3 and the called party

answers with the SDP of Figure 4, then the called

party would start a TCP connection form port 9 (IP

address 192.0.2.1) to port 54111 (IP address

102.0.2.2).

To handle a HTTP connection we propose the

configuration depicted in Figure 5 and Figure 6. In

our case media type m changes from image to

application and protocol from t38 to http.

Furthermore, we reuse the encryption key parameter

k of the SDP to store a session key.

For a User Agent, which is able to handle HTTP

request and response messages, the associated SDP

message includes the server and client part (Figure

7) to establish bi-directional HTTP data transport.

m=application 54111 TCP http

c=IN IP4 192.0.2.2

a=setup:passive

a=connection:new

k=clear:key123

m=application 9 TCP http

c=IN IP4 192.0.2.1

a=setup:active

a=connection:new

Figure 7: HTTP bi-directional.

The encryption of the HTTP stream should be

handled by SSL/TLS (Lennox, 2006). The SDP also

transports a session key, to be added as custom

header to each HTTP request. It maps the incoming

HTTP requests to their corresponding SIP session.

This mapping mechanism authenticates the HTTP

request originator. An IP address and port inspection

could also identify the user.

Figure 8 shows the message flow of a SHIP

session. The calling party acts as HTTP client and

m=image 9 TCP t38

c=IN IP4 192.0.2.1

a=setup:active

a=connection:new

Figure 3: TCP client part.

m=application 54111 TCP http

c=IN IP4 192.0.2.2

a=setup:passive

a=connection:new

k=clear:key123

Figure 5: HTTP server part.

m=application 9 TCP http

c=IN IP4 192.0.2.1

a=setup:active

a=connection:new

Figure 6: HTTP client part.

m=image 54111 TCP t38

c=IN IP4 192.0.2.2

a=setup:passive

a=connection:new

Figure 4: TCP server part.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

SIP User Agent, the called party as HTTP server and

SIP User Agent. In this scenario the called party

assigns a session key “key123” to the SIP Call-ID

“call1”. The called party sends the session key in

the 200 OK SIP response to the calling party. The

HTTP server maps all incoming HTTP requests with

session key “key123” to call-ID “call1”.

The validity of a HTTP session is limited by the

validity of the corresponding SIP session. If the SIP

session is closed or no longer valid, the HTTP

servers will not accept any request with key

“key123”. Both parties are able to start additional

video and audio streams using re-INVITE. It is also

possible to add an HTTP stream to a video and audio

stream, so that the multimedia session can cover

audio, video and data (application).

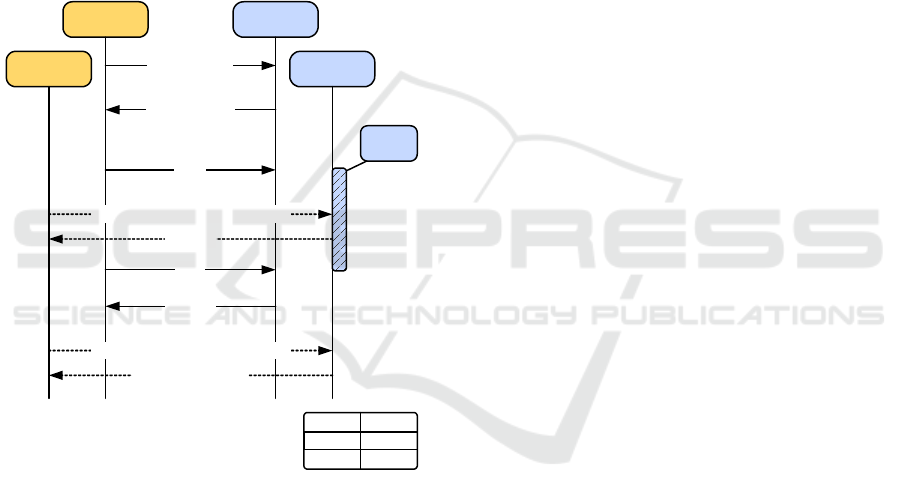

UAAlice

UASHIP

server

INVITE+SDP.

200OK+SDP.

ACK.

HTTPclient

Alice

HTTPSHIP

server

Call‐ID=call1

Session‐Key=key123

Call‐ID=call1

Session

valid

HTTPGET+Session‐Key=key123.

200OK.

BYE.

Call‐ID=call1

200OK.

Call‐ID=call1

HTTPGET+Session‐Key=key123.

401Unauthorized.

Call‐ID call1

SIP‐URI alice

Key key123

Figure 8: Authenticated HTTP dialog within a SIP session.

4 SYSTEM IMPLEMENTATION

Our implementation is based on the IMS

Communicator (http://imscommunicator.berlios.de/)

and the SIP communication server from Oracle. Our

extended version of the IMS Communicator

performs the IMS registration, and the SIP session

establishment. From the received SDP data, it takes

the IP address, port and session key information and

forwards it to the local running HTTP proxy, which

realizes the SHIP logic in Figure 1. The local web

browser is configured to communicate via this

HTTP proxy. At the remote side the SIP server

handles both SIP and an HTTP. SIP functions are

implemented as SIP Servlets (Java Specification,

2008), the HTTP part is implemented using HTTP

Servlet technology. To achieve SHIP functionality

the SIP Servlet as well as the HTTP Servlet share a

common session object provided by the SIP server.

4.1 Session Setup

When the user accesses a webpage (e.g. personalized

access to subscribed services), the browser sends the

request to the local HTTP proxy. If a SHIP session

already exists, the proxy adds the corresponding

session key to the HTTP request and forwards the

request to the SIP communication server. If no SHIP

session is running, the proxy triggers the IMS

Communicator to establish the SIP dialog of the new

SHIP session.

For this purpose a SIP INVITE message is sent

to a predefined SIP service URL including SDP data

depicted in Figure 7. Initial Filter Criteria (IFC)

evaluate the corresponding SIP server. The “P-

Asserted-Identity” header assures the application

server of the callers’ identity. The incoming SIP

INVITE message triggers a SIP Servlet at the

application server which generates the SHIP session

key. This ID is stored for later usage by HTTP

Servlets. A SIP 200 OK response message

containing session key as well as HTTP server IP

and port number is sent in reply to the INVITE.

When the IMS Communicator receives the 200 OK

it forwards the relevant SDP parameters to the

HTTP proxy module.

To setup the HTTP part of the SHIP session, the

HTTP proxy takes the IP address and port number of

the communication server and prepares a connection

for later HTTP requests. Now, the SHIP session is

valid and HTTP requests can flow in both directions

Incoming HTTP requests at the SHIP server

trigger an HTTP Servlet which inspects the

authentication header as well as the originating IP

address and port. It compares the session key to the

previously stored value. In case of matching session

key values, the session key header is replaced by the

P-Asserted-Identity header of the linked SHIP

session. Next, the server forwards the request to its

final destination. If there is no matching key, the

Servlet rejects the HTTP request with an HTTP 401

error response.

Since the application server correlates all

incoming traffic with a certain session key to the

identity of the called party and no further

authentication is used to access value-added

services, it might become a target for “man in the

middle” attacks. If one eavesdrops the HTTP (or

SHIP - SIP HTTP INTERACTION PROTOCOL - Proposing a Thin-client Architecture for IMS Applications

SIP) traffic he can find out the session key and use it

for service requests on behalf of the original called

party. Therefore, it is required to use TLS (Dierkse,

Allen, 1999) to secure the HTTP transport and IPSec

(Kent, Atkinson, 1998) to secure SIP.

Since the proposed mechanism is applied for

each TCP connection, the HTTP performance

deteriorates, since each request has to be processed

sequentially. Most web browsers start several TCP

connections to decrease the latency due to the

processing of a webpage composed of several

resources. To improve the performance, the proxy

module of the IMS Communicator has been

modified so that several TCP connections are

established and are also accepted by the HTTP

protocol stack within the SIP application server,

without considering the TCP port announced earlier

in the SDP of the IMS Communicator.

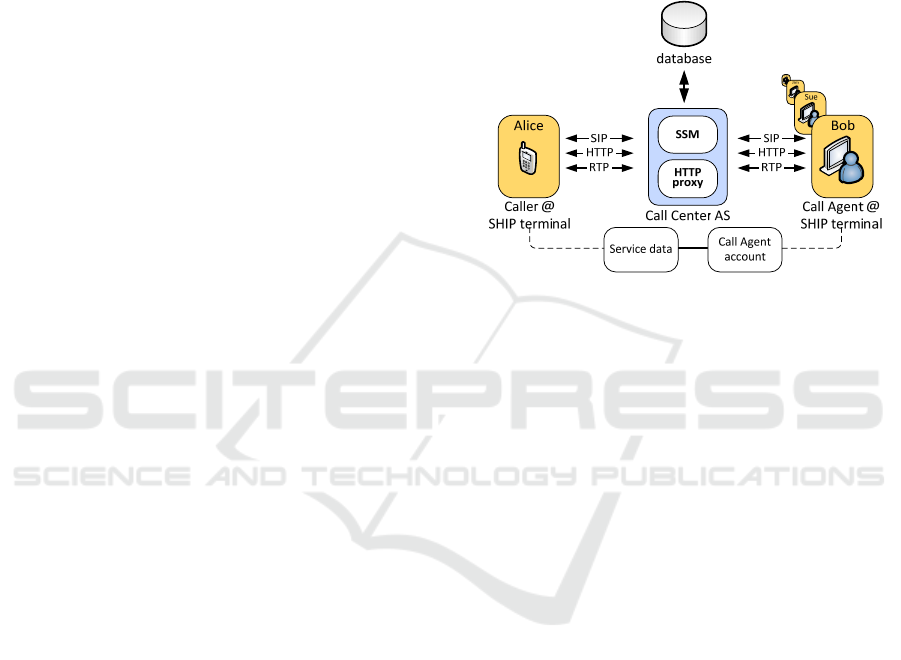

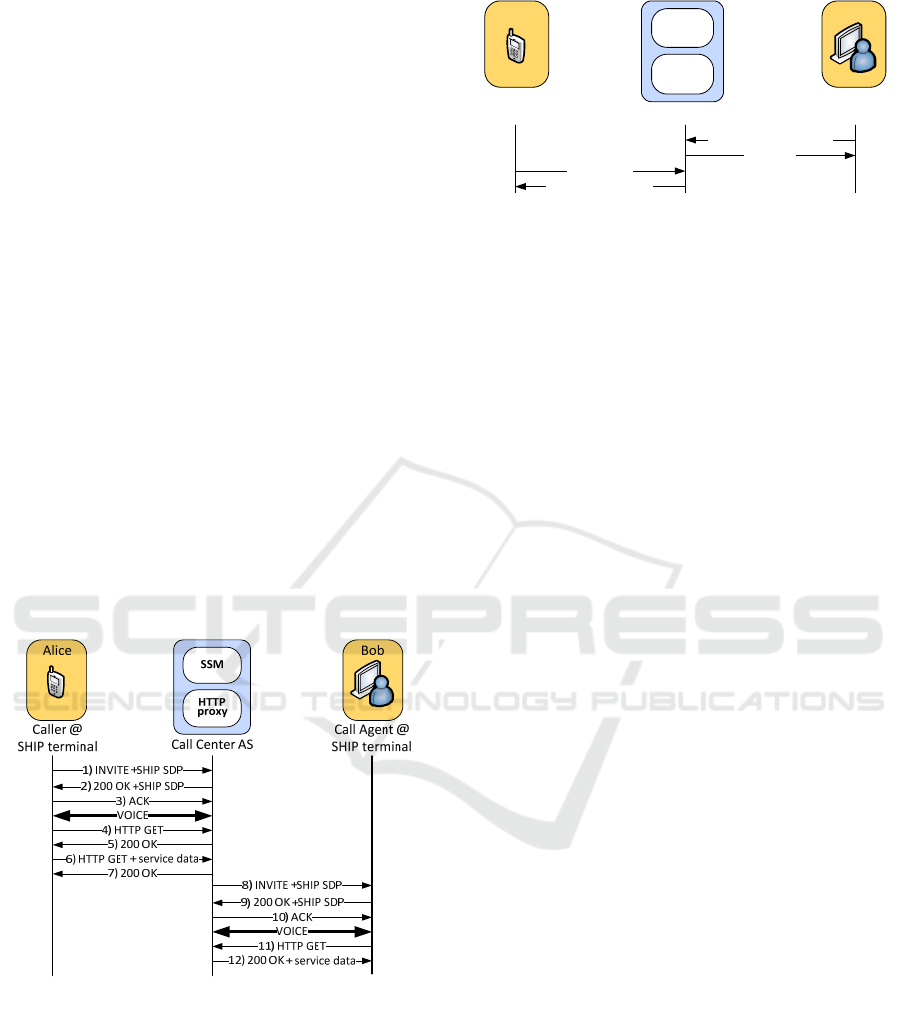

5 APPLICATION EXAMPLE

This section discusses a typical SHIP based

application example. The Multimedia Call Center

presented is a rich call scenario where

communication takes place via voice and visual

components derived from an associated HTML

connection. Thus, we combine two different media

types - data and voice - to one session, referred to as

“rich call” (optional video).

In call centers there are often different experts

for different concerns or questions. To forward calls

to the right expert, Interactive Voice Response

(IVR) is used. The system informs the caller, which

key to press or which keyword to speak in order to

proceed. The IVR system detects the selections and

finally forwards the call to the corresponding expert.

This approach reduces the number of call agents,

who only categorize and forward calls. But there are

also drawbacks. After listening to a long list of

options people might not be able to recall their best

choice, or cannot decide which option to choose.

Some sorts of dialogues cannot be implemented

using IVR systems at all, as there are too many

options confusing the customer just by listening to

them. To reduce this problem most IVR systems

query the caller several times with small questions.

But in general, complex, voice-only, IVR dialogues

are hard to follow for humans. We believe that

serving customer requests can be simplified, if

graphical user interfaces are combined with voice

communication.

Callers are guided through the menus by visual

input forms optionally in combination with voice

instructions like “please assign a category to your

question, if possible”. Indeed this approach does not

require any voice recognition, because the choices

made by the caller are transmitted as data to the call

center. Therefore, this type of rich call applications,

can realize much more complex dialogues as today’s

IVRs. Processing the Personal Identification

Number (PIN) or determining the right agent are just

two possible examples.

Figure 9: Call Center with SHIP architecture.

Figure 9 shows the architecture of a call center using

SHIP. There is a group of call agents with partly

different skills. The Call Center AS (SHIP server)

terminates SIP and HTTP signaling as well voice

data. It might access a database, where account data

are stored. For each SHIP caller the AS stores the

service data (account data, selected question

category, etc.), already entered by the caller. The

call agent has access to these service data, as soon as

he accepts the call.

Figure 10 shows the call flow for this scenario.

Alice sends a SIP INVITE message (1) addressed to

the call center’s SIP URI. The IMS core routes the

request to the application server. It is worth to

mention, that the request includes two different

media types inside the SDP part, one for audio and

one for data (HTTP). If both media types are

present, the AS detects the client’s SHIP

capabilities. The AS agrees to the client’s

connection parameters (2 & 3) and starts a session.

Both, audio and data terminate at the AS. If the SDP

data media type were missing - indicating that the

client cannot handle HTTP - a voice-only call would

be established.

Since both client and server are SHIP enabled,

the client sends an HTTP request (4) associated to

the previously established SHIP session to the

server. The server responds with an HTML form (5)

where Alice can enter her account data, and specify

her concerns. In traditional IVR systems these data

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

are transferred via voice. The major benefit of our

solution is that the system assists Alice utilizing text

and audio to fill up the form properly. The client

sends Alice’s service data to the AS (6 & 7) which

generates a ticket for this request and assigns this

request to the correct group of call center agents.

The way the AS assigns the call to a certain agent, is

out of scope of this document.

Before the AS sends an INVITE message (8) to

an agent (Bob), it correlates the call from Alice with

the new one. Note that the correlation includes all

service data of Alice which become accessible for

Bob from now on. From the SIP and RTP

perspective, the AS acts as a Back-2-Back User

Agent (B2BUA), as defined in (J. Rosenberg et al.,

2002) Regarding HTTP the AS acts as an HTTP

server, handling both parties within one joint

session. This call center system requires that all call

agents use SHIP enabled clients. Thus the call can

be established with voice and HTTP media (9 & 10).

Bob’s client is aware of the AS’ SHIP capabilities,

because it received the corresponding SDP data

media type within the INVITE request (8). As a

result Bob’s call agent sends an HTTP request (11).

The AS responds with Alice’s service data (12) (e.g.

an HTML form with all account data and the recent

bills).

Figure 10: Call flow in a SHIP enabled Call Center.

During this session, the associated HTTP

connection supports the call center agent by

displaying certain aspects of Alice’s bill on her

mobile’s display. The following Figure 11 shows

how Bob uses the data channel to display billing

data at Alice’s SHIP client. For this reason he

updates the session at the AS with a new HTTP

request (1 & 2) (e.g. “show bill”). Alice’s client has

to update its screen using AJAX or SHIP based

3)HTTPGET

4)200OK+billdata

1)HTTPGET+showbill

2)200OK

SSM

HTTP

proxy

CallCenterAS

Caller@

SHIPterminal

CallAgent@

SHIPterminal

Alice Bob

Figure 11: End 2 End data communication.

HTTP push) (3 & 4).

With this mechanism it is possible to push

images and websites to the other party or to send

data from the caller to the call agent.Parts of the

functionality described above could also be

implemented as a web application guided by voice

(transferred over HTTP), in connection with a third

party voice call. But our approach reuses the IMS

infrastructure to achieve QoS, and to validate the

identity of the users.

6 CONCLUDING REMARKS

In this paper we show a new way of approaching

application development in IMS. The basic idea is to

blend the SIP and HTTP protocols in order to

achieve authenticated and authorized web based

communication, while keeping the advantages of

IMS (charging, QoS, roaming, usage of service

enablers, etc.). Our first prototype implementation

could proof the concept. For a large scale

deployment, we will discuss the required changes

for SDP standard within the respective

standardization groups.

Instead of executing a monolithic stand-alone

application on the mobile terminal we propose to

distribute the software between client and server

following the SaaS model. In our application

architecture GUI components are executed on the

client side, whereas functional components, data

processing and enabler orchestration reside on the

application server. Interactions between terminal and

server are entirely controlled by SIP. Bi-directional

HTTP traffic to transport GUI and user events is

managed by a SIP session. We reduced the protocols

required to be supported by an IMS client to SIP

(incl. RTP) and HTTP. There is no need for

deploying enabler or application specific code on the

mobile terminal.

We discussed an application example

demonstrating the capabilities of our approach,

which is currently being implemented by the

SHIP - SIP HTTP INTERACTION PROTOCOL - Proposing a Thin-client Architecture for IMS Applications

BACCARDI project (www.ftw.at). This project

investigates future opportunities and enhancements

of IMS and was initiated by the Telecommunication

Research Center Vienna (ftw.) and its industrial

partners.

In the future we will compare the possibilities of

introducing a HTTP push mechanism controlled by

either SIP Subscribe/Notify messages or a Call-Id

related SIP MESSAGE message. In both cases the

client is informed about changes of previously

downloaded content (occurring during the SIP

session). Furthermore, we are looking at integrating

our solution into currently available mobile widget

engines such as the Symbian Web runtime (WRT) .

The SHIP concept is not only a simplification of

IMS protocol handling but opens new opportunities

to service providers, service developers, network

operators and users. Service providers can offer their

Internet services to the community of IMS

subscriber and reuse the IMS infrastructure for

charging, QoS and authentication. Service

developers can implement the services, as they did

for the Internet community, without any special

knowledge about deploying telco services. The

network operators might profit from this approach,

because they can sell more services, like those which

are deployed for the Internet. Finally there is no

need for the user to install and update service

specific software.

ACKNOWLEDGEMENTS

This work has been supported by the Austrian

Government and the City of Vienna within the

competence center program COMET. We thank our

colleagues in the BACCARDI project, especially

Joachim Fabini and Rudolf Pailer for the fruitful

discussions and contributions.

REFERENCES

3GPP TS23.228, 2009. IP Multimedia Subsystem (IMS);

Stage 2

J. Rosenberg et al., 2002. SIP: Session Initiation Protocol,

RFC 3261

J. Rosenberg, 2007. The Extensible Markup Language

(XML) Configuration Access Protocol (XCAP),

RFC4825

B. Campbell, R. Mahy, C. Jennings, 2007. The Message

Session Relay Protocol (MSRP), RFC 4975

R. Fielding et al., 1999. Hypertext Transfer Protocol –

HTTP/1.1, RFC 2616

Erich Gamma, Richard Helm, Ralph Johnson, John

Vlissides. 1995. Design Patterns, Addison-Wesley.

Bennett, K., Layzell, P, Budgen, D., Bereton, P.,

Macauley, L. A., Munro, M., 2000. Service-Based

Software: The Future for Flexible Software, Asia-

Pacific Software Engineering Conference, 5-8

December 2000.

3GPP TS33.220, 2008. Generic Authentication

Architecture (GAA); Generic bootstrapping architec-

ture

M. Sher, T. Magedanz, 2006. Secure Access to IP

Multimedia Services Using Generic Bootstrapping

Architecture (GBA) for 3G & Beyond Mobile

Networks, Q2Swinet

Java Specification, 2006. IMS Services API JSR-281,

online: http://jcp.org/en/jsr/detail?id=281

C. Jennings, J. Peterson, M. Watson, 2002. Private

Extensions to Session Initiation Protocol (SIP) for

Asserted Identity within Trusted Networks, RFC 3325

M. Handley, V. Jacobson, 1998. SDP: Session Description

Protocol, RFC 2327

D. Yon, G. Camarillo, 2005. TCP-Based Media Transport

in the Session Description Protocol, RFC 4145

J. Lennox, 2006. Connection-Oriented Media Transport

over the Transport Layer Security (TLS) Protocol in

the Session Description Protocol (SDP), RFC4572

Java Specification, 2008. Java SIP Servlet Specification

v1.1, JSR-289 online: http://jcp.org/en/jsr/detail?

id=289

T. Dierkse, C. Allen, 1999. The TLS protocol Version 1.0,

RFC 2246

S. Kent, R. Atkinson, 1998. Security Architecture for the

Internet Protocol, RFC 2401

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies
