A WEB-BASED TOOL FOR CREATING GEOREFERENCED

BOUNDARY MAPS

Omar Valenzuela, Néstor J. Rodríguez and José A. Borges

Electrical And Computer Engineering Department, University of Puerto Rico at Mayaguez, Mayaguez, Puerto Rico

Keywords: Web GIS, Boundary maps, Web usability.

Abstract: This work presents a web-based application with the capability of creating, manipulating and editing

georeferenced boundary maps (polygons) of geographical areas using georeferenced images. The

application is platform-independent. It can run on any computer with a browser and an Internet connection.

The application provides the capability of locally storing boundary maps attaching to them spatial

information from the images that facilitates image searching. Boundary maps can be imported from other

sources and they can also be exported to make them available for other GIS applications. A usability test

conducted with the application demonstrated that it is easy to learn and use. Participants were able to

complete 96% of the tasks with a fifteen minutes tutorial. In addition they found all the interaction actions

tested to be easy to use.

1 INTRODUCTION

Geographical Information Systems (GIS)

applications are very powerful information systems.

Most of them are desktop software from commercial

vendors, which are usually very expensive. The fact

that these are stand alone and isolated information

systems limits their usefulness to the very few that

have physical access to them.

Advances in networking technologies and

Internet protocols and applications have made

possible the development of GIS applications that

can be accessible from all over the world at a very

low cost (Athan, 2007). These technological

advances facilitate the development of methods and

environments to visualize, manipulate, and analyze

geospatial data through the Internet with direct

manipulation user interfaces (Sayar, 2005).

The core technologies of an application or its

functionality do not guarantee the success of an

application from the user’s point of view. Usability

plays a major role on the acceptance of an

application. A very good example of this is

presented in (Traynor, 1995). In this research a

group of social scientists were given a tutorial by a

GIS expert on a GIS application used by residents in

inner-city neighborhoods. Despite the tutorial, the

the software resulted very difficult to use.

The tool described in the next section is a GIS

application that was developed using Web

development technologies such as AJAX

(Asynchronous JavaScript and XML) (Ahmet, 2006)

and PHP5, and share wear database technologies

such as MySQL. The tool allows users to create,

edit, manipulate and stores boundary maps

(polygons) through the Internet. The tool manages

high-resolution images that are used as references

without using many system resources and

unnecessary bandwidth. It was developed as a

platform independent tool so that it can run in any

computer with any operating system in any place of

the world.

2 A TOOL FOR CREATING

BOUNDARY MAPS

This section describes the operation of a web-based

application capable of creating boundary maps using

spatial data contained in aerial and/or satellite

images as reference. Boundary maps are useful to

delimit geographical areas of interest. These maps

could be superimposed on satellite images of

different types of atmospheric or terrestrial attributes

to study the effect of them on the delimited area.

439

Valenzuela O., RodrÃ guez N. and Borges J.

A WEB-BASED TOOL FOR CREATING GEOREFERENCED BOUNDARY MAPS.

DOI: 10.5220/0001843704390443

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

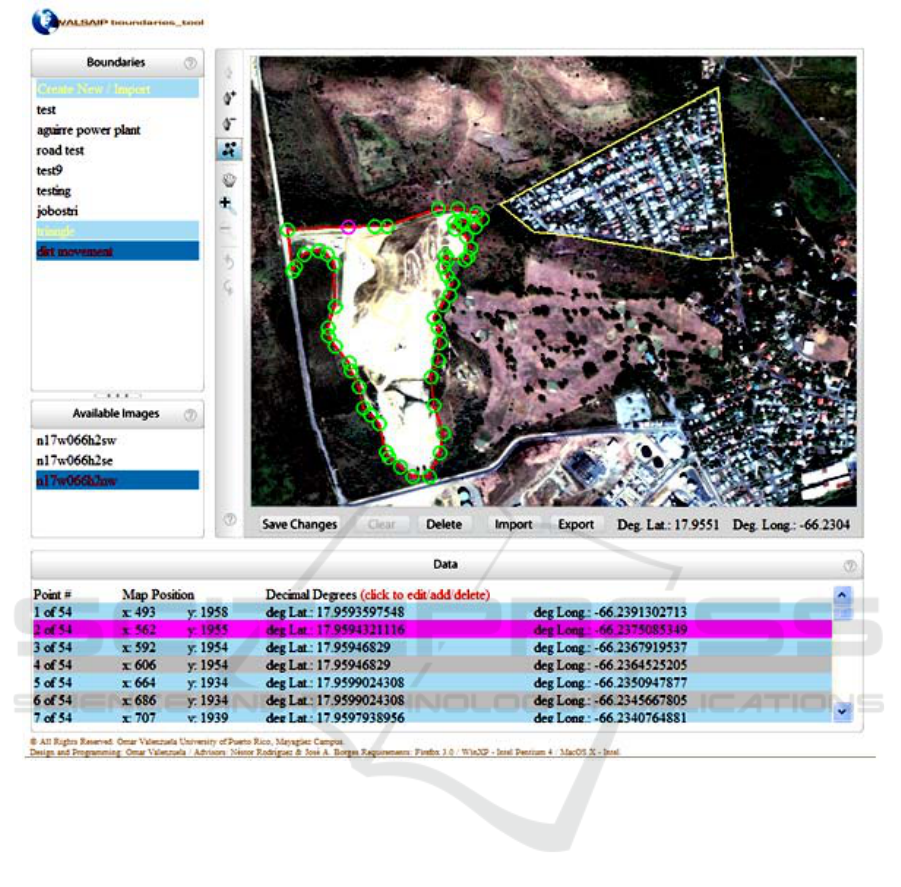

Figure 1: User interface of boundary creation tool.

Since boundary maps are georeferenced they

automatically align with the corresponding

geographical area on the reference image.

The user interface of the tool is shown in figure

1. The main working area is the large image display

window at the top left. The image displayed in this

area serves as reference for the creation of boundary

maps. Boundary maps are displayed as polygons of

lines on top of the image.

Lists of boundary maps and reference images are

displayed at the left side of the interface. Users can

select one image from the image list to be displayed

on the image display window. However, more than

one boundary maps from the boundaries list can be

displayed on top of the reference image as it is

shown in figure 1.

A vertical toolbox at the left of the image display

window provides options for creating, editing and

manipulating boundary maps. The top icon of the

toolbox serves to create a new boundary map. The

following three icons serve to add, remove and move

points of a boundary respectively. When one of

these three editing options is selected the active

boundary is displayed with all its points highlighted

with small circles like the boundary shown at the left

on the image display window of figure 1. The user

can edit any point by pointing and clicking on them.

The icon with a hand shape in the vertical toolbox

serves to drag the background image along with the

boundary. The icons with the plus and minus

symbols serve to zoom in and zoom out the image

respectively. The arrow icons serve to undo and redo

interaction actions. All the actions generated with

the toolbox are constantly georeferenced in real-time

using the images’ World File data.

Below the image display window are a number

of buttons that allow saving, clearing, deleting,

importing and exporting boundary maps. The first

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

440

button from left-to-right controls the saving of

boundary maps. This button changes according to

boundary status. If the user is creating a new

boundary or is importing a new boundary to the

database, this button takes the action of saving the

boundary and displays the keyword “Save

Boundary”. If the user is editing an existing

boundary, the button takes the action of saving the

changes made to the boundary and displays the

keyword “Save Changes”.

The second button clears all the changes made to

the active boundary on the image display area. The

third button is use to delete the active boundary,

only if it is actually stored on the database. The

fourth button, the Import button, brings a boundary

map into the image display window. If it is not

already in the database the user has the option to

save it. The fifth button (Export) has the function to

convert the active boundary into a KML file and

provides the user the option to save it locally.

Following the Export button are two fields (Deg. Lat

and Deg. Long) that display the coordinates of the

position of the cursor in decimal degrees.

At the bottom of the user interface there is a

window that displays data about each point of the

active boundary. Each point is identified with a

number. These are organized in ascending order,

following the connection sequence. The relative X-Y

pixel position on the boundary display window as

well as the georeferenced position in decimal

degrees (Latitude-Longitude) is displayed for each

point. By clicking on a point entry the point is

selected. The user can edit the coordinates of the

selected point, delete the point or add a new point.

This feature allows for the development of very

precise georeferenced boundary maps.

3 IMPLEMENTATION DETAILS

The main tool used in the development of the

boundary maps tool was AJAX. This technology

made possible to merge the dynamic content

obtained from dynamic HTML and CSS, with the

coding support of PHP 5 and manage the user

interface’s dynamic information display with the use

of JavaScript. SAJAX (Simple AJAX Toolkit) was

used as the AJAX tool to handle the

communications between the JavaScript and PHP 5.

JSON (JavaScript Object Notation) was used to

handle the variable data to/from JavaScript that is

sent over to PHP 5 to be displayed in the user

interface. These technologies allowed the creation of

dynamic content on a web browser in a similar way

as it can be accomplished in a desktop application

(Paulson, 2005).

The boundary maps tool application was

developed for Mozilla Firefox version 3 because of

its stability, standard compliance, and performance

of JavaScript at the time of the development.

Programming for only one browser makes the

process of developing a web application a lot faster.

However, the application performs correctly with

Safari’s, Apple’s Internet browser.

Boundary maps are stored on a local database

and made accessible through a local website to avoid

the use of proprietary APIs that could limit future

development of the tool. The tool’s database server

was implemented with Apache, MySQL and PHP 5.

The latter was used to manage queries, image files,

and store information inside the database. Since the

information generated from the user’s work needed

to be stored in an open format available to anyone,

KML was used as the storage format. The

availability of these database server development

tools on the Internet facilitated the implementation

of the application in a very inexpensive way.

4 USABILITY STUDY

4.1 Methodology

A usability study (Nielsen, 1993) was performed to

determine the ease or difficulty of use of the

boundaries tool application by potential real users as

well as their satisfaction with the application. The

study was performed using a local web server to

prevent any network related variability in the results

of the study. The computer used to run the test was a

PC with an Intel Core 2 Duo @ 2.16 GHz processor,

2 GB RAM and 7200 RPM HardDisk. The software

used to run the application was Apache 2.2, PHP

5.2.6, MySQL Server 5.0. The browser used for the

test was FireFox version 3.0.1.

The users selected for the usability test were ten

civil engineering and surveying students with

experience in the creation of polygons and/or

boundaries with GIS tools. Prior to the test they

were given a short tutorial on how to use the

application. After the tutorial the users were asked to

perform 20 tasks using the boundary tool. The tasks

involved handling, creating, editing, saving,

importing, exporting, and deleting boundary maps.

A WEB-BASED TOOL FOR CREATING GEOREFERENCED BOUNDARY MAPS

441

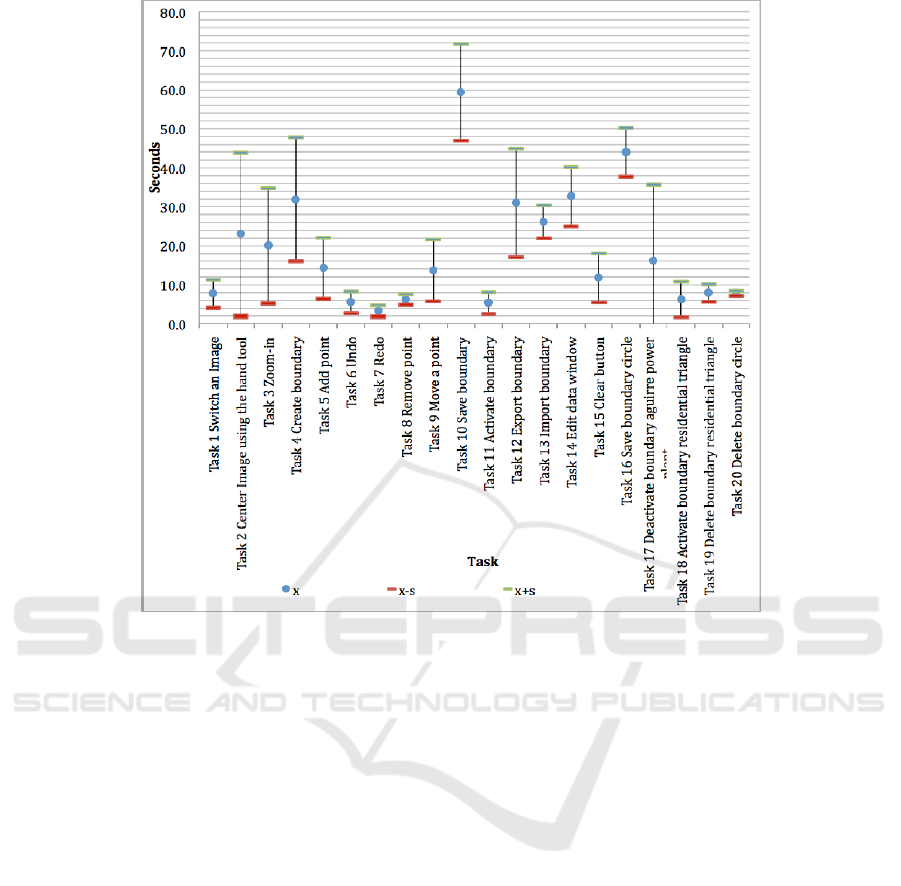

Figure 2: Task completion times.

After performing the tasks the users were asked

to rate fourteen interaction aspects dealing with

handling and editing boundary maps. They were

asked to rate each aspect using a 1-5 (difficult-easy)

scale. They were also asked to rate the overall

performance of the application and how useful it

seems for them. The dependent variables of the

study were the time to complete the tasks, the

number of tasks completed and the user subjective

satisfaction.

4.2 Results

Figure 2 shows the mean (X) and the standard

deviation (S) of the tasks completion times. Overall

it took the users and average of 378.3 seconds to

complete all the tasks with a standard deviation of

63.4 seconds. Saving a boundary was the most time

consuming task. The least time consuming tasks

were: switching an image (Task 2), undo (Task 6),

redo (task 7), remove point (Task 8), activate

boundary (Task 11 and Task 18), and delete a

boundary (Task 19 and Task 20).

Overall, the participants executed 200 tasks

combined of which only eight were not completed.

This constitutes a 96% task completion rate. Only

one of the users was not able to complete three tasks,

another was not able to complete two, while three

were not able to complete one task.

A summary of the average rating given to each of

the interaction aspects rated is presented in Figure 3.

The results indicate a very high rating for all the

items of the post test questionnaire. All the average

ratings were on or above 4.6.

5 CONCLUSIONS

The results of the study support the conclusion that

the boundary tool is very easy to learn and use. With

only a fifteen-minutes tutorial the users were able to

complete 96% of the tasks. The users perceive the

application as one that is very easy to use in general.

They found all individual interaction actions tested

as very easy to execute.

The most important contribution of this study is

the creation of a very easy to use and learn tool for

creating georeferenced boundary maps that could be

used from anywhere in the world.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

442

Figure 3: Average Ratings of Interaction Actions.

ACKNOWLEDGEMENTS

This research was made possible in part by the

support of the WLASAIP project at the University

of Puerto Rico at Mayaguez (NSF grant CNS -

0424546).

REFERENCES

Athan, T.: Introduction to Web-based GIS, In alt2is.com.

Retrieved October 16, 2008, from www.alt2is.com

(2007).

Nielsen, J.: Usability Engineering, Academic Press,

(1993).

Paulson, L. D.: Building Rich Web Applications with

AJAX. IEEE Computer Society, 38, (0) (2005) 14-17.

Sayar, A., Pierce, M., Fox, G. C.: Developing GIS

Visualization Web Services for Geophysical

Applications ISPRS: International Society for

Photogrametry and Remote Sensing Workshop

Commission II WG/2 METU, Ankara, Turkey (2005)

24-25.

Ahmet S., Pierce M., and Fox G.: Integrating AJAX

Approach into GIS Visualization Web Services.

Proceedings of IEEE International Conference on

Internet and Web Applications and Services ICIW'06,

Guadeloupe, French Caribbean (2006) 23-25.

Traynor, C. and Williams, M. G.: Why are Geographic

Information Systems Hard to Use? CHI95 Conference

Companion on Human Factors in Computing Systems.

Denver, Colorado, United States (1995) 288-289.

A WEB-BASED TOOL FOR CREATING GEOREFERENCED BOUNDARY MAPS

443
