WATERFORD ASSESSMENT OF CORE SKILLS

A Computerized Adaptive Reading Test for Pre-K through 2

Grade

Haya Shamir, Erin Phinney Johnson and Kimberly Brown

WaterfordResearch Institute, 55 West 900 South, Salt Lake City, UT, U.S.A.

Keywords: Computerized Adaptive Test, Reading Assessment.

Abstract: The Waterford Assessment of Core Skills (WACS) is a new computerized adaptive test of early literacy for

students in Kindergarten through 2

grade. WACS includes assessments in letter recognition, letter sound

and initial sound recognition, blending, segmenting, reading real and non-words, reading comprehension,

listening comprehension, and vocabulary. A CAT for this age group will be highly beneficial by allowing

whole classes to be tested together without additional personnel, by assessing a large number of content

areas in reduced time and with fewer questions than a standard paper and pencil test, by producing

immediate and accurate score reports, and by engaging students with animations during the test. Reliability

and validity analyses indicate that the test is internally coherent and that the subtests correlate well with

other reading tests used with this age group, including DIBELS, IRI, ITBS and TPRI.

1 INTRODUCTION

For the last 33 years the Waterford Research

Institute has strived to develop high-quality

educational models and programs to enable all

children to receive the finest education possible.

Over time it has become evident that the ability to

easily assess student skills in the youngest grade

school group, when students are most responsive to

intervention, is lacking. Many current assessments

available for this age group, Kindergarten through

grade, require one-on-one administration (e.g.,

DIBELS; Good & Kaminski, 2003), which may

result in a great deal of error variance due to

differing administration techniques by individual

testers or differences in scoring ambiguous answers.

In addition, tests that do not require one-on-one

administration are limited in the scope of what they

can cover and they risk introducing too much

variance from fidgety 6-year-olds (e.g., ITBS;

Hoover, et al., 2003). A computerized test, such as

the Waterford Assessment of Core Skills could

provide consistent and efficient test administration

by removing the need for a human test administrator

and providing an engaging testing environment.

2 METHODS

The Waterford Assessments of Core Skills (WACS)

is a web-based adaptive literacy test for pre-

kindergarten to second grade students. The new test,

soon to be available to schools and home users,

assesses early literacy skills including letter

recognition, letter sound and initial sound

recognition, blending, segmenting, the reading of

real words, non-words, and sight words, and

comprehension of paragraph-level text. WACS also

assesses early language skills including vocabulary

and listening comprehension. As an adaptive test,

WACS can assess a large number of content areas in

reduced time and with fewer questions than a

standard paper and pencil test. In addition,

computerized adaptive tests (CATs) may reduce

frustration for lower performing students and

boredom for higher performing students.

2.1 Design

The award winning product design team at

Waterford (Software and Information Industry

Association, 2008) have created an engaging test

that students actually enjoy taking. Throughout the

test students are guided by a groundhog named

Wyatt (see Figure 1) who is asking for their help on

a number of tasks they have to do together. At the

Shamir H., Johnson E. and Brown K. (2009).

WATERFORD ASSESSMENT OF CORE SKILLS - A Computerized Adaptive Reading Test for Pre-K through 2nd Grade.

In Proceedings of the First International Conference on Computer Supported Education, pages 24-30

 SciTePress

end of each section and at the end of the assessment

the students receive a non-judgmental reward screen

that serves as a short mental break of dancing

characters, with a new character appearing after each

skill has been completed. When students have fully

completed WACS, Wyatt presents them with a

deputy badge as a reward for finishing the

assessment.

WACS may be used by home users as well as

school users, allowing home-schooling parents

access to assessment tools similar to those used in

the public or private schools. Home users will be

able to complete the test by streaming the required

media, while schools will be expected to download

the related media to the computers in the classrooms

or computer labs.

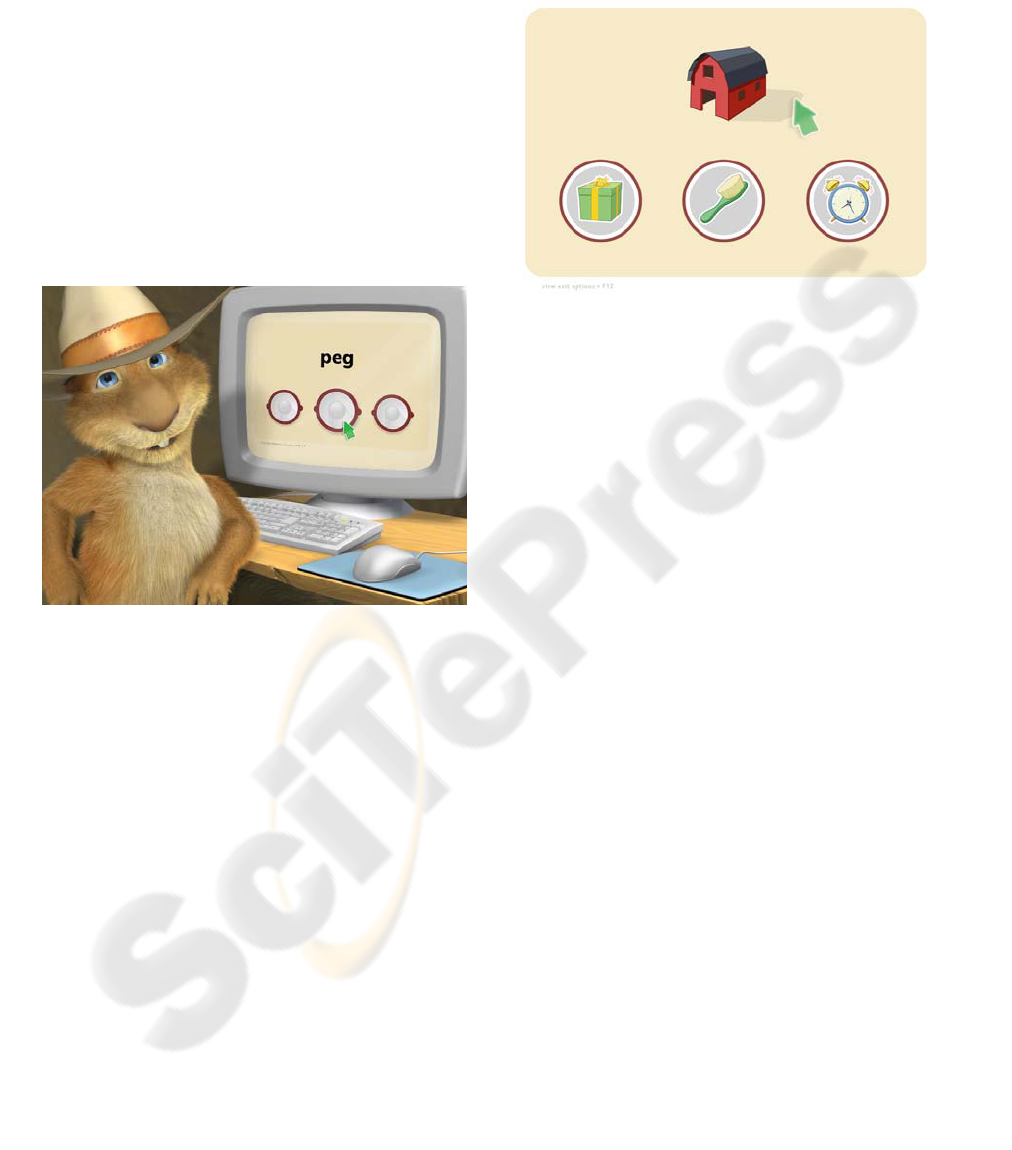

Figure 1: Wyatt, demonstrating the Sight Words

Assessment.

2.1.1 Item Design

All test items are presented visually and aurally but

do not require the child to speak the answer. For

Letter Sound, Real Words, Sight Words, and

Nonwords, the letter/word appears on the screen

with three speakers underneath (see Figure 1). Each

speaker says a different letter/word name. The

student must click on the correct speaker to match

the word or letter that is on the screen.

Vocabulary differs slightly from this

arrangement with a sentence missing one word

written at the top of the screen. The sentence is read

to the child and the child must pick a word from the

speakers that best completes the sentence.

In the case of Letter Recognition, Initial Sound

and Blending there is a single speaker or picture at

the top of the screen and three pictures or letters at

the bottom of the screen (see Figure 2 for example).

The speaker/picture emits a sound or a series of

sounds and the student must select the picture below

that begins with that same sound, matches the series

of sounds, or select the letter that matches the letter

name from the speaker.

Figure 2: Example of the Initial Sound Assessment. The

answer is selected by clicking on the chosen letter with the

cursor, the green arrow.

For Reading and Listening Comprehension the

student is given a passage to read or listen to. When

finished, the child is presented with a question about

the passage followed by three possible answers. In

Listening Comprehension the questions and answers

are presented aurally. Each reading or listening

passage includes four questions of varying difficulty.

Each child receives three passages depending on

skill level.

The final task, Segmenting, differs from all of

the other tasks. Here, a picture is presented to the

student and he/she must move a series of blocks

representing the sounds into the correct order for the

word associated with the picture.

For all skills, the computer introduces the

question including the correct answer and the

distracters. The student can use the mouse to roll

over the question or the answer options to hear the

instructions again.

2.1.2 Sequence Design

Importantly, all children do not receive all

assessments. WACS includes eleven different

assessments, a subset of which is given to students

depending on their grade level and performance.

Limiting the number of assessments completed for

each child continues to reduce time required to test

the student and allows for a more pinpointed report.

It is assumed that students who are advanced in

reading do not need to be tested on pre-reading skills

such as letter recognition. However, students from

advanced grades may receive basic skills if they fail

CSEDU 2009 - International Conference on Computer Supported Education

to complete advanced skills at their grade level. On

the other hand, advanced students at lower grades

may receive more advanced skills if they prove to be

competent at the more basic skills.

2.1.3 Report Design

One of the greatest benefits of computerized testing

for students is the ability to receive scores

immediately after testing has completed. WACS has

been designed to provide reports about individual

test takers, as well as class, school, and district level

reporting. The reports indicate the child’s grade

level for each of the completed assessments as well

as detailed information about what was actually

being assessed and ways that any problem areas

could be addressed in the home or in the classroom.

The past three test results for the students are also

generated on the report, allowing parents and

teachers to compare changes over time in relevant

assessments.

2.2 IRT Analysis

In September, 2007, 8,800 students in Utah, Idaho,

Nevada, California, New York, Texas, North

Carolina, and Florida completed the first round of

testing with WACS. This first group was given a

random sample of questions from each assessment,

all questions representing varied expected difficulty

levels. The sample of students from twenty six

schools was representative of US socio-economic

status, ethnicity, geographic location, and type of

school, based on information obtained from the US

2002 census.

Based on the responses, difficulty values for

these 2,680 items were calibrated using the Rasch

model analysis for item response theory. Results

revealed 131 items with an outfit mean square

greater than 1.7, indicating high error variance in the

item. These items were excluded from the test. An

additional 131 items with outfit mean square less

than .5 were excluded, since items with outfit mean

square smaller than .5 are considered less productive

to the measure. Subsequent differential item

functioning (DIF) analysis revealed 21 items that

had a gender bias. These items were removed for

content review. Item difficulty was then calculated

for the remaining items.

Utilizing IRT analysis on test items, the adaptive

nature of the test allows a student’s response to

determine the next set of items. For example, if a

student fails to answer a question correctly within a

skill area, the next question he receives will be less

difficult. If the student answers that second question

correctly, the next question is harder, but not as hard

as the previously missed question. In this way, a

computerized adaptive test identifies the student’s

skill level in a particular area. Because WACS can

test up to eleven different areas, detailed information

about the student’s abilities are subsequently

available to teachers and parents.

2.3 Validity

Validity is the argument that a specific test score

interpretation or use is valid. In other words, a test is

valid when it does what it is supposed to do. There

are three major categories of validity: those

associated with content, criterion, and construct.

2.3.1 Content Validity

In order to establish content validity, this paper

discusses the reasons for the test design and content

as well as the association between the given test and

state standards or curricula. First, content experts

investigated the most important skills for pre-

kindergarten through 2

grade students and

established guidelines for writing items based on

published research. The areas covered included

acquisition of letter names and sounds (Adams,

1994; Evans, 2005), early phoneme awareness

(Wilson, 1996), sight word reading (Carroll, 1971;

Wilson, 1996), real and non-word reading (Wilson,

1996; Ganske, 2000), vocabulary (Stemach &

Williams, 1988; Beck, McKeown, and Kucan,

2002), and reading and listening comprehension

(Snow, Burns, & Griffin, 1998). In addition, all

comprehension passages and questions were written

by professional writers, reviewed by content experts,

and edited by writing experts. Reading

comprehension passages were Lexile certified for

their grade levels.

Upon completion, items from all of the subtests

were reviewed by additional content experts and sent

to Marilyn Jager Adams, an external content expert,

for review. After IRT testing, analysis was

conducted to insure that item difficulty, as

determined statistically by IRT analysis, correlated

with the item difficulty as determined by the content

experts.

In addition to creating items based on researched

concepts, a valid reading test should also cover

standards accepted by the states for reading and

language development. Thus, state standards were

examined and correlated with WACS skills and

items. With the exception of Iowa (which did not list

WATERFORD ASSESSMENT OF CORE SKILLS - A Computerized Adaptive Reading Test for Pre-K through 2nd Grade

standards below grade three), a minimum of three,

and a maximum of eleven, WACS assessed skills

were also listed as state education standards for

PreKindergarten through grade two.

2.3.2 Criterion-related Validity

The effectiveness of a test in predicting performance

on a related task can be measured by assessing

performance on two tests at the same point

(concurrent validity) or at two different time points

(predictive validity). To assess concurrent validity

WACS was administered to students nationwide in

September and October. Student performance was

then compared to performance on the Dynamic

Indicators of Basic Early Literacy Skills (DIBELS),

the Idaho Reading Inventory (IRI), the Iowa Test of

Basic Skills (ITBS), and the Texas Primary Reading

Inventory (TPRI). Additional test data for the

Stanford Achievement Test (SAT 10) and ITBS will

be collected in April, 2009.

Data for predictive validity will also be collected

in the spring. WACS will be administered to the

same students from the fall testing. Those students

are also completing a spring round of testing for

DIBELS, IRI, or TPRI, making it possible to

examine predictive validity as well as a second

assessment of concurrent validity.

All five tests used to measure WACS validity

examine early reading skills and some include

subtests similar in name and concept to those given

in WACS, providing a stable comparison.

2.3.3 Construct Validity

Construct validity is typically measured with factor

analysis or principle component analysis. Because

the data was acquired with a computer adaptive test,

the large amount of missing data makes a typical

factor analysis less useful. Instead, a Rasch Factor

Analysis, completed in WINSTEP software,

performs a principle component analysis in order to

verify that our data is unidimensional. An additional

modified factor analysis is run with SPSS for

confirmation.

2.4 Reliability

Reliability refers to the consistency of a measure;

tests that have adequate reliability will yield more or

less the same scores across periods of time and

across different examiners. Because WACS is

administered on the computer there is no error

generated from different examiners. However, error

may still be introduced into the resulting final scores

through lack of attention to the task at hand, faulty

headphones, and disinterest. Because of these

concerns, it is important to examine test-retest

correlations with a small gap between testing dates

as well as the internal consistency of the test.

Computerized adaptive tests differ on measures

of test-retest reliability since an individual does not

see the exact same test at each time point. The

resulting correlation coefficient is regarded as a

conservative estimate since content sampling adds

an extra degree of error beyond individual

performance. CATs also differ on measures of

internal consistency. Traditional methods, split-half

reliability and Cronbach’s Alpha, are statistically

inaccurate when applied to a CAT tailored to

achievement. Instead, the marginal reliability

coefficient provides a better measure of internal

consistency by combining measurement error

estimated at multiple points on the scale. The

resulting coefficient is almost identical to

Cronbach’s alpha.

3 RESULTS

3.1 Concurrent Validity

Concurrent validity analyses were performed with

DIBELS, IRI, ITBS, and TPRI. The Kindergarten

WACS combination of tasks includes Blending,

Initial Sound, Letter Recognition, Letter Sound, and

Vocabulary. The first and second grade

combinations include Real Words, Nonwords, Sight

Words, Reading Comprehension, and Vocabulary.

Overall, correlations between relevant WACS

assessments and the associated paper and pencil test

are highly significant (Table 2), even with the

currently low number of participants taking the

ITBS (see Table 1).

Table 1:Number of students completing comparison test.

Assessment

Kindergarten

First

Second

DIBELS 206 142 137

IRI 120 61 126

ITBS 66 69

TPRI 170 155 190

DIBELS Beginning Kindergarten assessment,

consisting of Letter Naming Fluency and Initial

Sound Fluency, significantly correlates with WACS

Kindergarten Skills (

r = .74, p < .001). Similarly,

DIBELS Beginning First Grade assessment,

consisting of Letter Naming Fluency, Phoneme

CSEDU 2009 - International Conference on Computer Supported Education

Segmentation Fluency, and Nonword Fluency,

significantly correlates with WACS 1

grade Skills

(r = .72, p < .001) and DIBELS Second grade

assessment, consisting of Nonword Fluency and

Oral Reading Fluency, correlates with WACS 2

Grade Skills (r = .61, p < .001).

Patterns or correlations for the IRI are similar to

those seen with DIBELS. The IRI includes only one

test for Kindergartners, the Letter Naming Fluency

test, and this task correlates significantly with

WACS Kindergarten Skills (r = .57, p < .001). First

grade IRI tasks, Letter Naming Fluency and

Nonword Fluency, also correlate highly with WACS

grade Skills (r = .74, p < .001). Finally, second

graders taking the IRI receive only the RCMB, a

reading fluency task. This IRI reading task also

significantly correlates with WACS 2

grade Skills

(r = .58, p < .001).

The ITBS includes a number of areas of

assessments. For our purposes, comparisons are only

made to the Reading subtest for 1

and 2

graders.

ITBS Reading significantly correlates with WACS

grade Skills (r = .7, p < .001) as well as with

WACS 2

grade Skills (r = .41, p < .001).

The TPRI is designed for students to receive

additional assessments based on previous

performance. Only Letter Sound, Blending, Letter

Name, and Comprehension are given to all

Kindergartners. This combination significantly

correlates with the WACS Kindergarten Skills (r =

.52, p < .001). The TPRI combination given to all

first graders includes Letter Sound, Word Reading,

Word Per Minute Rate, and Comprehension

Questions. This combination also significantly

correlates with the WACS 1

Grade Skills (r = .64, p

< .001). Finally, the TPRI combination given to all

second graders, including Word Reading, Words

Per Minute Rate, and Comprehension, also

significantly correlates with WACS 2

Grade Skills

(r = .5, p < .001).

Due to the way the test sequencer works, very few

students were given the Segmenting assessment this

fall. As a result, Segmenting could not be added to

any of the combinations for the grades. However, in

order to more thoroughly understand how this task

correlates with other reading-related tasks,

Segmenting was correlated with two relevant tasks

for which the n was over 30. Segmenting correlated

significantly with both DIBELS Nonword Fluency (r

= .42, p < .05) and IRI Reading (r = .37, p < .05).

Table 2: Relevant correlations between WACS and school-administered assessments.

WACS Assessments

WACS 1

Grade Skills WACS 2

Grade Skills WACS Kindergarten Skills

r = .74, p < .001 DIBELS, Beginning

Kindergarten

DIBELS, Beginning 1

Grade

r = .72, p < .001

DIBELS, Beginning 2

Grade

r = .61, p < .001

r = .57, p < .001 IRI, Kindergarten

IRI, 1

Grade r = .74, p < .001

IRI, 2

Grade r = .58, p < .001

r = .52, p < .001 TPRI, Kindergarten

TPRI, 1

Grade r = .64, p < .001

TPRI, 2

Grade r = .50, p < .001

ITBS 1

Grade r = .70, p < .001

ITBS 2

Grade r = .41, p < .001

WATERFORD ASSESSMENT OF CORE SKILLS - A Computerized Adaptive Reading Test for Pre-K through 2nd Grade

3.2 Construct Validity

In general, when over 60% of the variance is

explained by a single factor, a test is considered to

have only one underlying factor. For WACS, 63.5%

of the variance is explained by a single factor.

Unexplained variance within the 1st factor is 4.5 %

(unexplained variance smaller than 5% confirms that

there is a single factor). An additional modified

factor analysis run with SPSS produces similar

results, with the first factor explaining 60.5% of the

variance and the next highest factor only explaining

9.7% of the variance. All assessments load strongly

on the first factor (all weights above .63) and only

Letter Recognition and Letter Sound have weights

above .4 on the second factor. In addition, the scree

plot indicates a dramatic drop from the first (eigen

value of 6.7) to the second factor (eigen value of 1).

Finally, another test of the internal coherence of

WACS overall is to examine correlations between

subtests. Resulting correlations indicate significant

relationships among all of the WACS subtests,

ranging from r = .38 (between Letter Recognition

and Listening Comprehension) to r = .74 (between

Letter Sound and Initial Sound), supporting the

conclusion that all subtests can be grouped together

as a unidimensional test.

3.3 Reliability

Test-retest correlations will be completed in April,

2009, when students take their spring WACS test.

The preliminary reliability correlation for WACS

Kindergarten Skills, with a sample size of 127, was

significant (r = .52, p < .001) as was the reliability

correlation for WACS 1

Grade Skills, with a

sample size of 85 (r = .73, p < .001).

Internal reliability has already been measured

with the marginal reliability coefficient, examining

internal test consistency. Reliability for WACS, is

very strong (r = .93).

4 CONCLUSIONS

Currently, very few standardized assessments are

capable of being used in for pre-K through 2

grade

educational group. Even tests that can be used with

these young children often aren’t used, likely due to

difficulties in keeping young children engaged.

WACS has been designed specifically for young

children, and by presenting the testing information

on the computer, the children are able to stay

engaged with the animated characters. Current No

Child Left Behind standards require testing

beginning in third grade. However, research

demonstrates that early detection and intervention

are essential for academic success. Identifying

struggling students early increases these student’s

chances of being successful readers and meeting the

NCLB requirements. With an assessment that is easy

to administer, engaging for the students and provides

accurate immediate results, more students are likely

to be reading at or above grade level in the future.

With validation on the Waterford Assessment of

Core Skills completed this coming spring, WACS

will become an important part of grade school

education.

REFERENCES

Adams, Marilyn, Jager. (1994). Beginning to Read:

Thinking and Learning about Print. Cambridge,

Massachusetts: The MIT Press.

Beck, Isabel, L., McKeown, Margaret, G., Kucan, Linda.

(2002). Bringing words to life: robust vocabulary

instruction. New York, New York: The Guilford Press.

Carroll, J. B., Davies, P., and Richman, B. (1971). The

American Heritage Word Frequency Book. New York:

Houghton Mifflin.

Evans, Mary Ann. (2005 June). Phonological awareness

and the acquisition of alphabetic knowledge. Paper

presented at the twelfth annual meeting of Society for

the Scientific Study of Reading, Toronto, Canada.

Ganske, Kathy. (2000). Word journeys: assessment-guided

phonics, spelling, and vocabulary instruction. New

York, New York: The Guilford Press.

Good, R. H., & Kaminski, R. A. (2003). Dynamic

indicators of basic early literacy skills, 6th edition.

Eugene: Institute for the Development of Educational

Achievement, University of Oregon

Hoover, H. D., Dunbar, S. B., Frisbie, D. A., Oberley, K.

R., Ordman, V. L., Naylor, R. J., Lewis, J. C., Quails,

A. L., Mengeling, M. A., & Shannon, G. P. (2003).

The Iowa Tests, guide to research and development,

Forms A and B. Itasca, IL: Riverside Publishing.

Snow, C. E., Burns, S., & Griffin, P. (1998). Preventing

Reading Difficulties in Young Children. Washington,

D.C., National Academy Press.

Software and Information Industry Association. (2008).

CODiE Awards, Best Course/ Classroom Management

Solution and Best Science Instructional Solution.

http://www.siia.net/codies/2008/winners

Stemach, J. & Williams, W. B. (1988). Word Express: The

First 2,500 Words of Spoken English. High Noon

Books.

Wilson, Barbara, A. (2005, November). Decoding.

Symposium conducted at the meeting of the

International Dyslexia Association, Denver, Colorado.

Wilson, Barbara, A. (1996). Wilson Reading System

Instructor Manual. Boston, Massachusetts: Wilson

Language Training Corp.

CSEDU 2009 - International Conference on Computer Supported Education
