A SCHEME OF STRATEGIES FOR REAL-TIME WEB

COLLABORATION BASED ON

AJAX/COMET TECHNIQUES FOR LIVE RIA

Walter Balzano, Maria Rosaria Del Sorbo and Luca Di Liberto

Istituto Nazionale Fisica Nucleare, Università degli Studi di Napoli Federico II, via Cinthia, 4 – 80126, Napoli, Italy

Keywords: AJAX, Comet, Web collaboration, Real-time, Data fidelity, DWR, Reverse AJAX.

Abstract: The last web applications advances, even if significant, doesn’t yet allow to substitute desktop applications:

data are often redundant, user/web interfaces interactions notably differ from the user/desktop ones, data

propagation isn’t fully instantaneous. This work shows some strategies for real-time client/server and

client/client communications by server to manage multiuser collaboration issue in innovative ways: the user

can use two techniques AJAX (Garrett J., 2005) and Comet (Russell A., 2006), recent and standard based,

without installing plug-ins. Web 2.0 (O’Reilly T., 2007) was this project’s leading philosophy, by which a

mash up of two features was mainly realized: a chat module and a WYSIWYG (What You See Is What You

Get) text editor. The results show a potential cooperation among users interacting simultaneously using

simple graphical interfaces, with a large work speeding up. Many applications exploit client/server

interactions, directly sending updated information to connected users, as in online auctions (Wellman M. et

al., 1998) multiuser cooperation (Tapiador A. et al., 2006) and e-learning (T. Chan, 2007) systems. Further

details about the code and simple demos are available on http://people.na.infn.it/~wbalzano/AJAX.

1 INTRODUCTION

Broadband communicating systems and

participation architecture give users deeper and more

active interaction with the web as in Wikipedia (Lih

A., 2004), Amazon (Linden G., et al 2003), Google

Maps (Markoff J., 2005), (Tulloch D. L., 2007).

AJAX and Comet (Bozdag E. et al., 2007)

techniques improved client/server communication so

as user/web interface interaction (Smullen III C. W.

et al., 2008), (Smullen C.et al., 2007), allowing real-

time client/server interaction where users can trade

information instantly as in Google Docs (Google,

2007) beta application. Multiuser cooperation and

support tools for formerly cited techniques are

shown, specially DWR (http://getahead.org/dwr,

2008) and Jetty (Jetty Web Server, 2003).

This work will show recent applications of the

preceeding technologies, that offer a solution of

frequent problems in web interactions and open new

perspectives: users haven’t to download plug-ins,

somehow complex procedure when they aren’t

operating on their own PC, but they can directly

achieve these services all over only using a browser.

Multiuser cooperation issue is argued to improve

cooperation by chat and to speed up the work by a

WYSIWYG text editor, with no instant messaging

software or specific formal language. In this context

data reliability and single user’s data maintenance

are key factors, and then critical information is

properly spread to all members by Comet technique.

This paper is organized in two sections: in the

first section, basic techniques of the model are

illustrated, with their most relevant features, and

client/server interaction is described, highlighting

the aspects tied with real-time feature and some

AJAX patterns; in the section two some projects are

illustrated with the respective implementation

aspects. These projects are compared with our

proposal. Moreover our multiuser model and chosen

strategies, support tools and future perspectives are

shown in details.

The conclusions highlight the effectiveness of a

synergic use of these techniques to improve some

parameters of client/server communication, in the

aim to allow a better interaction between clients via

server in the real-time collaborative schema,

exploiting just standard solutions.

Balzano W., del Sorbo M. and Di Liberto L. (2009).

A SCHEME OF STRATEGIES FOR REAL-TIME WEB COLLABORATION BASED ON AJAX/COMET TECHNIQUES FOR LIVE RIA.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Software Agents and Internet Computing, pages 35-40

DOI: 10.5220/0001858100350040

 SciTePress

2 CLIENT/SERVER

ASYNCHRONOUS

COMMUNICATION

2.1 AJAX/Comet

AJAX is a set of interconnected techniques applied

to improve web applications. Data are retrieved

using the

XMLHttpRequest (http://www.w3.org/

TR/XMLHttpRequest, 2008). Despite of the name,

XMLHttpRequest object is often combined with

JSON (JavaScript Object Notation), (http://json

.org,

2008), and SVG (Scalable Vector Graphics).

Comet, word introduced by Alex Russell, leading

developer at Dojo Toolkit, in communication style

defined Push Technology, consists of a long-lived

HTTP connection between client and server, always

initialized by client by a handshaking but then left

open so that the server might send data, when

needed, even if user hasn’t actually required them.

The persistent connection, oppositely, could lead

to issues in the resources management as it creates a

pending request between client and server to which a

thread is always allocated. An Event Driven

architecture is apt to face these problems, as SEDA

(Welsh M. et al., 2001). The standard feature

Continuations of Jetty web server is also exploitable,

managing up to 10000 concurrent connections from

857 threads and reducing the memory stack from

694 MB to 57 MB.

2.2 Real-Time Client/Server

Interactions

Synchronous client/server paradigm defined "click,

wait and refresh" is frequent in web applications.

But this scheme has some drawbacks as redundant

data loading and blocked web interface. AJAX faces

these problems producing two key benefits:

 interactivity between users and web interface,

since even if the browser is making a request

to the server, possibly hidden to the user, the

user can interact with the web interface, so

always available;

 reactivity in the communication, as only a

section of the page is reloaded, that is only the

data needed in response to the client.

The asynchronous interaction created by

XMLHttpRequest object allows the user to perceive

a greater efficiency, satisfaction and usually a richer

experience of web utilization (White A., 2006).

The client/server communication can further

improve through two patterns: Predictive Fetch

(http://AJAXpatterns.org/Predictive_Fetch, 2008), to

try to anticipate the actions of user himself, and

Submission Throttling (http://AJAXpatterns.org/Sub

mission_Throttling, 2008), to dispatch data to server

in the background, and to manage these interactions

opportune widgets or techniques as Yellow Fade are

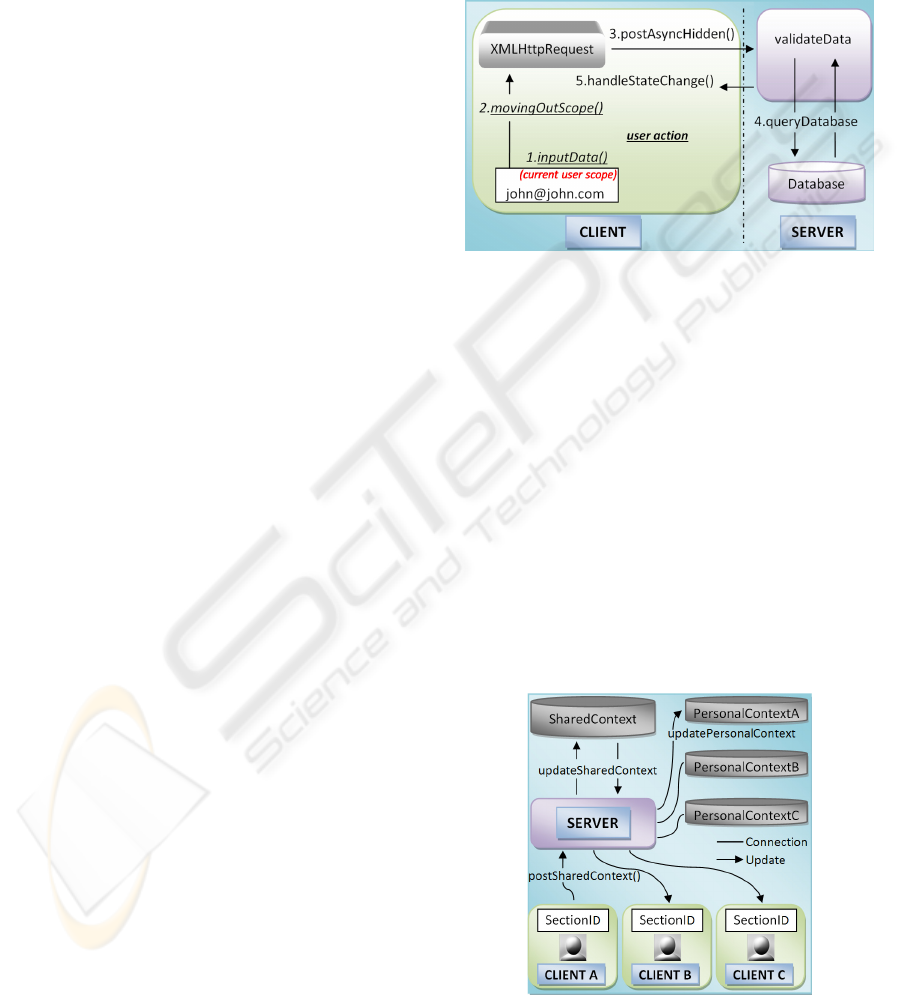

used. The main graphical schema is shown in fig. 1.

Figure 1: Real-time data validation made in background

by the browser.

In the case of critical data update, the Comet

technique allows a client/server communication

perceivable as in real-time because data are

exchanged among the various participants as soon as

possible, without explicitly requiring refreshes of the

page by client-side or cycles request by the browser

to the server, leading to a useless network traffic. In

figure 2 is illustrated an example of critical data

update, regarded in our project. A client updating

shared context by

XMLHttpRequest object

generates data sending from server to other clients

and update of only his personal context, with a

persistent client/server connection to obtain a better

performance in communicating with one slow-start

and fewer of RTT (Round Trip Time)

Figure 2: Critical data update in a Client/Server interaction

schema.

ICEIS 2009 - International Conference on Enterprise Information Systems

3 MULTIUSER COOPERATION

3.1 A Comparative Analysis

In this section are recalled and compared only recent

works, pertinent to real-time collaborative problems

according to Web 2.0 style: particular attention has

been paid to the updates diffusing procedures to

users and the base techniques of applications.

UsaProxy 2 (Atterer R. et al., 2007) allows the

vision and use of the same page or application by

two different browsers at the same time, without

installing client-side code. In particular it offers two

modes: Monitoring, in which all user actions are

communicated to the second user's browser that in

this case can only assist, and Shared Browsing, in

which the two browsers are locked together and each

user can see other's actions which he may possibly

influence and then even generate conflicts. The

definite area we are interested in is the Shared

Browsing, in which rather to see a remote pointer of

the other user, the two users can also chat in a

window. Unlike our project, collaboration is

mutually exclusive, one user at a time can operate,

and it is also mainly directed to a couple of users.

The real-time data update between the two browsers

is implemented through the polling technique and a

chat window is placed above the webpage, hindering

users a complete vision.

In (Gstöttner G., 2007) the author, member of

the Austrian ISAC-team (ISAC-team, 2002)

interested in systems for applied mathematics whose

main area is e-learning, suggests to use AJAX

techniques, with the aim to achieve interactive and

responsive web applications, and Data Push method

to send data from the server to the connected clients,

by Polling and Comet. In this case different

connected users can observe the computation

progress but only one user can control and act.

Comet technique is particularly indicated to send

immediately the results of the computation to the

connected users. In this article it is suggested the

DWR framework to implement Comet technique.

In (Toffetti Carughi et al, 2007) the author

focuses their attention on the modelling methods

shortage for the push-enabled RIA characteristics,

particularly suited for collaborative web

applications, proposing an extension of a language

to implement the different aspects of distributed

communication such as synchronicity, persistence,

and message filtering using a combination of

primitive and patterns. The use case presented is the

multiuser collaboration through a server and the

methods to send and receive events triggered in

response to user actions or directly by the server. To

implement this model was used OpenLaszlo

framework which led to client-side installation of a

flash plug-in.

Google Docs represents a very famous

application for real-time web collaboration

according to Web 2.0 in Beta version. Also in this

case the users share the project and receive

simultaneous and regular updates.

As in (Atterer et al., 2007) we propose a chat

module to support the communication between

users, with the innovation of a proper space in web

interface and as

Schrottner we suggest Comet

technique to inform users about critical data update

mainly using DWR framework unlike the

indications in (Toffetti Carughi et al, 2007).

Moreover in our project there are many other

dissimilarities properly emphasized in the following

description.

3.2 Our Approach: The Ajax/Comet

Techniques for Live RIA

The aim of our project is to enable all and only users

involved in the task to update every parts of work

simultaneously whereas other users are enabled just

to see the project in the last realised state.

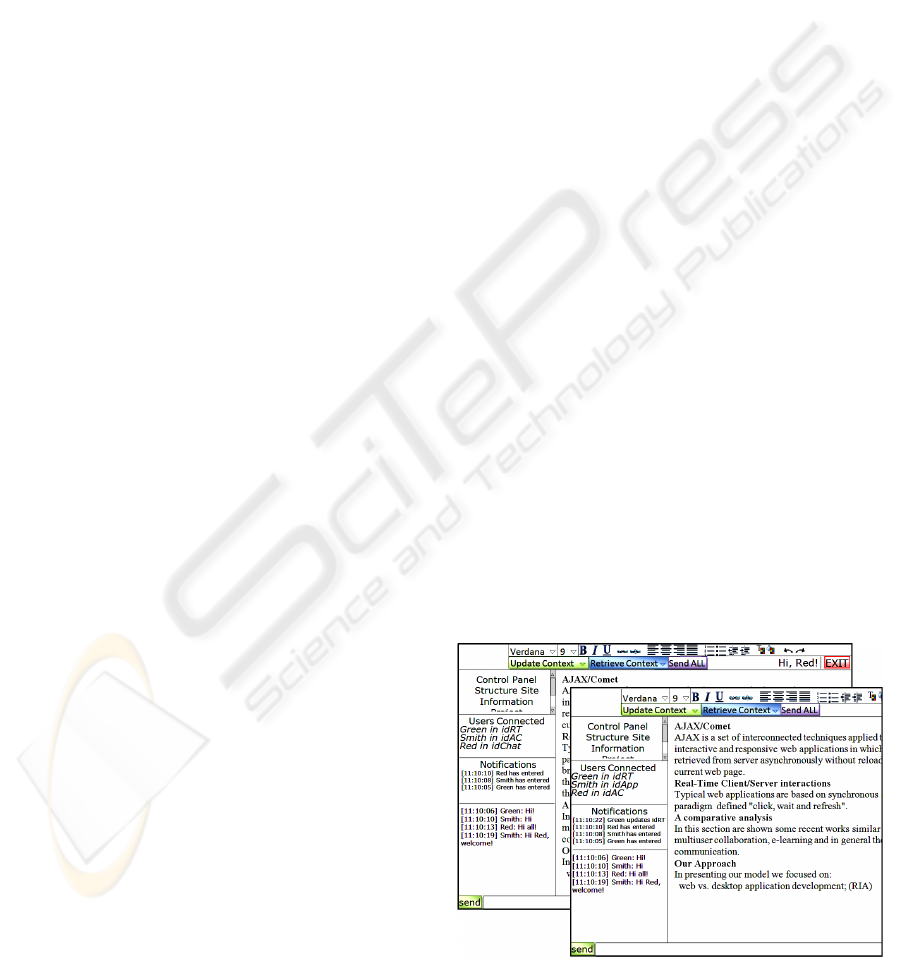

Figure 3 shows an example of interaction by

graphical interface. The Red user logins and

accesses real-time update mode. His login is notified

in the dashboard in both users and notifications

sections. Green user has idRT as his scope, Smith

user has idAC as his scope and Red, once logged in,

has idChat as his scope. Subsequently Green user

updates idRT, action reported in notifications, in the

meantime Smith has changed scope, selecting idApp

and Red is devoted to idAC.

Figure 3: An effective chat example of RIA collaborative

schema by Ajax/Comet technique.

A SCHEME OF STRATEGIES FOR REAL-TIME WEB COLLABORATION BASED ON AJAX/COMET

TECHNIQUES FOR LIVE RIA

public void updateMessage(String msg) {

...

messages.addFirst(new Message(msg));

hours.addFirst(this.getHour());

WebContext wctx = WebContextFactory.get();

String currentPage = wctx.getCurrentPage();

ScriptBuffer script = new ScriptBuffer();

script.appendScript("displayMessages(")

.appendData(nicks).appendScript(",")

.appendData(hours).appendScript(",")

.appendData(messages).appendScript(");");

Collection pages = wctx.getScriptSessionsByPage(currentPage);

for (Iterator it = pages.iterator(); it.hasNext();)

{ ScriptSession otherSession = (ScriptSession) it.next();

otherSession.addScript(script); }

...

}

Code Fragment 1: Java method invoked by a Javascript function for Return or Send button.

In order to present our model we focused on

some important issues about the main idea of a new

approach for collaborative AJAX/Comet techniques

oriented to applications:

 desktop vs. web application development (RIA);

 real-time client/client communication (Live RIA);

 data fidelity.

RIA. According to the philosophy of Web 2.0 we

have mainly conceived a mashup composed by two

features, a chat module and a WYSIWYG (What

You See Is What You Get) text editor. The chat

module, realized using Comet technique, offers to

users a straight communication in a web interface. A

dashboard is added to the chat, allowing each user

the sight of the scope of every other user: near the

logged nick appears the id of the current working

section to inform the users about the working state

with elaboration notifications. A simple idea of the

program code’s kernel is shown in the following

chunk of a representative Java method invoked by a

Javascript function when an user sends a chat

message by clicking Return or Send menu button. In

this method the actual context is obtained by a

feature of DWR toolkit and then Javascript function

displayMessages(nicks,hours,messages)

updates chat content.

The WYSIWYG text editor realized in the

AJAX style facilitates the upgrade procedure usually

divided into three steps, editing, preview and review

and publication, in only one step which consists in

editing and immediately seeing the final update’s

outcome.

Several operations are performed in background

without user’s explicit actions, other operations are

executed by the server in response to some events

caused by user’s actions, always by an immediate

Desktop like interaction as it happens with

postAsynchHiddenE(id, event, url).

Live RIA.

Following suggestions in (Bhide et al,

2002) for data characterized by a critical update in

web applications, the data push technique

implemented in the Comet model has been used, so

as to immediately inform the different people

involved: when a user causes an event enabling a

data modification, first the current context with all

the users involved in updating is available and then

through Java methods and Javascript functions users

of this context are updated.

In figure 4 is shown the main schema for a

critical data update using Comet technique and

allowing the server to send data to the client in a

minimum update time.



Figure 4: The main interaction client/server updating

schema using Comet technique.

ICEIS 2009 - International Conference on Enterprise Information Systems

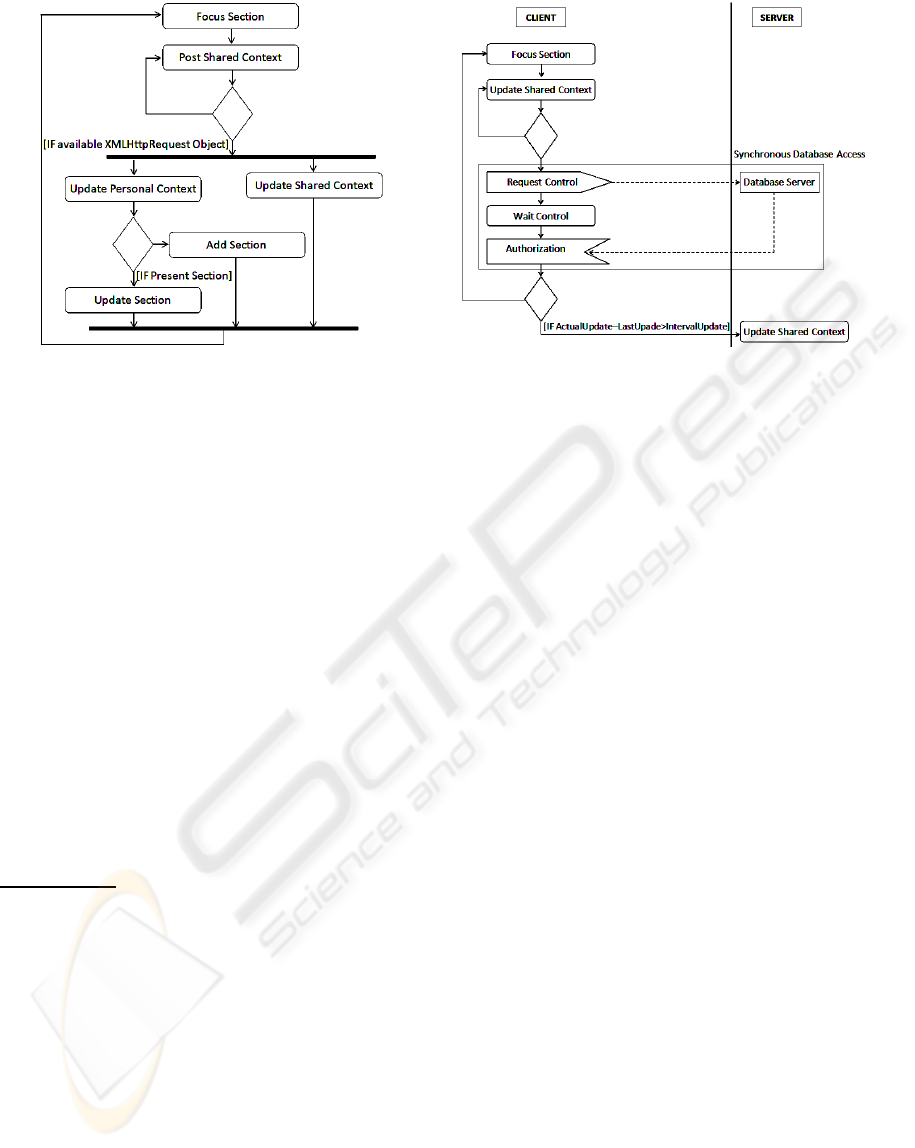

Figure 5: Updating of context area of a web collaborative application.

An extra critical problem related a multiuser

cooperation scenario with numerous concurrent

users, is the timing management. The proposed

solution was to offer a wide choice of action to users

who can work on the same section changing it

without the risk of losing their jobs if someone else

terminates before and updates the context. In the

following figure 5a is shown the reference schema

for a data sending to the shared context: the main

operations carried out involve the updating of shared

and personal contexts. In figure 5b is represented an

exemplifying schema of a conditional update: the

application tries to update the shared context area

using methods similar to conditional-get technique,

i.e. comparing the last change time with the present

change time. The updating occurs only if the

observed period was greater than a specific

IntervalUpdate.

Data Fidelity

. The data shared between users are

promptly updated and the work done by individual

users is saved. If for any reason, a user does not

receive the update from the shared context, he can

still ask for it when he tries to update a section

recently amended or when he reads processing

notifications on the dashboard.

4 CONCLUSIONS

Thanks to AJAX/Comet techniques we can extend

the range of many scenarios, from desktop to the

web, as the case of multi-collaboration (Shen H. et

al., 2007).

The interest for AJAX is increasing in different

contexts, such as e-learning not only based on

multimedia features, but even on these innovative

techniques (Lin Y. et al., 2007). For example, in a

scientific context, using AJAX and SVG excellent

applications could be achieved, that graphically

represent mathematic functions.

Comet technique is still in an initial phase and

even if it presents some problems on the server side,

it is fundamental for an immediate propagation of

data to clients. There is an increasing interest about

it by the web developers community because very

probably the Push Technology represents a mode to

spread updated data better then Polling. In particular,

the Dojo Toolkit has realized the Bayeux Protocol

(Davis D. et al., 2007) to make client/client

communication via server more responsive.

Further features can be performed to improve

real-time web collaboration as audio chat and

operation log: in this way each user can better

understand the current work state thanks to the

cognition of the earlier states, because the user gets

information of operations and their performers.

A real-time client/client communication via

server realized by AJAX/Comet techniques involves

important benefits, in particular no plug-in

installation: users can exploit these web technologies

in every computer connected to Net. Furthermore an

implementation based on standard features allows

developers to rely on normal support groups in the

Web and more friendly with different browsers.

Strategies and techniques described lead to

possibility to take advantage of different services

everywhere according to Cloud Computing style.



(a) Updating of shared and personal contexts.



(b) Conditional update of shared context.

A SCHEME OF STRATEGIES FOR REAL-TIME WEB COLLABORATION BASED ON AJAX/COMET

TECHNIQUES FOR LIVE RIA

REFERENCES

Atterer R., Schmidt A., Wnuk M., 2007. A Proxy-Based

Infrastructure for Web Application Sharing and

Remote Collaboration on Web Pages. In Human-

Computer Interaction - INTERACT 2007: 11th IFIP

TC 13 International Conference, Rio de Janeiro,

Brazil, Proceedings, Springer.

Bhide M., Deolasee P., Katkar A, Panchbudhe A.,

Ramamritham K., Shenoy P., 2002. Adaptive Push-

Pull: Disseminating Dynamic Web Data. IEEE

Transactions on Computers, vol. 51, no. 6, pp. 652-

668. IEEE Computer Society.

Bozdag E. et al., 2007. A comparison of push and pull

techniques for AJAX. In Proceedings of the 9th IEEE

International Symposium on Web Site Evolution

(WSE’07), pages 15–22. IEEE Computer Society.

IEEE Computer Society.

Chan T., 2007. Implementing Web 2.0 Technology for

ELearning Systems. In Proceedings of World

Conference on E-Learning in Corporate, Government,

Healthcare, and Higher Education. G. Richards

Editor.

Davis D., Russell A., Wilkins G. and Nesbitt M., 2007.

Bayeux Protocol -- Bayeux 1.0draft1. The Dojo

Foundation.

Garrett J., 2005. AJAX: A new approach to web

applications. Adaptive path. http://www.adaptive-

path.com/ideas/essays/archives/000385.php.

Google, 2007. Google docs and spreadsheets.

http://docs.google.com.

Gstöttner G., 2007. Feasibility study: Communication of a

web 2.0 browser with an interactive mathematics

server. Master’s thesis, IICM, Institute for

Informations Systems and Computer Media, A-8010

Graz. http://AJAXpatterns.org/Predictive_Fetch, 2008.

http://AJAXpatterns.org/Submission_Throttling.

http://getahead.org/dwr, 2008.

http://json.org, 2008.

http://www.w3.org/TR/XMLHttpRequest, 2008.

ISAC-team, 2002. User requirements document. Technical

report, Institute for Software technology, University of

Technology, Graz. http://www.ist.tugraz.at/projects/

isac/publ/urd.pdf

Jetty Web Server and Servlet Container, 2003.

http://jetty.mortbay.org.

Lih A., 2004. Wikipedia as participatory journalism:

reliable sources? In Proceeding of 5th International

Symposium on Online Journalism, Austin, Texas.

http://jmsc.hku.hk/faculty/alih/publications/utaustin-

2004-wikipedia-rc2.pdf

Lin Y. et al., 2007. A Web 2.0 Synchronous Learning

Environment Using AJAX. Ninth IEEE International

Symposium on Multimedia Workshops. IEEE

Linden G., Smith B., York J., 2003. Amazon.com

Recommendations: Item-to-Item Collaborative

Filtering. IEEE Internet Computing, vol. 07. IEEE.

Markoff J., 2005. Marrying maps to data for a new web

service, New York Times (18 July), Technology

section, p. 1.

O’Reilly T., 2007. What is Web 2.0: Design Patterns and

Business Models for the Next Generation of Software.

Communications & Strategies, No. 1, p. 17, First

Quarter 2007. http://ssrn.com/abstract=1008839.

Russell A., 2006. Comet: Low latency data for the

browser. http://alex.dojotoolkit.org/?p=545.

Shen H., Yang Z., and Sun C., 2007. Collaborative Web

Computing: From Desktops to Webtops, IEEE

Distributed Systems Online, vol. 8, no. 4.

Smullen C., Smullen S., 2007. AJAX Application Server

Performance. Proceedings of the IEEE SoutheastCon

(CH37882), Richmond, Virginia. IEEE.

Smullen III C. W., Smullen S.A., 2008. An Experimental

Study of AJAX Application Performance. Journal of

software. Academy Publisher.

Tapiador A., Fumero A., Salvachua J., Aguirre S., 2006. A

Web Collaboration Architecture. Proceedings of the

2nd IEEE International Conference on Collaborative

Computing: Networking, Applications and

Worksharing. Atlanta, Georgia, USA. IEEE.

Toffetti Carughi G., Comai S., Bozzon A., Fraternali P.,

2007. Modeling Distributed Events in Data-Intensive

Rich Internet Applications. In Proceedings of Web

Information Systems Engineering 2007, LNCS 4831.

Springer.

Tulloch D. L., 2007. Many, many maps: Empowerment

and online participatory mapping. First Monday, vol.

12, n. 2 . http://firstmonday.org/issues/issue12_2/

tulloch/.

Wellman M. and Wurman P., 1998. Real time issues for

Internet auctions. First IEEE Workshop on

Dependable and Real-Time E-commerce Systems.

IEEE.

Welsh M., Culler D.E., and Brewer E.A., 2001. SEDA:

An Architecture for Well-Conditioned, Scalable

Internet Services, Proceedings of 18th ACM

Symposium on Operating Systems Principles. ACM

Press.

White A., 2006. Measuring the Benefits of AJAX

http://www.developer.com/xml/article.php/ 3554271.

ICEIS 2009 - International Conference on Enterprise Information Systems
