A MAPREDUCE FRAMEWORK FOR CHANGE PROPAGATION IN

GEOGRAPHIC DATABASES

Ferdinando Di Martino, Salvatore Sessa

Dipartimento di Costruzioni e Metodi Matematici in Architettura, Federico II University

Via Monteoliveto 3, 80134 Napoli, Italy

Giuseppe Polese and Mario Vacca

Dipartimento di Matematica e Informatica, Salerno University, Via Ponte don Melillo, 84084 Fisciano (SA), Italy

Keywords:

Change propagation, Geographic databases, Instance update language, Mapreduce, Schema evolution, Spatial

datasets.

Abstract:

Updating a schema is a very important activity which occurs naturally during the life cycle of database systems,

due to different causes. A challenging problem arising when a schema evolves is the change propagation

problem, i.e. the updating of the database ground instances to make them consistent with the evolved schema.

Spatial datasets, a stored representation of geographical areas, are VLDBs and so the change propagation

process, involving an enormous mass of data among geographical distributed nodes, is very expensive and call

for efﬁcient processing. Moreover, the problem of designing languages and tools for spatial data sets change

propagation is relevant, for the shortage of tools for schema evolution, and, in particular, for the limitations

of those for spatial data sets. In this paper, we take in account both efﬁciency and limitations and we propose

an instance update language, based on the efﬁcient and popular Map-Reduce Google programming paradigm,

which allows to perform in a parallel way a wide category of schema changes. A system embodying the

language has been implementing.

1 INTRODUCTION

Updating a schema is a very important activity which

occurs naturally during the life cycle of database sys-

tems, due to different causes, like, for example, the

evolution of the external world, the change of user

requirements, the presence of errors in the system.

When a schema evolves, there are many problems

to cope with, like the change propagation problem

(the problem of updating the ground instances of the

database after a schema change occurs) (Ram and

Shankaranarayanan, 2003). In the last years, the

amount of spatial data has increased, thanks to tech-

nologies to capture spatial data (GPS or the satel-

lites), so that systems using spatial data, like Geo-

graphic Information System, widening their applica-

tion areas, has risen the increasing interest of insti-

tutions. However, once a spatial dataset has been

designed and implemented, similarly to almost all

databases, it has to be maintained and this entails the

need to cope with schema changes. Therefore, spa-

tial datasets require tools of schema evolution like

all the other databases: in fact, even if some GIS

tools (like, for instance, ESRI utilities (Arctur and

Zeiler, 2004; Zeiler, 1999; Twumasi, 2002)) manage

some schema changes, database administrator are of-

ten compelled to work without using any tool. This

is due to the fact that existing tools manage only

the so called simple schema changes (Banerjee et al.,

1987) which often result insufﬁcient to operate in real

situations, as many researchers of schema evolution

stressed (Lerner, 2000; Br`eche, 1996). The lack of

complete tools can make db administrators working

directly on the geodatabase, making the changes di-

rectly on the physical database with a signiﬁcant in-

crease of the risk of creating a displacement between

the conceptual model and the physical data. Design-

ing and building a tool for schema evolution in spatial

datasets is an important and challenging task, because

changes in geographic databases can provoke sig-

niﬁcant effects: being geographic databases VLDBs

(Very Large DataBases), updating instances can in-

Di Martino F., Sessa S., Polese G. and Vacca M. (2009).

A MAPREDUCE FRAMEWORK FOR CHANGE PROPAGATION IN GEOGRAPHIC DATABASES.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages 31-36

DOI: 10.5220/0001861300310036

 SciTePress

volve the moving of an enormous mass of data among

geographical distributed nodes and their processing,

making the process of propagating changes to the in-

stances very expensive. As a consequence, db ad-

ministrators have to cope with the efﬁciency of the

change propagation process. The design of an evo-

lution language is the ﬁrst step toward the realization

of a schema evolution tool and, according to Lagorce

et al. (Lagorce et al., 1997), the instance update

language (providing a set of instructions to update

data after a change to the schema occurred), is one

of its basic components. There are different practi-

cal update languages (Ferrandina et al., 1995; Lerner,

2000), but they do not allow the parallel processing of

distributed data. In this paper we address the prob-

lem of designing an instance update language suit-

able for distributed databases and aiming, on the one

hand, to widen the range of schema changes and, on

the other hand, to make both easier and more efﬁcient

the work of spatial dataset administrators. We pro-

pose an instance update language based on the Map-

Reduce-Merge paradigm (chih Yang et al., 2007), a

recent extension of the MapReduce framework (Dean

and Ghemawat, 2004) for heterogeneous datasets.

MapReduce is the Google programming framework,

which, for its efﬁciency, has become more and more

popular, like it is proved by the many attempts to de-

velop MapReduce based frameworks in many ﬁelds

(chih Yang et al., 2007; Koufakou et al., 2007). The

supporting execution model is mostly inherited from

(Dean and Ghemawat, 2004; chih Yang et al., 2007)

and we have been implementing a software system.

The main results are the possibility of updating in-

stances for a wide category of schema changes and

of making this in an efﬁcient way. The remaining of

the paper is organized as follows: after a short intro-

duction to spatial datasets (section 2), in section 3 the

problem of change propagation is introduced and its

features for spatial datasets are discussed. In section

4, after introducing the MapReduce frameworks, it is

shown how a version of Map-Reduce-Merge can be

used for change propagation in spatial datasets.

2 SPATIAL DATA SETS:

BACKGROUND KNOWLEDGE

Spatial datasets are used to store a representation

of geographical objects. In this work we use the

ESRI UML geodatabase model schema (Zeiler, 1999;

Arctur and Zeiler, 2004; Twumasi, 2002), an UML

class-diagram representation used to design a concep-

tual model of a spatial dataset called geodatabase-

model. An example of ESRI UML schema of a spa-

tial database, representing routes of buses on a road

network, is shown in ﬁg. 1. The basic elements of the

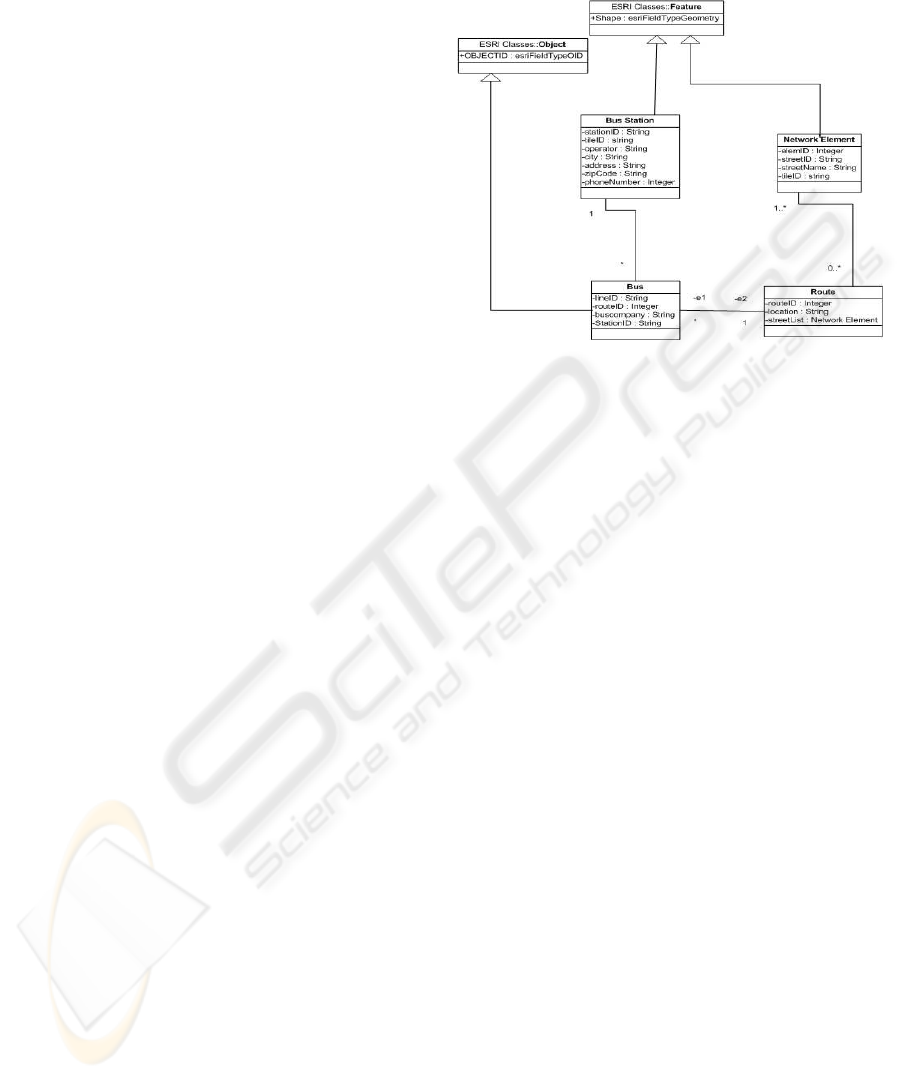

Figure 1: The BusServices: a simple spatial dataset schema

using the ESRI geodatabase model notation.

ESRI geodatabase model notation are: feature classes

(collections of geographic features with the same ge-

ometry type, the same attributes, and the same spa-

tial reference, like NetworkElement and the BusSta-

tion), object classes (classes of non spatial objects -

like the class Bus), relationship classes (represents an

association between feature classes or object classes -

like the RouteRel relation between the classes Route

and NetworkElement). There are many ways to store

the data of a spatial dataset, depending on the speciﬁc

spatial applications (Yeung and Hall, 2007). Many

authors have experimented optimal distributed spa-

tial data models related to typical spatial applications

(Balovnev et al., 2000; Gorawski and Malczok, 2003;

Yuhong and Jun, 2007). We suppose that the database

space covers a wide area, which is divided into tiles,

rectangular polygons that deﬁnes a rectangular cov-

erage of the analyzed geographical area (Malinowski

and Zim´anyi, 2006). The architecture we considers

is a multiple client/single server architecture (

Ozsu,

2003) where to each client node is associated a set of

contiguous tiles (see ﬁg. 2). The data of the database

(i.e. the features) are spread across the nodes using

the horizontal fragmentation (

Ozsu, 2003), according

to some spatial criteria.

3 SPATIAL DATA SETS:

EVOLUTION

The problems of semantics of changes and the

change propagation are very important in the context

of schema evolution (Ram and Shankaranarayanan,

ICEIS 2009 - International Conference on Enterprise Information Systems

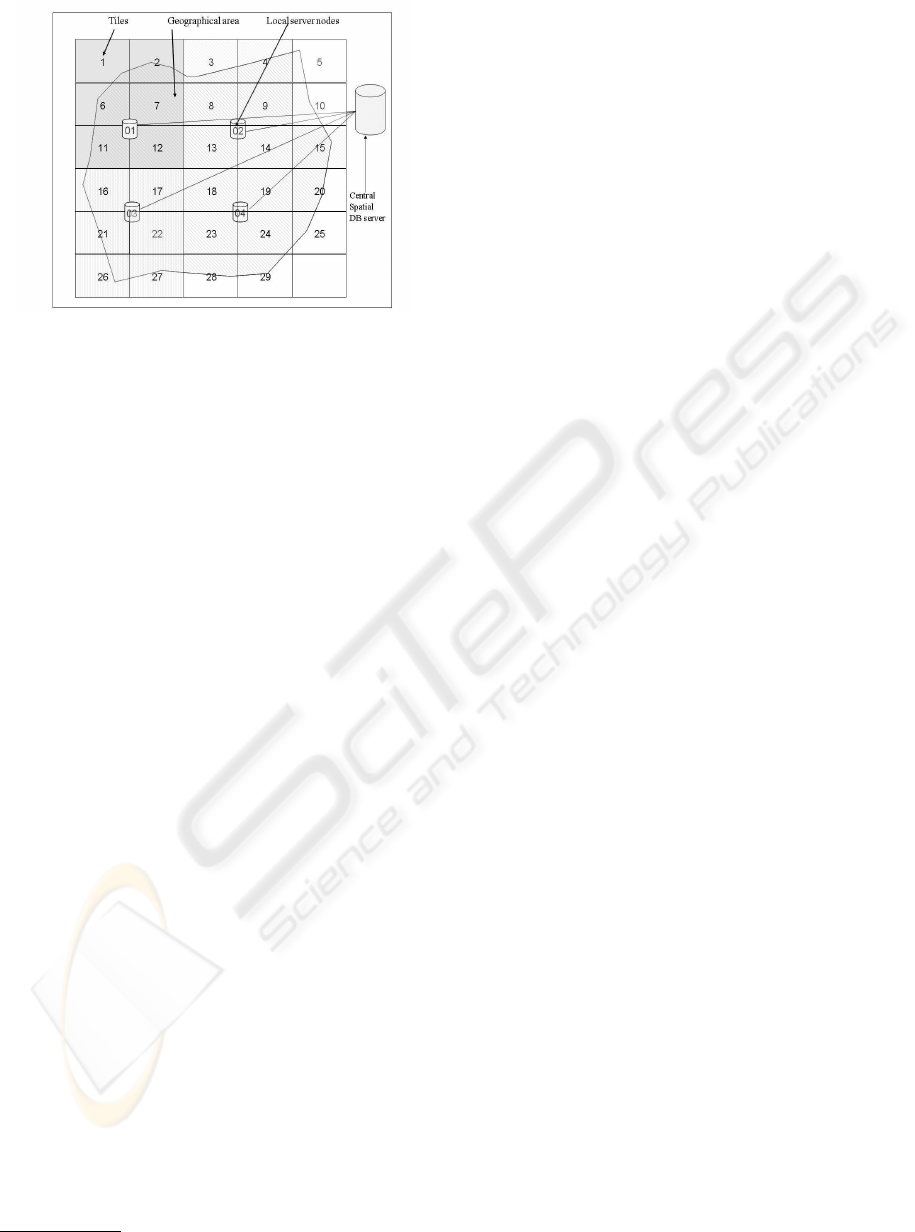

Figure 2: The multiple client/single server architecture of a

spatial database.

2003). The ﬁrst one refers to the way the changes are

performed and their effect on the schema itself, while

the second one deals with the effects on the data in-

stances. Considering the schema in ﬁg. 1, an example

of simple change is the addition of the new string ﬁeld

busType to the class Bus. Changes to the schema can

be simple, like the addition of a class or a ﬁeld (see,

for example, (Banerjee et al., 1987) for a taxonomy of

simple schema changes) and compound, like merging

two relations, which are very important in practical

contexts (Br`eche, 1996). There are different meth-

ods to realize the propagation of schema changes to

the instances (see, for example, (Lerner, 2000)); in

this paper we are interested in the conversion method,

where a schema change provokes the update of all

the objects affected by the change itself. Instance-

update languages (Lagorce et al., 1997) serve to write

programs to update instances after a schema change.

Two notable examples of instance-update languages

are those used in the O

system (Zicari, 1991) and in

the TESS system (Lerner, 2000).

The ESRI package ArcGIS

is the most popu-

lar tool GIS in the world and it is equipped with

many tools, among which there is ArcCatalog, which

can be used to change the geodatabase schema. The

main supported schema changes are: adding, mod-

ify or deleting attributes in a feature class or a class;

adding new feature classes or classes; adding, mod-

ify or deleting domains; deleting relationship classes.

One of the problem of this tool is its limitation, due to

the small set of schema changes supported.

It is easy to maintain through examples (which we

don’t list here for brevity) that schema changes in spa-

tial data sets have features which are not supported by

the ArcGIS tools. In fact, ﬁrst, the following observa-

tion about the kind of changes can be made: interest-

http://www.esri.com/software/arcgis

ing schema changes for spatial datasets schema evo-

lution are both simple and compound. According to

Ozsu (

Ozsu, 2003), the distribution of data, the com-

munication and the processing costs are the main fac-

tors inﬂuencing the efﬁciency of query processing in

distributed databases. As schema changes can be per-

formed by queries (Bertino, 1992), these factors also

inﬂuence the change propagation process: therefore,

we analyse the complexity of the process of change

propagation in their light and in that of the needed

operations to process data due to the schema changes.

For instance, changing an attribute type, with the sub-

sequent conversion of the data from a type to another

one, could be performed efﬁciently, if the data pro-

cessing were made locally by the nodes. In fact, in

order to modify the type of the attribute phoneNum-

ber in the feature class BusStation from integer to

string, the central server only needs to communi-

cate the schema change to perform to the local nodes

(which store the features of BusStation): each local

node could operate the change on its own data and,

at the end of the process, it could communicate ei-

ther the operation success or the failure to the central

server. Unfortunately, not all changes are so simple to

be performed independently by each local node, for

the need to perform operations involving data stored

across more nodes (like the computation of the aver-

age length of a route). The previous considerations

lead to the following observation about the cost: in

order to minimize the change propagation cost in spa-

tial datasets, it can be helpful to provide the instance

update mechanism with two kinds of processing: lo-

cal processing (in which an operation is executed on

single nodes using only data of the single nodes them-

selves) and distributed processing (in which an oper-

ation, involving distributed data, is parallelized). The

database administrator decides which kind of process-

ing to use and when.

4 THE LANGUAGE FOR

CHANGE PROPAGATION

4.1 MapReduce Frameworks

MapReduce is a programming model (Dean and Ghe-

mawat, 2004) originally developed by Google to

support parallel computations over vast amounts of

data on large clusters of machines. The MapReduce

framework is based on the two user deﬁned functions

map and reduce and its programming model is com-

posed of many small computations using these two

functions. In general, the MapReduce execution pro-

A MAPREDUCE FRAMEWORK FOR CHANGE PROPAGATION IN GEOGRAPHIC DATABASES

cess (see (Dean and Ghemawat, 2004) for details)

considers one of the copies of the user program call-

ing map-reduce functions as special (it is called the

master), while the rest are workers (there are M map-

pers and R reducers) the master assigns work to.

The MapReduce programming framework was

born in the context of data retrieval, but its efﬁciency

has made it more and more used in various applica-

tions, where distributed data and parallel processing

are necessary (Chu et al., 2006; Koufakou et al., 2007;

chih Yang et al., 2007). In this paper we are inter-

ested in the extension of the MapReduce to the case of

heterogeneous data by the Map-Reduce-Merge model

(chih Yang et al., 2007). This framework is based on

three user deﬁned functions (map, reduce and merge)

with the following signatures (see (chih Yang et al.,

2007) for details):

map :(k1, v1)

→ [(k2, v2)]

(1)

reduce :(k2, [v2])

→ (k2, [v3])

(2)

merge :((k2, [v3])

, (k3, [v4])

) → [(k4, v5)]

(3)

The meaning of each function is: a call to a map

function processes a key/value pair (k1, v1) and it re-

turns a list of intermediate key/value pairs [(k2, v2)];

a call to a reduce function aggregates the list of val-

ues [v2] with key k2 returning a list of values [v3]

always with the same key; a call to a merge func-

tion, using the keys k2 and k3, combines them into a

list of key/value [(k4, v5)] (see the subsection 4.2 for

programming examples). Notice that a merge is exe-

cuted on the two intermediate outputs ((k2, [v3]) and

(k3, [v4])) produced by two map-reduce executions.

4.2 Map-Reduce-Merge for Change

Propagation

The use of the Map-Reduce-Merge programming

framework as the core of an instance update language

has its theoretical justiﬁcation in the fact that, being

able to perform relational algebra operations on dis-

tributed data (chih Yang et al., 2007), Map-Reduce-

Merge allows to ask queries, and, as a consequence

(Bertino, 1992), it results also adequate to simulate

changes. In order to use the Map-Reduce-Merge

framework as an instance update language exploiting

the features of the evolution of spatial data sets seen

in the section 3, it is necessary to enrich it with:

• the possibility of choosing the processing mode;

This is made introducing the instruction of pro-

cessing mode selection:

processing mode = local|distributed

• the possibility of explicitly referring to the tables

to be used.

This is made introducing the instruction:

use input|outputhtable namei

The input parameter serves the programmer to

specify the classes to be used (and the master to

locate the node of the mappers - see afterwards);

the output parameter of the instruction is used to

combine the data in the speciﬁed table.

Moreover, as the instance update language has to have

fragmentation capability (see sect. 2), our framework

also provides the instruction:

divide htable namei

Consider the schema in ﬁgure 1, the following

simple example shows the use of map and reduce to

compute the total number of elements for each route.

The result is the table of route length (routeID, Route-

Lenght). Notice that, in map, reduce, and merge func-

tions, users have to group the attributes to be used in

two subsets, the key part and the value part (for in-

stance, routeID and elemID are, respectively, the key

part and the value part in the next map function).

processing mode = distributed;

use input RouteRel;

map(const Key& key,

const Value&, value){

routeID = key;

elemID = value;

output_key = (routeID);

output_value = (elemID);

Emit(output_key, output_value);

/*This map retrieves the pairs (routeID,elemID),

and buffers them ordered by routeID.

There is no user function.*/

}

sort by routeID; /*see afterwards*/

reduce(const Key& key,

const ValueIterator& value){

int RouteLenght = 0;

for each (k in key)

RouteLenght += 1;

Emit(key, (RouteLenght);

/*This reduce, using an iterator, reads the

buffered pairs (routeID,elemID) and, for each

unique intermediate key (routeID), it computes

the length of the route.*/

}

In the model we propose, changes to the geo-

database schema are performed only by the central

server. Like in (Dean and Ghemawat, 2004), a pro-

gram with map-reduce-merge calls, when executed,

generates copies of itself. One of the copies is the

master (also coordinator in (chih Yang et al., 2007)),

the other ones are the workers. The master coor-

dinates all the processing operations and, therefore,

it also manages the processing modes. Afterwards,

ICEIS 2009 - International Conference on Enterprise Information Systems

the execution process is illustrated, which is inherited

from (Dean and Ghemawat, 2004; chih Yang et al.,

2007), except for some minor differences due to the

presence of the local mode and the management of

the merge iterators.

• Map task

When a map is encountered, the master assigns

the map tasks to the M workers (mappers). In the

previous example, the master, using the fragmen-

tation information, locates the nodes storing the

RouteRel data and on them launches the mappers.

A map task consists in reading data from the input

locations, passing them to the user map function

and, then, storing them, sorted by the output key,

at some locations on some nodes. In the previous

example, map tasks store the intermediate data at

some locations according to some criterion on the

key routeID. There is no difference between local

and distributed mode for the map task.

• Reduce task

The master passes the locations where the map-

pers have stored the intermediate data to the R

reduce workers (reducers) which are assigned to

some nodes. The reducers, using an iterator, for

each unique intermediate key (e.g. each value of

routeID), pass both the key itself and the corre-

sponding list of values (e.g. the list of elemID) to

the users reduce function (e.g. the computation of

the length). The result of the user reduce function

is stored on some nodes. In local mode, the num-

ber of reducers is equal to the number of mappers,

as they are located on the same nodes of the map-

pers.

• Merge task

When the user program contains a merge call, the

master launches the merge workers (mergers) on

a cluster of nodes. In (chih Yang et al., 2007),

mergers take data, to be passed to the user merge

function, from two sources (the locations where

reducers stored them) using both a partition se-

lector and a conﬁgurable iterator. In order to

avoid the users to manage iterators in some cases,

we introduce the instructions sort byhnamesi and

matchhname

iwithhname

i. The ﬁrst one sorts

the reduce output by the keys indicated by names,

while the second one guarantees that the output of

the two reduce functions is stored in buckets us-

ing the same range of values (matchable values).

In local mode, the merge function is executed on

the local nodes involved in the processing and on

the related reduce locations.

To continue the previous example, using the

merge function, it is possible to perform the addition

of the new ﬁeld RouteLength in the class Route:

use input route;

map(const Key& key,

const Value&, value){

routeID = key;

location = value.location;

Emit((routeID),(location));

}

sort by routeID;

match routeID with routeID;

reduce(const Key& key,

const Value& value){

Emit(key, value}

}

merge(const LeftKey& leftKey,

const LeftValue& leftValue,

const RightKey& rightKey,

const RightValue& rightValue)

if (leftKey == rightKey){

Emit(leftKey,rightKey);}

/*The merge joins on routeID.*/

use output route; /*The class route is*/

divide route; /*fragmented.*/

}

Considering the schema in ﬁg. 1, the follow-

ing example shows how to perform a compound

change: the creation of the new class NewBus ob-

tained projecting the class Bus on routeID and bus-

company, projecting the class Route on routeID and

location, and, ﬁnally, merging the results on the at-

tribute routeID.

processing mode = distributed;

use input Bus;

map(const Key& key,

const Value&, value){

routeID = key;

buscompany = value.buscompany;

output_key = (routeID);

output_value = (buscompany);

Emit(output_key, output_value);

/*The map emits pairs routeID and buscompany.*/

}

sort by routeID;

reduce(const Key& key,

const Value& value){

Emit(key, value}

}

use input route;

map(const Key& key,

const Value&, value){

routeID = key;

location = value.location;

Emit((routeID),(location));

/*The map emits pairs routeID and location.*/

}

sort by routeID;

match routeID with routeID;

reduce(const Key& key,

const Value& value){

Emit(key, value}

A MAPREDUCE FRAMEWORK FOR CHANGE PROPAGATION IN GEOGRAPHIC DATABASES

}

merge(const LeftKey& leftKey,

const LeftValue& leftValue,

const RightKey& rightKey,

const RightValue& rightValue)

if (leftKey == rightKey){

Emit(leftKey,RightKey);}

/*The merge joins on routeID.*/

}

use output NewBus;/*The class NewBus is*/

divide NewBUs; /*fragmented.*/

5 CONCLUSIONS AND FURTHER

WORK

A language for change propagationin spatial datasets,

extending the capability of existing tools, has been

presented. The system (under development) uses Ar-

cGIS 9.3 software, the ESRI SDE package, the ESRI

ArcObjects on Java platform and the RDBMS ORA-

CLE 10g. We have also planned to design and imple-

ment both a visual language for schema changes and

the mechanism for the semi/automatic generation of

map-reduce-merge routines to propagate changes.

ACKNOWLEDGEMENTS

The authors would like to thank Vittorio Scarano

(University of Salerno) for his contribution to the

birth of this work.

REFERENCES

Arctur, D. and Zeiler, M. (2004). Designing Geodatabases:

Case Studies in GIS Data Modeling. ESRI Press, Red-

lands (CA).

Balovnev, O. T., Breunig, M., Cremers, A. B., and Shu-

milov, S. S. (2000). Extending geotoolkit to access

distributed spatial data and operations. In SSDBM,

pages 259–261.

Banerjee, J., Kim, W., Kim, H.-J., and Korth, H. F. (1987).

Semantics and implementation of schema evolution in

object-oriented databases. In Dayal, U. and Traiger,

I. L., editors, SIGMOD Conference, pages 311–322.

ACM Press.

Bertino, E. (1992). A view mechanism for object-oriented

databases. In Pirotte, A., Delobel, C., and Gottlob,

G., editors, EDBT, volume 580 of Lecture Notes in

Computer Science, pages 136–151. Springer.

Br`eche, P. (1996). Advanced principles for changing

schemas of object databases. In Constantopoulos,

P., Mylopoulos, J., and Vassiliou, Y., editors, CAiSE,

volume 1080 of Lecture Notes in Computer Science,

pages 476–495. Springer.

chih Yang, H., Dasdan, A., Hsiao, R.-L., and Jr., D. S. P.

(2007). Map-reduce-merge: simpliﬁed relational data

processing on large clusters. In Chan, C. Y., Ooi,

B. C., and Zhou, A., editors, SIGMOD Conference,

pages 1029–1040. ACM.

Chu, C.-T., Kim, S. K., Lin, Y.-A., Yu, Y., Bradski, G. R.,

Ng, A. Y., and Olukotun, K. (2006). Map-reduce

for machine learning on multicore. In Sch¨olkopf, B.,

Platt, J. C., and Hoffman, T., editors, NIPS, pages

281–288. MIT Press.

Dean, J. and Ghemawat, S. (2004). Mapreduce: Simpliﬁed

data processing on large clusters. In OSDI, pages 137–

150.

Ferrandina, F., Meyer, T., Zicari, R., Ferran, G., and Madec,

J. (1995). Schema and database evolution in the o2

object database system. In Dayal, U., Gray, P. M. D.,

and Nishio, S., editors, VLDB, pages 170–181. Mor-

gan Kaufmann.

Gorawski, M. and Malczok, R. (2003). Distributed spa-

tial data warehouse. In Wyrzykowski, R., Dongarra,

J., Paprzycki, M., and Wasniewski, J., editors, PPAM,

volume 3019 of Lecture Notes in Computer Science,

pages 676–681. Springer.

Koufakou, A., Ortiz, E. G., Georgiopoulos, M., Anagnos-

topoulos, G. C., and Reynolds, K. M. (2007). A scal-

able and efﬁcient outlier detection strategy for cate-

gorical data. In ICTAI (2), pages 210–217. IEEE Com-

puter Society.

Lagorce, J.-B., Stockus, A., and Waller, E. (1997). Object-

oriented database evolution. In Afrati, F. N. and Ko-

laitis, P. G., editors, ICDT, volume 1186 of Lecture

Notes in Computer Science, pages 379–393. Springer.

Lerner, B. S. (2000). A model for compound type

changes encountered in schema evolution. ACM

Trans. Database Syst., 25(1):83–127.

Malinowski, E. and Zim´anyi, E. (2006). Requirements

speciﬁcation and conceptual modeling for spatial data

warehouses. In Meersman, R., Tari, Z., and Herrero,

P., editors, OTM Workshops (2), volume 4278 of Lec-

ture Notes in Computer Science, pages 1616–1625.

Springer.

Ozsu, M. T. (2003). Distributed database systems. In Ency-

clopedia of information systems, pages 673–682.

Ram, S. and Shankaranarayanan, G. (2003). Research is-

sues in database schema evolution: the road not taken.

Univ. of Arizona, Working Paper #2003-15.

Twumasi, B. O. (2002). Modelling spatial object behaviours

in object-relational geodatabase. Int. Inst. for Geo-inf.

Science and Earth Observ. (ITC), Master thesis.

Yeung, A. K. W. and Hall, G. B. (2007). Spatial Database

Systems: Design, Implementation and Project Man-

agement (GeoJournal Library). Springer-Verlag New

York, Inc., Secaucus, NJ, USA.

Yuhong, W. and Jun, C. (2007). Generic framework and key

issues for updates propagation between heterogeneous

spatial databases. In ISPRS Workshop on Updating

Geo-spatial Databases with Imagery & The 5th ISPRS

Workshop on DMGIS, pages 215–221.

Zeiler, M. (1999). Modeling Our World: The ESRI Guide

to Geodatabase Design. ESRI Press, Redlands (CA).

Zicari, R. (1991). A framework for schema updates in an

object-oriented database system. In ICDE, pages 2–

13. IEEE Computer Society.

ICEIS 2009 - International Conference on Enterprise Information Systems
