On the Implementation of Tools for Domain Specific

Process Modelling

Stefan Jablonski, Bernhard Volz and Sebastian Dornstauder

University of Bayreuth, Bayreuth, Germany

Abstract. Business process modelling becomes more productive when

modellers can use process modelling languages which optimally fit to the

application domain. Domain specific modelling is the discipline that deals with

the proliferation of domain specific modelling languages. The general tenor is

that the more a modelling language fits to an application domain, the more

efficient and effective an application can be modelled. In this paper we address

the issue of providing domain specific languages in a systematic and structural

way without having to implement modelling tools for each domain specific

language separately. Our approach is based on a two dimensional meta

modelling stack.

1 Introduction

"The only constant is change" is a common quotation in literature when business

process management is characterized. Without anticipating the introduction of a

modelling hierarchy, the phenomena of change can be classified according to the

process modelling levels they occur. Starting at the "lowest" level, running process

instances might have to be changed to react to a sudden shift in the application.

Among others, [24], [3] and [22] are investigating this issue and suggest adequate

solutions. Stepping one level up, the process model (definition) might have to be

changed since it has become obvious that from now on a certain application will be

performed in a different way [24] [9]. Nevertheless, it is possible to even step up

another level hierarchy. Change on this level means to alter the modelling language

we focus on in this paper. For process aware information systems this kind of change

means an evolution of the whole system over time.

Why is the change of a process modelling language an issue that is worth

investigating? One can argue that a process modelling language should always remain

untouched. However, we fully comply with the interpretation of change as being

related to diversity [4]. Although that book discusses change in the context of

programming languages, we can transfer the results to process management. The

authors of [4] notice that diverse domains will be characterized by diverse customer

requirements. This observation can seamlessly be adopted in the business process

management domain. Here, the programming language is the modelling language and

the deployment platform corresponds to the process execution infrastructure.

Jablonski S., Volz B. and Dornstauder S. (2009).

On the Implementation of Tools for Domain Speciﬁc Process Modelling.

In Proceedings of the 4th International Conference on Evaluation of Novel Approaches to Software Engineering - Evaluation of Novel Approaches to

Software Engineering, pages 109-120

DOI: 10.5220/0001861401090120

 SciTePress

We fully subscribe to the argument of [4] that the right languages enable

developers to be significantly more productive. Besides we agree with the

requirement that "we need the ability to rapidly design and integrate semantically rich

languages in a unified way". This means on the one hand that each domain may and

finally has to create its individual, specific language (domain specific language,

DSL). On the other hand it means that a common starting point for these language

developments is assumed. It is important to sustain – despite the diversity of DSLs – a

kind of comparability and compatibility between them. We finally agree that meta

modelling provides capabilities to achieve this.

Changes of a modelling language need not to be huge. For example, in [16] process

steps are tagged to indicate whether they are prohibitive or mandatory. Although

being unspectacular, this tagging is very valuable for the execution and evaluation of

a process model. Standard process modelling languages like BPMN [18] do not offer

this special kind of tagging a priori.

At this point it has to be discussed whether changing a process modelling language

is counterproductive since it diminishes the possibility to exchange process models

with partners. Here, we assume that each development of a DSL takes a standard

language (e.g. BPMN) as a starting point. The following two arguments support the

idea of a domain specific process modelling and – therefore – the adaptation of a

standard modelling language:

First, domain specific adaptations are decisively enhancing the applicability of a

process model within that domain. Adaptations are almost exclusively of interest

within a domain. Thus, it is favourable to support adaptations.

Second, the use of a standard modelling language especially pays off when process

models have to be exchanged with partners. Using a meta modelling approach, it is

easy to distinguish between modelling elements of the standard language and those of

a domain specific adaptation. Thus domain specific adaptations can be filtered out

before a process model is exchanged. Although filtered process models lose

information they are relevant and readable for receiving partners since the latter

merely contains standard modelling elements. Assuming that domain specific

extensions are primarily of interest for the domain developing them, this loss of

information is tolerable.

Building up on these assumptions we present a meta modelling approach which

supports the definition of domain specific process modelling languages. The special

feature of our approach is that DSLs are derived from a common basic language

which most probable will be a sort of standard language. All language definitions will

be based on a meta model. This strategy bears major advantages.

• All derived DSL share a common set of modelling constructs. Thus, they remain

compatible and comparable to a certain extend.

• The definition of a DSL is performed in a systematic way by extending the meta

model of such a language.

• Extensions made for one DSL could be inherited by other domains, i.e. DSLs, if

it is considered to be valuable for the new domain as well. This feature supports

reuse of modelling constructs greatly.

• Tools can be built that support different DSLs at the same time. It is not

necessary to build a special tool for each DSL.

110

So, we deliberate on the benefit of a standard notation and of a customized one.

We definitely favour customization – as argued in [4] – since productivity is

supported decisively better. Nevertheless, data exchange is still feasible.

The focus of this paper lies on tool support for domain specific modelling

languages. The foundations of a domain specific processes modelling tool are

discussed in Section 2. Section 3 illustrates its basic part, a meta model stack. Several

use cases of change are analyzed in Section 4; Section 5 finally discusses related

work.

2 Foundations

The foundation of Perspective Oriented Process Modelling (POPM) is presented in

[10] and [11]; runtime and visualization aspects of POPM are discussed in [12] and

[13], respectively. Since POPM combines a couple of matured modelling concepts in

a new and synergetic manner, these modelling concepts will be introduced.

2.1 Layered Meta Modelling

In Literature, the term “Meta Model” is often defined as a model of models – e.g.

[23]. Thus a meta model defines the structure of models and can be seen as language

for defining models. We also use a model to define the structure (syntax) of our

process modelling languages within the POPM framework. According to the Meta

Object Facility (MOF) [19] this model then becomes part of a meta model stack

which consists of several, linearly ordered layers. Since MOF restricts modellers to a

specific set of features (e.g. it allows only instanceOf relationships between layers)

which is not sufficient for our purpose, our solution is only inspired by them.

In Fig. 1, the actual process models are defined on modelling layer M1 (right

boxes). A process model uses process (and data, organization etc.) definitions which

are collected in the “Type library” on M1 (left box). All process types are defined first

and then "used" in process models (e.g. as sub-processes) to define the latter. M0

contains running instances of processes defined on M1 (right boxes).

All process definitions on M1 are defined in a DSL previously specified at M2. M2

further contains the definition of an abstract process meta model (APMM) defining a

set of general language features such as Processes, Data Flow or Control Flow. Each

DSL is a specialization of elements contained in the APMM. M2 is therefore the layer

where a modelling language like BPMN (left boxes) and its derivations (cf. Section 1,

right boxes) are defined. It is noteworthy to mention that the elements of M2

reference those on M3 (MOF only allows “instanceOf” relationships).

An abstract process meta meta model (APM

M) at M3 defines basic modelling

principles; for instance, it defines that processes are modelled as directed graphs that

also support nesting of nodes; this defines the fundamental structure for process

modelling languages. Following the architecture of Fig. 1 (logical stack) allows for

exchanging the modelling paradigm (graph based process models) at M3, defining

DSLs at M2 as specializations of a general modelling language (APMM) and

establishing type libraries at M1 which allow the re-use of existing process types in

111

Fig. 1. Meta layer stack of POPM.

different contexts. One of the most powerful features of our approach is that most of

the above mentioned kinds of changes can be applied by users and do not require a re-

implementation of the modelling tool.

Without going into details we want to introduce one more feature which is most

relevant for multi layer modelling. We borrow the Deep Instantiation pattern from [1]

that allows defining on which level of a modelling hierarchy a type or an attribute of a

type must be instantiated. Thus it is possible to introduce runtime instance

identification on M3 that enforces that all derived types must carry this identification.

However, this identification is not instantiated before M0.

2.2 Extended Powertypes

As mentioned, the APM

M on M3 defines process models to be interpreted as graphs;

for a tool it is then often necessary to interpret the capabilities (features) of each

element. For example, both "Process" and "Start-Interface" are nodes of a process

model graph. As in a graph usually each node can be connected with others, also the

Start-Interface could have incoming arcs; a fact that needs to be prohibited. Therefore

already at modelling layer M3 a capability canHaveIncomingControlFlows can be

defined that describes whether a node accepts incoming flows or not.

Traditional approaches for implementing these capabilities are class hierarchies or

constraint languages such as the Object Constraint Language (OCL) [20]. Both

approaches are not very useful since either the complexity of the required type

hierarchy explodes with an increasing number of capabilities or the user, who should

be the one to extend the language, must be familiar with an additional language such

as the OCL. Therefore we have chosen to extend the Powertype modelling pattern

introduced by Odell in [21]. In our extension the capabilities (e.g. to have incoming

flows) are defined as attributes of the powertype. These values then specify which

capabilities of the partitioned type should be activated. Furthermore, only those

attributes of the partitioned type are inherited by new constructs whose capability

ProcessModel

Describesadomainspecificapplication

ProcessModel

Describesadomainspecificapplication

AbstractProcessMetaMetaModel(APM

Definitionoftheabstractsyntaxofageneralprocessmodellinglanguage

AbstractProcessMeta

Model(APMM)

Syntaxofageneralprocess

modellinglanguage

DomainSpecificProcessMetaModel

(DSMM)

Syntaxofdomainspecificmodelling

language

Typelibrary

Expressedinadomain

specificsyntax

ProcessModel

Describesadomainspecificapplication

<<instanceOf>>

<<references>>

ProcessModel

Describesadomainspecificapplication

ProcessModel

Describesadomainspecificapplication

ProcessInstance

Processwhichiscurrentlyexecuted

LinguisticMetaModel

LogicalMeta ModelStack

Linguistic Meta ModelStack

<<instanceOf>>

112

attribute has been set to “true”. Thus our extension removes features physically from

a new construct. Complex runtime checks that deal with temporarily disabled features

can be omitted this way.

2.3 Logical and Linguistical Modelling

In [2] an orthogonal classification approach is introduced. It contains two stacks that

are orthogonal to each other (cf. Fig. 1, Linguistic Meta Model Stack). The Linguistic

Meta Model Stack contains a meta model describing how models (including meta

models) of the application domain are stored. An orthogonal Logical Meta Model

Stack hosts one or more models which are purely content related.

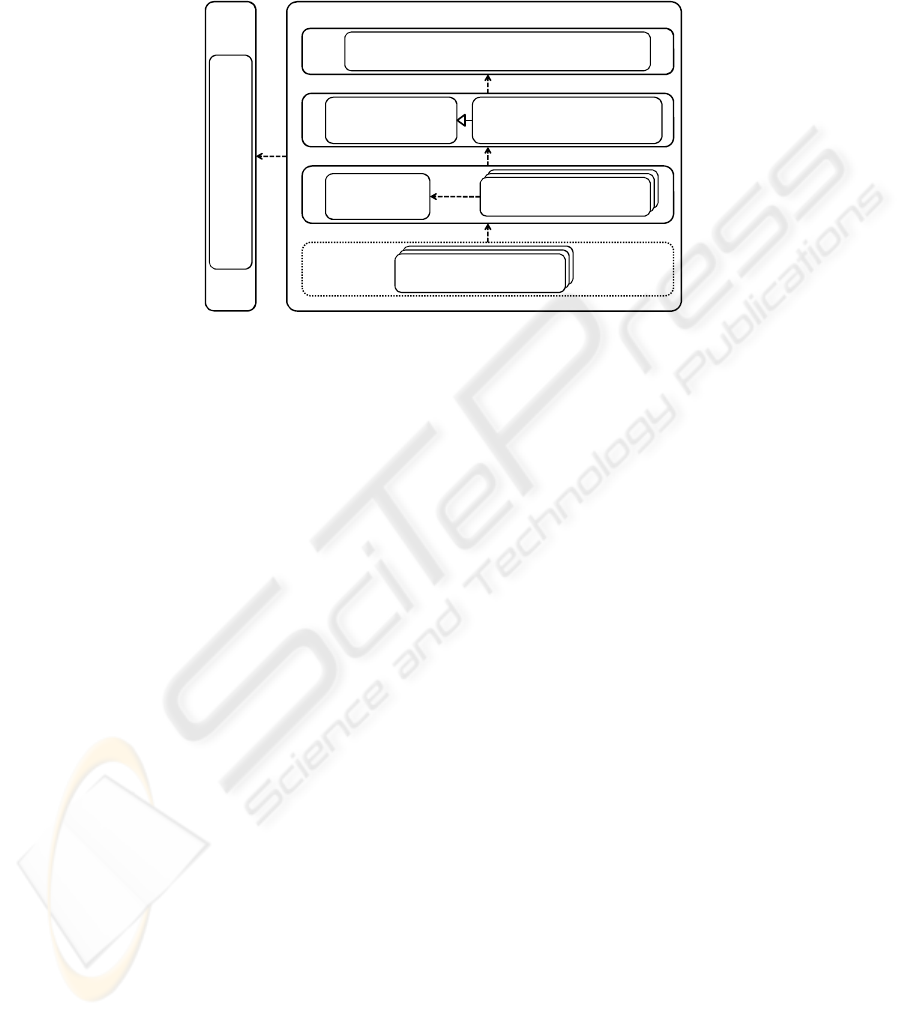

It is crucial for this architecture that each layer of the logical stack can be

expressed in the same linguistic model. As a result a modelling tool can be built that

allows users to modify all layers of the logical stack in the same way. Conventional

modelling tools do not support an explicit linguistic model and thus can usually

modify only one layer of a logical model hierarchy [2]. Therefore a profound

linguistic meta model is a good basis for creating a modelling tool that allows users to

modify arbitrary layers and models.

Due to our extension of the powertype construct, the problem oriented conception

of the meta model stack of the logical model, and the application of the orthogonal

classification approach, a powerful foundation for an infrastructure for domain

specific modelling tools is created. The following sections detail this infrastructure

with respect to the most important part – the logical meta model stack.

3 Content of the Logical Meta Model Stack

Our goal is to implement a tool for the POPM framework that is capable of handling

changes on the various levels of our meta modelling hierarchy. In this section we will

introduce the logical models our actual implementation is based on.

3.1 Abstract Process Meta Meta Model (APM

As explained, the APM

M located at M3 provides basic structures for process

modelling languages defined on layer M2, i.e. it prescribes the structure of the

modelling elements a process modelling language can offer. The most common

graphical notation for process models in POPM is based on directed graphs whose

meta meta model is depicted in Fig. 2 (standard UML notation). It is important to

differentiate between modelling and visualization in this context. In Fig. 2 only the

(content related) structure of a process modelling language – and respectively the

process models derived from it – is defined. How these models are visualized is not

part of this model; visualization is defined in an independent – but certainly related

and integrated – model that is published in parts in [13].

Nodes of a process graph are represented by Node in the APM

M (Fig. 2).

NodeKind then describes the characteristics (features) of nodes in the graph where

113

each feature corresponds to an attribute of NodeKind. The Powertype pattern between

Node and NodeKind is established through the “partitions” relationship; Node

represents the partitioned type and NodeKind is the powertype of the Powertype

pattern.

Processes are just one type of nodes in such a graph; another type of nodes is e.g.

Start-Interface. The different behaviours and capabilities of these two types are

determined by the attributes within NodeKind. Features defined and implemented by

the partitioned type Node are:

• HasIncomingPorts determines whether a modelling construct can be a destination

of incoming flows. It is deactivated for constructs defining the start of a process

(Start-Interface).

• HasOutgoingPorts defines if a modelling construct can be the origin of flows. For

example a “Stop” interface cannot have outgoing connections.

• SupportsData specifies whether a construct accepts inbound and outbound data

flows. If this feature is set to “false” but any of the has…Ports feature attributes

has been set to “true”, this defines connectivity through control flow(s) only.

• SupportsSubclassing determines if a construct can have another construct as

“super type”. The child construct will then inherit all attributes from the parent.

• SupportsAggregation defines whether a construct can contain usages of other

elements. Typically this feature is activated for process steps but not for

interfaces. Thus if activated, hierarchies of modelling elements can be built.

In summary, the features presented above determine whether elements of Node

can establish relationships of a certain kind (e.g. superNode, aggregatedNodes,

inputPorts) to other types of the APM

M. The extended Powertype concept is also

used for the type PortKind – here it determines whether a port can be bound to data

sources; FlowKind is using the normal Powertype semantics.

3.2 Abstract Process Meta Model (APMM)

Fig. 3 shows the APMM of POPM, which defines the fundamental components of a

POPM-related process model: process, connector, data container, control and data

flow, organization, etc.

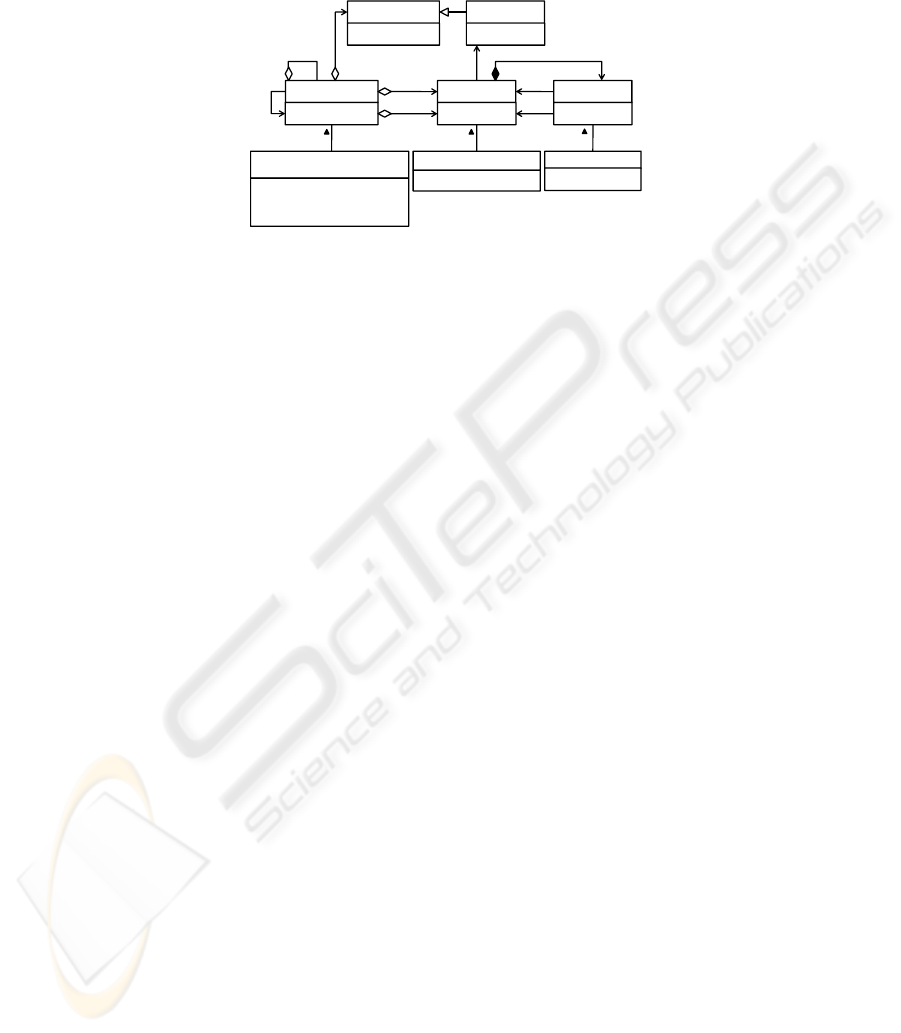

Fig. 2. APM

M of POPM.

outputPorts

partitions

NodeKind

+hasIncomingPorts : Boolean

+hasOutgoingPorts : Boolean

+supportsSubclassing : Boolean

+supportsAggregation : Boolean

+supportsData : Boolean

Node

+typeId : String

+usageId : String

Port

PortKind

+hasDataSource : Boolean

partitions

FlowKind

+flowType : String

Flow

partitions

inputPorts

superNode

NodeAttachment DataSource

dataSource 1

attachments

source

sink

flows

aggregatedNodes

114

In the APMM a process is an element in a graph that can be interconnected with

other nodes (hasIncoming/OutgoingPorts = true), can receive and produce data

(supportsData = true), can be defined in terms of an already existing process

(supportsSubclassing = true) and can be used as a container for other elements

(supportsAggregation = true). A process – and in general every element on layer M2 –

is an instance of a corresponding type (sometimes a powertype) on M3. For instance,

Process is an instance of the powertype NodeKind and inherits all activated features

from the partitioned type Node. The type StartInterface is also an instance of the

powertype NodeKind but does neither support the creation of hierarchies

(supportsAggregation = false) nor incoming connections (hasIncomingPorts = false).

3.3 Domain Specific Meta Models (DSMMs)

According to Fig. 1, DSMMs are specializations of the APMM. As with object

oriented programming languages, abstract types cannot be instantiated. Thus, a

DSMM must first provide specializations for each element of the APMM (abstract

model) which can be instantiated. Then it can be enriched by additional modelling

constructs which determine its specific characteristics. We will show a simple

example DSMM from the medical domain in the following.

We decided to provide for each modelling element of the APMM at least one

modelling element in the DSMM for the medical domain. These domain specific

modelling elements can furthermore be modified in order to capture specific

characteristics of the medical realm. For instance the attribute stepType for the

modelling element Medical Process (specialization of the APMM element Process) is

introduced to determine whether a given step is an administrational or a medical task.

Also tags as requested by [16] can be implemented in this way. Completely new

modelling constructs can be introduced as well, like the so-called

MedicalDecisionElement. In Section 4 we detail this feature.

At level M1 the "normal" modelling of processes takes place. Real (medical)

processes use the types defined in the DSMM on M2; for example each process uses

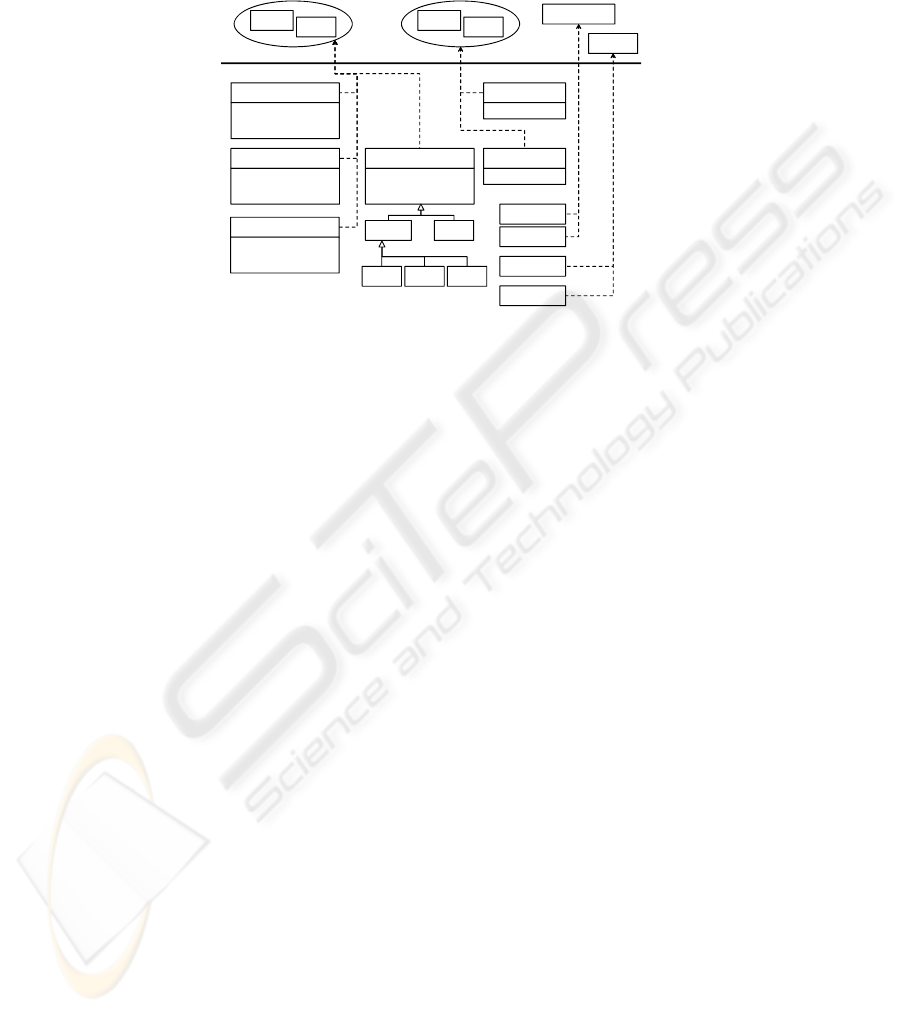

Fig. 3. The core of the Abstract Process Meta Model of POPM.

Process

+hasIncomingPorts = true

+hasOutgoingPorts = true

+supportsSubclassing = true

+supportsAggregation = true

+supportsData = true

StartInterface

+hasIncomingPorts = false

+hasOutgoingPorts = true

+supportsSubclassing = false

+supportsAggregation = false

+supportsData = true

Connector

+hasIncomingPorts = true

+hasOutgoingPorts = true

+supportsSubclassing = false

+supportsAggregation = false

+supportsData = true

Logical

Connector

Decision

Element

AND OR XOR

NodeKind

Node

ControlFlow

+flowType = "Control"

DataFlow

+flowType = "Data"

FlowKind

Flow

Application

Organization

NodeAttach ment

DataSource

DataContainer

DataReference

<<instanceOf>> <<instanceOf>>

<<instanceOf>>

StopInterface

+hasIncomingPorts = true

+hasOutgoingPorts = false

+supportsSubclassing = false

+supportsAggregation = false

+supportsData = true

115

MedicalProcess as basis. Accordingly, input and output data for each process can be

defined; the same applies to organizations and operations. In Fig. 4c an example is

shown. Note that all modelling elements must be defined before being used. For

instance, the process Anamnesis must be modelled (and put into the type library)

before it can be used as sub-processes within HipTEP.

3.4 Modelling Processes on Level M1

In Fig. 4c, a part of a real-world process HipTEP [7] which describes a hip surgery is

depicted. It consists of a start interface and two process steps namely Anamnesis and

Surgery. The start interface is connected with the Anamnesis step via a control flow

whereas Anamnesis and Surgery are also connected with data flows indicating the

transport of data items between them. The symbols (document, red cross) inside the

two steps are tags that indicate whether a step is more of medical or administrational

interest (this is valuable information when the process model has to be analyzed). The

tags correspond to the attribute stepType defined in the Medical DSMM for

MedicalProcess.

3.5 Stepwise Design of a Process Model

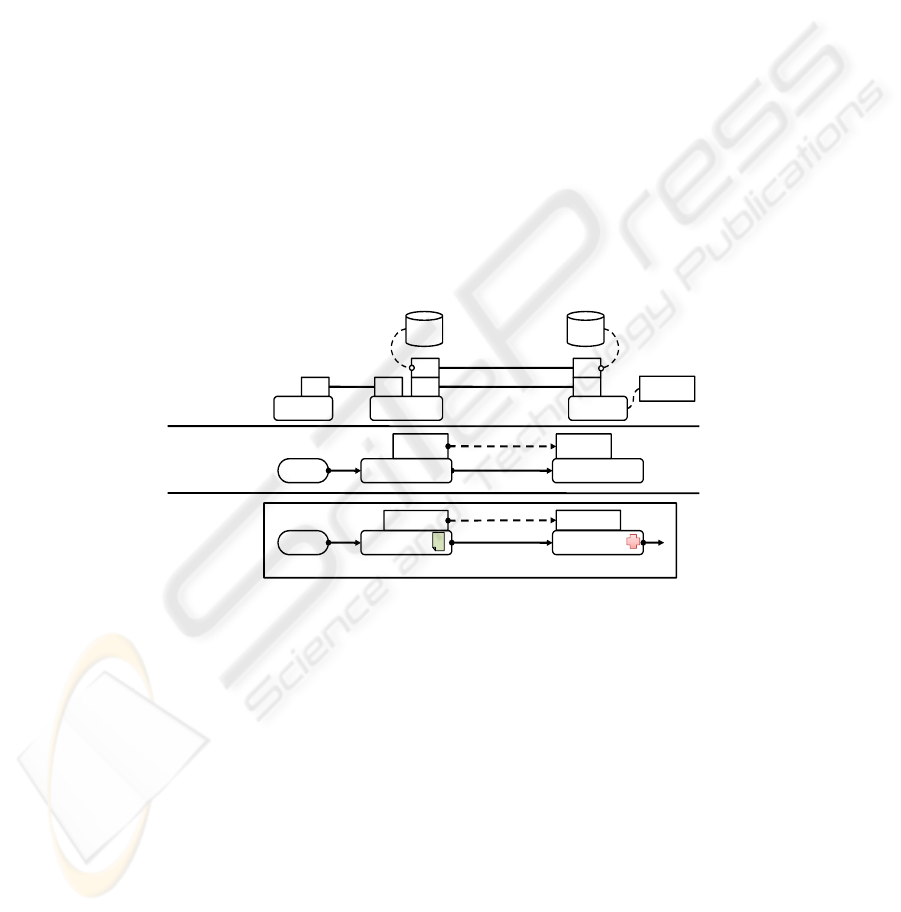

In Fig. 4 the three decisive layers of a flexible modelling tool are clearly arranged.

The figure illustrates how concepts evolve from very abstract (APM

M), to more

concrete (APMM), to domain specific (DSMM). Some of the metamorphoses of

modelling elements are explained in detail.

M3 defines that nodes exist which carry ports (Fig. 4a). Ports are sometimes

connected with data sources and can be interconnected by Flows. In the derived

APMM (Fig. 4b) this definition is refined. Nodes are divided into two kinds:

StartInterfaces and Processes. Ports which are not connected to data containers have

evolved into gluing points for control flows between nodes (StartInterface and

Process). Ports connected to data sources demarcate output from input data container

for processes which are connected by data flows. Fig. 4c then depicts a concrete

HipTEP

Flow

Data

Source

Node

Port

Node

Attachment

Data

Source

Node

Port

Node

Port

a) APM

(M3)

Start

Interface

Process 1

Data

Container1

Process 2

Data

Container2

Control Flow

DataFlow

b)APMM

(M2)

Start

c)Medical

DSMM

(M2)

Surgery

PatientRecord

Anamnesis

PatientRecord

Fig. 4. Stepwise design of a process models on M1.

116

example written in the language predetermined by the APMM of Fig. 4b. A part of a

medical process (HipTEP) is shown which consists of the processes Anamnesis and

Surgery. One data item is passed between these processes, namely PatientRecord.

Fig. 4 demonstrates the power of this approach since each artefact of a process

model is explicitly defined on clearly separated meta levels.

4 Dealing with Change

We will now explain concrete use cases of changes. These scenarios are ordered

according to their relevance in practice based on our experience. We also depict how

users can use them in a safe and structured way.

4.1 Change I: New Feature for an Existing Construct (Tagging)

Often it is necessary to distinguish processes from each other. Frequently, special tags

are attached to processes and visualized in a suitable form [7] [16]. Speaking in terms

of our logical meta model stack this means that an attribute is added to the

corresponding modelling element in the DSMM that holds the tag. In Section 3 we

have already shown this extension by adding the stepType attribute to the

MedicalProcess type. Depending on the actual value of this attribute a visualization

algorithm can then e.g. display icons appropriately.

4.2 Change II: Introducing New Constructs

One reason for adapting modelling constructs is the evolution of the application

domain. For example, due to more insight into the domain more powerful and

semantically richer modelling constructs have to be created.

A new construct can either be defined “from scratch” or by redefining an already

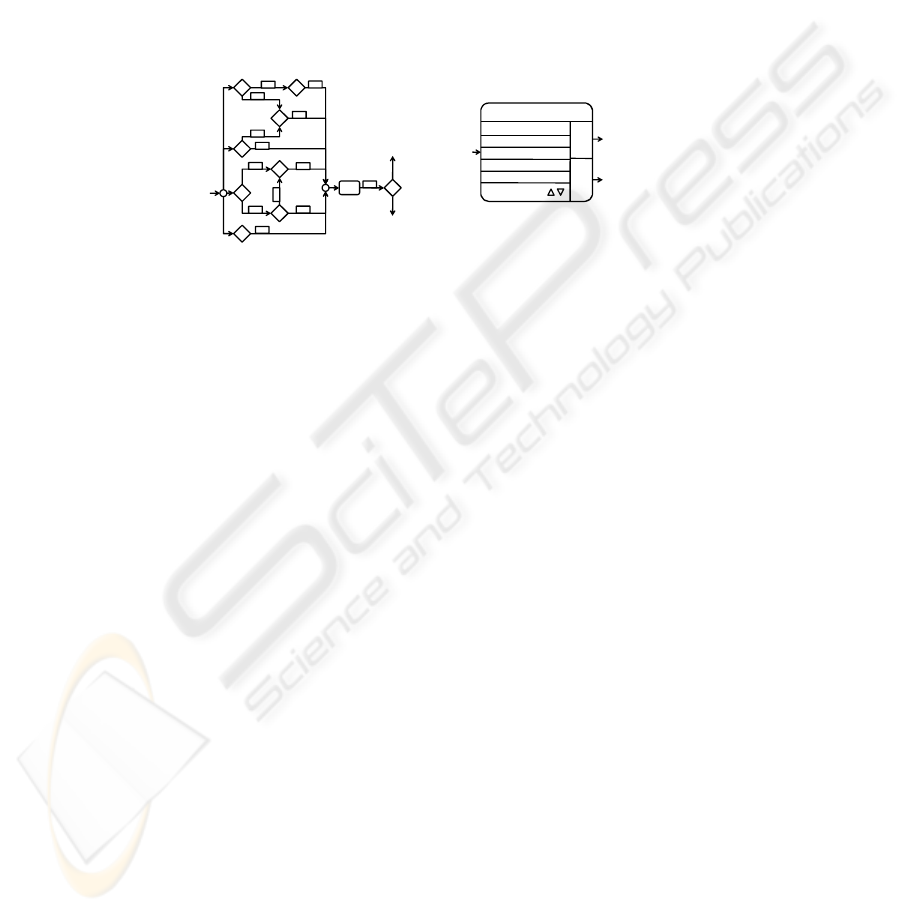

existing constructs of the DSMM or APMM. Fig. 5 gives an example for this kind of

change in the medical domain. Fig. 5a outlines the complex structure of a medical

decision path whereas Fig. 5b depicts a newly created modelling construct

MedicalDecisionElement which is a macro comprising the functionality of the

complex process structure of Fig. 5a. The problem with the process in Fig. 5a is that it

is not comprehensible easily (only the complex structure of the decision path is of

interest; therefore we did not show any details in Fig. 5a). Thus we decided to

introduce a new compact modelling construct MedicalDecisionElement (Fig. 5b).

This construct comprises the same functionality but is much easier to interpret. First,

the construct has a title clearly showing its purpose. Then the most interesting

decisions are shown in the list below the title and the two possible outcomes – yes or

no – are depicted on the right side. The introduction of this compact construct –

together with the consequent elimination of unreadable process models – was one of

the major factors why process modelling was accepted as adequate means to illustrate

the medical applications in the Ophthalmological Clinics of the University of

Erlangen [14]. This project convincingly demonstrated that a domain specific

117

modelling language is not just "nice-to-have" but is crucial for the acceptance of

process management in general.

4.3 Change III: Enhancing / Changing the Modelling Method

So far all changes of process modelling languages were applied to DSLs individually.

In our approach it is also possible to change the modelling method as such. This

change happens on layer M3 and affects all process modelling languages defined

below. For instance, from now on we will prohibit control flows between nodes.

Referring to the APM

M in Fig. 4 this means to remove ports which are not

connected with data sources. Consequently all flow derived from this constellation

must be removed from all process modelling languages on M2 and also from all

defined process models on M1.

5 Related Work

We now give an overview on existing technologies and systems (beside those already

introduced in Section 2) that aim at increasing the sustainability of information

systems. We will show that these are – per se – not appropriate for domain experts

because they require extensive programming skills or are not flexible enough.

Generative Programming [5] and Software Factories [8] are techniques for the

reuse of code. Generative Programming aims at the generation of code out of a set of

templates. Requiring programming skills to produce valid and correct results,

Generative Programming is unusable for end-users or domain experts. Software

Factories in contrast aim at reducing the cost factors (time, resources etc.) during

application development. This again is not suitable for end-users or domain experts.

Even more harmful is that both approaches are meant to be applied during the

development phase of an application but not during runtime.

Beside programming techniques, we also investigated complete meta modelling

systems e.g. the Microsoft Domain Specific Language Tools for Visual Studio [17],

the Eclipse Modeling Framework (EMF) [6] (along with related technologies that

support the generation of graphical editors) or MetaEdit+ [15]. Most of them use only

two levels in which the type level defines the storage format for the user models.

Fig. 5. The MedicalDecisionElement (b) subsumes many single decisions (a).

"Start"

"Yes"

"No"

"Start"

Glaucoma suspicion?

HRTII.Disk <2.47?

HRTII.RIM<1.4?

FDT.Time >60s

FDT.Errorfields >2

Results plausible?

YesNo

a)Exemplary structure of MedicalDecision Path b)MedicalDecisionElement

118

Beside this the modelling freedom is restricted by a fixed underlying meta model.

Also many solutions are not able to use a new modelling language without generating

a new modelling environment.

Summarizing, there are solutions that provide some means for building modelling

tools. But either they require too much programming skills or they are not flexible

enough.

6 Conclusions

In this paper we introduced our approach for a more sustainable process modelling

environment that can be easily adapted by domain experts to their realm without

programming in general. We showed that many concepts exist which can already be

used to establish flexible and adaptable systems but which unfold their real power

after they were combined to form one unified and comprehensive approach. We have

then shown how different adaptation scenarios can be performed with the help of

these concepts. Here the important key-point is that all those change requests that are

most common can be performed without writing code; instead only a new

configuration for the system has to be provided which is easy to set up even though

the domain expert who is pursuing these changes has not much knowledge about the

system internals. Thus domain experts are empowered to adapt the whole system

perpetually to changing requirements which we believe is a fundamental step towards

more sustainability.

References

1. Atkinson, C., Kühne, T.: The Essence of Multilevel Metamodeling. Proc. of the 4th Int'l

Conference on The Unified Modeling Language, Modeling Languages, Concepts, and

Tools. Springer-Verlag, Toronto, Canada (2001)

2. Atkinson, C., Kühne, T.: Concepts for Comparing Modeling Tool Architectures. Lecture

Notes in Computer Science. (2005) 398-413

3. Clarence, E., Karim, K., Grzegorz, R.: Dynamic change within workflow systems.

Conference on Organizational Computing Systems. ACM, Milpitas, California, United

States (1995)

4. Clark, T., Sammut, P., Willans, J.: Applied Metamodelling - A Foundation For Language

Driven Development. CETEVA (2008)

5. Czarnecki, K., Eisenecker, U.: Generative Programming: Methods, Tools, and

Applications. Addison-Wesley Professional (2000)

6. Eclipse Foundation: Eclipse Modeling Framework Project (EMF).

http://www.eclipse.org/modeling/emf/?project=emf [2008-11-26]

7. Faerber, M., Jablonski, S., Schneider, T.: A Comprehensive Modeling Language for

Clinical Processes. Proc. of the European Conference on eHealth 2007, Lecture Notes in

Informatics (LNI), GI, Oldenburg, Germany (2007) 77-88

8. Greenfield, J., Short, K., Cook, S., Kent, S.: Software Factories: Assembling Applications

with Patterns, Models, Frameworks, and Tools. Wiley (2004)

119

9. Heinl, P., Horn, S., Jablonski, S., Neeb, J., Stein, K., Teschke, M.: A comprehensive

approach to flexibility in workflow management systems. SIGSOFT Softw. Eng. Notes 24

(1999) 79-88

10. Jablonski, S.: MOBILE: A Modular Workflow Model and Architecture. 4th Int'l Working

Conference on Dynamic Modelling and Information Systems Noordwijkerhout, NL (1994)

11. Jablonski, S., Bussler, C.: Workflow Management: Modeling Concepts, Architecture and

Implementation. Int'l Thomson Computer Press (1996)

12. Jablonski, S., Faerber, M., Götz, M., Volz, B., Dornstauder, S., Müller, S.: Integrated

Process Execution: A Generic Execution Infrastructure for Process Models. 4th Int'l

Conference on Business Process Management (BPM), Vienna, Austria (2006)

13. Jablonski, S., Götz, M.: Perspective Oriented Business Process Visualization. Business

Process Management Workshops. Springer (2008) 144-155

14. Jablonski, S., Lay, R., Meiler, C., Müller, S., Hümmer, W.: Data logistics as a means of

integration in healthcare applications. 2005 ACM symposium on Applied computing.

ACM, Santa Fe, New Mexico (2005)

15. Kelly, S., Lyytinen, K., Rossi, M.: MetaEdit+: A Fully Configurable Multi-User and Multi-

Tool CASE and CAME Environment. 8th Int'l Conference on Advanced Information

System Engineering. Springer, Heraklion, Crete, Greece (1996) 1-21

16. Lu, R., Sadiq, S.: On the discovery of preferred work practice through business process

variants. 26th Int'l Conference on Conceptual Modeling. Springer, Auckland, New Zealand

(2007) 165-180

17. Microsoft: Domain-Specific Language Tools.

http://msdn.microsoft.com/en-us/library/bb126235.aspx [2008-11-26]

18. Object Management Group: BPMN 1.1 Specification.

http://www.omg.org/spec/BPMN/1.1/ [2008-11-26]

19. Object Management Group: MOF 2.0 Specification. http://www.omg.org/spec/MOF/2.0/

[2008-11-26]

20. Object Management Group: OCL 2.0 Specification. http://www.omg.org/spec/OCL/2.0/

[2008-11-26]

21. Odell, J.: Advanced Object-Oriented Analysis and Design Using UML. Cambridge

University Press, New York, NY, USA (1998)

22. Rinderle, S., Reichert, M., Dadam, P.: Correctness criteria for dynamic changes in

workflow systems--a survey. Data & Knowledge Engineering 50 (2004) 9-34

23. Seidewitz, E.: What Models Mean. IEEE Software 20 (2003) 26-32

24. van der Aalst, W.M.P., Jablonski, S.: Dealing with workflow change: identification of

issues and solutions. International Journal of Computer Systems Science and Engineering

15 (2000) 267-276

120
