KEEPING TRACK OF HOW USERS USE CLIENT DEVICES

An Asynchronous Client-Side Event Logger Model

Vagner Figuerêdo de Santana and Maria Cecilia Calani Baranauskas

Institute of Computing, State University of Campinas, Albert Einstein Street, Campinas, Brazil

Keywords: Event logger, Usage logger, Client-side logger.

Abstract: Web Usage Mining usually considers server logs as a data source for collecting patterns of usage data. This

solution presents limitations when the goal is to represent how users interact with specific user interface

elements, since this approach may not have detailed information about users’ actions. This paper presents a

model for logging client-side events and an implementation of it as a websites evaluation tool. By using the

model presented here, miner systems can capture detailed Web usage data, making possible a fine-grained

examination of Web pages usage. In addition, the model can help Human-Computer Interaction

practitioners to log client-side events of mobile devices, set-top boxes, Web pages, among other artefacts.

1 INTRODUCTION

Several studies have addressed Web usage, ranging

from Usability and Accessibility (A&U) guidelines

to tools that analyze code, content, or logs of

websites. Additionally, Data Mining is the “analysis

of (often large) observational data sets to find

unsuspected relationships and to summarize the data

in novel ways that are both understandable and

useful to the data owner” (Hand et al., 2001). The

use of Data Mining techniques over Web usage data

is called Web Usage Mining (WUM).

WUM algorithms and tools focus mainly on Web

server logs. On the one hand, server-side data makes

possible to identify the user route in a website

requiring less effort, since Web server logs are a

natural product of its use. However, server-side logs

do not contain representative data about the

interactions between the user and the Web page

(Etgen and Cantor, 1999). On the other hand, client-

side data have more detailed information about user

actions in a Web page, but require more effort to

capture and transfer the data.

User Interface (UI) events are natural results of

using windows based interfaces and their

components (e.g., mouse movements, key strokes,

mouse clicks, list selection, etc) (Hilbert and

Redmiles, 2000). Additionally, event logs produce

results as frequency of use of certain functions,

places where users spend more time and the

sequence that users complete their tasks (Woo and

Mori, 2004). Since it is possible to record them and

they indicate the user’s behaviour, they represent an

important source of information regarding usability.

Nowadays, HCI (Human-Computer Interaction)

community count on tools that keep track of users

behaviour using mouse tracks (e.g., MouseTrack

(Arroyo el al., 2006)) and eye tracks (e.g., eyebox2

(Skeen, 2007)), but literature lacks studies focusing

on data captured automatically from the whole

diversity of users. In particular, accessibility

evaluation tools need to address some aspects

usually not covered by evaluation tools based on

mouse events or visual display. How tools that use

mouse or user's eye movements would keep track of

screen readers users?

In this context, we present a model to log client-

side data and get as many different events as

possible, since with a large vocabulary of events,

researchers can perform a wider range of analysis.

Then a case of study implementation is presented as

part of the WELFIT (Web Event Logger and Flow

Identification Tool), a tool to identify barriers that

assistive technology users face when using websites.

This work is organized as follows: the next

section presents works related to client-side events

capture; section 3 details the presented model;

section 4 discusses some implementation in the Web

context; finally, section 5 presents conclusions.

165

de Santana V. and Calani Baranauskas M. (2009).

KEEPING TRACK OF HOW USERS USE CLIENT DEVICES - An Asynchronous Client-Side Event Logger Model.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Human-Computer Interaction, pages 165-168

DOI: 10.5220/0001951001650168

 SciTePress

2 CLIENT-SIDE LOGGERS

In this section we will discuss WET (Etgen and

Cantor, 1999) and WebRemUSINE (Paganelli and

Paternò, 2002) websites evaluation tools based on

client-side event logs.

WET focus is on performing automatic capture

of events that occur on the client-side, avoiding high

costs of time and money present in manual data

capture methods (Etgen and Cantor, 1999). The log

captured is recorded in text format at client-side (i.e.,

in cookies) and the capture depends on user actions

to capture events. Some of the points that deserve

further work involve: some way to record more data,

use a bigger event vocabulary, and independence of

user actions (Etgen and Cantor, 1999).

WebRemUSINE (Paganelli and Paternò, 2002)

makes automatic capture and analysis of websites

interaction in order to detect usability problems. The

analysis is based on the comparison between the

paths made by users and an optimum task model

previously configured (Paganelli and Paternò, 2002).

The storage and transmission of the logs is done

through a Java applet, which allowed the tool to

avoid the storage capacity of cookies (Paganelli and

Paternò, 2002). For the user, using this tool involves

splitting his/her screen into two regions, one for the

list of tasks that the participant must choose before

each task, and the other containing the website being

evaluated (Paganelli and Paternò, 2002).

The common characteristics of these tools result

in the main goals of client-side data-loggers: to

capture events at client-side and to transmit the

logged data to a server, where all analysis is

made.

3 THE PROPOSED MODEL

The model was designed so that its set up and use

require just one change in the applications to be

evaluated: a call to the client-side event logger code.

Thus, as soon as a participant starts the test session

and accepts to participate on the test, the tool starts

to record events occurred at the client-side until the

participant cancels his/her participation.

Analysis based on the requirements presented in

Santana and Baranauskas (2008) for evaluation tools

based on event logs indicated two main components

of the model: the DataLogger, responsible for

capturing event data, and the Communicator,

responsible for transmitting logs to the server. The

DataLogger is the component attached to the high

level subject to be observed (e.g., Window object),

so it can be notified to record all the events occurred.

It is inspired on the GoF (Gang of Four) Observer

Pattern (Gamma et al., 1995). The Communicator

component controls the transmission of the logged

data to the server. It also keeps the information sent

regarding the identification of logs and keeps the

server responses. Moreover, other components were

added in order to modularize the model and fulfil all

the requirements considered.

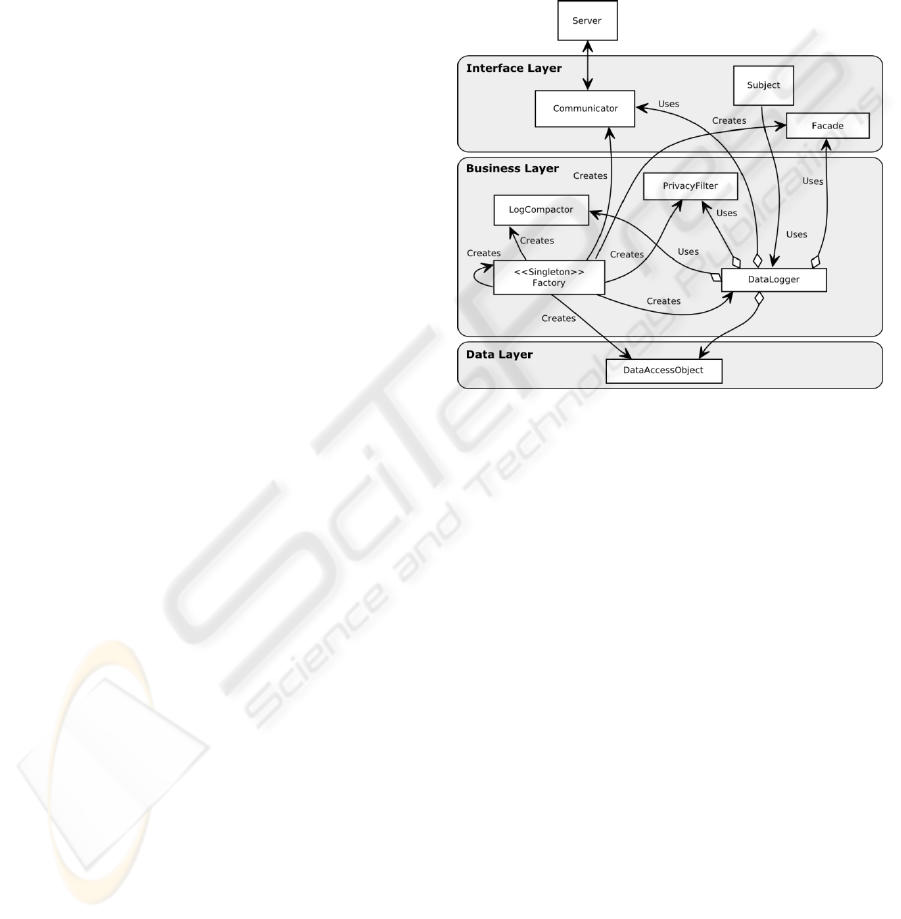

Figure 1: The client-side event logger model overview.

Due to the frequency in which UI events are

triggered, the number of events that can occur during

few minutes can be huge. Then, any data-logger that

must transmit logged data to a server should have to

compact the data. This brought the need for a

component to compact the data, the LogCompactor.

It has the role of avoiding the heavy consume of

client’s bandwidth connection, that may occur if the

raw log is transferred to the server. Also, to deal

with the amount of data recorded we used

asynchronous communication with the server as a

strategy to interfere as few as possible with the use

of the UI.

To manipulate data and perform record, read,

and remove functions, we used a DataAccessObjec,

which is based on the Data Access Object (DAO)

J2EE design pattern (Alur et al., 2003). In addition,

we needed a way to interact with the user and show

the status of the logger, responsibility of the Facade

component, inspired on the GoF Facade Pattern

(Gamma et al., 1995). To address privacy policies

we added the PrivacyFilter component, responsible

to check if the captured data can or cannot be sent to

the server based on previously defined policies (e.g.,

not record which key is pressed when a keypress

ICEIS 2009 - International Conference on Enterprise Information Systems

166

event occur). Finally, we defined a Factory to create

and assembly all the components together. The

Factory is the model creator class. It contains the

information to instantiate and to build all

components. First, the Factory instantiates itself,

following the GoF Singleton pattern (Gamma et al.,

1995), then it uses two other GoF creational patterns

to instantiate model classes: Factory Method

(Gamma et al., 1995) and Builder (Gamma et al.,

1995). The model follows the MVC (Model View

Controller) pattern (Figure 1). The main

characteristics are:

 It is lightweight and depends on few resources

of the users' devices, achieving its goal in

different configurations;

 It processes and transmits logs without

interfering with the use of the evaluated UI;

 It uses all event available data that do not

impact on security problems;

 It logs usage data without depending on

specific task models, grammars, or events;

 It provides tool’s status and controls, allowing

users to interrupt the capture.

4 RESULTS

The implementation of the presented model used

JavaScript, an object-based scripting language

(Netscape, 1999), and the server module used Java

related technologies following the MVC pattern and

structure proposed in Basham et al. (2004).

At Web context, the environment configuration

of the tool requires that the website administrator

registers him/herself and the website to be evaluated,

and insert a reference to the JavaScript client-

module in the registered website’s pages. From that

point, if the reference to the client module came

from a registered website, then each time an user

access the page, the server module fills up the

Factory component script with information

unavailable from JavaScript (e.g., client's IP, a

global identifier for that session, etc.) before serving

it. Then, as soon as the script is loaded, the tool

starts to work.

The JavaScript implementation of the model

showed to be efficient and effective. However, there

were some issues related to the space available to

record information on client's device and to

exchange data between different domains. The space

available to record information in the client's device

is restricted. One solution is to use cookies, but they

are limited to a size of 4 kilobytes (kB) and each

domain can specify only 20 cookies (Netscape,

1999). When using cookies the problem is the time

required to record, retrieve, and delete the logs

without interfering with the use of the website. The

alternative found was to use the Web page structure

in memory, also known as Document Object Model

(DOM) tree. Then, application cookies where used

only to deal with error recovery and to maintain

information valid for more than one session (e.g., the

acceptance of the user).

The bigger issue implementing the proposed

model in JavaScript was the asynchronous cross-

domain transmissions. The problem was to deal with

security restrictions of the XMLHTTPRequest, a

JavaScript object widely used object in AJAX

(Asynchronous JavaScript And XML) applications,

which just allows connection between Web

pages/applications hosted at the same domain.

The security restriction is called Same Origin

Policy and “prevents document or script loaded from

one origin from getting or setting properties of a

document from a different origin” (Ruderman,

2001). The Same Origin Policy may seem too

restrictive, since it blocks the use of Web services

directly via XMLHTTPRequests. However,

allowing scripts to access any domain opens up

users to potential exploitation (Levitt, 2005a).

Some solutions to deal with this restriction are:

Signed Scripts (Ruderman, 2007), Server-side

proxy, Iframe Proxy (Dojo Toolkit, 2006), and Flash

Proxy (Levitt, 2006). These solutions are effective,

but they conflict with the requirements we are

following, since they are not browser independent,

depend on some plug-in or require a more complex

environment configuration than presented.

Some proposals that would give to JavaScript

programmers the power to perform cross-domain

requests are JSONRequest and <module> tag.

JSONRequest is proposed to be a new browser

service that allows data exchange without exposing

users or organization to harm (Crockford, 2006a).

The <module> tag proposes to divide a Web page

into a collection of modules that are secure from

each other, providing safe communication; it also

proposes how to reach a consensus on a new Web

browser security model, since Web applications are

significantly ahead of Web browsers technologies

(Crockford, 2006b).

The solution used is based on an approach

presented in Levitt (2005b). The approach simulates

a JSONRequest using Dynamic Script Tag, which

manipulates the DOM tree to perform requests

through the creation of script tags, allowing cross-

domain asynchronous communication.

Logging tests performed in pages generated by

Content Management Systems like Plone and Drupal

showed that each second of interaction results in

KEEPING TRACK OF HOW USERS USE CLIENT DEVICES - An Asynchronous Client-Side Event Logger Model

167

approximately 1kB of compacted logs. Therefore,

any participant using a connection that supports the

transmission of 1kB per second plus the average of

bandwidth connection used by the participant to surf

the Web will allow the model to behave accordingly

to the design and does not interfere with the use of

the website. If it is not the case, the accumulated

amount of log data will reach a configuration limit

and the tool will became inactive. The validation of

the model was performed capturing events during

real use of the website of a research group called

Todos Nós (www.todosnos.unicamp.br), since part

of its audience uses assistive technology. The data

captured during 60 days resulted 85 recorded

sessions, 6 of them coming from assistive

technology users. The data collected resulted in

more than 270 thousands of events.

5 CONCLUSIONS

The model proposed showed to be lightweight and

addressed requirements stated in Santana and

Baranauskas (2008). Also, it can supply data to other

applications to discover usage patterns.

During implementation and use of this model,

maintainers and developers must always keep

security and privacy in mind, since the information

being captured and transmitted can be critic if it is

not filtered and/or made in a safer way. Accordingly,

users must always be aware of what is happening in

their device and accept to participate before the

logger starts to record events, since the free record

of this kind of information without warning the user

would characterize the tool as a spyware.

The main advantages of the presented model in

comparison with the approaches presented in section

2 are: modularization and configurability of all

components, browser and plug-in independent, and

compaction, which was not cited in referred works.

Improvements may be obtained through different

data compression techniques and transmission plug-

in independent approaches allowing the inclusion of

security mechanisms.

ACKNOWLEDGEMENTS

Proesp/CAPES and FAPESP.

REFERENCES

Alur, D., Crupi, J. and Malks, D., 2003. Core J2EE

Patterns: Best Practices and Design Strategies. 2

Edition. Prentice Hall PTR.

Arroyo, Ernesto; Selker, T. and Willy, W., 2006. Usability

Tool for Analysis of Web Designs Using Mouse

Tracks. Work-in-Progress In Proc. of CHI 2006.

Basham, B., Sierra, K., Bates, B. 2004. Head First

Servlets and JSP: Passing the Sun Certified Web

Component Developer Exam (SCWCD). O’Reilly.

Crockford, D., 2006a. JSONRequest. Available at:

http://json.org/JSONRequest.html

Crockford, D., 2006b. The <module> Tag. Available at:

http://www.json.org/module.html

Dojo Toolkit, 2006. Cross Domain XMLHttpRequest

using an IFrame Proxy. Available at:

http://dojotoolkit.org/node/87

Etgen, M. and Cantor, J., 1999. What does getting wet

(web event-logging tool) mean for web usability? In:

Proc. of 5th Conf. on Human Factors & the Web.

Gamma, E., Helm, R., Johnson, R. and Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object

Oriented Software. Reading: Addison Wesley.

Hand, D., Mannila, H. and Smith, P., 2001. Principles of

Data Mining. MIT Press.

Hilbert, D.M. and Redmiles, D.F., 2000. Extracting

usability information from user interface events. ACM

Comput. Surv. 32(4). pp. 384–421.

Levitt, J., 2005a. Fixing AJAX: XMLHttpRequest

Considered Harmful. Available at:

http://www.xml.com/pub/a/2005/11/09/fixing-ajax-

xmlhttprequest-considered-harmful.html

Levitt, J., 2005b. JSON and the Dynamic Script Tag:

Easy, XML-less Web Services for JavaScript.

Available at: http://www.xml.com/pub/a/2005/12/21/

json-dynamic-script-tag.html

Levitt, J.,2006. Flash to the Rescue. Available at:

http://www.xml.com/pub/a/2006/06/28/flashxmlhttpre

quest-proxy-to-the-rescue.html

Netscape Communications Corporation, 1999. Client-Side

JavaScript Reference.

Paganelli, L. and Paternò, F., 2002. Intelligent analysis of

user interactions with web applications. In: IUI ’02:

Proc. of the 7th Int. Conf. on Intelligent User

Interfaces, ACM. pp. 111–118.

Ruderman, J., 2001. The Same Origin Policy. Available

at:http://www.mozilla.org/projects/security/component

s/same-origin.html

Ruderman, J., 2007. Signed Scripts in Mozilla. Available

at:http://www.mozilla.org/projects/security/component

s/signed-scripts.html

Santana, V.F. de and Baranauskas, M.C.C. (2008) A

Prospect of Websites Evaluation Tools Based on

Event Logs. In IFIP, Volume 272; Human-Computer

Interaction Symposium; Springer, pp. 99–104.

Skeen, D., 2007. Eye-Tracking Device Lets Billboards

Know When You Look at Them. Available at:

http://www.wired.com/gadgets/miscellaneous/news/20

07/06/eyetracking.

Woo, D. and Mori, J., 2004. Accessibility: A tool for

usability evaluation. In APCHI. Volume 3101 of

LNCS, Springer. pp. 531–539

ICEIS 2009 - International Conference on Enterprise Information Systems

168
