MOBILE DEVICE LOCATION INFORMATION ACQUISITION

FRAMEWORK FOR DEVELOPMENT OF LOCATION

INFORMATION WEB APPLICATIONS

Design and Architecture

Andrej Dolmac, Stephan Haslinger

tisco GmbH, Tigergasse 21/13, 1080 Wien, Austria

Schahram Dustdar

Distributed Systems Group, Institute of Information Systems, Vienna University of Technology

Argentinierstrasse 8, 1040 Vienna, Austria

Keywords:

Mobile device location information, Location information based services, Location information acquisition.

Abstract:

Mobile device location information based services are one of the key drivers in Telecommunication market

today. The current development of mobile device location based service solutions is focusing on a development

of a particular services, but there is nearly no effort to build a framework that does not focus on a particular

location information based service, but instead, provides developers with a set of tools that would enable

them easier and faster development of new services based on mobile device location information. Within

the EUREKA project MyMobileWeb, framework was implement for acquisition of location information from

mobile devices. Framework architecture enables obtaining location information from various mobile devices

and is not bound to any special device type or capability. Furthermore the architecture can be used not only to

obtain location information, but also to obtain any other information from mobile device, such as e.g. battery

level.

1 INTRODUCTION

Mobile device location information based services are

one of the key drivers in Telecommunication market

today. New solutions, that would extend the usage

of mobile device location information for providing

value added services, are required.

The current development of mobile device loca-

tion based service solutions is constrained within sev-

eral independent projects. The main focus in those

projects is put on a development of a particular ser-

vice. Usually output of such projects is a standalone

software, that can not be reused for other different

purposes. More effort should be invested in building a

platform or a framework that does not focus on a par-

ticular location based solution, but instead, provides

service developers with a set of tools and libraries that

would enable them easier and faster development of

new services based on mobile device location infor-

mation.

One of the major problems and most time consum-

ing steps in development of location based services

is implementation of software that acquires the loca-

tion information from the device itself. Since there is

a broad spectrum of different mobile devices on the

market, the code for acquisition of location informa-

tion from the device and its delivery to the server side

must often be rewritten many times in order to cover

more than one device type. So current mobile device

location information solutions usually target only lim-

ited set of devices.

This paper presents design and architecture of a

framework whose main purpose is acquisition of lo-

cation information from different types of mobile de-

vices. Framework as such is not focusing on a im-

plementation of a particular service based on a spe-

ciﬁc device and location information type. Instead,

idea of this framework is to provide service develop-

ers with a set of tools for acquiring different location

information types from various devices without spec-

ifying how and for what purpose this information will

be used for. Further on, main focus of the framework

Dolmac A., Haslinger S. and Dustdar S. (2009).

MOBILE DEVICE LOCATION INFORMATION ACQUISITION FRAMEWORK FOR DEVELOPMENT OF LOCATION INFORMATION WEB APPLICA-

TIONS - Design and Architecture.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Software Agents and Internet Computing, pages 74-81

DOI: 10.5220/0001952200740081

 SciTePress

is development of Web based solutions. Since at the

moment one of the most mature frameworks targeting

development of Web based solutions for mobile de-

vices is MyMobileWeb project (MyMobileWebPro-

ject, 2008), described architecture is integrated within

already existing MyMobileWeb framework in order

to provide single uniform solution for development of

Web based location information services for mobile

devices.

2 PROBLEMS

One of the main steps in development of location

based services is acquisition of location information

from mobile device. This step involves develop-

ment of device speciﬁc code targeting particular de-

vice. The resulting code is usually not portable to

other devices since it is dependent on underlaying de-

vice hardware, operating system and device driver li-

braries provided by device vendor. Resulting solu-

tions are usually targeting only restricted and small

set of devices available on the market. In order to

extend the set of devices that support such service,

same functionality must be rewritten multiple times

for different devices from different device vendors.

This makes development of location based solutions

time consuming process which slows down devel-

opment of new services. So ﬁrst problem that has

to be addressed by the framework design and ar-

chitecture is covering as many mobile device types

with as much reusable code as possible. Second,

since described framework is targeting development

of Web based services and it is intended as extension

to MyMobileWeb solution, communication channel

between location information acquisition code run-

ning on the device and back end server must be es-

tablished. Through this communication channel back

end server side must be able to trigger acquisition of

location information on the mobile device. Through

the same communication channel code running on the

device must deliver the location information back to

the server side.

3 REQUIREMENTS

On one side, MyMobileWeb is based on Web tech-

nology for which the client side software is the Web

browser installed on the user mobile device. On the

other hand, in order to acquire location information

from a mobile device, a dedicated software must be

run on the device itself. The requirements imposed

by this on the overall framework architecture are:

• Server side triggering of location information re-

trieval from the mobile device must be done

through a Web browser as a client side software.

• Communication channel must be established be-

tween the server side and the location information

acquisition framework running on the mobile de-

vice for delivery of location information.

Additionally, there are different sorts of location

information types (like GPS position, Cell ID, NFC

ID, etc.). Therefore the server side must have a pos-

sibility to specify which location information type is

required for a particular service. Since there are many

different mobile device types on the market with dif-

ferent capabilities for acquisition of location infor-

mation, there also must be a possibility of detecting

which types of location information can be acquired

on a particular mobile device. This information must

be delivered to the server side application prior to ac-

tual acquisition of location information. So the fol-

lowing requirements must be satisﬁed by the archi-

tecture as well:

• Detection of device capabilities regarding loca-

tion information types.

• Notifying server side about device capabilities.

• Possibility of specifying required location infor-

mation type by the server side.

Further on, there are many different types of lo-

cation information and different ways of collecting it

from different devices. It is not possible to cover all

of it with one monolithic application so architecture

must be designed in a way that makes it easily ex-

tendible with additional modules. Intention of addi-

tional modules is to easily add support for additional

location information types and additional location in-

formation acquisition methods, as well as providing

the possibility to reimplement already existing mod-

ules for different device types. This means that an

additional architectural requirement is:

• Modular design that is easily extendible.

Finally, it can be useful to acquire location infor-

mation without this action being triggered from server

side and then use it (deliver it to the server side) later

on. The ﬁnal requirement is:

• Possibility to trigger location information acquisi-

tion not only by the server side but by the user as

well.

MOBILE DEVICE LOCATION INFORMATION ACQUISITION FRAMEWORK FOR DEVELOPMENT OF

LOCATION INFORMATION WEB APPLICATIONS - Design and Architecture

3.1 Triggering Location Information

Acquisition from the Server Side

Application

If the user is browsing Web pages that are not of-

fering any location information services it does not

make any sense that the acquisition framework is run-

ning all the time on his mobile device and blocking

its resources. The acquisition framework should be

started only when the user browses a Web page that

really offers some location based services. The lo-

cation information should be acquired exactly at the

moment when the server side is ready to process the

received information. Mechanism that enables the

server side to trigger location information acquisi-

tion on the user’s mobile phone must be designed.

Since the client software on the mobile device is a

Web browser, the triggering mechanism must be im-

plemented through means provided by the browser it-

self.

3.2 Channel for Delivery of Location

Information to the Server Side

Application

Once the location information acquisition has been

triggered and location information has been gathered

on the mobile device, a communication channel be-

tween the acquisition framework on the mobile de-

vice and the server side application must be estab-

lished in order to deliver acquired data. This can

be implemented through the means provided by the

Web browser on the users device, or by establishing a

direct connection between the acquisition framework

and the server side.

3.3 Detection of Device Capabilities

Detection of device capabilities does not only consist

of ﬁnding out what sort of device it is and deciding

which location information can be retrieved from it.

It also involves detection of the version of the acqui-

sition framework installed on the device. Based on

this information the server side can trigger the desired

location information acquisition method or it can in-

form the user that for the particular service he must

install additional software (or simply informing him

that the service can not be used).

3.4 Speciﬁcation of Desired Location

Information by the Server

Once information about the device capabilities has

been delivered to the server side, the server must in-

form the acquisition framework about the type of lo-

cation information it would like to receive (Cell ID,

GPS position, NFC ID, etc.) and the acquisition

framework must be able to gather the desired location

information accordingly.

3.5 Modular Design

There are some common tasks that must be performed

by the acquisition framework regardless of the loca-

tion information type that is used. Those are:

• Detection of device capabilities.

• Communication with the server (reporting device

capabilities and delivering acquired data).

Those functions can be grouped together in one

common module. On the other hand the actual imple-

mentation of the location information acquisition is

not only dependent on the location information type,

but also on the device type, the underlying operating

system and hardware. Therefore the implementation

of this functionality should be separated into differ-

ent modules for each location information type and,

in some cases, even for different device types.

3.6 Triggering Location Information

Acquisition by the User

It can be useful to give the user the possibility to ac-

quire the location information on his own, when not

connected to the server side (ofﬂine mode). It should

also be possible to deliver the acquired data to the

server side later on. For this acquisition framework

should provide user interface through which the user

can see what type of location information he can get

from his mobile device, select the desired type and

trigger the acquisition. The collected data must be

stored locally on the device until the user visits the

Web site that can use stored information.

ICEIS 2009 - International Conference on Enterprise Information Systems

4 POSSIBLE SOLUTIONS

During design phase two main implementation pos-

sibilities were considered and both of them, together

with their advantages and disadvantages will be pre-

sented in the following sections. Also, a third possi-

bility, which is a hybrid combination of the ﬁrst two,

will be shown.

4.1 Web Browser Extensions based

Architecture

This architecture is based on extending the mobile

Web browser with a set of plug-ins, through which lo-

cation information would be acquired from the mobile

device and delivered to the server side. The concept

of this architecture is presented in Figure 1.

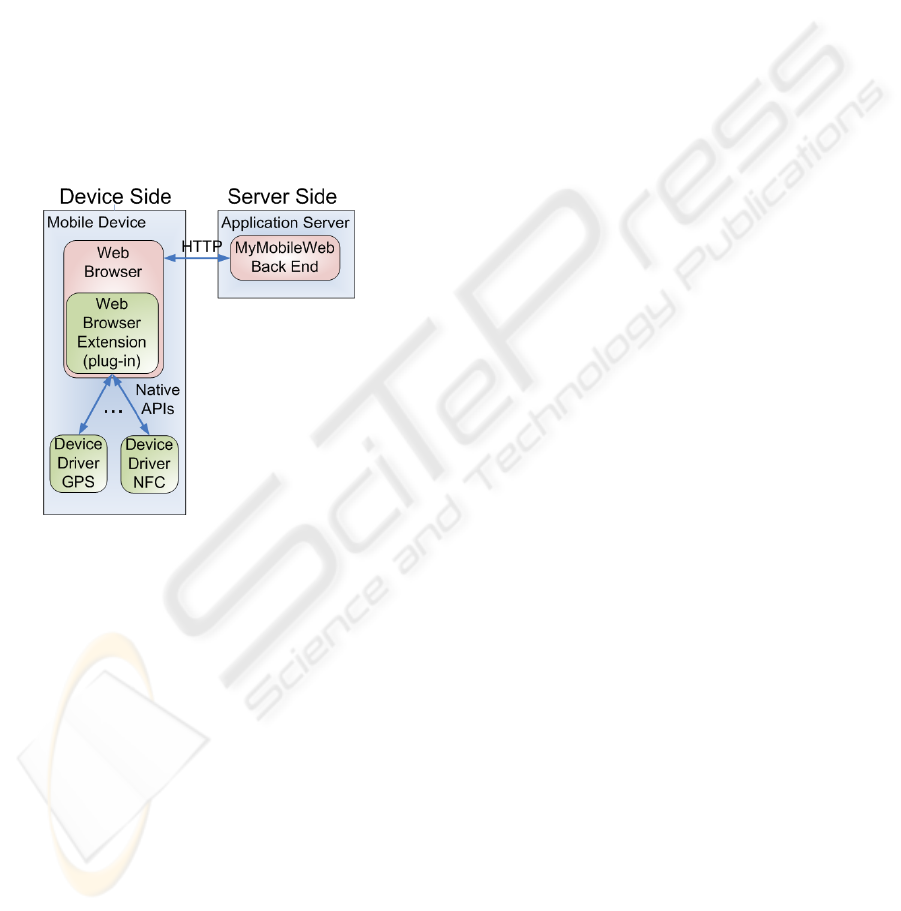

Figure 1: Web Browser Extensions Based Architecture.

Web browser on the mobile device is extended

with an additional plug-in that is capable of communi-

cating directly with the device drivers through native

APIs in order to fetch location information and send

it back to the servers side.

Advantages of this architecture:

• Since MyMobileWeb is a Web based technology,

this architecture simpliﬁes integration of location

based services into the rest of the MyMobileWeb

framework. The easiest way to deliver location

information from a mobile device to the server

side is to extend the browser capabilities in a

way that it is able to acquire location informa-

tion from the mobile device. Doing this through

a plug-in mechanism (provided by most mobile

Web browsers on the market) is an obvious and

straightforward way.

• This architecture reduces problems with synchro-

nization of the browser and the back end server,

since the browser itself is responsible for location

information acquisition (synchronisation prob-

lems between Web browser and the acquisition

framework are more noticeable in the Java2ME

Based Architecture, which will be explained in

detail in the following chapter).

• MyMobileWeb incorporates AJAX capabilities

through usage of JavaScript and this architec-

tural approach makes it easier to implement a

JavaScript event mechanism (creating additional

events when location information is acquired and

available for usage on the server side). This ap-

proach eases the usage of location information

during the Web site development phase for devel-

opers that use the MyMobileWeb framework.

There are some disadvantages of this approach:

• The ﬁrst big disadvantage is the fact that de-

veloped source code is Web browser dependent.

There are a couple of different mobile Web

browsers on the market today and different exten-

sions would be required for each of them. When-

ever a new Web browser appears on the market

a completely new implementation from scratch

would be needed.

• Most of the Web browsers are implemented as de-

vice native applications (OperaMini is one excep-

tion) so plug-in development is dependent upon

the underlying operating system.

• Reasons mentioned above imply that this archi-

tecture is not time resilient. Whenever some Web

browser or operating system disappears from the

market the source code for this browser or system

becomes obsolete.

4.2 Java2ME based Architecture

This architecture is relying on Java2ME technology.

In this solution a standalone program is installed on

a mobile device and runs as a server that provides

location information whenever it receives requests

through a standard localhost socket connection. Fig-

ure 2 presents this concept.

In this case the Web browser does not need to be

extended and does not have the capability to acquire

the location information from a mobile device on its

own. Instead, there is a separate, standalone soft-

ware (Java2ME Server Midlet) installed on the device

that is in charge for location information acquisition.

Whenever the server side requests location informa-

tion, browser forwards the request to the Server Mi-

dlet, which in turn collects the location information

and sends it back to the server.

MOBILE DEVICE LOCATION INFORMATION ACQUISITION FRAMEWORK FOR DEVELOPMENT OF

LOCATION INFORMATION WEB APPLICATIONS - Design and Architecture

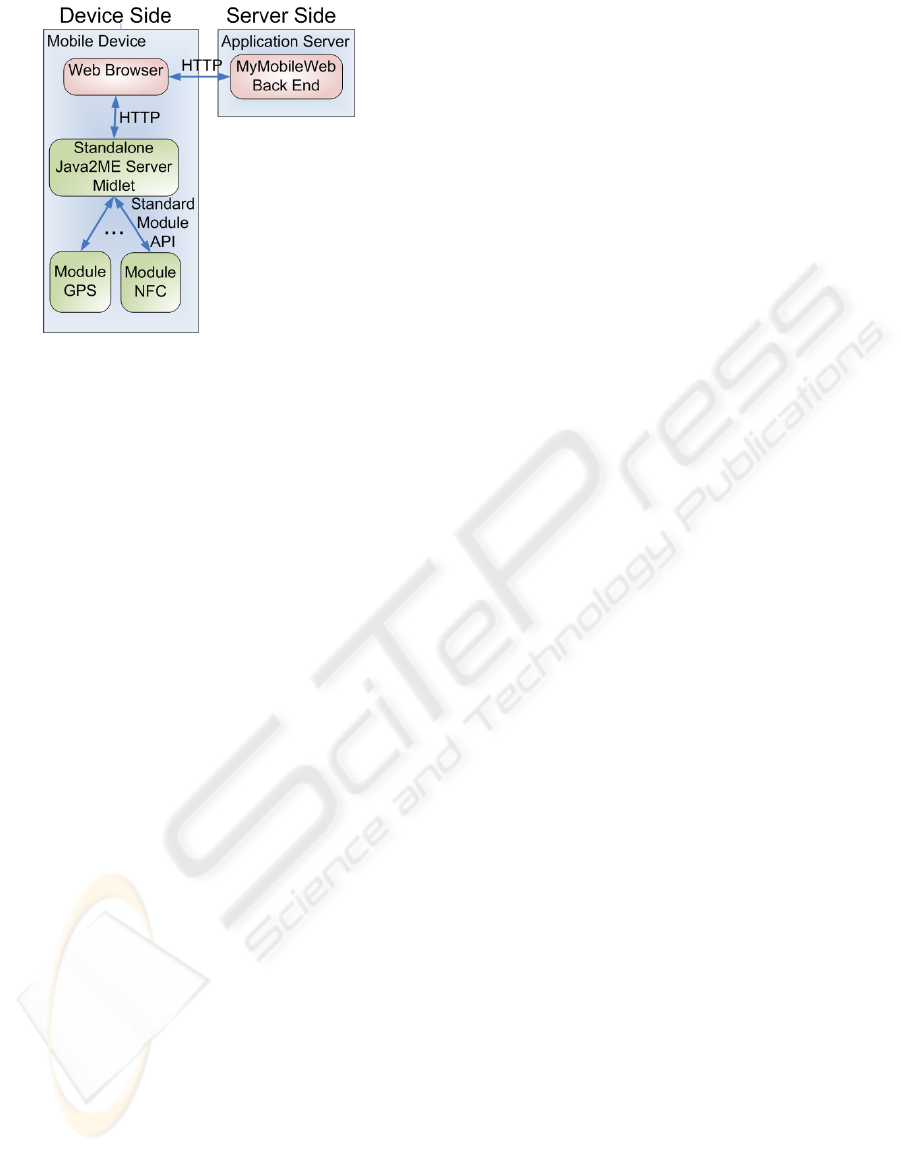

Figure 2: Java2ME Based Architecture.

The differences from the architecture presented in

the previous section are:

• The implementation is completely independent of

the Web browser used on the mobile device. The

only interaction between the Web browser and the

standalone Server Midlet is done through classi-

cal TCP/IP socket connection through the usage

of HTTP protocol. This removes necessity to sup-

port different Web browsers individually.

• Java2ME technology ensures operating system in-

dependence and source code that is interoperable

between different devices.

• This approach is more time resilient than the ﬁrst

one since it’s not dependent on the currently ex-

isting Web browsers. It will integrate seamlessly

with every new Web browser that could appear on

the market.

• An additional advantage when using a standalone

concept is that the architecture can be extended

easily for a off-line mode of work, when fetch-

ing of location information is not triggered by the

server side but by the user instead. The off-line

mode can be supported by adding GUI that is pre-

sented to the user in the case that the Server Midlet

is started manually (not triggered by the server

side). This provides the possibility of collecting

location information at any time. Collected infor-

mation can then be used with any Web site pro-

viding location information services.

Although this architecture has some obvious ad-

vantages over the previous one, it also introduces

some disadvantages and problems that are not present

in the ﬁrst approach:

• This approach complicates data exchange with the

back end server. Since the acquisition framework

runs as a standalone application on the mobile

device, there must be some mechanism imple-

mented to establish a communication channel be-

tween the server side and the acquisition frame-

work through a Web browser (this communica-

tion channel will be used for triggering a location

acquisition from the server side and for delivery

of the location information back to the MyMo-

bileweb server).

• In order to request and receive location informa-

tion the Web browser must connect to the acqui-

sition framework running on the device through

a standard TCP/IP socket connection with usage

of HTTP protocol for data exchange. This im-

poses possible time out problems, since in some

cases location acquisition can be a time consum-

ing process. If the communication between the

Web browser and acquisition framework is syn-

chronous it can happen in certain cases that the

session times out if location acquisition process

takes too long.

• If the communication between the Web browser

and the acquisition framework on the device is

asynchronous, which means that the Web browser

sends a request to the acquisition framework on

the device and gets redirected back to the server

side Web page before the location information

has been acquired, there is a problem of how and

when to deliver the location information to the

server side.

• In case of an asynchronous communication, archi-

tecture should be designed in a way that it enables

the implementation of some sort of event based

mechanisms on the server side in order to make

usage of location information easier during the

Web site development process.

• This architectural approach, although providing

big overall beneﬁts, introduces some additional

problems. Although none of those problems is

technically unsolvable, and none of them repre-

sents major drawbacks they should be considered

during implementation phase and solved accord-

ingly.

4.3 Hybrid Java2ME and Web Browser

Extensions Architecture

This architectural solution is a combination of the ar-

chitectures described previously. The idea is to com-

bine advantages of both approaches into a single so-

lution in order to minimize problems that both archi-

tectures inherently have. The high level idea of this

approach is presented on Figure 3.

ICEIS 2009 - International Conference on Enterprise Information Systems

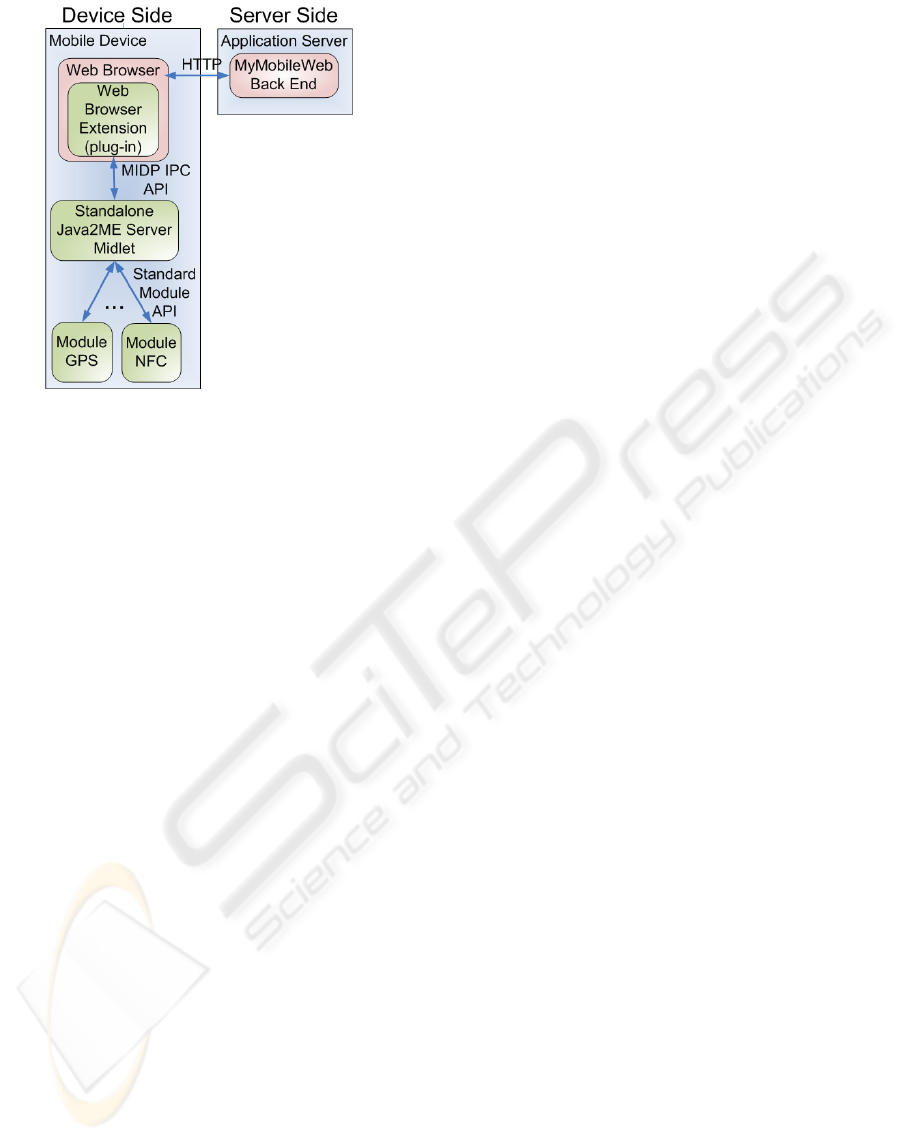

Figure 3: Hybrid Architecture.

This architecture is just a hybrid composition of

the previous two. The idea is to try to take the best

from both and combine it into a single solution.

This approach has the following advantages:

• Easier implementation of data exchange and

synchronization between server and client side

through Web browser extensions.

• Easier implementation of Event Based Develop-

ment mechanisms through Web browser exten-

sions.

• Retaining most of the Web browser and underly-

ing operating system independence through im-

plementing most of the functionality in Java2ME

technology and keeping only a small functional

parts as a Web browser extensions (implementing

’thin’ Web browser extensions with a small code

base and using them only as a ’glue’ between My-

MobileWeb server side and the acquisition frame-

work implemented in Java2ME technology).

• Retaining the off-line mode of work through the

Server Midlet.

Disadvantages that still remain in this approach:

• Although ’thin’, Web browser extensions are still

used. This implies a certain amount of depen-

dency to both, the Web browser and the under-

lying operating system.

• Heavy prototypes. A lot of time and effort is

needed in order to develop a prototype, since it re-

quires the implementation of the whole Java2ME

Based Architecture in addition to the ’thin’ Web

browser extensions for a couple of browsers. Of

all considered architectures, this one is the most

effort consuming.

5 THE CHOSEN

ARCHITECTURE

As a result of different architectural considerations,

conclusion was made that Java2ME Based Architec-

ture is the most appropriate one for mobile device lo-

cation acquisition framework implementation. This

decision was made based on following:

• Although introducing some additional problems,

the Java2ME Based Architecture has big advan-

tages over the Web Browser Extensions based Ar-

chitecture in terms of independence. It does not

rely on speciﬁc browser or underlaying operating

system features.

• The implementation of Hybrid Java2ME and Web

Browser Extensions Architecture although having

certain advantages, is too time and effort consum-

ing for initial framework implementation.

• After Java2ME Based Architecture implementa-

tion is ﬁnished, it can be upgraded to the Hybrid

version. During the implementation phase special

attention should be made in order to make this up-

grade as easy as possible. Upgrading the architec-

ture should be possible only by adding implemen-

tations of ’thin’ Web Browser Extensions on top

of the already existing implementation.

6 RELATED WORK AND

PROJECTS

At the moment there is W3C initiative to specify high

level API for acquisition of location information from

mobile devices (Popescu, 2008) within the Geoloca-

tion API Speciﬁcation. The Geolocation API Speci-

ﬁcation deﬁnes a high-level interface to the location

information associated with the hosting device, such

as latitude and longitude. The API itself is agnostic

of the underlying location information sources. Com-

mon sources of location information include Global

Positioning System (GPS) and location inferred from

network signals such as IP address, RFID, WiFi and

Bluetooth MAC addresses, and GSM/CDMA cell IDs

(Popescu, 2008). But this speciﬁcation is focusing

only on the standardization of the high level script-

ing language APIs for accessing mobile device lo-

cation, without concerning about low level location

acquisition mechanisms. Though, this W3C speci-

ﬁcation can be used later on, when upgrading from

Java2ME Architecture to Hybrid Architecture. In this

scenario Java2ME acquisition framework will be used

as underlaying layer for low device level location in-

MOBILE DEVICE LOCATION INFORMATION ACQUISITION FRAMEWORK FOR DEVELOPMENT OF

LOCATION INFORMATION WEB APPLICATIONS - Design and Architecture

formation acquisition, and ’thin’ Web browser exten-

sions will on one side communicate with the Java2ME

Server Midlet, and on another side provide high level

scripting language APIs speciﬁed by Geolocation API

Speciﬁcation.

There is a project by Google, called Google Gears

(Google, 2008), that is dealing with development of

a framework for the mobile device location informa-

tion acquisition. Within this project Google imple-

mented a framework that complies with W3C Ge-

olocation API Speciﬁcation. As a result, Google re-

leased a set of Web browser plug-ins that provide high

level JavaScript API compliant with W3C Geoloca-

tion API. The problem is that at this time Google did

not provide any means of extending the functionality

implemented by them with additional location infor-

mation acquisition modules developed by third par-

ties. Only location information types and only de-

vices supported by Google can be used for location

based service development. At the moment Google

supports Cell ID, WiFi and GPS location information

acquisition from mobile devices and only on a limited

device set. Additional problem is that Google imple-

mentation is Web browser dependent (there is a dif-

ferent set of plug-ins for different Web browsers) so

this solution can only be used with Web browsers sup-

ported by Google. At the moment this project is being

developed and maintained entirely by Google and it’s

not publicly opened. Extending the existing function-

ality with support for new location information types

and/or support for different device types must be done

through cooperation with Google and can not be done

by third parties on their own.

Another similar project from Mozilla exists.

Project name is Geode (MozillaLabs, 2008) and its

main focus is extending the Mozilla Firefox Web

browser with location information acquisition abili-

ties. Similar to Google, Mozilla is focusing on de-

velopment of a browser plug-in that would provide

high level Java Script API compliant with W3C Ge-

olocation API Speciﬁcation. Since the project is in

a early phase, there is only one Firefox plug-in de-

veloped, that support location information acquisition

based on Skyhooks Loki technology (SkyhookWire-

less, 2008) which uses WiFi to determine location.

Similar to Goolge Gears, this project is developed in-

ternally by Mozilla, and the current implementation

supports only Firefox Web browser and a limited set

of devices.

There is one additional project which main fo-

cus are not location based services but is worth while

mentioning here. This is WebVM project by Aplix

Corporation (AplixCorporation, 2008). The scope of

this project is to develop a set of Web browser plug-

ins that would provide a connection between the Web

application environment (Web browser) and the Java

runtime that is present on mobile device. Idea is to al-

low the Web developers to deploy a Java library along

with the Web application so the code in the Web appli-

cation can make calls to the Java library. The reason

this project is mentioned here is because its outcome

can be used for upgrading the location information ac-

quisition framework from Java2Me architecture into

full Hybrid architecture.

As it can be seen, there are couple of project

dealing with development of frameworks for location

based service development. But, more or less, all

of them focus only on providing high level scripting

APIs for location information acquisition. None of

those projects is targeting development of a low de-

vice level framework for location information acqui-

sition that could be easily extended by third parties.

All of the mentioned projects are based on extending

the Web browser capabilities and are Web browser de-

pendent where one of the main ideas of framework

described here is to avoid any dependencies on a par-

ticular browser. Besides this, one important aspect

of described framework design is to make it mod-

ular, make speciﬁcations and reference implementa-

tions for module development and give them public

in order to enable third parties to develop modules for

location information acquisition on their own.

7 FRAMEWORK DESIGN AND

IMPLEMENTATION

EVALUATION

In order to evaluate design and implementation qual-

ity, couple of measurements were considered.

Since one major requirement imposed on the

framework design and implementation is coverage

of different devices, the main measurement for the

quality of implemented solution is portability of pro-

duced libraries to different devices without necessity

for code recompilation. Final framework implemen-

tation, once compiled for a particular mobile device

vendor Java runtime environment, should work on all

phones running this Java runtime environment imple-

mentation (of course, modules dedicated for acqui-

sition of particular location information type should

work only on devices that support it on a hardware

level).

Second, since JavaMobile runtime environments

differ from one device vendor to another, some times

developed code must be recompiled in order to work

on a device provided by different vendor. Usually

ICEIS 2009 - International Conference on Enterprise Information Systems

only code recompilation is required in order for the

library to work on a different device and no code

changes are necessary. Another measure for imple-

mentation quality is amount of devices covered by

only recompiling the developed code. Developed

code should work on all devices supporting JavaMe

runtime environment (starting from MIDP 2.0 version

of JavaME standard and above).

Third, one idea of this concept is to be inde-

pendent of particular Web browser implementations,

meaning that it should work the same way (without

extending the Web browser through plug-ins) regard-

less of the browser available on the mobile device.

8 CONCLUSIONS AND FURTHER

WORK

At the moment there are not many standard tools

that would ease development of location information

based services when location information acquisition

from mobile device is concerned. There are server

side solutions that are focusing on development Web

pages targeted for mobile devices, but none of this

solutions is addressing problems when development

of code that needs to acquire some information from

mobile device is concerned.

Within this paper problems encountered while de-

veloping mobile device location information based

services were shown. Requirements imposed on a

framework for location information acquisition that

would run on a mobile device side were discussed and

possible architectural solutions were presented. Each

architectural solution was discussed together with its

advantages and disadvantages.

Amongst considered architectures Java2ME

Based Architecture was chosen as the most suitable

one for the framework implementation and the

reasons for this decision were presented.

Although the initial purpose of Java2ME Based

Architecture is to be used for the acquisition of loca-

tion based information from mobile devices, it must

be noted here that this is a general purpose solution

that can be easily extended. Any other sort of infor-

mation that can be collected from the mobile phone

can easily be acquired through the same architecture.

This is an important notice in respect to the idea of re-

trieving contextual information from a mobile phone

within the MyMobileWeb project. With this architec-

ture it would be e.g. possible even to fetch the bat-

tery level of a phone when needed. Just a plug-in for

fetching such information would have to be deployed

on the phone.

For the time being only prototypes that prove the

concept of the Java2ME architecture have been de-

veloped. But within the scope of MyMobileWeb

project full featured mobile device location acquisi-

tion framework will be implemented and integrated

within the rest of MyMobileWeb infrastructure.

ACKNOWLEDGEMENTS

This work is supported in part by the European So-

cial Fund and Madrid’s Regional Government under

their Research Personnel Training programs. Further-

more this work is supported by the Austrian Funding

Authorities under their Basic Founding Program.

REFERENCES

AplixCorporation (2008). Webvm whitepa-

per. Technical report. Available at

http://wiki.webvm.net/webvm/whitepaper/.

Google (2008). Google gears. Technical report. Available

at http://code.google.com/apis/gears/.

MozillaLabs (2008). Introducing geode. Technical re-

port. Available at http://labs.mozilla.com/2008/10/

introducing-geode/.

MyMobileWebProject (2008). Mymobileweb. Techni-

cal report. Available at http://mymobileweb.morfeo-

project.org/ mymobileweb.

Popescu, A. (2008). Geolocation api speciﬁ-

cation. Technical report. Available at

http://dev.w3.org/geo/api/spec-source.html.

SkyhookWireless (2008). Getting started with the

javascript api. Technical report. Available at

http://loki.com/developers/documentation.

MOBILE DEVICE LOCATION INFORMATION ACQUISITION FRAMEWORK FOR DEVELOPMENT OF

LOCATION INFORMATION WEB APPLICATIONS - Design and Architecture
