Database-Driven Concept Management:

Lessons Learned from using EJB Technologies

Daniela Pohl and Andreas Bollin

Software Engineering and Soft Computing, Klagenfurt University

Universit¨atsstrasse 65-67, Klagenfurt, Austria

Abstract. During software maintenance activities one needs tools that assist in

concept location and that provide fast access to already identiﬁed concepts. Thus,

this paper presents an approach that is able to cope with this situation by storing

concepts in a database. We demonstrate its applicability on formal Z speciﬁca-

tions, where the huge number of concepts to be found emphasizes the use of an

efﬁcient database system. The paper closes with lessons learned, as the standard

use of EJB-technologies redounds to more time-complexity than expected.

1 Introduction

As developers we are surrounded by complexity. Partly, this is because our applications

get more sophisticated. Partly, this is because also our objectives get more and more

complex. With it the related design documents explode in size and imply complica-

tions. This situation was already reﬂected by C.A.R. Hoare in the 1980s, who stated

that [..] there are two ways of constructing a software design: One way is to make it

so simple that there are obviously no deﬁciencies and the other way is to make it so

complicated that there are no obvious deﬁciencies [1]. Small artifacts are rather excep-

tions, and locating deﬁciencies is a major business for a software personnel. The bad

news is that ﬁxing deﬁciencies is impeded by the very mentioned problems of size and

complexity.

As scientists we are faced with the challenge to overcome at least parts of these

hurdles. First, we have to sustain the understanding of relevant parts of a system and its

related maintenance activities. Secondly, we have to ensure that the relevant parts (to

be changed) can be located easily. These tasks are supported by software comprehen-

sion environments [2–5], reverse engineering frameworks [6–10], and concept location

tools [11–13]. They focus i.a. on either data-gathering, exploration and visualization

of the code, and assist in knowledge organization. But concept location is not only re-

stricted to programming languages. There are also techniques for formal speciﬁcations

[14] or rule-based systems [15]. There, the approaches make use of the identiﬁcation

of relationships and the reconstruction of concepts by means of slicing, chunking, and

clustering.

Despite these existing tools, concept location is still a laborious task. Over sev-

eral periods of time often the same or similar concepts have to be reconstructed again

and again, which is, additionally, a resource and time-consuming process. Therefore,

Pohl D. and Bollin A. (2009).

Database-Driven Concept Management: Lessons Learned from using EJB Technologies.

In Proceedings of the 4th International Conference on Evaluation of Novel Approaches to Software Engineering - Evaluation of Novel Approaches to

Software Engineering, pages 227-238

DOI: 10.5220/0001954502270238

 SciTePress

this contribution suggests a framework that persistently stores conceptual elements and

their dependencies in an SQL database. In 2008, a prototype has been implemented in

the course of the master thesis of Pohl [16], and this contribution aims at sharing our

experiences with the system and its evaluation.

This paper is structured as follows: Sec. 2 introduces the notion of concepts and

their detection, ﬁrst in general, and then in formal Z speciﬁcations. Sec. 3 presents the

architecture of the framework and the related database model. Sec. 4 is dedicated to the

use of Enterprise Java Beans (EJB). Sec. 5 describes the evaluation steps and lessons

learned. Finally, Sec. 6 concludes this contribution with a short summary.

2 Concepts and Concept Location

When trying to understand a system, concepts are generally seen as perceived regulari-

ties in events or objects, or records of events or objects, designated by a label [17]. One

is looking for related parts and trying to assign a name/meaning to them. Additionally,

by aggregation, new (abstract) concepts can be built. The concepts we are looking for

are exactly those parts with dependencies within and across artifacts.

Concept Location is rather intuitive. Experienced users manage to navigate quickly

around relevant parts but fail in explaining how they are excluding irrelevant parts.

When their experience does not sufﬁce, they follow three different strategies which are

explained in more detail in [17]: (string) pattern matching, dynamic analysis, and static

analysis. The process of concept location is iterative. By starting with a domain-level

request, concept candidates are identiﬁed and evaluated with respect to their suitability

and then they are either rejected or form the basis for the next evaluation step.

In order to demonstrate generality, we decided to focus on artifacts that are at a

very high abstraction level and that are inherently complex: formal Z speciﬁcations

[18]. They seem to be most useful as they are semantically very compact and are of a

declarativenature. This implies that dependencies are deﬁnitely hard to identify, and the

assumption is that other artifacts (like program text) will not complicate the situation.

Concept identiﬁcation within formal speciﬁcations depends on the notion of control

and data dependencies between their basic elements (also called primes). Their calcu-

lation is impeded by their declarative nature, but (with some limitations) they can be

reconstructed. Basically, this is done by regarding scope rules, looking at the primes’

identiﬁers, and, depending on their use, by assigning deﬁnition (D) declaration (T) and

use (U) tags to them. Primes that describe an after state (they contain at least one D-

tag) are said to be control dependent on primes that do not describe such an after state.

When taking a speciﬁc identiﬁer within the primes into account, data dependencies can

be detected. For an in-depth discussion on dependencies and concepts see [19].

Based on the identiﬁed dependencies, the following partial speciﬁcations can be

deﬁned: speciﬁcation slices, chunks, and clusters. Slices and chunks are generated by

looking at a starting set of primes and by following control and/or data dependencies.

Clusters are calculates by taking reachability considerations into account. These speci-

ﬁcation abstractions are hereinafter treated as concepts that are to be identiﬁed via and

stored in the database. The following section introduces the architecture of the frame-

work and the related database schema.

228

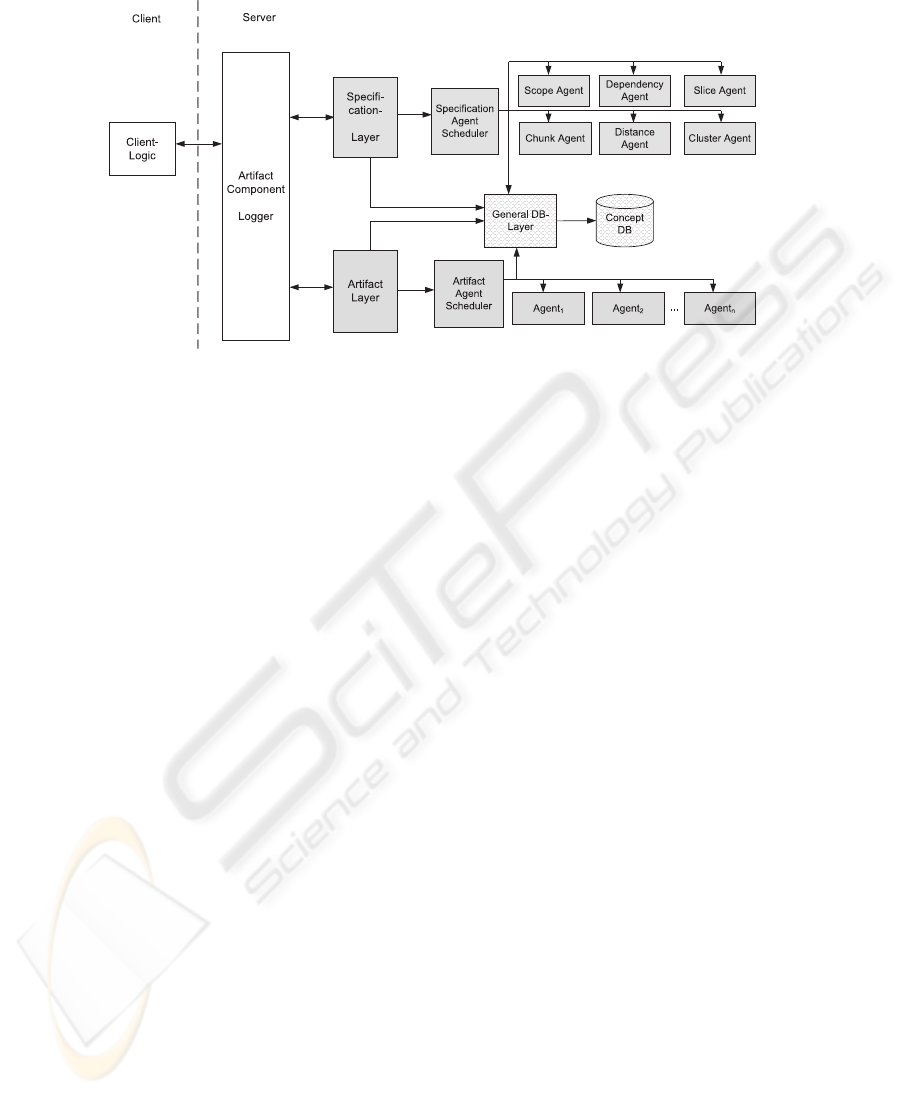

Fig.1. Architecture as implemented by the framework.

3 Architecture

The framework for identifying the different concepts in Z speciﬁcations is based on

the architecture as shown in Fig. 1. It is designed to easily cope with different types of

artifacts as the server is divided into three main parts:

1. Artifact Independent Layer: This layer represents the interface to the client and

the component-logger.

2. Artifact Depended Layer: Depending on the type of the artifact (in our example

Z speciﬁcations) this layer contains the control logic and the corresponding agents.

3. General Database Layer: This layer provides the necessary interface for manipu-

lating the database.

The framework implements a traditional client-server architecture pattern. The client is

responsible for visualizing the results and for triggering the concept extraction. On the

server side it is designed to handle different types of artifacts. The Artifact-Component

Logger is responsible for the registration of different Artifact-Layers. Depending on the

document to be stored (or accessed), the logger identiﬁes the responsible layer. In our

case (for a Z-Speciﬁcation) the Speciﬁcation-Layer is contacted. The artifact layers are

responsible for implementing the necessary concept location functionality. Complex or

time-consuming tasks (e.g. the dependency calculation) can be delegated to Agents that

are synchronized by the Artifact Agent Scheduler.

Whenever a document is stored, different analysis tasks will have to be started to

extract concepts, and the ﬁndings will have to be stored in the database again. In our

prototypical implementation, every agent is responsible for one speciﬁc concept class.

E.g. the Dependency Agent extracts data and control dependencies.The Cluster Agent is

then used to calculate all possible clusters within one document. As clusters are created

by looking at strongly-connectedparts, this agent is scheduled not until the Dependency

229

Agent has ﬁnished its calculation. A more detailed description of the agents is given in

Sec. 3.2.

3.1 Database

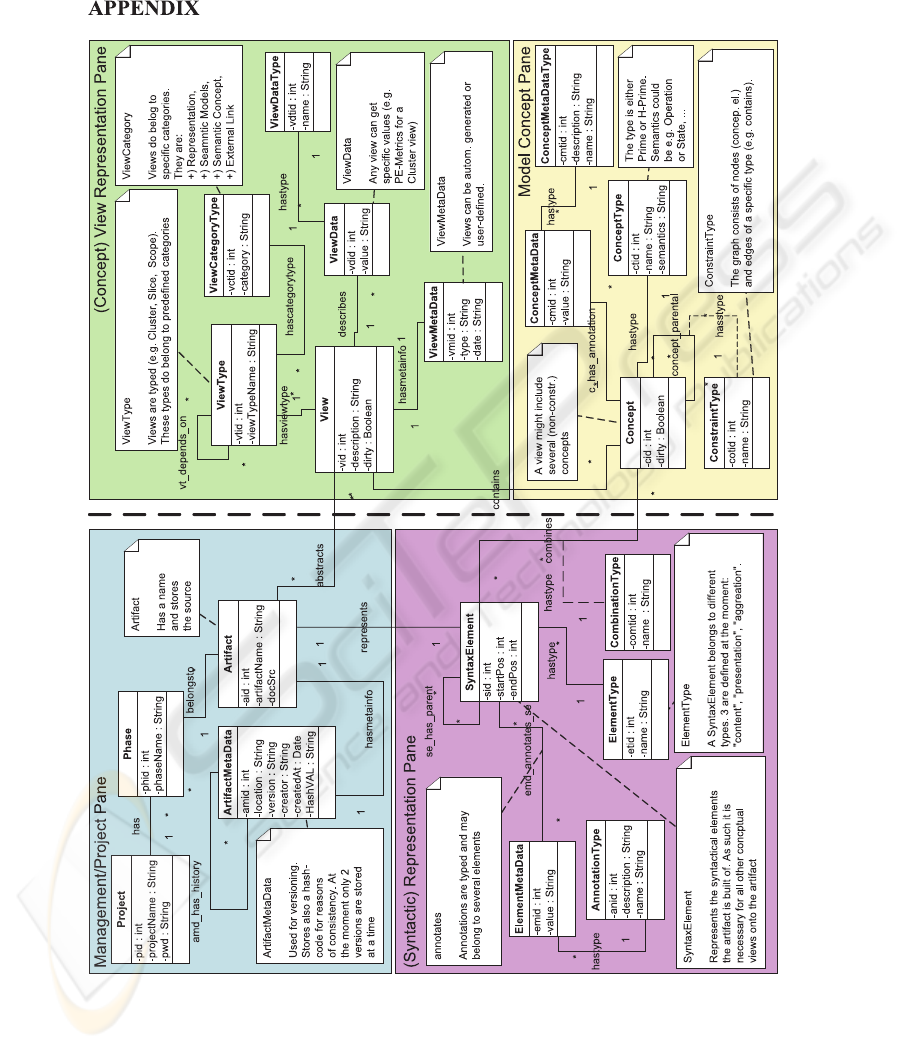

The database schema (see Fig. 4 in the Appendix) can be divided into four parts: the

Management/Project Pane, the Representation Pane, the Concept Pane, and the View

Pane. Concept location can be treated as a multi-dimensional problem, and the dimen-

sions, explained in more detail in [16], are just mapped to the corresponding parts in

the schema. They are described hereinafter shortly:

During development and maintenance it is common to deal with different types

and versions of documents, and the Management/Project Pane covers this function-

ality. Therewith, it is possible to store different Artifacts of the software engineering

process. They are related to a speciﬁc Project and Phase (within they are generated).

An artifact consists of different SyntaxElements. As introduced above, in Z we call

those elements primes. They form basic concepts of the artifact and are stored in the

(Syntactic) Representation Pane of the database. The underlying structure of the doc-

ument (and respectively of the elements) can be any simple or complex graph and is

expressed by a circular n-to-m relationship. For future processing steps it is possible to

annotate those elements. One type of annotation is the use of identiﬁers (e.g. T, D, or

U) within primes (as mentioned earlier in Sec. 2).

Based on these annotations, concepts are extracted. They are handled within the

Model ConceptPane. As there are different typesof Concepts(e.g. dependencies,slices,

cluster, and chunks) and as concepts can form hierarchies, again an n-to-m recursive

relationship has been chosen to allow for greater ﬂexibility. Additionally, for every con-

cept, it is possible to store ConceptMetaData information.

Finally, different Views onto artifacts might exist. Those views cluster concepts of

the same type together (e.g. all control dependencies of the document). Views are rep-

resented within the (Concept) View Representation Pane. The set of all views can be

seen as a semantic snapshot of the whole document.

As mentioned above, every class of concepts is identiﬁed by an associated agent

which is also responsible for storing the concepts in their corresponding views. The

strength of the approach is its ﬂexibility based on the use of a relational database.

Agents just commit SQL queries to aggregateand store the necessary information. They

are described in the following section.

3.2 Agents

Most of the work is done by agents. They are running independently from the client

on the server side and interact with the database. It is possible to extend the framework

by additional agents. The agents currently implemented in the prototype are: the Scope

Agent, the Dependency Agent, the Distance and Cluster Agent, the Slice Agent, and the

Chunk Agent.

Data and control dependencies between primes can only be detected when the scope

(where the elements are involved) is clear. Thus, ﬁrst the scope has to be extracted from

the syntactical structure of the artifact.

230

sid

AnnotationType.name=”D”

((σ

Concept.id=act

Concept ⊲⊳

(σ

ConceptType.name=”State”

ConceptType))

⊲⊳ SyntaxElement ⊲⊳

ElementMetaData ⊲⊳ AnnotationType)

(1)

sid

(σ

Concept.id=act

Concept ⊲⊳

(σ

ConceptType.name=”State”

ConceptType))

[sid 6= sid]

sid

(σ

AnnotationType.name6=”T”or

AnnotationType.name6=”CorAnnotationType.name6=”D”

SyntaxElement ⊲⊳ ElementMetaData

⊲⊳ AnnotationType)

(2)

In our system the Scope Agent is responsible for that. In fact, what we informally call

”scope” has three facets in Z: the State Scope which deals with schema and schema

inclusions within a speciﬁcation document, the Connectivity Scope which merges all

primes of two or more schemata that are combined via schema operations, and the

Declaration Scope that merges all primes that are necessary to keep it syntactically

correct

When the scope is ﬁxed, the Dependency Agent is started and identiﬁes control and

data dependencies. Both, dependencies and scopes are stored as concepts within the

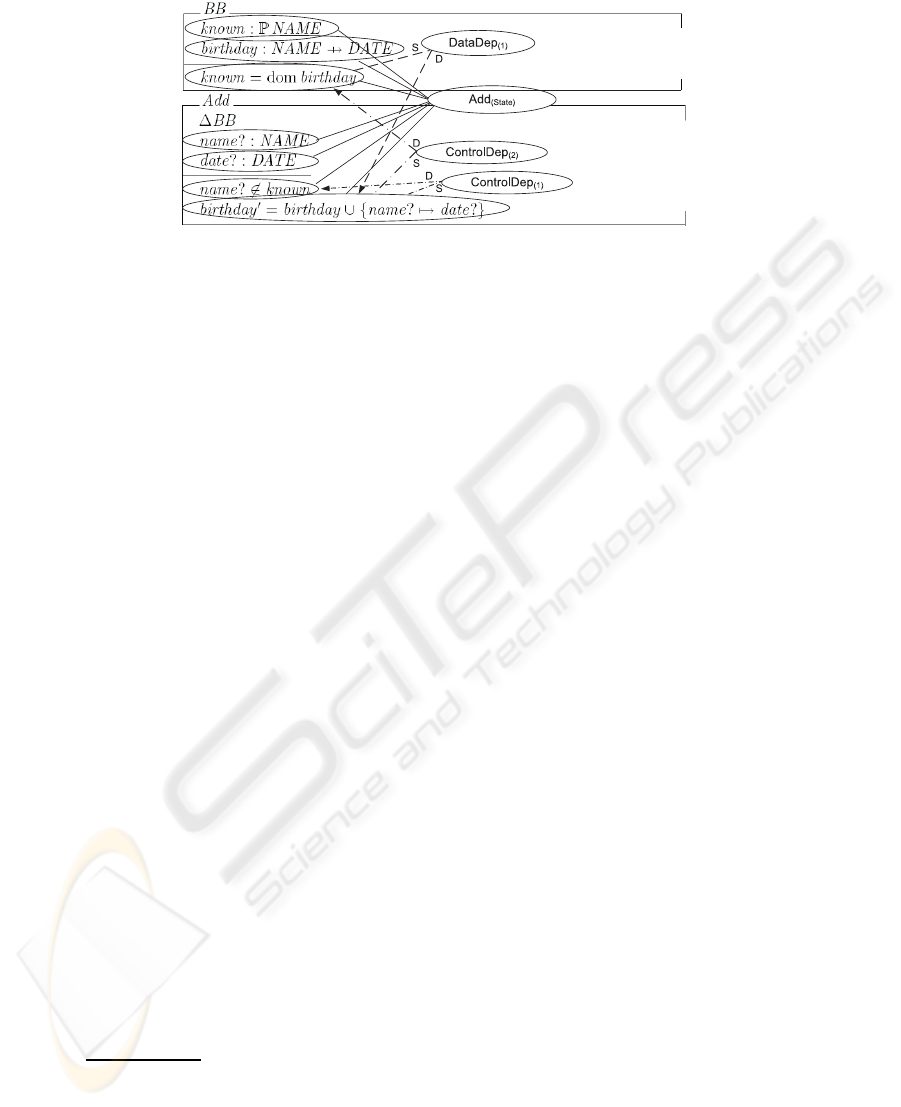

database. An example of the State Scope can be found in Fig. 2 (out of the Birthday-

Book speciﬁcation of [18]). Due to schema inclusion, the primes of the ”BB” state space

are combined with the primes of the ”Add” operation schema.

The next two agents are the Distance and Cluster Agents. For clustering formal Z

speciﬁcations, distances between primes (across dependency paths) are taken. So the

ﬁrst agent calculates the distances between the primes in the speciﬁcation. The second

agent then calculates all potential clusters within one artifact.

Common abstractions with a clearly deﬁned meaning are slices and chunks. The

next two agents, the Slice and Chunk Agent, are responsible for extracting them. They

look at every prime, take them as slicing/chunking criterion and, by following control

and/or data dependencies, they calculate these forms of abstraction.

3.3 Dependency Agent

The Dependency Agent is described hereinafter in more details as its functionality

demonstrates the ease of working with the database. Based on pre-identiﬁed scopes

(that are already stored as concepts in the database), it is possible to calculate depen-

dencies between syntactical elements.

To identify control dependencies within Z, some approximationscan be conducted [14]:

a syntactical element is control dependent upon another one, iff there is another element

that decides whether the prime is evaluated or not. By utilizing the use-annotations (U)

it is possible to identify these dependencies with ease. The calculation can be done by

small queries (demonstrating the elegance of the approach). The queries (1) and (2)

above calculate the start and the end positions of the control dependency arcs

The different types of scope are explained in more details in [16].

The act identiﬁer holds the scope for which the current calculation is to be performed.

231

Fig.2. Scope and resulting data/control dependency.

The dependency agent takes all results of the ﬁrst query and connects them with the

resulting elements of the second query. The same is done for data dependencies. Addi-

tionally, the identiﬁed pairs of dependencies are stored as concepts within the database.

For the Add-Operation the resulting dependencies are shown in Fig. 2.

As the framework is assumed to be extend, maintainability was an important re-

quirement during development. The choice dropped onto the EJB-Technology. The

evaluation of the prototype also reﬂects on EJB internals, so the following section dis-

cusses the most important issues. More information about EJB can be found in [20].

4 EJB and Implementation Details

EJB 3.0 (Enterprise Java Beans) is a server-side middleware architecture of Sun Mi-

crosystems. The reason for choosing this technology was the non-functional require-

ment maintenance we wanted to guarantee, and EJB facilitates this separation between

the application and the database logic. Additionally, it offers bean-objects to handle

data easily and to map the relational data format to the object oriented paradigm re-

spectively. This fact could be understood as an abstraction of the relational database

schema in an object oriented presentation.

The EJB technology is implemented via corresponding Java classes on the server

which run in an EJB-Container. For the implementation of various functionalities dif-

ferent types of beans are provided. Special beans are needed for the connection to the

database, the so-called Entity Beans. One object of an Entity Bean class holds one row

of the appropriate table. Thus beans are the results of the object-oriented mapping pro-

vided by this technology.

The concept management framework is realized via Java 1.6, EJB 3.0 and the Open-

Source database system MySql. For the server side implementation the application

server Glassﬁsh

from Sun was used. The development environment was NetBeans

IDE 6.0.1. The ORM (Object-Rational-Mapping) is provided by the TopLink persis-

tence provider, developed by Oracle.

The framework implements the architecture as described in Sec. 3. The client is

a stand-alone remote client and thus not executed in an EJB-Container. The server

For further information about Glassﬁsh see: https://glassﬁsh.dev.java.net/, Last visit:

Feb. 2009.

232

is implemented via EJB. The interface to the client (Artifact Component Logger) is

represented by a stateless session bean. The different artifact dependent layers (as the

Speciﬁcation Layer) are also implemented as stateless session beans. Thereby, it is pos-

sible to serve more than one client at a time. This layer is also responsible to start the

Agent Scheduler. The Agent Scheduler for Z speciﬁcations is a traditional Java class,

which consults the agents as needed. The Agents are also traditional Java classes. For

the persistency of the identiﬁed concept they get the entity manger from the current

session. The interface to the database is formed by entity beans which map the database

relations to the object oriented classes. Thus, these beans are contained as part in the

General DB-Layer.

5 Evaluation

The evaluation of the framework was carried out in two steps. First, the correctness

of the identiﬁed concepts were checked, and, secondly, the usefulness in respect to

performance explored. In fact, both steps also hearken back to results of an existing

framework called ViZ (for Visualization of formal Z speciﬁcations [19]). ViZ maps Z

speciﬁcations to a graph (primes become vertices, dependencies are stored as arcs) and

calculates dependencies based on reachability considerations.

5.1 Setting and Correctness

The ﬁrst step was the validation of the concepts that have been identiﬁed by the agents

and stored in the database. The evaluation is based on wide-spread speciﬁcations of

raising sizes, known as Birthday Book [18], Petrol Station [14], and Elevator [21]. Ad-

ditionally, a student’s speciﬁcation (called Cinema) was added to the set, too. Tab. 1

(left side) presents the complexities of the speciﬁcations by exemplifying the number

of pages (when pretty-printed), primes, control- (CD), and data dependencies (DD).

An in-depth description of the proof of correctness is out of the scope of this contri-

bution. However, by exporting the results to a structured ﬁle it was possible to compare

them with concepts described in literature and identiﬁed by the ViZ framework

. As

every dependency and concept has been detected correctly, we were also eager to see

whether the framework scales and improves operating speed.

Table 1. Complexity attributes and calculation time (in seconds) for experimental subjects.

Speciﬁcation Pages A4 Primes CD DD ViZ(s) EJB-A [s] EJB-B [s]

BB 2 34 10 5 4.6 7.0 6.5

Cinema 4 74 121 43 75.3 43.2 30.7

Petrol 3 65 192 177 152.9 51.9 38.7

Elevator 6 185 1,628 992 1,223.4 709.3 502.7

See [19] for more details on the meaning of speciﬁcation clusters, slices, and chunks.

233

Table 2. Complexity, described by the number

of data (DD) and control dependencies (CD).

incl. overhead no overhead diff

in [s] in [s] (in %)

DD 139.2 93.3 -32.97

CD 343.6 232.5 -32.33

Table 3. Comparison of JDBC and EJB

access to the database.

Runs JDBC [ms] EJB [ms] Factor

100 781 5,158 6.60

1000 7,784 51,767 6.65

10000 88,463 526,956 5.96

5.2 Performance Considerations

The ViZ framework provides additional features (such as browsing the speciﬁcation

graphically), but the calculation of dependencies (and thereinafter slices or chunks) is

time-consuming. Tab. 1 (right side) presents the time needed to calculate all dependen-

cies, for the ViZ environment and the new framework (for two different settings, called

EJB-A and EJB-B). For our approach we wanted to see whether there are some im-

provements or not. So, the performance

was explored thoroughly.

The reason for two settings was the inexplicable performance lack when working

with speciﬁcations of raising sizes. The experiences we gained are described here-

inafter. As most studies focus on the throughput of the system by varying the amount of

clients served by the EJB application [22,23], this chapter approach the subject from a

different angle (performance lacks due to database access of one client).

The performance of the system varied depending on the size of the speciﬁcation,

which was expected. Complexity considerations showed that the runtime complexity

is in O(cs ∗ 2n

). Tab. 1 (right side) summarizes the time needed for the identiﬁca-

tion/storage of all primes and dependencies. The most complex artifact is the Elevator

speciﬁcation

, and after about 10 minutes it was analyzed and stored persistently for

later use. On the same setting this is about two times faster than done by ViZ [14]. But

we were eager to know why it took ﬁve minutes to store a bit more than 2600 data-sets.

We investigated further into this issue and made two important observations:

– Too much time is lost due to the EJB’s synchronization between the database and

Java’s internal objects.

– There is very high execution time latency between EJB queries and their corre-

sponding JDBC queries.

The measured times vary due to the different complexities of the speciﬁcations. But,

performance is lost due to the overhead of the relational and object-oriented mapping.

EJB can be seen as an additional layer between the DB and the implemented busi-

ness logic. Every synchronization contributes to an increase in processing time. To get

unique identiﬁers for objects (we used auto increment ID), one has to ﬂush/synchroni-

ze the objects with those in the database. That this ﬂush is costly was clear, but we

We used the same measurement settings: Intel(R) CP T2600 2.16GHz, 1GB RAM, Windows

XP and ServicePack 2

Here, cs is the number of different scopes, and n

is the number of prime elements.

There are 7,057 entries within the combines relation of the database: 1,984 data dependency,

3,256 control dependency and 1,817 scope information (see Fig. 4).

234

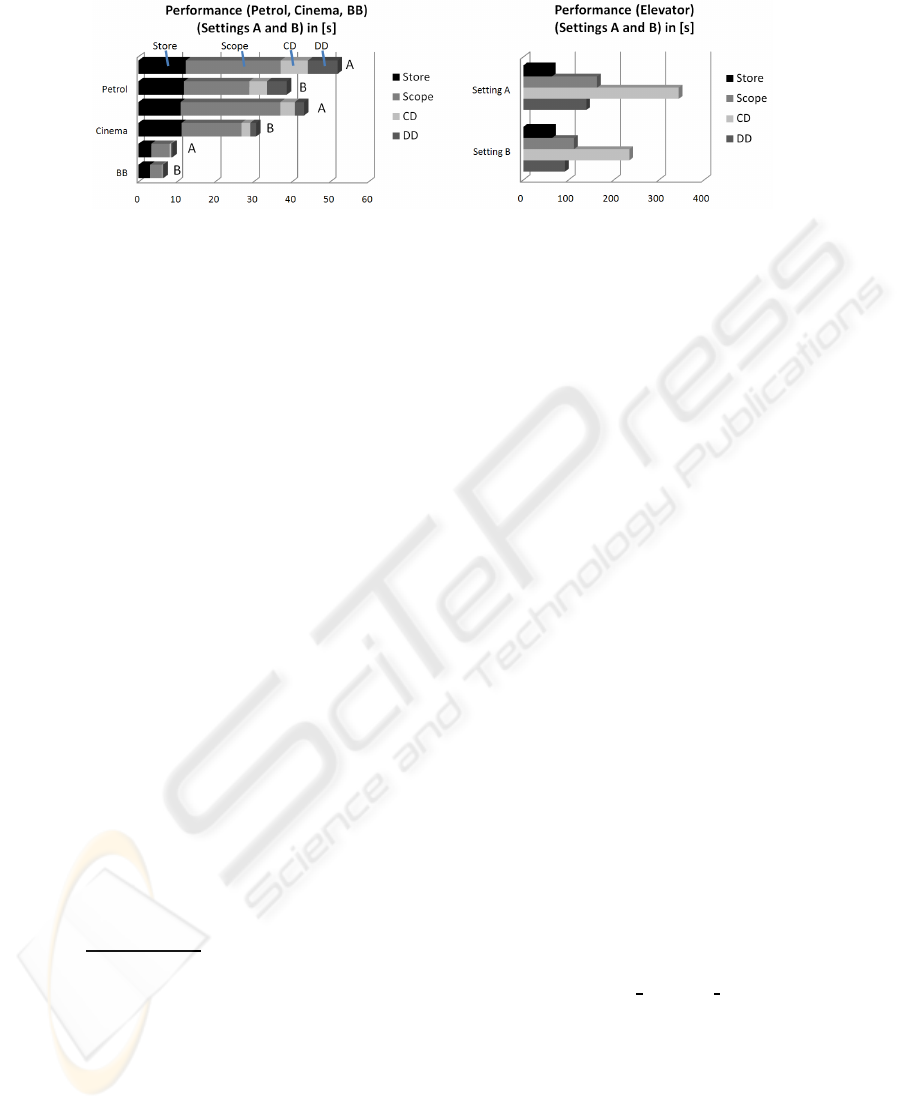

Fig.3. Time for storing primes, calculating scopes, and data and control dependencies.

wanted to know how much time is lost. We used the Elevator speciﬁcation to measure

it, and found out that the overhead is about one-third of the time (see Tab. 2).

The second issue we were curious about was the difference between EJB and JDBC

when accessing the database. And indeed, we found a big time latencybetween EJB and

JDBC queries. Not surprising, JDBC was faster, but the differences were notable (see

Tab. 3). To measure it, we implemented the same requests with the EJB query language

and with JDBC statements

8,9

. Then, both requests were issued up to 1000 times

. We

found out that JDBC scales with the factor of about six times better than EJB.

So, although EJB (with entity beans and annotations within the entity bean classes)

produces a more readable code, performance decreases when one has to store many

objects per transaction which are, then, needed in ongoing processing steps. In our

framework this is the case when we have to store an object and need the unique ID

for storing the intermediate relation between those objects. The ﬂushing/synchronizing

mechanism is the only but very expensive way for getting it.

Additionally, the performance evaluation was accomplished with updated measure-

ment characteristics

. This shows that upgrading the system is one and often the easiest

way to achieve better performance results of EJB application. Tuning the operating sys-

tem and platform is one factor suggested by Sun [24, p.95]. The evaluation showed that

with improved CPU power and additional working memory the performance of EJB

yields better results, as shown in Fig. 3 and Tab. 1 (settings A and B). However, inde-

pendently from the setting, the speed-up when accessing the database (see Tab. 4) stays

within the range of 5 to 7. Also the inﬂuence of the overhead remains constant (see

Tab. 5) at about 30-40%.

An evaluation of an earlier draft of the EJB speciﬁcation from Jordan [25] shows also

signiﬁcant performance differences between JDBC and EJB. As JDBC has to deal less

with object oriented abstractions, it performs well with high database access rates. An-

other way to get higher performance is to de-normalize the database schema [26].Un-

The query tested for two equal identiﬁers at different primes and joined two times over the

SyntaxElement, the CombinationType entities, and the combines and emd annotates SE rela-

tion. The database contained 2620 entries in the combines relation.

This evaluation was performed with 150 entries within the combines relation and 73 syntactical

elements (see Fig. 4).

Database internal optimizations, like cashes were, of course, disabled.

Measurement settings: Intel(R) Core(TM)2 CPU, T7200 @ 2.00GHz, 2 GB RAM

235

doubtedly, EJB yields advantages like transaction management, security mechanisms,

and scalability. It offers a comfortable way in implementing things. But this luxury does

not come for free.

Table 4. Comparison of JDBC and EJB

access to the database based on second

settings.

Runs JDBC [ms] EJB [ms] Factor

100 625 4,391 7.03

1000 6,315 43,485 6.89

10000 62,462 423,670 6.78

Table 5. Time (concept manifestation w/o

sync overhead) of setting two.

incl. overhead no overhead diff (in %)

in [s] in [s] (in %)

DD 92.20 56.63 -38.58

CD 234.53 158.19 -32.55

6 Conclusions

Concept location is a challenging task which also holds for the identiﬁcation of con-

cepts within formal Z speciﬁcations. Once detected, they should be stored for future

use to save time when analyzing the artifacts again. For this reason a framework was

implemented that is able to identify and store concepts in a database. For its implemen-

tation the middleware technology EJB was utilized.

This paper introduces the architecture and evaluates the resulting framework. The

evaluation shows that it produces correct and useful results. However, the performance

of the framework was strongly inﬂuenced by EJB. We found out that the most im-

portant latency is due to the synchronization process between a bean objects and the

database. The comparison between JDBC and EJB shows a high factor of performance

loss. JDBC scales about six times better than EJB in terms of runtime. Additionally,

EJB implements an intermediate layer and, therefore, runs into performance latencies.

In a setting similar to our framework the evaluation shows that the use of EJB tech-

nologies is less suitable. EJB brings several maintenance advantages, but one has to

expect a performance loss that should not be neglected.

References

1. Hoare, C.A.R.: The emperor’s old clothes. Commun. ACM 24 (1981) 75–83

2. Nickel, U., Niere, J., Wadsack, J., Z¨undorf, A.: Roundtrip Engineering with FUJABA.

In Ebert, J., Kullbach, B., Lehner, F., eds.: Proceedings of 2nd Workshop on Software-

Reengineering (WSR), Bad Honnef, Germany (2000)

3. Jouault, F.: Loosely Coupled Traceability for ATL. In: Proceedings of the European Confer-

ence on Model Driven Architecture (ECMDA 2005), Workshop on Traceability. (2005)

4. Borland: The Rational Homepage. http://www.borland.com/us/products/together (2008)

5. Eclipse: Generative Modeling Techn. Homepage. http://www.eclipse.org/gmt/ (2008)

6. M¨uller, H.A., Tilley, S.R., Wong, K.: Understanding Software Systems Using Reverse Engi-

neering Technology Perspectives from the Rigi Project. In: CASCON’93. (1993) 217–226

7. Burnstein, I., Roberson, K., Saner, F., Mirza, A., Tubaishat, A.: A Role for Chunking and

Fuzzy Reasoning in a Program Comprehension and Debugging Tool. In: TAI-97, 9

Inter-

national Conference on Tools with Artiﬁcial Intelligence, IEEE press (1997)

236

8. Ebert, J., Kullbach, B., Riediger, V., Winter, A.: GUPRO – Generic Understanding of Pro-

grams An Overview. Electronic Notes in Theoretical Computer Science 72 (2002)

9. Ferenc, R., Beszedes, A., Tarkiainen, M., Gyimothy, T.: Columbus – Reverse Engineering

Tool and Schema for C++. In: IEEE International Conference on Software Maintenance,

Montreal, Canada (2002) 172–181

10. Korshunova, E., Petkovic, M., van den Brand, M.G.J., Mousavi, M.R.: CPP2XMI: Reverse

Engineering of UML Class, Sequence, and Activity Diagrams from C++ Source Code (Tool

Paper). In: Working Conference on Reverse Engineering (WCRE’06), Benevento, Italy

(2006)

11. Chen, K., Rajlich, V.: RIPPLES: Tool for Change in Legacy Software. In: IEEE International

Conference on Software Maintenance, Los Alamitos, CA, USA, IEEE Computer Society

(2001) 230

12. Xie, X., Poshyvanyk, D., Marcus, A.: 3D Visualization for Concept Location in Source

Code. In: Proceedings of 28th IEEE/ACM International Conference on Software Engineer-

ing (ICSE’06). (2006) 839–842

13. Poshyvanyk, D., Marcus, A.: Combining Formal Concept Analysis with Information Re-

trieval for Concept Location in Source Code. In: Proceedings of the 15th IEEE International

Conference on Program Comprehension (ICPC2007). (2007) 37–48

14. Bollin, A.: Speciﬁcation Comprehension Reducing the Complexity of Speciﬁcations. PhD

thesis, Institute for Informatics-Systems, University of Klagenfurt (2004)

15. Wakounig, D.: Reverse Engineering of Typed Rulebased Systems – Dependency Analysis

and Comprehension Aspects. PhD thesis, University of Klagenfurt (2008)

16. Pohl, D.: Speciﬁcation Comprehension – Konzeptverwaltung am Beispiel zustandsbasierter

Speziﬁkationen (in German). Master’s thesis, University of Klagenfurt, Software Engineer-

ing and Soft Computing (2008)

17. Rajlich, V., Wilde, N.: The Role of Concepts in Program Comprehension. In: International

Workshop on Program Comprehension, IEEE Computer Society (2002) 271–278

18. Spivey, J.: The Z Notation. C.A.R. Hoare Series. Prentice Hall (1989)

19. Bollin, A.: Concept Location in Formal Speciﬁcations. Journal of Software Maintenance

and Evolution: Research and Practice 20 (2008) 77–104

20. Burke, B., Monson-Haefel, R.: Enterprise JavaBeans 3.0. O’Reilly (2006)

21. Chang, J., Richardson, D.: Static and Dynamic Speciﬁcation Slicing. In: In Proceedings of

the Fourth Irvine Software Symposium, Irvine, CA. (1994)

22. Zhang, Y., Liu, A., Qu, W.: Comparing industry benchmarks for J2EE application server:

IBM’s trade2 vs Sun’s ECperf. In: ACSC ’03: Proceedings of the 26th Australasian computer

science conference, Darlinghurst, Australia, Australia, Australian Computer Society, Inc.

(2003) 199–206

23. Leff, A., Rayﬁeld, J.T.: Improving Application Throughput With Enterprise JavaBeans

Caching. Distributed Computing Systems, International Conference on 0 (2003) 244

24. Microsystems, S.: Sun Java System Application Server 9.1 Performance Tuning Guide. EJB

Performance Tuning. In: http://docs.sun.com/app/docs/doc/819-3681/6n5srlhkj?a=view, Inc.

4150 Network Circle Santa Clara, CA 95054 U.S.A., Sun Microsystems Documentation

(2007)

25. Jordan, M.: A Comparative Study of Persistence Mechanisms for the Java Platform. In:

http://research.sun.com/techrep/2004/smli tr-2004-136.pdf, Inc. 4150 Network Circle Santa

Clara, CA 95054 U.S.A., Sun Microsystems Documentation (2004)

26. Yao, S.S., Hiriart, R., Barg, I., Warner, P., Gasson, D.: A case Study of Applying Object-

Relational Persistence in Astronomy Data Archiving. In Shopbell, P., Britton, M., Ebert, R.,

eds.: Astronomical Data Analysis Software and Systems XIV. Volume 347 of Astronomical

Society of the Paciﬁc Conference Series. (2005) 694ff

237

Fig.4. The four different panes of the database model.

238
