Towards a Model Driven Approach to Upgrade

Complex Software Systems

Antonio Cicchetti

, Davide Di Ruscio

, Patrizio Pelliccione

Alfonso Pierantonio

and Stefano Zacchiroli

Dipartimento di Informatica, Universit

a degli Studi dell’Aquila, Italy

Universit

e Paris Diderot, PPS, UMR 7126, France

Abstract. Complex software systems are more and more based on the abstrac-

tion of package, brought to popularity by Free and Open Source Software (FOSS)

distributions. While helpful as an encapsulation layer, packages do not solve all

problems of deployment and management of large software collections. In partic-

ular upgrades, which often affect several packages at once due to inter-package

dependencies, often fail and do not hold good transactional properties. This pa-

per shows how to apply model driven techniques to describe and manage software

upgrades of FOSS distributions. It is discussed how to model static and dynamic

aspects of package upgrades - the latter being the most challenging aspect to deal

with - in order to be able to predict common causes of upgrade failures and undo

residual effects of failed or undesired upgrades.

1 Introduction

Increasingly, software systems are designed to routinely accommodate new features

before and after the deployment stage. The deriving evolutionary pressure requires the

system design and architecture to have enhanced quality factors: in particular, they have

to retain the (user perceived as well as system-intrinsic) dependability at a satisfactory

level and make component installation/removal operations less haphazard [1]. Free and

Open Source Software (FOSS) distributions are among the most complex software

systems known, being made of tens of thousands components evolving rapidly with-

out centralized coordination. Similarly to other software distribution infrastructures,

FOSS components are provided in “packaged” form by distribution editors. Packages

deﬁne the granularity at which components are managed (installed, removed, upgraded

to newer version, etc.) using package manager applications, APT [2], Smart [3], Apache

Maven [4]. Furthermore, the system openness affords an (apparently) anarchic array

of dependency modalities among the adopted packages. These usually contain main-

tainer scripts, which are executed during the upgrade process to ﬁnalize component

conﬁguration. The adopted scripting languages have rarely been formally investigated,

thus posing additional difﬁculties in understanding their side-effects which can spread

Partially supported by they European Community’s 7th Framework Programme (FP7/2007–

2013), MANCOOSI project (http://www.mancoosi.org), grant agreement n

◦

214898.

Cicchetti A., Di Ruscio D., Pelliccione P., Pierantonio A. and Zacchiroli S. (2009).

Towards a Model Driven Approach to Upgrade Complex Software Systems.

In Proceedings of the 4th International Conference on Evaluation of Novel Approaches to Software Engineering - Evaluation of Novel Approaches to

Software Engineering, pages 121-133

DOI: 10.5220/0001954801210133

 SciTePress

throughout the system.

In other words, even though a package might be viewed as a software unit, it lives with-

out a proper component model which usually deﬁnes standards (e.g., how a component

interface has to be speciﬁed and how components communicate) [5, 6] that facilitate

integration assuring that components can be upgraded in isolation.

The problem of maintaining FOSS installations, or similarly structured software

distributions, is intrinsecally difﬁcult and a satisfactory solution is missing. State of the

art package managers lack several important features such as complete dependency res-

olution and roll-back of failed upgrades [7]. Moreover, there is no support to simulate

upgrades taking the behavior of maintainer scripts into account. In fact, current tools

consider only inter-package relationships which are not enough to predict side-effects

and system inconsistencies which can be encountered during upgrades.

This work is part of the MANCOOSI

project which aims at improving the man-

agement of complex software systems built of composable units which evolve inde-

pendently. In particular, the paper describes a model-driven approach to specify system

conﬁgurations and available FOSS packages.

Maintainer scripts are described in terms

of models which abstract from the real system, but are expressive enough to predict

several of their effects on package upgrades. Intuitively, we provide a more abstract

interpretation of scripts, in the spirit of [8], which focuses on the relevant aspects to

predict the operation effects on the software distribution. To this end, models can be

used to drive roll-back operations to recover previous conﬁgurations according to user

decisions or after upgrade failures.

Paper Structure: Section 2 describes the upgrade process of FOSS packages and

summarizes the MANCOOSI project. Section 3 describes a model driven approach to

(i) specify system conﬁgurations and packages, (ii) simulate the installation of software

packages, and (iii) assist roll-backs. Section 4 analyzes the FOSS domain and intro-

duces the required modeling constructs which are captured in different metamodels.

Finally, Section 5 and 6 present related and future work, respectively.

2 Packages, Upgrades, and Failures

Overall, the architectures of FOSS distributions are similar. Each installation has a local

package status recording which packages are currently installed and which are available

from remote repositories. Package managers are used to manipulate the package status

and can be classiﬁed in two categories [10]: installers, which deploy individual pack-

ages on the ﬁlesystem (possibly aborting the operation if problems are encountered) and

meta-installers, which act at the inter-package level, solving dependencies and conﬂicts,

and retrieving packages from remote repositories as needed. The term upgrade problem

is used to refer generically to any request (install, remove, upgrade to a newer version,

http://www.mancoosi.org

While FOSS is the motivating scenario for this work, the presented model-driven techniques

are not FOSS-speciﬁc. In fact, previous work on FOSS package management [9] has been

easily ported to non-FOSS packages (e.g., in Apache Maven). The same can be done with the

presented approach which—given the addressed upgradeability concerns—has been designed

for the general case of installation side-effects embodied by maintainer scripts.

122

etc.) to change the system conﬁguration status. Such problems are usually solved by

meta-installers whose aim is to ﬁnd a suitable upgrade plan, where one exists. This sec-

tion gives an overview of packages as they can be found in current distributions, their

role in the upgrade process, and the failures that can impact on upgrade deployment.

Packages. Abstracting over format-speciﬁc details, a package is a bundle of three

main parts: (1) set of ﬁles, (2) meta-information, (3) maintainer scripts.

The core of a package is the set of ﬁles (1) that it ships: executable binaries, data,

documentation, etc. Conﬁguration Files are a distinguished subset of shipped ﬁles,

which are tagged as affecting the runtime behavior of the package and meant to be

customized by local administrators. Conﬁguration ﬁles need to be present in the bundle

(e.g., to provide sane defaults or documentation), but also need special treatment: dur-

ing upgrades they cannot be simply overwritten by newer versions, as they may contain

local changes which should not be thrown away.

Package Meta-information (2) is used by meta-installers to design upgrade plans.

Details change from distribution to distribution, but a common core of meta-information

consists of: a unique identiﬁer (the package name), software version, maintainer and

package description, inter-package relationships. These relationships represent the most

valuable information for dependency resolution and usually include: dependencies (the

need of other packages to work properly), conﬂicts (the inability of being co-installed

with other packages), feature provisions (the ability to declare named features as pro-

vided by a given package, so that other packages can depend on them), and boolean

combinations of them [10].

Packages come with a set of executable maintainer scripts (also known as “conﬁg-

uration scripts”) (3). Their purpose is to attach actions to hooks invoked by the installer.

The most common use case for maintainer scripts is to update some cache, blending

together data shipped by the package, with data installed on the system, possibly by

other packages. Three facets of maintainer scripts are noteworthy:

(a) maintainer scripts are full-ﬂedged programs, written in Turing-complete pro-

gramming languages. They can do anything permitted to the installer, which is usually

run with system administrator rights;

(b) the functionality of maintainer scripts can not be substituted by just shipping

extra ﬁles: the scripts often rely on data which is available only in the target installation

machine, and not in the package itself;

fail, trigger upgrade failures and are usually detected via inspection of script exit code.

Upgrades. Table 1 summarizes the different phases of the so called upgrade pro-

cess, using as an example the popular APT meta-installer. The process starts in phase

(1) with the user requesting to alter the local package status. The expressiveness of the

requests varies with the meta-installer, but the aforementioned actions (install, remove,

etc.) are ubiquitously supported, possibly with different semantics [11].

Phase (2) checks whether a package satisfying dependencies and conﬂicts exists

(the problem is at least NP-complete [10]). If this is the case one is chosen in this phase.

Deploying the new status consists of package retrieval, phase (3), and unpacking, phase

(4). Unpacking is the ﬁrst phase actually changing both the package status (to keep

track of installed packages) and the ﬁlesystem (to add or remove the involved ﬁles).

123

Table 1. The package upgrade process.

Intertwined with package retrieval and unpacking, there can be several conﬁguration

phases, (exempliﬁed by phases (5a) and (5b) in Table 1), where maintainer scripts get

executed. The details depend on the available hooks; dpkg offers: pre/post-installation,

pre/post-removal, and upgrade to some version [12].

Example 1. PHP5 (a scripting language integrated with the Apache web server) executes as its postinst (post-installation)

script the following snippet, on the left hand-side:

1 #!/bin/sh

2 i f [−e / etc / apache2 / apache2 . conf ] ; th en

3 a2enmod php5 >/dev / null | | t r u e

4 reload_apache

5 f i

1#!/bin/sh

2i f [−e / etc / apache2 / apache2 . conf ] ; th en

3a2dismod php5 | | t r u e

4f i

The Apache module php5, installed during the unpacking phase, gets enabled invoking the a2enmod command on line 3;

the Apache service is then reloaded (line 4) to make the change effective. Upon PHP5 removal the reverse will happen, as

implemented by PHP5 prerm (pre-removal) script snippet above, on the right hand-side.

Note that prerm is executed before removing ﬁles from disk, which is necessary to

avoid reaching an inconsistent conﬁguration where the Apache server is conﬁgured to

rely on no longer existing ﬁles. The expressiveness of inter-package dependencies is not

enough to encode this kind of dependencies: Apache does not depend on php5 (and

should not, because it is useful also without it), but while php5 is installed, Apache

needs speciﬁc conﬁguration to work in harmony with it; at the same time, such con-

ﬁguration would inhibit Apache to work properly once php5 gets removed. The book-

keeping of such conﬁguration intricacies is delegated to maintainer scripts.

Failures. Each phase of the upgrade process can fail. Dependency resolution can

fail either because the user request is unsatisﬁable (e.g., user error or inconsistent distri-

butions [9]) or because the meta-installer is unable to ﬁnd a solution. Completeness—

the guarantee that a solution will be found whenever one exists—is a desirable meta-

installer property unfortunately missing in most meta-installers, with too few claimed

exceptions [13]. Package deployment can fail as well. Trivial failures, e.g., network

or disk failures, can be easily dealt with when considered in isolation from the other

124

upgrade phases: the whole upgrade process can be aborted and unpack undone, since

all the involved ﬁles are known. Maintainer script failures can not be as easily undone

or prevented, since all non-trivial properties about scripts are undecidable, including

determining a priori which parts of ﬁle-system they affect to revert them a posteriori.

The MANCOOSI Project. MANCOOSI is working to improve upgrade support in

complex software systems such as FOSS distributions. On one hand the project is work-

ing on algorithms for ﬁnding optimal upgrade paths addressing complex preferences,

on the other is working on models and tools to (i) simulate the execution of maintainer

scripts, (ii) predict side-effects and system inconsistences which might be raised by

package upgrades, and (iii) instruct roll-back operations to recover previous conﬁgu-

rations according to user decisions or after upgrade failures. In the rest of this paper

we introduce the approach we are using, in the context of MANCOOSI, to attack the

problems of package upgrades, namely: modeling of the involved entities and upgrade

simulation.

3 Proposed Approach

As discussed, the problem of maintaining FOSS installations is far from trivial and has

not yet been addressed properly [7]. In particular, current package managers are neither

able to predict nor to counter vast classes of upgrade failures. The reason is that package

managers rely on package meta-information only (in particular on inter-package rela-

tionships), which are not expressive enough to detect upgrade failures. Our proposal

consists in maintaining a model-based description of the system and simulate upgrades

in advance on top of it, to detect predictable upgrade failures and notify the user before

the system is affected. More generally, the models are expressive enough to isolate in-

consistent conﬁgurations (as in the case of Example 1, where installed components rely

on the presence of disappearing sub-components), which are currently not expressible

as inter-package relationships.

The adoption of model-driven techniques presents several advantages: (a) models

can be given at any level of abstraction depending on the analysis and operations one

would like to perform as opposed to package dependency information whose granu-

larity is ﬁxed and currently too coarse; (b) complex and powerful analysis techniques

are already available to detect model conﬂicts and inconsistencies [14, 15]. In particular,

contradictory patterns can be speciﬁed in a structural way by referring to the underlying

domain semantics in contrast with text-based tools like version control systems where

conﬂicts are deﬁned at a much lower level of abstraction as diverging modiﬁcations of

the same lexical element.

Figure 1 depicts the proposed approach. Basically, to simulate an upgrade run, two

models are taken into account: the System Model and the Package Model (see the ar-

row

). The former describes the state of a given system in terms of installed pack-

ages, running services, conﬁguration ﬁles, etc. The latter provides information about the

packages involved in the upgrade, in terms of inter-package relationships. Moreover,

since a trustworthy simulation has to consider the behavior of the maintainer scripts

which are executed during the package upgrades, the package model speciﬁes also an

abstraction of the behaviors of such scripts. There are two possible simulation out-

125

comes: not valid and valid (see the arrows

 and

, respectively). In the former case

it is granted that the upgrade on the real system will fail. Thus, before proceeding with

it the problem spotted by the simulation should be ﬁxed. In the latter case—valid—

the upgrade on the real system can be operated (see the arrow

). However, since the

models are an abstraction of the reality, upgrades failures might still occur.

Fig. 1. Overall approach.

During package upgrades Log models are produced to store all the transitions between

conﬁgurations (see arrow

). The information contained in the system, package, and

log models (arrows

 and

) are used in case of failures (arrow

) when the per-

formed changes have to be undone to bring the system back to the previous valid con-

ﬁguration (arrow

).

Since it is not possible to specify in detail every single part of systems and pack-

ages, trade-offs between model completeness and usefulness have been evaluated; the

result of such a study has been formalized in terms of metamodels (see next section)

which can be considered one of the constituting concepts of Model Driven Engineering

(MDE) [16]. They are the formal deﬁnition of well-formed models, constituting the lan-

guages by which a given reality can be described in some abstract sense [17] deﬁning

an abstract interpretation of the system.

Even though the proposed approach is expressed in terms of simulations, the en-

tailed metamodels do not mandate a simulator. Hybrid architectures composed by a

package manager and metamodel implementations can be more lightweight than the

simulator, yet being helpful to spot inconsistent conﬁgurations not detectable without

metamodel guidance.

4 Modeling System and Packages

The simulation approach outlined in the previous section is based on a set of coordinated

metamodels which have been deﬁned by analyzing the domain of package-based FOSS

distributions. In general, a metamodel speciﬁes the modeling constructs that can be

used to deﬁne models which are said to conform to a given metamodel like a program

conforms to the grammar of the programming language in which it is written [17].

In this work, we have considered two complex FOSS distributions (the Debian and

RPM-based distributions, such as Mandriva.

Their analysis has induced the deﬁnition of three metamodels (see Figure 2) which de-

scribe the concepts making up a system conﬁguration and a software package, and how

126

Fig. 2. Metamodels and their inter-dependencies.

to maintain the log of all upgrades. The metamodels have been deﬁned according to an

iterative process concisting of two main steps (1) elicitation of new concepts from the

domain to the metamodel (2) validation of the formalization of the concepts by describ-

ing part of the real systems. In particular, the analysis has been performed considering

the ofﬁcial packages released by the distributions with the aim of identifying elements

that must be considered as part of the metamodels. The deﬁned and used analysis strat-

egy, due to the large amount of scripts, in general tries to collect scripts in clusters with

the aim to concentrate the analysis only on representative scripts of the equivalence

classes identiﬁed. Due to space constraints we cannot report the detailed analysis, but

the interested reader can refer to [18]. We report here only the results of the analysis,

i.e., the metamodels themselves:

The System Conﬁguration Metamodel contains the modeling constructs to specify

the conﬁguration of a given FOSS system in terms of installed packages, conﬁguration

ﬁles, services, ﬁlesystem state, etc.;

The Package Metamodel describes the relevant elements making up a package. The

metamodel gives also the possibility to specify the maintainer script behaviors which

are currently ignored—beside mere execution—by existing package managers;

The Log Metamodel is based on the notion of transaction which represents a set of

statements which change the system conﬁguration. Transitions can be viewed as model

transformations [17] which let a conﬁguration C

evolve into a conﬁguration C

As depicted in Figure 2, System Conﬁguration and Package metamodels have mutual

dependencies, whereas the Log metamodel has only direct relations with both the Sys-

tem and Package metamodels. In the rest of the section, such metamodels are described

in more details and some explanatory models conforming to them are also provided.

4.1 Conﬁguration Metamodel

A system conﬁguration is the composition of artifacts necessary to make computer

systems perform their intended functions [19]. In this respect, the metamodel depicted

in Figure 3.a speciﬁes the main concepts which make up the conﬁguration of a FOSS

system. In particular, the Environment metaclass enables the speciﬁcation of loaded

modules, shared libraries, and running process as in the sample conﬁguration reported

in Figure 3.b. In such a model the reported environment is composed of the services

www, and sendmail (see the instances s1 and s2) corresponding to the running web

and mail servers, respectively.

All the services provided by a system can be used once the corresponding packages

have been installed (see the association between the Configuration and Package

metaclasses in Figure 3.a) and properly conﬁgured (PackageSetting). Moreover,

the conﬁguration of an installed package might depend on other package conﬁgurations.

127

(a) (b)

Fig. 3. a) (part of) conﬁguration metamodel, and b) sample conﬁguration model.

Example 2. Considering the PHP5 upgrade described in Example 1, the instances ps1

and ps2 of the PackageSetting metaclass in Figure 3.b represents the settings

of the installed packages apache2, and libapache-mod-php5, respectively. The

former depends on the latter (see the value of the attribute depends of ps1 in Fig-

ure 3.b) and both are also associated with the corresponding ﬁles which store their

conﬁgurations.

Note that at the level of inter-package relationships such a dependency should not be

expressed, in spite of actually occurring on real systems. The ability to express such

ﬁne-grained and installation-speciﬁc dependencies is a signiﬁcant advantage offered by

the proposed metamodels which embody domain concepts which are not taken into ac-

count by current package manager tools.

The conﬁguration metamodel gives also the possibility to specify the hardware de-

vices of a system by means of the HardwareDevice metaclass. Due to space con-

straint the usage of such a metaclass is omitted; for more information the interested

reader can found the complete metamodels on the Web.

The packages which are installed on a given system are speciﬁed by means of the

modeling constructs provided by the Package Metamodel described in the next section.

4.2 Package Metamodel

The metamodel reported in Figure 4.a plays a key role in the overall simulation. In

fact, in addition to the information already available in current package descriptions,

the concepts captured by the metamodel enable the speciﬁcation of the behavior of

maintainer scripts. In this respect, the metaclass Statement in Figure 4.a repre-

sents an abstraction of the commands that can be executed by a given script to af-

fect the environment, the ﬁle system or the package settings of a given conﬁguration

(EnvironmentStatement, FileSystemStatement, and PackageSetting-

Statement, respectively).

http://www.di.univaq.it/diruscio/mancoosi

128

(a) (b)

Fig. 4. a) (part of) package metamodel, and b) sample package model.

Example 3. For instance, the sample package model in Figure 4.b reports the scripts

contained in the package libapache-mod-php5 introduced in Section 2. Due to

space constraints, Figure 4.b contains only the relevant elements of the postinstand

prerm scripts which are represented by the elements pis1 and prs1, respectively.

According to the model in Figure 4.b the represented scripts update the conﬁguration

of the package apache2 (see the element ps1) which depends on libapache-

mod-php5. In particular, the element upss2 corresponds to the statement a2dismod

which disables the PHP5 module in the Apache conﬁguration before removing the

package libapache-mod-php5 from the ﬁlesystem. This statement is necessary,

otherwise inconsistent conﬁgurations can be reached like the one shown in Figure 5.

The ﬁgure reports the sample Configuration2 which has been reached by remov-

ing libapache-mod-php5 without changing the conﬁguration of apache2. Such

a conﬁguration is broken since it contains a dependency between the apache2 and

libapache-mod-php5 package settings, whereas only apache2 is installed.

Fig. 5. Incorrect package removal.

129

Currently, the package managers are not able to predict inconsistencies like the one

in Figure 5 since they take into account only information about package dependencies

and conﬂicts. The metamodel reported in Figure 4 gives the possibility to specify an

abstraction of the involved maintainer scripts which are executed during the package

upgrades. This way, consistence checking possibilities are increased and trustworthy

simulations of package upgrades can be operated.

4.3 Log Metamodel

The metamodel depicted in Figure 6.a underpin the development of a transactional

model of upgradeability that will allow us to roll-back long upgrade history, restor-

ing previous conﬁgurations. In particular, the metaclass Transaction in Figure 6.a

refers to the set of statements which have been executed from a source conﬁguration

leading to a target one. For instance, according to the sample log model in Figure 6.b,

the installation of the package libapache-mod-php5 modiﬁes the ﬁle system (see

the statement afss1 which represents the addition of the ﬁle f1) and updates the

Apache conﬁguration (see the element upss1).

(a) (b)

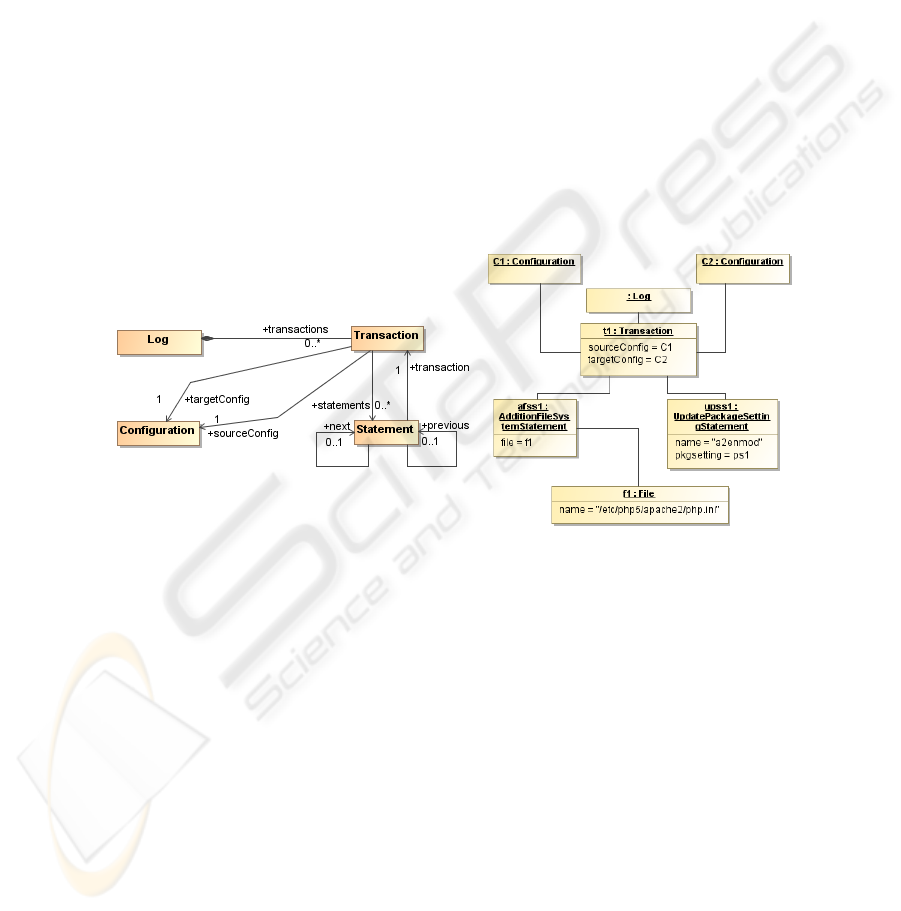

Fig. 6. a) (part of) Log metamodel, and b) Sample Log model.

The usefulness of log models like the one in Figure 6.b is manyfold and accounts for

several roll-back needs:

(a) Preference Roll-back: the user wants to recover a previous conﬁguration, for

whatever reason. For instance, the user is not in need of PHP5 anymore and wants to

remove the installed package libapache-mod-php5. In this case, the conﬁguration

C1 can be recovered by executing the dual operation of each statement in the transaction

between C1 and C2. Note that the log models have all the information necessary to roll-

back to any previous valid conﬁguration not necessary a contiguous one;

(b) Compensate Model Incompleteness: as already discussed, upgrade simulation is

not complete with respect to upgrades, and undetected failures can be encountered while

deploying upgrades on the real system. For instance, the addition of the ﬁle php.ini

during the installation of the package libapache-mod-php5 can raise faults be-

cause of disk errors. In this case we can exploit the information stored in the log model

130

to retrieve the fallacious statements and to roll-back to the conﬁguration from which the

broken transaction has started.

grades. In fact, it is possible as well to avoid simulation and have metamodeling super-

vise upgrades to detect invalid conﬁgurations as soon as they are reached. At that point,

if any, log models comes into play and enable rolling back deployed changes to bring

the system back to a previous valid conﬁguration.

The log metamodel will play a key role in the deﬁnition of tools and algorithms to

keep track of the evolution of the system and to revert the system to previous (working)

states and retrieve it in an efﬁcient way.

5 Related Works

The main difﬁculties related to the management of upgrades in FOSS distributions de-

pend on the existence of maintainer scripts which can have system-wide side-effects,

and hence can not be narrowed to the involved packages only. In this respect, proposals

like [20, 21] represent a ﬁrst step toward roll-back management. Both proposals exploit

re-creation of removed packages on-the-ﬂy, so that they can be re-installed to undo an

upgrade. However, such approaches can track only ﬁles which are under package man-

ager control, therefore they cannot undo maintainer script side effects.

An interesting proposal to support the upgrade of a system, called NixOS, is pre-

sented in [22]. NixOS is a purely functional distribution meaning that all static parts of

a system (such as software packages, conﬁguration ﬁles and system boot scripts) are

expressed as pure functions. Among the main limitations of NixOS there is the fact that

some actions related to upgrade deployment can not be made purely functional (e.g.,

user database management). Moreover, NixOS solution poses security concerns due to

the fact that “garbage collection” of shared library (implemented to ensure no dangling

library references can exist) makes hard ensuring that no security ﬂawed versions of a

library which is being ﬁxed stay around.

[23] proposes an attempt to monitor the upgrade process with the aim to discover

what is actually being touched by an upgrade. Unfortunately, it is not sufﬁcient to know

which ﬁles have been involved in the maintainer scripts execution but we have also

to consider system conﬁguration, running services etc., as taken into account by our

metamodels. Even focusing only on touched ﬁles, it is not always possible to undo an

upgrade by simply recopying the old ﬁle

Finally, this work can be related with techniques for static analysis of scripting lan-

guages. Some previous work [24] deals with SQL injection detection for PHP scripts,

but it did not consider the most dynamic parts of the PHP language, which are quite

common in shell script languages. Whereas, [25] presents a mechanism to detect argu-

ment arity bugs in shell scripts, but once more only considers a tiny fragment of the

shell language. Both works hence are far even from the minimal requirement of deter-

mining a priori the set of ﬁles touched by script execution, letting aside how restricted

This argument goes far beyond the scope of this work, see [7] for a more in-depth discussion

of the topic.

131

were the considered shell language subsets. Given these premises, we are skeptical that

static analysis can fully solve the problems illustrated in this work.

6 Conclusions and Future Works

In this paper we presented a model-driven approach to manage the upgrade of FOSS

distributions. This approach represents an important advance with respect to the state

of the art in the following directions: it provides the base on which developing features

to(i) support the roll-back of failed or unwanted upgrades, and (ii) simulate the execu-

tion of upgrade runs (including maintainer script behaviors) that we described in terms

of models. A running example showed how the proposed models allow a reasonable

description of the state of the system and representation of its evolution over time.

As future work we plan to implement these results and to develop a transactional

update engine in the real context of Debian and Mandriva distributions. Moreover, the

metamodels proposed in this paper will be the foundation to deﬁne a new Domain Spe-

ciﬁc Language (DSL) for maintainer script speciﬁcations.

References

1. Spinellis, D., Szyperski, C.: How is open source affecting software development. IEEE

Computer, 21 (1), (2004) 28 - 33.

2. Noronha Silva, G.: APT howto. (http://www.debian.org/doc/manuals/apt-howto/) (2008).

3. Niemeyer, G.: Smart package manager. (http://labix.org/smart) (2008).

4. Apache maven project. (http://maven.apache.org/) (2008).

5. Szyperski, C. Component Software. Beyond Object-Oriented Programming. Addison-

Wesley (1998).

6. Szyperski, C. Component technology: what, where, and how? In: Proceedings of ICSE03,

ACM (2003).

7. Di Cosmo, R., Trezentos, P., Zacchiroli, S.: Package upgrades in FOSS distributions: Details

and challenges. In: HotSWup’08. (2008) To appear.

8. Cousot, P. Abstract interpretation. ACM Computing Surveys 28(2) (2006).

9. Mancinelli, F., Boender, J., Cosmo, R.D., Vouillon, J., Durak, B., Leroy, X., Treinen, R. Man-

aging the complexity of large free and open source package-based software distributions. In:

ASE 2006, Tokyo, Japan, IEEE CS Press (September 2006) 199 - 208.

10. EDOS Project Report on formal management of software dependencies. EDOS Project

Deliverable D2.1 and D2.2 (March 2006).

11. Treinen, R., Zacchiroli, S.: Description of the CUDF format. Mancoosi project deliverable

D5.1 (November 2008).

12. Jackson, I., Schwarz, C.: Debian policy manual. (http://www.debian.org/doc/debian-policy/)

(2008).

13. Tucker, C., Shuffelton, D., Jhala, R., Lerner, S. Opium: Optimal package install/uninstall

manager. In: ICSE ’07, IEEE Computer Society (2007) 178 - 188.

14. Mens, T., Straeten, R.V.D., D’Hondt, M.: Detecting and resolving model inconsistencies us-

ing transformation dependency analysis. In: MoDELS 2006. Volume 4199 of LNCS. (2006)

200 - 214.

15. Cicchetti, A., Ruscio, D.D., Pierantonio, A. Managing model conﬂicts in distributed devel-

opment. In: MoDELS 2008. Volume 5301 of LNCS. (2008) 311 - 325.

16. Schmidt, D.C. Guest Editor’s Introduction: Model-Driven Engineering. IEEE Computer

39(2) (2006) 25 - 31.

17. B

ezivin, J. On the Uniﬁcation Power of Models. SOSYM 4(2) (2005) 171 - 188.

132

18. Di Ruscio, D., Pelliccione, P., Pierantonio, A., Zacchiroli, S. Metamodel for describing

system structure and state. Mancoosi Project deliverable D2.1 (January 2009).

19. Dolstra, E., Hemel, A. Purely functional system conﬁguration management. In: USENIX’07,

San Diego, CA (2007) 1 - 6.

20. Olin Oden, J. Transactions and rollback with rpm. Linux Journal 2004(121) (2004) 1.

21. Trezentos, P., Di Cosmo, R., Lauriere, S., Morgado, M., Abecasis, J., Mancinelli, F., Oliveira,

A. New Generation of Linux Meta-installers. Research Track of FOSDEM 2007 (2007).

22. Dolstra, E., L

oh, A. NixOS: A purely functional linux distribution. In: ICFP. (2008) To

appear.

23. McQueen, R. Creating, reverting & manipulating ﬁlesystem changesets on Linux. Part II

Dissertation, Computer Laboratory, University of Cambridge (May 2005).

24. Xie, Y., Aiken, A. Static detection of security vulnerabilities in scripting languages. In:

USENIX-SS’06. (2006) 179 - 192.

25. Mazurak, K., Zdancewic, S. Abash: ﬁnding bugs in bash scripts. In: PLAS ’07, ACM (2007)

105 - 114.

133
