MASTERING (VIRTUAL) NETWORKS

A Case Study of Virtualizing Internet Lab

∗

Chen Avin, Michael Borokhovich and Arik Goldfeld

Communication Systems Engineering Department, Ben-Gurion University of the Negev, Beer-Sheva, Israel

Keywords:

Virtual Labs, Networking Labs, Open-source, Web access, Xen, MLN.

Abstract:

In this paper we describe a single-server-based system we developed for a large scale networking laboratory.

The system, based on virtual machines, is capable of running many concurrent virtual networks, each consist-

ing of PCs, routers and switches, that can be connected in various conﬁgurations. Lab users can initiate and

switch lab experiments with a simple web-based interface and remotely access each of the network devices for

conﬁguration and measurements, therefore, users can perform the lab either in a 30 students lab session with

a TA or from home at their convenience. In addition, administration tools are simple and most failures can be

recovered using a web interface. This cost effective system is based on Linux and other open-source/freeware

software and was proven to be very effective in practice in the last two years.

1 INTRODUCTION

In the course of educating computer, electrical and

communication systems engineers the role of com-

puter networks laboratory, and in particular Internet

laboratory is very important. The design and im-

plementation of a successful lab is very challenging,

since the basic feature of such a lab is to facilitate a

complex communication infrastructure between many

and different networking devices. Moreover, lab users

should be able to establish different network topolo-

gies and to have full control (i.e., ”root access”) over

the devices. Clearly, the design of lab experiments

(by course instructor) is limited by the infrastructure

constrains that the lab can support.

Solutions and approaches to networking labs

evolved over the years, but the two basic ones are

simulations lab and physical lab. Simulations-based

labs, such as at (Wang et al., 2004) enjoy the ability

to execute large scale and complex experiments, as

well as the cost-effectiveness of the system. On the

down side, these labs are based on network simula-

tors (i.e., NS2, OMNeT++, OPNET) and by deﬁnition

cannot fully capture the interaction between real net-

work devices. Physical based labs

such as in (Liebe-

∗

a paraphrase on the book title ”Mastering Networks:

An Internet Lab Manual” (Liebeherr and Zarki, 2003).

laboratories that consist of real hardware devices.

herr and Zarki, 2003) give an excellent platform to ex-

perience networking scenarios, but are obviously lim-

ited by their cost, accessibly and space. For example,

in (Liebeherr and Zarki, 2003), a lab is limited by its

size (four PCs, four routers and four Hubs). More-

over, it is not realistic to assume that a school will

afford to have so many lab stations (see Figure 1) for

a course, which signiﬁcantly reduces the lab availably

for students. Recently, larger physical based lab sys-

tems (Emulab, 2008) were developed, but these sys-

tems are still very costly and complex to implement

and administer.

Another approach that is gaining popularity in re-

cent years is virtualization or virtual labs (F

abrega

et al., 2002; Kuczborski, 2005; Ramalingam, 2007;

Stockman, 2003; Wang et al., 2004). Virtualization

is referring to a hardware platform and software that

enables it to run many isolated and independent op-

erating systems i.e. virtual machines. This approach

makes possible to run many network devices on a sin-

gle computer

We take this direction and in this paper present a

case study of the virtual network laboratory we de-

veloped and successfully exploited for almost two

years. The basic idea behind the lab was to imple-

ment the lab book ”Mastering Networks: An Internet

Lab Manual” (Liebeherr and Zarki, 2003) into a vir-

tual lab. Our system is based on a single hardware

server that accommodates all virtual machines, open-

250

Avin C., Borokhovich M. and Goldfeld A. (2009).

MASTERING (VIRTUAL) NETWORKS - A Case Study of Virtualizing Internet Lab.

In Proceedings of the First International Conference on Computer Supported Education, pages 250-257

DOI: 10.5220/0001974102500257

 SciTePress

source virtualization platform - Xen (Xen, 2008),

open-source virtual networks management software -

MLN (MLN, 2008), our own software tools for the

virtual laboratory management and user-friendly stu-

dents’ interface, and a freeware VNC viewer program

to access the virtual machines from any computer

with Internet access. Our approach incorporates the

beneﬁts of the real hardware laboratory, eliminates al-

most all drawbacks of other alternatives and is very

cost-effective.

The rest of the paper is organized as follows: in

section 2 we presents the main features of our system.

Section 3 gives a user oriented overview of our lab

and Section 4 discuss related work. Section 5 then

describe in detail our hardware and software conﬁg-

uration and we close the paper with some lab experi-

ments examples.

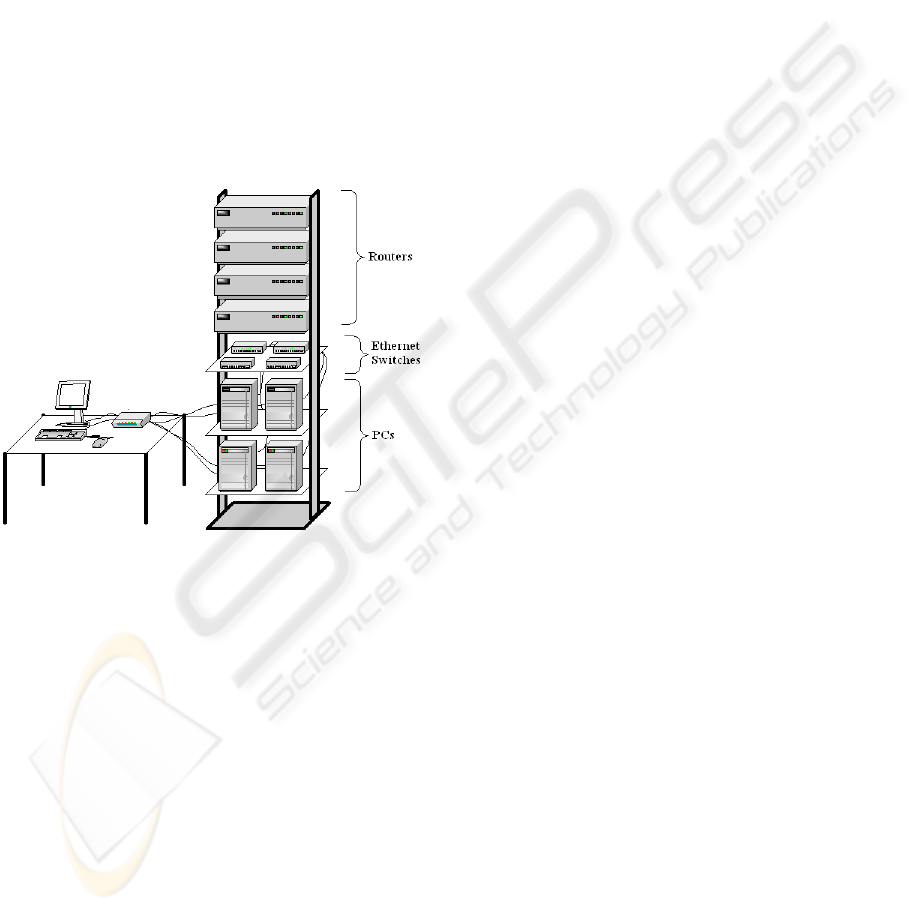

Figure 1: Real Internet Lab equipment from (Liebeherr and

Zarki, 2003).

2 SYSTEM FEATURES

The main features of our virtual networking lab are

summarized bellow:

• System Capacity: our single server system sup-

ports the parallel running of 60 Virtual PCs (Linux

based), 60 virtual routers (Linux based) and 120

virtual switches. This sums to a total of 240 vir-

tual network devices that can be conﬁgured in ar-

bitrary topologies. Currently we divide these de-

vices into 15 separate NetLabs, each consisting of

four PCs, four routers and 8 switches. To the best

of our knowledge such a large scale single server

virtual system has not been used before.

• System Flexibility: Any network topology of the

above devices can be easily conﬁgured, includ-

ing isolated networks, interconnection of subnet-

works and networks with an Internet access.

• User Remote Access: a user can access and run

the lab from any PC connected to the Internet and

equipped with a standard web browser and a (free-

ware) VNC viewer. System users can select and

activate different lab topologies via a simple web-

based interface. Activating or switching between

the topologies takes about 10 seconds which is

much faster than other approaches (i.e., cables in

real lab or MLN start/stop projects). In addition,

users can access their network devices remotely

via VNC clients.

• Cost and Space Effective: the system is based on

a single $3,000 server; there is no need for many

costly devices that occupy a lot of lab space.

• In-class Instructions: following the above item,

in practice we have a 30 students lab sessions,

where students work in the lab with the help of

a lab instructor. If and when the students need

to complete the labs, they do it in their spare time,

from home or any computer station in the campus.

• Simple System Administration: This includes

simple creation of new network topologies, web-

based activity monitoring and failure recovery

(i.e., start/stop networks devices and labs), and

upgrade of virtual machines (i.e., virtual hardware

changes and installation of new software).

• Open Source/Freeware Software.

• Failure Recovery: users can safely have ”root”

permissions since in case of failure it is easy to

recover the VM (just by replacing the damaged

image). The single server allows for full backup

and redundancy.

3 LAB OVERVIEW

In this case study we implemented the lab to enable

students to run networking experiments taken from

Liebeherr and Zarki book ”Mastering Networks: An

Internet Lab Manual” (Liebeherr and Zarki, 2003).

The book gives a good and detailed set of Internet

labs which require a unit of equipment for each team

of students (in our case students work in pairs). Such

a unit has to include four PC’s, four routers and four

hubs for device interconnection. We call such a set

NetLab. Additionally, working in the real lab re-

quires cables, connectors and a control unit (i.e, KVM

switch, display, etc.). Figure 1 (taken from the book)

illustrates a real NetLab.

MASTERING (VIRTUAL) NETWORKS - A Case Study of Virtualizing Internet Lab

251

Using virtual machines, we created a collection of

NetLabs, each consists of four virtual PCs, four vir-

tual routers and 8 virtual switches

. Ideally, we would

like to grant each team (pair) of students an exclusive

use of a unique NetLab (we distinguish between Net-

Lab by their IDs) during the whole course. But, due to

the hardware and software limitations (described later

in the paper), we couldn’t have more than 15 NetLabs

(or 15*8=120 virtual machines) running concurrently,

so in practice every three pairs share a virtual NetLab

(but at different times). Each NetLab was conﬁgured

as an isolated private network. To enable access from

each network to the real world (mostly for transfer-

ring ﬁles required for lab reports) we added a virtual

FTP server that was connected on one side to all the

NetLabs and on its other side to the Internet. Figure 2

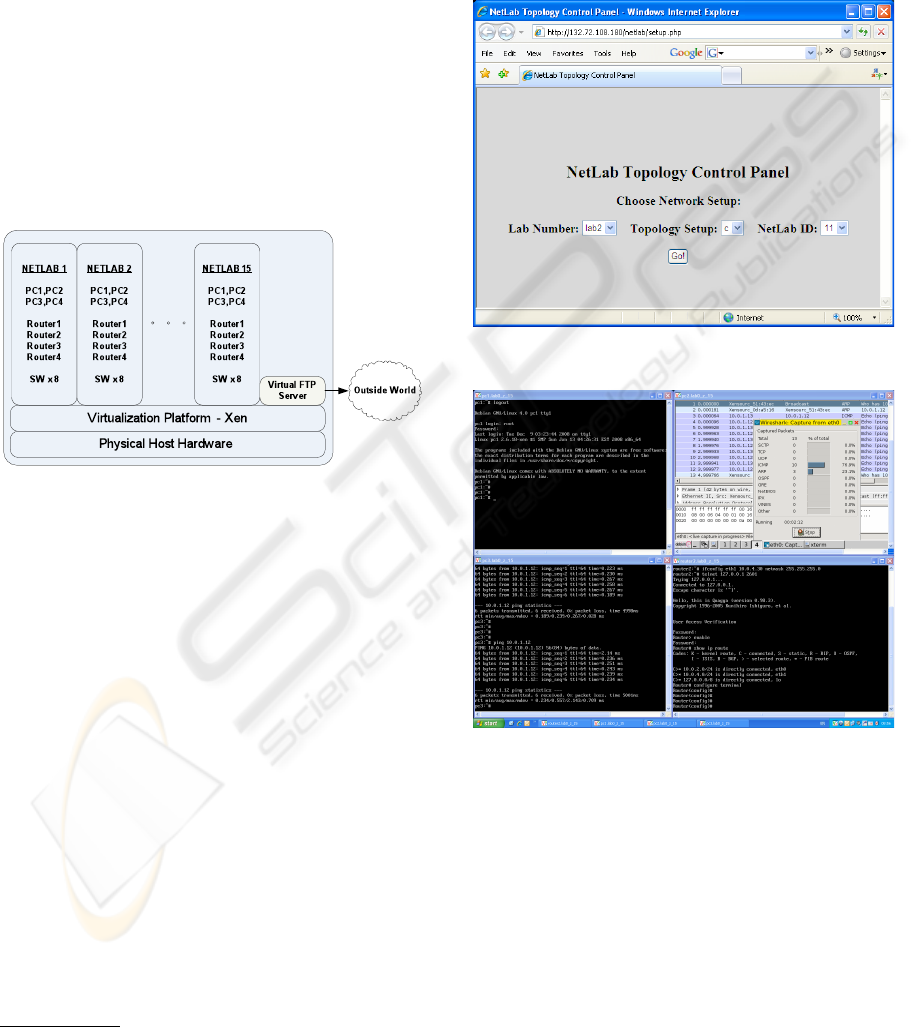

illustrate our virtual labs architecture.

Figure 2: Our virtual lab architecture.

Students/users’ interface to the lab is very con-

venient. By using a web browser, users can choose

and activate the lab experiment and the topology setup

they need to take (single lab experiment can have sev-

eral different topologies). Currently, users can choose

from an existing set of labs supplied by lab admin-

istrators. Due to a new approach that we developed

(describe later) the process of setting new topology

takes about 10 seconds. Previously (e.g., start/stop

machines), the task of changing topologies was very

slow, and actually it was not feasible if a few groups

wanted to change/start topologies in a short time pe-

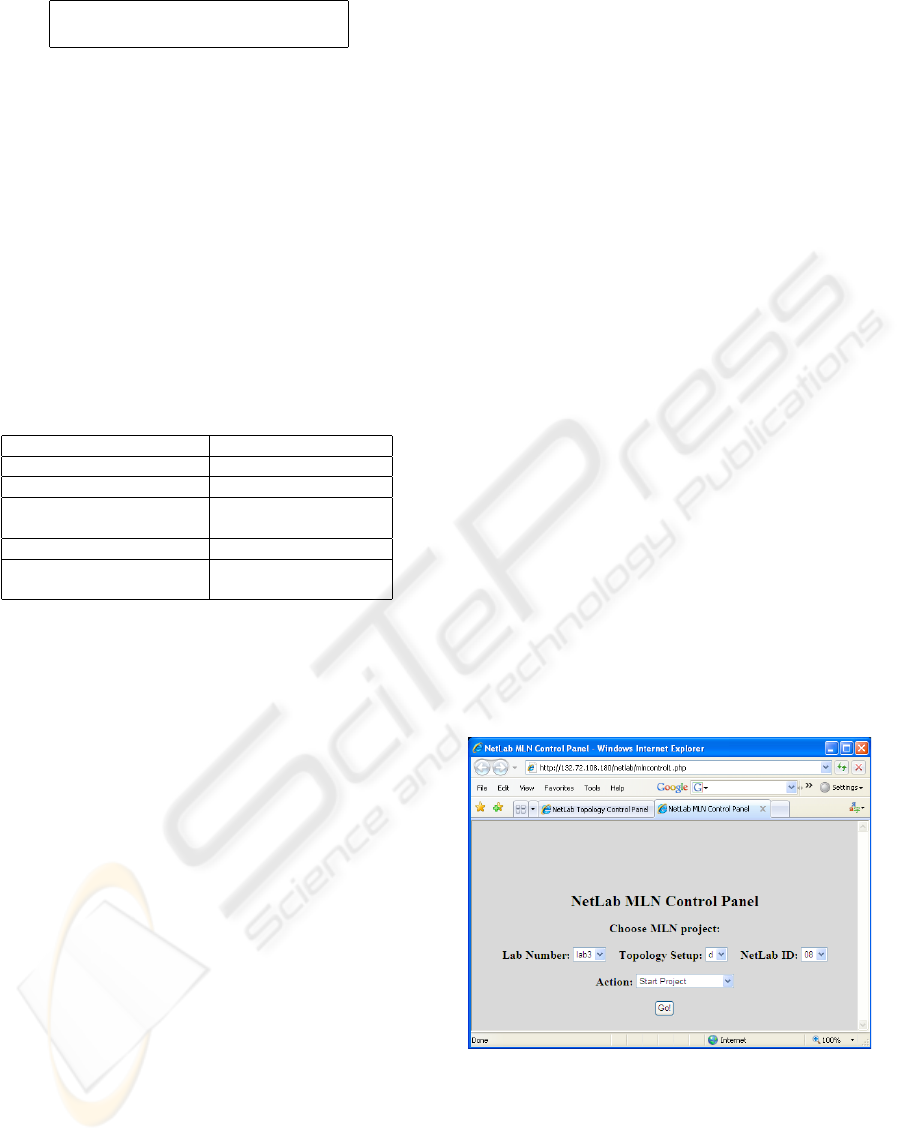

riod (e.g., start of class). Figure 3 is a print screen of

the topology control Web page.

After setting the topology, in order to perform the

lab, students need to access network devices, conﬁg-

ure them, run commands and perform measurements.

We enable access to virtual machines (i.e., PCs and

routers) using a VNC-viewer program which serves

as an input/output to it. Each virtual machine gets a

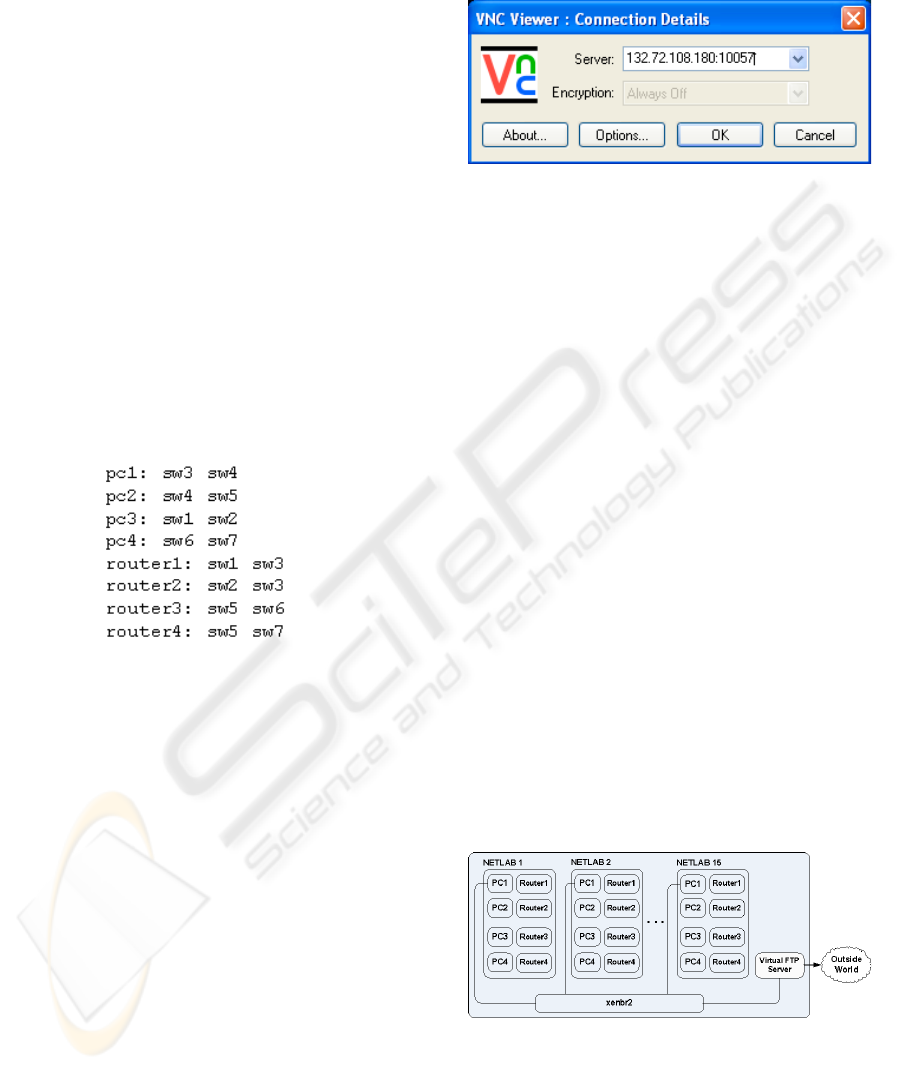

unique VNC display number which must be known

we needed 8 switches instead of four hubs since in

some lab routers are directly connected to PCs.

before accessing the machine. Figure 4 presents an

example of students’ view of the lab: a screen of sev-

eral VNC displays opened in parallel. The top-right

window displays the desktop of a PC that runs soft-

ware for capturing and analyzing network trafﬁc. The

bottom-right window displays the desktop of a router

and shows the conﬁguration process.

Figure 3: Users topology control Web interface.

Figure 4: Users interface to virtual machines.

3.1 Example: Dynamic Routing Lab

The dynamic routing lab, taken from (Liebeherr and

Zarki, 2003), is an example of an advanced network-

ing lab in which students learn and practice routing

protocols used in the Internet. The lab utilizes all

four PCs and four routers and includes experiments

with RIP, OSPF and BGP protocols. During the lab

students explore features, beneﬁts and drawbacks of

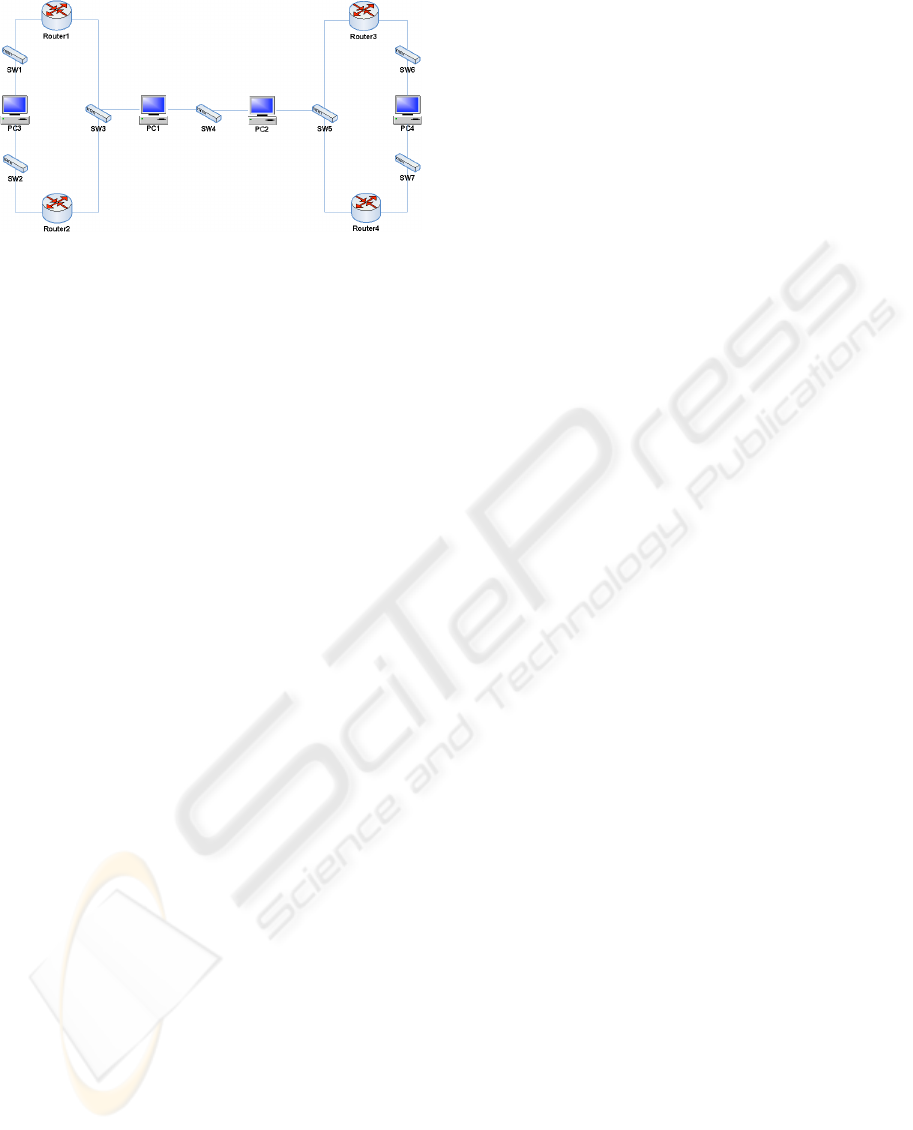

each protocol. Figure 5 describes one of the topolo-

gies used during this lab.

CSEDU 2009 - International Conference on Computer Supported Education

252

Figure 5: Example of dynamic routing lab.

4 RELATED WORK

In this section we present related work done in the

area of computer networks laboratory education.

Real Computer Networks Lab Approach. This

approach was proposed in the Liebeherr and Zarki

book ”Mastering Networks: An Internet Lab Man-

ual” (Liebeherr and Zarki, 2003). There, the labo-

ratory should be equipped with real computers and

routers. The advantage of this approach is that the

students work with a real hardware, connect real ca-

bles. Unfortunately this approach has the following

drawbacks: real hardware is very expensive, it re-

quires a lot of space and sophisticated maintenance.

Moreover, if there is not enough equipment, students

have to do time-sharing on the hardware, hence it is

impossible to perform group lab sessions with instruc-

tor. And, of course, students can’t get the ”root” per-

missions on the real machines because the recovery is

not straight-forward and may take signiﬁcant time.

Simulation Approach. In (Wang et al., 2004) the

authors propose the design model and implementa-

tion method of virtual computer networks lab which

is based on NS2 simulator. There is a single pow-

erful server that utilizes NS2 as computing platform.

The web-based software layer between the user and

NS2 eliminates the trouble of studying the NS2 sim-

ulator. User’s can access the lab remotely using the

Java Applet. This approach allows students to con-

struct network scenarios quickly and to study differ-

ent networking protocols. The drawback of this ap-

proach is that users (students) do not work with real

(or virtual) computers and routers, thus do not learn

how to conﬁgure them.

Virtual Machines Approach. (Kuczborski, 2005)

describes the beneﬁts of virtual machines and virtual

networks for on-campus and distance education, as

well as industry-based training. In the proposed ap-

proach, the VMware or VirtualPC are used as the

virtualization platform. Then, students build their

virtual networks on their computers. This method

have some drawbacks, namely, there is no centralized

server holding all virtual machines, thus the lab main-

tenance becomes difﬁcult. Students must be familiar

with the virtualization software since building virtual

networks is not a trivial task for beginners. Also, the

suggested virtualization software is not a freeware.

Emulab Approach. Emulab (Emulab, 2008) is a

large plant of powerful and expensive computers run-

ning common management software and initially de-

signed for research purposes. The idea of using Emu-

labs for educational purposes is presented in (Laverell

et al., 2008). Until now, Emulabs, were used only for

research purposes, since they are very expensive and

Emulab management software is very complex, thus,

substantial knowledge and experience is required to

deploy it. Once deployed, Emulabs provides an ex-

cellent platform for operating system and network-

ing projects. Emulab management software allows to

build networks and also to deﬁne links type and band-

width. The major Emulabs drawbacks are: expensive

hardware and a very complex maintenance

5 DETAILED SYSTEM

ARCHITECTURE

In this section we present the hardware and software

tools that were used in creating the virtual laboratory.

As mentioned earlier, our system is based on a single

physical server (”the lab server”) with the following

hardware and software parameters.

5.1 Hardware

The lab server is equipped with Intel’s Xeon E5310

CPU which supports hardware assisted virtualization.

This feature is used by the Xen virtualization software

to achieve better performance of the virtual machines.

Hardware assisted virtualization feature allows virtual

machines to access hardware resources directly, thus

improving the performance. Relatively large amount

of RAM is needed since all virtual machines share the

same physical memory. Large amount of hard disk

space is required as well. Hard disk space is used for

virtual machines’ images storage and swap ﬁles, sys-

tem and images backup. Image backup is essential

since an image may be easily damaged by an inex-

perienced user (every user has ”root” permissions on

MASTERING (VIRTUAL) NETWORKS - A Case Study of Virtualizing Internet Lab

253

virtual machines). The lab server hardware speciﬁca-

tions summarized in the Table 1.

Table 1: Lab server hardware.

CPU Intel Xeon 1.6GHz, E5310,

Quad Core

Number of CPUs 2 (8 cores)

RAM 8GB

Hard Disk 250GB

Number of Hard Disks 4

5.2 Software

The lab server’s software consists of the following

main components:

5.2.1 Virtualization Platform - Xen

Xen is an open-source software layer that runs di-

rectly on the server’s hardware and enables it to run

many isolated and independent operating systems, i.e.

virtual machines. Since we use Xen paravirtualization

(for better performance) rather than full virtualization,

we must use ported versions of hosting and guest op-

erating systems. The version currently in use is Xen

3.1, though we are planning to move to the version

Xen 3.3.

5.2.2 Hosting Operating System

The main operating system that controls the lab server

is called hosting operating system or Dom0 (i.e.

domain 0). This OS is a Debian Linux 4.0 with

2.6.18-xen kernel supporting SMP - Symmetric Mul-

tiprocessing (technology in which each CPU core is

treated as a single processor and all cores share the

same main memory). This OS was chosen mainly be-

cause MLN best runs on it.

5.2.3 Virtual Machines’ Builds

The virtual machine images were initially created dur-

ing the MLN build process. All of them - routers

included - are based on Debian Linux 4.0 template.

Additional software packages were subsequently in-

stalled to accommodate for the lab needs. Each vir-

tual machine is assigned 64M RAM out of server’s

physical memory.

• Quagga routing suit. Quagga is a software pack-

age that provides static and dynamic routing ca-

pabilities and has Cisco IOS-like command line

interface. Working with Quagga-equipped Linux

machine is similar to working with Cisco router.

• Packet-tracing software: Tcpdump, WireShark

5.2.4 Virtual Machines’ Management

For managing virtual machines we use open-source

software package called MLN - Managing Large Net-

works. MLN allows to create easily sets of virtual

machines (called MLN projects) and to connect them

into a network. MLN is developed and maintained by

Kyrre Bergnum of the Oslo University College. MLN

uses an original high-level language to describe vir-

tual networks. It is easy to create the desired number

of network interfaces for each virtual machine using

MLN. It also provides scripts for starting and stop-

ping the whole project or each separate virtual ma-

chine. Figure 6 presents an example of MLN code

that creates a simple network (i.e., MLN project) of

virtual machines with the topology of Figure 7.

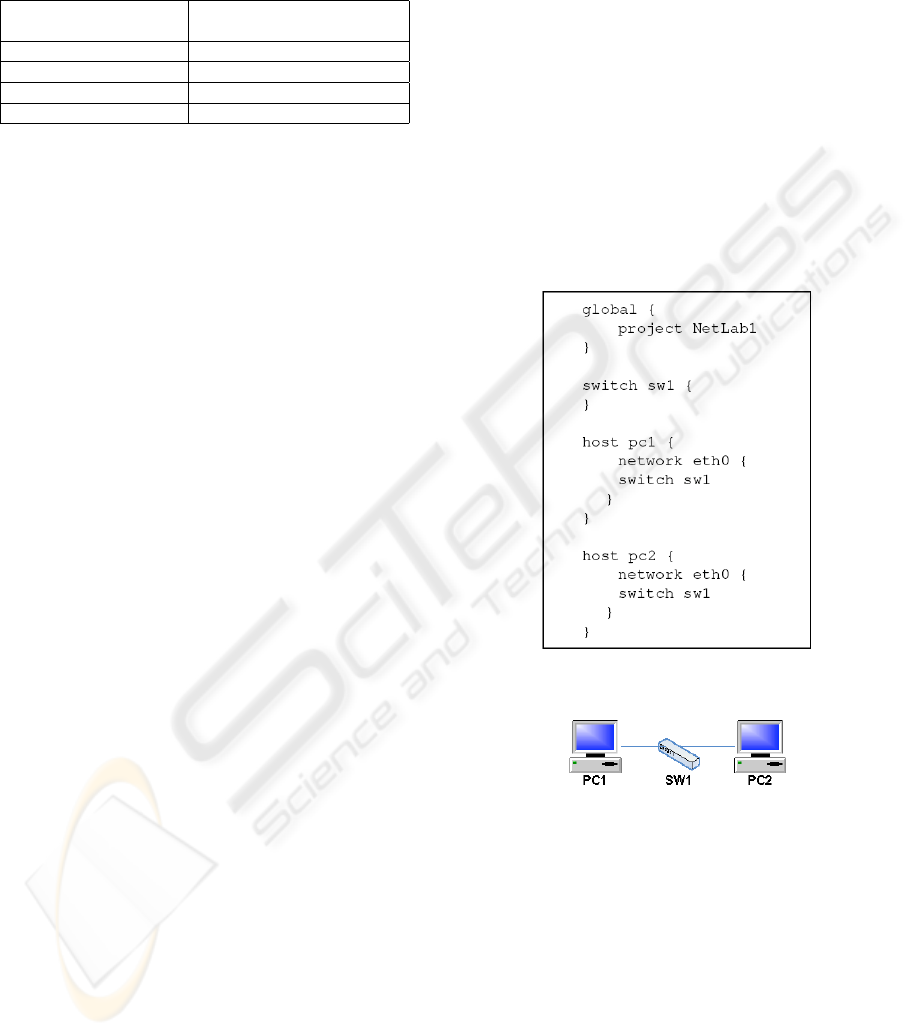

Figure 6: MLN code example.

Figure 7: Network topology corresponding to the conﬁgu-

ration on Figure 6.

5.2.5 Bridge Utils

Bridge Utils is a necessary software package when

working with Xen. This package allows creation and

management of virtual Ethernet bridges/switches that

are used to interconnect virtual machines. Following

is an example of disconnecting one virtual machine

(machine with domain number 57 and network inter-

face number 0) from a virtual switch ”sw1” and con-

necting the same network interface to another virtual

switch - ”sw2”.

CSEDU 2009 - International Conference on Computer Supported Education

254

brctl delif sw1 vif57.0

brctl addif sw2 vif57.0

Figure 8: Bridge Utils commands example.

5.2.6 Xen VNC Framebuffer

VNC (Virtual Network Computing) software was

chosen to provide an access method to the virtual ma-

chines and routers. Fortunately, Xen has an integrated

VNC server (xen-vncfb), which allows direct connec-

tion to the virtual machines’ desktops. The alternative

is to run a VNC server on each virtual PC and router

and conﬁgure every one of them with real IP address,

which is unrealistic, given the number of machines

and routers we employ. The lab server software is

summarized in the Table 2.

Table 2: Lab server software.

OS Debian Linux 4.0

Linux Kernel 2.6.18-xen, SMP

Virtualization Platform Xen 3.1

Virtual Network MLN (Managing

Management Large Networks)

Virtual Ethernet Switches Linux Bridge Utilities

Virtual Machines Virtual Framebuffer

Access (VNC Server)

6 LAB DESIGN

This section describes our design of the virtual labo-

ratory, students and administrator’s interfaces and ad-

ditional software tools that were developed for the lab

management.

6.1 Lab Organization

As mentioned earlier in the paper, we refer to the set

of 4 Linux PC’s, 4 Cisco-like routers and 8 Ether-

net switches as NetLab. Using virtualization, we cre-

ated each NetLab as a single MLN project. Ideally

we should have created as many NetLabs as the num-

ber of students teams (in our case they work in pairs),

thus, each team would have a separate NetLab for ex-

clusive use during the whole course. In doing so, we

encountered a problem with Xen limiting the overall

number of virtual machines, no matter what amount

of RAM is installed. Further investigation showed

that, in fact, Xen limits the size of the operating sys-

tem interrupt vector to 256, which results in overall

limitation in the number of block devices it supports.

A block device is a virtual hard disk partition or a vir-

tual network interface card. Each virtual machine or

router has one hard disk partition and two NICs, thus

one NetLab requires 24 block devices. That led to

the maximum of 10 NetLabs running concurrently on

the server. The solution to the problem was to mod-

ify the Xen source code to overcome this limitation.

Namely, we changed the size of the Interrupt Vector

from 256 to 4096 and recompiled the whole source

tree. More minor modiﬁcations were made to opti-

mize Xen performance. Detailed technical descrip-

tion of the changes is out of this paper’s scope. In our

current Virtual Lab setup we have 15 NetLabs running

concurrently on the Lab server (see Figure 2).

6.2 Virtual Networks Management

Building networks with virtual machines can be done

using following two approaches.

6.2.1 MLN Projects

In this approach, each MLN project deﬁnes a virtual

network comprised of Linux PCs, Cisco-like routers,

and Ethernet switches, thus, devices interconnections

are deﬁned in the MLN code. It implies that in order

to change network topology students have to stop the

current MLN project (eight virtual machines) and to

start a new one. We developed a user-friendly web-

based interface (written in PHP), which performs the

required operations (i.e. starts, stops and checks the

status of the required MLN project). Figure 9 illus-

trates the interface of MLN projects management.

Figure 9: Web interface for managing MLN projects.

6.2.2 Network Topology Management

Under a heavy load (120 virtual machines), starting

and stopping MLN projects takes considerably long

time, thus, an alternative way of changing network

topology was designed. It is using Linux ”Bridge

MASTERING (VIRTUAL) NETWORKS - A Case Study of Virtualizing Internet Lab

255

Utils” in conjunction with our custom-developed soft-

ware. ”Bridge Utils” commands allow to discon-

nect a virtual machine from one switch and connect

it to another one easily and efﬁciently, without need

to restart the NetLabs. In such a manner we can

always keep our NetLabs ”on air” all the time and

change the topology (VMs’ interconnections inside

each NetLab) using ”Bridge Utils”. Although this

solution seems to be suitable, it requires student’s

knowledge of ”Bridge Utils” commands which is not

mandatory at this stage of education. To overcome

this and to shorten the lab setup times, we developed

a user-friendly web-based interface (written in PHP),

which performs the required operations (i.e. sets the

required NetLab topology). Figure 3 illustrates the

interface of topology changing using ”Bridge Utils”.

The management software uses the conﬁguration ﬁles

to create desired network topology. We have prepared

the whole set of conﬁguration ﬁles which describe ev-

ery network topology we use. Figure 10 is an example

of a conﬁguration ﬁle corresponding to the topology

shown in Figure 5.

Figure 10: Topology conﬁguration ﬁle for the network of

Figure 5.

As our experience shows, the ”Bridge Utils”-

based method of topology change is much more efﬁ-

cient than the MLN-based, and hence is almost solely

used for network topology management. MLN is used

only to create new virtual machines images and to

startup/shutdown the NetLabs.

6.3 Lab Access (Lab Interface)

6.3.1 Students

Students’ interface to the lab is very convenient. They

can access each virtual machine in their NetLab from

every computer class using a VNC-viewer program.

They also can access the virtual machines’ desktops

from any Internet-connected computer running VNC

viewer. VNC display serves as input and output inter-

face to the virtual machine. Each virtual machine has

a unique VNC display number which is assigned to it

during the build process of the MLN project. Figure

11 bellow describes the way students connect to their

virtual desktops:

Figure 11: Connecting to virtual machine.

Students also can set the desired network topology

using the web-based interface presented in Figure 3.

6.3.2 Administrators

In addition to the lab interfaces available for students,

lab administrators/instructors have an ability to easily

manage MLN projects via the above-mentioned web-

based interface (see Figure 9).

6.4 Interacting with the Outer World

When performing the experiments, students are re-

quired to save various data as ﬁles (e.g. packet trace

log ﬁles or PC’s routing table) to be used in lab re-

ports. Since all the virtual networks are isolated from

the outside world due to security considerations, there

is no trivial way out. For this purpose we designed the

following solution. Another virtual machine called

”Virtual FTP server” was created on the lab server

and equipped with two network interfaces. One of

them is connected to the special internal virtual net-

work, and the other one to the outside world (with a

real IP address). This special network consists of the

”Virtual FTP server” and all PC1 of all the NetLabs.

In such manner, each NetLab has a way out. Figure

12 illustrates the idea.

Figure 12: Conﬁguration with Virtual FTP Server.

CSEDU 2009 - International Conference on Computer Supported Education

256

7 LAB EXAMPLES

During the course the students are exposed to differ-

ent network topologies, explore routing and transport

protocols, learn to work with different networking

tools. Now we will present some experiments per-

formed by students during the course. Most of the

experiments are based on the book ”Mastering Net-

works”. Since it is written with the real laboratory

in mind, changes were made to the proposed experi-

ments to adapt for the virtual environment.

Single Segment IP Network. In this lab students

make their ﬁrst steps working with computer net-

works. They study how to conﬁgure IP addresses, test

communication between devices and use sniffers.

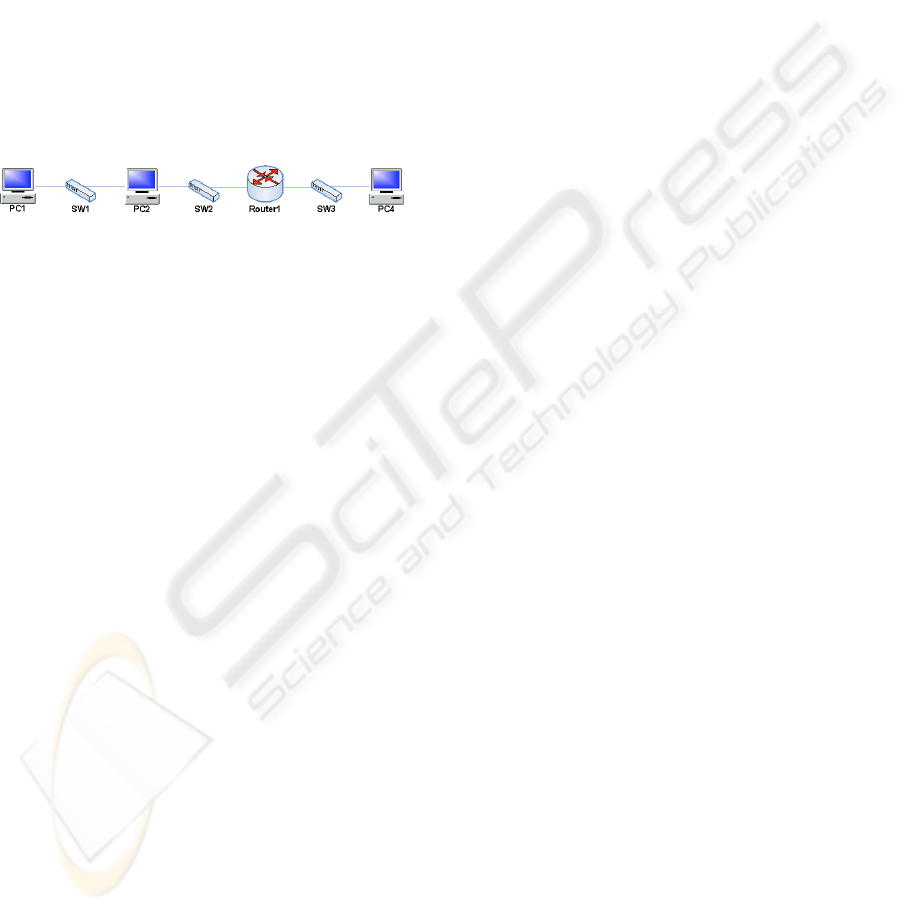

Figure 13: One of the topologies for static routing lab.

Static Routing. During this lab students become

familiar with routers. They learn how to conﬁgure

Cisco-like router, gain knowledge of such concepts as

routing table, default gateway, subnet, and network

mask. Figure 13 describes one of the topologies used

in this lab.

Other Experiments. There are also other experi-

ments that we performed in this lab:

• Dynamic Routing (RIP, OSPF, BGP)

• Multicast (IGMP, PIM, SSMPING, ASMPING)

• Transport Protocols (UDP, TCP along with its

mechanisms for ﬂow and congestion control)

8 CONCLUSIONS AND FUTURE

DIRECTIONS

In this paper we presented a virtual computer net-

works laboratory based on a single server. The ad-

vantages of it are the cost and space saving, energy

saving, simple lab administration, ﬂexible network

topologies. We’ve exploited this lab for almost two

years and students’ feedbacks were very positive and

encouraging. As our future work, we are considering

to scale up the system by using more then one server

and to develop even more ﬂexible user interface for

network topologies construction. In addition, we are

planning to develop many more lab experiments in the

near future.

REFERENCES

Emulab (2008). http://www.emulab.net.

abrega, L., Massaguer, J., Jov

e, T., and M

erida, D. (2002).

A virtual network laboratory for learning ip network-

ing. In Caspersen, M. E., Joyce, D., Goelman, D., and

Utting, I., editors, ITiCSE, pages 161–164. ACM.

Kuczborski, W. (2005). A computer network laboratory

based on the concept of virtual machines. World

Transactions on Engineering and Technology Educa-

tion, 4(1):7–10.

Laverell, W. D., Fei, Z., and Grifﬁoen, J. N. (2008). Isn’t

it time you had an emulab? In SIGCSE ’08: Pro-

ceedings of the 39th SIGCSE technical symposium

on Computer science education, pages 246–250, New

York, NY, USA. ACM.

Liebeherr, J. and Zarki, M. E. (2003). Mastering Networks:

An Internet Lab Manual. Addison-Wesley Longman

Publishing Co., Inc., Boston, MA, USA.

MLN (2008). Manage large networks.

http://mln.sourceforge.net/.

Ramalingam, D. (2007). Practicing computer hardware

conﬁguration and network installation in a virtual lab-

oratory environment: A case study. Frontiers in

education conference - global engineering: knowl-

edge without borders, opportunities without pass-

ports, 2007. FIE ’07. 37th annual, pages F3G–21–

F3G–24.

Stockman, M. (2003). Creating remotely accessible ”virtual

networks” on a single pc to teach computer network-

ing and operating systems. In CITC4 ’03: Proceed-

ings of the 4th conference on Information technology

curriculum, pages 67–71, New York, NY, USA. ACM.

Wang, J., Peng, B., and Jia, W. (2004). Design and imple-

mentation of virtual computer network lab based on

ns2 in the internet. In Liu, W., Shi, Y., and Li, Q.,

editors, ICWL, volume 3143 of Lecture Notes in Com-

puter Science, pages 346–353. Springer.

Xen (2008). http://www.xen.org/.

MASTERING (VIRTUAL) NETWORKS - A Case Study of Virtualizing Internet Lab

257
