ONLINE EXERCISE SYSTEM

A Web-Based Tool for Administration and Automatic Correction of Exercises

Daniel Baudisch, Manuel Gesell and Klaus Schneider

Embedded Systems Group, University of Kaiserslautern, P.O. Box 3049, 67653 Kaiserslautern, Germany

Keywords:

CAT, CAL, Computer aided teaching, Computer aided learning, Online Exercise System (OnExSy), Web-

based exercise tools, Submission, Automatic correction.

Abstract:

We describe OnExSy, our online exercise system that allows our students in computer science to submit their

solutions to exercises via a web form. The system is not only able to automate the administration of the student

accounts as done by many other comparable systems. In addition, our system is even able to automatically

check the correctness of the submitted solutions and is able to provide a counterexample in case the solution

is wrong. This feature is provided by modern formal veriﬁcation tools that have also been developed in our

research group. As a result, our tutors do not waste time for checking the correctness of the solutions of many

students, and instead, can spend the saved time for an individual support of students. Moreover, the tool is

available not only during the time when lectures are held, but also during holidays which is very important for

the ﬁnal preparation of the exam.

1 MOTIVATION

In the Bachelor program in Computer Science at the

University of Kaiserslautern, ‘Computer Systems 1&

2’ is one of the required courses of the ﬁrst two

semesters. This course covers the basic principles

of computer systems, especially the design of digital

hardware circuits, the design of microprocessors in-

cluding computer arithmetic and assembler program-

ming, and the overall architecture of a computer sys-

tem like the memory hierarchy and peripherals. The

overall number of students in this course is about

200 students each semester including also students of

other disciplines like mechanical engineering.

As most courses of our Bachelor programs, ‘Com-

puter Systems 1& 2’ also offers exercises to provide a

deeper understanding of the topics. The classical ex-

ercises arrogate the students to provide their solutions

on paper that have to be submitted each week. After

the correction of the students’ solutions by a tutor, the

tutor presents the correct solution in the lesson and

may also talk about the students’ solutions and their

mistakes. Usually, the tutor himself is a student in

higher semester.

In the past, we recognized an increasing failure

rate of our students as a growing problem in our de-

partment. This may be traced back to the following

reasons: The Bachelor program has a tight schedule

of courses and the exams have to be passed within

given deadlines. Although exceptions from these

rules are allowed, most students try to meet these re-

quirements. This leads to the fact that less students

have time for jobs as tutors, so that the number of en-

gaged tutors decreases while the number of students

grows. This leads to a reduced individual support of

our students, since the available time per week of the

tutors is consumed by the correction of the submitted

solutions.

A further problem is that a minimal amount of ex-

ercises have to be solved correctly to be able to apply

for the exam in this course. Due to limited time during

the week, it seems that students cheat by copying the

results of other students, which however harms their

preparation of the exam at the end. Detecting copies

of submitted solutions of 200 students everyweek that

are distributed over many tutors can not be done with

reasonable effort.

In this paper, we describe how we support our stu-

dents by improving their individual discussion with

their tutors. Besides providing special courses for

the preparation of the tutors in the future, we have to

make sure that they can spend their time in the really

important tasks, i.e., tasks that cannot be solved by a

computer: The submission of the students’ solutions,

104

Baudisch D., Gesell M. and Schneider K. (2009).

ONLINE EXERCISE SYSTEM - A Web-Based Tool for Administration and Automatic Correction of Exercises.

In Proceedings of the First International Conference on Computer Supported Education, pages 104-110

DOI: 10.5220/0001978801040110

 SciTePress

the distribution to their tutors, and the maintenance

of the students’ accounts are typical tasks that can be

done evenbetter with a computer,and clearly, our tool

OnExSy provides this functionality.

In addition to this, our tool OnExSy is also able

to automatically check the correctness of the submit-

ted solutions and to immediately provide a feedback

to the students in case their submission was wrong.

In many cases, checking the correctness of a solution

is trivial, e.g., if the solution is a simple number. In

other cases, e.g., if the solution is a digital circuit or

a computer program, many correct solutions are pos-

sible, so that we cannot simply check for equality of

a sample solution. Instead, the semantics has to be

checked, which amounts to the automatic veriﬁcation

of programs and circuits. Fortunately, the research

done by our group already considered this problem in

great detail, so that we are happy to use the tools we

originally developed for research also for teaching.

As a result, our tutors now have much more time

to discuss potential problems with the students, since

for most exercises, there is no longer a need for cor-

recting the submitted solutions. This leads to an im-

proved individual support of each student with even

less tutors. Tutors can now even prepare the exer-

cises of the next week instead of only explaining why

a submitted solution was not correct. In many cases,

the feedback of OnExSy was sufﬁcient to solve this

problem.

To get rid of copied solutions, we furthermore

added the feature to OnExSy that each student is

given a different exercise. This is either done by ran-

domly generating an instance of an exercise, e.g. in

computer arithmetic where two binary numbers of a

certain bitwidth are randomly chosen, or by select-

ing an exercise from a data base. Copying a solution

made by another student is therefore no longer pos-

sible (unless the rare case should occur that two stu-

dents were given the same exercise).

The only problem that remains is that we do not

yet check the authentication of the students, i.e., it is

possible that another student provides the solutions.

We do not believe that this is currently the case among

our own students (at least not to a intolerable de-

gree) as already reported by other Universities (Ross,

2005), where even students of other countries have

been paid for submitting online solutions.

Automatic correction of exercises is also done by

some other tools used in other areas for teaching like

CalMæth (CalMæth, 2008). Clearly, there already

exist a lot of tutoring tools starting with small tools

for speciﬁc problems, e. g. JADE (Java Decision Dia-

gram Package) (JADE, 2003), and ending with com-

plex user interfaces for online learning that intent to

provide ﬂexible support of questionnaires, e. g. Lec-

turnity and Dynamic Power Trainer from IMC (im-

c.de, 2008). Inspired by these tools and our goal men-

tioned above, we decided to implement a compact and

modular exercise system that is capable of

• creating individual exercises for each student to

get rid of copied solutions

• online (web-based) submission of the students’

solutions

• automatically checking the correctness of submit-

ted solutions with immediate feedback, e.g. by

counterexamples

• training tools to solve further exercises for prepar-

ing the ﬁnal exam.

Concerning the latter point, we specify a maximal

number of trials for each exercise. If this number of

trials is exceeded, the sample solution is presented.

Note, that these tools are not intended to replace

the course or even the lecturer. Instead, these tools

are used to complement and guide the preparation for

the ﬁnal exam by providing 24h a day the opportunity

for our students to train themselves on the required

exercises.

The remainder of this paper is structured as fol-

lows: Our group developed two independent tool sets

to achieve the mentioned goals. The ﬁrst tool set is

named Online Exercise System (OnExSy) and is de-

scribed in the next chapter. This section is followed

by the description of the second tool set, which is

called Online Training Tools. Finally, we discuss the

results and experiences of these tools and close this

paper with a discussion of future enhancements.

2 ONLINE EXERCISE SYSTEM

The Online Exercise System (OnExSy) is a modular

system that consists of a user interface and a collec-

tion of programs, which are necessary to create ran-

domized exercises and to check provided solutions.

OnExSy is built of independent modules (single sub-

sequent tools). The modularity of OnExSy is one

of the main features, keeping the system manageable

and simplifying its extensibility for the future.

In the following, we describe OnExSy’s modules,

i.e., its user interface followed by a short description

of the underlying programs.

2.1 User Interface

The user interface is the main part of OnExSy that

provides the fundamental functions to run the sys-

tem and to connect it to the graphical user interface,

ONLINE EXERCISE SYSTEM - A Web-Based Tool for Administration and Automatic Correction of Exercises

105

Webbrowser

Student

OnExSy

optional sam-

ple solution

Individual Exercises

Points

Submissions

Student’s Data

Cfg File

Scripts, e.g.

Online

Trainer Tools

Lecture dependant data

Location: Server

submission, ask

for results, . . .

exercises–,

submission–formulars

select according

to CGI Parameter

store submissions and

points and manage

individual exercises

to check the

students

solutions

Figure 1: An overview of our Online Exercise System.

i. e. the web browser, and to the server. The basic

functions implemented in the user interface are listed

below and will be explained later in more detail.

• The registration of students including a fair distri-

bution to tutorials (if more than one date is avail-

able) with an external program.

• The system also publishes the group assignments

on a web page.

• It assigns new (individual) exercises to the stu-

dents.

• Furthermore,the user interface checks the correct-

ness of submitted solutions by external programs

and the stores the achieved points of the student in

a data base.

• Finally, it provides statistics of submitted solu-

tions and achieved points of the students which

can be seen by the tutors (for his class) or by the

student (for his account).

The user interface is based on an Apache web-

server(APA08, 2008). The system was written in

Moscow ML

, so that the system can be ported to dif-

http://www.itu.dk/ sestoft/mosml.html

ferent platforms like Linux, Windows and MacOS.

The registration is necessary to get the students’

personal information like names and matriculation

numbers. If the lecture offers more than one date for

exercise lessons, the student has to choose three dif-

ferent dates with three priorities during the registra-

tion.

To give all students the same chance to get into

their preferred group, the ﬁnal classiﬁcation to the ex-

ercise lessons is done after the registration deadline

by an external program. This program tries to ﬁnd a

satisfying classiﬁcation, i.e. usually, the students can

be classiﬁed to their ﬁrst or second selected exercise

lessons. The result of this classiﬁcation is also dis-

played by the system.

Each lecture that offers exercises has a conﬁgu-

ration ﬁle that contains a description of its exercises.

This includes descriptions for all exercise sheets and

all exercises. A description for an exercise sheet can

havea link, e. g. to a PDF ﬁle, a description in HTML

or/and an arbitrary number of exercise descriptions.

Each exercise description consists of an optional link

or/and an HTML description and the description of

the solution checking script. The latter is simply given

CSEDU 2009 - International Conference on Computer Supported Education

106

as a command line. We will describe its functionality

later.

To access the correct data and the available func-

tions mentioned above, the user interface receives via

a CGI interface the parameters deﬁning the lecture,

the semester and the function that has to be executed.

Additionally, one can deﬁne additional CGI parame-

ter, e. g. the language. However, in our implementa-

tion this parameter affects only the user interface, but

basically it is possible to select an exercise with the

speciﬁed language.

Of course, our system supports common exercises

that have to be made by all students. These exercises

can be put in a familiar way like publishing a link

to an electronic version of the exercise sheet or dis-

tributing a printed version. The students calculate the

results of the exercises as usual with paper and pencil

or speciﬁc tools like Hades (Hades, 2007) (a design

tool for digital circuits). Having calculated the results,

the students can submit them via a web page. They

just have to open the link on the corresponding page

of the exercise lesson. In particular, after the student

has opened the exercise site, he is asked for his name

and his matriculation number to login. These infor-

mations are necessary to be entered at the beginning

of the session to enable the assignment of individual

exercises.

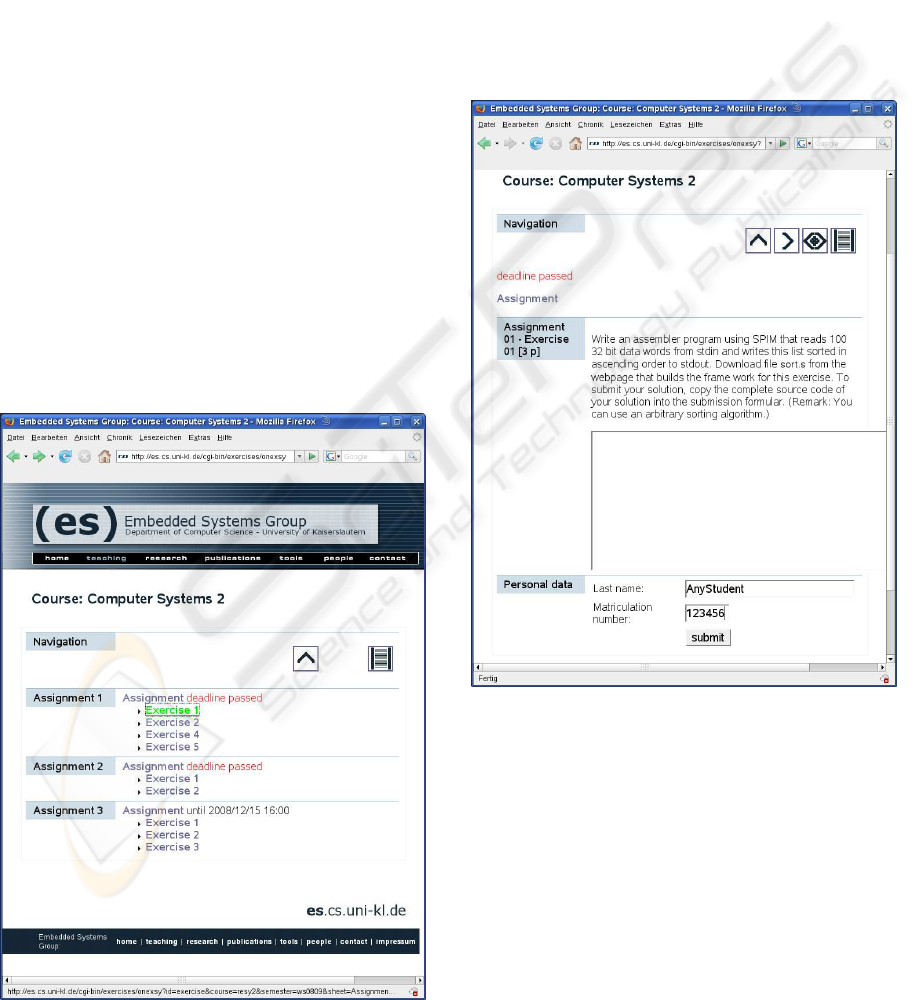

Figure 2: After the login, OnExSy presents an overview of

all assignments.

After the login, the student sees an overview over

the exercise sheets and the exercises (see Figure 2).

After having selected an exercise, the submission

form is opened (see Figure 3). The next step is to

enter the calculated result (see Figure 4). After press-

ing the button for submission, the result is sent to our

server and is automatically checked. The next screen

shows whether the submitted result was correct (see

Figure 5). The result window also shows the output

of the solution checker, e. g. messages like ‘syntax er-

ror’, i.e. the submitted solution was given in a wrong

format, or as can be seen, a counterexample if a sub-

mitted solution was not correct.

Figure 3: The students select an exercise and get the assign-

ment. After having solved the exercise, the student enter

their solutions into a submission form.

The students do not have to submit all exercises

at once. They can even submit the solutions to parts

of an exercise one after the other (at different points

of time). If a solution is not correct, the student can

submit a modiﬁed solution. The number of trials can

be limited by the conﬁguration program, but can also

be set to inﬁnity. Furthermore, it is important to know

that all given solutions are stored and will not be over-

written by subsequent ones. In particular, correct sub-

missions will not be invalidated by incorrect or empty

ones.

ONLINE EXERCISE SYSTEM - A Web-Based Tool for Administration and Automatic Correction of Exercises

107

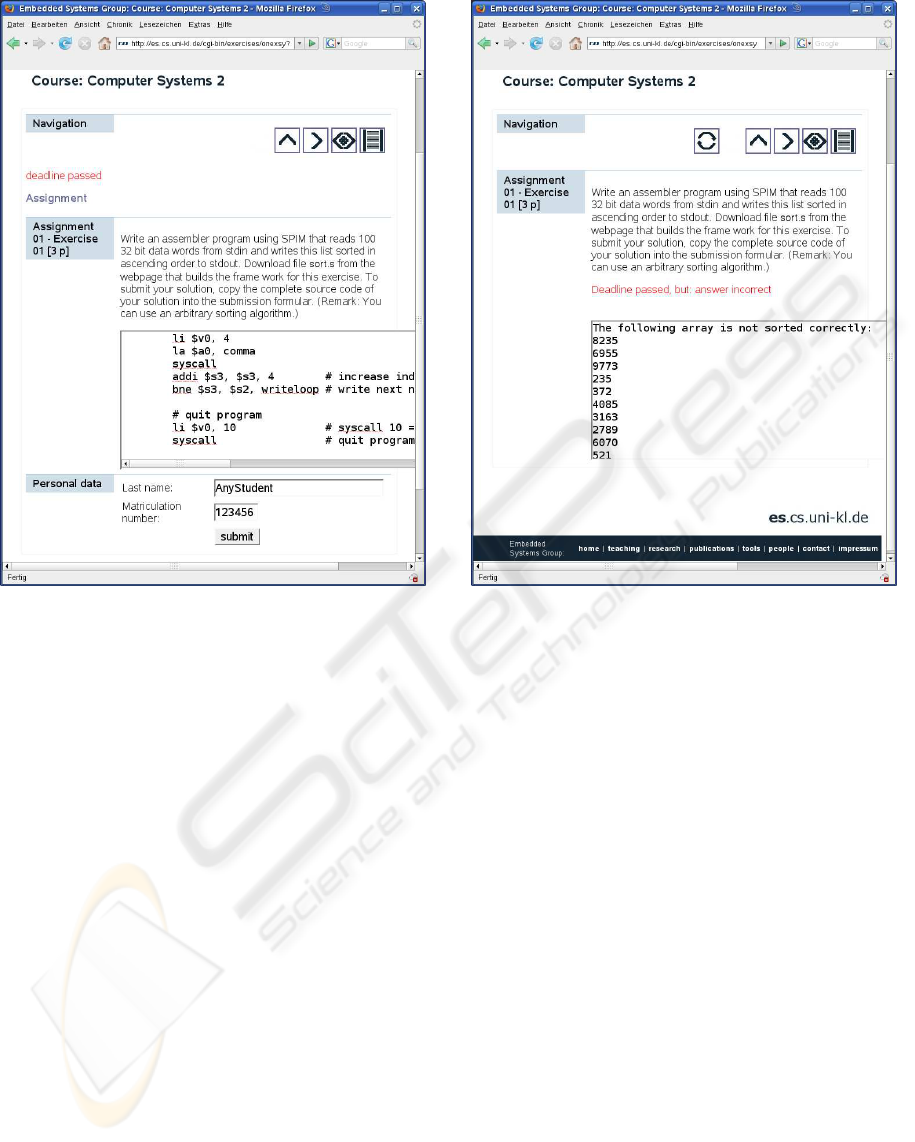

Figure 4: Students can also copy complete source code into

the submission form.

However, in the last semester, we experienced that

quite a lot of students reached nearly 100% of the

points of the online exercises, but nevertheless failed

in the ﬁnal written exam. We believe that they copied

the solutions of other students, which is very simple

via email and other means of communication.

We reacted in two ways to this experience: First,

we reorganized the classical procedure of exercise

lessons. Instead of working out the sample solution of

the previous exercise sheet, we focus more on prepar-

ing the solution of the next exercise sheet. In particu-

lar, the tutors are instructed to give useful hints and -

most important - to clarify the exercises to avoid mis-

understandings.

Second, OnExSy supports individual exercises for

every student that are randomly generated. To this

end, we can assign a particular program for each sub-

mission form that generates an exercise. When the

user interface of OnExSy is instructed to dynamically

generate the submission form for the selected exer-

cise, it checks the conﬁguration ﬁle for an exercise

generator program. If no task has been created for

the selected exercise, yet, the program is executed

and a task is created. The information about the task

is stored in the student’s directory that is located on

the server (see Figure 1). So he can go ofﬂine, work

Figure 5: The solution is checked and the result is re-

turned. In this case, the submitted solution was not correct

and the student gets a counterexample. Remark: if the an-

swer is correct and given within the determined deadline,

the achieved points are granted.

out the solution for the given task and whenever he

logs in again, he can submit the solution of the pre-

viously stored exercise. After the correct solution has

been submitted, or if the number of trials has been

exceeded and no correct solution has been submitted,

the generator program is called again and a new task

is created. Independent of the result, the sample so-

lution for the old task is given. Hence, we give the

students the opportunity to check and to compare their

solutions with a sample solution. Furthermore, we of-

fer to train a speciﬁc type of exercise arbitrarily often

without having any effort for the correction of these

solutions.

2.2 Programs

The solution programs and the generator programs

are independent of OnExSy’s user interface. Hence,

OnExSy is a ﬂexible system with a solid user interface

that can be extended by arbitrary solution checker and

generator programs. The whole system can be ex-

tended to any kind of exercise that can be checked by

a computer. Clearly, every exercise that has a canoni-

CSEDU 2009 - International Conference on Computer Supported Education

108

cal solution can be automatically checked. However,

even though many correct solutions could exist, it is

still possible to check the correctness of these exer-

cises by means of formal veriﬁcation tools. As an ex-

ample, we veriﬁed digital hardware circuits for com-

puter arithmetic that have been submitted by the stu-

dents.

Note that ‘veriﬁcation’ does not mean ‘testing’.

Instead, veriﬁcation of a program checks that the pro-

gram behaves according to the speciﬁcation (given in

the exercise) for all possible input traces. Using state-

of-the-art veriﬁcation tools based on symbolic model

checking (Burch et al., 1990), it is possible to explore

very large state spaces within some seconds, so that an

immediate feedback to the student can be given (the

circuits and programs required by the exercises are

small enough to allow this immediate response). In

our own research, we developed a synthesis and ver-

iﬁcation system (AVEREST, 2008) whose core tech-

niques are now also used for teaching. The use of

formal veriﬁcation is a key feature of OnExSy that

enables both automatically checking the correctness

of solutions and the generation of counterexamples in

case a solution should be wrong.

A positive side effect of applying solution check-

ing programs to the students’ solutions is the equal

quality level for each student. While the correction by

persons may naturally differ between different tutors,

OnExSy provides a fair treatment for all students.

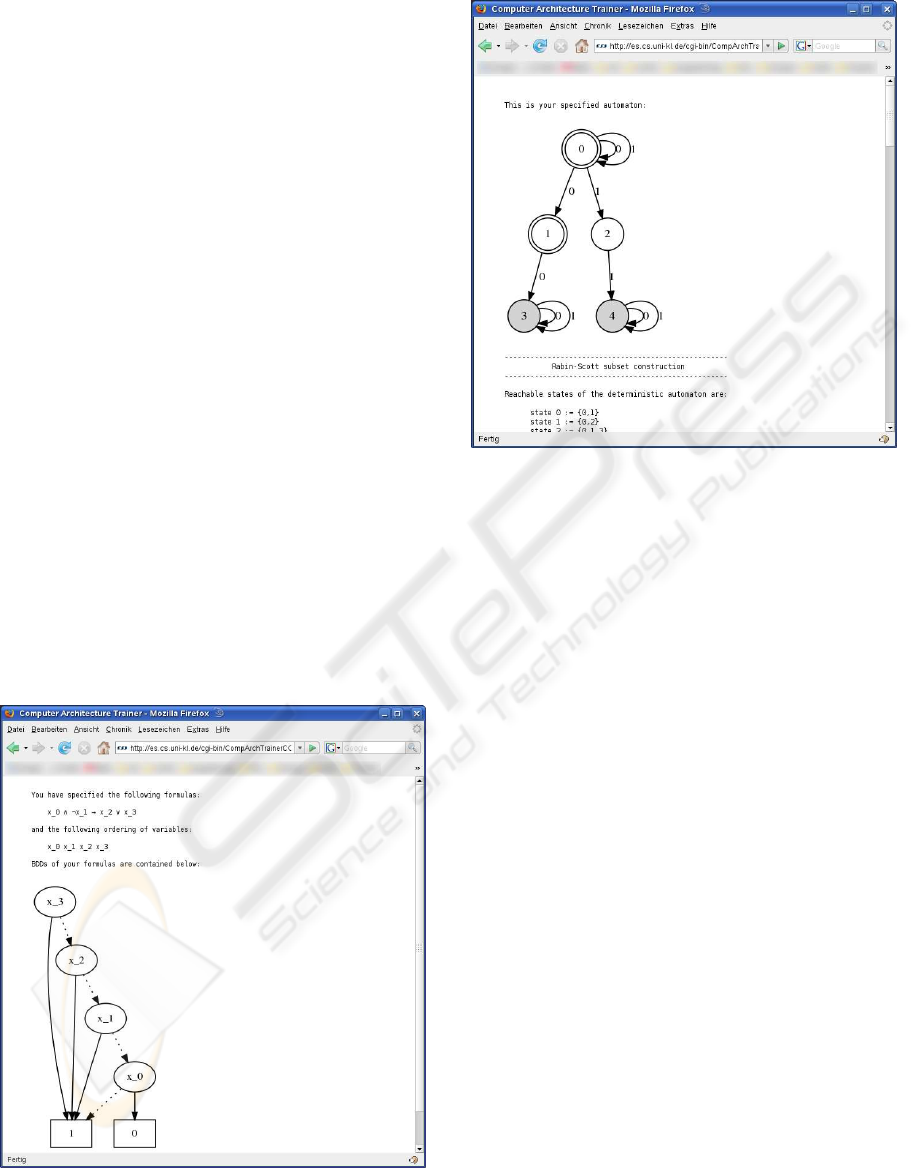

Figure 6: The Online Training Tool generated a BDD out of

an user-deﬁned propositional formula.

Figure 7: The Online Training Tool generated an automaton

out of an user-deﬁned description.

2.3 Online Training Tools

OnExSy is complemented with further training tools

that are not used to correct solutions to exercises, but

to allow our students to do some complex calculations

on their own. For example, these tools can be used

to calculate some normal forms like BDDs of a given

propositional formula (see Figure 6), to compute min-

imal disjunctive normal forms, to minimize ﬁnite state

machines (see Figure 7), etc.

The purpose of these tools is that the students can

explore themselves many special cases that can not all

be discussed within the course or the tutorial. More-

over, these tools are an important means for the ﬁnal

preparations for the exams when the lecture time is

over.

3 CONCLUSIONS

We applied our OnExSy to the complete exercises of

‘Computer Systems 1& 2’. The correctness of all sub-

mitted solutions have been automatically checked by

the OnExSy alone without any further effort of our

tutors. After eliminating some initial software prob-

lems, the feedback of the students was mainly posi-

tive. Currently, we are using the OnExSy for two fur-

ther lectures that are also offered by our group. Due to

the topics of these lectures, more complex programs

are required for checking the correctness of the solu-

tions.

ONLINE EXERCISE SYSTEM - A Web-Based Tool for Administration and Automatic Correction of Exercises

109

We experienced another interesting effect: First,

we did not limit the number of trials for an exercise.

Due to this fact, some students tried to guess a solu-

tion instead of trying to solve the problem. One of

our students even tried 417 solutions for one exercise.

Obviously, he wrote a program that simply enumer-

ated all possibilities. The short time intervals of his

submissions noted by our system conﬁrmed this sus-

picion. For this reason, a limitation of the number

of trials became necessary. It forces students to think

about a solution instead of starting a brute force sub-

mission of guesses.

The development of the programs for generating

individual exercises and for checking the correctness

of the solutions required a lot of work. The initial

effort of creating these programs often reaches and

sometimes exceeds the effort that would be necessary

to correct the exercises manually. However, this effort

will be clearly amortized in the near future, and also

leads to a better service for our students.

We intend to improve OnExSy by further features

like tools to generate more statistic analysis of the

submitted solutions. This gives our students individ-

ually information about their success, and moreover

helps us and our tutors to identify particular problems

more quickly than before. This allows us to imme-

diately react in the lecture and the tutorials to clarify

potential misunderstandings.

REFERENCES

APA08 (2008). Apache http server project.

http://www.apache.org/index.html.

AVEREST (2008). Averest - a framework for the speci-

ﬁcation, veriﬁcation, and implementation of reactive

systems. http://www.averest.org/.

Burch, J., Clarke, E., Mcmillan, K., Dill, D., and Hwang,

L. (1990). Symbolic model checking: 10

states and

beyond. In Symposium on Logic in Computer Science,

pages 1–33. IEEE Computer Society Press.

CalMæth (2008). Calmæth.

http://CalMaeth.maths.uwa.edu.au.

Hades (2007). Hades - interactive simulation

framework. http://tams-www.informatik.uni-

hamburg.de/applets/hades/webdemos/index.html.

im-c.de (2008). IMC AG: Learning management system.

http://www.im-c.de/.

JADE (2003). JADE: Java decision dia-

gram package. http://www.informatik.uni-

bremen.de/agra/doc/software/manual/index.html.

Ross, K. (2005). Academic dishonesty and the internet.

Communications of the ACM, 48(10):29–31.

CSEDU 2009 - International Conference on Computer Supported Education

110
