AUTOMATIC GENERATION OF TEST CASES IN SOFTWARE

PRODUCT LINES

Pedro Reales, Macario Polo

Alarcos Group, Dept. of Information Systems and Technologies, U. of Castilla-La Mancha

Paseo de la Universidad/4, 13071, Ciudad Real, Spain

Beatriz Pérez Lamancha

Centro de Ensayos de Software (CES), Institute of Computation,University of the Uruguay Republic

Julio Herrera y Reissig 565, 11300, Montevideo, Uruguay

Keywords: Oracle, Automation, Testing, Test Cases, Software Product Line, Transformation algorithms.

Abstract: This paper describes a method to automatically generate test cases with oracle in software product lines,

where the management of variability and traceability are two indispensable requirements. These character-

istics may be quite useful for the processing and automatic addition of the oracle to test cases, which is one

of the main problems found, not only in the context of software product lines, but also in general testing lit-

erature. The paper describes a simple, but effective, way to deal with this problem, based on annotations to

precode artifacts, metamodelling and transformation algorithms.

1 INTRODUCTION

In the context of Software Engineering, a Software

Product Line (SPL) represents “a set of software-

intensive systems sharing a common, managed set of

features that satisfy the specific needs of a particular

market segment or mission and that are developed

from a common set of core assets in a prescribed

way” (Clements and Northrop, 2002). According to

(McGregor et al., 2002), products in a line are char-

acterized, on the one hand, by their similitude with

respect to common characteristics and, on the other

hand, by the diversity that each product introduces

with respect to the line.

Two development processes are distinguished in

the construction of a line: Domain Engineering,

related to the development of the core assets, and

Product Engineering, related to the implementation

of concrete products. The requirements of the line

are described at the domain level, and will be used at

the product level. Each product is distinguished

from the line in a series of variability points. The

elements proceeding from the line and the particular

characteristics of the product are integrated for

implementing the final products.

This paper presents a method for the automatic

generation of “oracled” test cases in SPL. The idea

starts from the reusing capabilities at the domain

engineering level, whose test cases can be used to

derive test cases for the different products. For this,

maintaining coherence and traceability among the

different artifacts is essential. Several proposals ex-

ist to automate the generation of test cases in prod-

uct line contexts; however, in all of them the prob-

lem of dealing with the oracle is unresolved. Ac-

cording to (Bertolino, 2007), the automatic manipu-

lation and generation of oracles is a central research

line in the testing area, and this work introduces a

meaningful contribution in this respect.

The paper is organized as follows: section 2 de-

scribes some pending challenges with respect to the

oracle and includes a brief revision of some works

related to testing and testing in software product

lines. Section 3 shows and illustrates the product

line construction method. Section 4 describes the

metamodelling aspects of the work. Finally, Section

5 includes some conclusions, lessons learned and

future work.

124

Reales Mateo P., Polo M. and Pérez Lamancha B. (2009).

AUTOMATIC GENERATION OF TEST CASES IN SOFTWARE PRODUCT LINES.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

124-130

DOI: 10.5220/0001983101240130

 SciTePress

2 RELATED WORK

One the main difficulties in software testing research

and which, according to (Bertolino, 2007), consti-

tutes an important obstacle to any advance in its

automation, is the description of the oracle, which is

the mechanism provided to each test case to deter-

mine, after its execution, whether the system under

test passes or fails the test.

(Baresi and Young, 2001) present a wide state of

the art with respect to the oracle problem. Most of

the proposals they analyze consist of the insertion of

instructions in programs which perform any kind of

checking or use formal descriptions of the programs.

However, their writing and maintenance may be so

complex as the writing and maintenance of the self

program.

In her roadmap about testing research, (Harrold,

2000) suggests the use of “precode artefacts”, such

as design or requirements documents, architectural

specifications, state machines etc., a quite stimulat-

ing approach in the context of SPL. In this respect,

several authors have proposed strategies to obtain

test cases from different types of diagrams as

(Basanieri et al., 2002, Offutt et al., 2003)

In (Bertolino et al., 2004) the use cases are

adapted to SPL and the test cases are derived manu-

ally from these. In (Olimpiew and Gomaa, 2006)

test models are created from use cases using activity

diagrams, decision tables and test templates. Related

to test case derivation from sequence diagrams in

SPL, in (Nebut et al., 2003) is proposed a method in

which behavioural test patterns (behTP) are obtained

from high-level sequences which are used to auto-

matically generate test cases specific to each prod-

uct.

In general, the goal of deriving test scenarios and

test cases from state machines, interaction diagrams,

etc. has been significantly researched over the last

years, and important results have been obtained.

However there is a lack of advances in the treatment

of the oracle.

As with some of the reviewed works, our pro-

posal makes it possible to obtain test cases from

interaction diagrams, both at domain and product

engineering. A significant contribution of this work

is the possibility of generating concrete oracles (for

specific products of the line) from some annotations

introduced in the sequence diagrams.

3 DESIGN OF THE PRODUCT

LINE

Following some ideas of the authors mentioned in

the previous section, the product line design starts

with use cases (to represent and describe the re-

quirements) and sequence diagrams (to represent the

scenarios of the use cases). Additionally, sequence

diagrams are annotated with a description of the

states that the instances involved in the diagram

must reach during execution. State descriptions

(which may or may not come from state machines)

will be used later to deal with oracles.

A single example will be used to illustrate the

product line building method and the test case gen-

eration strategy. Later, in Section 0, the metamodels

used to represent the artefacts and the algorithms

applied to execute the transformations will be pre-

sented.

3.1 Use Case Design in a SPL

Let us suppose we need to build a product line to

play different Board games (Trivial, Chess, Ludo,

etc.) with a computer. There will be a games server

which will receive client connections, each one op-

erated by a human player, which takes the game

decisions he/she considers. According to the de-

scription, there exist two systems in this product

line: the client applications (which are communi-

cated with the human player) and the server system

(which interacts with the clients).

For each use case, the classes involved in its

execution are identified and categorized (bounda-

ries, controllers and entities). In this example, one of

the server use cases is Piece movement, which is

executed when the client sends a piece movement to

the server. In order to keep the example simplified,

we assume that two classes are sufficient to manage

this use case: “Game” (an entity class) and “Con-

trol” (an use case controller). As with other devel-

opment methodologies, a textual description of use

cases is given in a template.

Although use cases are not directly used to gen-

erate test cases, work in product lines imposes the

joint and rigorous management of traceability and

variability.

In this respect, several proposals exist to deal

with variability during development, such as (Berto-

lino et al., 2004), who describe the PLUCs (Product

Line Use Cases) that hold the traditional information

of use cases plus the variability to be supported by

the described functionality. They use the labels Al-

AUTOMATIC GENERATION OF TEST CASES IN SOFTWARE PRODUCT LINES

125

ternative (different execution alternatives depending

on the product), Optional (optional executions de-

pending on the product) and Parametric (different

executions depending on the values of other labels).

Thus, two new sections are added to the use case

description template: Scope, to know what products

will include the use case; and Variability, which

defines the variation points and the labels. Event-

flows may be annotated with the labels which will

be defined in this section.

For our work, the labels Alternative and Op-

tional have been redefined, and the Scope label has

been created. The main difference with Bertolino is

that labels are always parameterized with the label

defining the use case scope; in this way, all variation

points depend on the products supported by the use

case.

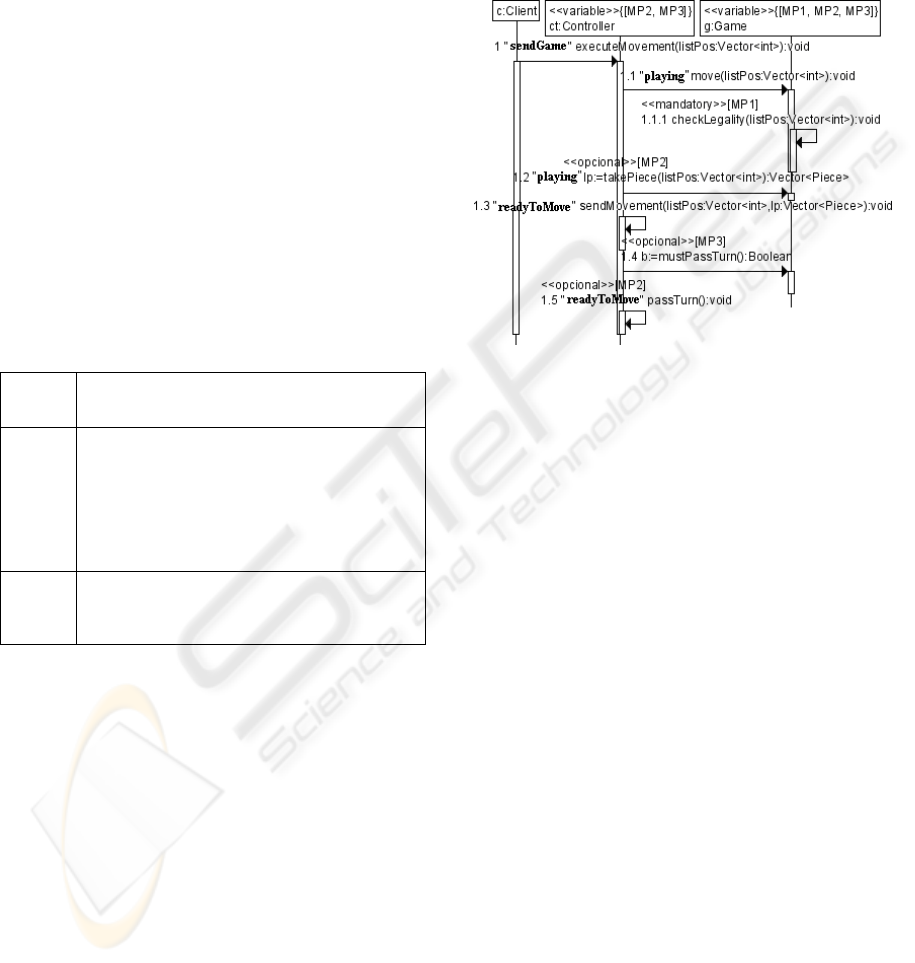

Figure 1 shows the textual description of the

Piece movement use case (for singleness, it only

includes the normal flow of events).

In the example, the Scope section says that the

use case is applicable to any product (as a counter-

example, the use case Dice throwing is not applica-

ble to the Chess product), and the Variability section

define the labels: MP0 denotes the use case scope;

MP1 denotes an alternative piece of functionality

and MP2 and MP3 represent an optional piece of

functionality. Note that labels MP1 to MP3 are ref-

erenced in the description of the normal flow of

events.

3.2 Sequence Diagrams Design in a

SPL

Once the use case has been described in the tem-

plate, the corresponding sequence diagrams are

built, drawing one for each event-flow in the use

case.

In this case, variability may be present both in

messages and objects. Messages may be labelled as

Optional (they appear in some products, but not in

others), Mandatory (they are present in all the prod-

ucts, but their implementation depends on the prod-

uct) and Fixed (they appear in all the products with

the same implementation). If an instance sends or

receives variable messages, the corresponding object

may be also annotated with the Variable label.

3.2.1 State Descriptions for the Oracle

Since sequence diagrams will be the main artefact to

generate test cases, and these will not be complete if

they lack the oracle, some means to represent and

manipulate the oracle is required. For this issue,

when sequence diagrams are constructed, the ex-

pected and relevant states of the objects involved in

the diagram must have been described, and will be

used to annotate the diagram: states are described in

terms of the values of the class attributes and com-

plement the description of the scenarios in the se-

quence diagram: when an object receives a message,

the expected state of the instance is annotated. Thus,

the sequence diagram holds all the information re-

quired to obtain the testing scenarios and the ora-

cles.

The fact of adding this kind of annotation to the

scenario is a very simple idea, but has shown to be

powerful for the further addition of the oracle to test

cases, both at Domain and Product Engineering lev-

els.

State descriptions may also require variability

annotations, since some class fields may appear only

in some products (for example, there are no dice in

the Chess product).

USE CASE

Piece movement

OBJECTIVE

Moving a piece

SCOPE

Any product [MP0]

PRECONDITIONS

The client has the turn

SUCCESS FINAL CONDITION

A piece has been moved

FAILURE FINAL CONDITION

There is no movement

ACTORS

Client

TRIGGER

The client executes the

movement

NORMAL FLOW OF EVENTS

1. The client sends the movement order to control

2. Control passes the movement to game.

3. {[MP1] Game checks the legality of the movement. Cross-

Reference. Legality checking}

4. {[MP2] Control orders game to take a piece (if necessary).

Cross-Reference. Piece taking}

5. Control notifies the movement to the opponents. Cross-

Reference. Update clients.

6. {[MP3] Control asks game if the turn must be passed}

7. {[MP2] Control passes the turn. Cross-Reference. Pass

turn}

VARIABILITY

MP0: [1 of n]. Scope

0 - Chess, 1 – Checkers, 2 – Ludo, 3 – Trivial

MP1:[1 of n]. Choice

If MP0=0

Check the movement is correct according to the moved

piece

If MP0=1

Check the movement is correct in diagonal

If MP0= 3 || MP0=2

Check the final position is coherent with the result of the

dice obtained before the movement

MP2: [0..1 of 1]. Optional

When MP0= 0 || MP0=1 || MP0=2

MP3: [0..1 of 1]. Optional

When MP0= 2

Figure 1: Textual description of Piece movement.

ICEIS 2009 - International Conference on Enterprise Information Systems

126

Table

1 shows the possible states for the Game

class: each state is defined as a function of the class

attributes. For the sake of space, neither the structure

of the class nor the class diagram appear in this pa-

per; however, expecting that field names are repre-

sentative enough to understand the approach and the

example. Thus:

• Initialized has no variability annotations,

since its description (existence of a board, sufficient

number of clients/players and no assignment of the

turn) is common to all the games.

• Two of the six fields of Playing have vari-

ability annotations (<<optional>> stereotypes and

the names of the products/games affected), since the

game state depends on its possibility of taking

pieces.

• In processing Dices, its two fields have vari-

ability annotations, since they are only applicable to

some products of the line (Ludo and Trivial, which

are the two games using dice).

Table 1: Description of the states for the Game class.

Initia-

lized

this.board != null

this.clients.size() < nPlayers

this.pWithTurn == null

Playing this. clients.size() == nPlayers

this.pWithTurn != null

this.movement == null

this.pieceToMove ==nul

this.positionsToTake==-1 <<optional>> {Chess,

Checkers, Ludo}

this.takenPieces==-1<<optional>> {Chess, Check-

ers, Ludo}

Processin

g Dices

this.followeddSix != -1 <<optional>> {Ludo,

Trivial}

this.pointsInDices !=0 <<optional>> {Ludo, Triv-

ial}

3.2.2 Sequence Diagram Drawing

Annotated sequence diagrams can be drawn once

the states have been described.

Figure 2 shows the sequence diagram for the

normal flow of events of the Piece movement use

case. Besides the stereotypes (which indicate the

variable messages and objects) and the variability

labels (with brackets), the significant messages con-

tain the name of the state that the instance should

reach after executing that message: for example,

after the message executeMovement, the

ct:Controller instance should be in the SendGame

state (note that SendGame does not appear in

Table

1, since it belongs to Controller, not to

Game). In the same way, the expected state of Game

after executing the move message is Playing, which

is described in the previous table.

As it can be seen with this example, it is not dif-

ficult to generate the test scenarios from the dia-

gram, neither adding them the suitable annotations

to include the oracle, which proceed from the ex-

pected states.

Figure 2: Sequence diagram for the normal flow, with

variability and state annotations (highlighted).

4 TRANSFORMATION

ALGORITHMS

The only required products for generating the test

cases are the sequence diagrams, conveniently anno-

tated with the state names (which must have been

previously described, such as in

Table

1). The generation of the test scenarios from

the sequence diagrams is made by means of a set of

transformation algorithms which operate over a set

of metamodels. Thus, a specific metamodel exists

for representing sequence diagrams and another one

for representing states.

4.1 Algebraic Descriptions

Metamodels have been designed to be practical and

formal in the sense given by (Broy, 2001), for whom

Software Engineering needs mathematical descrip-

tions for its modelling aspects, description tech-

niques and development methods, which should not

be too complex. In this context, the OMG standard

metamodels for UML are so complete that its com-

plexity makes hard its processing. Thus, we have

defined a set of metamodels with no incidental de-

tails, and with a solid mathematical basis. The fol-

AUTOMATIC GENERATION OF TEST CASES IN SOFTWARE PRODUCT LINES

127

lowing epigraphs describe an overview of the alge-

braic structure of the metamodels

A Sequence Diagram is composed of life lines

and messages:

SD = (LifeLines, Messages), where:

• l ∈ LifeLines = (Name, Class, In-

puts⊆Messages, Outputs ⊆ Messages, Variation-

Points). VariationsPoints is the set of variation

points in the message, which is explained later .

• m ∈ Messages = (Name, Parameters, Return,

Source⊆LifeLines, Target⊆LifeLines, Variation-

Point, State). This definition contains the description

of one message. As it is seen, it also has a Varia-

tionPoint element (which represents the variability

of the instance) and a State. This one is required for

the further addition of the oracle to test cases.

• v ∈ VariationPoints takes one of the values

in {Optional, Alternative}, if v is Optional, it has a

pair (Label, Conditions), which respectively deter-

mine the VP identifier and the set of applicable con-

ditions; if v is Alternative, the pair (Label, Alterna-

tives) represent the VP identifier and the se of alter-

native functionalities.

A State is composed of a set of conditional sen-

tences, which are written in terms of the class attrib-

utes. Thus:

• State = {ConditionalSentence}.

• c ∈ ConditionalSentence = (Expression, Op-

tionalVariationPoint). Expression is the boolean

expression to be evaluated; Optional represents a

removable condition.

According to (Polo et al., 2007), “a Test Tem-

plate is a sequence of operations of the class under

test with no values that must be later combined with

actual test values to generate test cases”. Sequence

diagrams produce test templates, which can be later

processed to obtain actual test cases. Thus:

• TestTemplate = (Builder, TestValues, Calls,

ObjectUnderTest). Builder represents the instruction

that builds the instance and Calls is the set of in-

structions that execute the operations of the Objec-

tUnder Test, which has a name and a class , with the

TestValues.

• Builder = (BuildOperation, InitValues, Ob-

jectUnderTest)..

• tv ∈ TestValues = (Operation, Argument,

Value). A test value has information about the op-

eration, the argument of the operation where it is

applicable.

• c ∈ Calls = (ObjectUnderTest, Operation,

Oracle, OperationValues, VariationPoint). This

definition contains the description of a call.

• Oracle = (ConditionalSentences, ObjectUn-

derTest). Since the oracle is derived directly from

the States, this definition represents a set of condi-

tional sentences related to an object under test.

4.2 Transformation Algorithms

This section describes how to obtain test cases both

for the line as well as for concrete products. The

section is divided into two parts: the first one shows

how to obtain test templates for the line; the second

shows how to obtain test templates for the products

from the test templates of the line.

4.2.1 Test Templates for the Product Line

The algorithm of Figure 3 takes three arguments: the

sequence diagrams of the line (s), the set of test val-

ues (tvs), and the life line (l) corresponding to the

instance under test. The function returns the test

template for the class under test with the corres-

ponding variability.

The algorithm in

Figure 3 uses two auxiliary

functions: getBuilderOperation returns the instance

of Operation corresponding to the construction of

the object under test (objectUnderTest in

Figure 3);

getOperation, which is called several times in

Figure

3, returns one instance of the Operation correspond-

ing to a message in the source sequence diagram.

getTestTemplate(s:SD, tvs:TestValues, l:LifeLine): Test-

Template {

objectUnderTest = (“obtained”, l.Class)

buildOperation= getBuilderOperation(tvs, l.Class)

initValues = ∅

∀ tv ∈ tvs {

If tv.Operation = buildOperation {

initValues = initValues ∪ {tv} } }

builder = (buildOperation, initValues, objectUnderTest)

result : TestTemplate = (builder, tvs, ∅, objectUnderTest)

∀ m ∈ l.Inputs {

If m ∉ l.Outputs {

operation = getOperation(m, l.Class)

oracle = (m.State.ConditionalSentences, objectUnder-

Test)

operationValues = ∅

∀ tv ∈ tvs {

If tv.operation = operation {

operationalValues = operationalValues ∪ {tv} } }

call = (objectUnderTest, operation, oracle, operationVa-

lues, m.VariationPoint)

result.Calls = result.Calls ∪ { call } } }

getTestCase = result }

Figure 3: Getting test templates from a sequence diagram.

Note that both additional functions suppose the

possibility of accessing the set of constructors and

ICEIS 2009 - International Conference on Enterprise Information Systems

128

methods of the class. In practice, this is feasible us-

ing reflective programming and has been used in

other tools we have developed, such as testooj (Polo

et al., 2007, Polo et al., 2008).

4.2.2 Test Templates for Products

The algorithm shown in Figure 4 returns a test tem-

plate for a specific product from a test template for a

line and the product identifier defined as Value. This

uses the auxiliary function getOracleForProduct

that removes the variability of the general oracle of

the line obtained in the algorithm of the

Figure 3.

When we have an instance of our metamodel

(representing an actual sequence diagram), we can

apply the different functions to obtain the test cases

for the line and for the products. If we have the se-

quence diagram of

Figure 2 and a set of test values,

we will be able to apply the algorithm in

Figure 3 to

obtain general test cases for the line.

Then the algo-

rithm in

Figure 4 produces the concrete test templates

for the games (

Table 2).

getProductTestTemplate(t:TestTemplate, p:Value) :

TestTemplate {

result:TestTemplate = (t.Builder, t.TestValues, ∅,

t.ObjectUnderTest)

//The set of messages is ordered.

//We obtain the first message, after the second

//and finally the last message of the sequence diagram

∀ call ∈ t.Calls {

oracle = getOracleForProduct(call.Oracle, PV)

if call.VariationPoint = λ {

productCall = (call.ObjectUnderTest, call.Operation,

oracle, call.OperationValues, λ)

result.Calls = result.Calls ∪ {productCall}

} else if m.VariationPoint = OptionalVariationPoint{

if ∃ c ∈ OptionalVariationPoint.Conditions

| c.Value = p {

productCall = (call.ObjectUnderTest, call.Operation,

oracle, call.OperationValues, λ)

result.Calls = result.Calls ∪ {productCall}

}

}else if m.VariationPoint = AlternativeVariationPoint {

//Since the alternative variation point implies

//modifications in the implementation of the operation,

//simply we have to add the call without variability.

productCall = (call.ObjectUnderTest, call.Operation,

oracle, call.OperationValues, λ)

result.Calls = result.Calls ∪ {productCall}

} }

getTestCaseProduct = result}

Figure 4: Algorithm for transforming a test template of a

product line into a test template for a product.

In these concrete cases, the variability (which

was included in the test templates of the line), has

disappeared since it has been applied to the case of

two concrete products. Note that they have some

differences, including the oracle descriptions (com-

partment at the bottom) which proceed from the

adequate selection of the variability labels. Thus,

Trivial does not include any control of the taken

pieces. The last step is transforming the formal

specification of the test cases in executable source

code (

Table 2), which is carried out by a single algo-

rithm.

Table 2: Source code of two product test cases.

public void test1(){

Pos pos1 = new Pos(“1”, “1”);

Pos pos2 = new Pos(“2”, “2”);

Vector<int> arg1 = new Vector();

arg1.add(pos1);

arg1.add(pos2);

Game obtained = new Game();

o.move(arg1);

assertTrue(

o.clients.size() == nPlayers &&

o.pWithTurn != null &&

o.movement == null &&

o.pieceToMove ==null);}

public void test1(){

Pos pos1 = new Pos(“1”, “1”);

Pos pos2 = new Pos(“2”, “2”);

Vector<int> arg1 = new Vector();

arg1.add(pos1);

arg1.add(pos2);

Game o = new Game();

o.move(arg1);

assertTrue(

o.clients.size() == nPlayers &&

o.pWithTurn != null &&

o.movement == null && o.pieceToMove ==null

o.positionsToTake == -1 &&

o.takenPieces == -1);

o.takePiece(arg1);

assertTrue(o.clients.size() == nPlayers &&

o.pWithTurn != null &&

o.movement == null && o.pieceToMove ==null

o.positionsToTake == -1 &&

o.takenPieces == -1);}

5 CONCLUSIONS

This article has presented an approach to generate

test cases in SPL, based on metamodels and trans-

formation algorithms. The main novelty is the pro-

cedure to include oracle instructions in the final test

cases. The approach requires sequence diagrams

which must be annotated with state descriptions. In

this context, the clear and formal specification of the

system is a stronger requirement than in traditional

development. Due to this, the analysis and design

costs are necessarily higher, but they are almost cer-

tainly compensated for during further steps in the

life cycle.

AUTOMATIC GENERATION OF TEST CASES IN SOFTWARE PRODUCT LINES

129

REFERENCES

Baresi, L. and Young, M. (2001) Dept. of Computer and

Information Science, Univ. of Oregon.

Basanieri, F., Bertolino, A. and Marchetti, E. (2002) In

5th Int. Conf. on The Unified Modeling Lan-

guageSpringer-Verlag. LNCS., pp. 383-397.

Bertolino, A. (2007) In Internation Conference on Soft-

ware EngineeringIEEE Computer Society, pp. 85-103.

Bertolino, A., Gnesi, S. and di Pisa, A. (2004) PLUTO: A

Test Methodology for Product Families, Software

Product-family Engineering: 5th Int.l Workshop, PFE

2003, Siena, Italy, November 4-6, 2003.

Broy, M. (2001) Towards a Mathematical Foundation of

Software Engineering Methods, IEEE Transactions on

Software Engineering, 27, 42-57.

Clements, P. and Northrop, L. (2002) Software Product

Lines: Practices and Patterns, Addison-Wesley,.

Harrold, M. J. (2000) Testing: a Roadmap. In Int. Conf. on

Soft. Eng. ACM, Limerick, Ireland, pp. 61-72.

McGregor, J., Northrop, L., Jarrad, S. and Pohl, K. (2002)

Initiating Software Product Lines., IEEE Software.

Nebut, C., Pickin, S., Le Traon, Y. and Jezequel, J. (2003)

Automated requirements-based generation of test

cases for product families, Automated Software Engi-

neering, 2003. Proceedings. 18th IEEE International

Conference on, 263-266.

Offutt, A. J., Liu, S., Abdurazik, A. and Amman, P.

(2003) Generating test data from state-based specifica-

tions, Software Testing, Verification and Reliability,

25-53.

Olimpiew, E. and Gomaa, H. (2006) Customizable Re-

quirements-based Test Models for Software Product

Lines, Int. Workshop on Soft Product Line Testing.

Polo, M., Piattini, M. and García-Rodríguez, I. (2008)

Decreasing the cost of mutation testing with second-

order mutants, Soft. Testing, Verification and Reliabil-

ity.

Polo, M., Piattini, M. and Tendero, S. (2007) Integrating

techniques and tools for testing automation, Soft. Test-

ing, Verification and Reliability, 17, 3-39.

ICEIS 2009 - International Conference on Enterprise Information Systems

130
